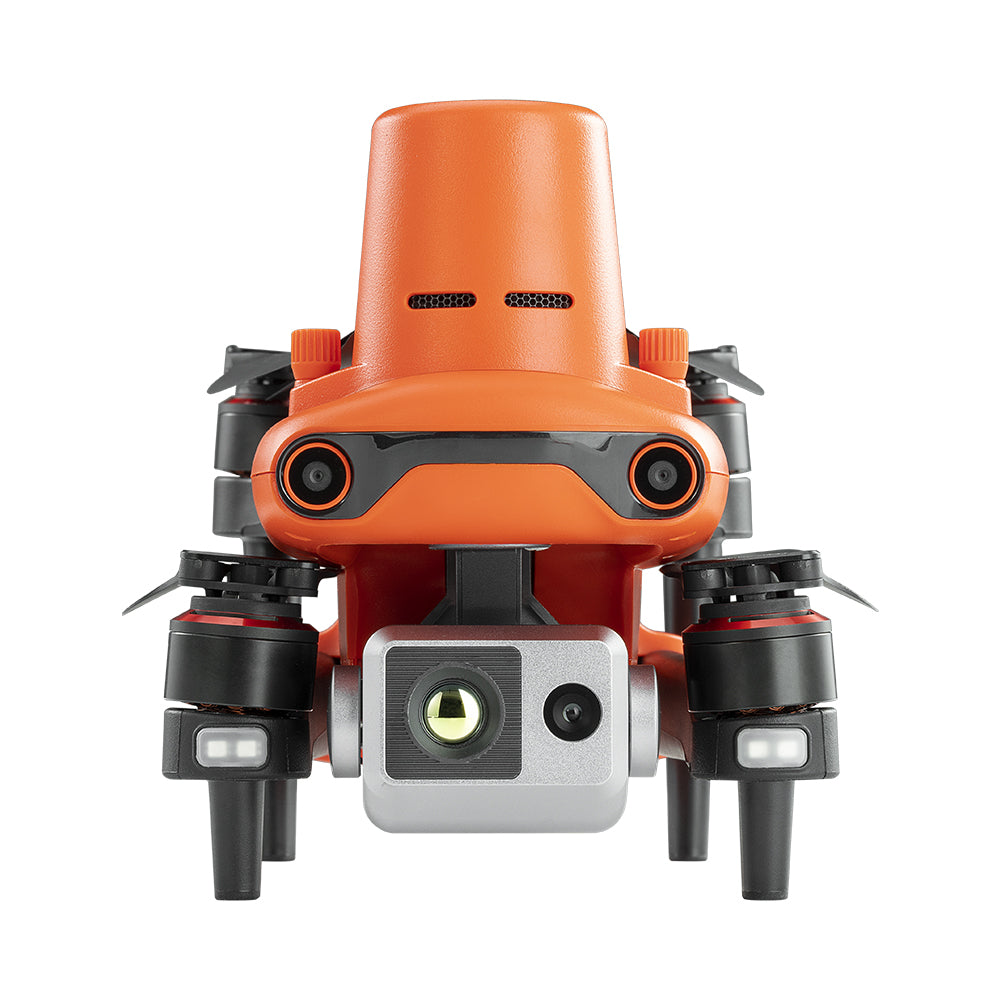

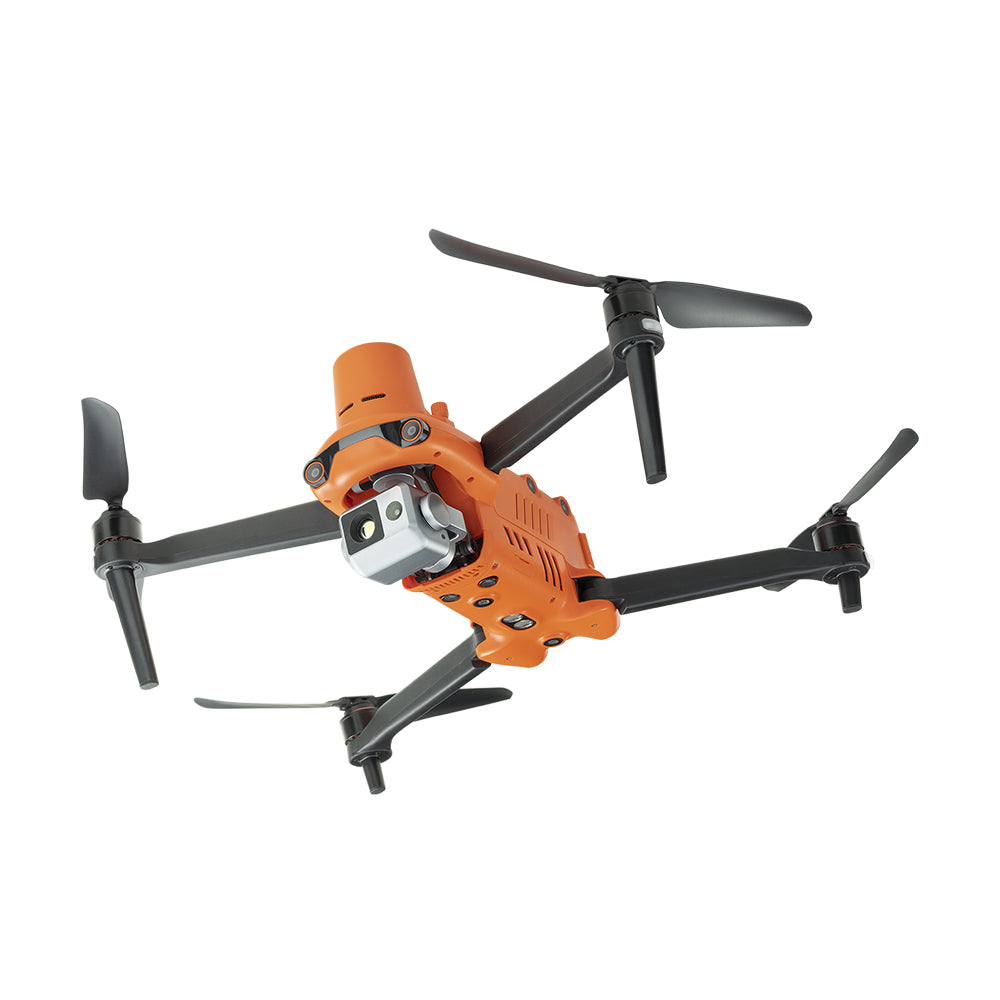

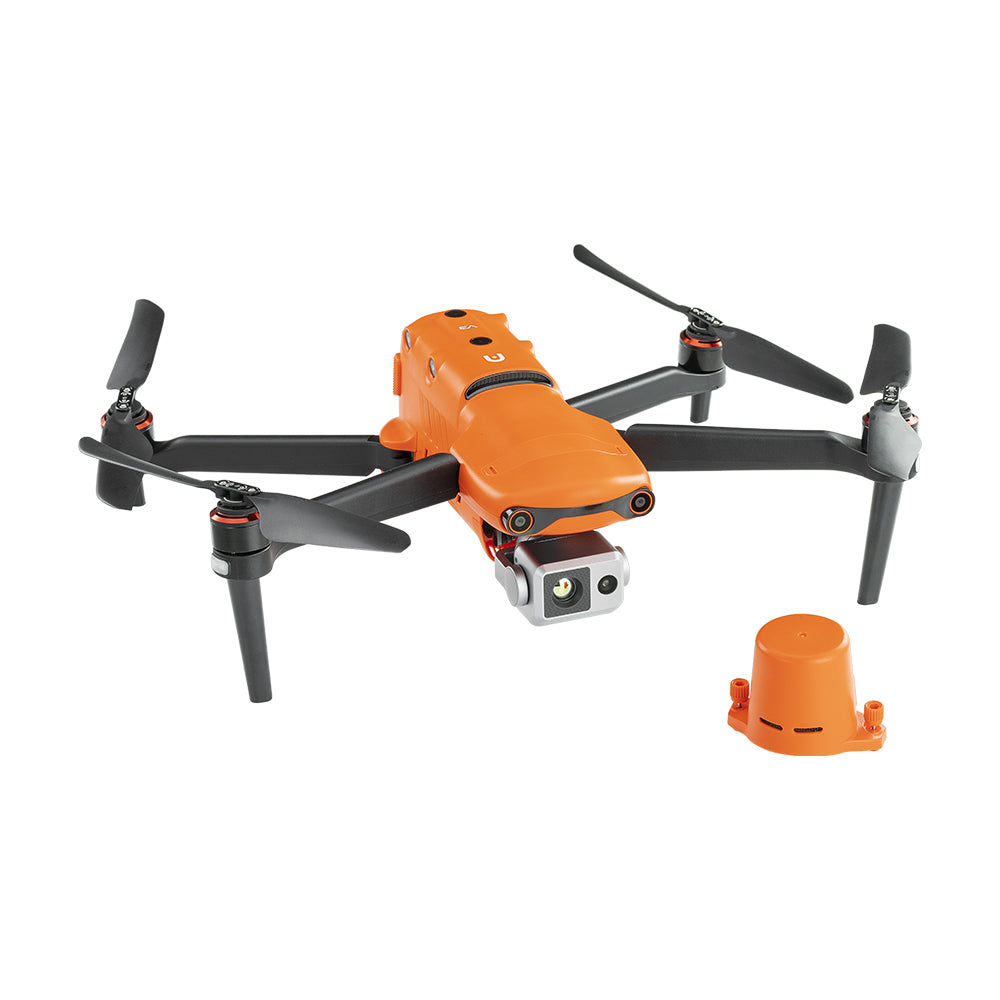

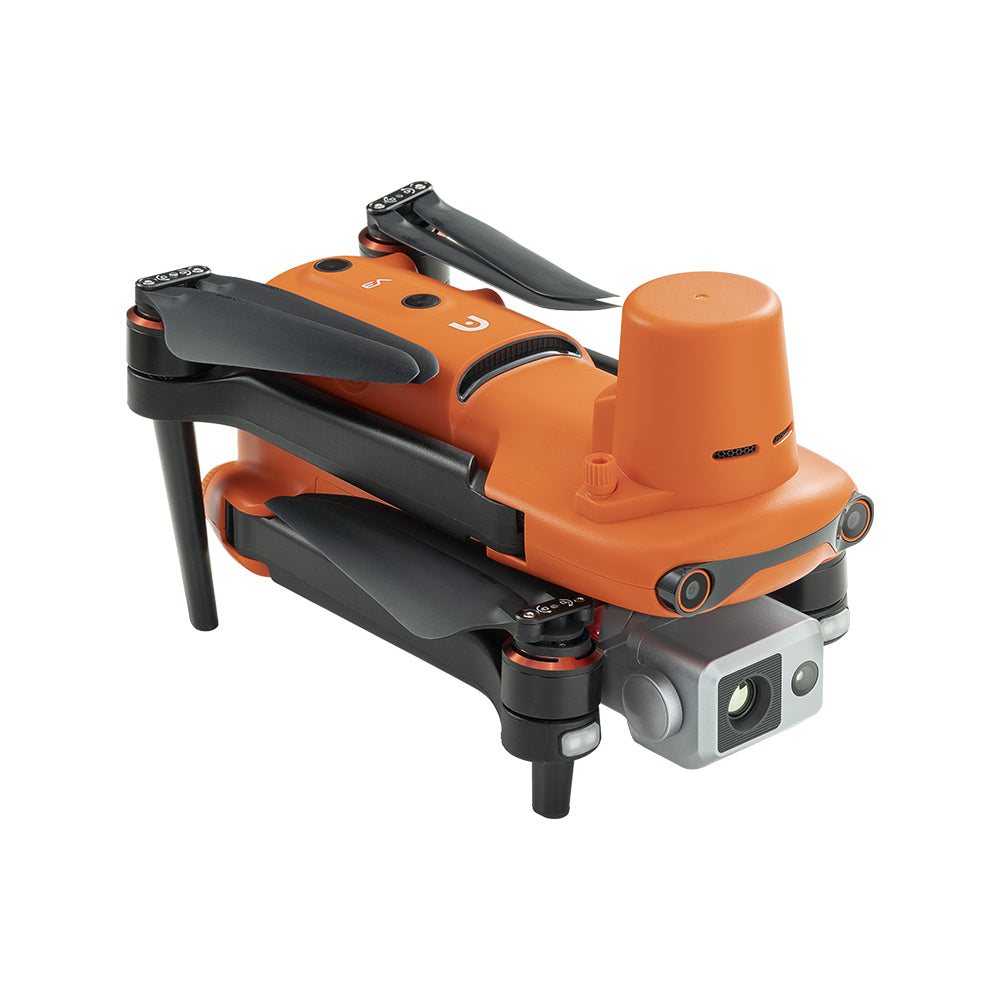

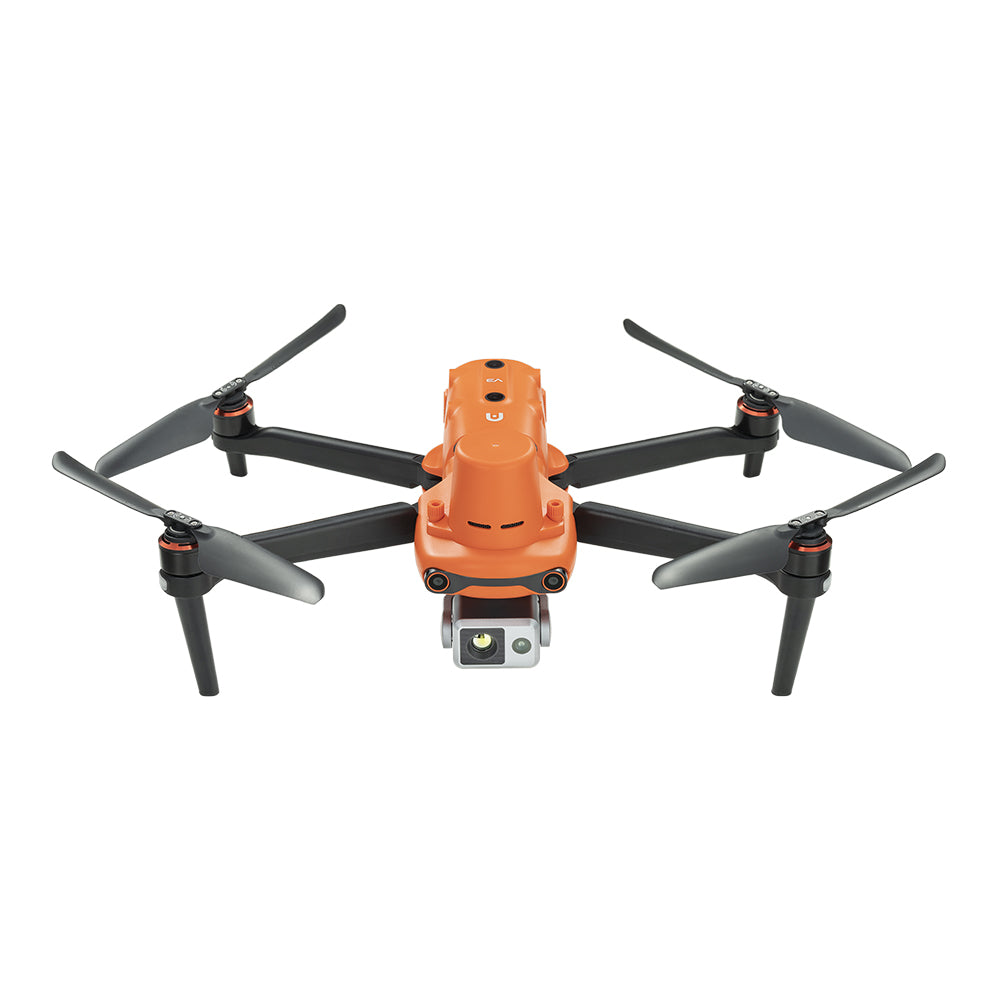

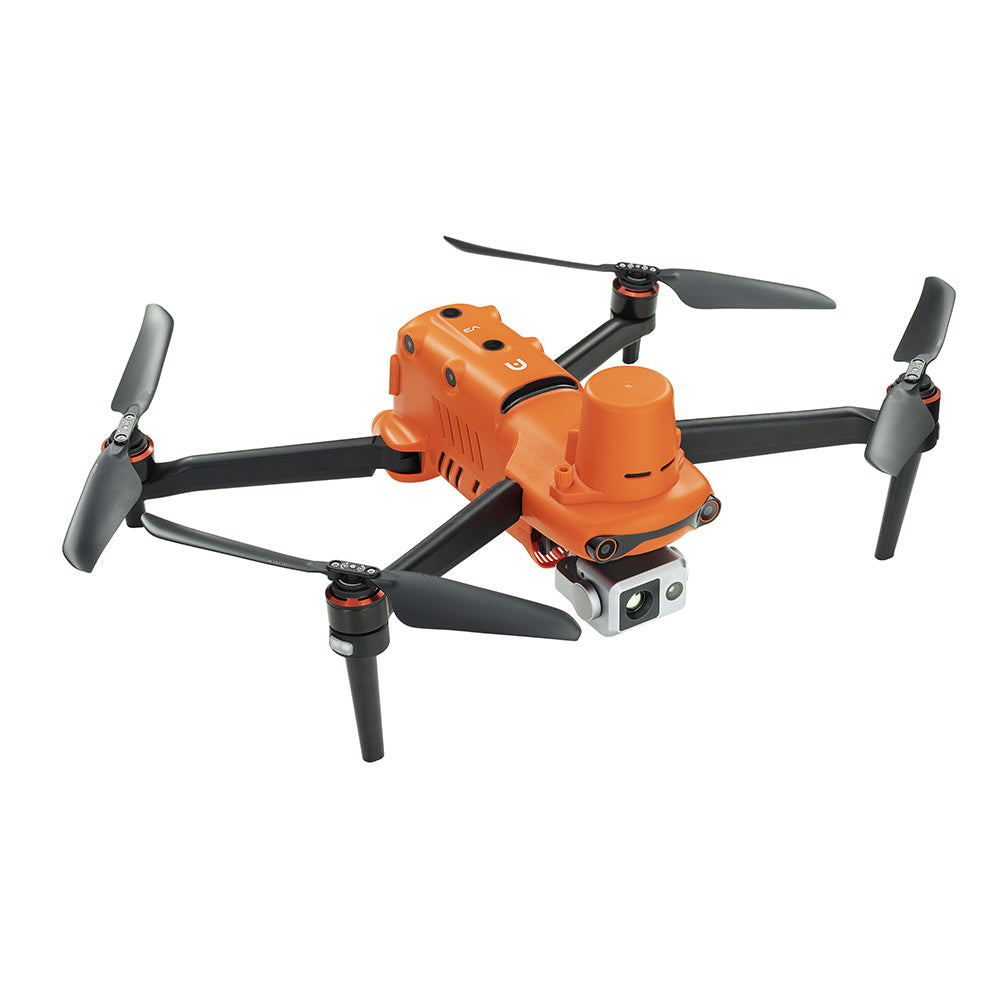

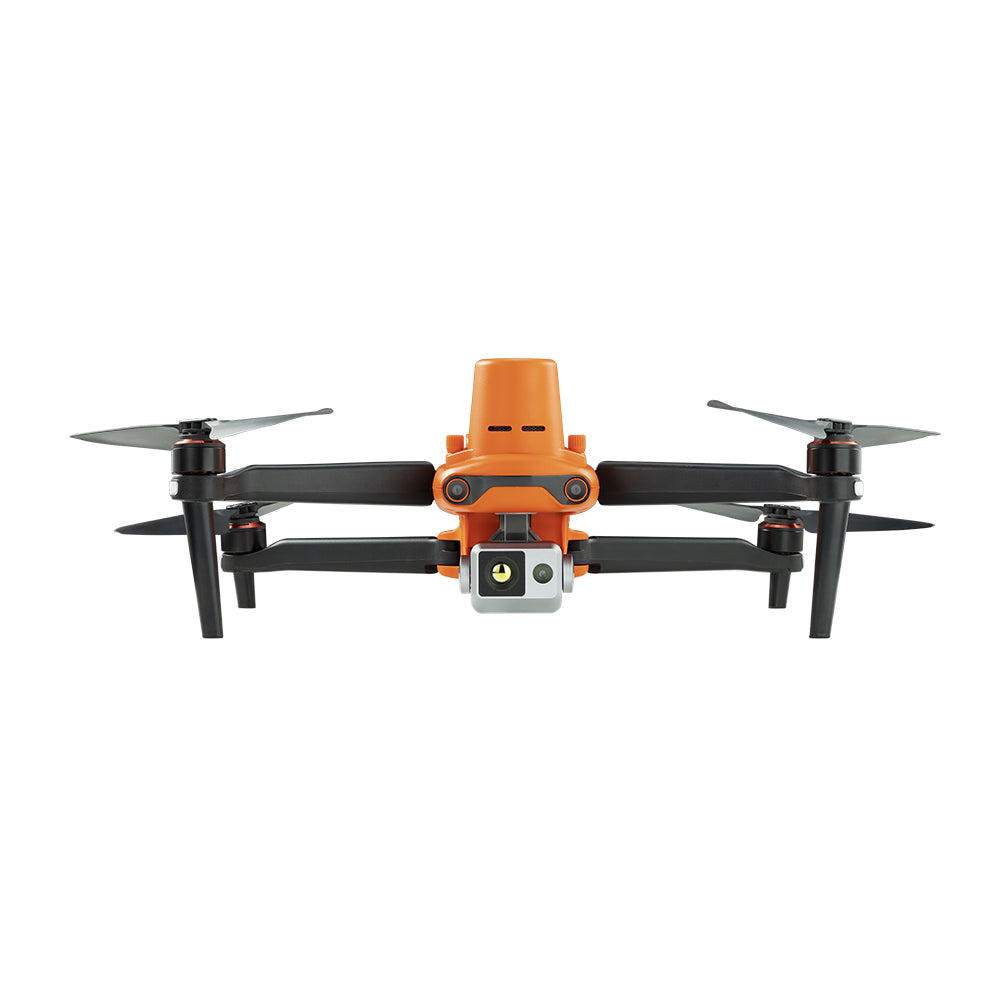

Autel Robotics EVO II Dual 640T RTK Rugged Bundle V3

• Precision RTK Module – Supports PPK and time synchronization.
• Dual Camera System – Includes a thermal imaging sensor.
• High-Resolution Thermal Sensor – Up to 640×512 resolution.
• Advanced Thermal Features – Supports 10 color palettes, 30Hz refresh rate, and Picture-in-Picture mode.
• Powerful Zoom & Lens – 13mm lens with 16x digital zoom, capable of detecting subjects up to 100m away.
• Radiometric Temperature Detection – For precise thermal measurements.
• 10-bit A-Log – Enhanced post-production flexibility.
• Versatile Mission Planning – Supports rectangular and polygonal flight paths.
• Comprehensive Obstacle Avoidance – 360° coverage with 19 sensor groups.
• Industry-Leading Flight Time – Up to 38 minutes per charge.
• Extended Transmission Range – Up to 9 miles.
• High-Speed Performance – Max speed of 45 mph.

Centimeter-level Positioning

The EVO II RTK Series features a newly integrated RTK module that delivers real-time, centimeter-level positioning and supports Post-Processing Kinematic (PPK). It records original satellite observation data, camera exposure parameters, and other critical information. The positioning system is compatible with both A-RTK base stations and RTK networks, ensuring stable and precise data acquisition even in challenging environments.

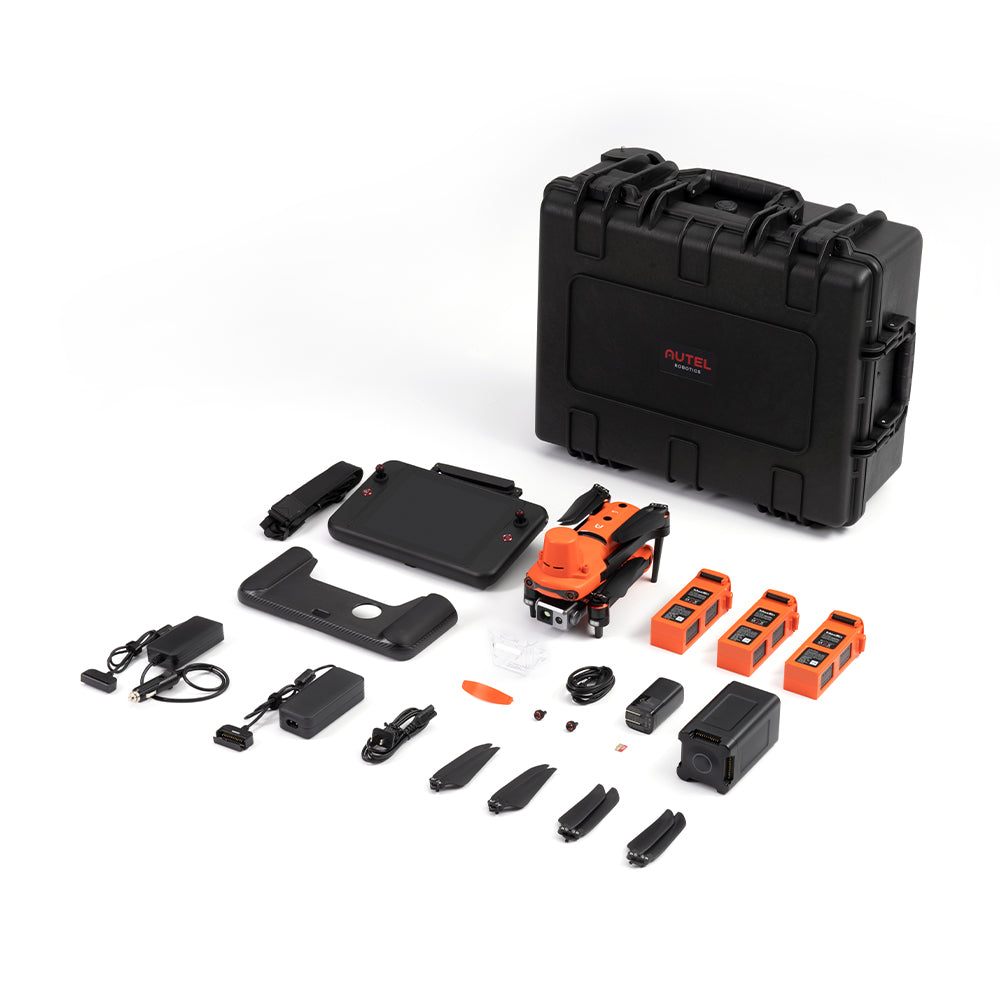

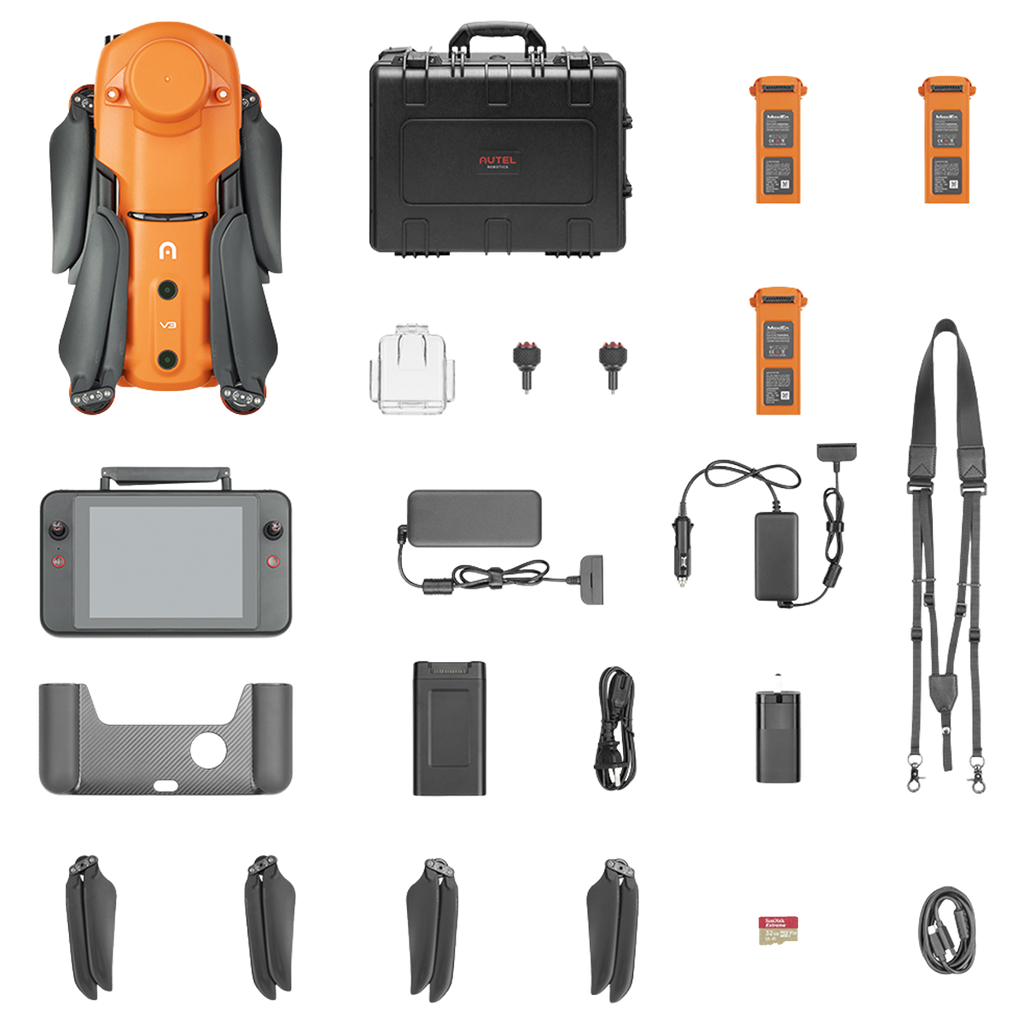

In the Box

• Autel Robotics RTK Module for EVO II Enterprise Limited 1-Year Warranty
• 2 x Autel Robotics Flight Battery for EVO II Drones Limited 1-Year Warranty
• 2 x Autel Robotics Low-Noise Propellers for EVO II Enterprise Drones (Pair)
• Autel Robotics Car Charger for EVO II Limited 1-Year Warranty
• Smart Controller V3 USB-C Cable & Adapter
• 2 x Spare Controller Stick
• 32GB SD Card
• Smart Controller V3 Neck Strap
• RTK Module Port Cover
• Limited 1-Year Warranty (Drone without Propellers)
• Limited 90-Day Warranty (Accessories Excluding Propellers)

EVO II RTK Series – Frequently Asked Questions

1. What is the main difference between the EVO II RTK Series and other EVO II models?
The EVO II RTK Series features a high-precision RTK positioning and navigation system, which is not available in other EVO II series aircraft.

2. What is the effective image transmission range of the RTK Series?
In an open, unobstructed, and interference-free environment:

• FCC standard: Up to 9 km
• CE standard: Up to 5 km (2.4GHz)

3. Can the aircraft continue real-time mapping if the image transmission signal is lost?
If the image transmission signal is intermittently lost, the aircraft can resume mapping once the connection is restored.

4. What is the screen size and resolution of the remote controller?
The remote controller features a 3.26-inch ultra-bright touchscreen with a resolution of 854×480p.

5. Which RTK base station modes are supported?
The EVO II RTK Series currently supports the A-RTK base station.

6. What is the RTK positioning accuracy?

• Horizontal: 1 cm + 1 ppm
• Vertical: 1.5 cm + 1 ppm

7. What is the difference between RTK and PPK, and how should users choose?
Both Real-Time Kinematic (RTK) and Post-Processed Kinematic (PPK) provide centimeter-level positioning accuracy:

• RTK is ideal for real-time operations requiring high precision and a stable network connection.
• PPK is recommended when real-time data is unnecessary or when working in areas with poor network connectivity, as it allows for post-processing of positioning data.

8. Does the EVO II RTK Series provide measurements in relative or absolute coordinates?
The EVO II RTK Series provides absolute coordinate measurements.

9. Does the aircraft support lossless zoom?
Yes, the aircraft offers 4x lossless zoom.
