CZI DJI Drone Spotlight Searchlight DJI OSDK Payload GL60 Mini

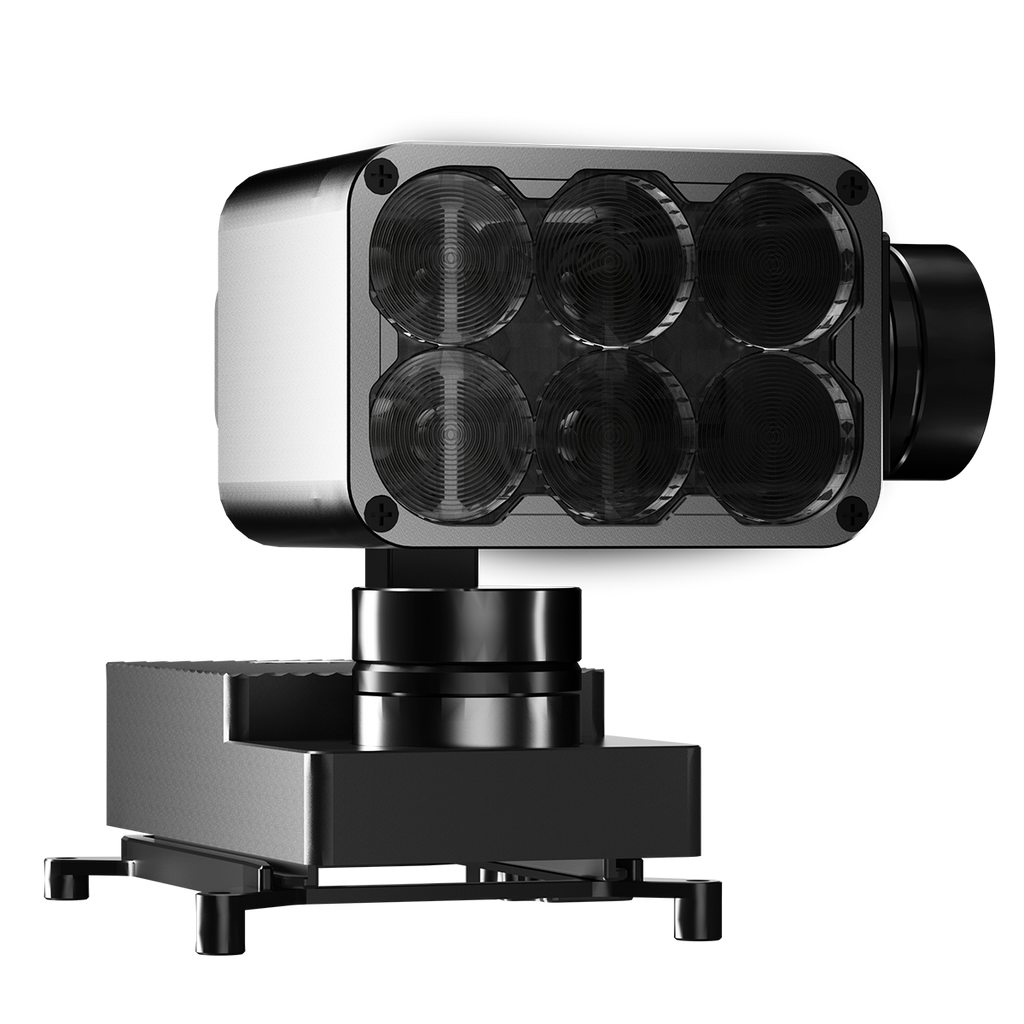

CZI GL60 Mini Gimbal Search Light

Compatible with DJI Matrice 30 Series Drones

The CZI GL60 Mini is a compact, high-performance gimbal searchlight designed specifically for the DJI Matrice 30 Series. Featuring intelligent stabilization and AI tracking, it provides powerful, precise illumination for a variety of aerial applications including inspections, law enforcement, and search and rescue operations.

Key Features

• 3-Axis Stabilized Gimbal: Delivers smooth and steady lighting even during dynamic flight maneuvers.

• AI Follow Mode: Automatically tracks subjects for accurate, hands-free illumination.

• Illumination Distance: Up to 150 meters, providing a bright and focused beam.

Technical Specifications

• Electrical Interface: DJI OSDK

• Weight: 240 g

• Dimensions: 158 × 87 × 82 mm

Gimbal Rotation Range

• Pitch: -70° to +90°

• Horizontal (Yaw): ±125°

• Roll: ±125°

Operating Temperature

• -20°C to +50°C

• Total Power: 65 W

• LED Power: 60 W

• Supply Voltage: 24 V

• Luminous Flux: 7,000 ± 3% lm

• Field of View (FOV): 13°

• Illumination Distances (m): 150 / 100 / 50

• Spot Diameter (m): 34 / 22.8 / 11.4

• Illumination Area (m²): 917 / 407 / 102

• Central Illuminance (Lux): 7 / 16 / 60
