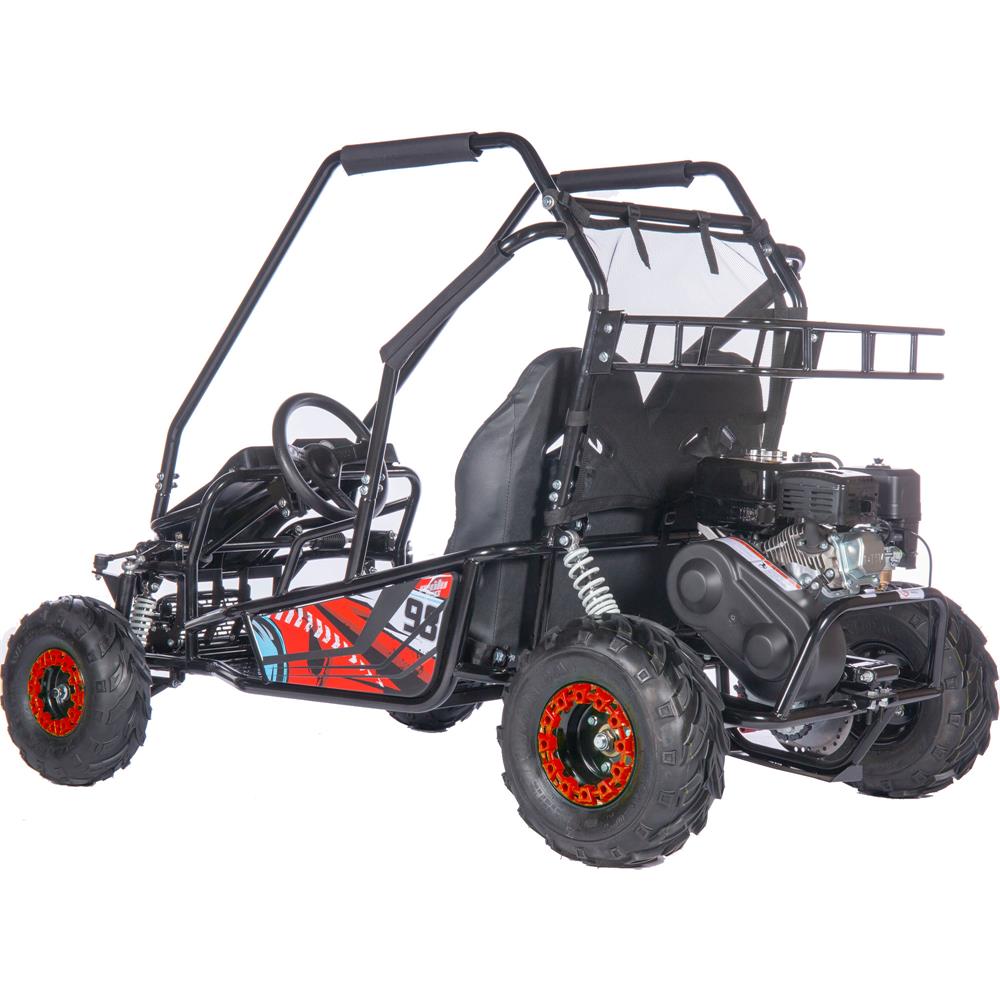

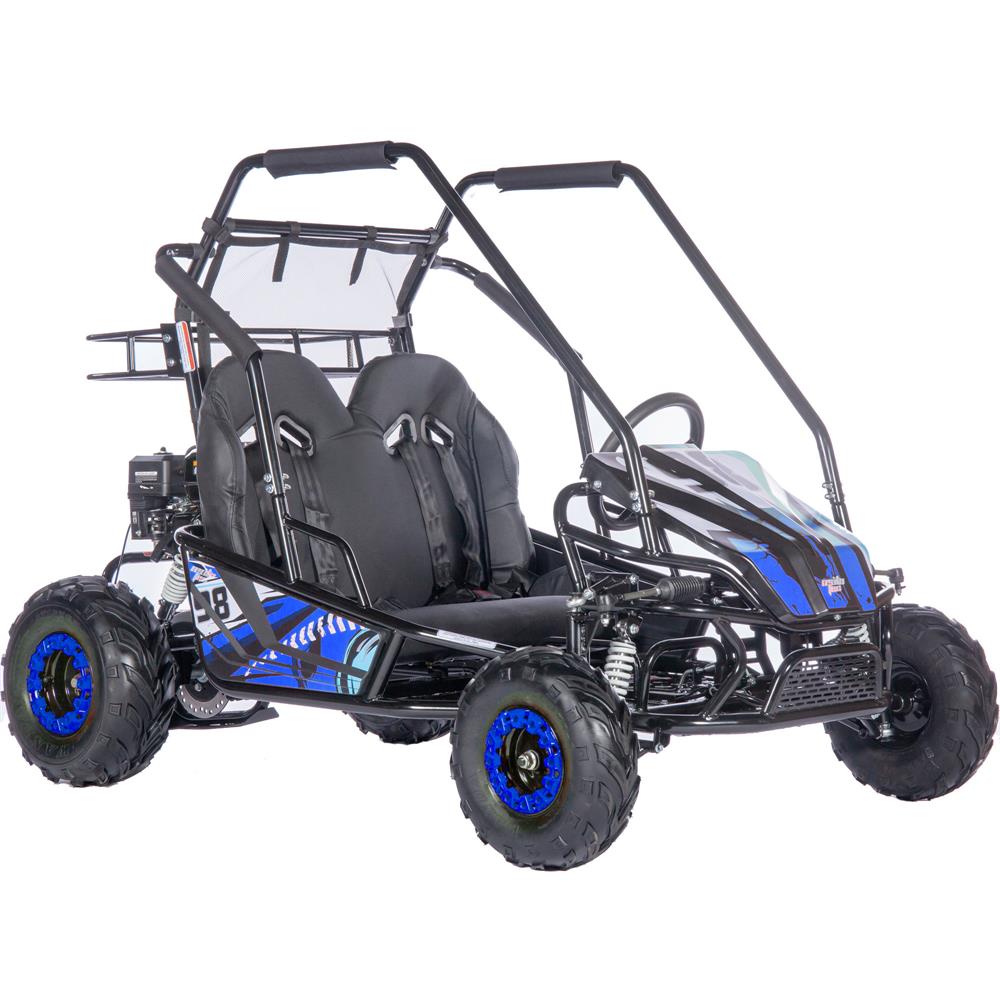

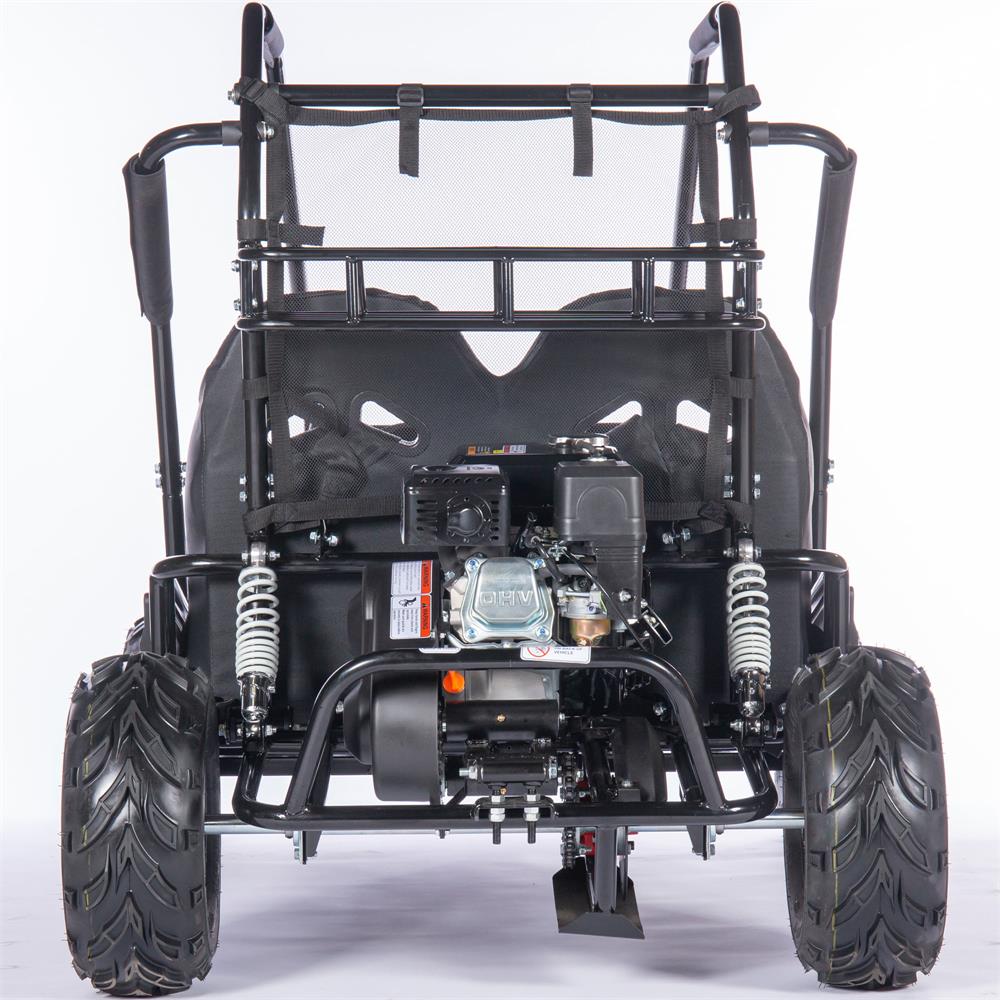

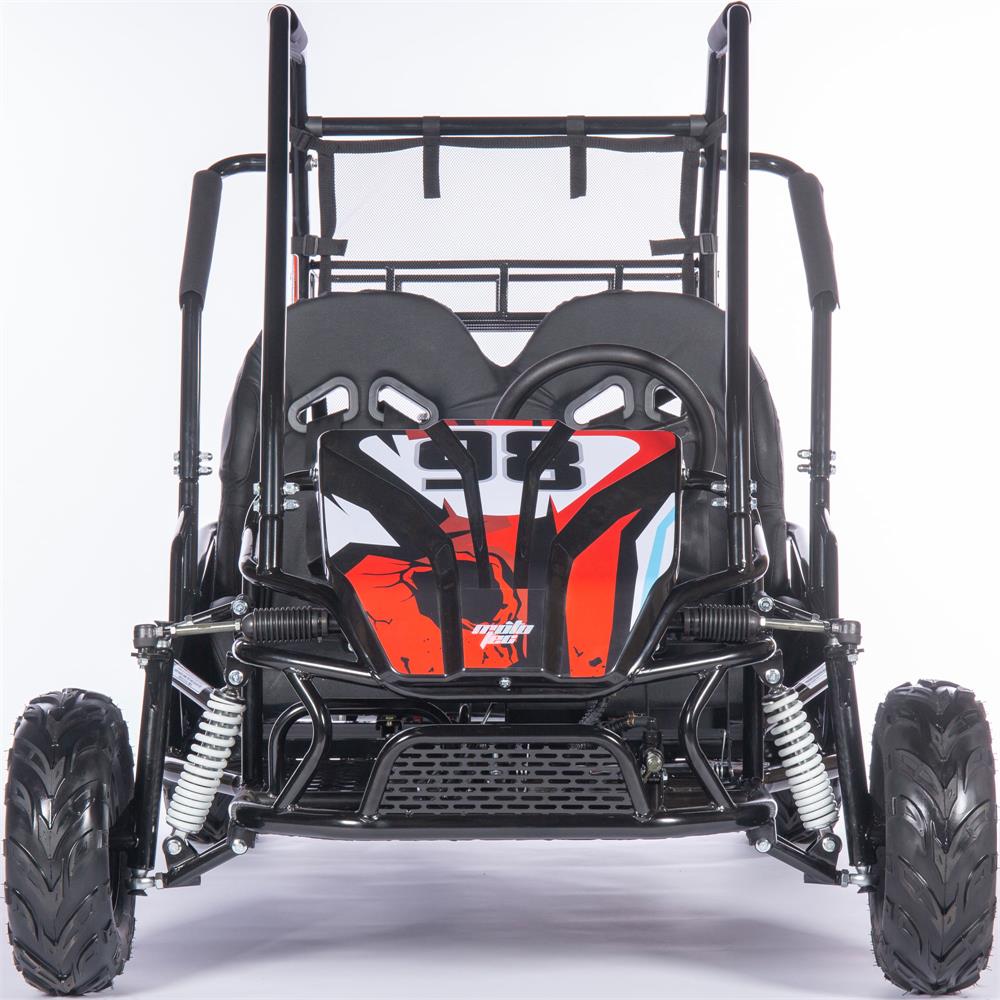

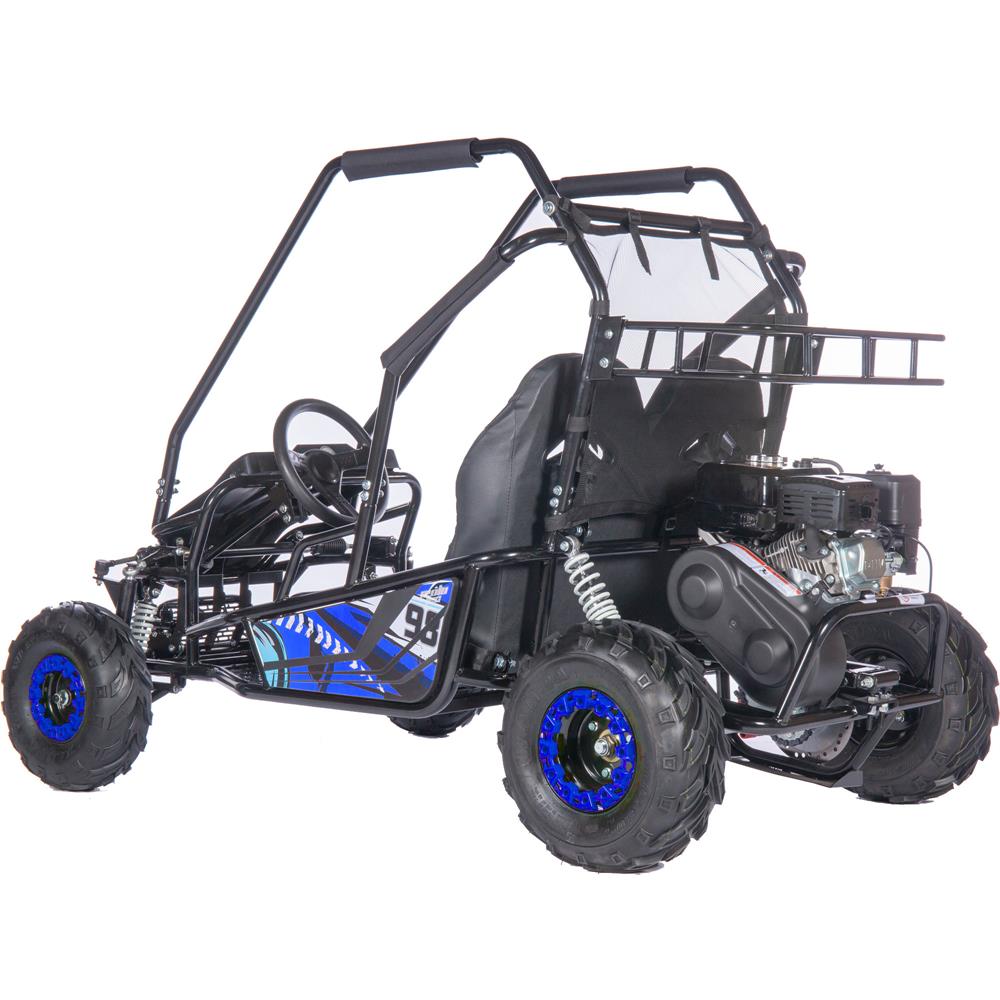

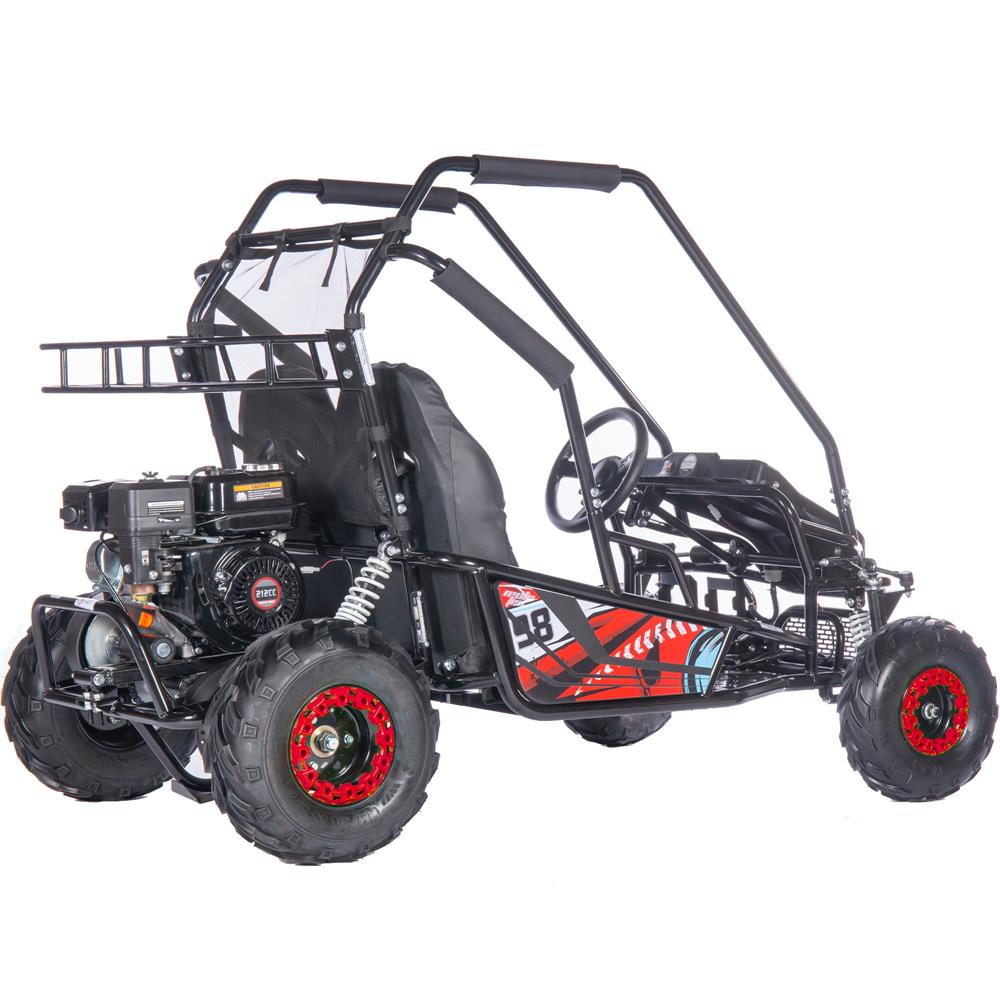

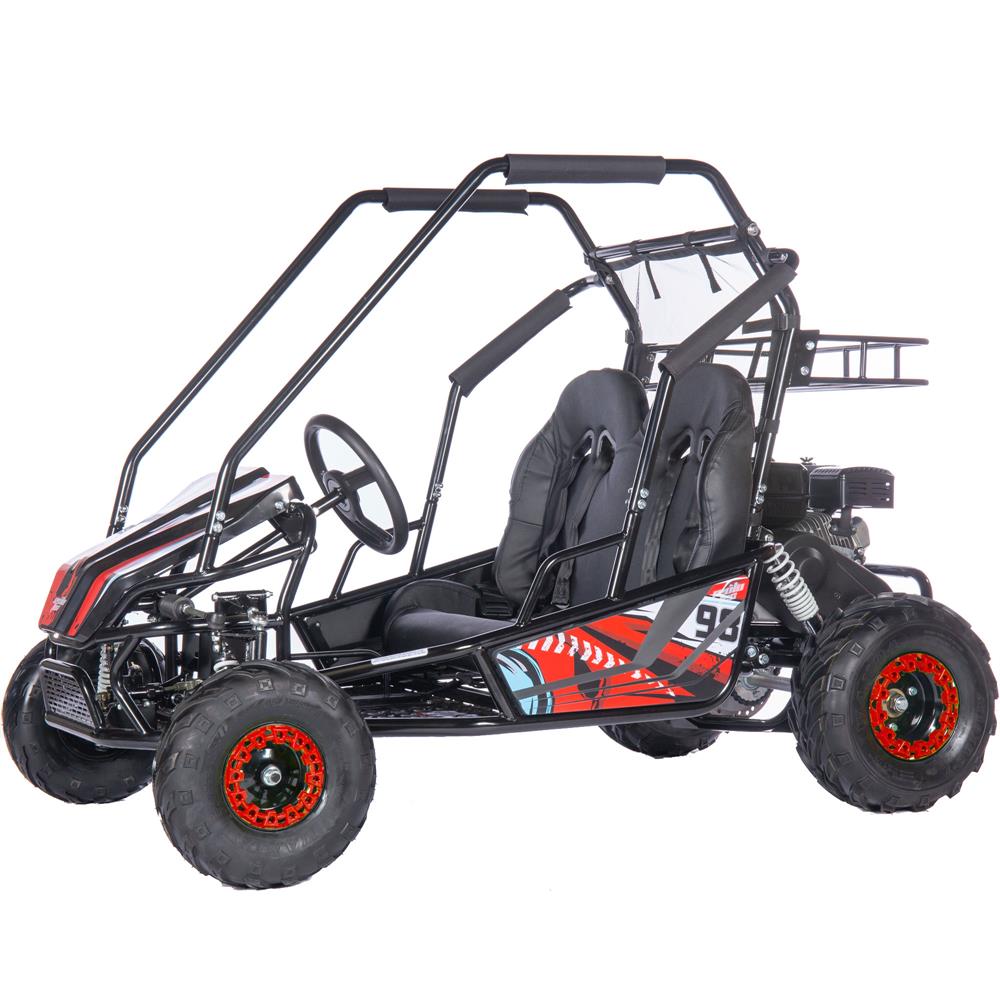

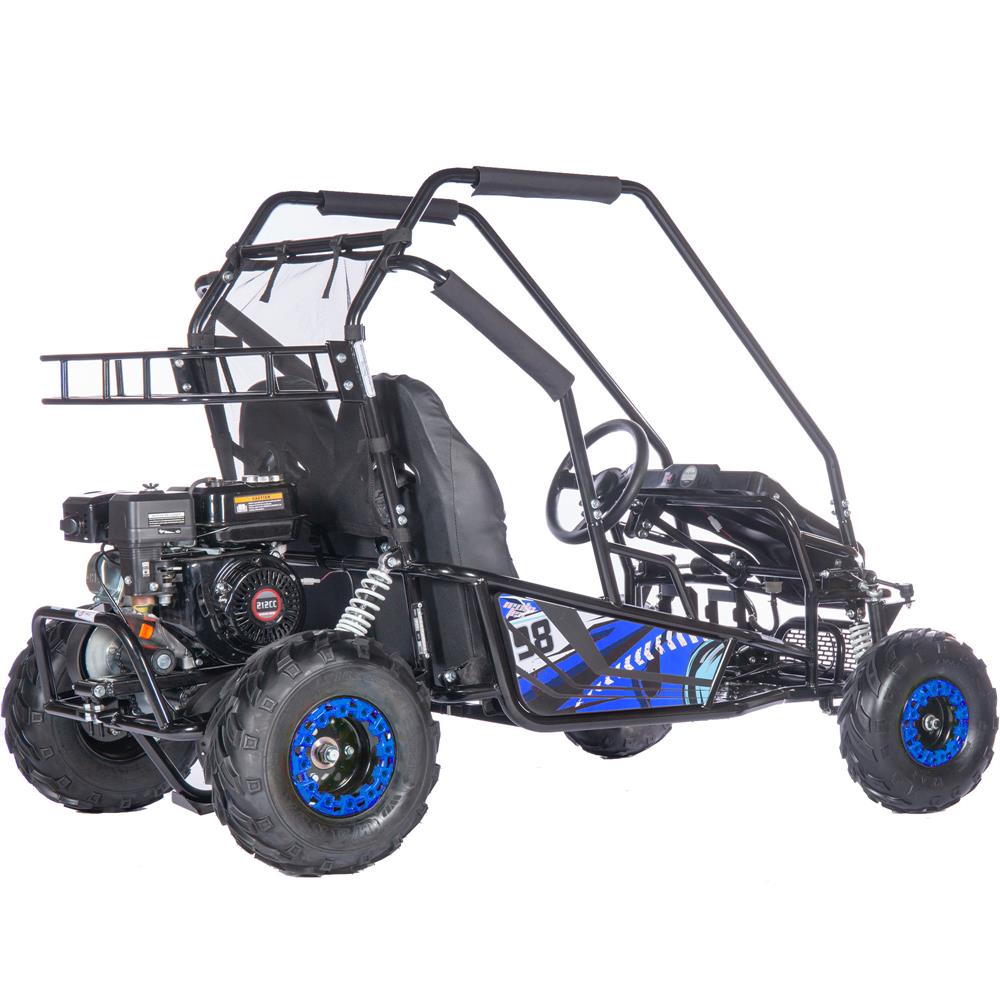

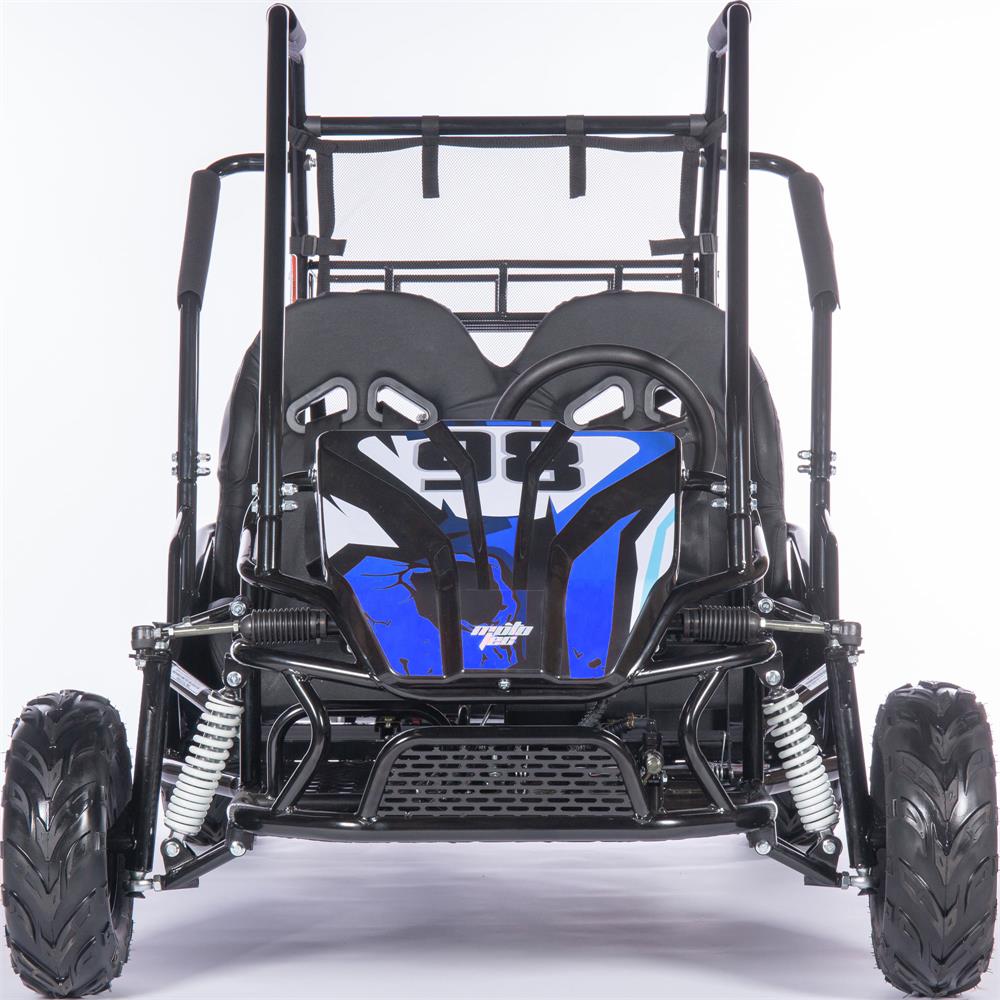

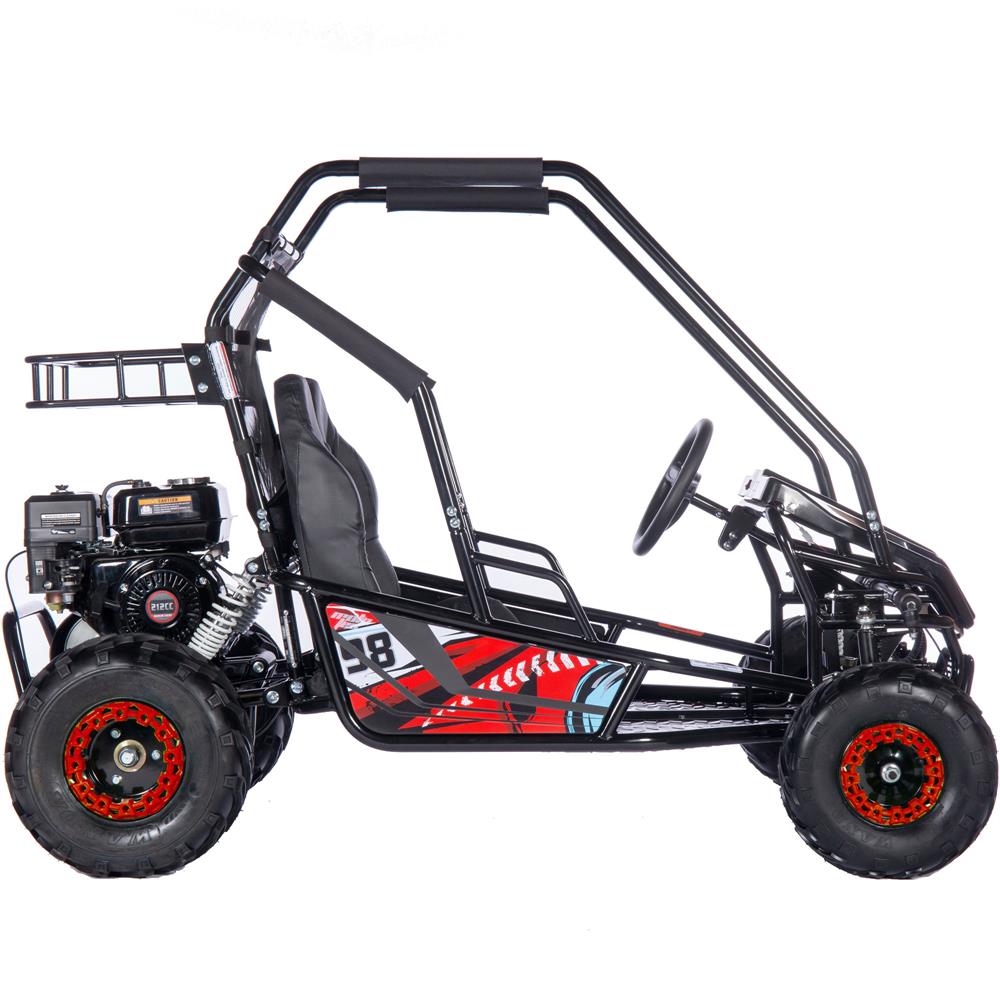

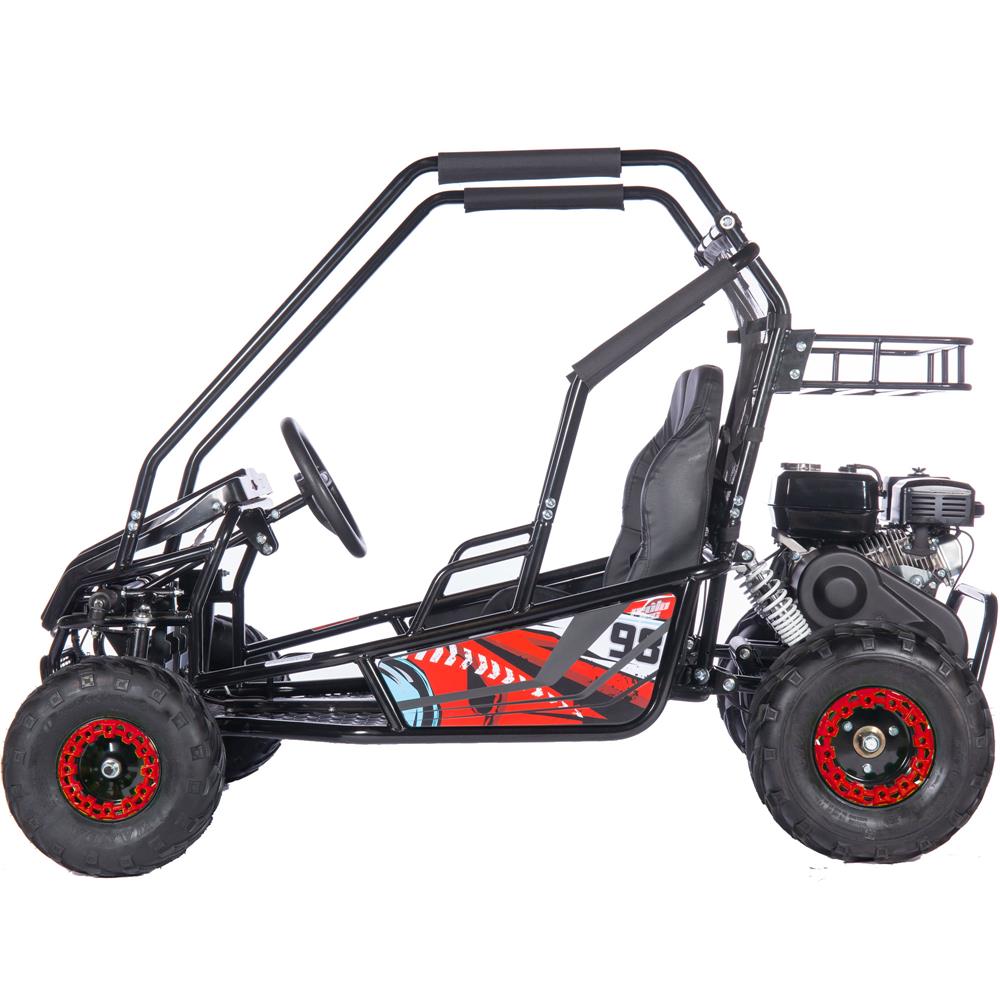

MotoTec Mud XL 212cc — 2-Seat Full-Suspension Go-Kart
Rugged Two-Seat Off-Road Go-Kart Built for Comfort and Control
The MotoTec Mud XL is a full-suspension, two-seat off-road go-kart powered by a 212cc 4-stroke OHV engine. Designed for older teens and adults, it combines a comfortable ride, sturdy safety features, and straightforward operation for weekend trail runs or backyard fun.
Benefits
- More comfortable rides on rough terrain thanks to full front and rear hydraulic suspension.
- Safer outings with a padded roll bar, adjustable four-point harnesses and a kill switch.
- Simple operation and quick starts with an easy pull-start and automatic CVT transmission.
- Room for two and a high load capacity (400 lb max) so you can ride with a friend or carry gear.
- Low-pressure pneumatic tires improve grip and ride comfort over varied surfaces.
- Less hassle getting it ready: optional professional assembly and palletized shipping available.
Features
- 212cc 4-stroke OHV engine (EPA & CARB approved)
- Automatic CVT transmission with centrifugal clutch and chain drive
- Independent front hydraulic shock and dual rear hydraulic shocks
- Adjustable seat with 29–34 in distance from backrest to pedals
- Padded roll bar, four-point seat belts and a kill switch for added safety
- Metal throttle and brake pedals; foot-operated hydraulic rear disc brake
- Low-pressure pneumatic tires for improved traction and comfort
- Rear storage rack for carrying gear
- Easy pull start system
- Durable steel tubular frame
Specifications
- Engine: 212cc 4-stroke OHV (EPA & CARB approved)
- Max power: 4.0 kW @ 3600 RPM
- Max torque: 12 Nm @ 2500 RPM
- Compression ratio: 8.5:1
- Bore / Stroke: 70 x 55 mm
- Spark plug: F6TC
- Recommended age: 13+
- Recommended max rider height: 67 in
- Maximum rider weight: 400 lb
- Seating width between frame: 32.5 in
- Adjustable seat: yes (29–34 in from backrest to pedals)
- Top speed: approximately 25 mph
- Fuel capacity: 3.6 L
- Engine oil capacity: 0.6 L (use 10W-30)
- Transmission: Automatic CVT with centrifugal clutch, chain drive (BANDO)
- Starting: Easy pull start
- Safety features: 4-point seat belts, padded roll bar, adjustable seat, kill switch
- Suspension: Independent front hydraulic shock; dual rear hydraulic shocks
- Minimum turning diameter: 7 m
- Frame: Steel tubular
- Front wheels/tires: 145/70-6 pneumatic
- Rear wheels/tires: 16x8-7 pneumatic
- Brake: Foot-operated hydraulic rear disc
- Go-kart weight (assembled): 242 lb
- Go-kart dimensions: 68 x 45 x 48 in
- Wheelbase: 49 in
- Minimum ground clearance: 7.5 in
- Box weight: 276 lb
- Box dimensions: 69 x 45 x 24 in
- Warranty: 60-day parts replacement
- Assembly option: Professional assembly and testing available—unit strapped to a wood pallet and shipped ready-to-ride; allow an additional 1–5 days to ship. No-assembly option ships in factory-sealed box (most items arrive 70–90% assembled).
- Lift gate service: Optional lift-gate delivery uses a hydraulic lift to lower the pallet/box to ground level. If not selected, you must unload the box from the truck yourself.
- Safety reminder: Always wear a helmet and protective gear. Adult supervision required.
