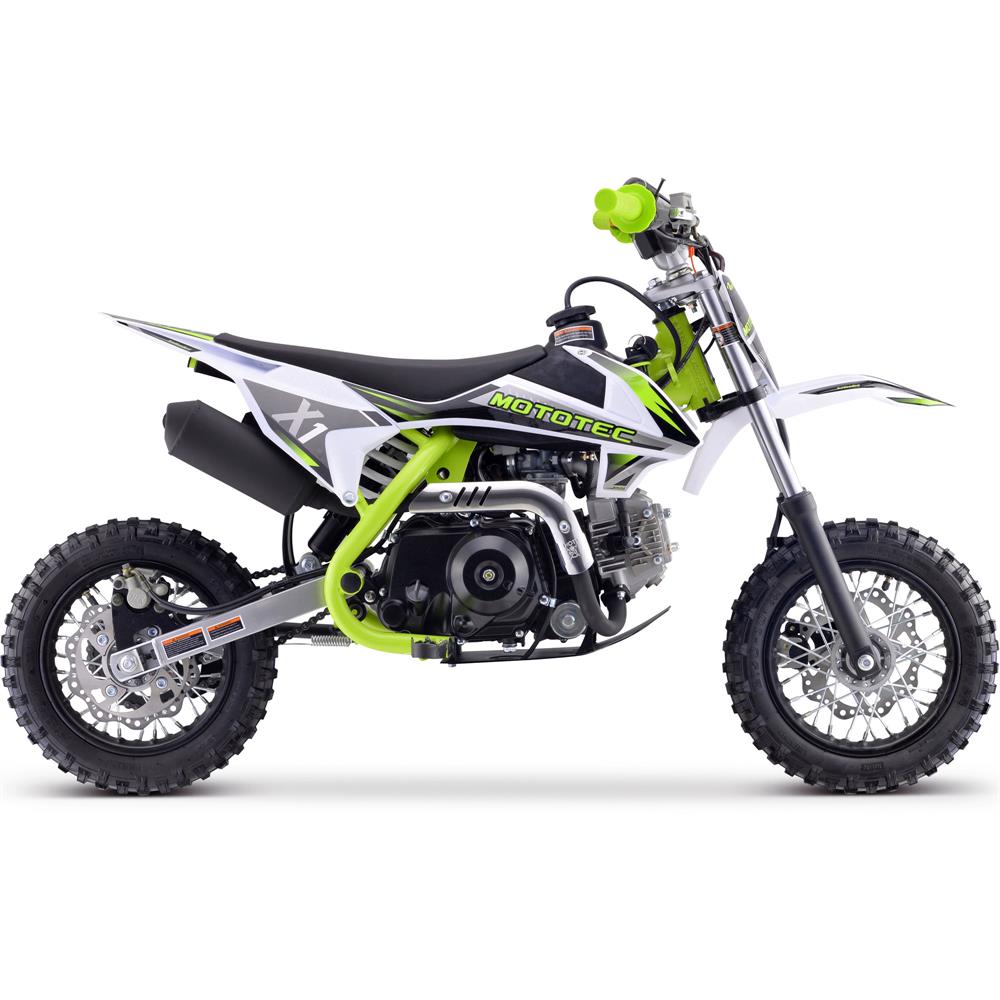

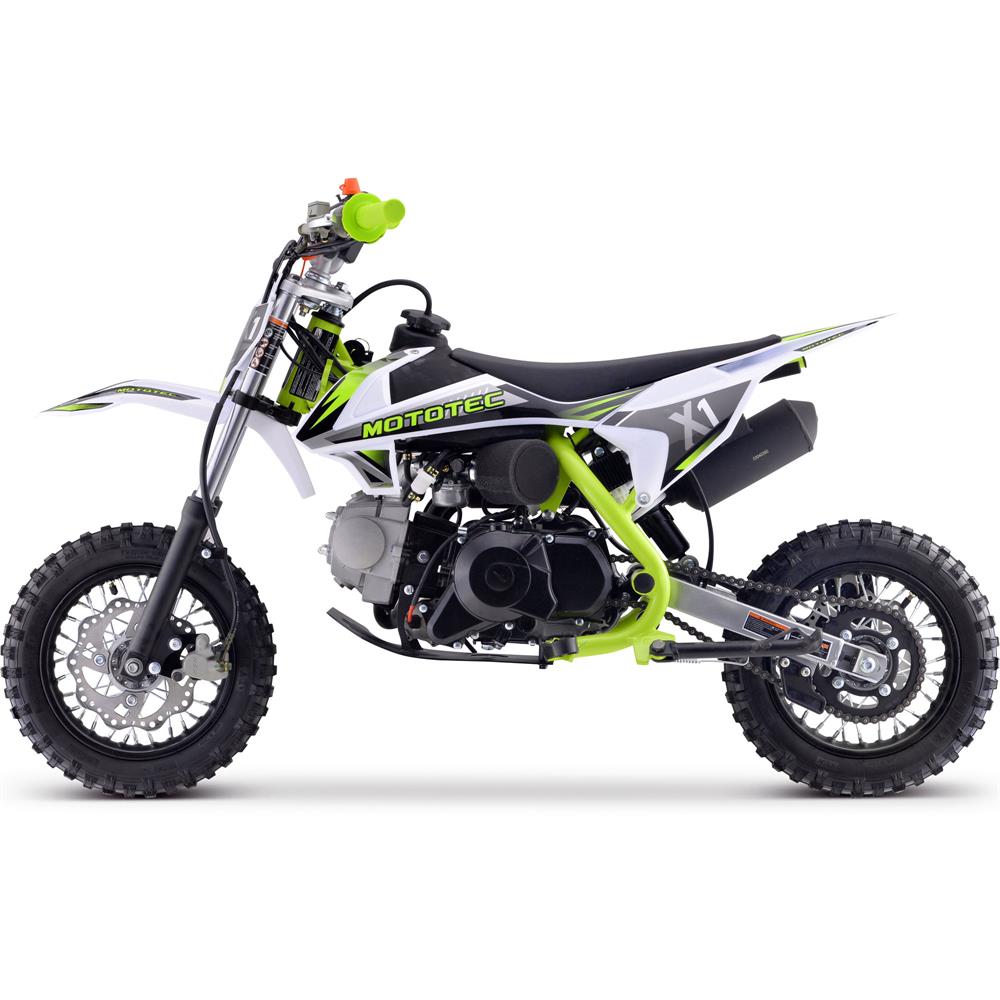

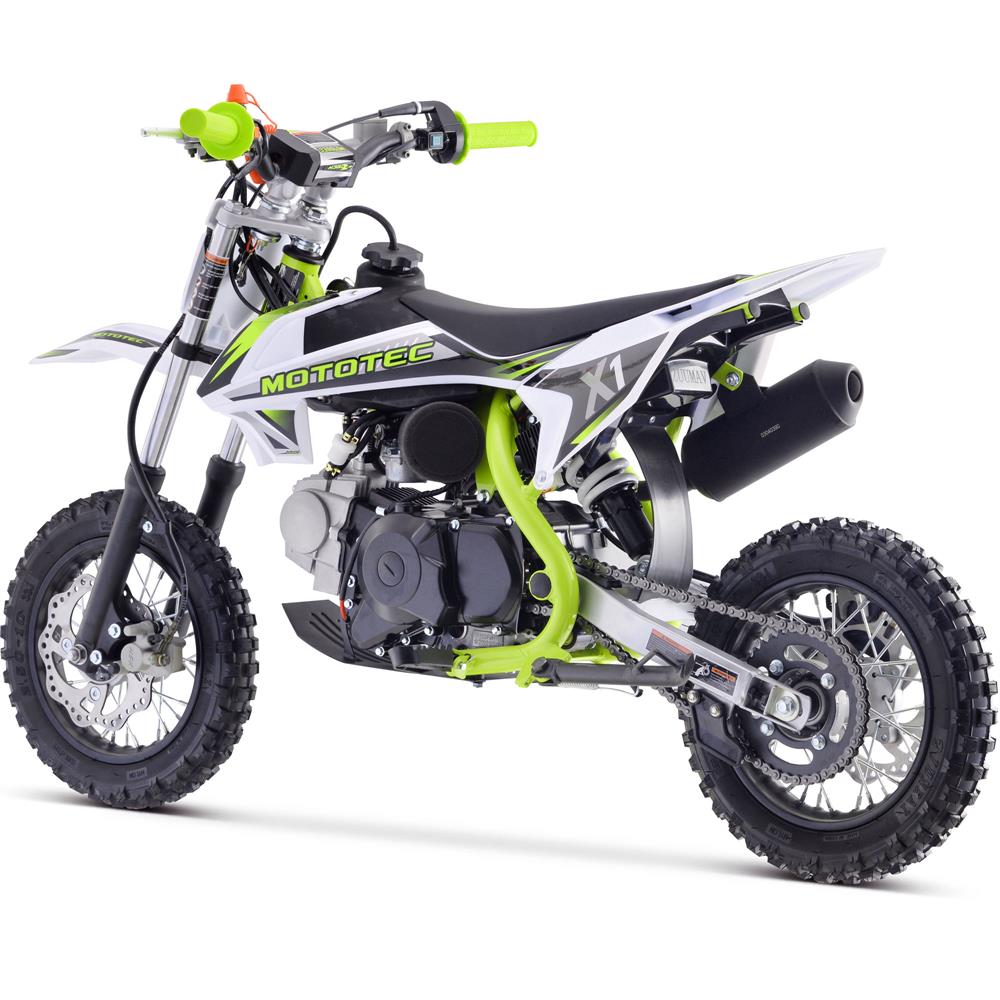

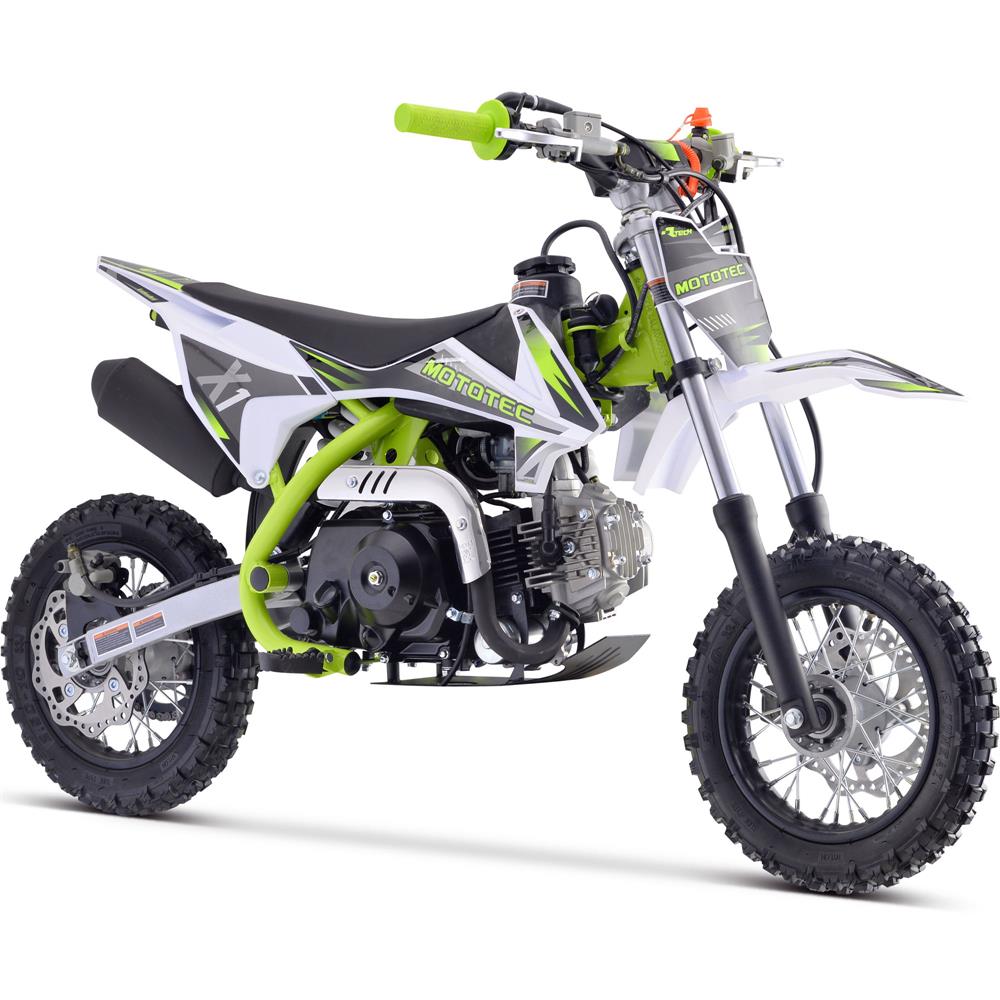

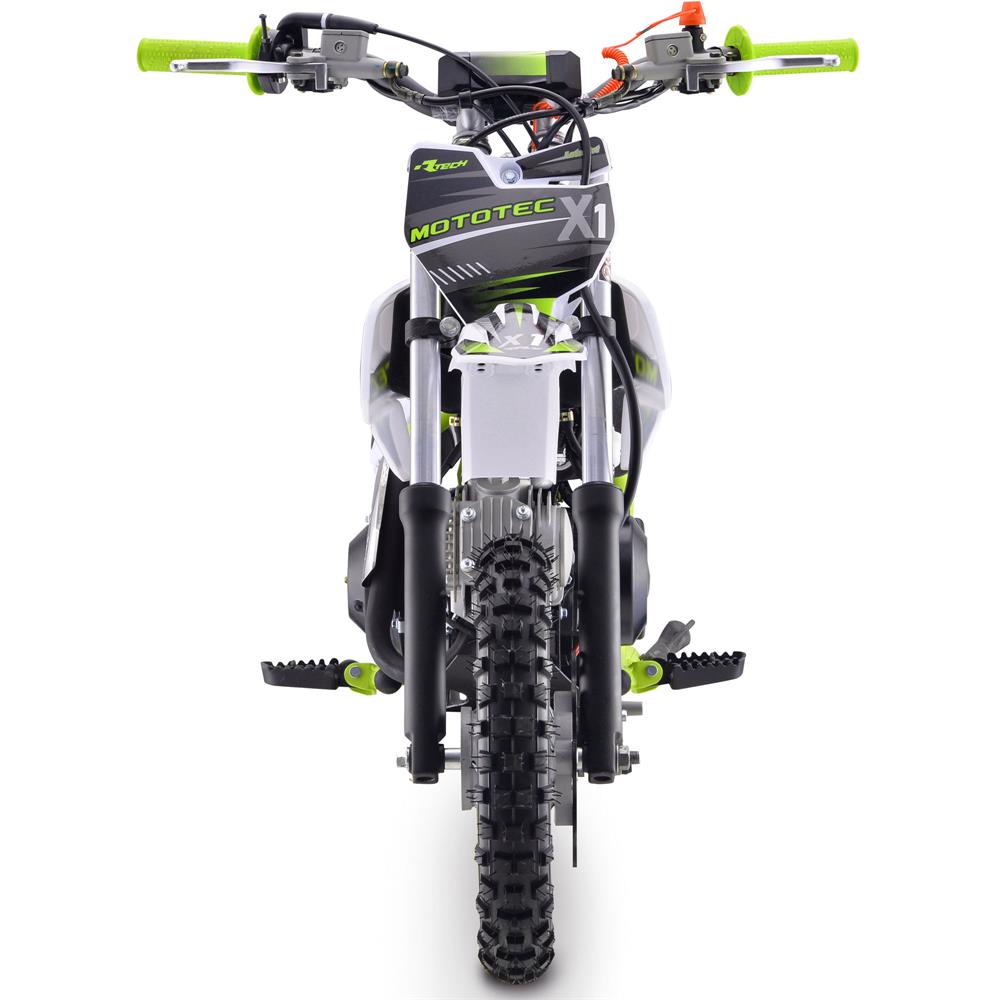

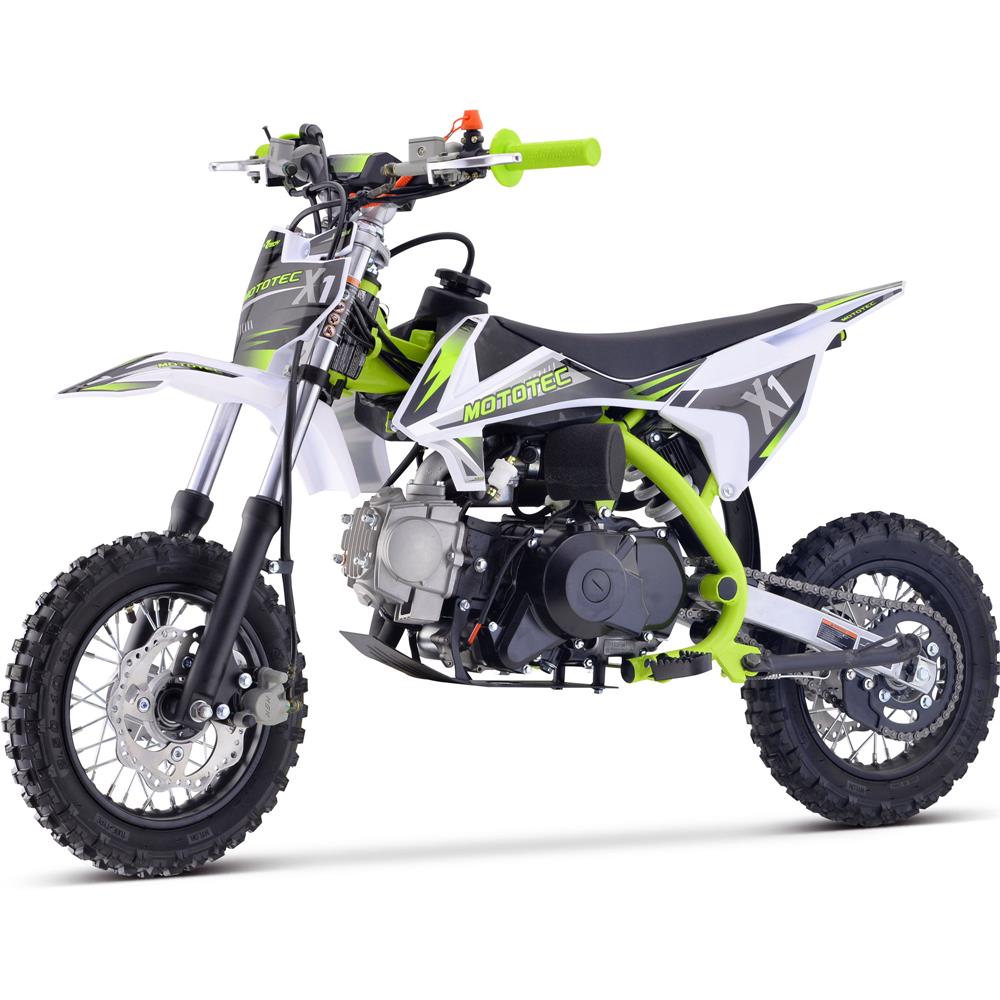

MotoTec X1 110cc 4-Stroke Mini Dirt Bike
Overview
The MotoTec X1 is a compact, dependable 110cc 4-stroke dirt bike built for off-road fun. It pairs an electric start and fully automatic drive with robust suspension, 10" outdoor rubber tires, and a durable steel frame so riders can jump on, twist the throttle, and ride in a wide range of outdoor conditions.
Benefits
- More riding time, less hassle — electric start and automatic transmission get you going quickly without clutch work or kick starts.
- Ride in more places — reliable wet-and-dry performance and durable tires mean fewer interruptions for basic terrain changes.
- Lower maintenance and longer life — higher-grade bearings, quality starting components and reinforced frame reduce frequent repairs and downtime.
- Confidence for newer riders — responsive acceleration, stable suspension and disc brakes make it easier to control and learn on.
- Portable and manageable — light dry weight and compact dimensions make transport and storage simpler than a full-size bike.
Features
- 110cc 4-stroke single-cylinder, air-cooled engine
- Electric start (12V / 4Ah battery) for quick, reliable starts
- Fully automatic single-gear transmission — twist and go
- PZ22 Jingke carburetor for consistent fuel delivery
- #420 chain drive with 14T (front) and 39T (rear) sprockets
- Front telescopic forks and rear mono-shock suspension for smoother rides
- Front and rear 190mm single-piston disc brakes for strong stopping power
- 10" outdoor rubber tires with higher grip and longer wear
- Adjustable speed limiter (top speed ~37 mph depending on setup)
- Motocross styling with reinforced frame and cast rims
Specifications
- Motor: 110cc 4-Stroke Single Cylinder, Air-Cooled
- Top speed: 37 mph (with adjustable speed limiter)
- Factory Model #: K1
- Displacement: 107 ml
- Max Power: 6.7 HP @ 8000 RPM
- Max Torque: 4.94 ft-lb @ 5500 RPM
- Compression Ratio: 9.1:1
- Transmission: Automatic, single gear
- Recommended Engine Oil: SAE 10W-40
- Seasonal Engine Oil Notes: summer / winter recommendations applicable
- Engine Start: Electric start (12V / 4Ah battery)
- Carburetor: PZ22 Jingke
- Drive Train: #420 chain (14T front, 39T rear)
- Fuel Tank Capacity: 2.2 liters
- Wheelbase: 39.37 inches
- Front Tire: 2.50-10 (10 inch)
- Rear Tire: 2.50-10 (10 inch)
- Seat Height: 23 inches
- Maximum Rider Weight: 160 lbs
- Ground Clearance: 8.26 inches
- Frame: Cradle-type steel tube (chromoly reinforcement)
- Front Forks: Telescopic 550mm, travel 100mm, tube 27mm
- Rear Shock: Coil spring 270mm, travel 43mm
- Swing Arm: 320mm steel
- Rims: 1.4 x 10 cast front and rear
- Front Brake: Single-piston, 190mm disc
- Rear Brake: Single-piston, 190mm disc
- Dirt Bike Dimensions (L×W×H): 56 × 25 × 34 inches
- Dirt Bike Dry Weight: 111 lbs
- Box Size (shipping): 50 × 14 × 25 inches
- Box Weight (shipping): 127 lbs
- Spark Plug: A7TC
- Recommended Age: 13+
- Warranty: 60 days parts replacement
- Safety & Certifications: CE and EPA references; higher-grade bearings and starting components specified
- California use restrictions: Competition use only — cannot be registered for OHRV, cannot be registered with CA DMV for street use, may only be ridden in closed-course competition, and does not meet California emissions standards.
