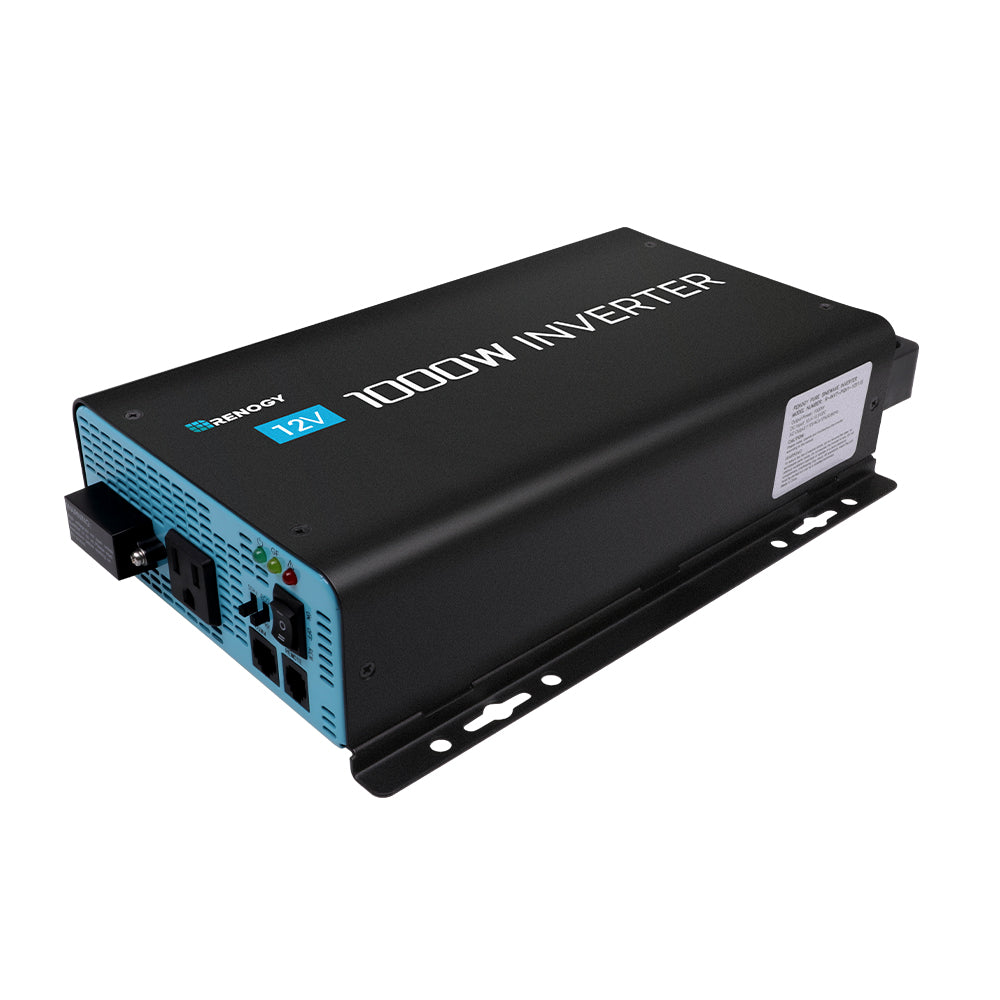

Renogy 1000W Pure Sine Wave Inverter (New Edition)
Overview
The Renogy 1000W Pure Sine Wave Inverter converts 12V DC to 120V AC power for vehicles, cabins, boats, and off-grid setups. It delivers clean, quiet power with an ECO power-saving mode, selectable 50/60 Hz output, built-in protections, and support for real-time monitoring via Renogy BT-2 and the DC Home app.
Benefits
Keep devices running reliably in remote locations so you can work, charge, or relax without interruption.
Protect sensitive electronics—phones, laptops, and appliances run smoother and last longer on pure sine wave output.
Save battery life automatically with ECO mode that puts the inverter in standby when loads are light, reducing unnecessary drain.
Monitor system performance from your phone to avoid surprises and make better decisions about energy use.
Install quickly and tuck it into tight spaces—compact size and included cables and remote simplify setup.
Know what’s happening at a glance thanks to LED status indicators and clear fault notifications.
Features
1000W continuous output with 2000W peak surge capability for starting motors and other high-inrush devices.
Pure sine wave output for clean, stable AC power compatible with sensitive electronics.
ECO power-saving mode: automatically enters standby when output is 50W or less and resumes when load increases.
Selectable output frequency: 50 Hz or 60 Hz to match regional or appliance requirements.
Integrated protections: under-voltage, over-voltage, over-temperature, overload, and short circuit indication.
LED indicators showing operating status (green), ground fault (yellow), and fault/power-down conditions (red).
Thermally controlled, high-speed ventilation fans (two fans) for efficient and quiet heat dissipation.
Optimized for 12V systems and compatible with common battery types; battery terminals include safety caps.
Includes a 16.4 ft wired remote control and 2 × 4AWG inverter cables for easy installation and remote operation.

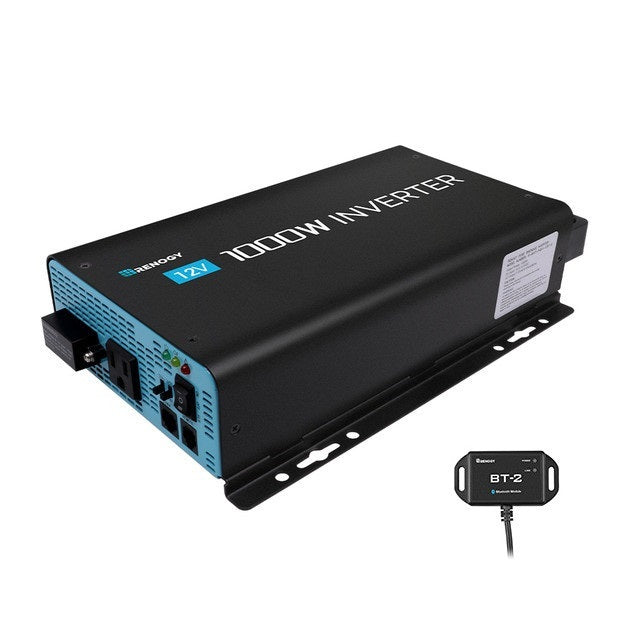

Supports Renogy BT-2 for real-time energy monitoring via the DC Home app and integration with Renogy ONE M1/Core.
Specifications
Continuous Power Rating: 1000 W
Peak Power Rating: 2000 W
DC Input Voltage / Nominal Battery Voltage: 12 V
AC Output Voltage (RMS): 120 V
Output Frequency (Nominal): 50 Hz / 60 Hz (selectable)
Waveform: Pure sine wave
Peak Efficiency: >90%
Total Harmonic Distortion (THD): <3% (linear load), <5% (non-linear load)
Dimensions: 13.4 × 7.6 × 2.8 in
Weight: 7.5 lb
Operating Temperature Range: -4°F to 158°F
Cooling: Two thermally controlled high-speed fans
Self Consumption: (standby/inverter on/inverter off) — see manual for exact measured values
Included Accessories:
2 × 4AWG inverter cables
1 × 16.4 ft wired remote control (dimensions: 2.8 × 4.3 × 1.3 in)
LED Status Indicators: Green = operating; Yellow = ground fault; Red = overheating, overload, under-voltage, or over-voltage
