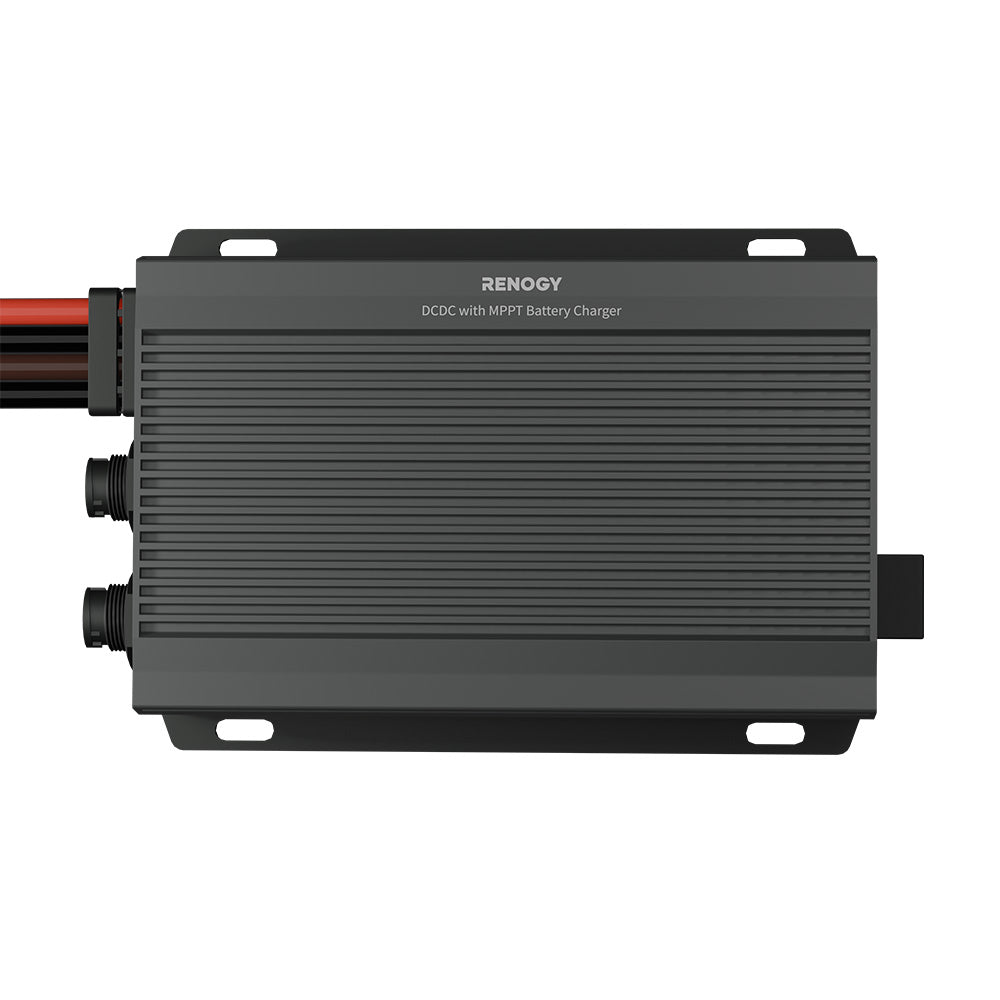

RENOGY 12V/24V IP67 50A DC-DC Battery Charger with MPPT
RENOGY 12V/24V IP67 50A DC-DC Battery Charger with MPPT (RBC2125DS)
Headline
All-weather 50A DC-DC charger with MPPT and dual-input boost/buck for 12V/24V systems
Overview
This compact, IP67-rated DC-DC charger combines MPPT solar charging with alternator input and automatic boost/buck logic to keep your house battery topped up while minimizing generator use. It delivers up to 720W (50A at 12V / 25A at 24V), supports multiple battery chemistries, and gives you Bluetooth/CAN connectivity for monitoring and configuration.
Benefits
Spend less time worrying about battery levels — the charger automatically prioritizes solar and alternator power to maintain your house battery.
Keep more living space usable — a small, engine-compartment-mountable unit frees up storage and reduces clutter.
Reduce generator runtime — efficient MPPT charging and auto-switching lower the need for generator support.
Start reliably — the charger provides a trickle charge to the starter battery so your vehicle is ready when you are.
Monitor and adjust on the go — Bluetooth and CAN connectivity let you check performance and change settings without opening the unit.
Features

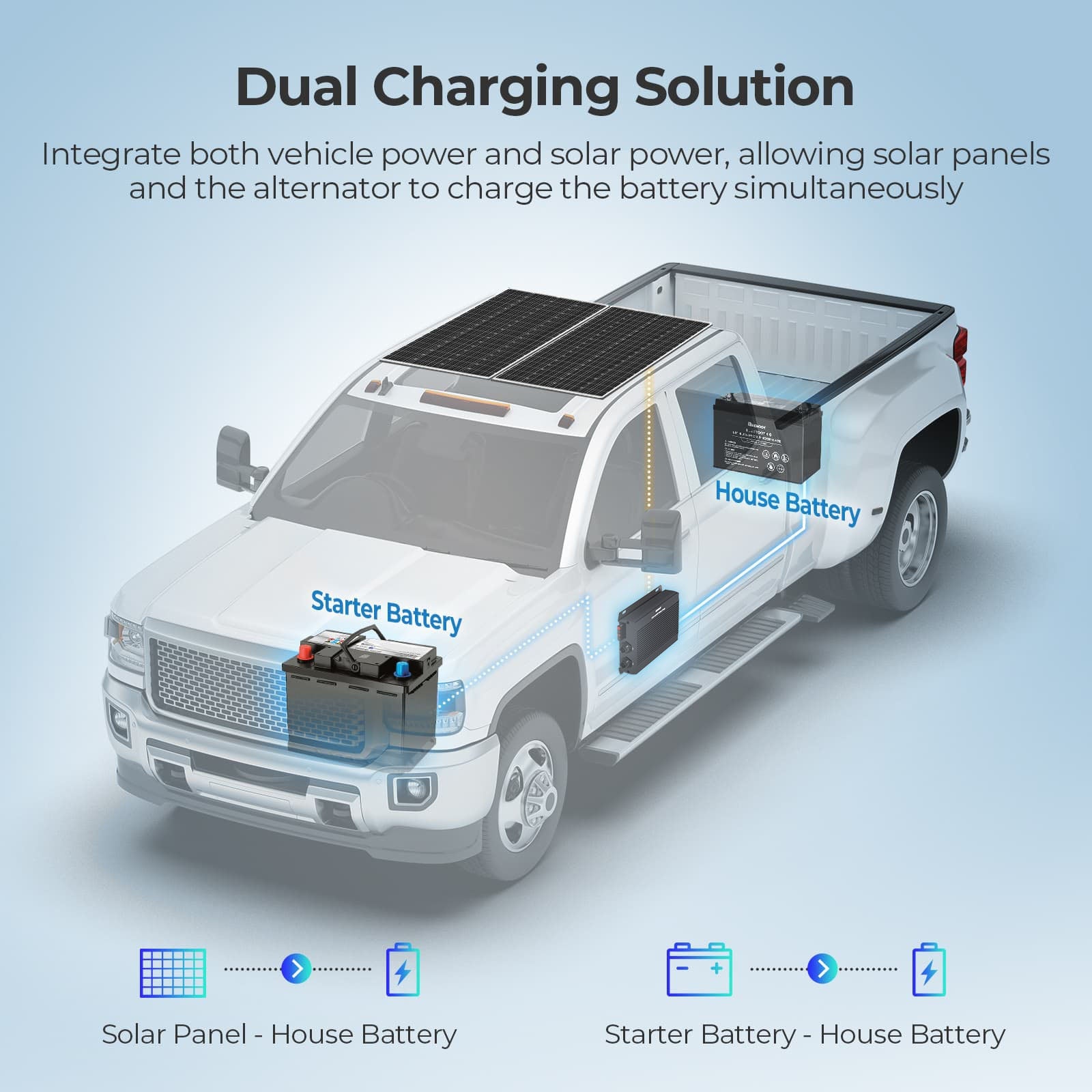

Dual-input design: accepts solar and alternator input and intelligently combines them.

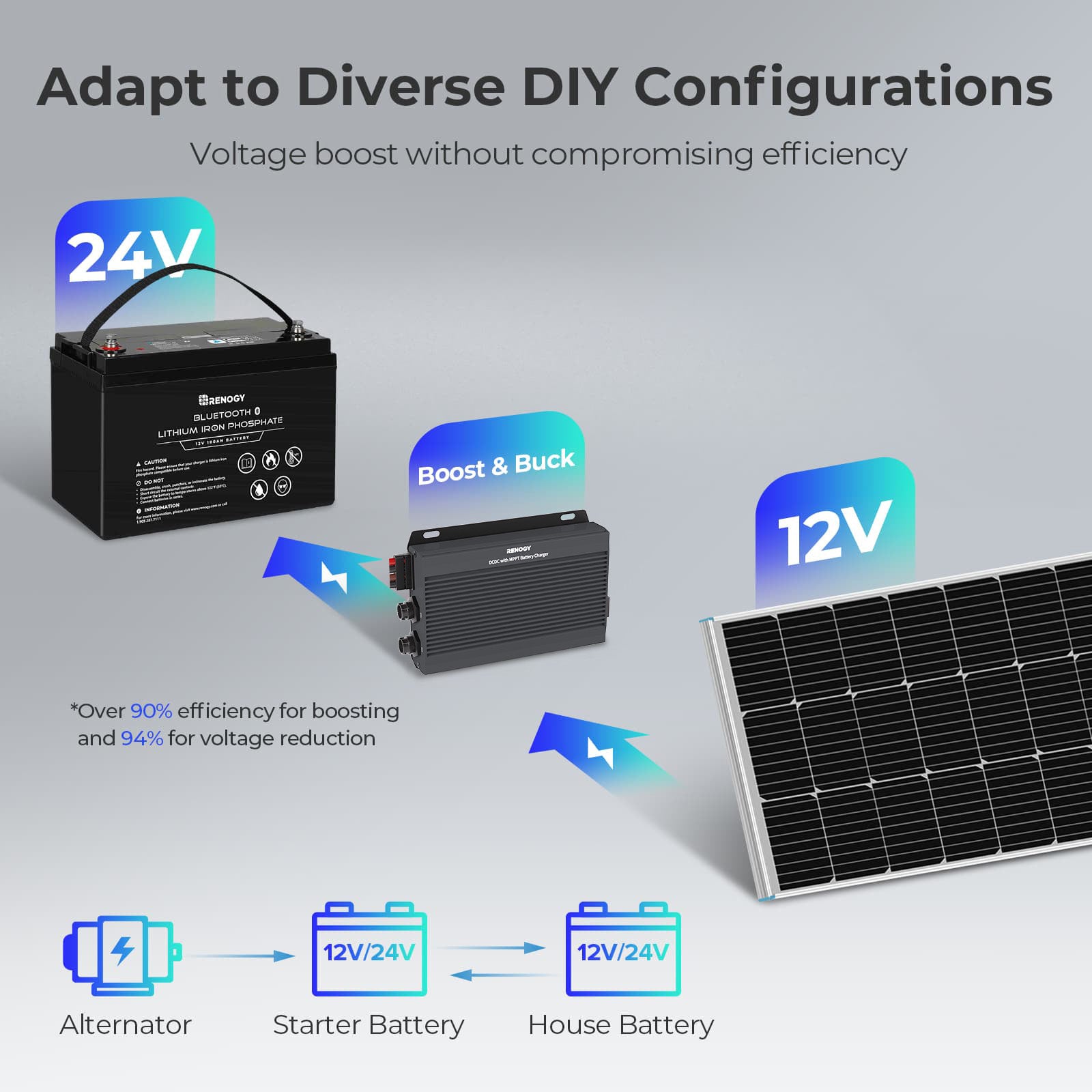

Boost and buck voltage logic: supports charging between 12V and 24V systems.
MPPT solar charging: prioritizes solar energy and maximizes harvest from panels.

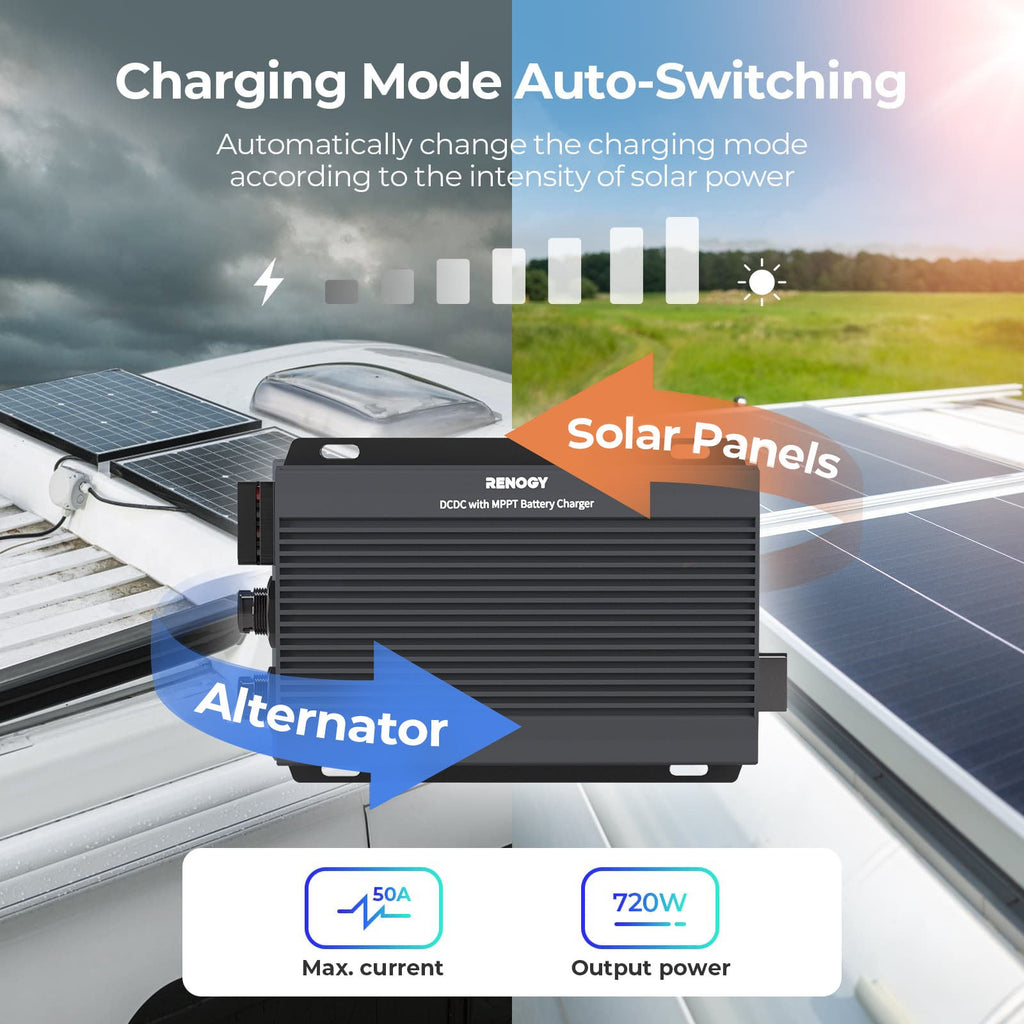

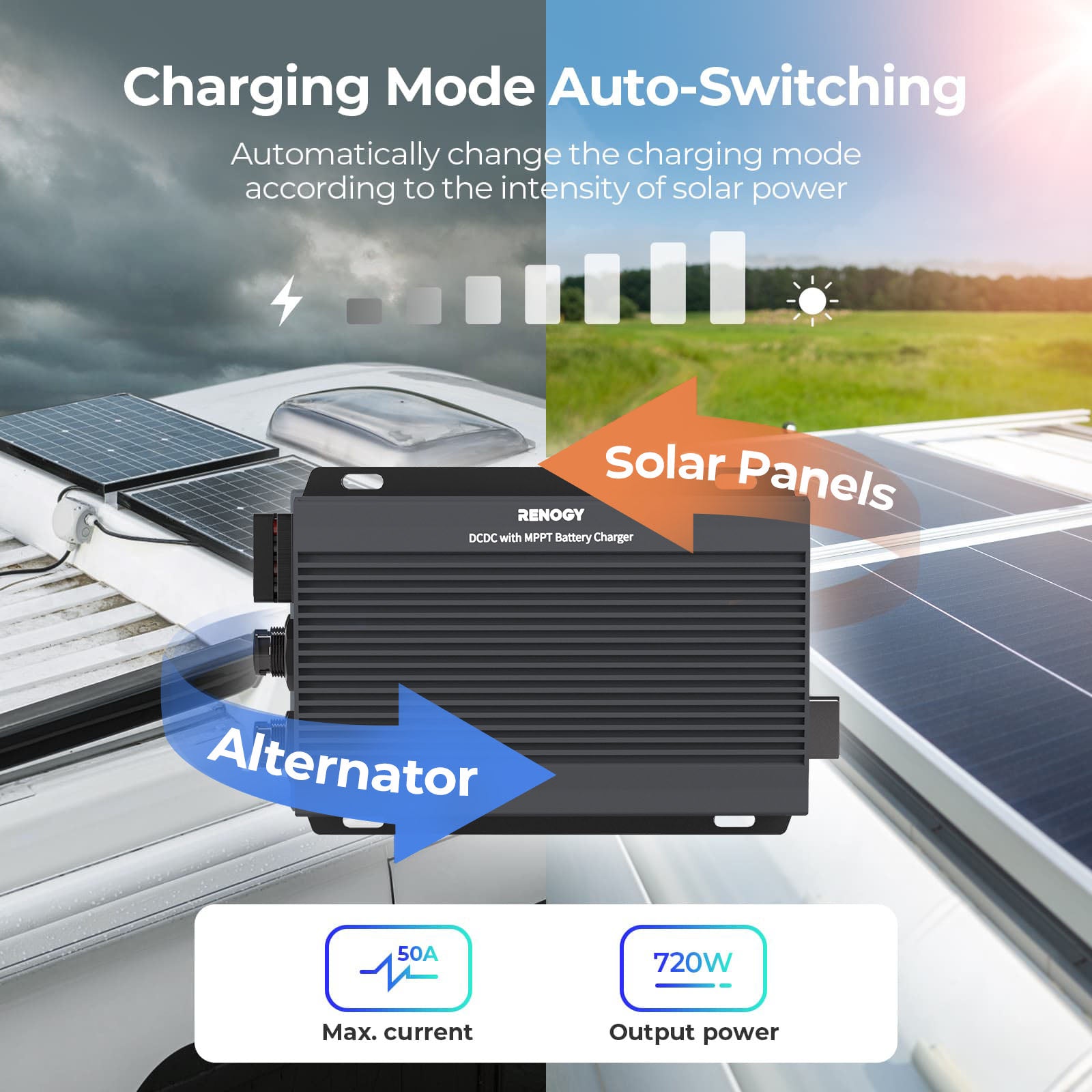

Automatic mode switching: seamlessly switches between solar and alternator input for continuous charging.

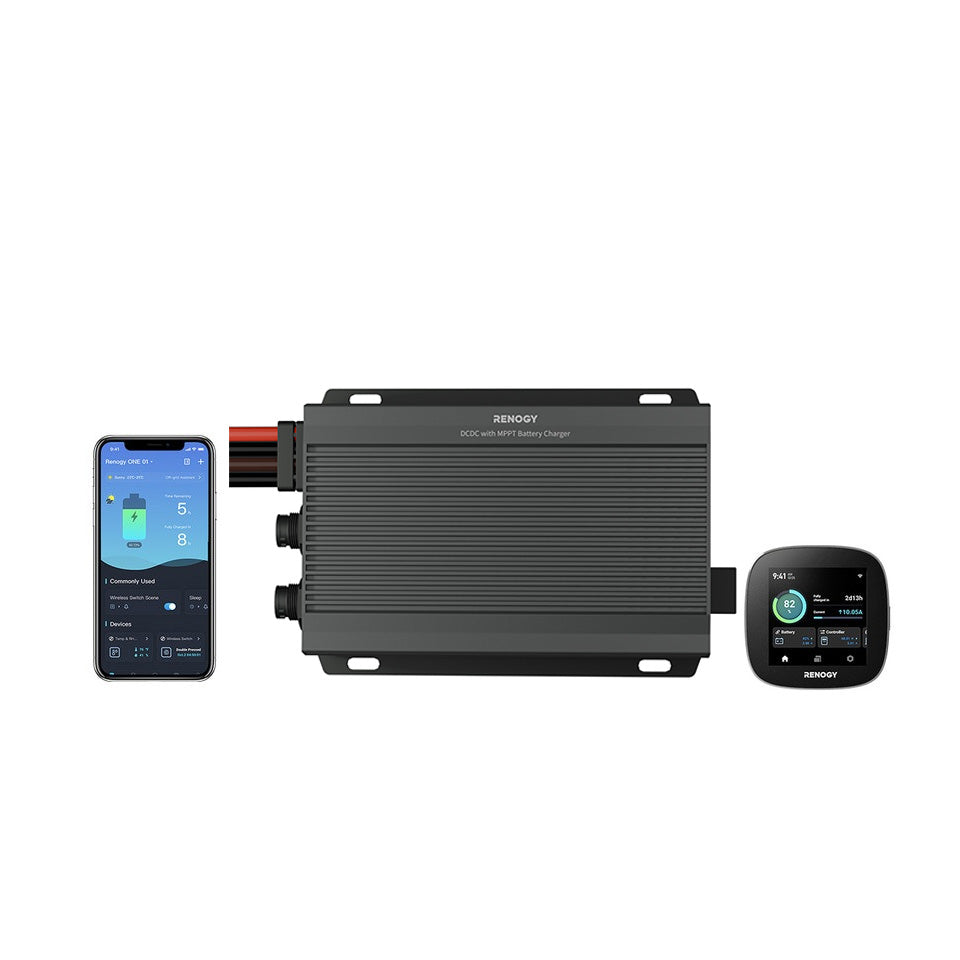

Bluetooth energy monitoring with wired CAN communication for data and configuration.
Compatible with both smart and traditional alternators; input tuning available via Bluetooth or display devices.
Multiple battery profiles: AGM/SLD, GEL, FLD, LI, and USER-configurable options.

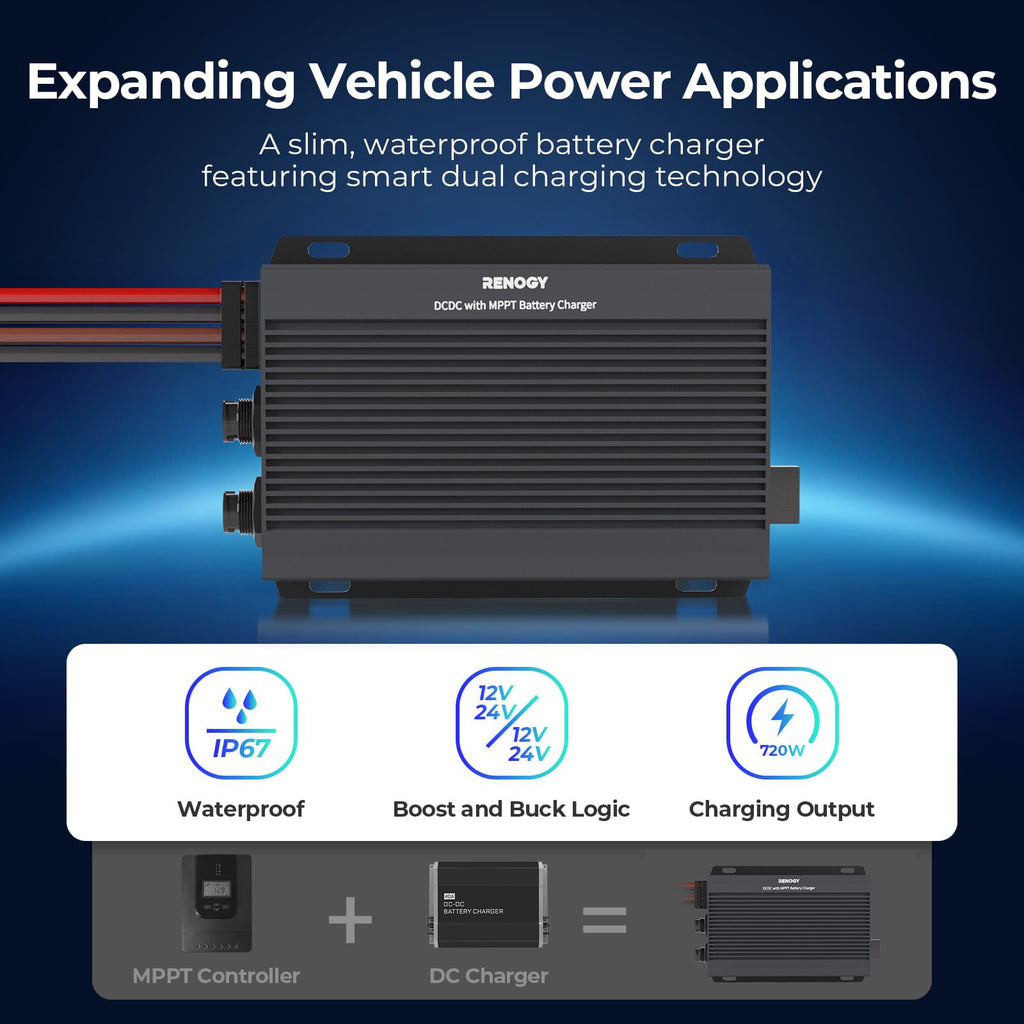

IP67 enclosure and glue-filled design for waterproofing and outdoor use.
Comprehensive electrical protections: reverse polarity, overvoltage, over-discharge, overcurrent, and over-temperature.
Specifications
Model: RBC2125DS
System voltage: 12V/24V ? 12V/24V (boost/buck capability)
Solar input voltage: up to 50 VDC (compatible with rigid and flexible modules)
Maximum solar power supported: up to 720 W
Output voltage: 9–32 VDC
Alternator input range: 9–32 VDC
Maximum output current: 12V @ 50 A ; 24V @ 25 A
Output power: 720 W
Output fuse rating: 75 A – 100 A
Input fuse rating: 60 A – 80 A
MPPT tracking efficiency: 99%
MPPT charging efficiency: 97%
Conversion efficiency: 94%
Temperature compensation: -3 mV/°C per 2V (Non?Lithium); 0 mV/°C per 2V (Lithium, no compensation)
Idle power consumption: < 100 mA
Operating temperature range: -31°F to 176°F (-35°C to 80°C)
Storage temperature range: -40°F to 212°F (-40°C to 100°C)
