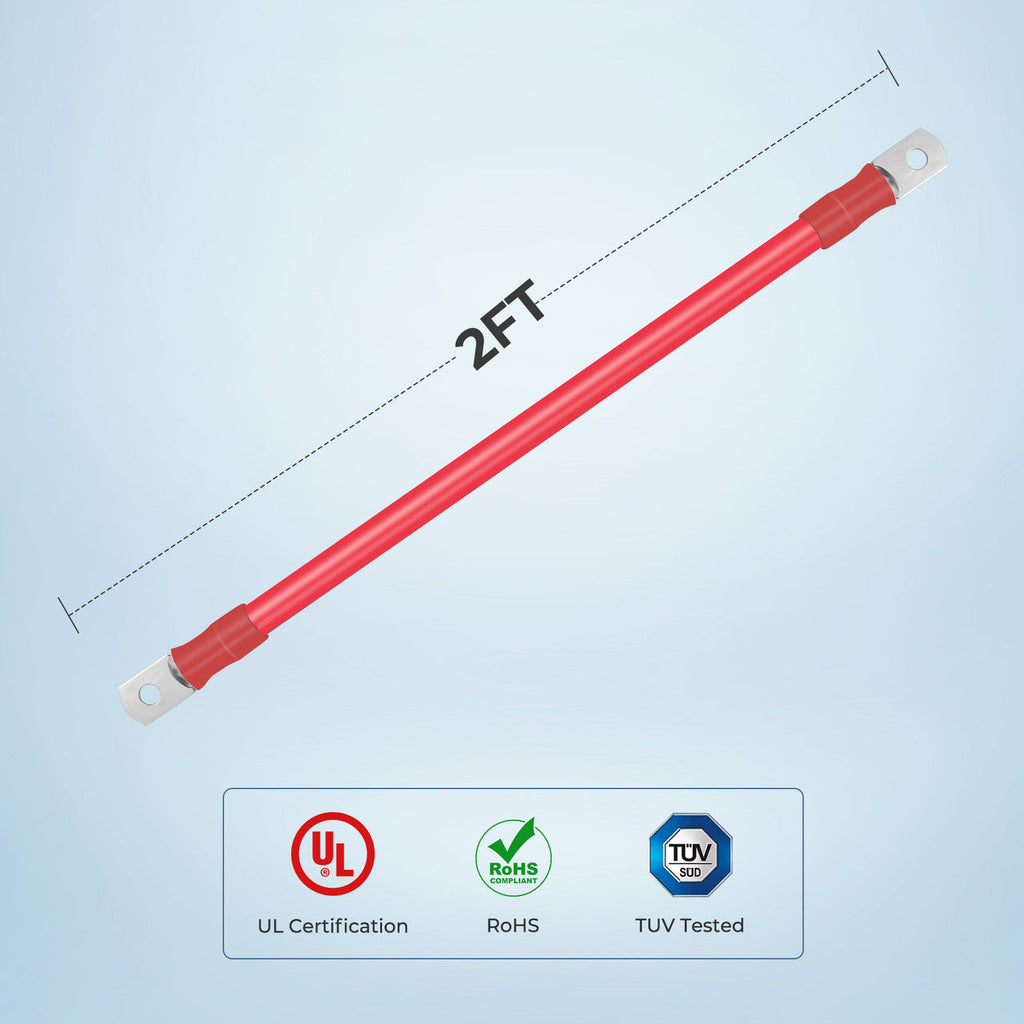

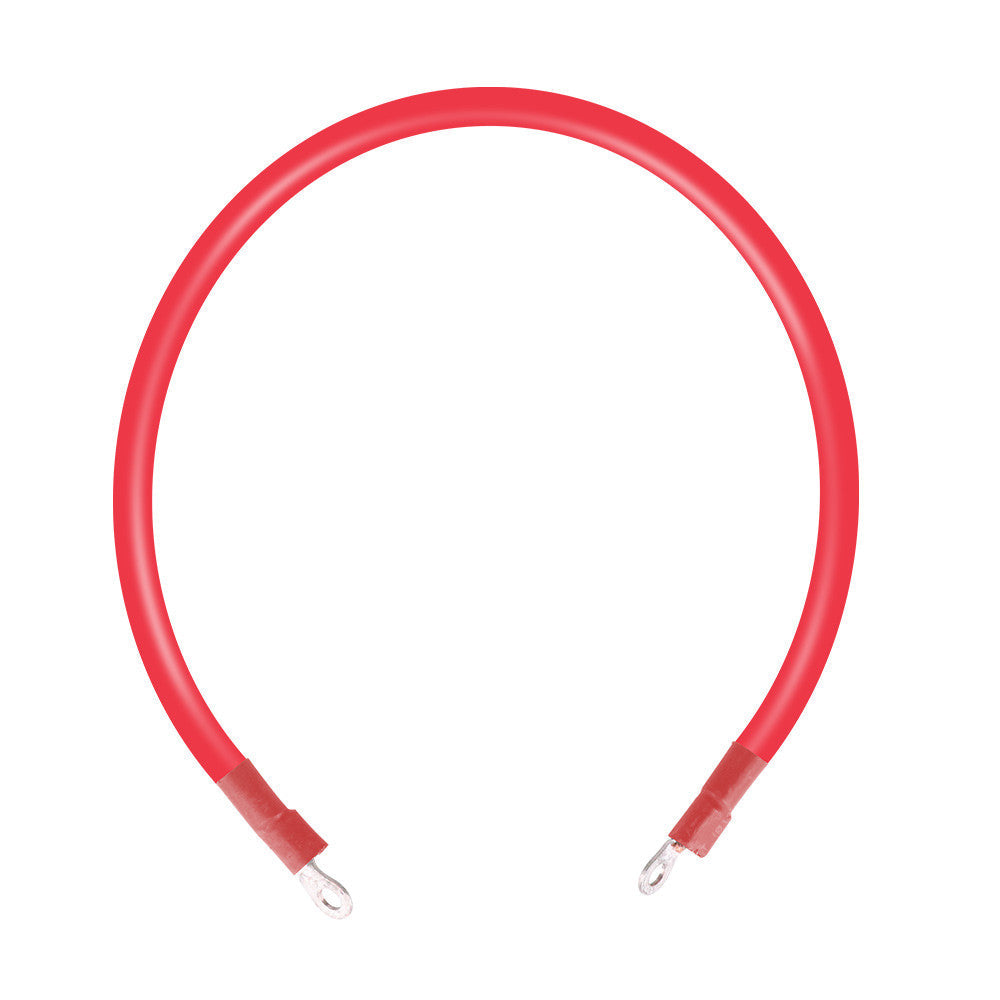

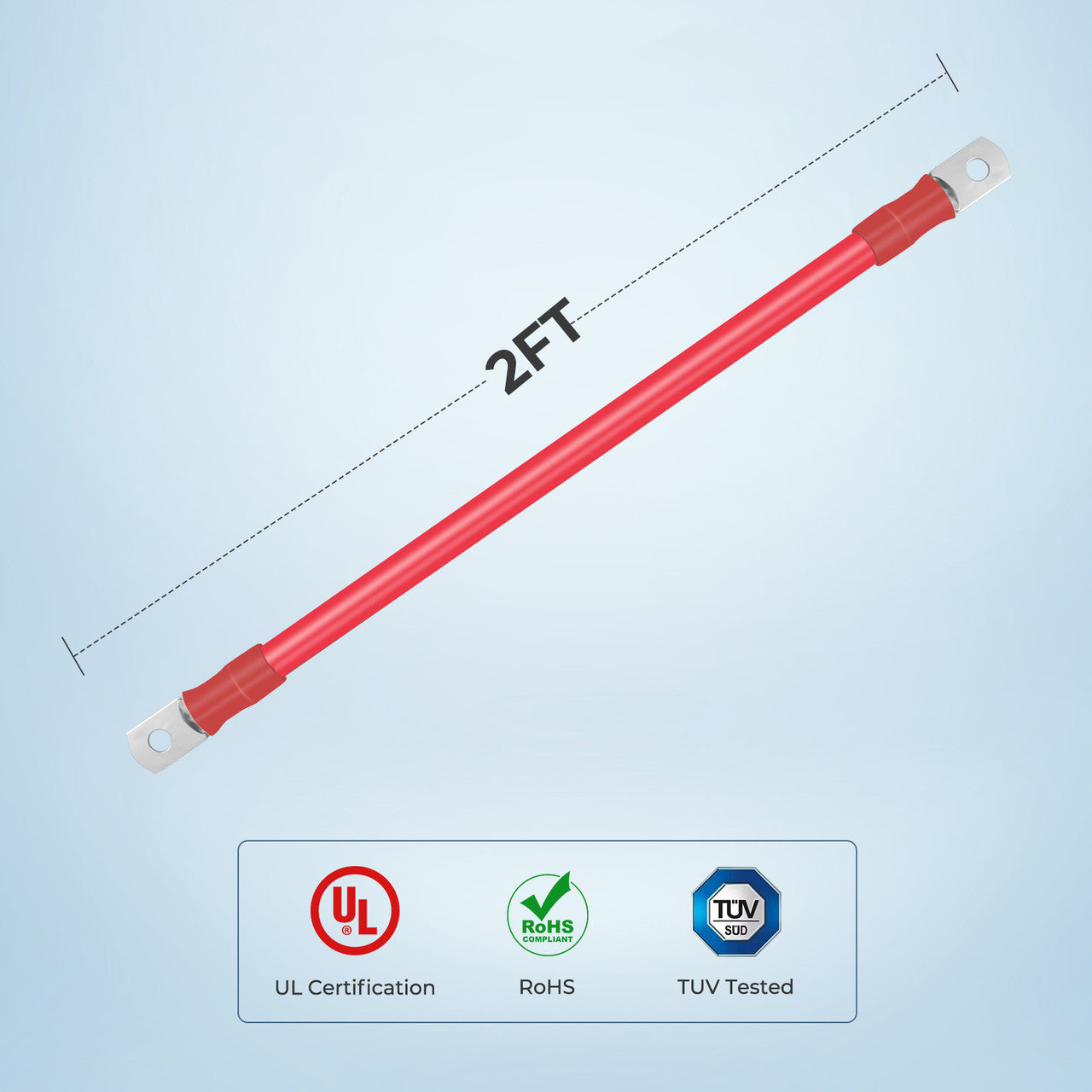

Renogy 2 ft ANL Fuse Cable — 4 AWG / 8 AWG / 10 AWG
Overview

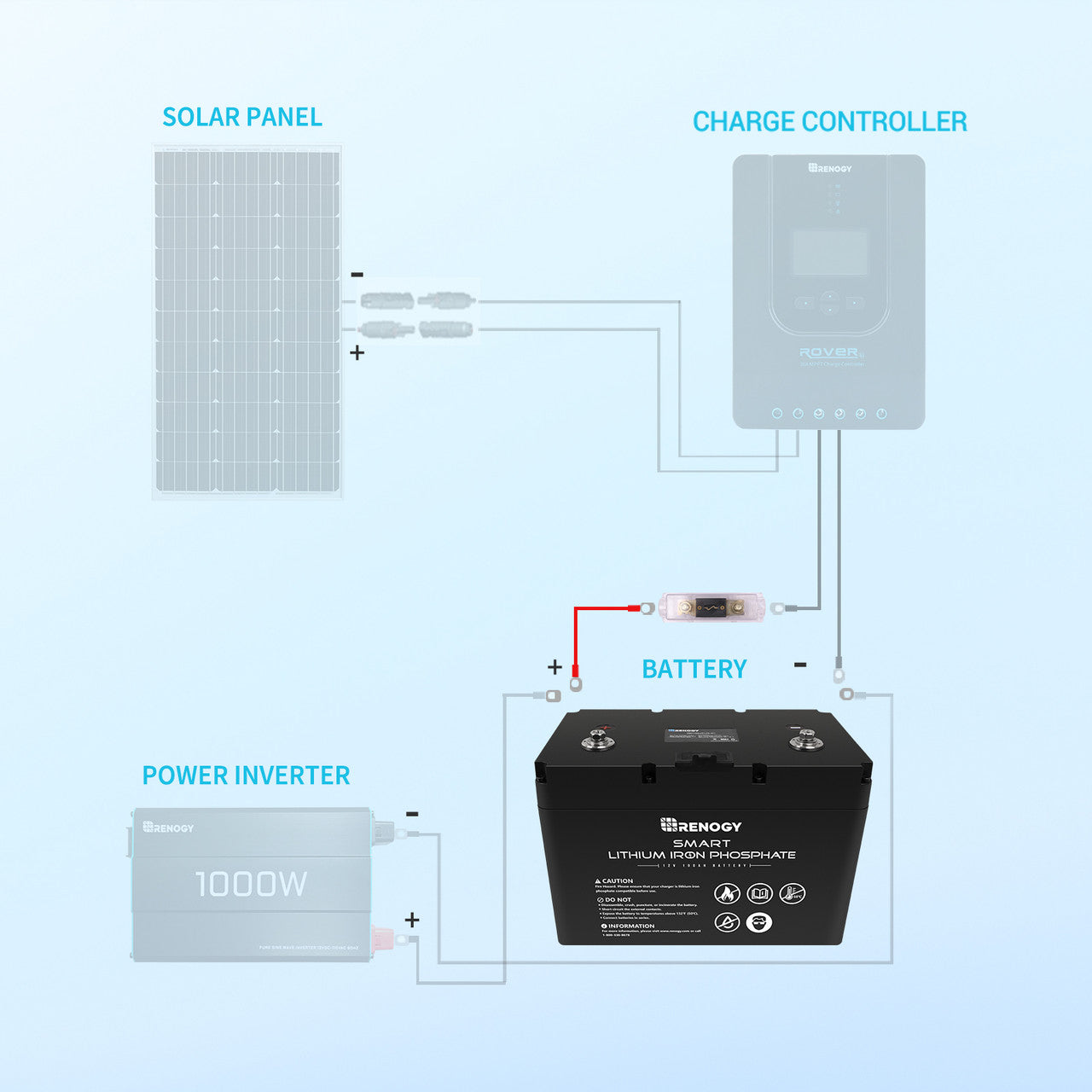

A ready-to-install 2-foot cable with battery ring terminals designed to connect an ANL fuse to your battery. Available in 4 AWG, 8 AWG, and 10 AWG to fit different system needs. Built for outdoor and solar applications with TUV testing, UV resistance, and a wide operating temperature range.
Benefits
- Make installations faster and neater with pre-terminated ring terminals that attach directly to your battery and ANL fuse.
- Protect your system and equipment by using the correct cable gauge for reliable current handling and reduced voltage drop.
- Dependable performance in hot environments so your system stays stable when temperatures rise.
- Longer service life outdoors thanks to UV-resistant insulation, reducing the need for early replacements.
- Simplifies planning — three gauge options let you match the cable to your fuse and inverter requirements without custom wiring.
Features

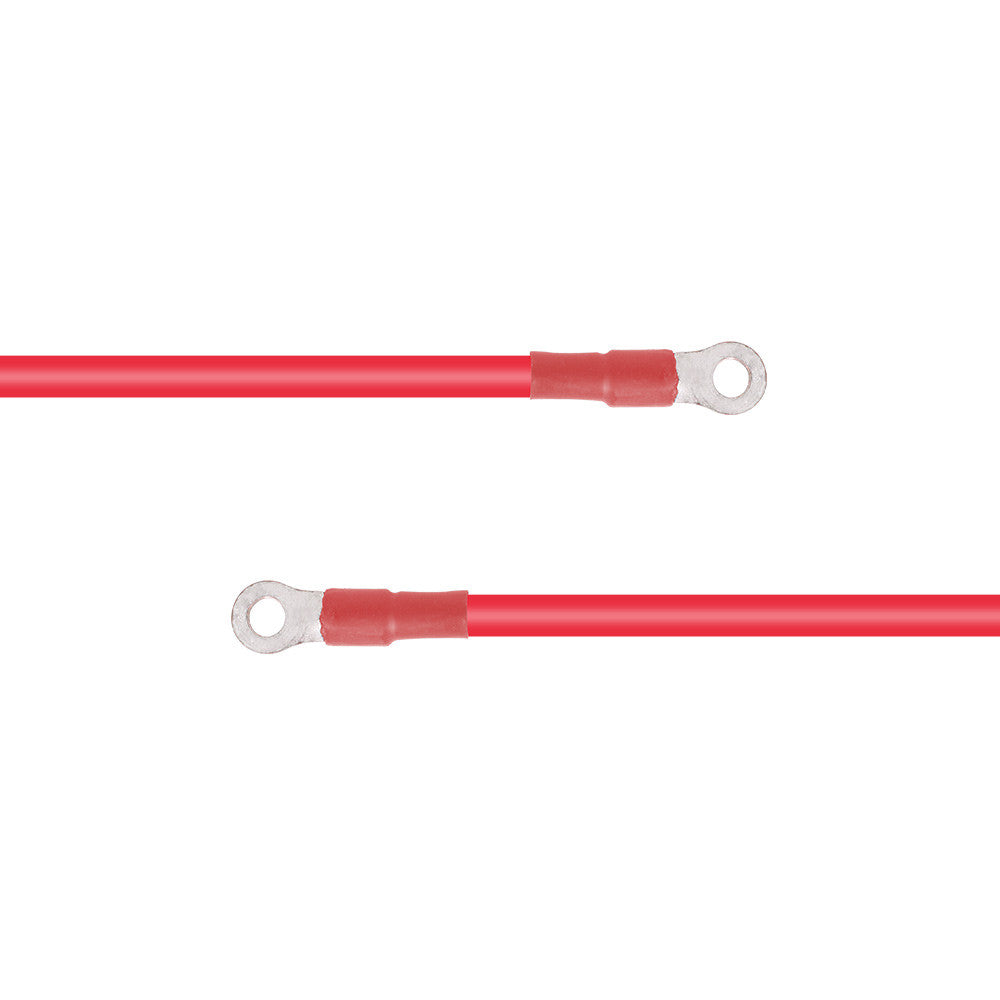

- Pre-installed battery ring terminal on one end and ANL fuse-compatible ring on the other.
- Available in three wire gauges: 4 AWG, 8 AWG, and 10 AWG.
- 2-foot length for close-proximity fuse-to-battery connections.
- TUV-tested for photovoltaic (PV) solar applications; TUV logo marked per foot.

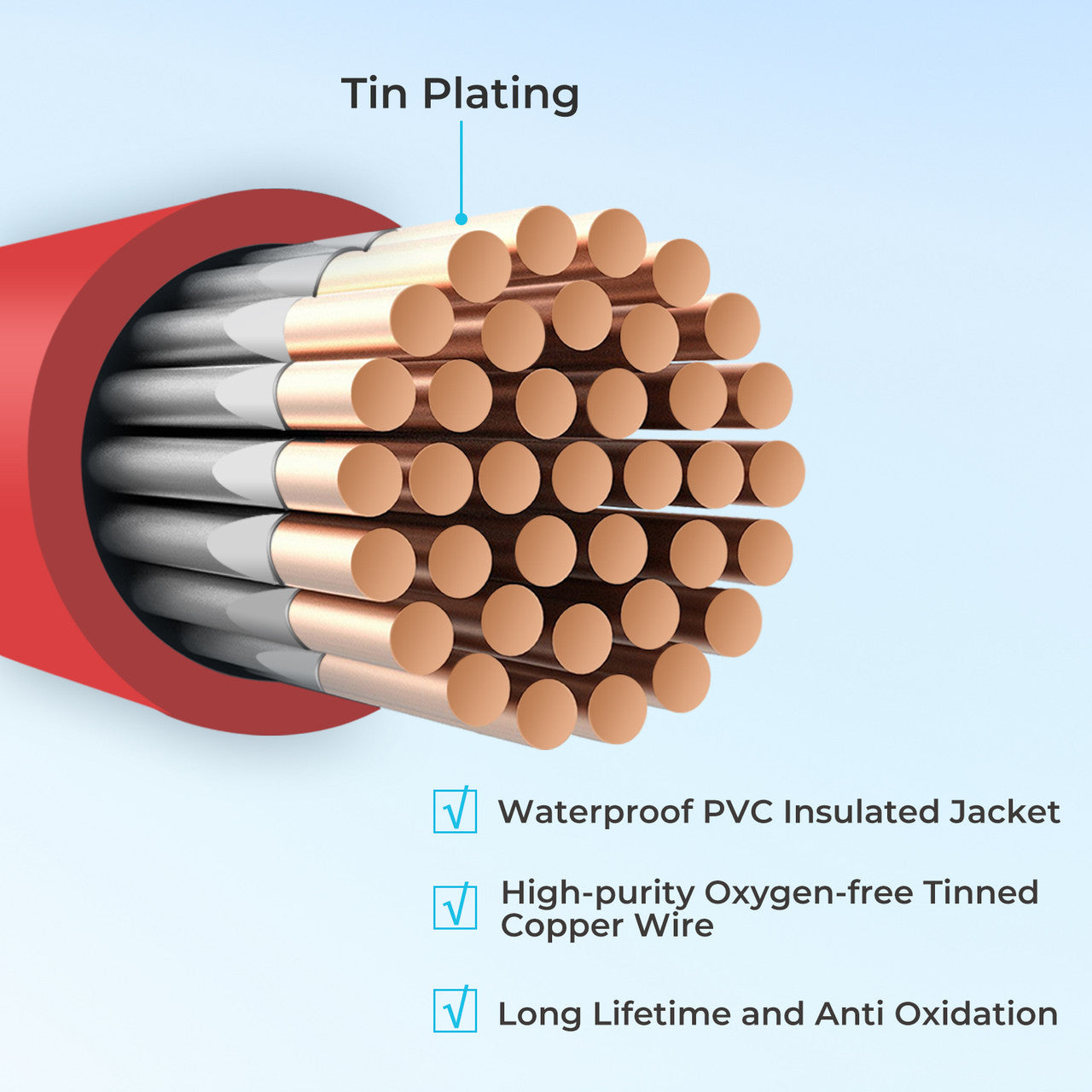

- UV-resistant insulation suitable for outdoor use.
- Wide operating temperature range for varied climates.
Specifications
- Package: 1 × Renogy 2 ft ANL fuse cable (select 4 AWG, 8 AWG, or 10 AWG)
- Length: 2 ft (0.61 m)
- Available gauges:
- 4 AWG — Length: 2 ft; AWG: 4
- 8 AWG — Length: 2 ft; AWG: 8
- 10 AWG — Length: 2 ft; AWG: 10
- Voltage rating: AC Uo/U 0.6/1 kV; DC 1.8 kV
- Temperature range: -40°F to +194°F (-40°C to +90°C)
- Standards: TUV tested for PV solar use; TUV logo printed per foot to indicate compliance
- Environmental: UV-resistant insulation for outdoor exposure
- Warranty: 1-year material warranty (accessories)
- Support: For product questions or troubleshooting call 1 (909) 287-7111 or visit https://www.renogy.com/contact-us
