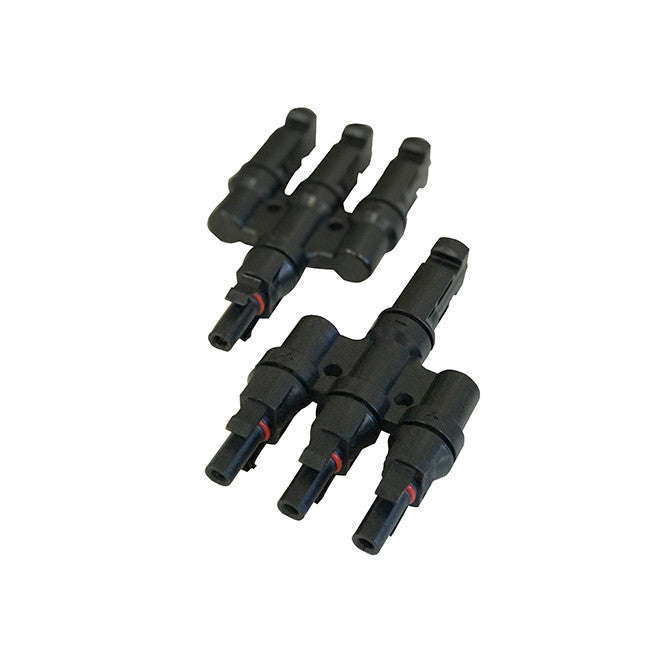

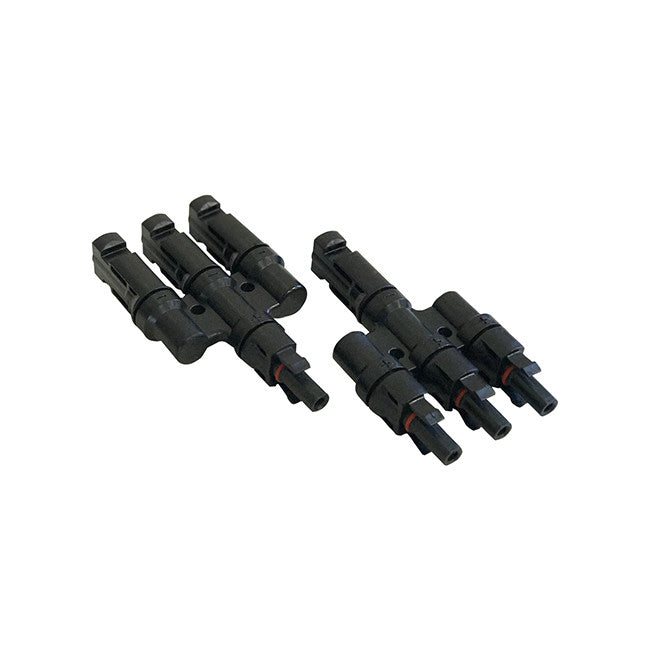

The Renogy 3-to-1 Solar Branch Connector (MMMF + FFFM pair) lets you safely combine three solar panel outputs into a single run. Built for outdoor use, it resists UV and aging, seals to IP67, and uses a rivet-and-lock design so you can assemble or disassemble cables without extra tools.
Benefits
Combine three panels quickly to simplify wiring and reduce installation time.
Weather-resistant construction reduces maintenance and keeps connections reliable outdoors.
Tool-free assembly/disassembly saves you trips for tools and speeds servicing on-site.
Durable materials and UV resistance extend uptime and lower the need for replacements.
Clear ratings and protection class make system planning and safety easier.
Features
Connects three panels in parallel into one output cable.
Rivet-and-lock cable connection for secure, tool-free assembly and disassembly.
Weatherproof housing with IP67 protection for outdoor and harsh environments.
High UV and aging resistance for long-term outdoor exposure.
MMMF + FFFM pair configuration included for standard PV cabling.
Specifications
Rated current: 50 A
Maximum working voltage: DC 1000 V
Insertion force: ? 50 N
Withdrawal force: ? 50 N
Contact resistance: ? 5 m?
Shell protection degree: IP67
Flame class: UL94-V0
Pollution degree: 2
Ambient temperature range: -40 °C to +85 °C
Safety level: Class II
Package includes: 1 x 3-to-1 Solar Branch Connectors (MMMF + FFFM pair)
Warranty:
Accessories: 1-year material warranty
Panels (general Renogy info): 25-year transferable power output warranty (5 years/95% efficiency, 10 years/90%, 25 years/80%) and 5-year material & workmanship warranty
Support: For questions or troubleshooting call 1 (909) 287-7111 or contact us.
