3 ft 4 AWG Anderson SB120 to 5/16" Ring Lug Adapter Cable
3 ft 4 AWG Anderson SB120 to 5/16" Ring Lug Adapter Cable

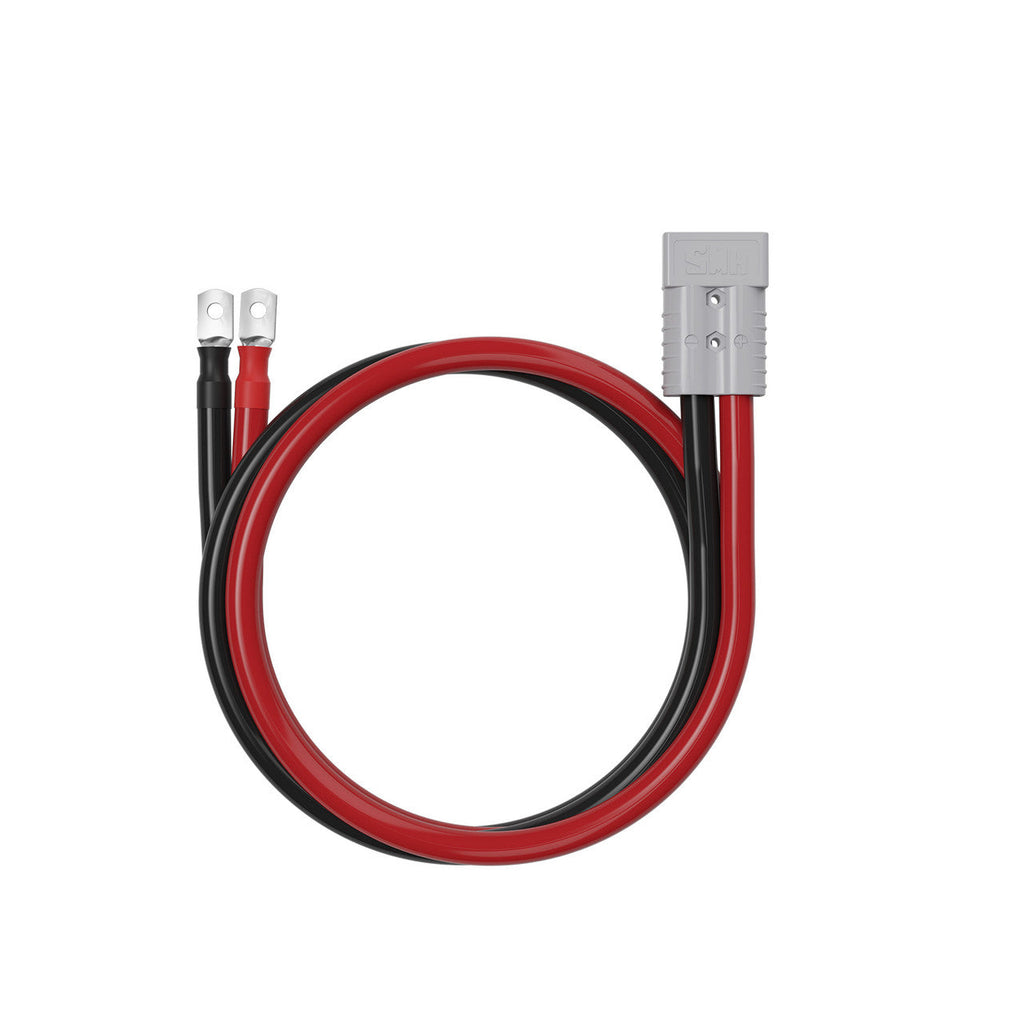

Compact Anderson SB120 to 5/16" Ring Lug Adapter
A durable 3-foot adapter cable that converts an Anderson SB120 connector to 5/16-inch ring lugs. Designed for reliable power connections between batteries, chargers, inverters, and other 12–48V systems where a heavy-gauge, low-resistance link is needed.
Benefits
Makes connecting equipment faster by providing a ready-made adapter—no cutting or splicing required.
Reduces frustration from loose or unreliable connections by using a stout 4 AWG conductor and secure ring terminals.
Saves time when swapping batteries or hooking up accessories—plug the Anderson end in and bolt the ring lugs down.
Provides a tidy, single-cable solution that keeps wiring organized and easier to service.
Features
One-piece adapter cable with an Anderson SB120 gendered connector on one end and dual 5/16" ring lugs on the other.
Heavy 4 AWG stranded conductor for low voltage drop and efficient current handling.
Flexible insulation for easier routing in tight spaces.
Standard 5/16" ring lugs suitable for common battery and busbar stud sizes.
Ready to install—no additional terminals or tools required beyond standard crimp/bolt hardware if needed.
Specifications
Length: 3 ft (0.91 m)
Conductor size: 4 AWG
Conductor type: stranded copper
Connector: Anderson SB120
Connector current rating: up to 120 A (Anderson SB120 series typical rating)
