Renogy 500A Battery Monitor with Shunt

Precise, easy-to-read battery monitoring for RVs, boats, cabins and off-grid systems

The Renogy 500A Battery Monitor provides real-time, high-precision tracking of voltage, current and state of charge for a wide range of battery types. It pairs an LCD display with a 500A shunt and a 20 ft shielded cable so you can monitor battery health and usage from a distance and take action before batteries are damaged.

Benefits

• Know exactly how much charge you have left so you avoid unexpected power loss and downtime.
• Protect battery life by receiving alarms before voltage drops to harmful levels.
• Monitor battery performance from a convenient location without sitting next to the battery bank.
• Make better charging and usage decisions that extend battery longevity and reduce replacements.
• Compatible with many battery chemistries, so you can use one monitor across different systems.

Features

• Shunt-type monitoring for accurate real-time current and voltage measurement.

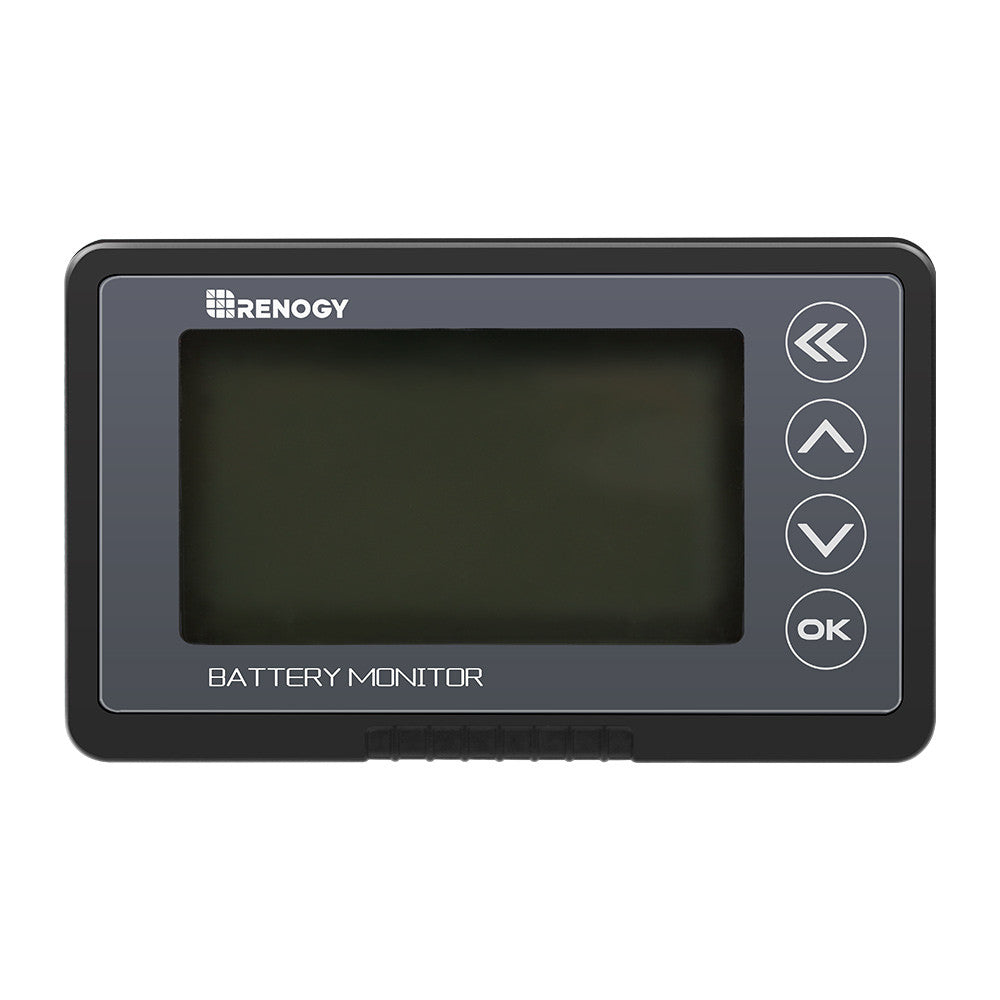

• LCD interface with adjustable green backlight and high-definition display of multiple parameters.
• Displays voltage, current, consumed power, remaining capacity and battery degradation rate.
• High and low capacity/current/voltage alarm settings with backlight and value flash on alarm.
• Data memory saves last readings when power is removed.
• Transparent shunt holder for easy mounting and a 20 ft (6 m) shielded cable for remote display placement.
• Works with a broad range of batteries: Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid.

Specifications

• Working voltage: 10–120 V
• Maximum current: 500 A (shunt included)
• Capacity preset range: 0.1–9999.0 Ah
• Capacity accuracy: ±1%
• Current accuracy: ±1%
• Voltage accuracy: ±1%
• Display: LCD with adjustable green backlight
• Standby dissipation: 1–2 mA
• Working dissipation: 10–15 mA
• Backlight on current (>50 A): 100 mA
• Shielded wire length: 20 ft / 6 m
• B+ wire length: 3 ft / 1 m
• LCD interface size: 99 x 61 x 18 mm (3.9 x 2.4 x 0.7 in)
• LCD interface weight: 75 g / 2.6 oz
• Operating temperature range: -10 to 60 °C (14 to 140 °F)
• Included in the package:
  • 1 x LCD interface
  • 1 x 500A shunt / sampler
  • 1 x shielded wire (20 ft / 6 m)
  • 1 x B+ wire (3 ft / 1 m)
  • 1 x shunt holder
• Certifications: RoHS compliant
• Warranty: 2-year material and workmanship warranty
• Note: Avoid prolonged direct sun and excessive UV exposure to preserve LCD lifespan; store and use within specified temperature limits.
