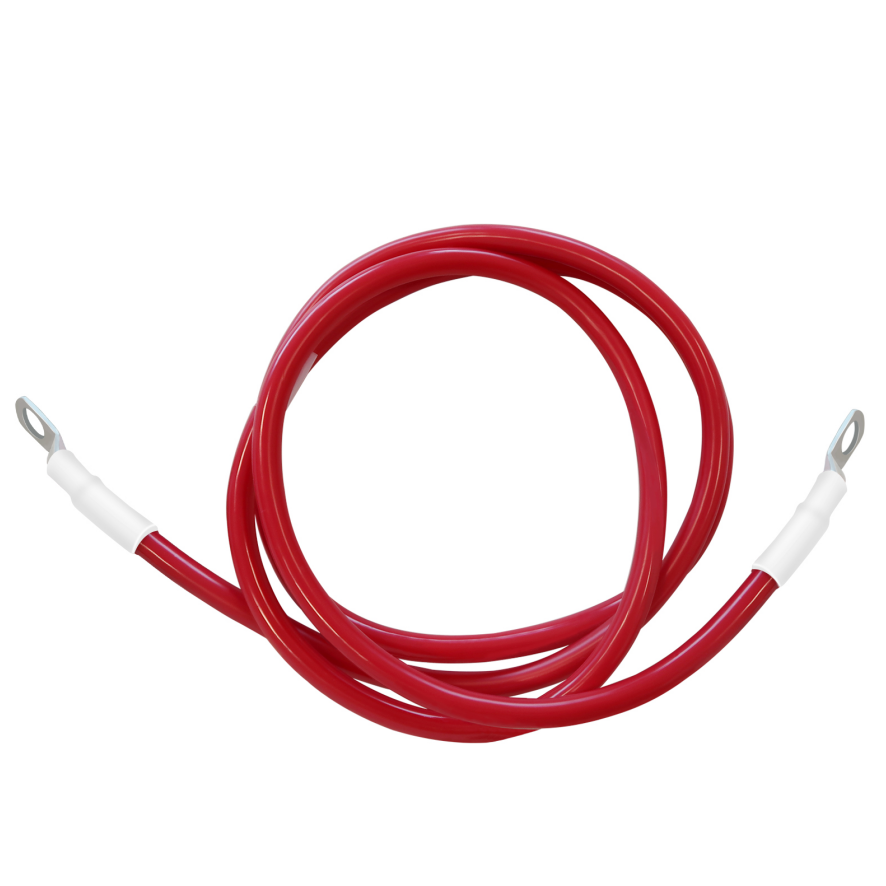

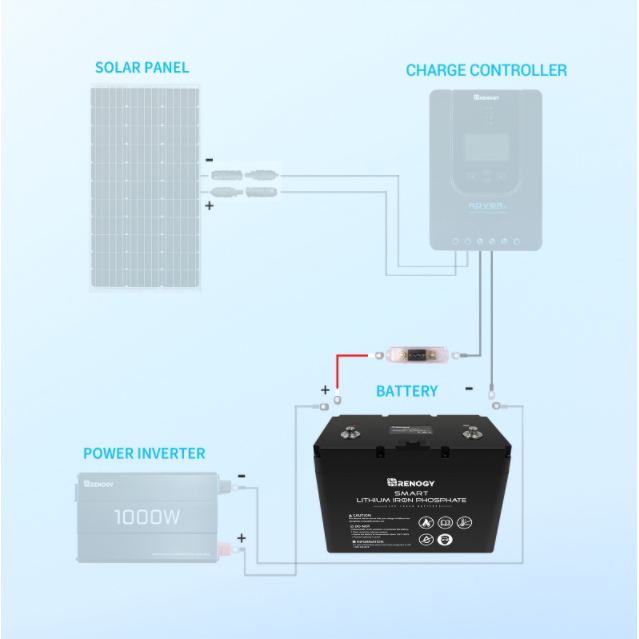

A heavy-duty 5 ft cable built to link an ANL fuse to your house batteries with minimal fuss.
Available in 6 AWG or 3/0 AWG, it features 5/16" stainless-steel ring terminals, tinned oxygen-free copper conductors,
heat-shrink insulation and a PVC jacket for long-term performance in solar and off-grid systems.
Benefits
Make installations faster and cleaner by providing a ready-made, properly terminated cable for ANL fuse connections.
Reduce downtime and troubleshooting by using corrosion-resistant, tinned terminals that maintain conductivity in wet conditions.
Protect your system and batteries with heat-shrink insulation and a durable jacket that resists high temperature and pressure.
Choose the right gauge for your setup (6 AWG or 3/0 AWG) to match current requirements without splicing or custom terminations.
Use confidently in photovoltaic and off-grid systems thanks to UL, TUV and RoHS compliance.
Features

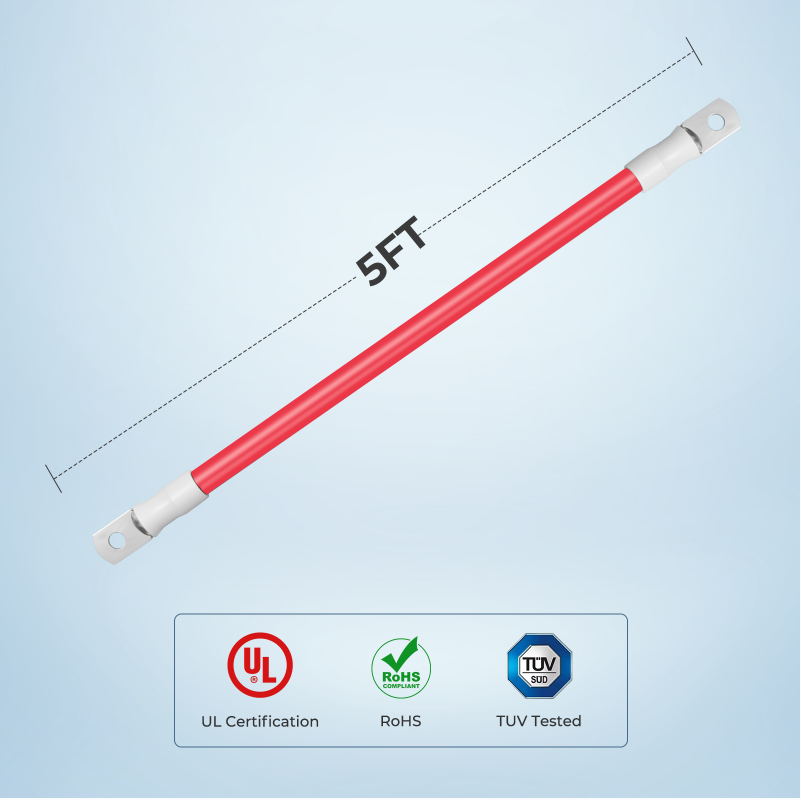

5 ft length with 5/16" ring lugs on both ends for ANL fuse to battery connections.

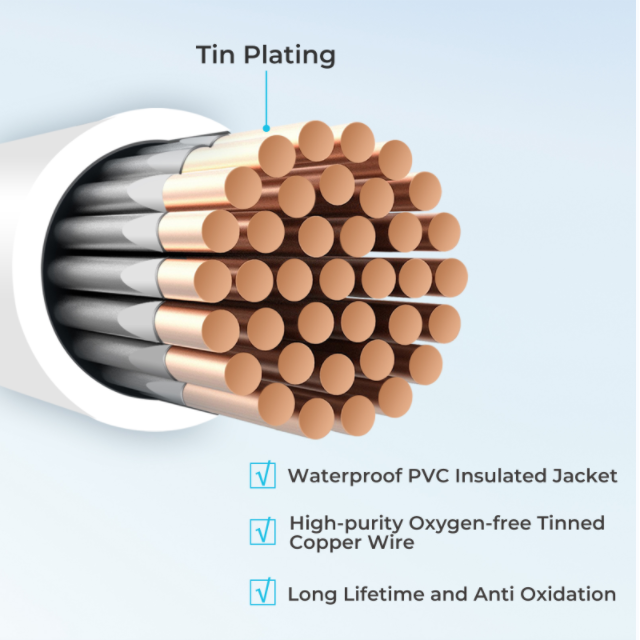

High-purity, oxygen-free tinned copper conductors for improved conductivity and reduced power loss.
Stainless-steel, tinned ring terminals to resist corrosion in moist environments.

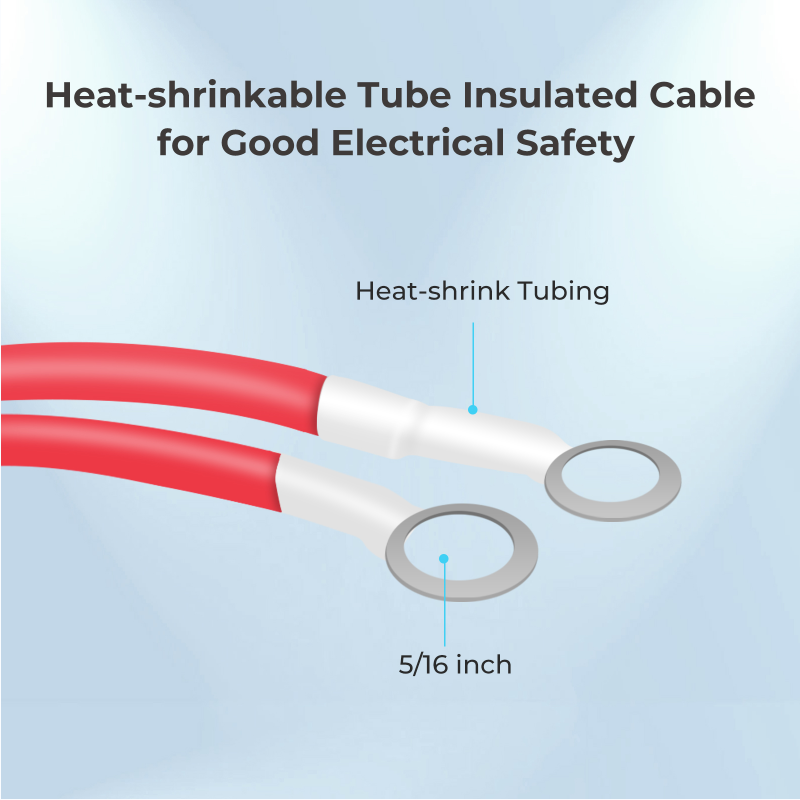

Heat-shrink tube insulation for secure, abrasion-resistant terminations.
PVC outer jacket that withstands high temperatures and pressure; waterproof construction for outdoor use.
Multiple gauge options (6 AWG and 3/0 AWG) to suit different current capacities.
Certified for photovoltaic use: UL and TUV tested; RoHS-compliant materials.
Specifications
Length: 5 ft (1.52 m)
Available wire gauges: 6 AWG, 3/0 AWG
Rated voltage: 600 V
Temperature range: -40°C to 105°C (-40°F to 221°F)
Conductors: High-purity oxygen-free tinned copper
Terminals: Stainless-steel ring lugs, 5/16" hole, tin-plated
Insulation: Heat-shrink tube on terminations; PVC outer jacket
Environmental resistance: Waterproof and abrasion resistant; designed for harsh conditions
Certifications: UL, TUV tested; RoHS-compliant
Package includes: 1 x Renogy 5 ft ANL fuse cable (select either 6 AWG or 3/0 AWG)
Package dimensions & weight (6 AWG): 11 x 9.8 x 2 in; 0.66 lbs
Package dimensions & weight (3/0 AWG): 12.6 x 11 x 2 in; 3.3 lbs
Warranty: 1-year material warranty (accessories)
