Renogy Adventurer-Li 30A PWM Flush-Mount Charge Controller

Overview

The Adventurer-Li is a compact 30A PWM solar charge controller for 12V or 24V systems that adds programmable lithium charging and a communication port for Bluetooth monitoring. It supports flush mounting for a clean installation (surface-mount adapter included), shows system status on an LCD, and offers a front USB port for device charging.

Benefits

• Keep batteries healthy longer — smart multi-stage charging and temperature compensation reduce overcharging and undercharging.
• Monitor and adjust from your phone — RS232 support lets you add Bluetooth monitoring for convenient remote viewing and settings control.
• Save space and create a tidy installation — flush-mount design gives a clean look in RVs or campers; surface mount option provides flexibility.
• Charge small devices directly — front USB port provides 5V/2.4A power for phones or accessories without extra adapters.
• Reduce worry about faults — built-in protections and self-diagnostics help prevent damage from installation errors or system issues.

Features

• 30A PWM charge controller compatible with 12V and 24V battery systems.
• Programmable lithium charging voltage to support most lithium battery types.

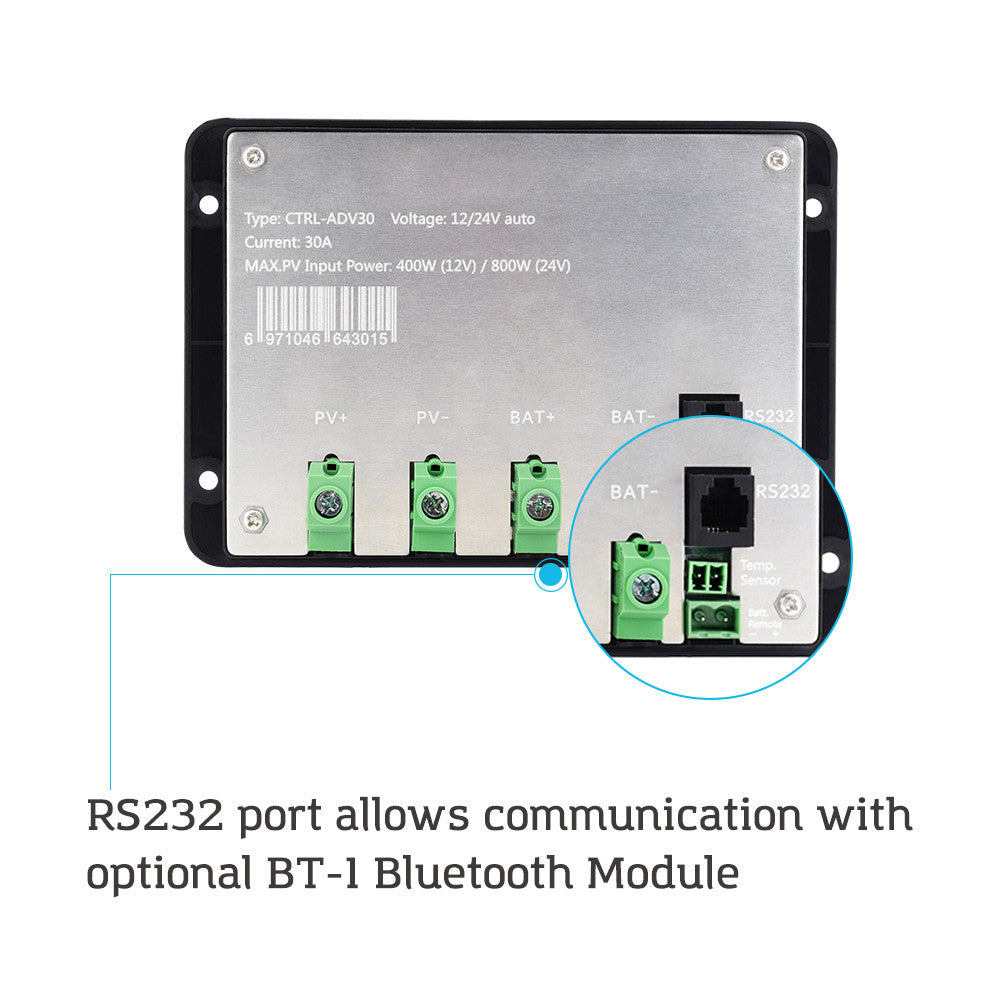

• RS232 communication port for use with the Renogy BT-1 Bluetooth module and monitoring apps.
• Front USB output (5V, 2.4A max) for charging small electronics.

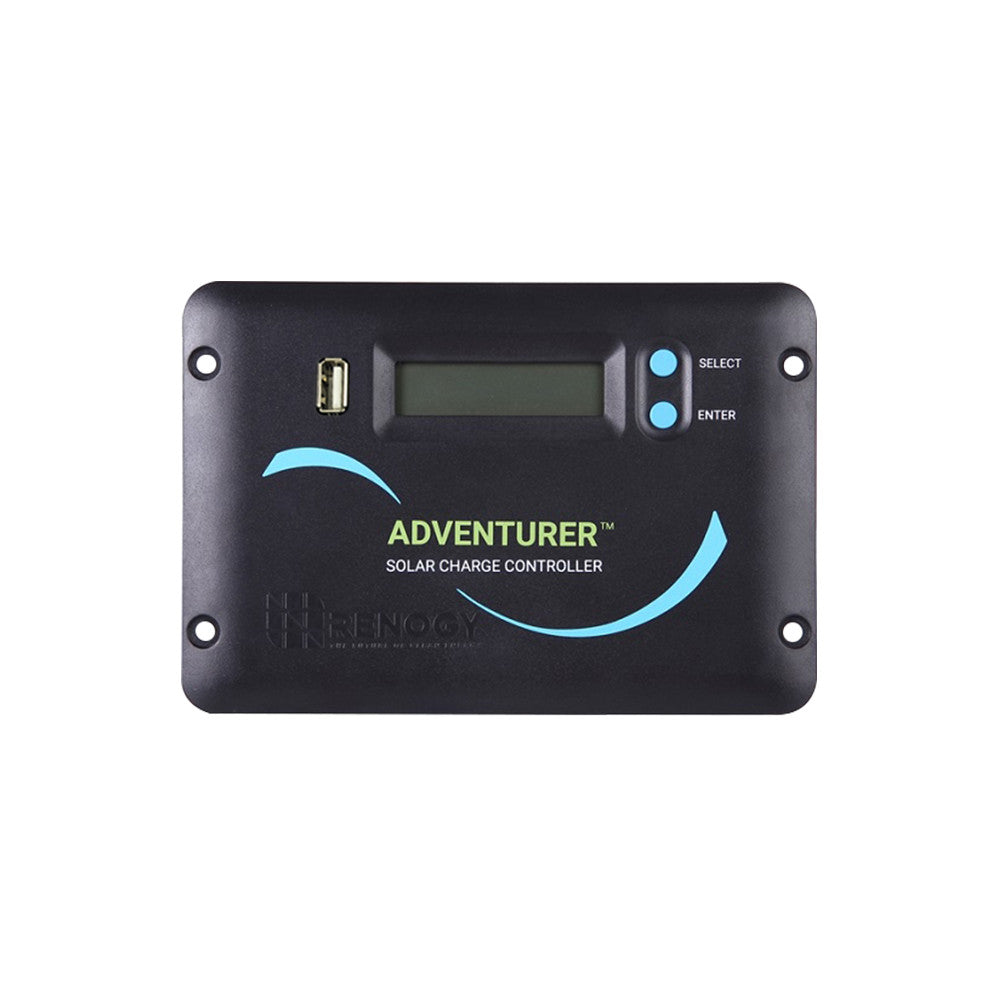

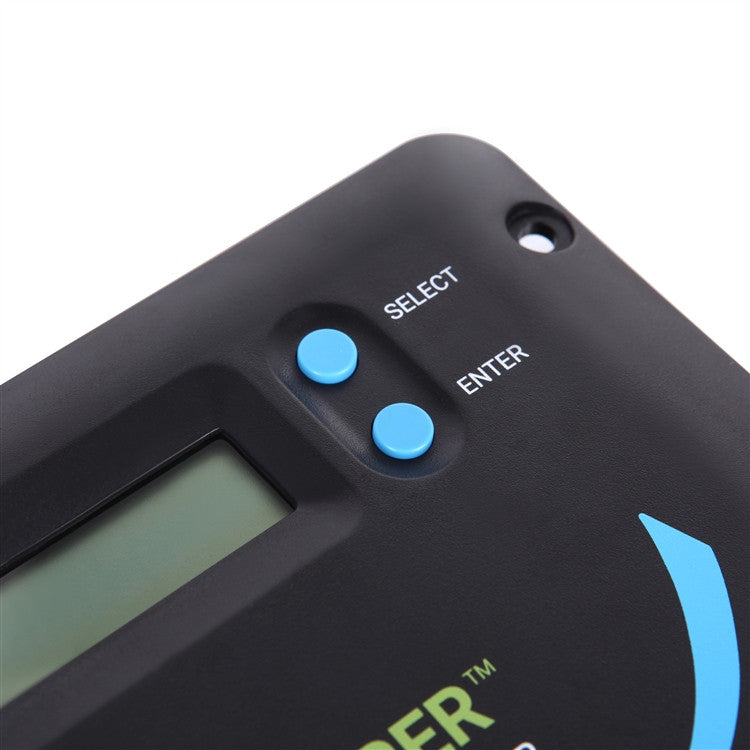

• LCD screen for real-time system information and parameter control.

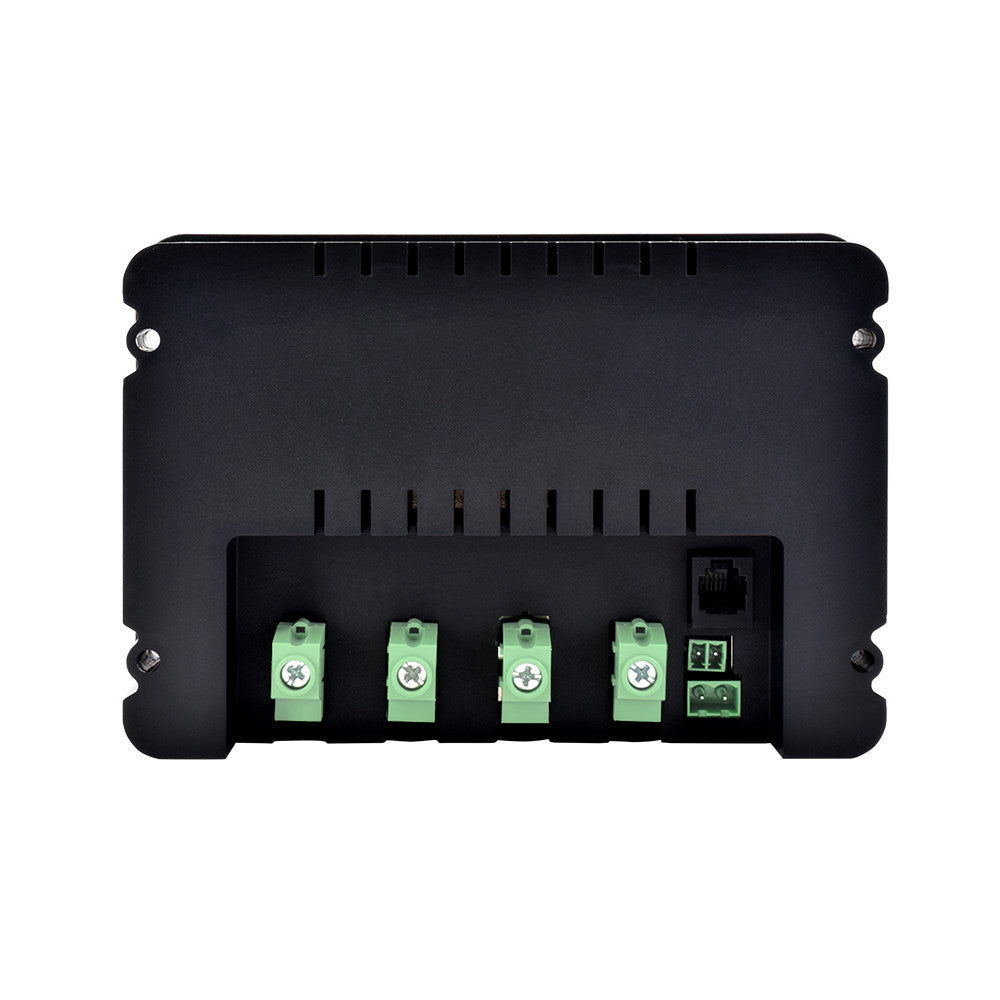

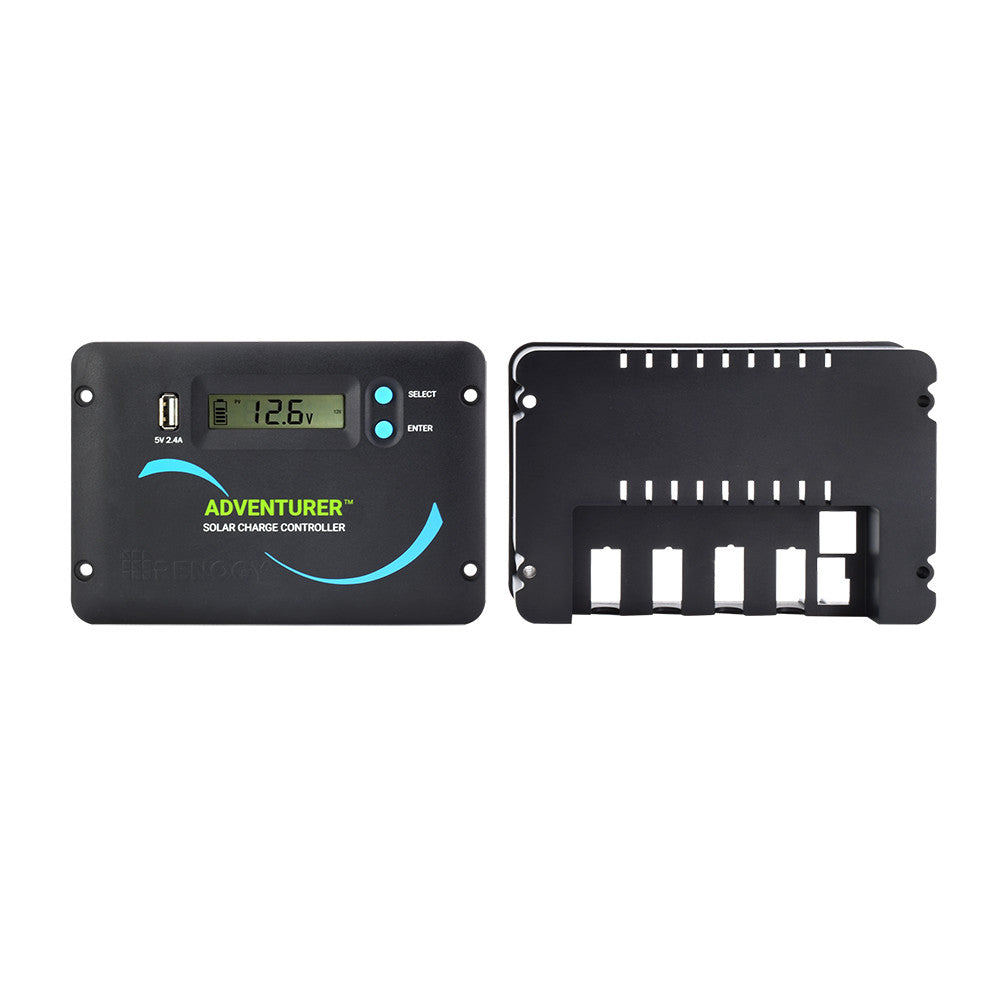

• Flush-mount design with included surface-mount adapter for installation flexibility.
• 4-stage PWM charging: Bulk, Boost, Float, and Equalization.
• Negative-ground design with protections against overcharge, overload, short-circuit, and reverse polarity.
• Automatic temperature compensation to adjust charging parameters based on battery temperature.

Specifications

• Nominal voltage: 12 VDC / 24 VDC
• Rated charge current: 30 A
• USB output: 5 V, 2.4 A max
• Max. PV input voltage: 50 VDC
• Max. PV input power: 12V (400 W) / 24V (800 W)
• Self-consumption: ?13 mA
• Temperature compensation coefficient: -3 mV/°C/2V
• Operating temperature: -13°F to 131°F (-25°C to 55°C)
• Storage temperature: -31°F to 176°F (-35°C to 80°C)
• Enclosure rating: IP20
• Dimensions: 6.56 × 4.50 × 1.90 inches

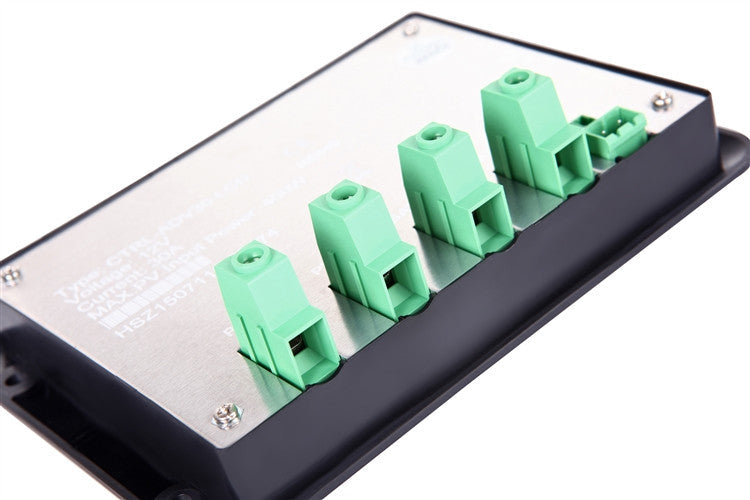

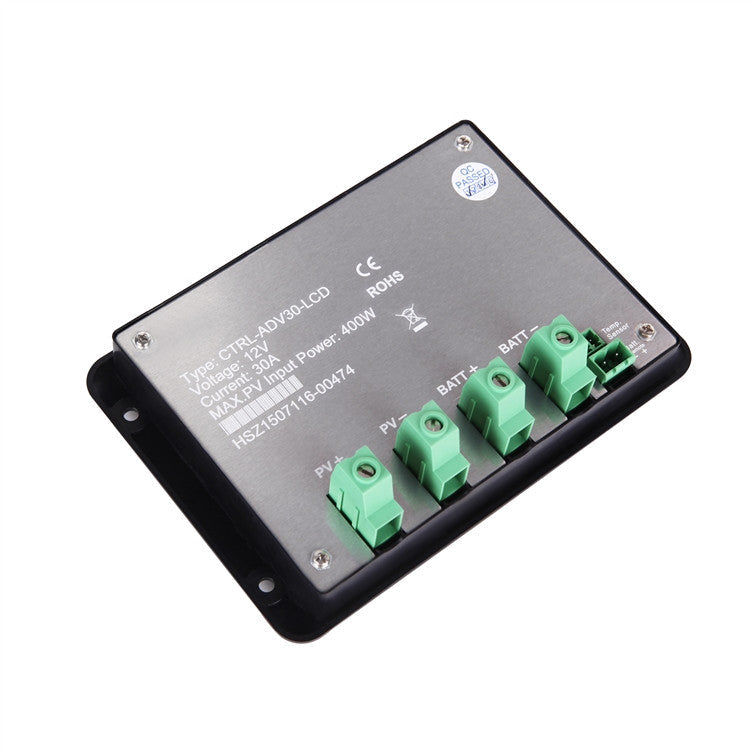

• Terminals: supports up to 8 AWG wiring
• Weight: 0.6 lb
• Certification: CE
• Compatible Bluetooth module: Renogy BT-1 (uses RS232 port)
• Charge voltages:
  • Equalization: Sealed 14.6 V; Gel: None; Flooded 14.8 V
  • Boost: Sealed 14.4 V; Gel 14.2 V; Flooded 14.6 V; Lithium 14.2 V
  • Float: 13.8 V
• Protections and diagnostics: overcharge, overload, short-circuit, reverse polarity, and a self-diagnostic system
• Included in the package:
  • 1 × Renogy Adventurer-Li 30A PWM Charge Controller
  • 1 × Renogy Adventurer box / packaging
• Warranty:
  • Accessories: 1-year material and workmanship warranty
