Inverter-to-Battery Cable Pair — 8 ft (1 AWG)
Overview

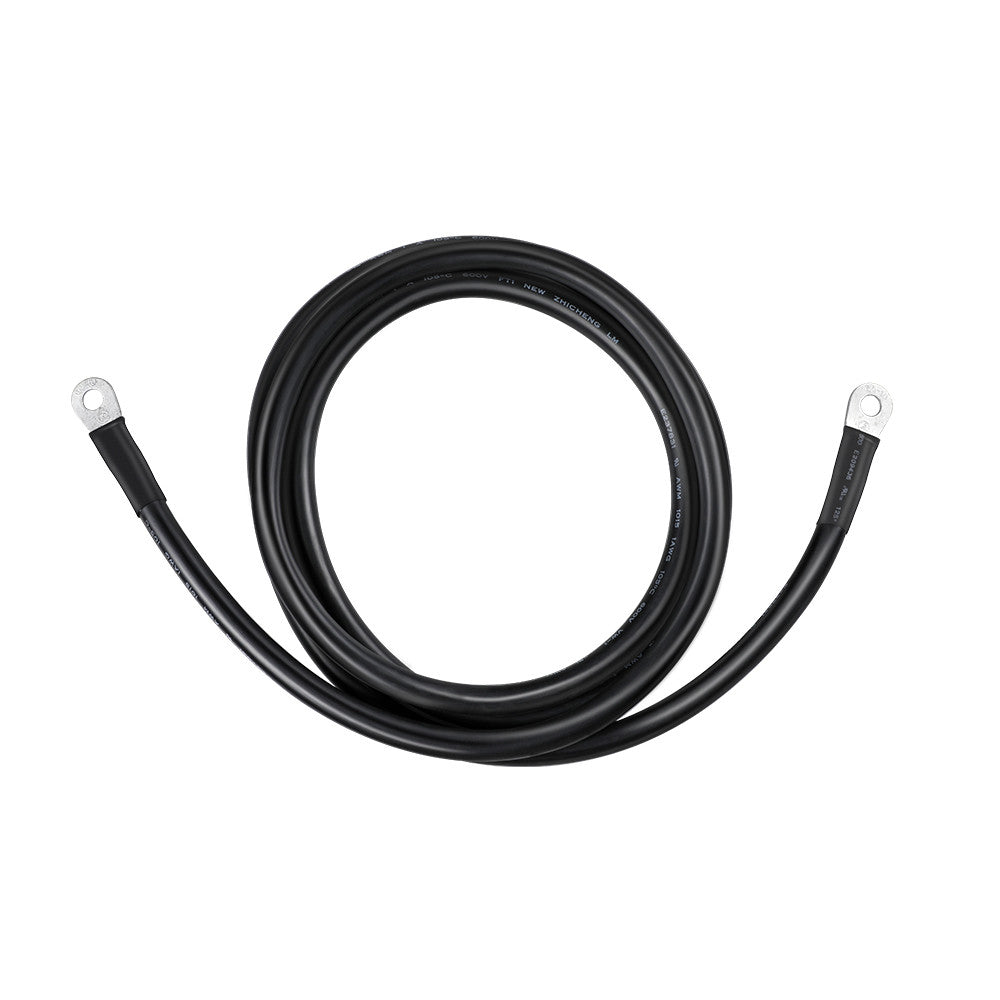

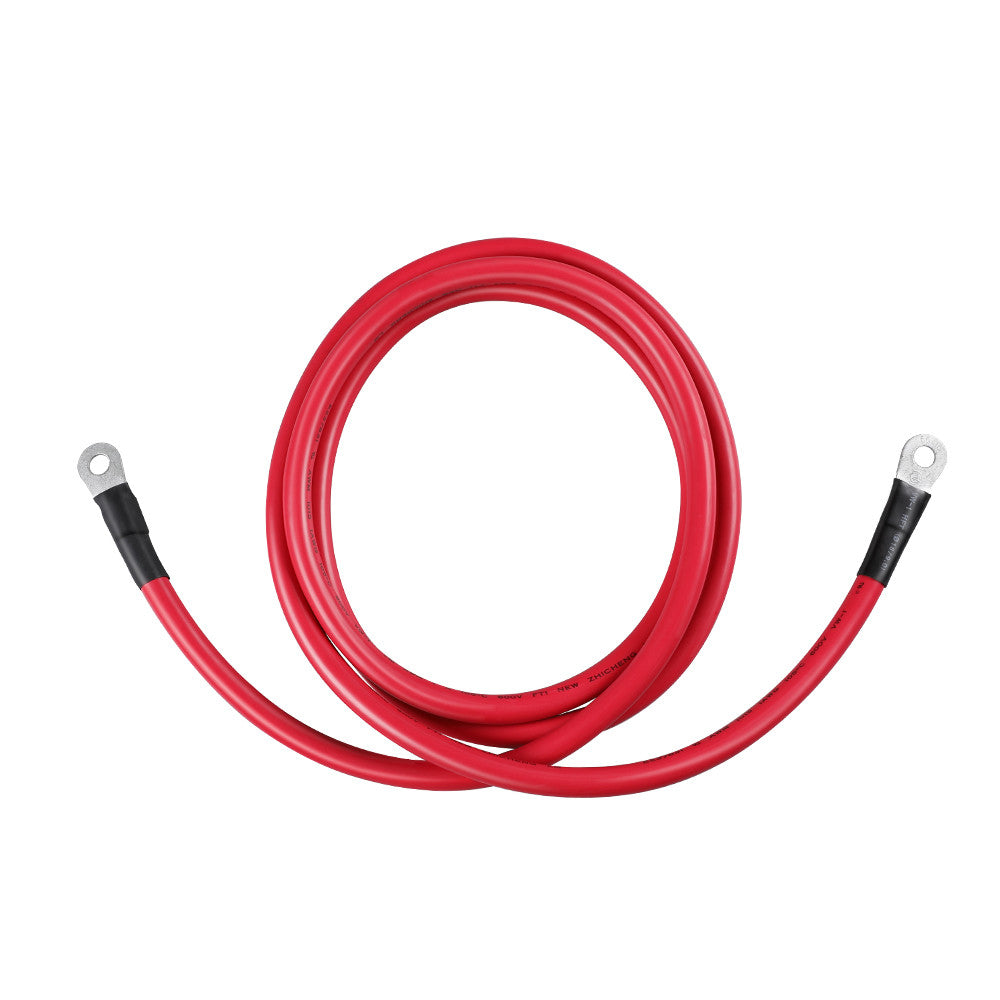

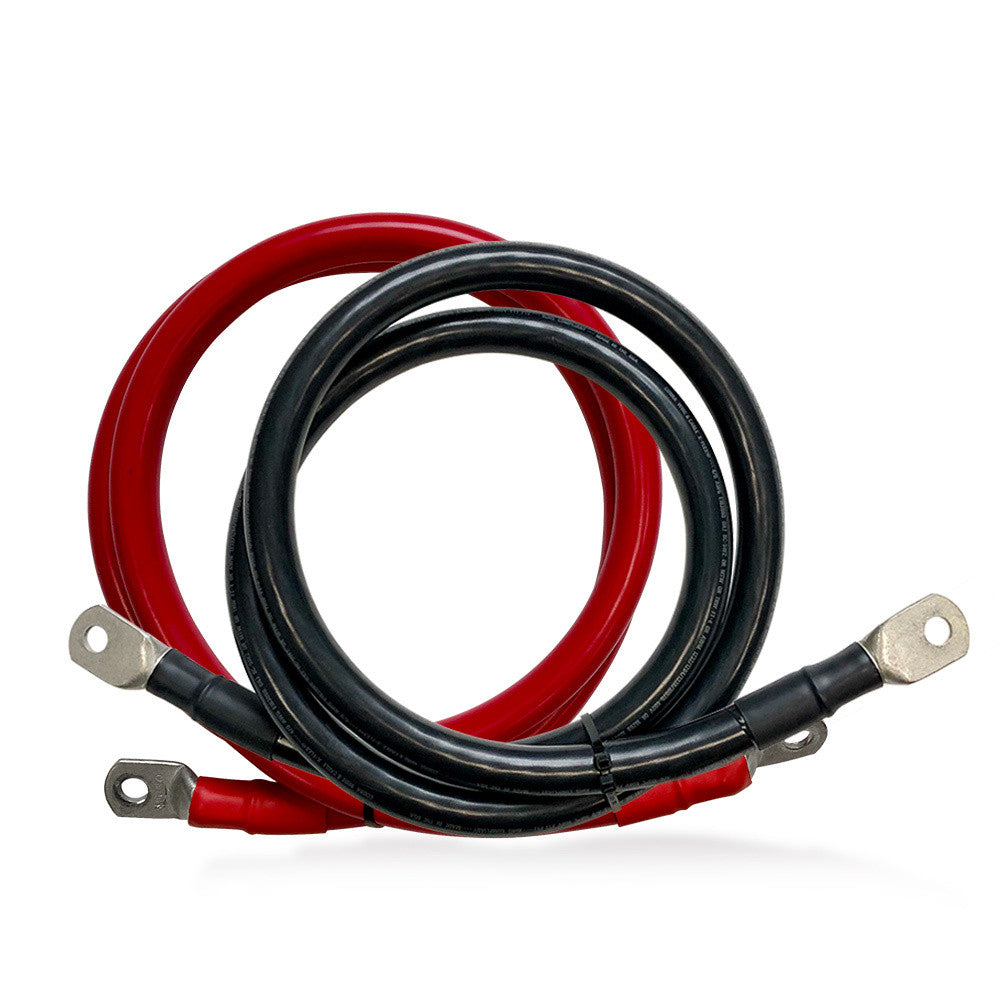

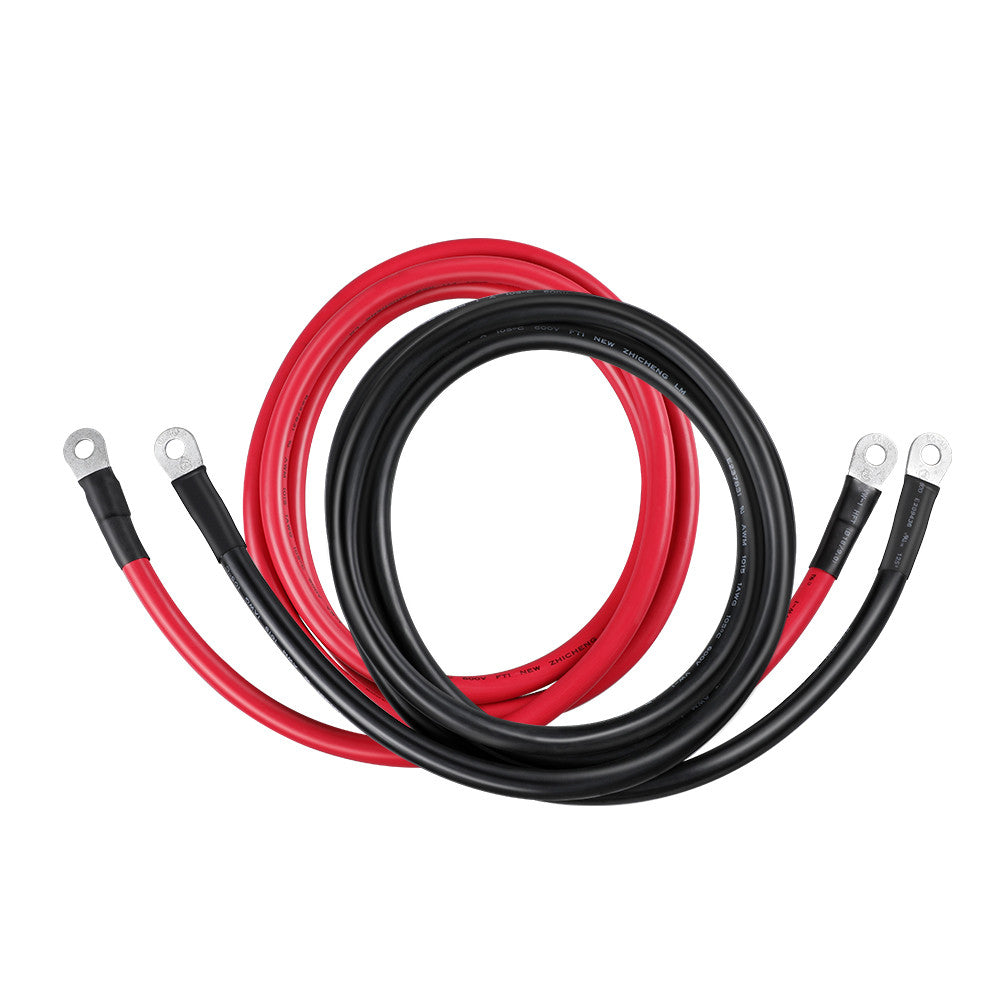

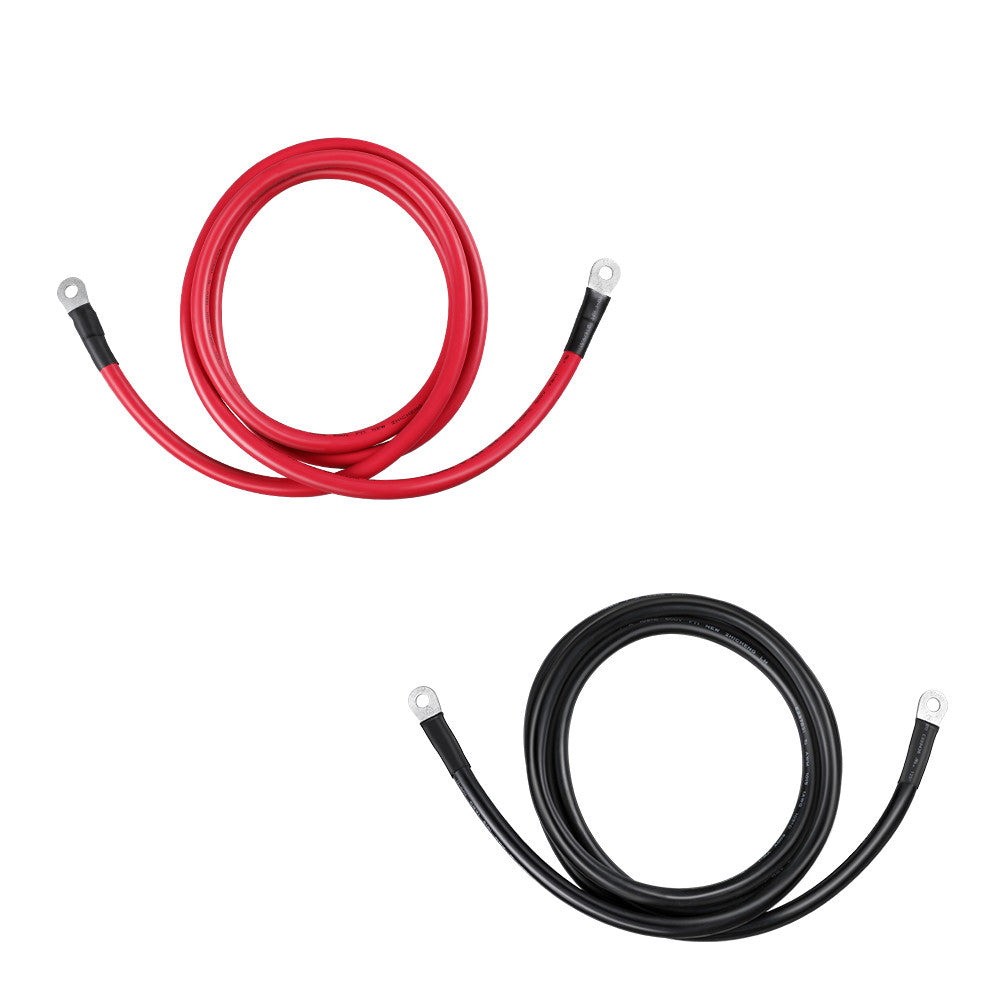

These heavy-duty inverter cables are designed to connect your inverter to a battery bank reliably. The 8 ft, 1 AWG pair uses UL-certified Cobra X-Flex insulation and tinned copper conductors, comes color-coded (red and black) for quick identification, and includes heat-shrink on both ends plus 3/8" stainless steel ring terminals for straightforward, secure installation.
Benefits
- Makes installation faster and less confusing thanks to color-coded wires and ready-to-install ring terminals.
- Provides a dependable, low-resistance connection so your inverter and batteries deliver stable power when you need it.
- Flexible, stranded conductors let you route cables neatly in tight spaces without kinking or damage.
- Resistant materials reduce the need for frequent replacements, so you spend less time on maintenance.
- Durable construction gives you more confidence in wet, abrasive, or fuel-exposed environments.
Features
- Pair of inverter-to-battery cables (red + black) for polarity clarity.
- Heat shrink on both ends for protected, neat terminal connections.
- 3/8" stainless steel ring terminals at both ends for secure lug mounting.
- UL-certified Cobra X-Flex insulation (flame-retardant PVC compound) for abrasion and chemical resistance.
- Stranded, tinned copper conductors for flexibility and corrosion resistance.
- Designed for use between power inverters and battery banks.
Specifications
- Model shown: 8 ft length, 1 AWG (pair)
- Length (examples available): 5 ft (4 AWG), 8 ft (1 AWG), 5 ft (4/0 AWG)
- Conductor material: Tinned copper (stranded)
- Insulation: Flame-retardant polyvinyl chloride (UL-certified Cobra X-Flex on select models)
- Operating voltage: 600 / 1000 V
- Maximum operating temperature: 221°F (105°C) dry, 167°F (75°C) wet (1 AWG and 4 AWG examples); 220°F (104°C) dry, 165°F (74°C) wet (4/0 AWG example)
- Terminal type: 3/8" ring terminals at both ends (stainless steel/metal lugs)
- Stranding: Class K 30 AWG bare copper stranded (where specified); stranded copper for 4/0 AWG
- Maximum operating amp (example for 4/0 AWG 5 ft): 230 A
- Color: Red (positive) and Black (negative)
- Package includes: 1 pair of inverter cables
- Warranty: 1-year material and workmanship warranty for accessories
