The Renogy RTSCC-G1 battery temperature sensor measures the ambient
temperature at your batteries so your compatible Renogy charge controller
can apply temperature compensation. That helps the controller charge more
accurately across changing seasons and temperature swings, improving
battery performance and reliability.
Benefits
Helps your batteries receive the correct charge as temperatures change, extending usable life.
Reduces the risk of under- or overcharging so you spend less time troubleshooting battery issues.
Delivers steadier system performance in hot summers and cold winters.
Simple add-on that gives you more confidence in off-grid and remote systems.
Features

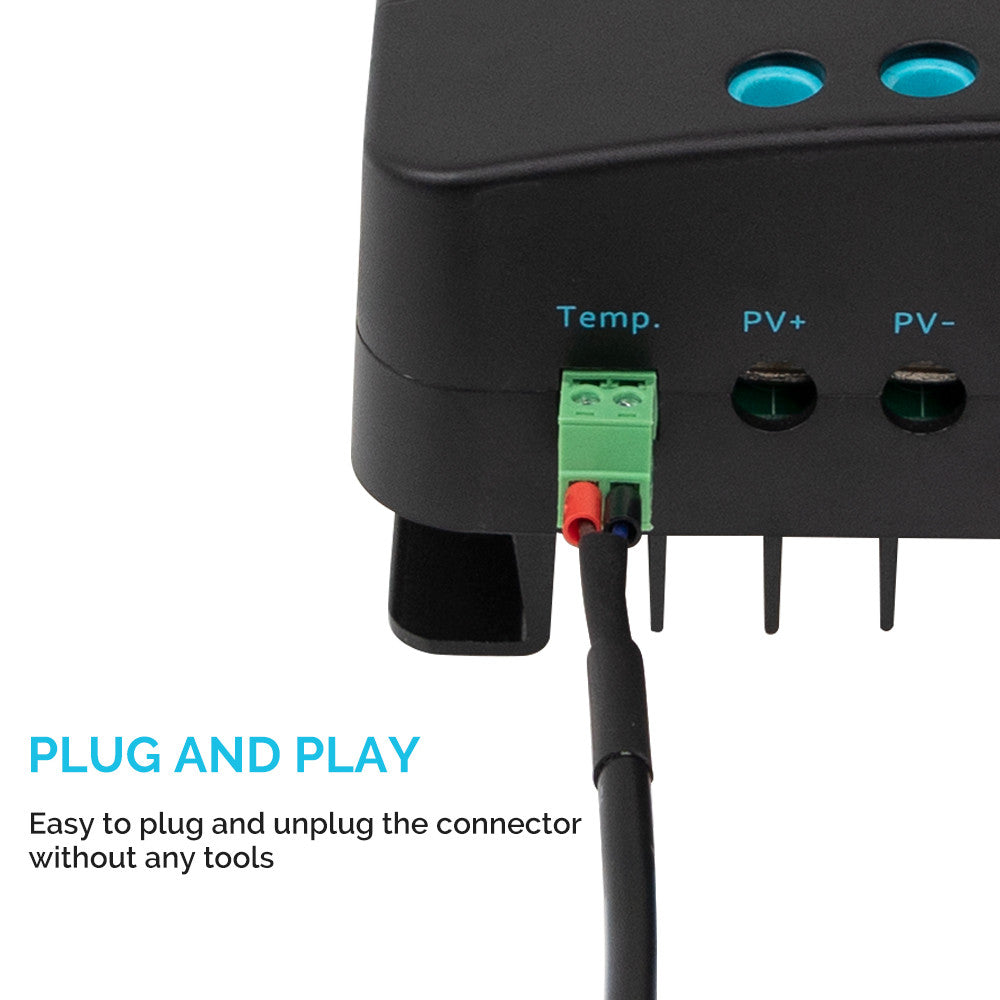

Provides ambient battery temperature data to Renogy MPPT and PWM charge controllers for temperature compensation.

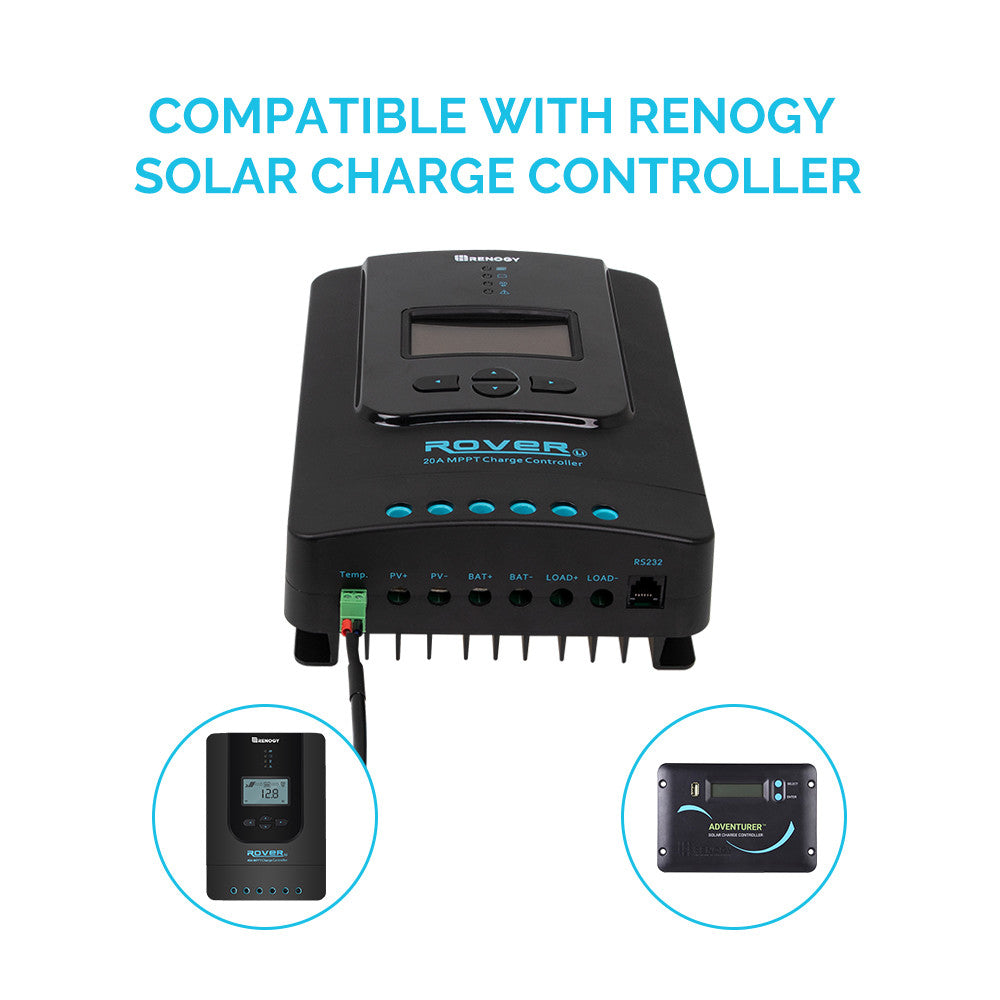

Compatible with: Adventurer 30-Li, Adventurer 30A (with communication port), Rover Li series (MPPT), and Wanderer 30-Li charge controllers.
Non-polarized, insulated wires designed for harsh environments and outdoor use.
Temperature compensation range up to 176°F (80°C).
ROHS compliant and rated for outdoor installation.

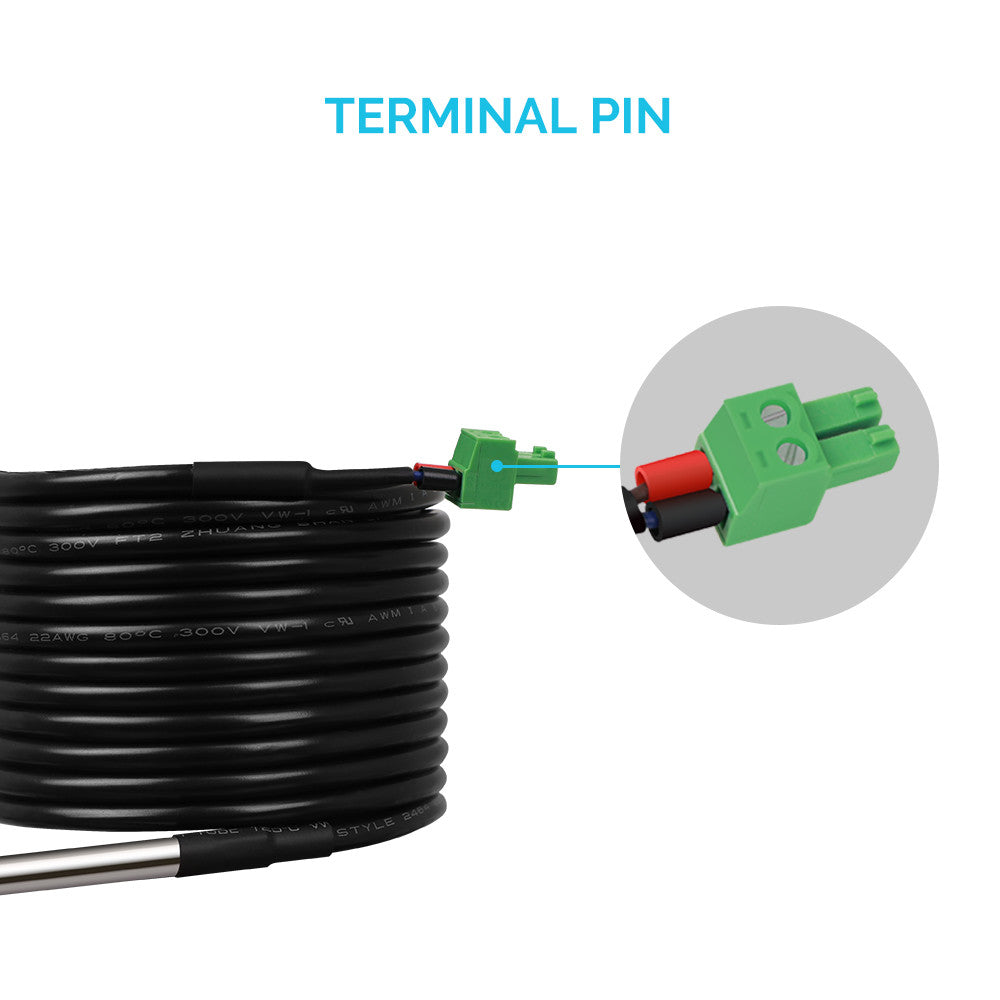

Includes one temperature sensor probe and 3 m (118 in) cable with 2-pin, 22 AWG conductor.
Important: This model (RTSCC-G1) is NOT compatible with lithium batteries (LiFePO4).
Specifications
Temperature range: -4°F to 176°F / -20°C to +80°C

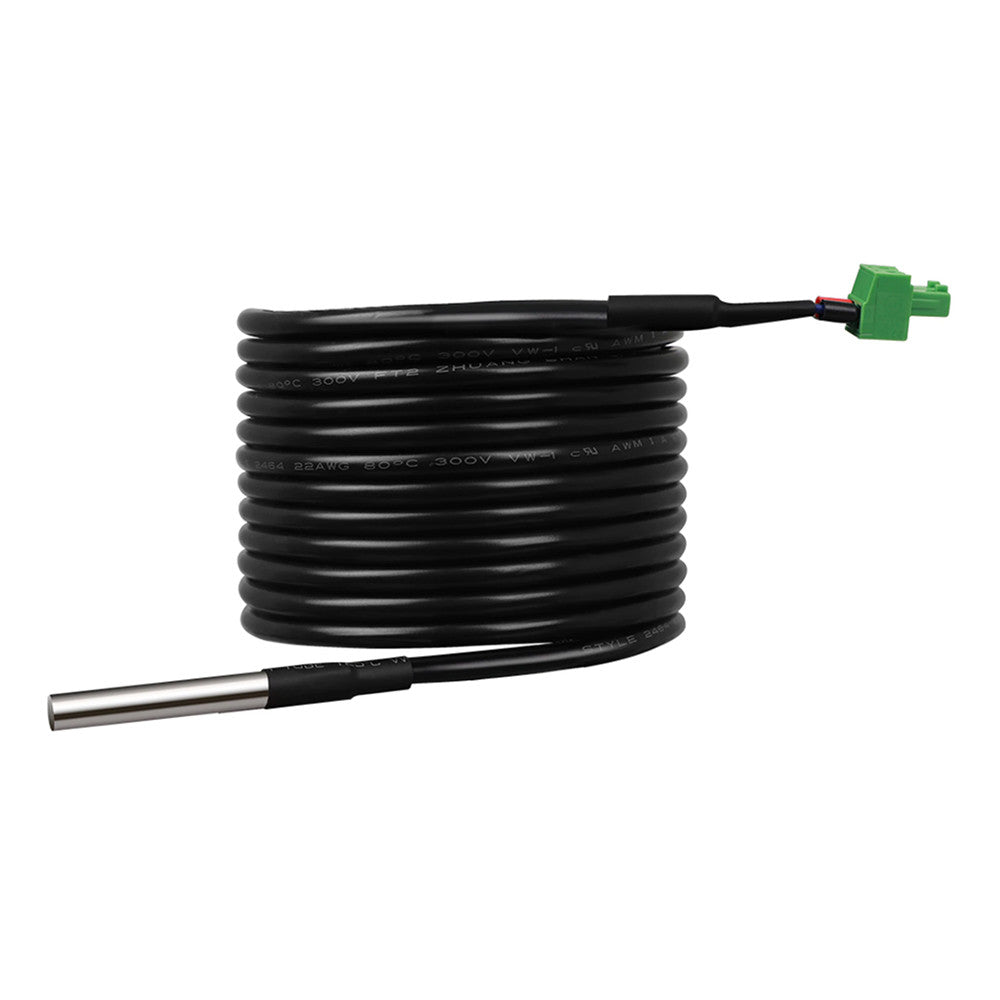

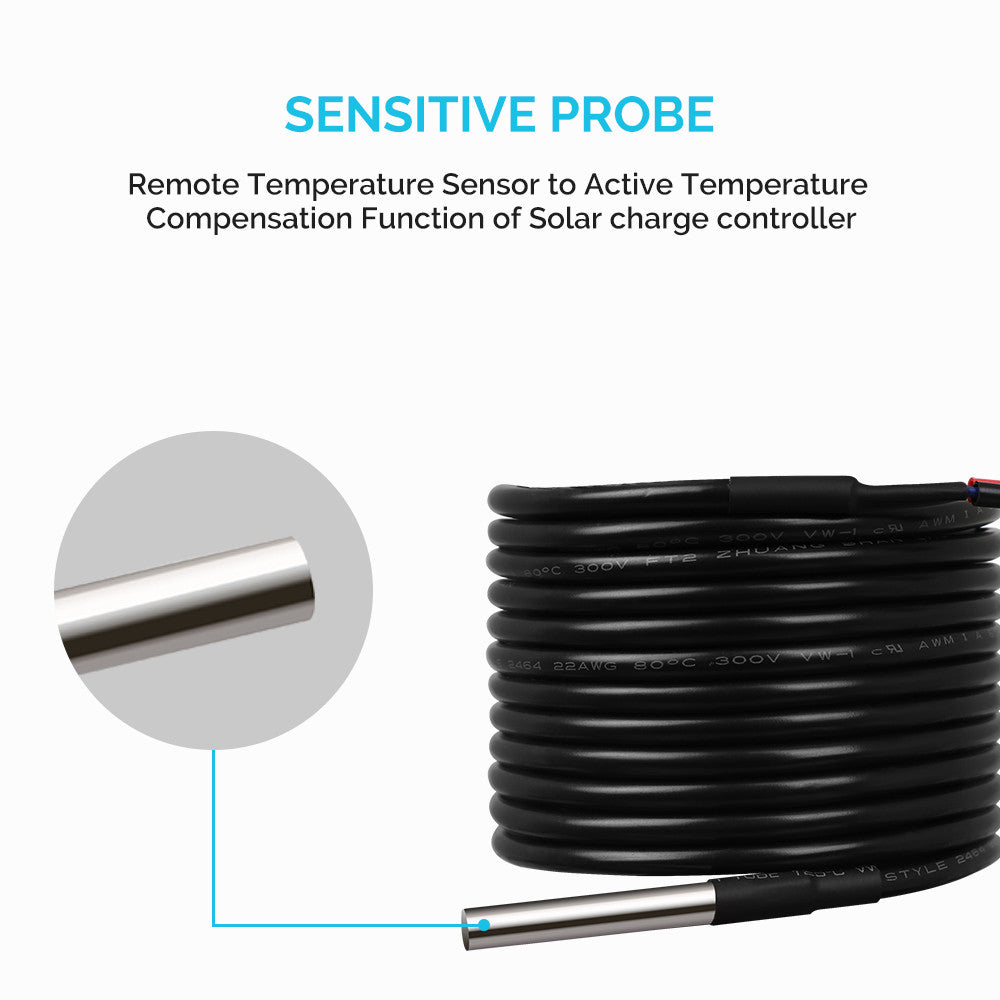

Probe material & size: Stainless steel probe, 0.24 in × 2.36 in (6 × 60 mm)

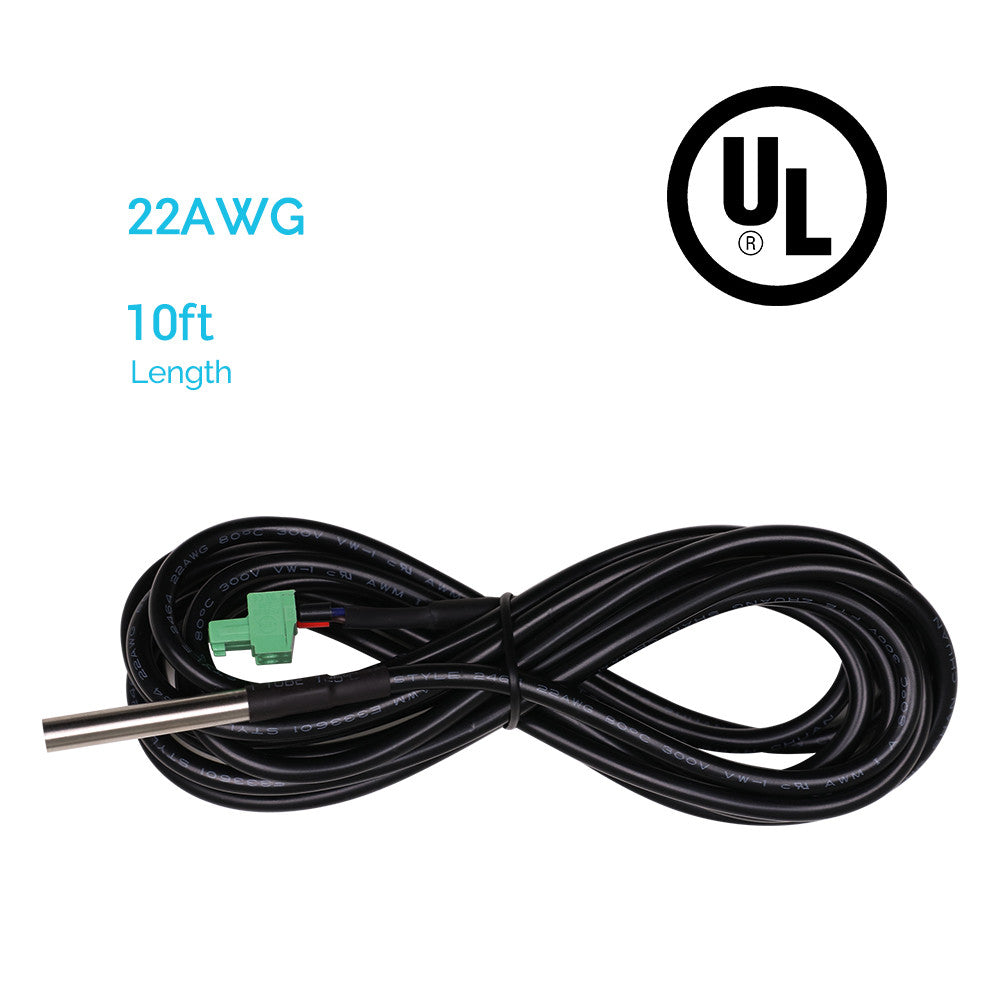

Cable length: 118 in / 3 m
Cable: 22 AWG, 2-pin conductor (non-polarized)
Maximum power: 50 mW
Maximum voltage rating: 300 V
Environmental rating: ROHS compliant, rated for outdoor use
Package contents: 1 × Battery Temperature Sensor for Renogy solar charge controllers
Warranty: Accessories covered by a 1-year material and workmanship warranty
