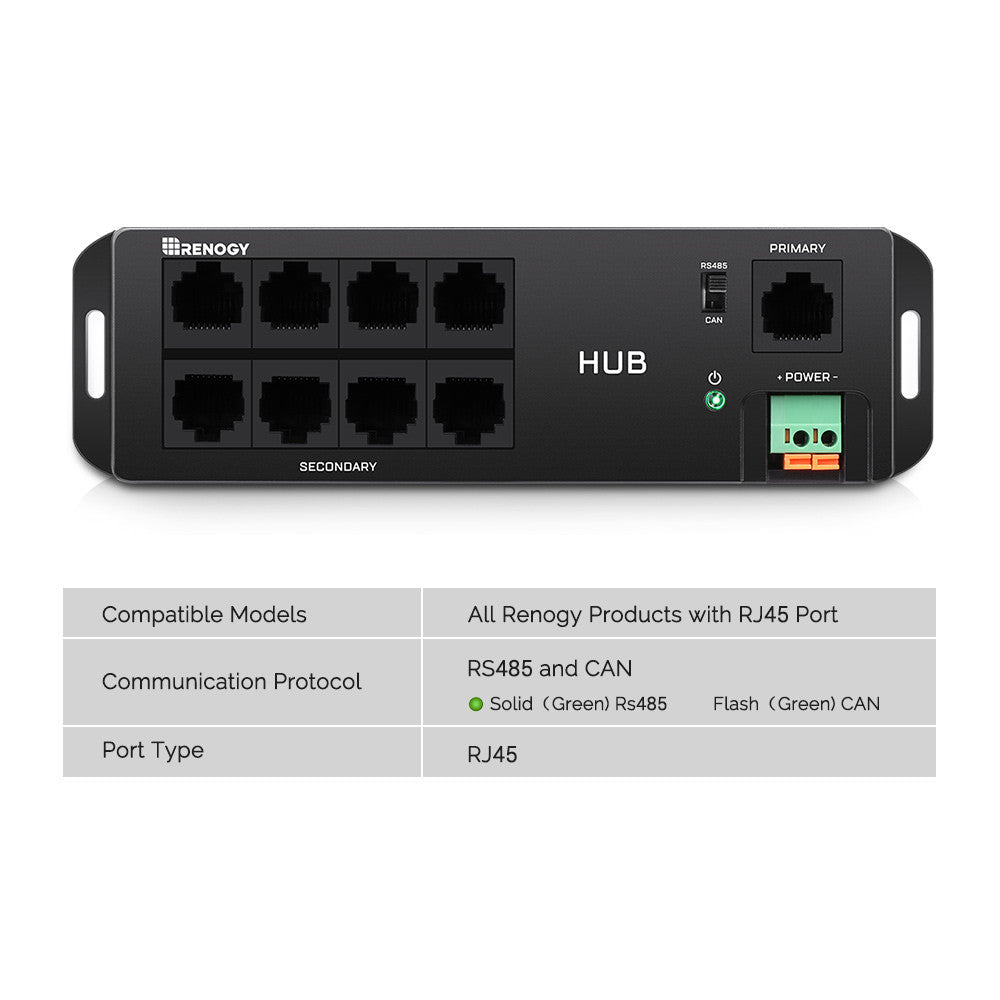

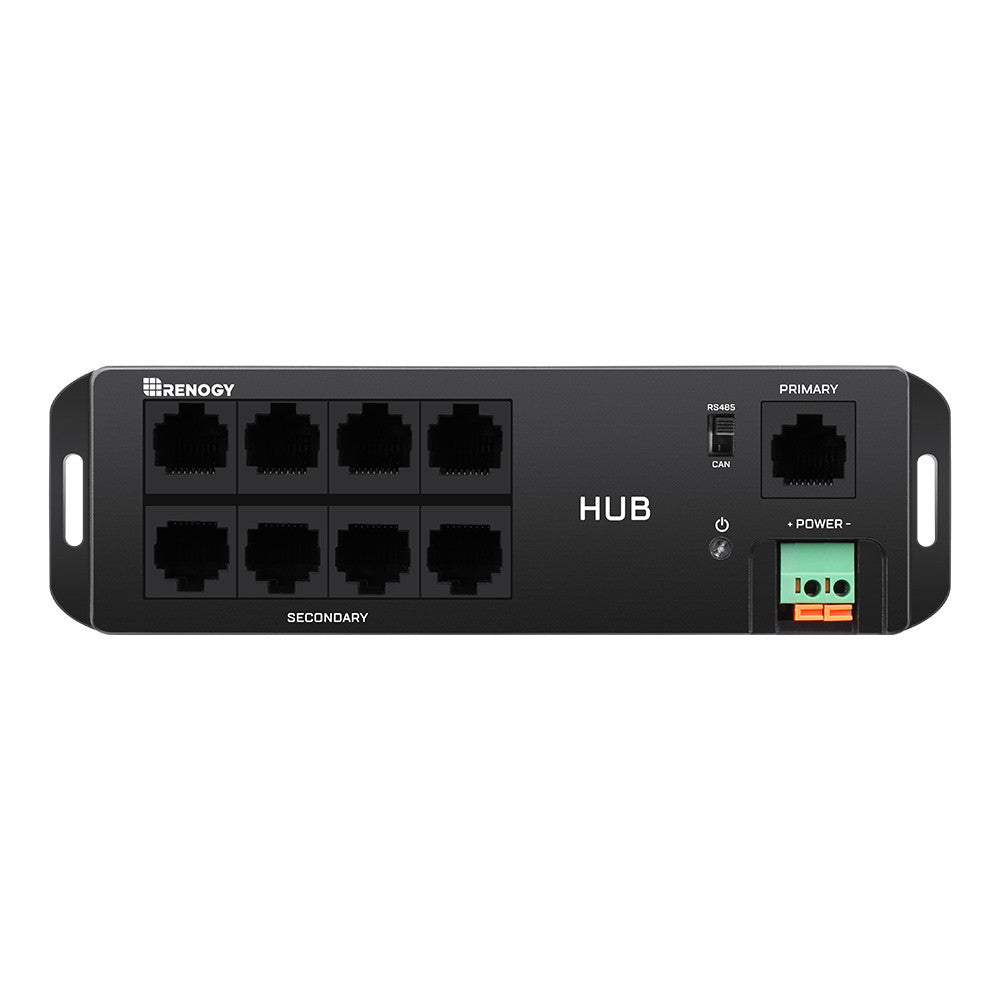

Renogy Bluetooth Communication Hub
Compact hub that connects multiple Renogy devices to one Bluetooth module
The Renogy Communication Hub lets you monitor several Renogy appliances from a single BT-2 Bluetooth module using RS485 or CAN communication. Pair the hub with the Renogy DC Home app to view system status on your phone, while LED indicators show the active protocol. It’s a simple way to centralize monitoring without adding extra Bluetooth modules.
Benefits
- Monitor multiple devices at once from a single smartphone connection, reducing setup complexity.
- Save time troubleshooting by viewing system data for several components in one app.
- Reduce hardware clutter and cost by sharing one Bluetooth module across devices.
- Quickly see which protocol is active with visible green LED indicators.
Features

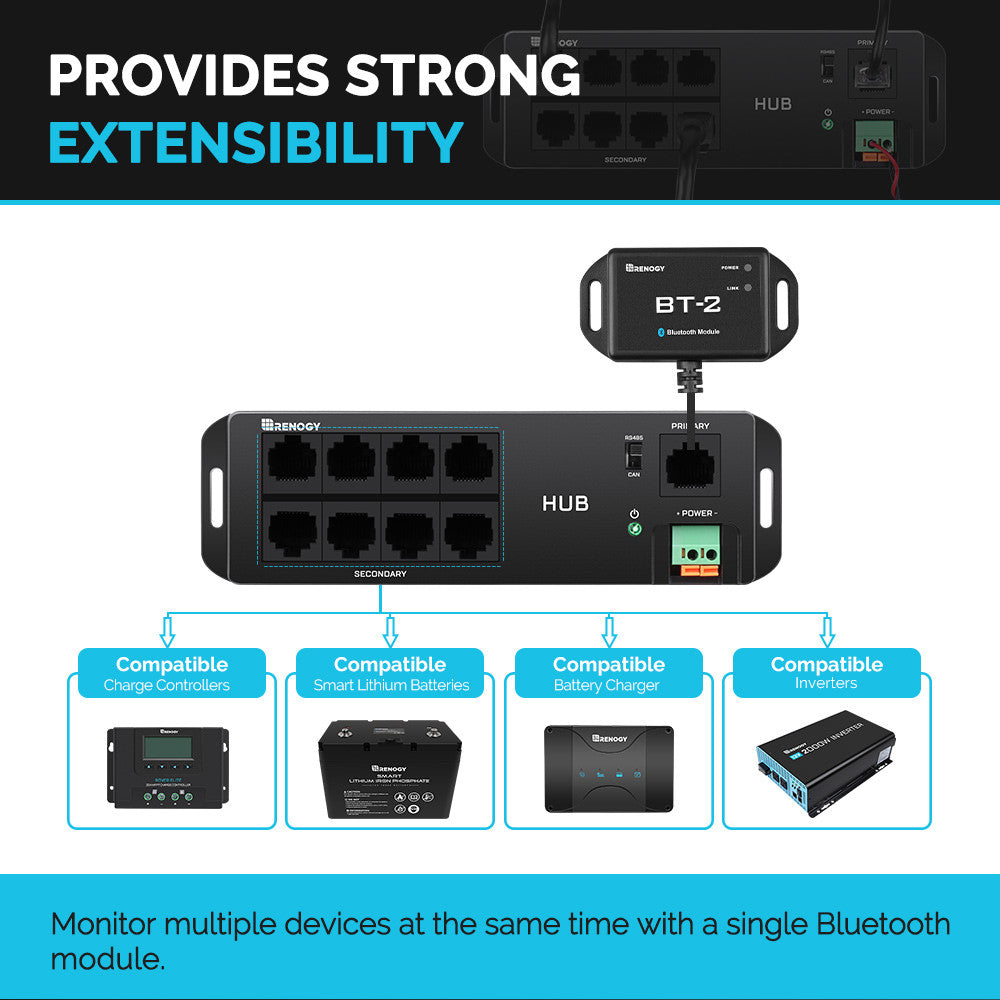

- Connects multiple Renogy appliances with RJ45 (RS485) ports to one BT-2 Bluetooth module.
- Supports both RS485 and CAN communication protocols for broader device compatibility.

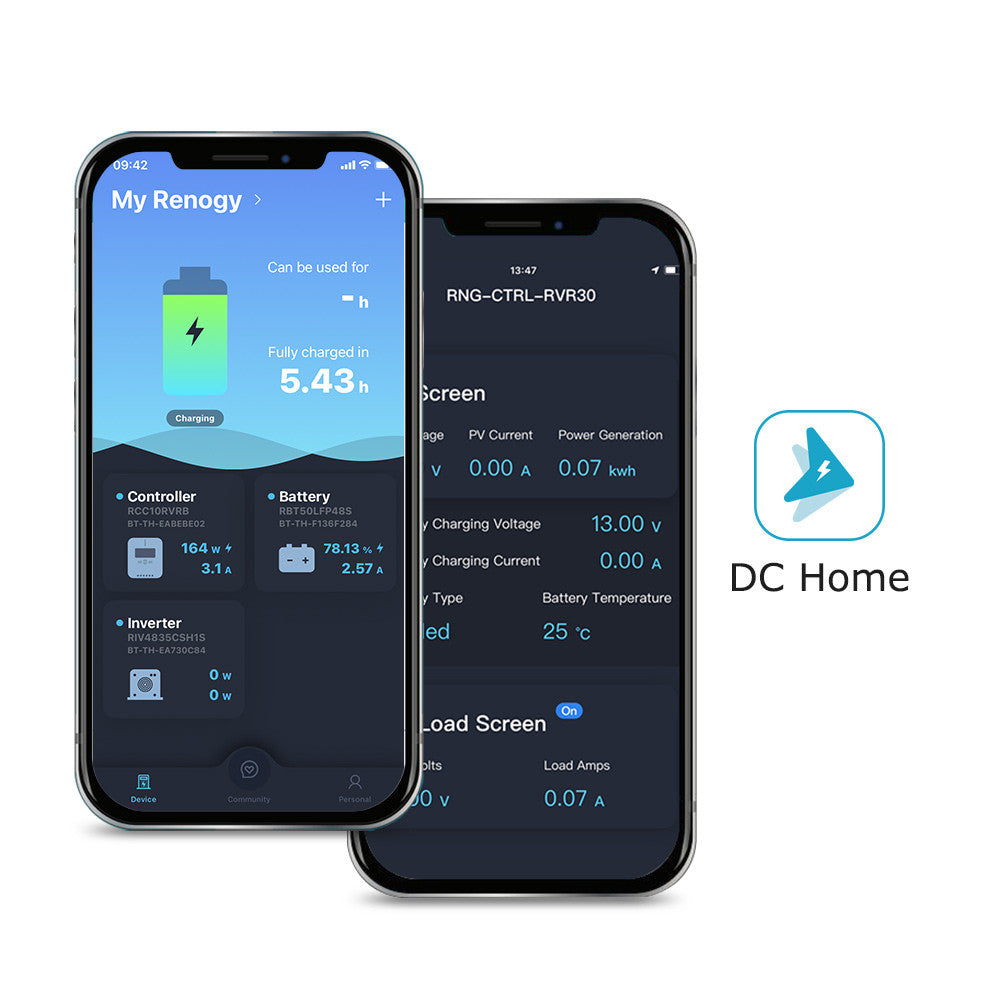

- Compatible with the Renogy DC Home smartphone app for real-time monitoring.

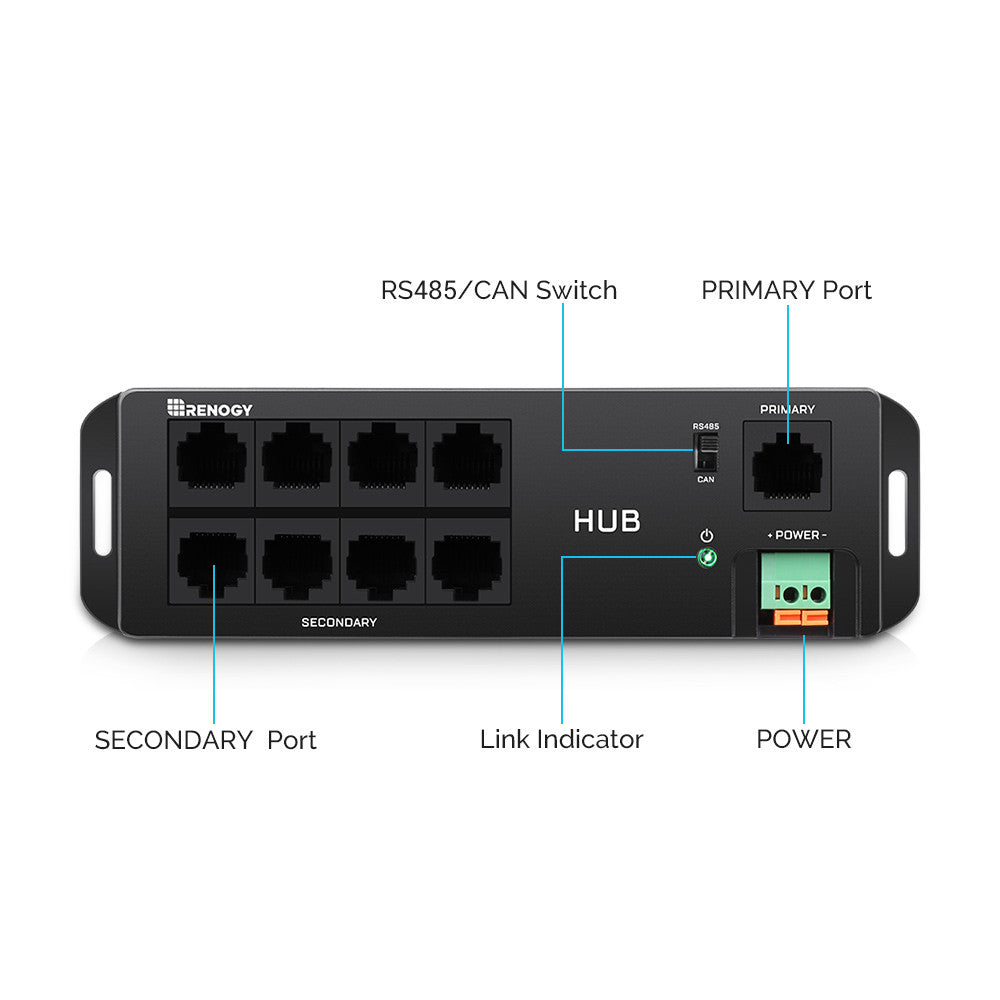

- Green LEDs indicate the currently active communication protocol.
- Includes a 5.00 m (16.4 ft) power cable for flexible installation.
Specifications
- Input Voltage: 9 V – 60 V
- Standby Power Consumption: 0.324 W
- Operating Power Consumption: < 0.35 W
- Port Type: RJ45
- Cable Length: 5.00 m (16.4 ft)

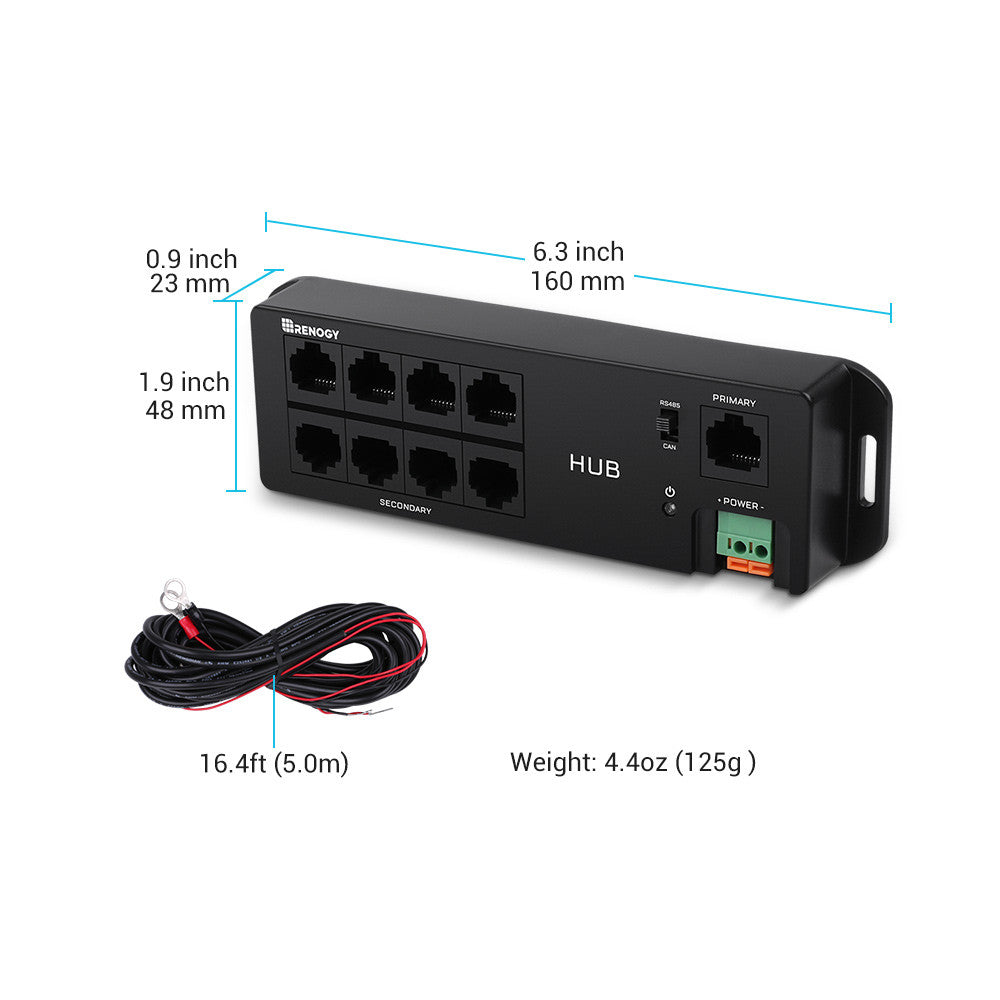

- Dimensions: 160 × 48 × 23 mm (6.29 × 1.89 × 0.91 in)
- Installation dimension: 151.4 mm × Ø3.5 mm (5.96 in × Ø0.14 in)
- Communication Range: ? 82 ft (approx. 25 m)
- Serial Baud Rate: RS485 – 9600 bps; CAN – 500 kbps
- Communication Protocols: RS485, CAN
- Operating Temperature: -20 °C to 85 °C (-4 °F to 185 °F)
- Weight: 125 g (4.41 oz)
- Package Includes: Renogy Bluetooth Hub (1), Power Cable (1)
- Warranty: 1-year material and workmanship warranty
- Support: Renogy customer service (phone and online contact available)
