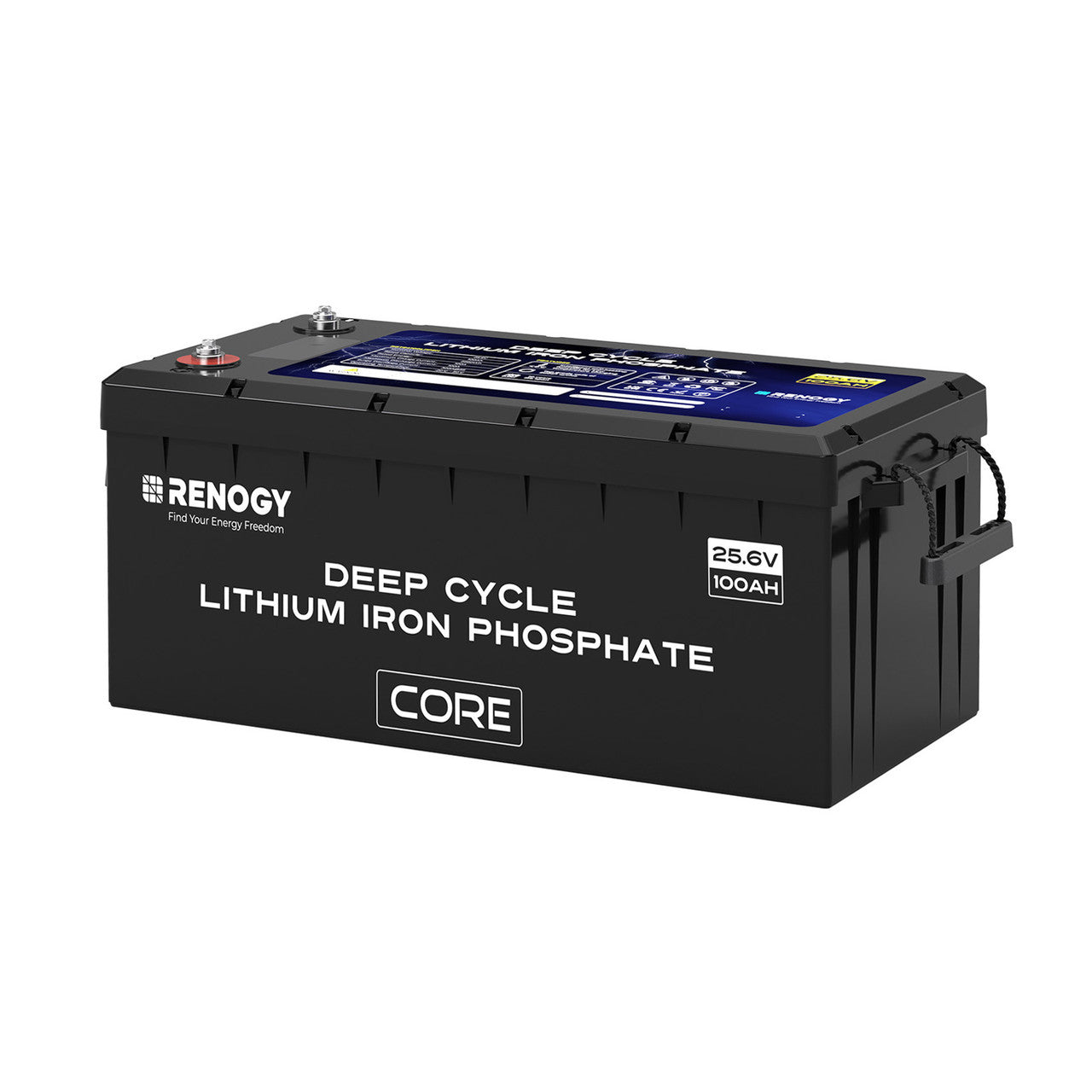

Renogy 24V 100Ah Core Series LiFePO4 Battery
Overview
A compact, durable 24V lithium iron phosphate (LiFePO4) battery built for off-grid power, RVs, vans and backup systems. It uses Grade-A prismatic cells, an internal BMS with automatic cell balancing, and a high-power self-heating system so it performs reliably in cold conditions while remaining easy to expand in series or parallel.
Benefits
- Install and move it more easily — lighter than comparable lead-acid batteries, so handling and vehicle payloads are simpler.
- Spend less time worrying about replacements — long cycle life (about 5000 cycles at 80% DOD) reduces maintenance and replacement frequency.
- Keep systems running in cold weather — the integrated self-heater helps maintain usable capacity and chargeability when temperatures drop.
- Save space and wiring — a single 24V battery reduces wiring needs versus two 12V batteries, simplifying installations.
- Scale power as your needs change — wire multiple batteries in series, parallel or series-parallel to increase voltage or capacity without redesigning the whole system.
- Get dependable support and warranty coverage — includes a 5-year prorated material and workmanship warranty and broad certifications for safety and transport.
Features
- Grade-A LiFePO4 prismatic cells with built-in BMS and automatic cell balancing.

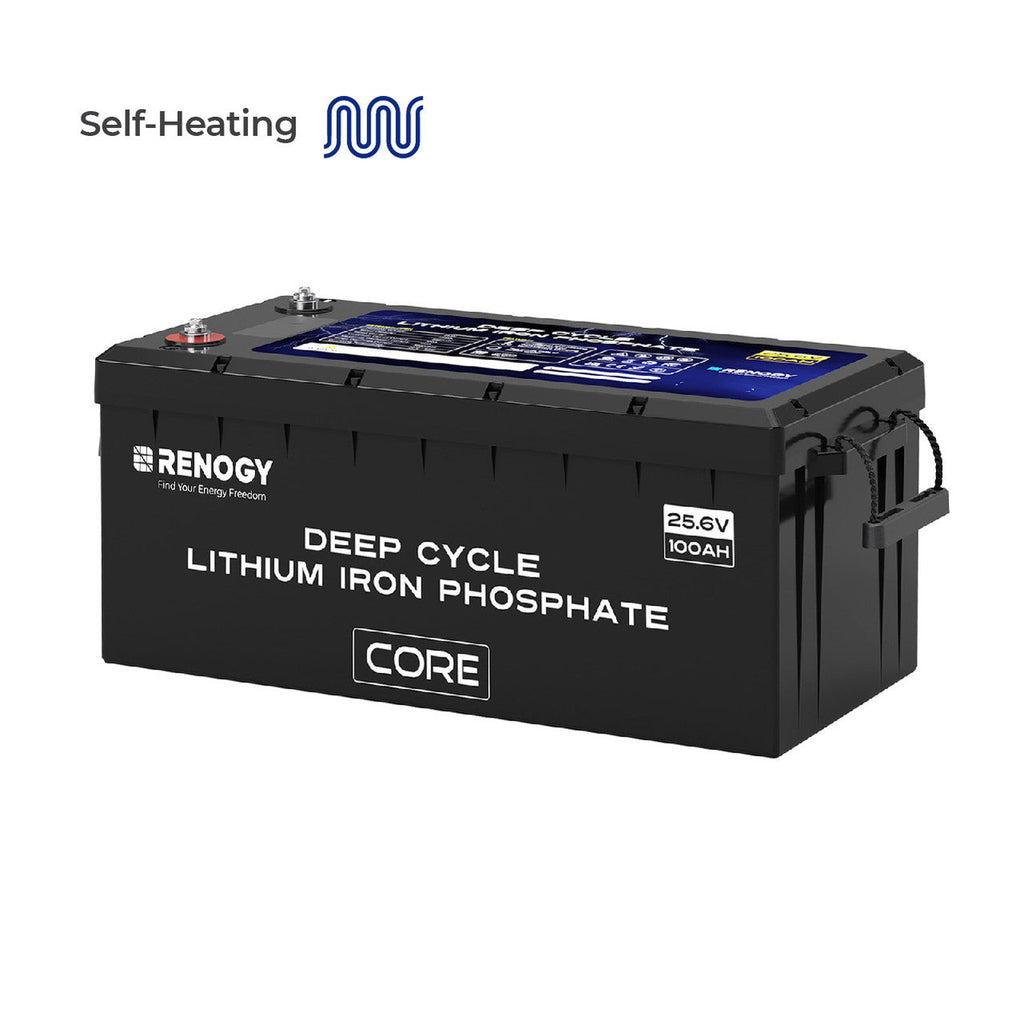

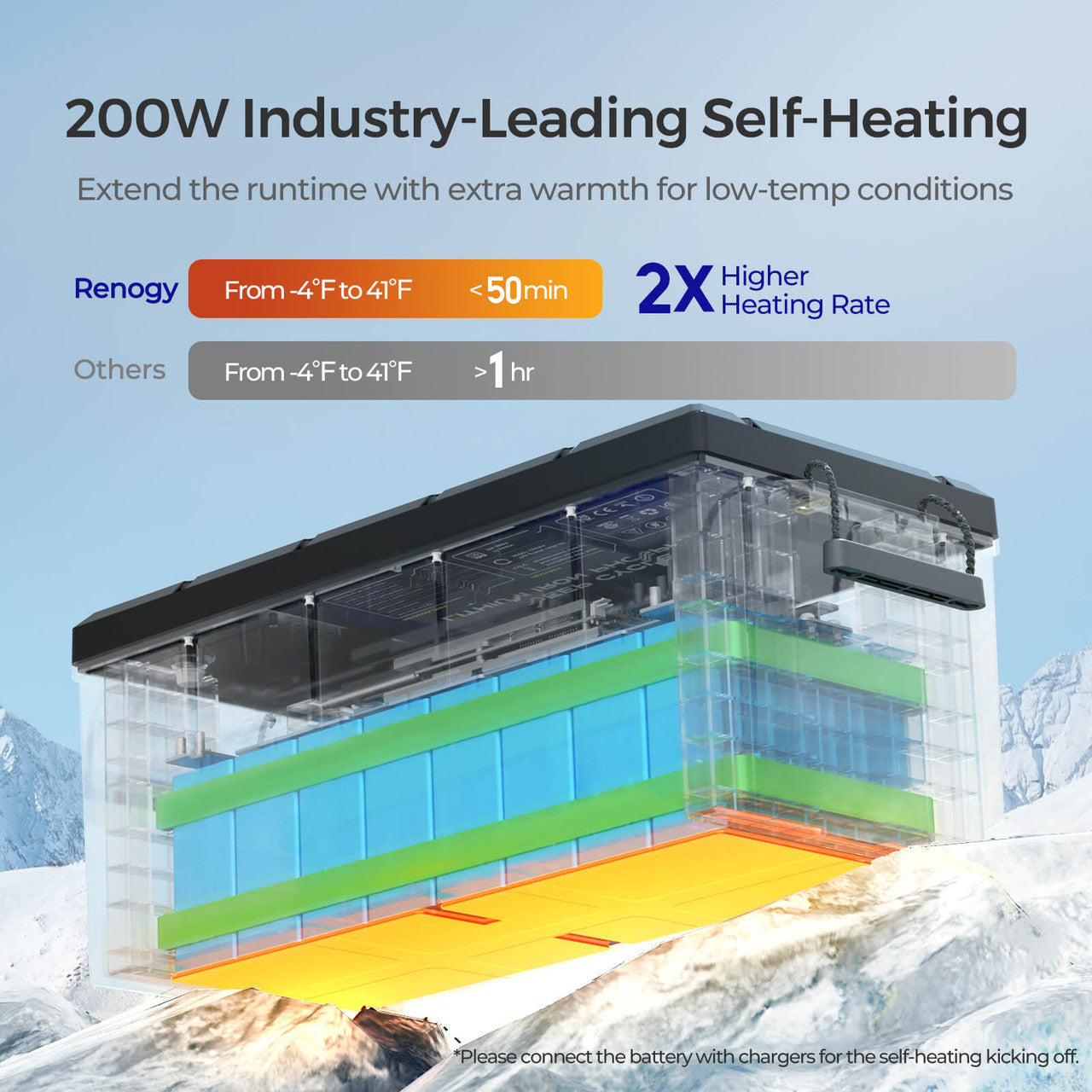

- Industry-leading 200 W self-heating elements for faster warm-up in cold environments.

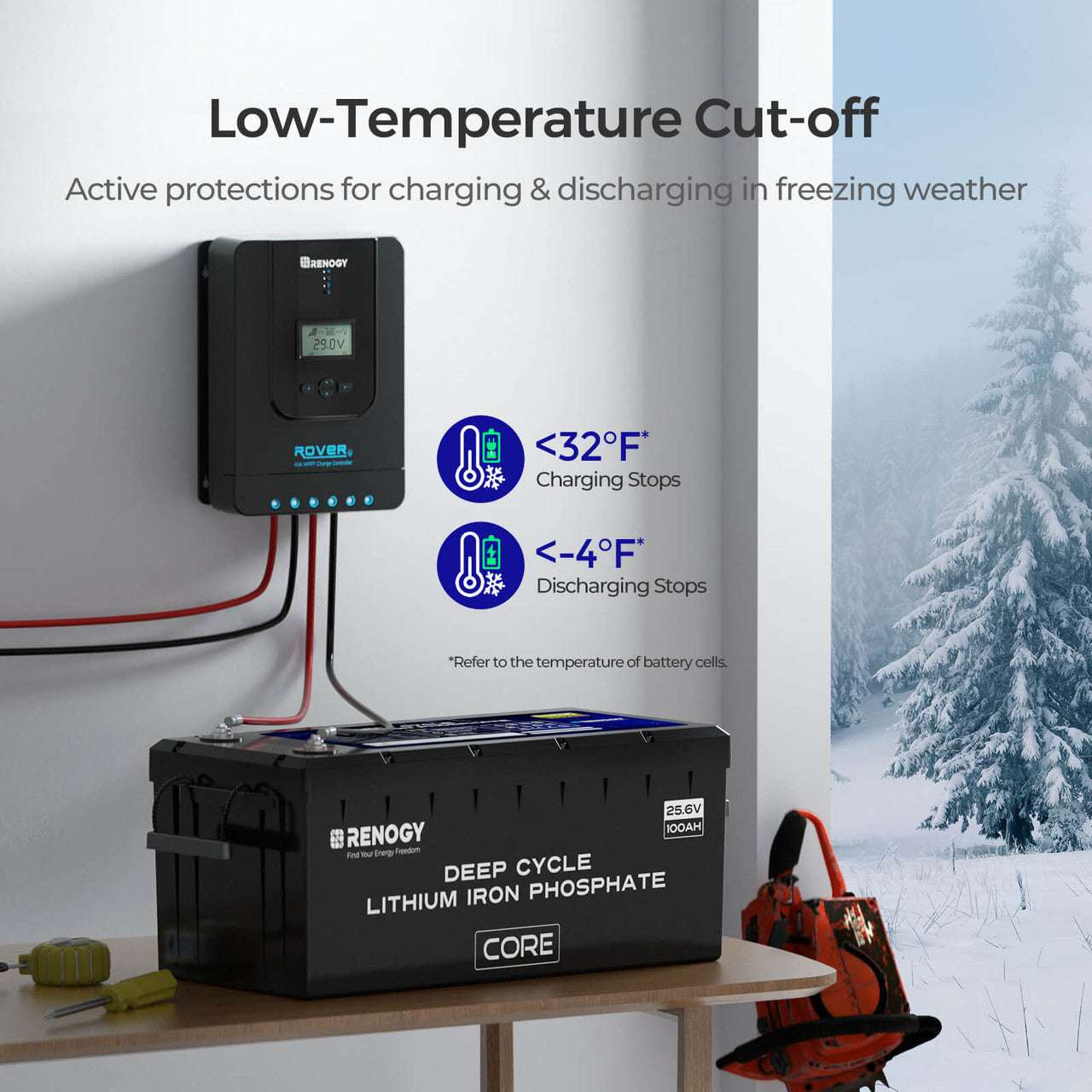

- Low-temperature charge/discharge cutoff to protect cells from irreversible damage.

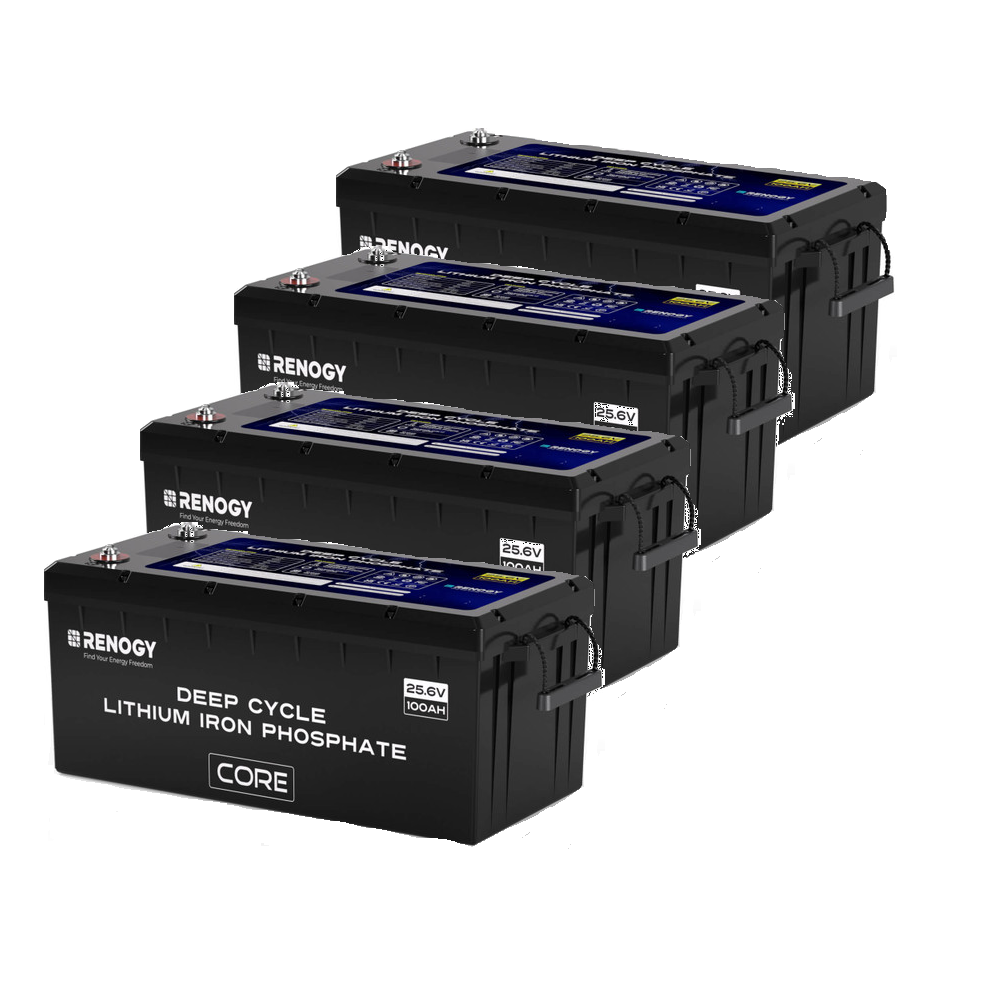

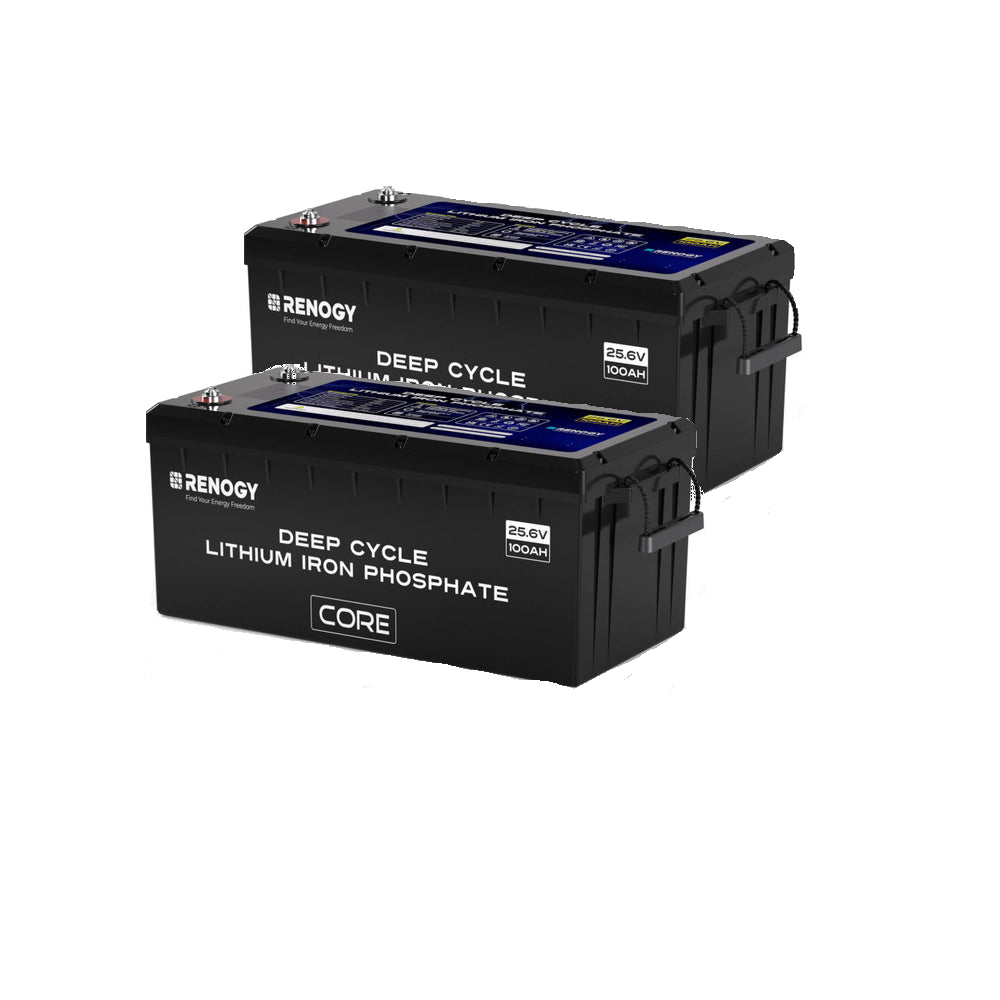

- Supports series, parallel, and combined series-parallel connections (2S, up to 8P, or 2S8P).
- Expandable system capability up to 16 batteries (max combined capacity up to 40.96 kWh).
- 100 A nominal maximum charge and discharge current, with 300 A peak discharge for 5 seconds.

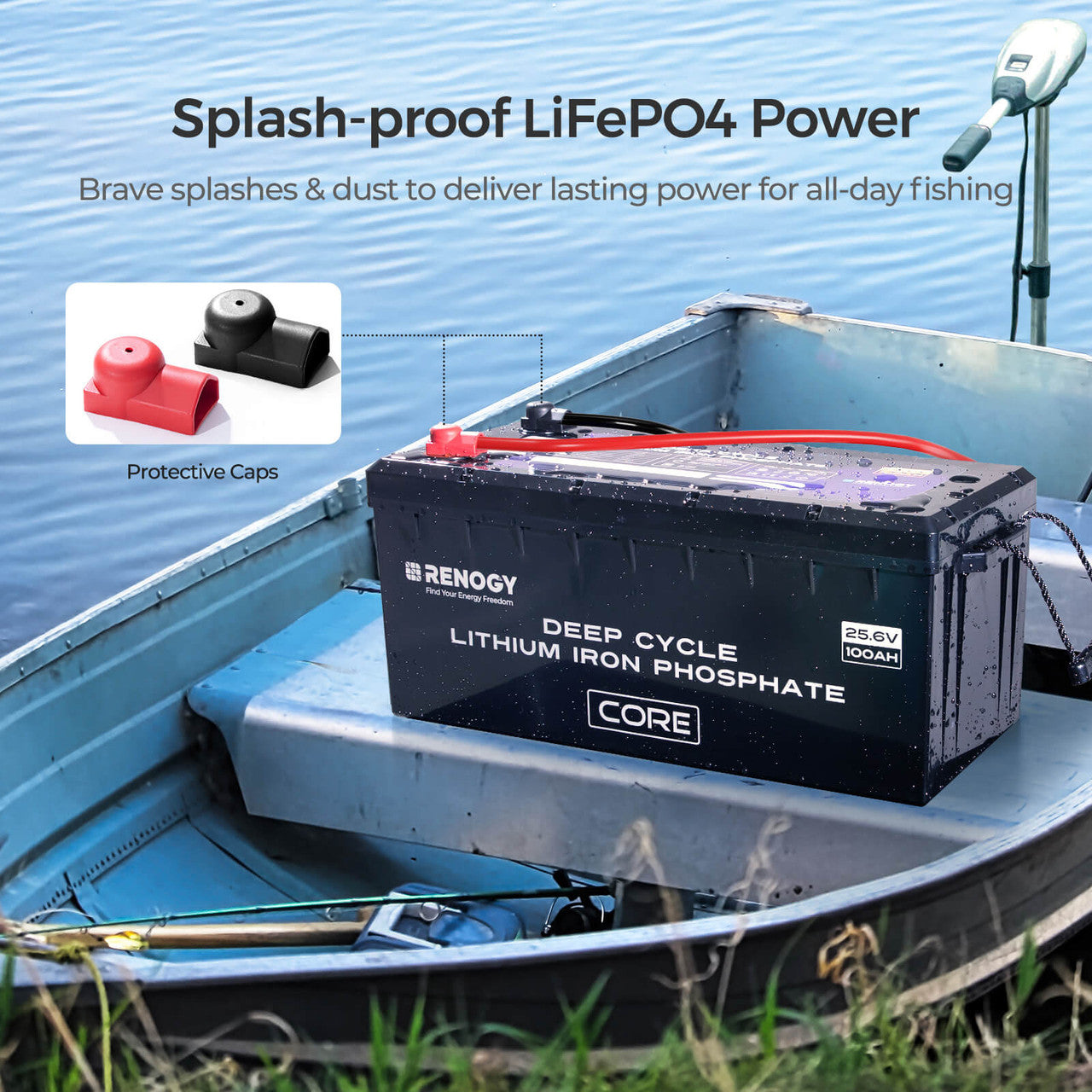

- IP65-rated housing (ABS + PC) for protection in many outdoor installations.
- Includes long terminal bolts (M8) and clearly specified terminal torque for secure connections.
Specifications
- Battery type: Lithium Iron Phosphate (LiFePO4), Renogy Core Series
- Nominal voltage: 24 V
- Rated capacity: 100 Ah (0.5C, 25 °C)
- Voltage range: 20.0 V to 29.2 V
- Charge voltage: 29.0 V
- Maximum charge current: 100 A
- Maximum continuous discharge current: 100 A
- Peak discharge current: 300 A for 5 s
- Cycle life: ~5000 cycles (80% depth of discharge, 80% end-of-life)
- Self-heating: 200 W heating elements; requires charging current > 10 A to activate
- Expandability: Series up to 2, Parallel up to 8, Series & Parallel (2S8P); up to 16 batteries supported for maximum capacity (~40.96 kWh)
- Dimensions: 20.55 × 9.45 × 8.62 in (522 × 240 × 219 mm)
- Weight: 46.3 lb (21.0 kg)
- Housing material: ABS + PC
- Protection rating: IP65
- Terminal bolt size: M8 × 1.25 × 15 mm
- Recommended terminal torque: 10 N·m
- Charge temperature range: -4 °F to 131 °F (-20 °C to 55 °C)
- Discharge temperature range: -4 °F to 140 °F (-20 °C to 60 °C)
- Storage temperature range: -13 °F to 149 °F (-25 °C to 65 °C)
- Operation relative humidity: 10% to 95%
- Accessories included: Long terminal bolts (2) — M8
- Package contents: 24V 100Ah Core LiFePO4 Battery ×1, User Manual ×1
- Warranty: 5-year prorated material and workmanship warranty
- Certifications: UL, RoHS, MSDS, UN38.3, FCC, PSE, CE, UKCA
- Compatibility notes: Not recommended to mix different chemistries, capacities, brands, or models in series/parallel. Not compatible with an integrated Bluetooth module; monitoring can be done with a separate battery monitor and shunt (sold separately).
- Installation clearance: Leave 50–100 mm (1.97–3.94 in) above the battery and at least 200 mm (7.87 in) clearance on the busbar side.
