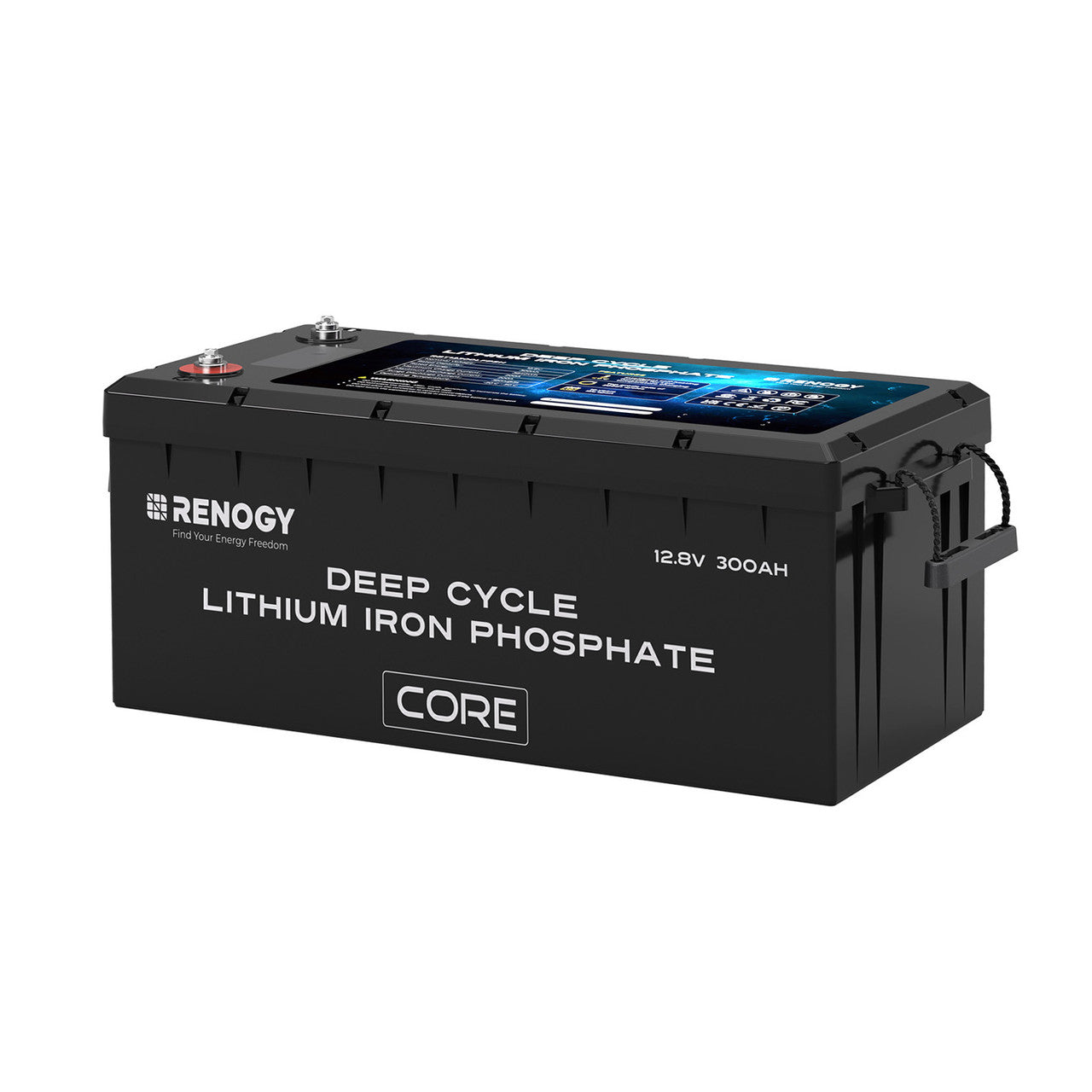

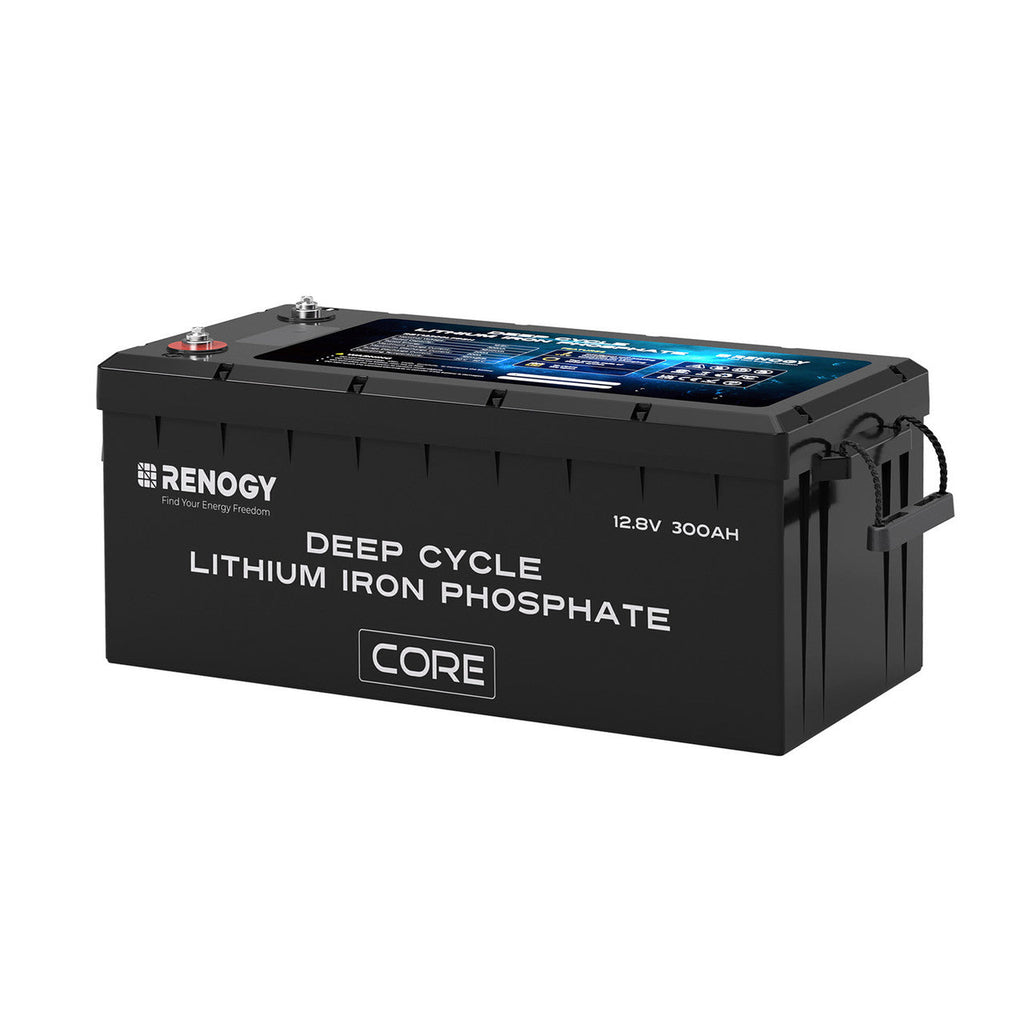

Renogy Core 12V 300Ah LiFePO4 Battery (Self-Heating)
Reliable, all-weather power for RVs, cabins, boats, and off-grid living
The Renogy Core 12V 300Ah LiFePO4 battery delivers high-capacity, long-lasting energy with built-in heating and robust protections so you can stay powered in cold or rough conditions. It’s designed for flexible bank configurations and heavy-duty use—backed by a 5-year warranty and around-the-clock support.
Benefits
- Keep devices and appliances running longer during trips or outages so you spend more time living comfortably and less time worrying about power.
- Maintain reliable charging and usable capacity in cold weather thanks to the self-heating system, reducing downtime and battery replacements.

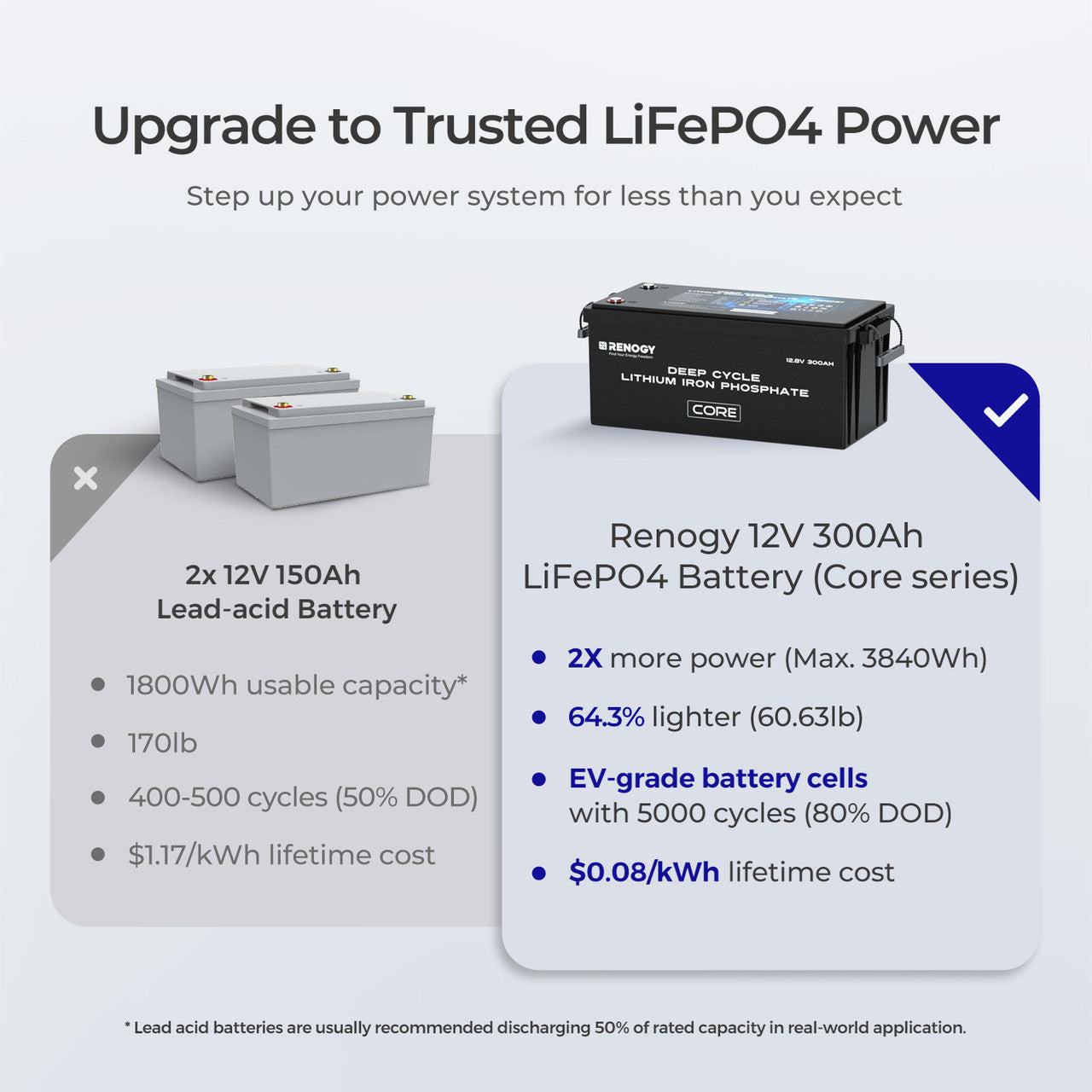

- Fewer maintenance hassles and longer service life compared with lead-acid batteries, saving time and replacement cost over years of use.
- Flexible connection options (series, parallel, or series-parallel) let you scale voltage and capacity to match your system needs without complex workarounds.
- Clear installation guidance and local support give you confidence during setup and troubleshooting so you can get back to your plans faster.
Features
- 12V 300Ah LiFePO4 chemistry with EV-grade cells for consistent long-term performance.

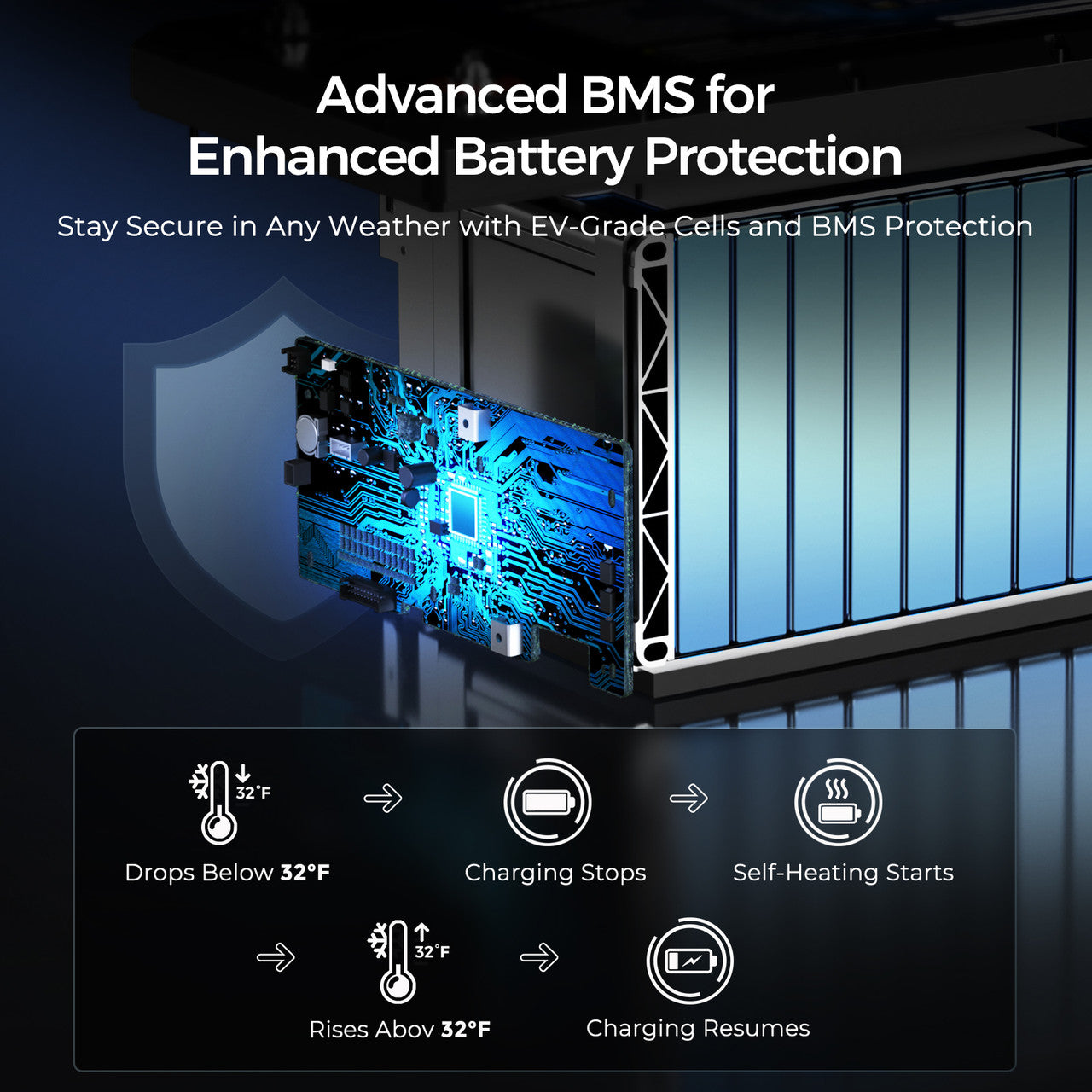

- Integrated Battery Management System (BMS) with low-temperature cut-off and 200A protection.

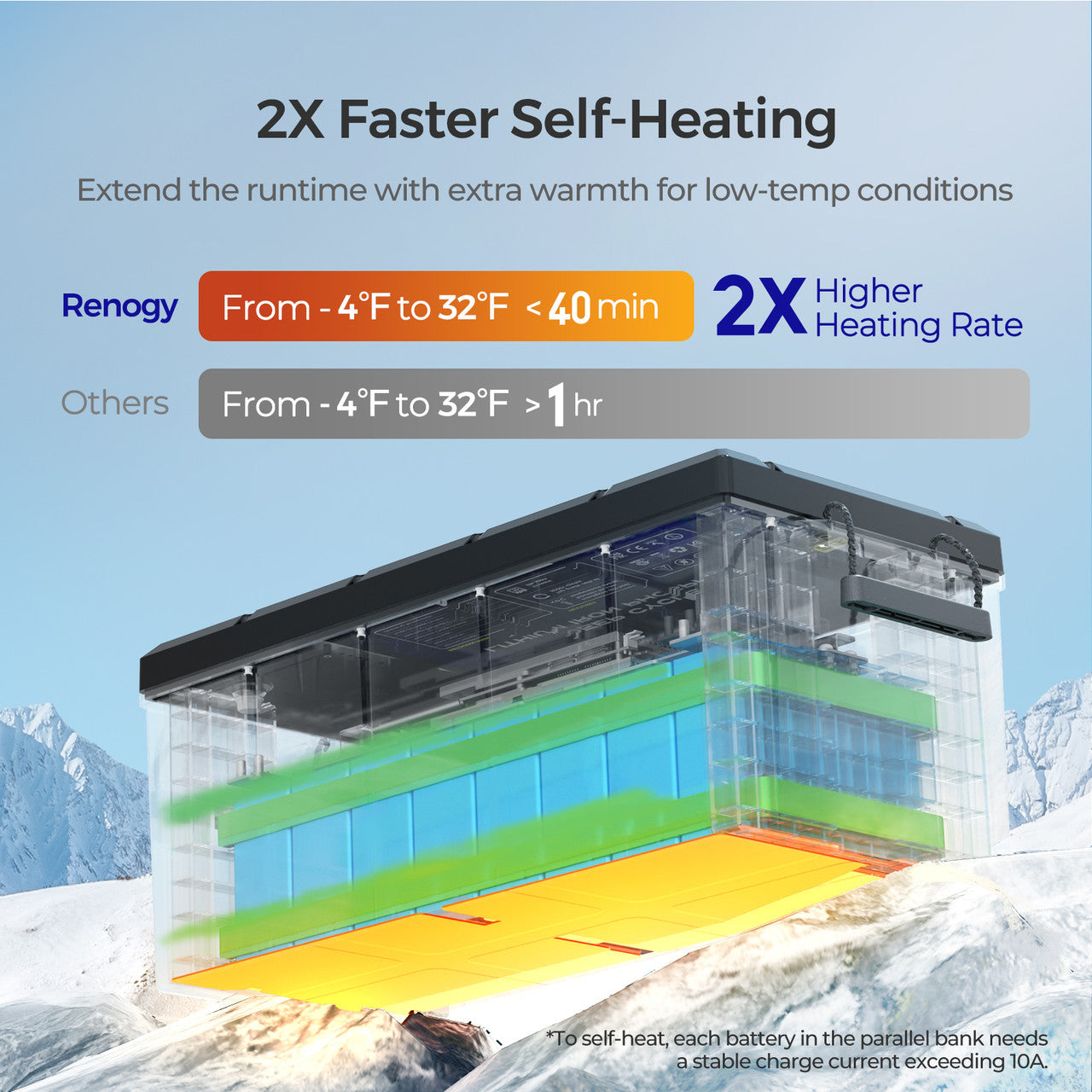

- Industry-leading 200W heating elements that warm the battery faster than typical heated batteries.

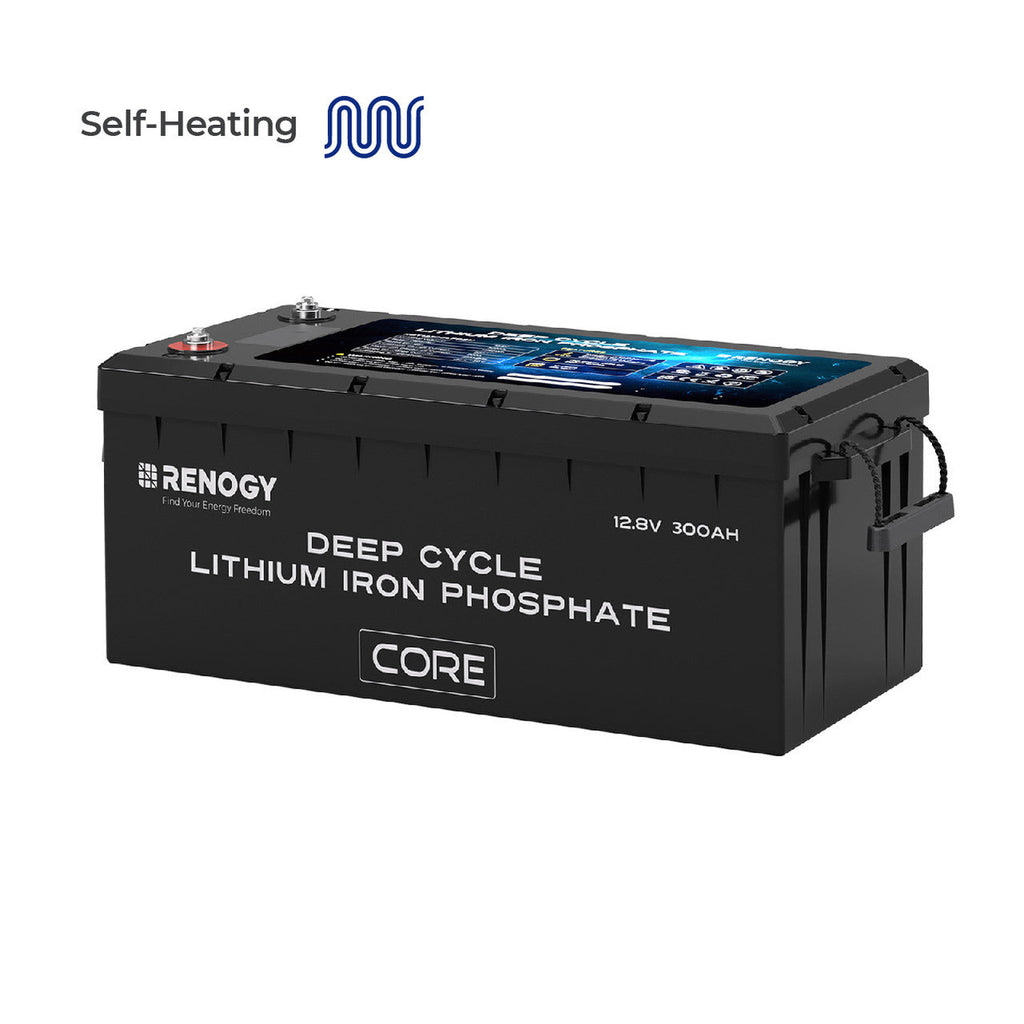

- Self-heating function that activates at 32°F (0°C) when each battery receives a stable charge current >10A.

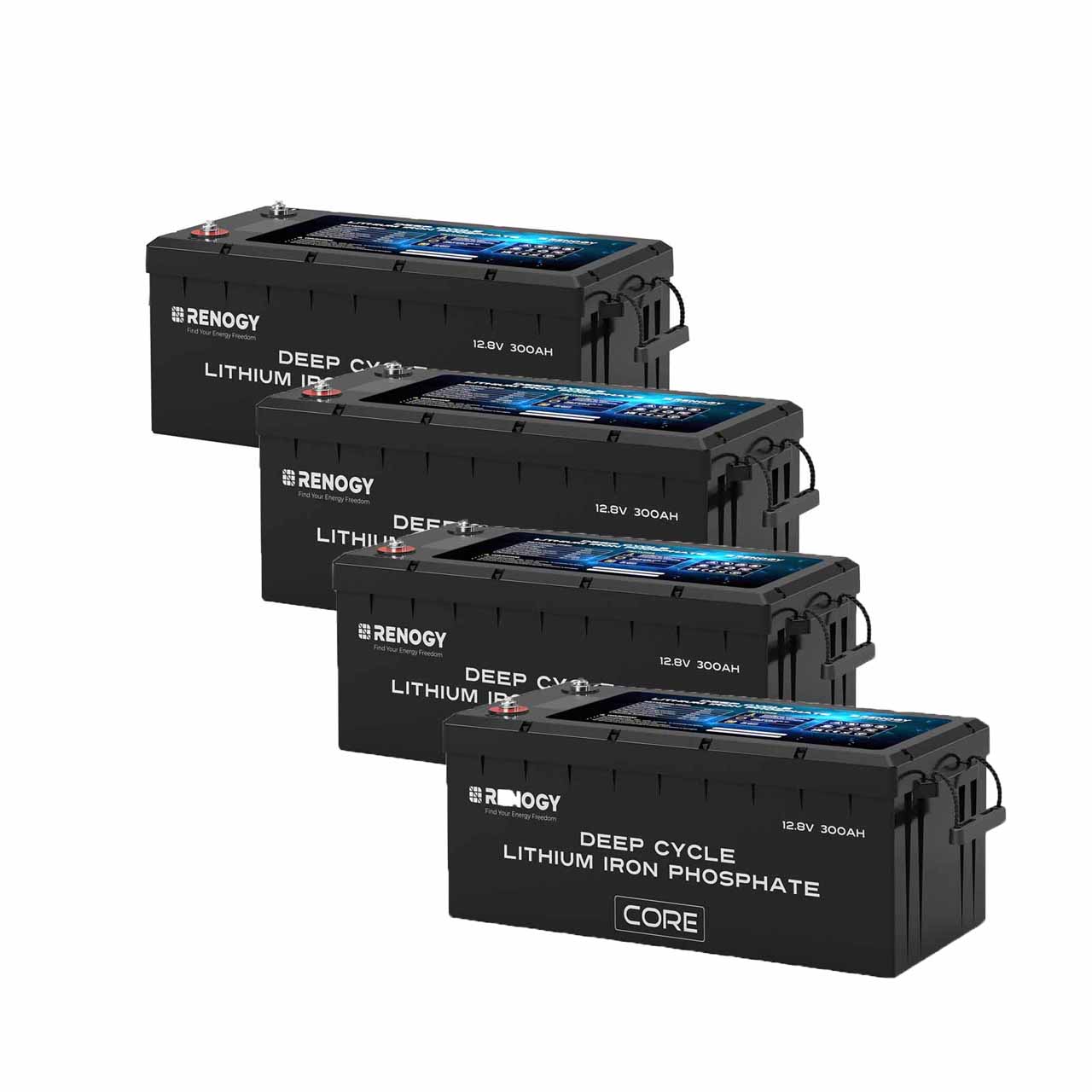

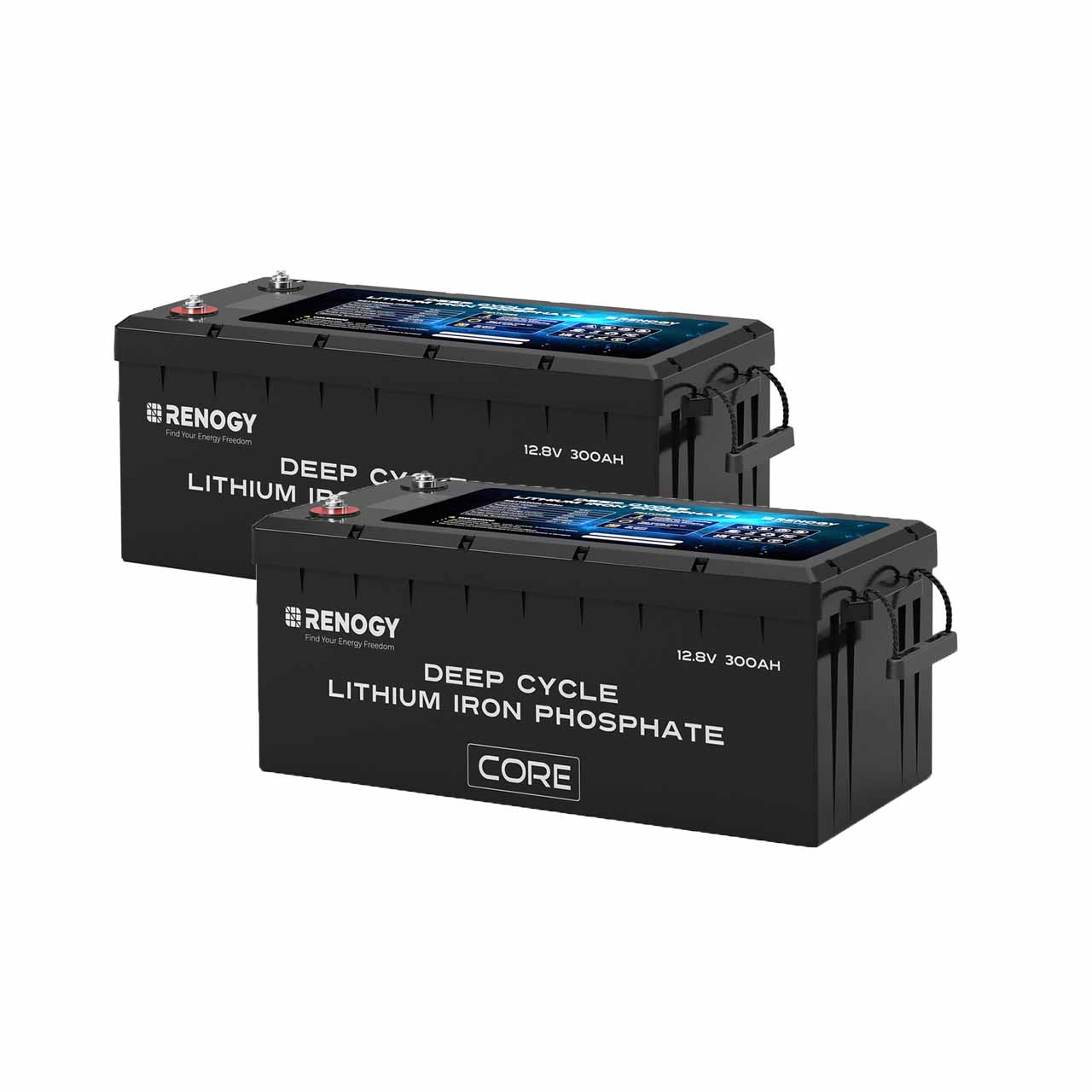

- Support for series, parallel, or series-parallel connections to build 12V, 24V, 36V, 48V, or larger banks.
- Rugged mechanical structure and shock-resistant design for protection during transport and field use.
- IP65-rated protection for dust and water resistance in many outdoor and mobile applications.
- Not compatible with a Bluetooth module; compatible with a 500A battery monitor with shunt (sold separately).
Specifications
- Nominal voltage: 12 V
- Capacity: 300 Ah
- Chemistry: Lithium Iron Phosphate (LiFePO4), EV-grade cells
- Heating element power: 200 W (per battery)
- Self-heating activation temperature: 32°F (0°C)
- Minimum charge current to enable heating: >10 A per battery
- BMS rating: 200 A with low-temperature cut-off
- Cycle life: up to 5,000 cycles at 80% depth of discharge (typical)
- Comparative capacity: ~59% more usable capacity than a 200Ah LiFePO4 of similar size
- Runtime examples: four 300Ah batteries in parallel can power typical RV essentials for multiple days (depends on load)
- Maximum recommended configurations: up to 4 in series, up to 4 in parallel, or up to 16 in combined series-parallel (4S4P)
- Maximum pack energy (example): up to ~40.96 kWh in large series-parallel banks (model- and configuration-dependent)
- Protection rating: IP65
- Clearance for installation: 1.97–3.94 in (50–100 mm) above the battery; at least 7.87 in (200 mm) clearance on the busbar side
- Warranty: 5 years
- Support: 24-hour prompt response
- Package contents: 12V 300Ah LiFePO4 battery ×1, long terminal bolts ×2, insulating sleeves ×2, user manual ×1
- Recharge methods: solar (with compatible charge controller), DC-DC charger, or AC-DC charger (use LiFePO4-compatible charging profiles)
- Other notes: Not Bluetooth-compatible; use a compatible battery monitor with shunt to track state of charge and performance
