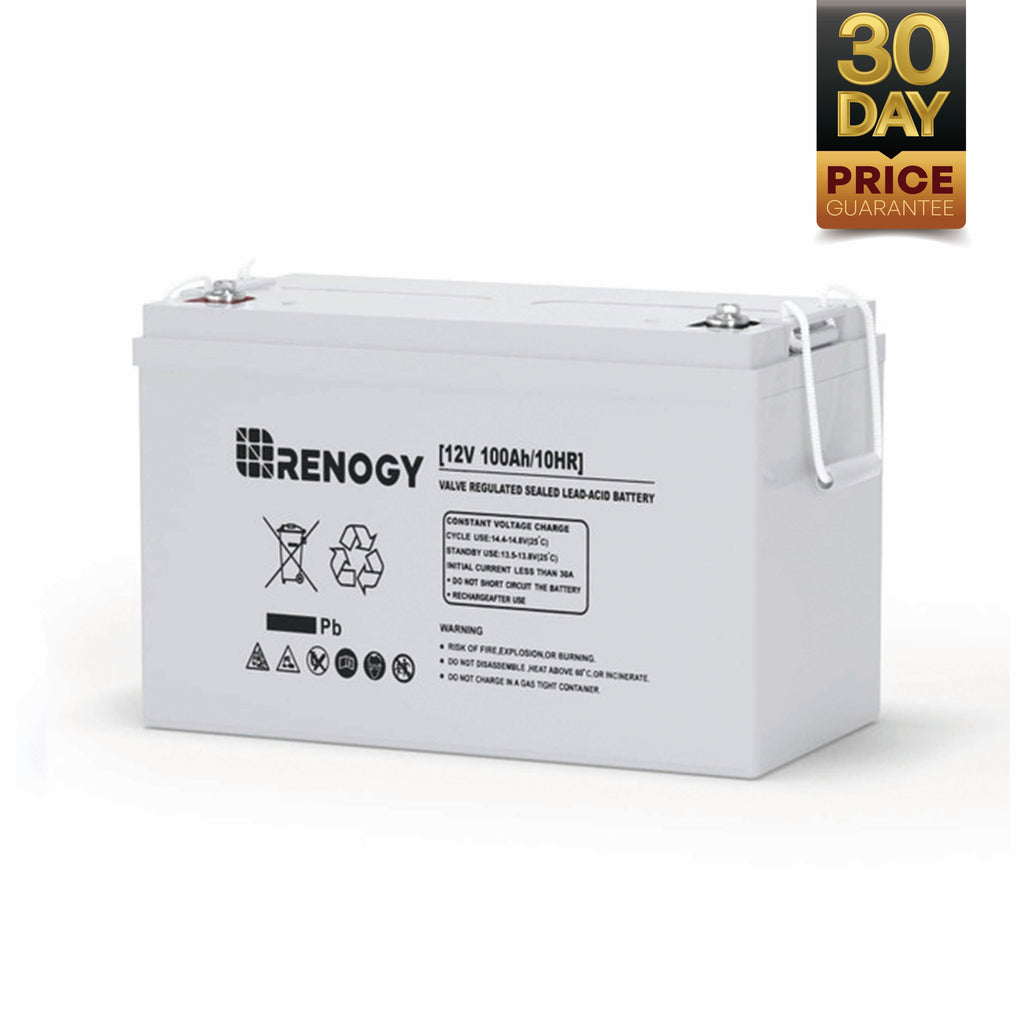

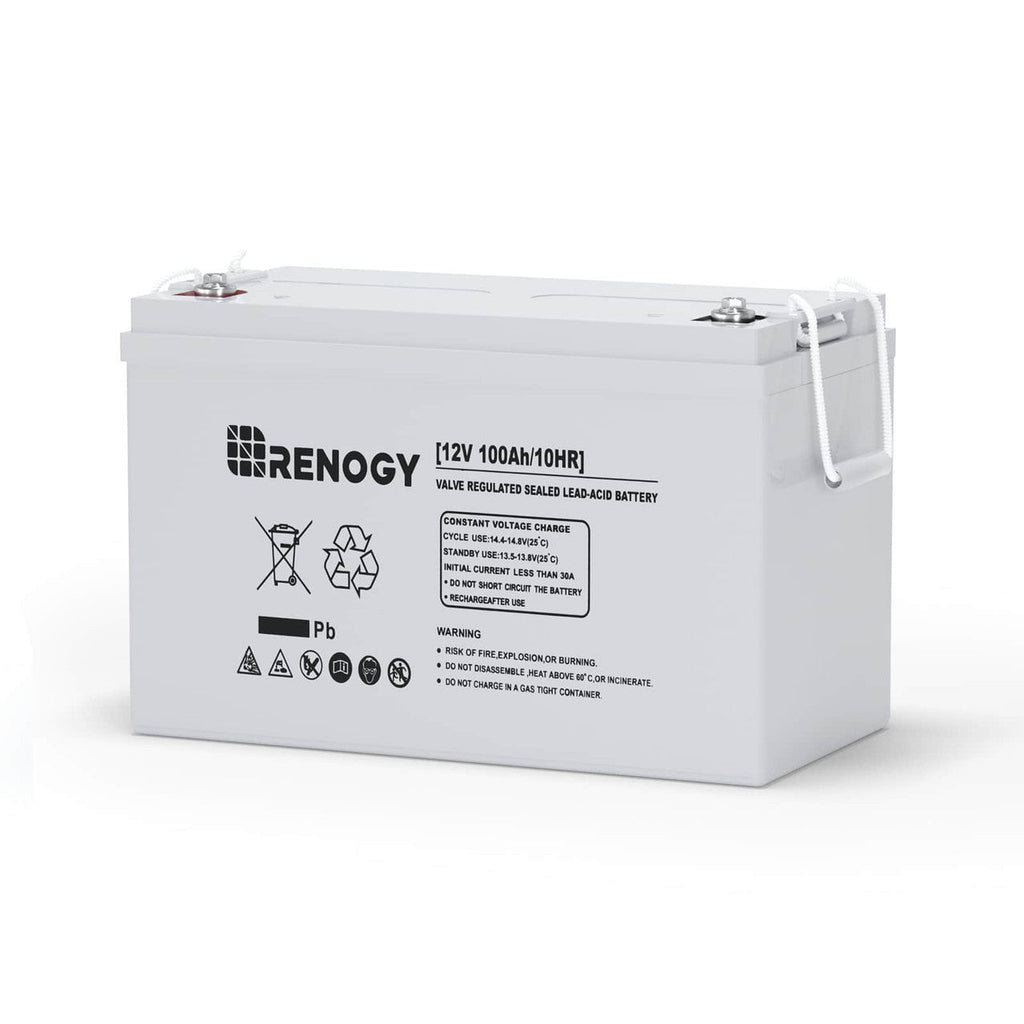

Renogy 12V 100Ah Deep Cycle AGM Battery

Overview

This sealed AGM deep-cycle battery delivers reliable, low-maintenance power for RVs, solar systems, boats, and backup setups. With over 230,000 units sold worldwide, it’s designed to work across a wide temperature range, tolerate high starting currents, and be connected in series or parallel for larger systems.

Benefits

• Spend less time on maintenance — the sealed AGM design eliminates regular electrolyte checks and internal troubleshooting.

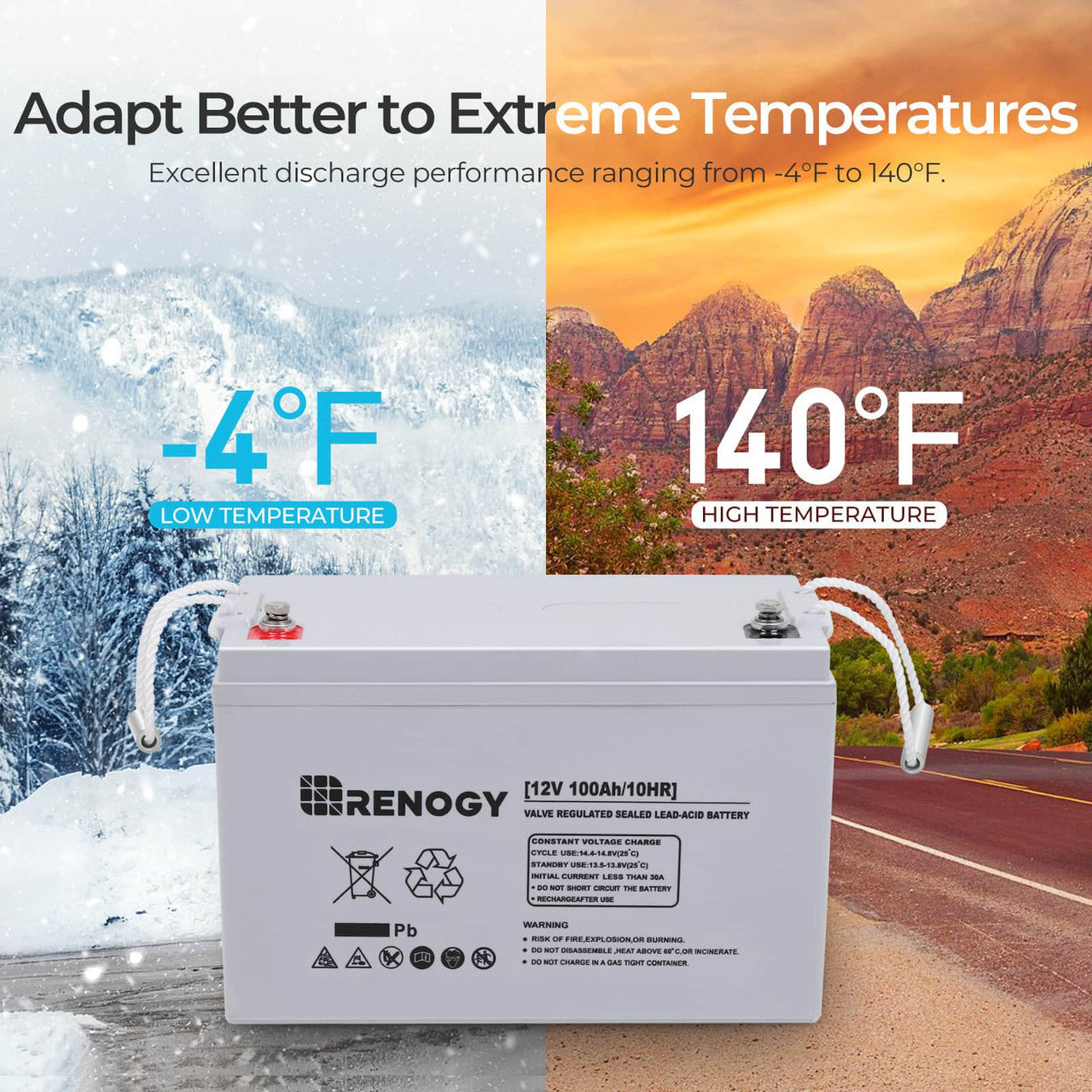

• Use power reliably in cold or hot conditions — the electrolyte formula maintains discharge performance from -4°F to 140°F (-20°C to 60°C).

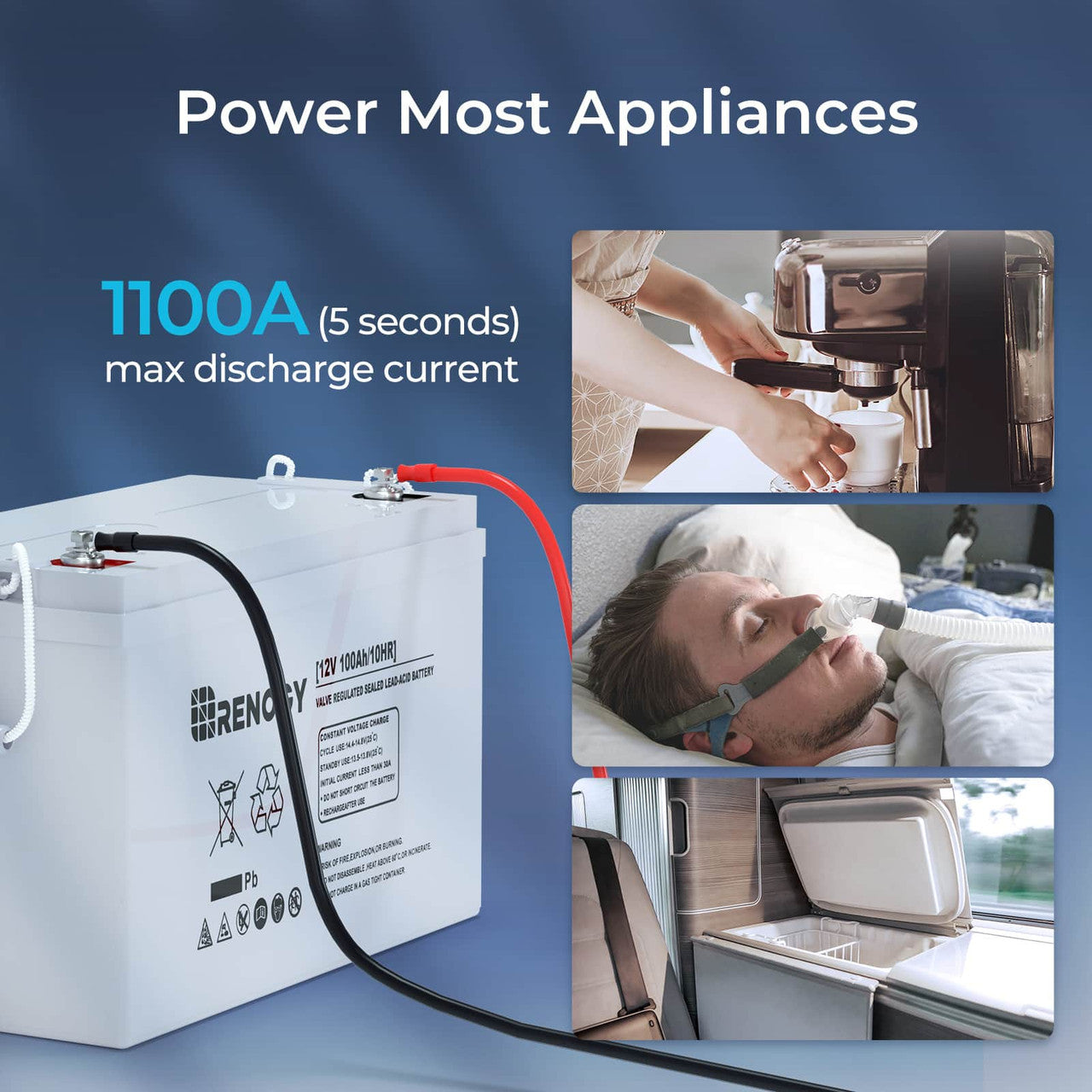

• Start heavy loads without worry — a high short-term discharge capability handles appliance start-up surges.
• Scale your system easily — connect batteries in series for higher voltage or in parallel (up to 4) for more capacity.
• Protect your investment — pairing the battery with a monitor or balancer helps avoid over-discharge and extends service life.

Features

• 12V deep-cycle AGM (Absorbent Glass Mat) construction — maintenance-free, spill-proof design.
• High chemical stability compared with some lithium chemistries for improved safety in typical use.
• Wide discharge temperature range: -4°F to 140°F (-20°C to 60°C).
• Max short-term discharge: 1100A for 5 seconds (suitable for starting appliances).

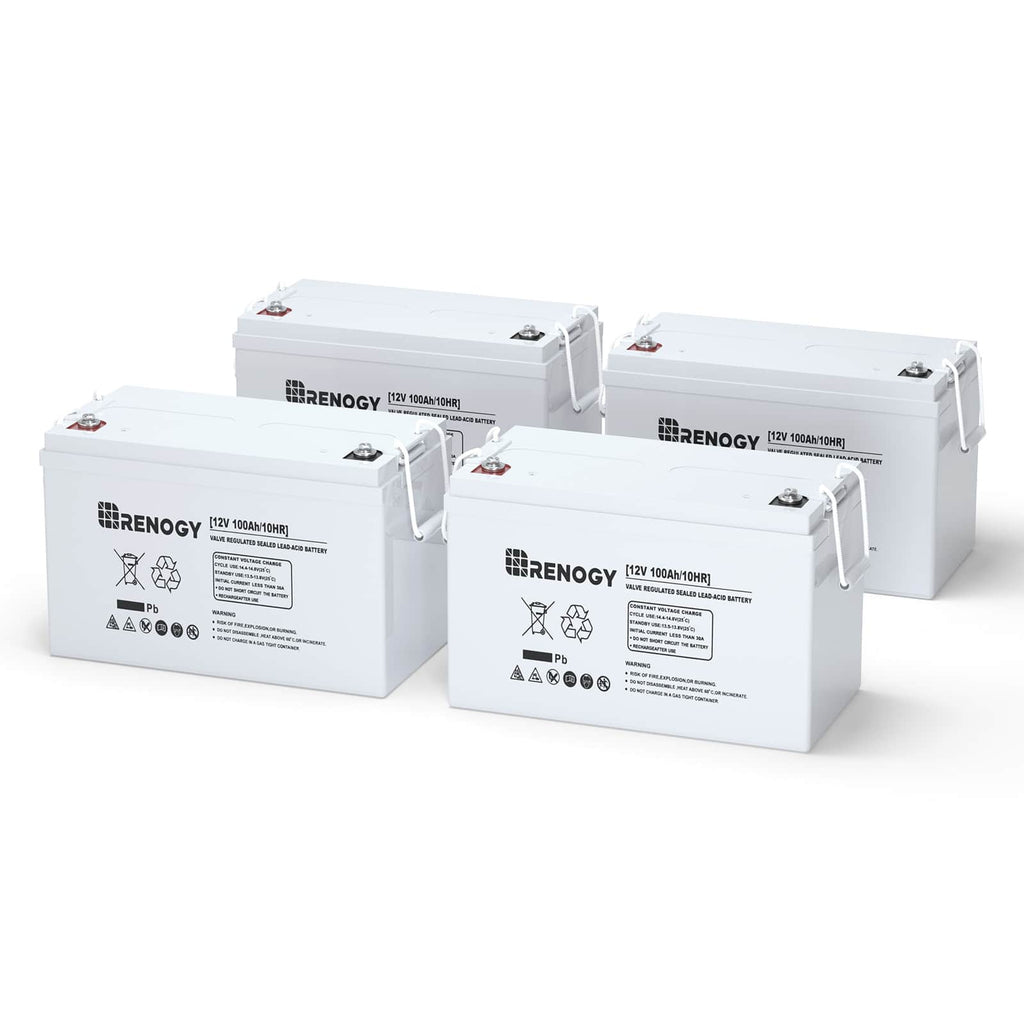

• Series and parallel support — series connections (no limit), parallel up to 4 batteries.
• Includes terminal bolts (M8 x 1.25 x 15 mm, two pieces).
• Compatible with battery monitoring (Renogy 500A Monitor recommended) to track state of charge and prevent over-discharge.
• Recommended battery type setting for charge controllers: SLD.

Specifications

• Nominal voltage: 12 V
• Capacity: 100 Ah (deep-cycle)
• Battery chemistry: AGM (Absorbent Glass Mat), lead-acid
• Max short-term discharge current: 1100 A (5 seconds)
• Recommended discharge temperature range: -4°F to 140°F (-20°C to 60°C)
• Recommended charge temperature range: 32°F to 122°F (0°C to 50°C)
• Parallel connections: up to 4 batteries
• Series connections: no specified limit (use identical batteries and proper balancing)
• Terminal bolts included: M8 x 1.25 x 15 mm (2)
• Installation notes:
  • Install upright when possible; side installation allowed if necessary; never install upside down.
  • Allow 1.97–3.94 in (5–10 cm) clearance above the battery and at least 7.87 in (20 cm) clearance on the busbar side.
• Recommended practices:
  • Avoid discharging below 50% regularly to preserve cycle life.
  • Use a battery balancer when connecting multiple batteries in series or parallel to extend service life.

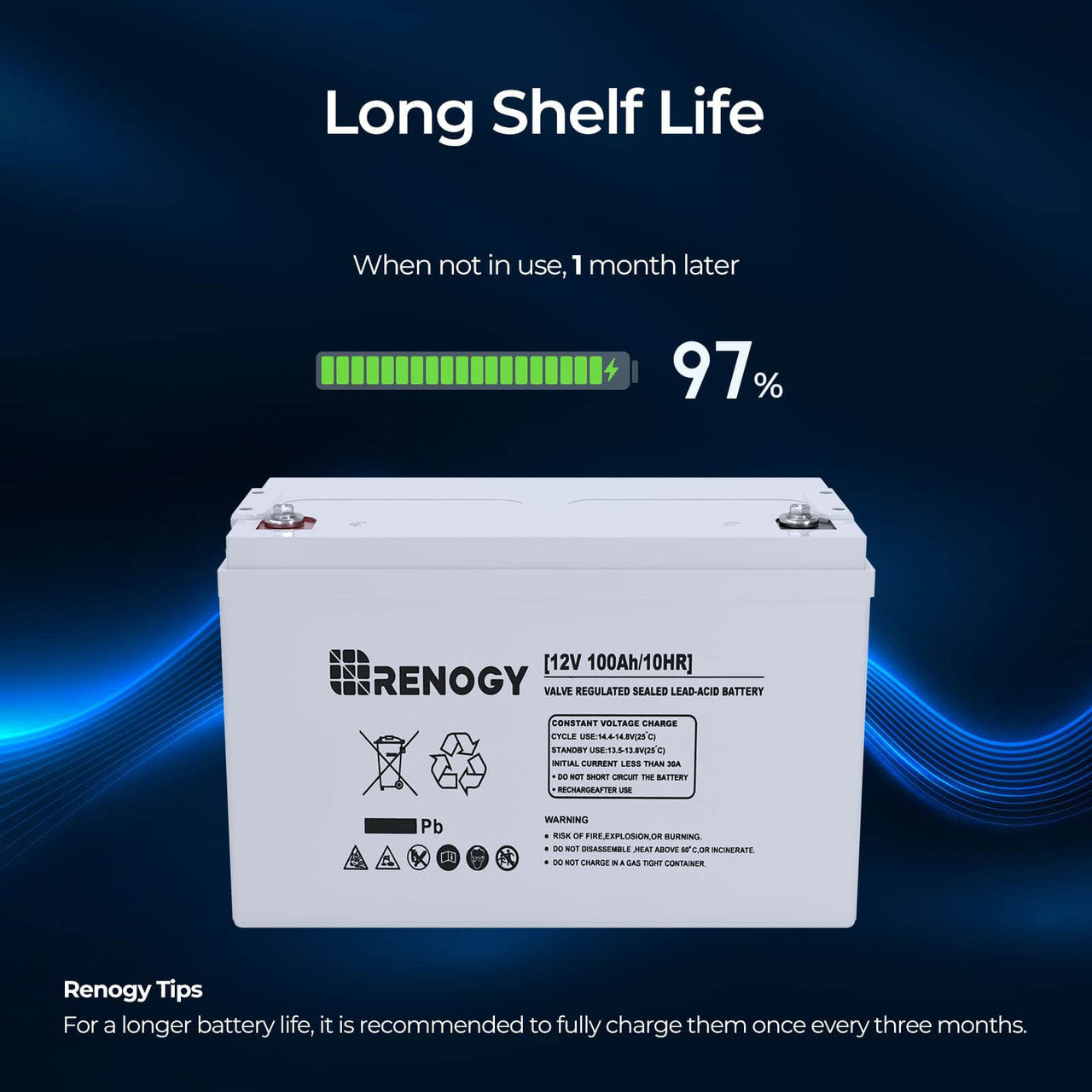

  • Fully charge before long-term storage and recharge at least every three months.
• Compatibility:
  • Not compatible with Renogy ONE system at this time.
  • Works with a 500A battery monitor (sold separately) for state-of-charge monitoring.
• Resources: product datasheet and warranty documentation are available from the manufacturer for full technical details and support.
