Renogy 100W Flexible Solar Panel — Thin, Light, and Curve-Friendly

Overview

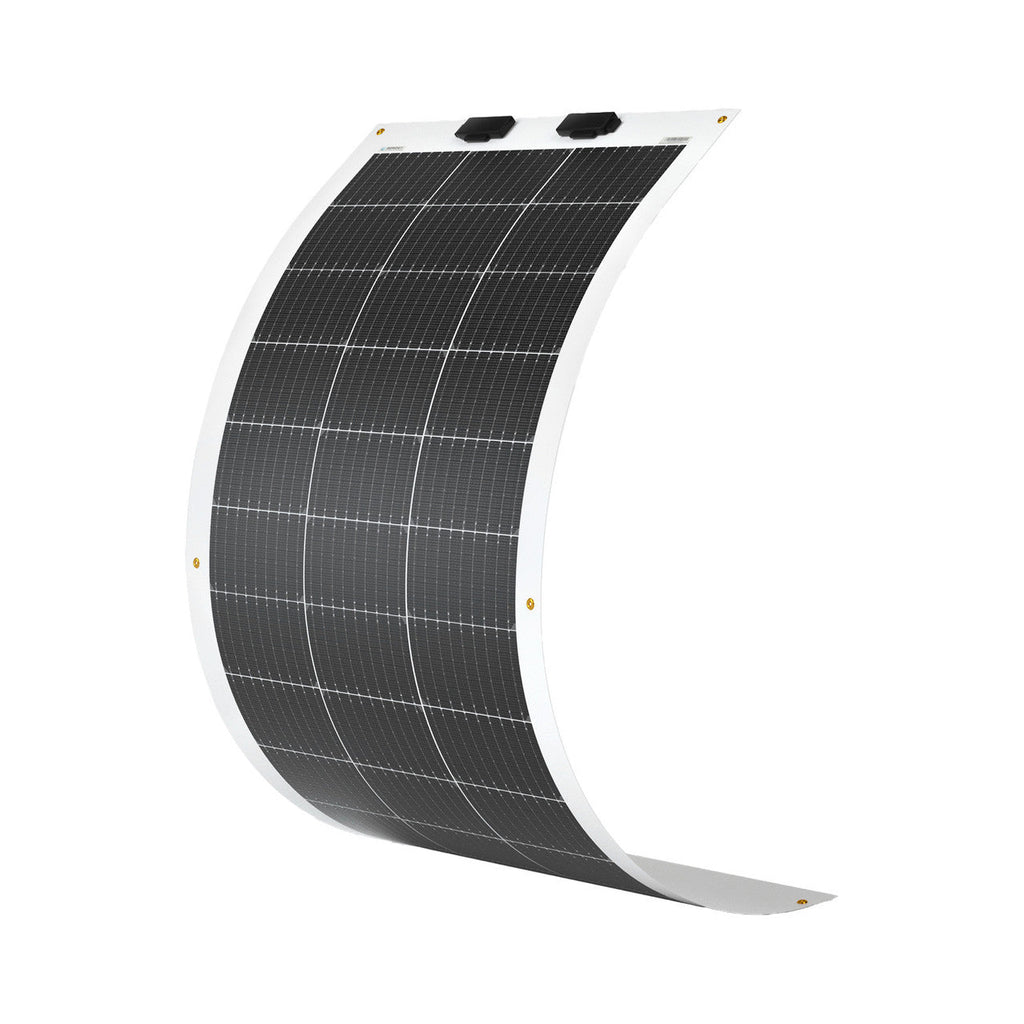

A lightweight, ultra-thin 100W monocrystalline panel designed for curved surfaces and weight-sensitive installations. It flexes up to 248°, weighs just 4.2 lbs, and uses weatherproof connectors and a sealed junction box for reliable outdoor and marine use.

Benefits

• Make installations on curved roofs or uneven surfaces simple — the panel flexes up to 248° so it conforms to contours instead of forcing structural changes.

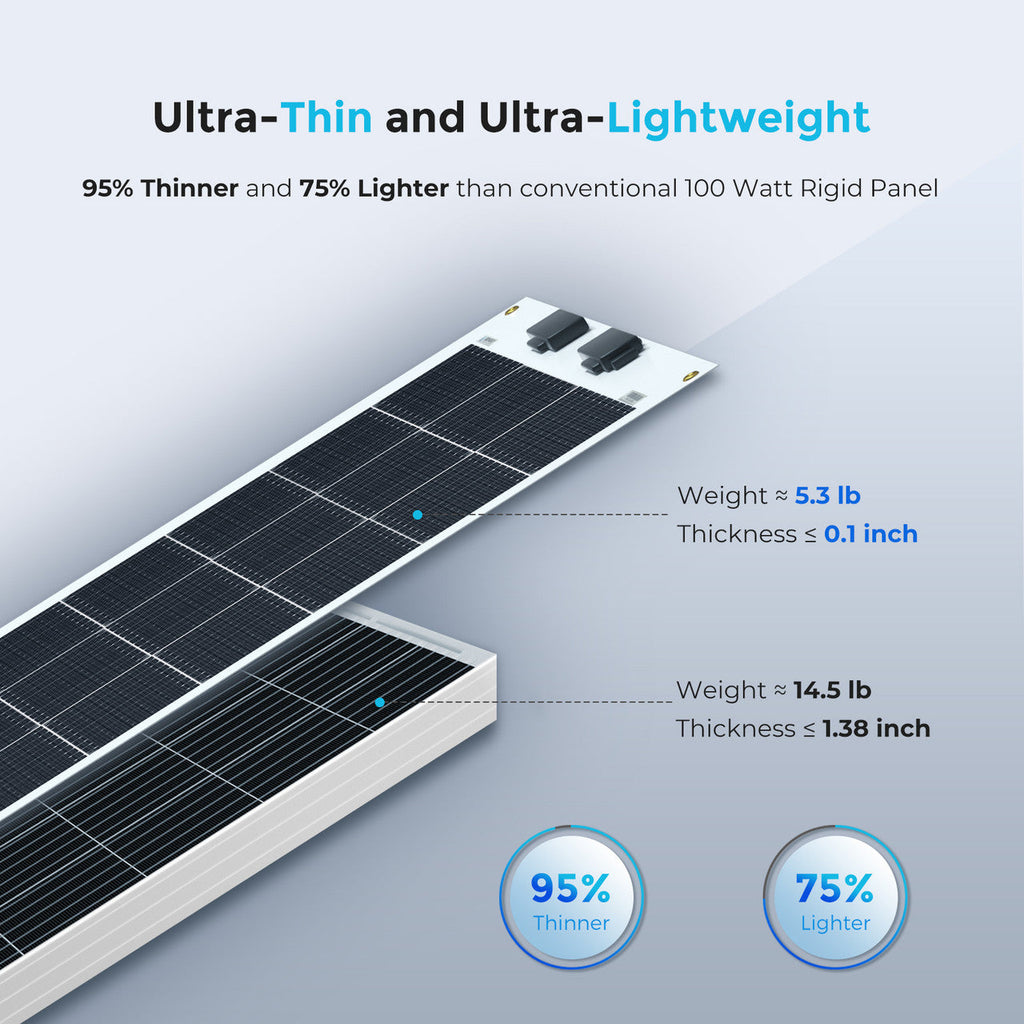

• Reduce weight and strain on your vehicle or structure — at 4.2 lbs it’s about one-quarter the weight of a comparable rigid panel.
• Keep a low profile — the 0.08 in (?2 mm) thickness lets you maintain a discreet, streamlined setup on vans, boats, and campers.
• Trust your system in harsh conditions — high wind and snow-load resistance plus waterproof components mean fewer surprises on long trips or in marine environments.
• Simplify mounting — multiple reinforced mounting points and adhesive-compatible backing let you choose the fastest, most secure installation method for your situation.

Features

• 100W monocrystalline solar module suitable for mobile and fixed installations.

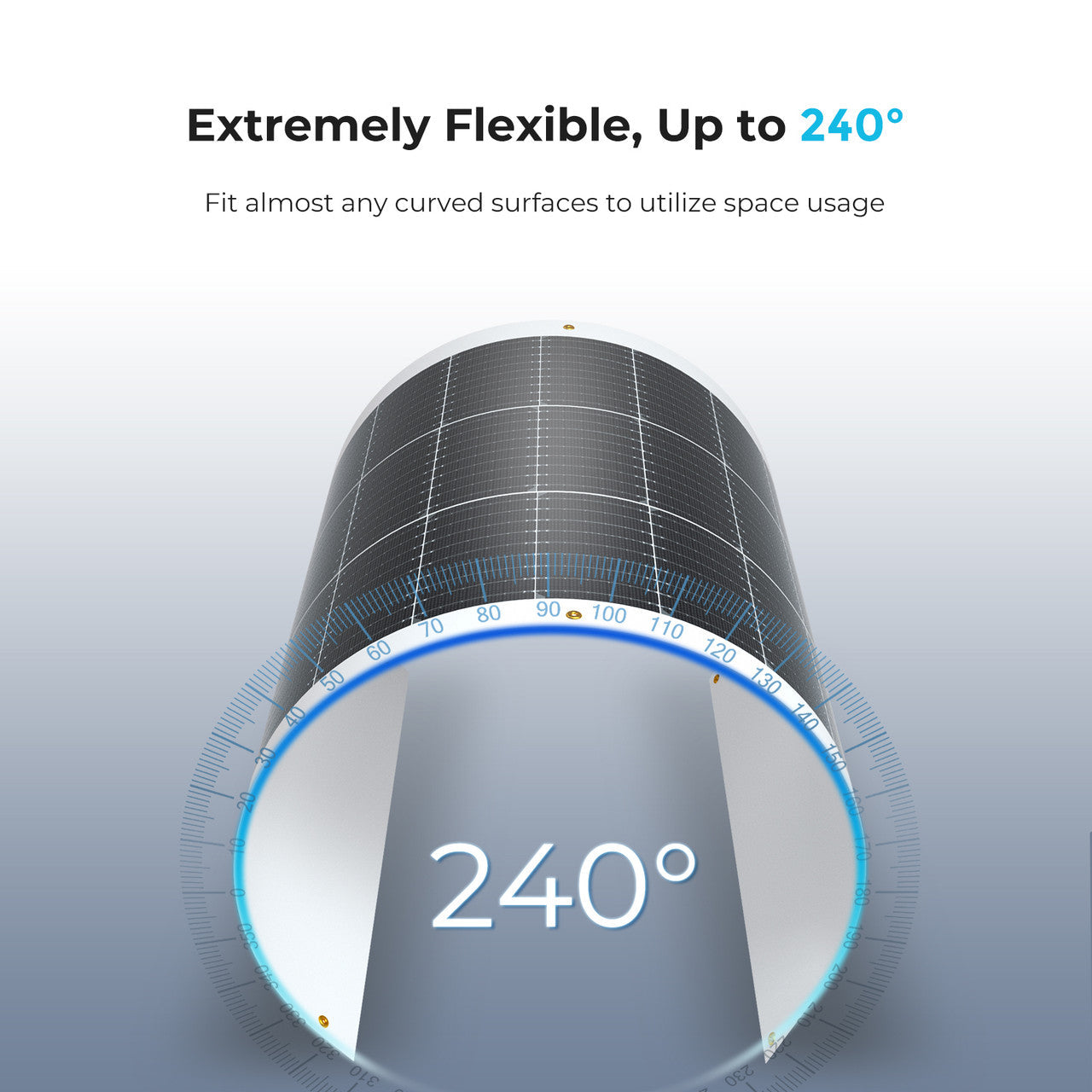

• Flexible design — up to 248° bending capability for curved surfaces.

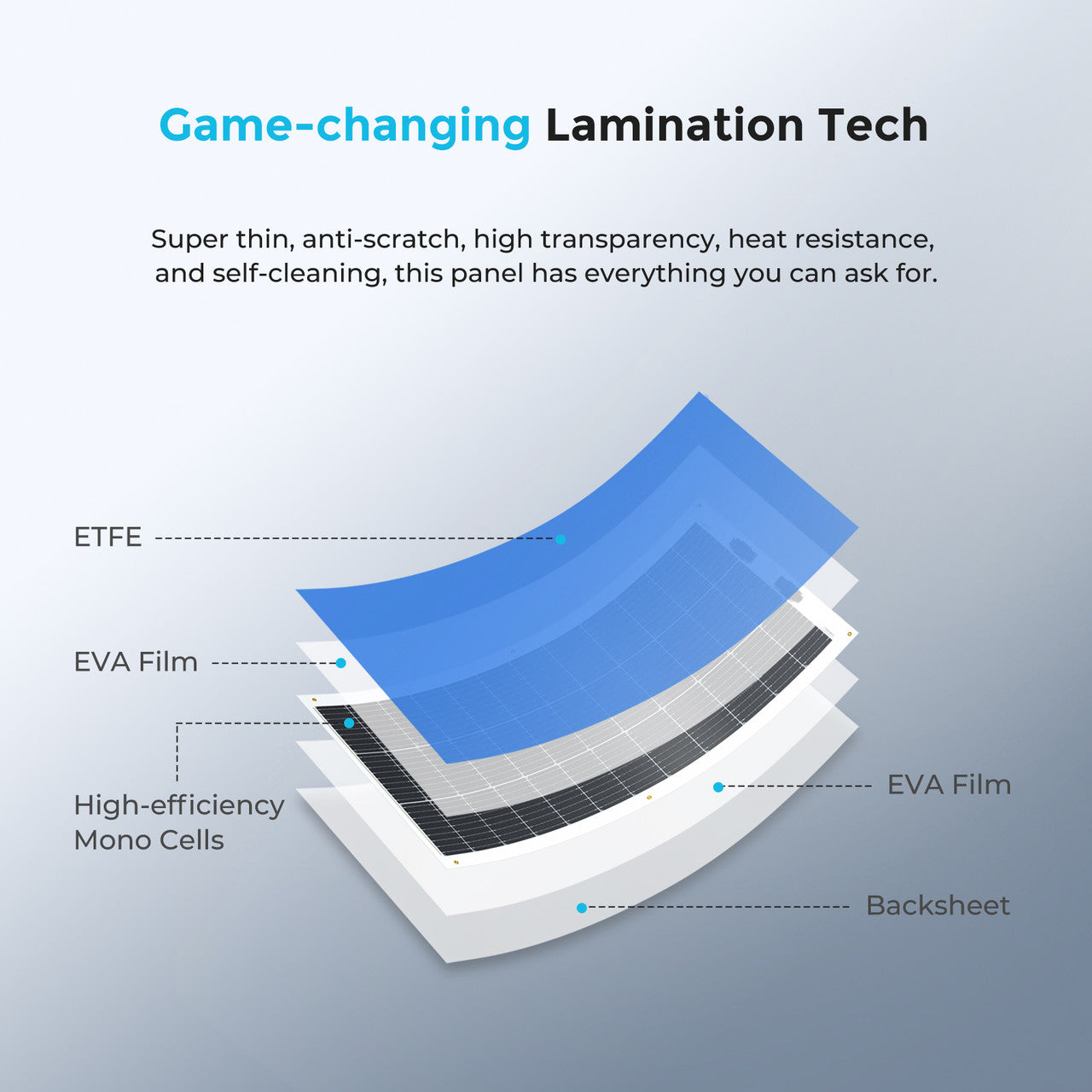

• Ultra-thin lamination — approximately 0.08 in (2 mm) thick for low profile mounting.
• Ultra-lightweight — 4.2 lbs (1.9 kg) for reduced load on roofs and decks.
• IP68 rated waterproof junction box and IP67 rated solar connectors for marine and outdoor exposure.

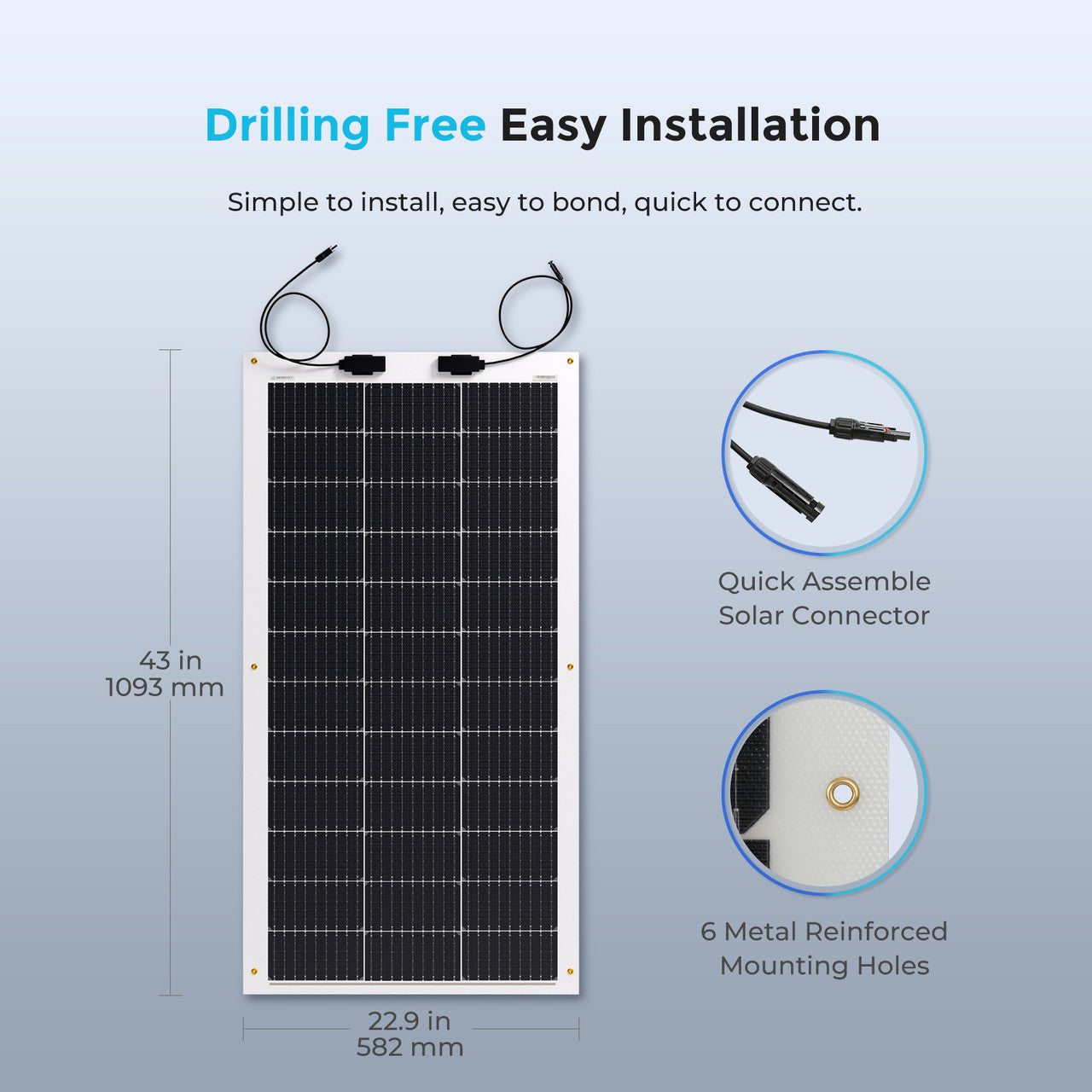

• Six metal-reinforced mounting holes; also mountable with silicone structural adhesive (grommets recommended only for non-mobile applications).

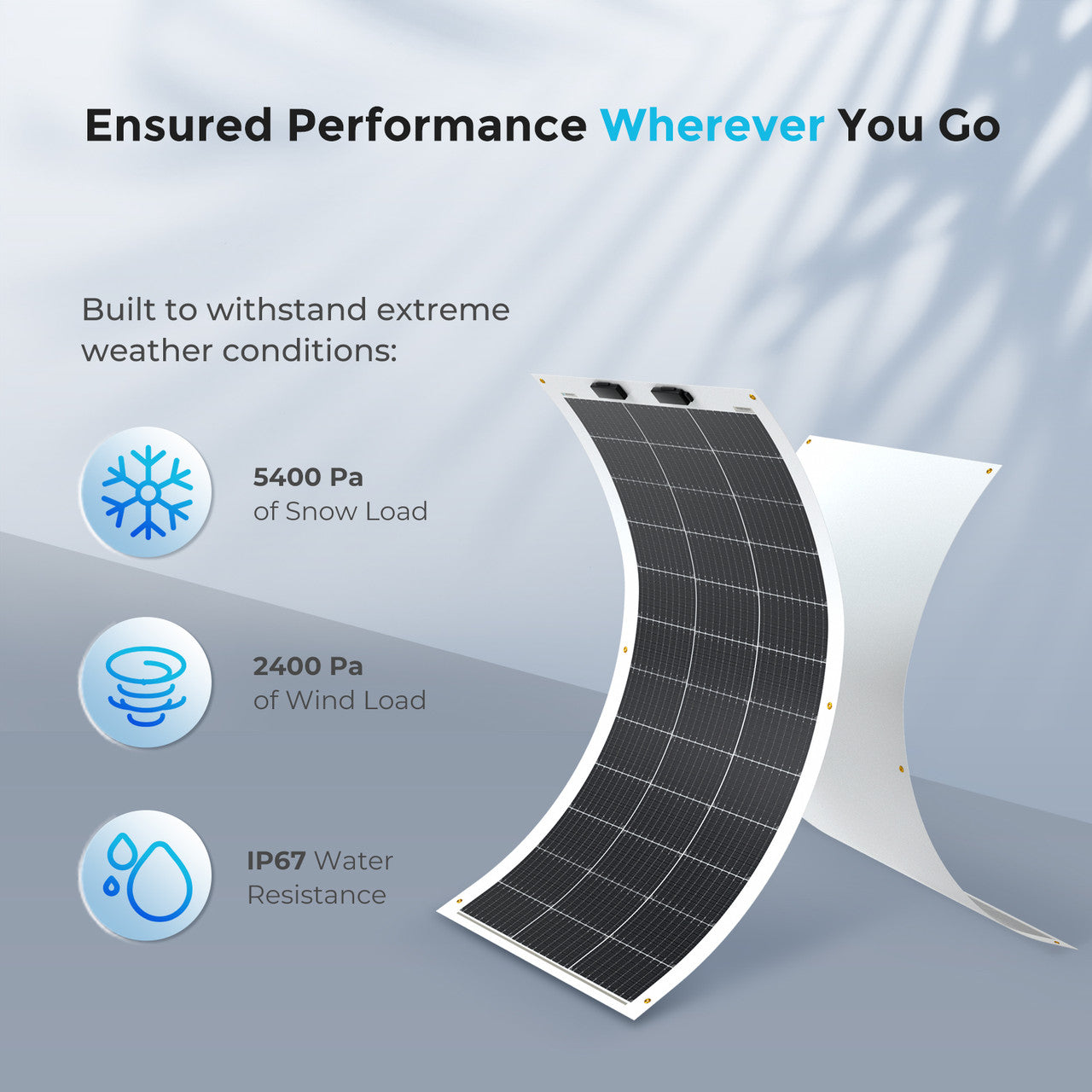

• Durability tested for wind and snow loads: withstands high wind pressure and heavy snow load ratings.
• Includes 12 AWG output cable (approximately 2.30 ft) for easy connection to charge controllers.

Specifications

• Maximum Power (STC): 100 W
• Module Efficiency: 14.9%
• Optimum Operating Voltage (Vmp): 18.9 V
• Open-Circuit Voltage (Voc): 22.5 V
• Optimum Operating Current (Imp): 5.29 A
• Short-Circuit Current (Isc): 5.75 A
• Cell Type: Monocrystalline
• Number of Cells: 36 (4 x 9)
• Output Cables: 12 AWG, ~2.30 ft
• Junction Box: IP68 rated (waterproof)
• Solar Connectors: IP67 rated (waterproof)
• Operating Temperature Range: -40°F to 185°F (-40°C to +85°C)
• Maximum Series Fuse Rating: 15 A
• Maximum System Voltage: 600 V DC (UL)
• Wind Resistance: tested (rated to withstand high wind pressure up to manufacturer specs)
• Snow Load Resistance: tested (rated to withstand heavy snow loads up to manufacturer specs)
• Weight: 4.2 lbs (1.9 kg)
• Dimensions: 48.0 x 21.6 x 0.08 in (1219 x 546 x 2 mm)
• Certifications: CE, ISO

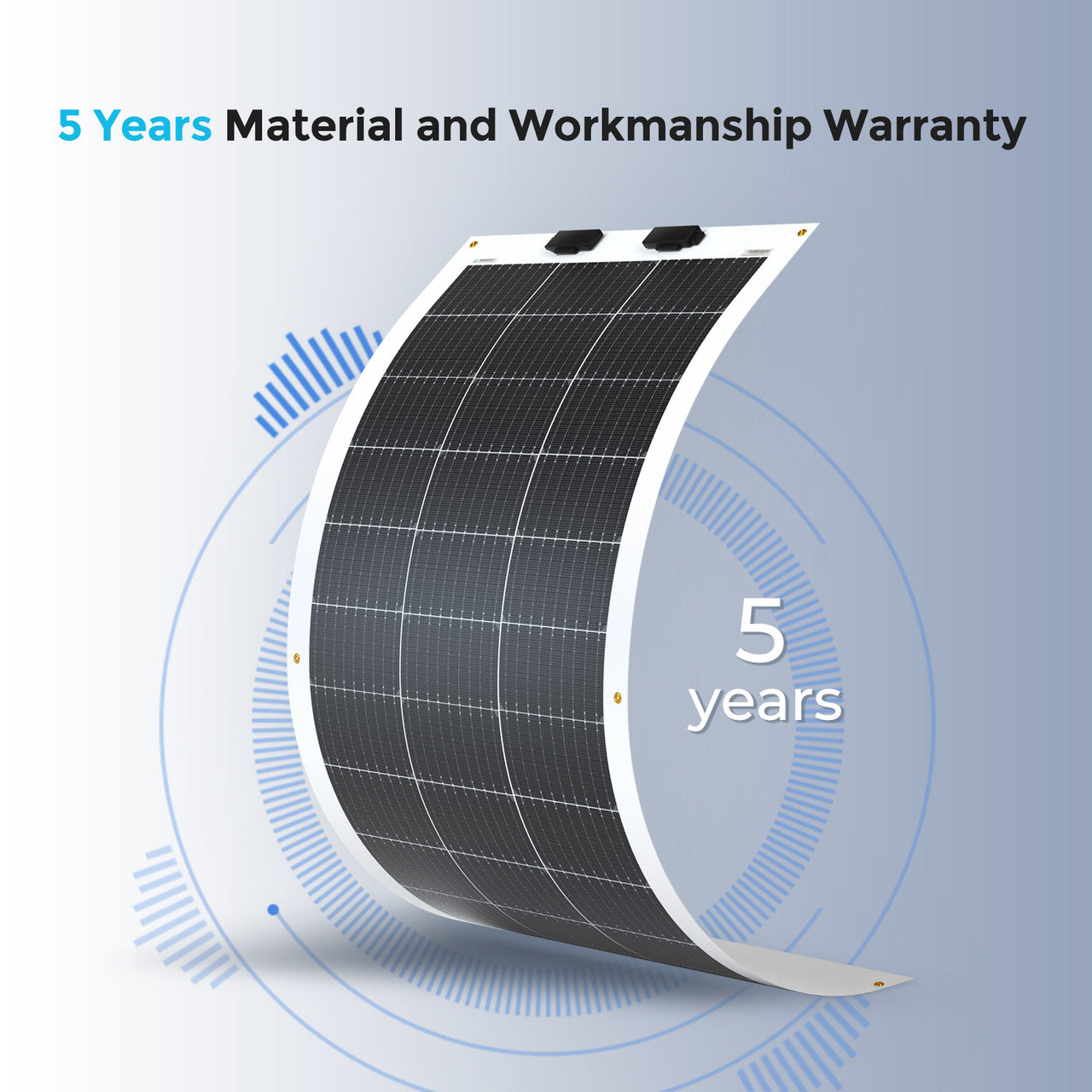

• Material & workmanship warranty: 5 years

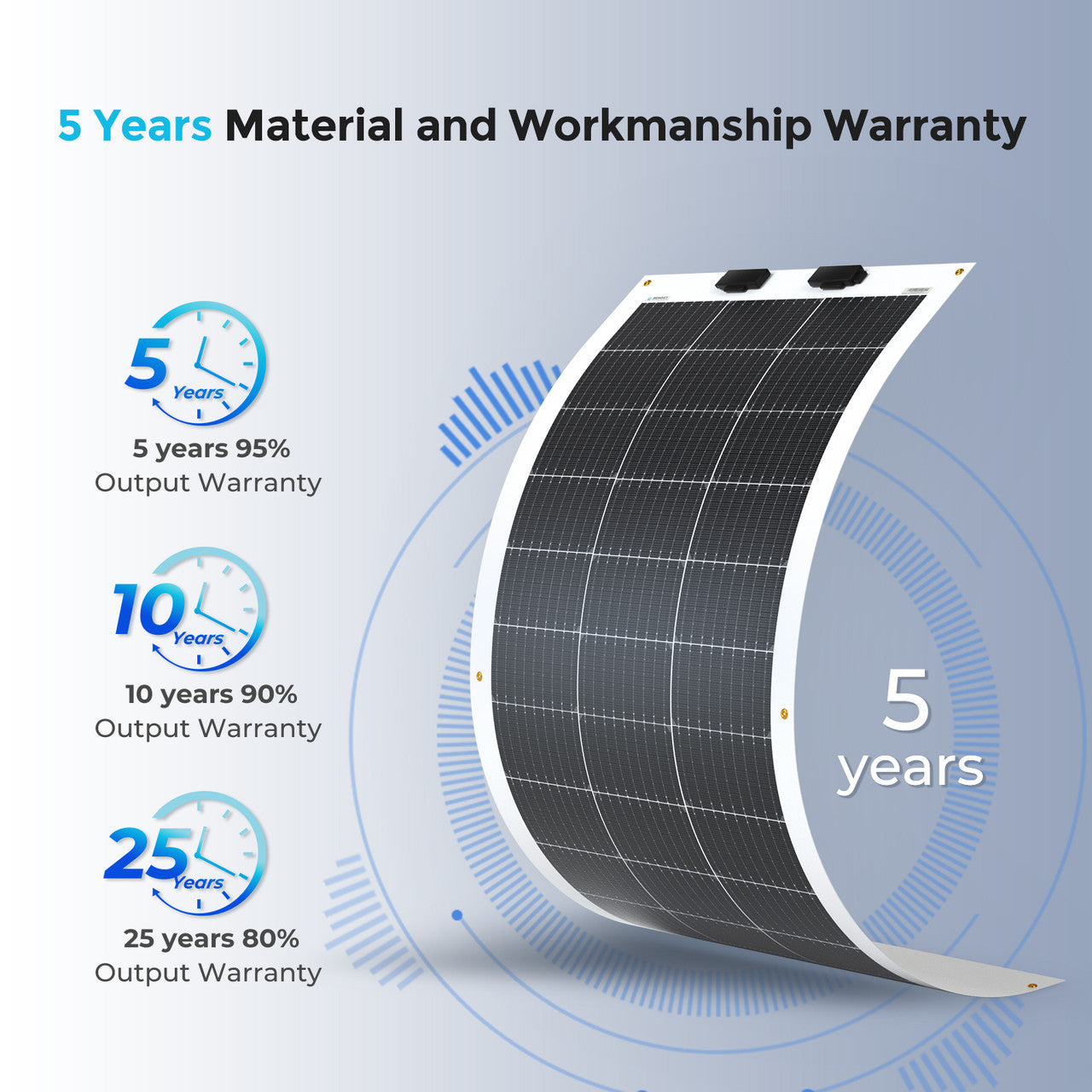

• Performance warranty: 5 years at 95% output, 10 years at 90% output, 25 years at 80% output
• Recommended mounting: silicone structural adhesive on back for mobile installs; grommets for stationary setups only.
• Care notes: avoid walking on the panel; clean with non-abrasive sponge and water to maintain output.
