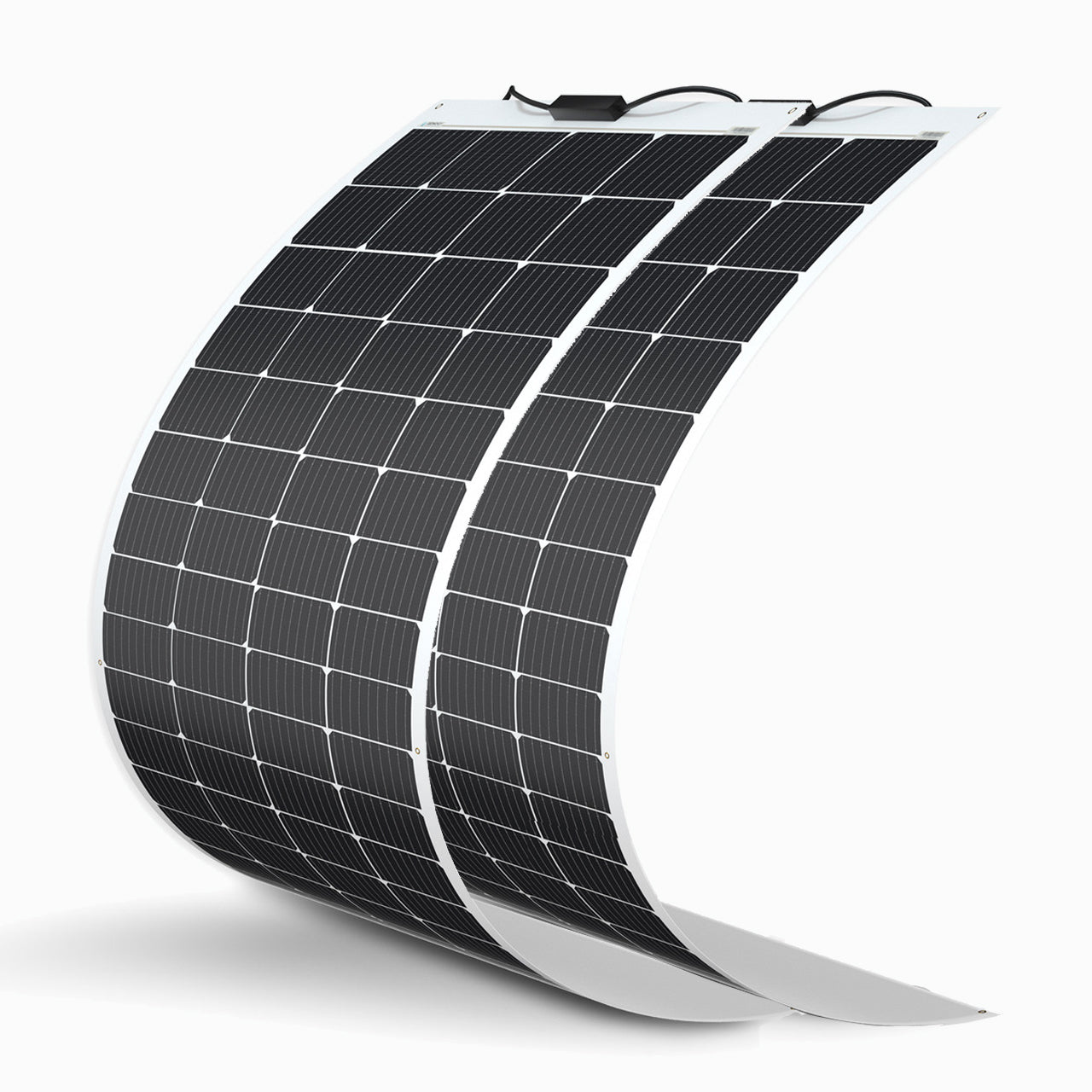

Renogy 200W Flexible Monocrystalline Solar Panel — Lightweight, Bendable Power
Overview

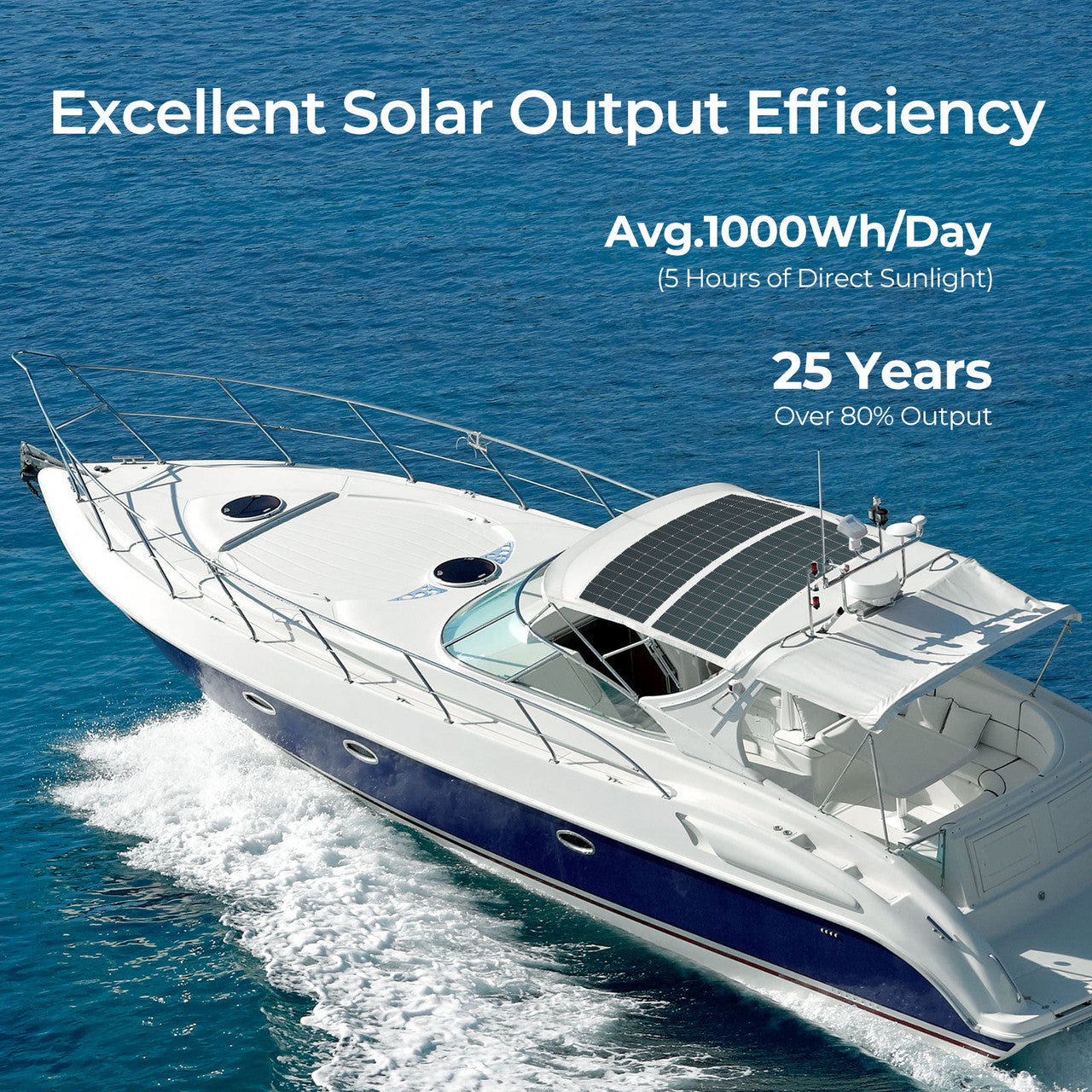

This 200W flexible monocrystalline solar panel delivers reliable off-grid power in a lightweight, bendable form. It can produce roughly 1,000 Wh per day under typical direct-sun conditions (based on ~5 hours of peak sun), is built to resist hotspots and partial shading, and is designed for installation on curved or uneven surfaces.
Benefits
Keep devices and small systems powered while traveling or off-grid — dependable daily energy production for lights, fridges, phones, and more.
Install on curved roofs or irregular surfaces thanks to the panel’s flexibility — no need for heavy mounting hardware or rigid frames.

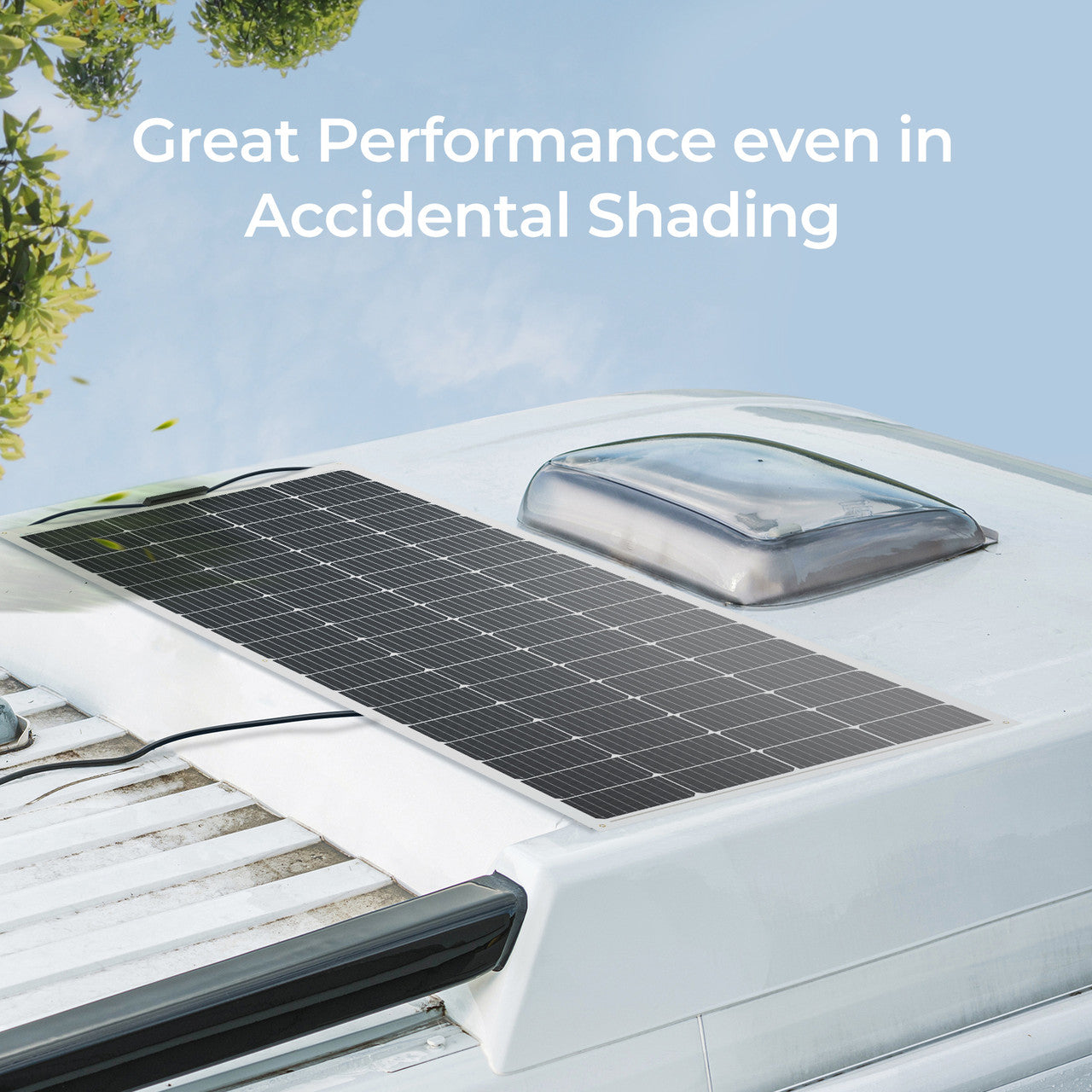

Spend less time managing your power system — integrated bypass diodes and half-cell design reduce performance loss from shading and hotspots.
Carry and mount the panel more easily — it’s significantly lighter than comparable rigid panels, simplifying setup and transport.

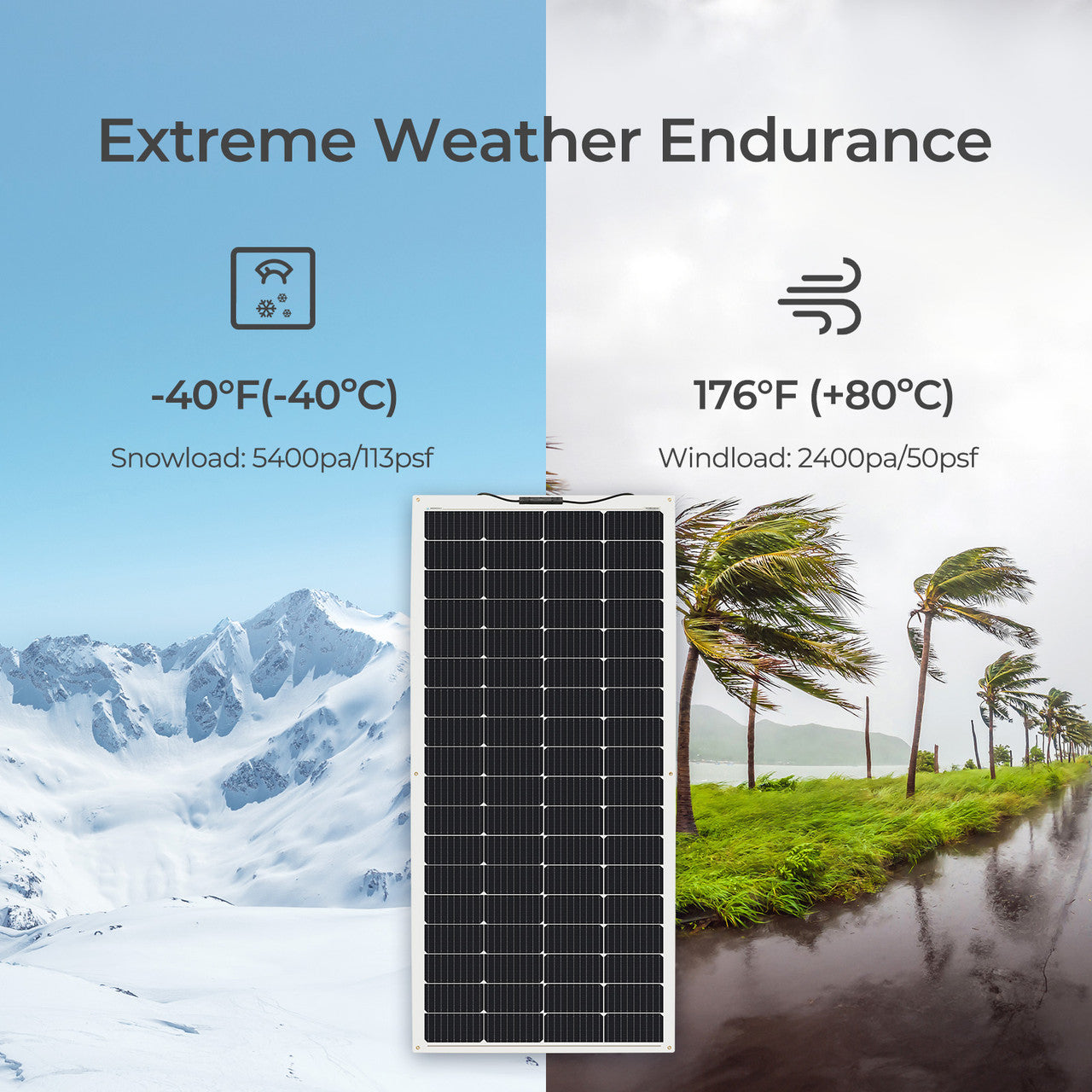

Trust in long-term performance with a 5-year warranty for output and workmanship and engineered durability for outdoor use.
Features

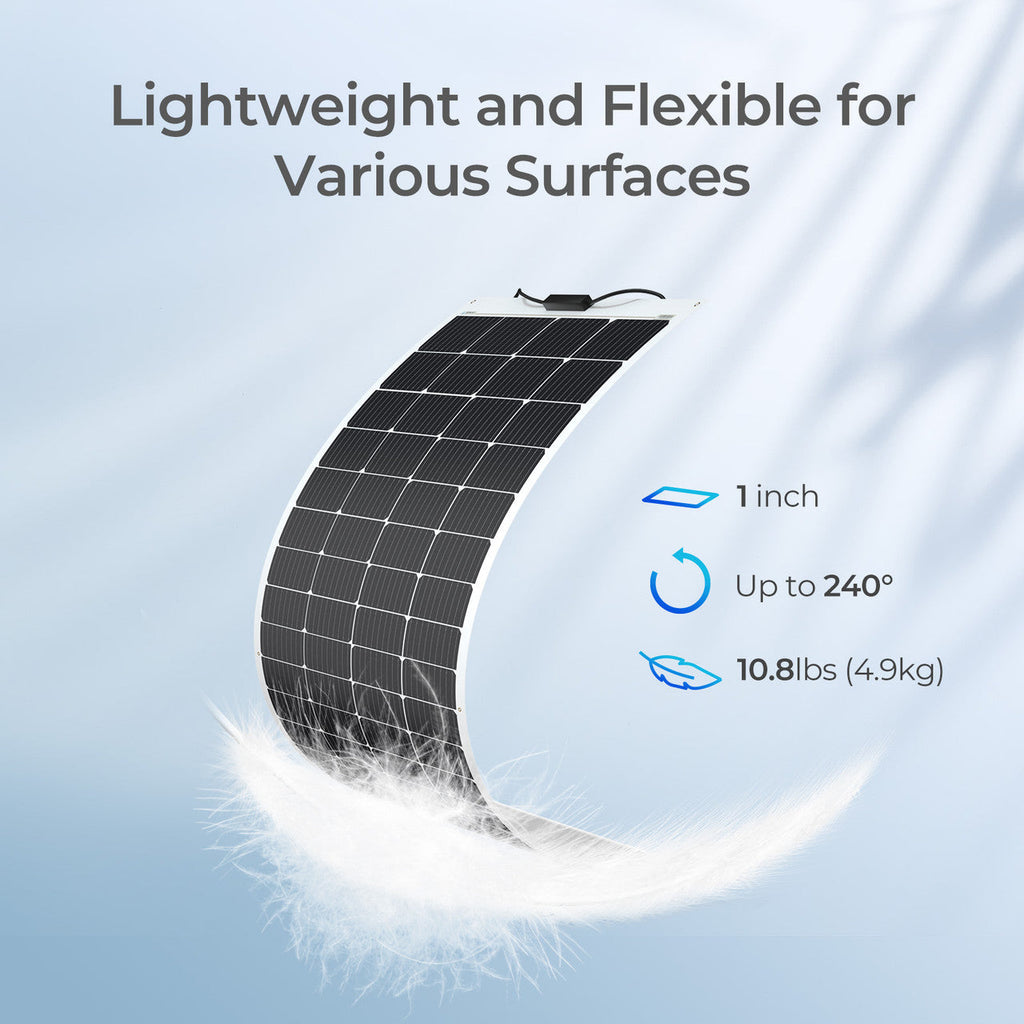

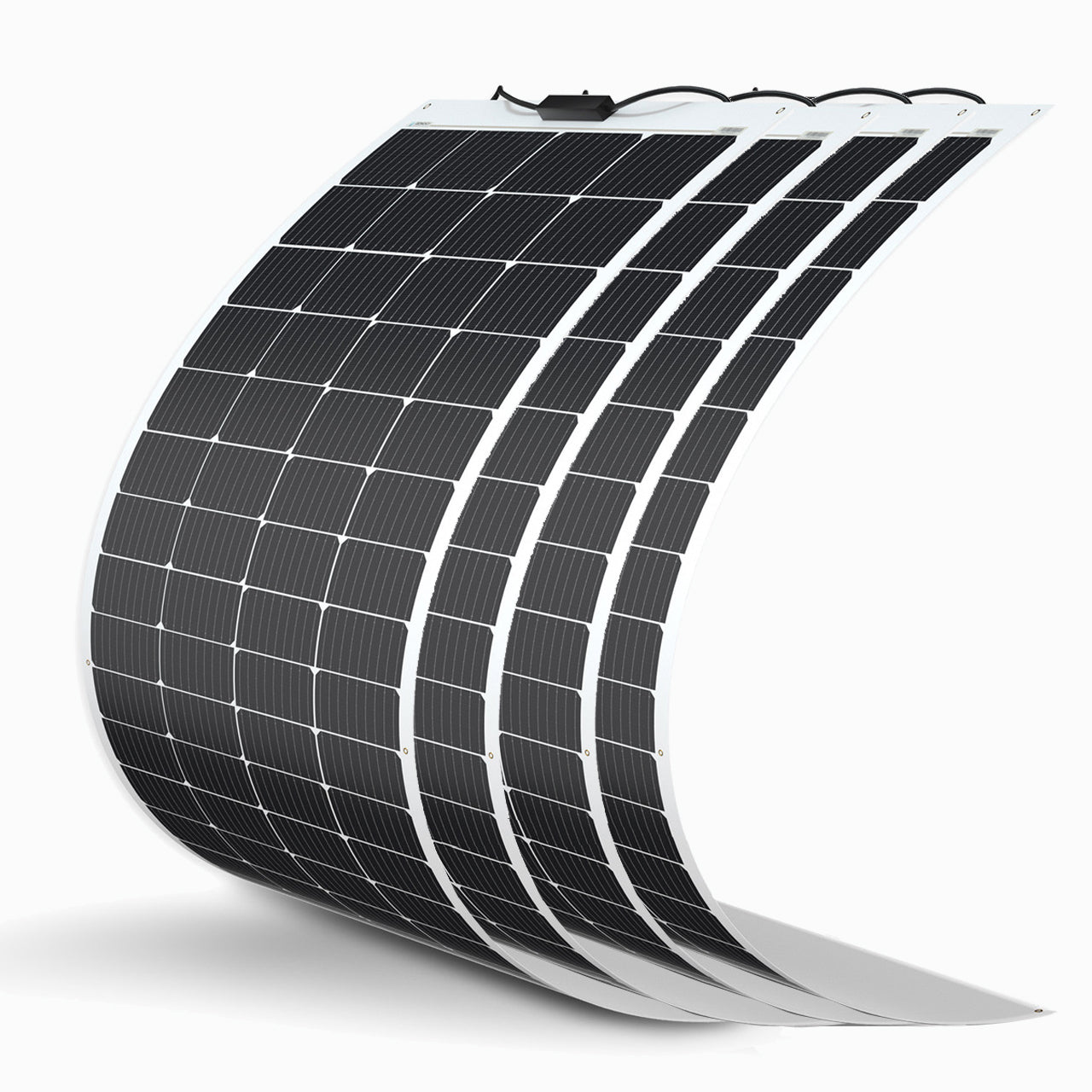

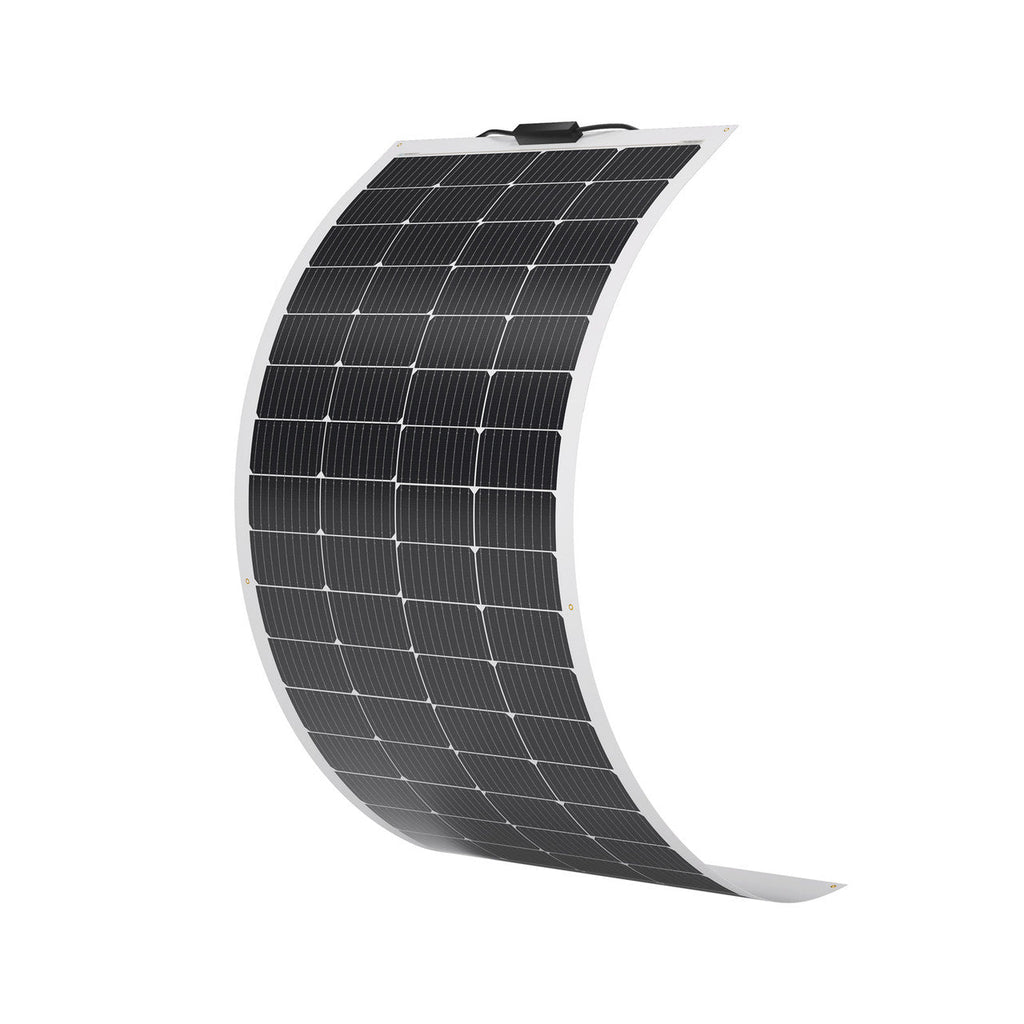

Flexible construction — panel can bend up to 240° for mounting on curved surfaces.
Half-cut cell layout and bypass diodes — improved resistance to hotspots and better performance under partial shading.

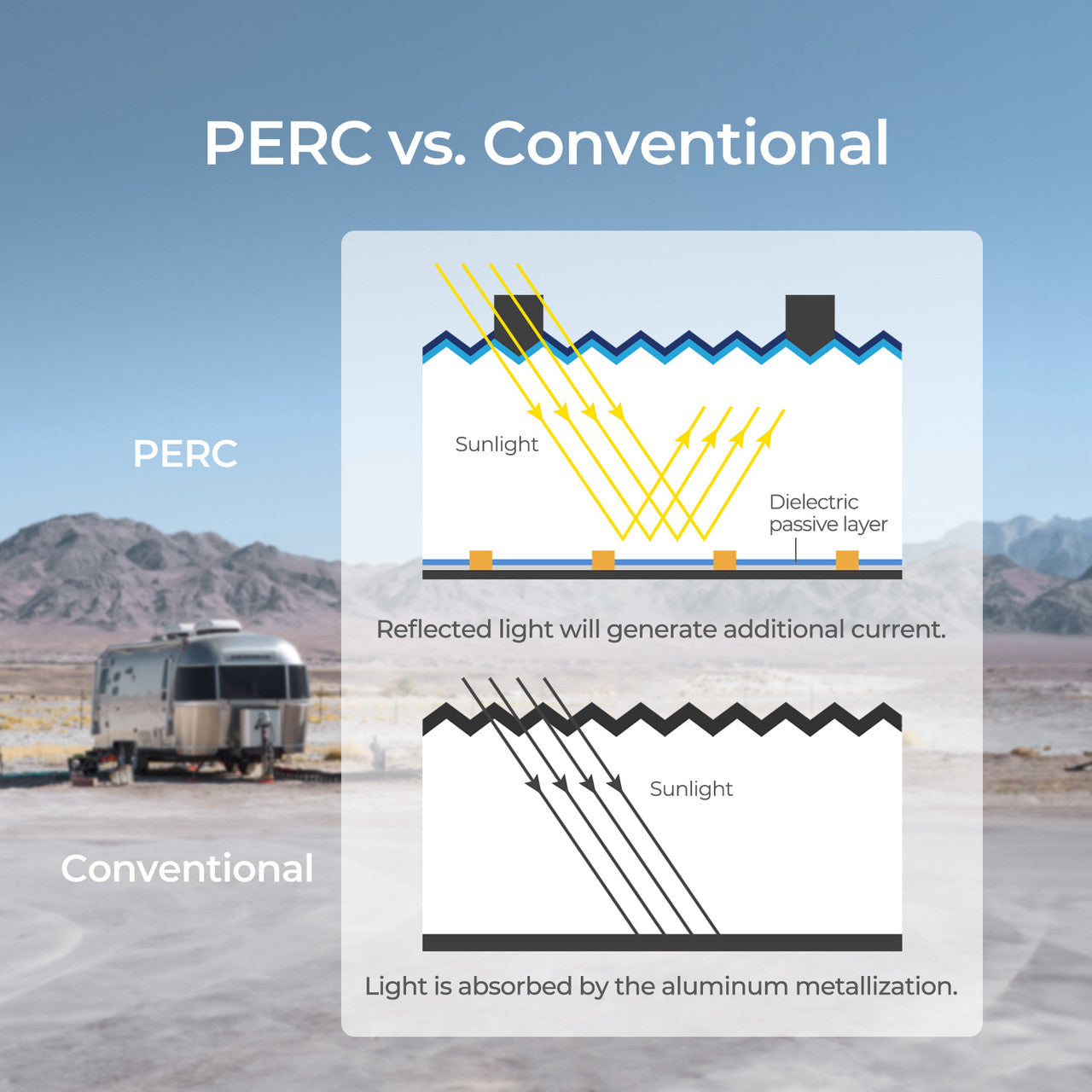

Monocrystalline cells with advanced cell processing (PERC) — optimized for sunlight capture and conversion.

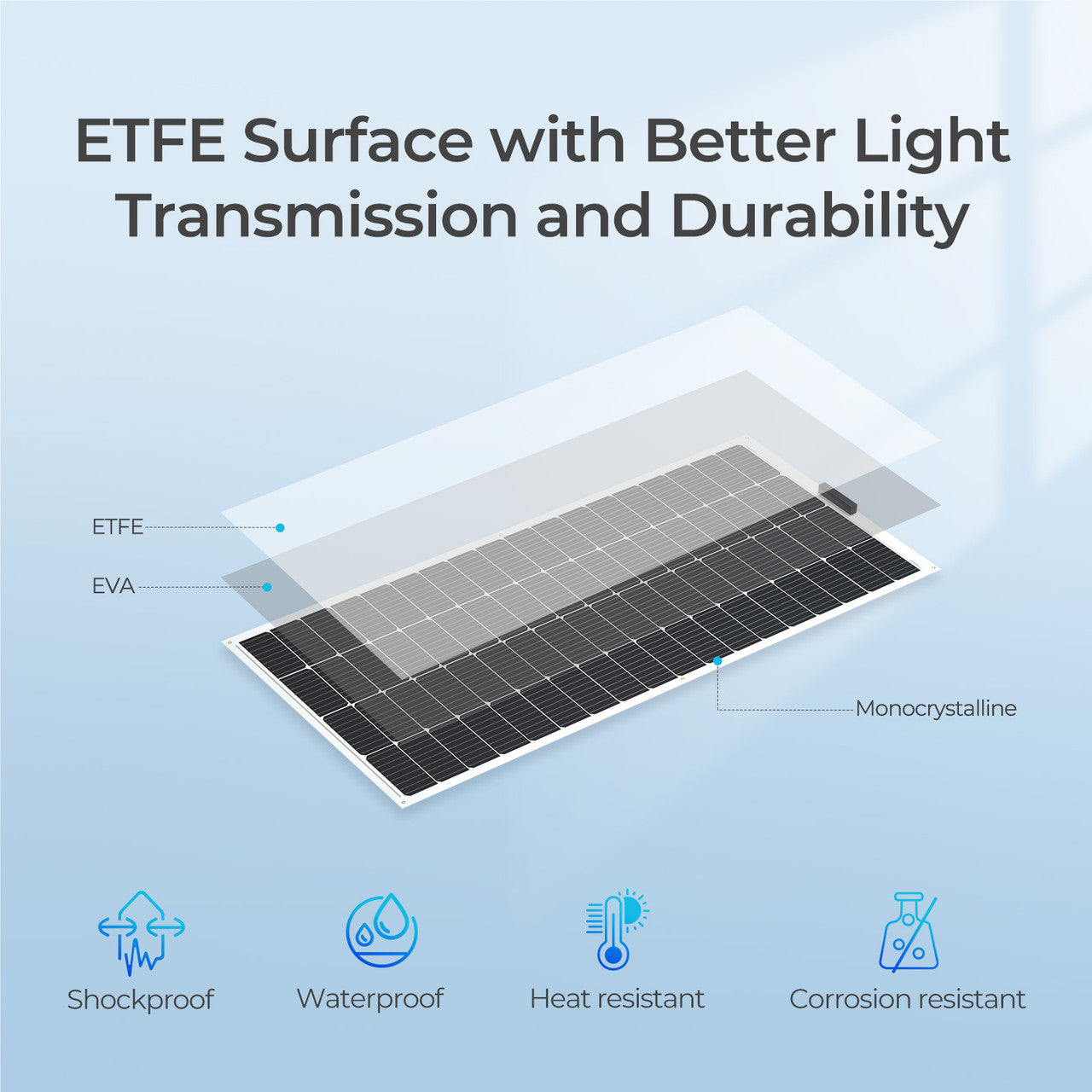

ETFE surface and 9 bus-bar cell architecture — enhanced light transmittance and electrical conductivity.
Thin, lightweight design — reduced weight compared with rigid glass-and-frame panels for easier installation and transport.

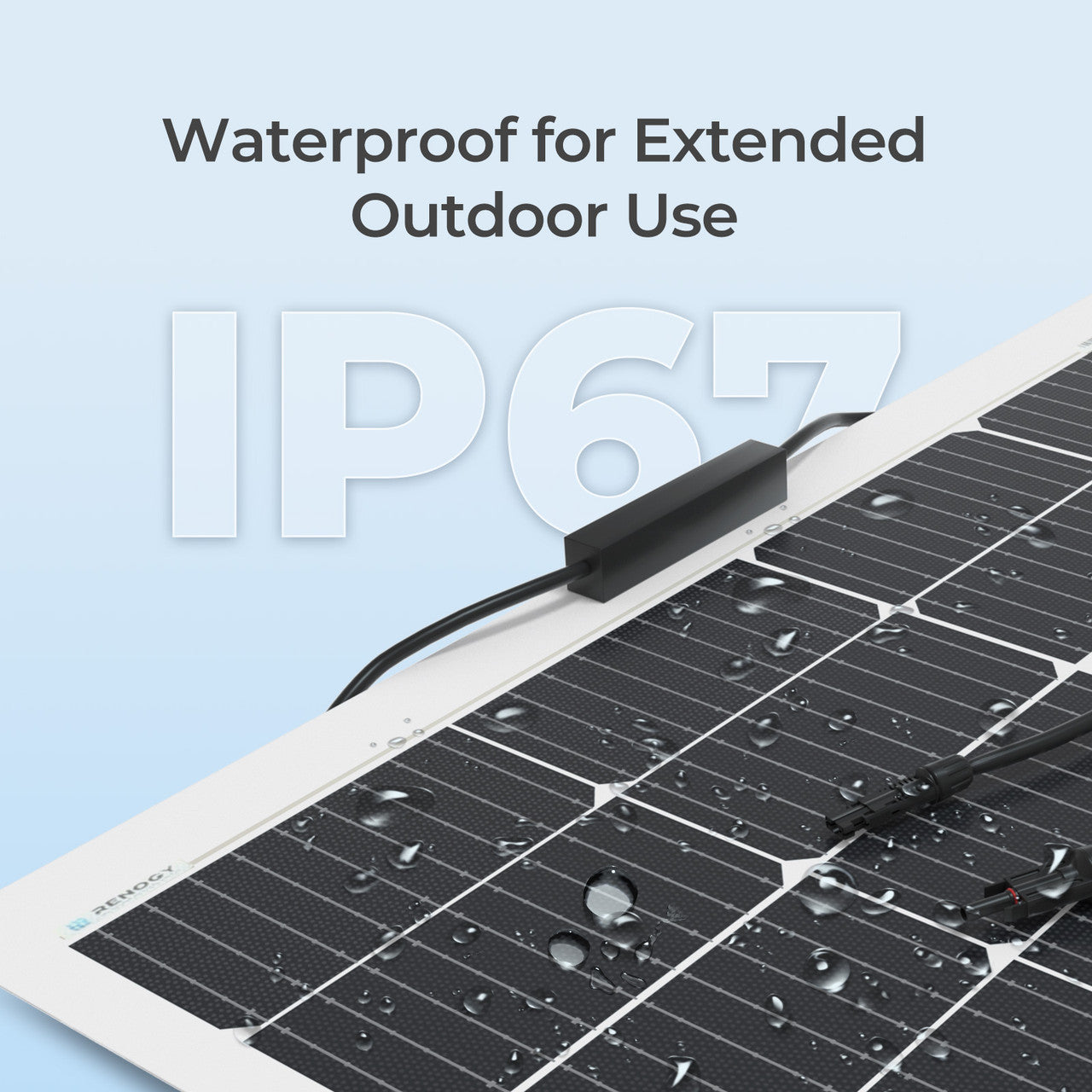

IP68 junction box and IP67 solar connectors — weather-resistant electrical components for outdoor use.

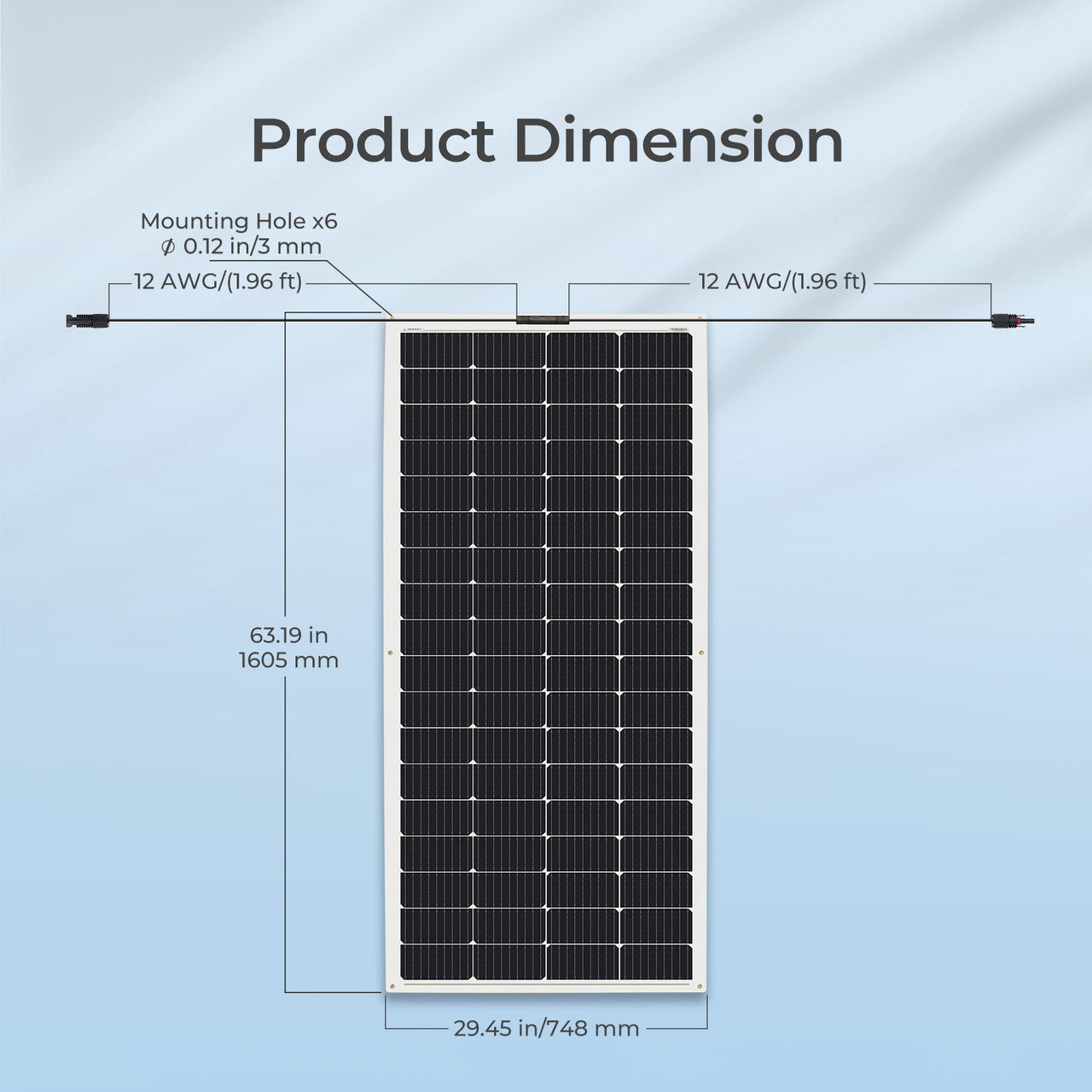

Pre-attached output cables (12 AWG, ~2.3 ft) — ready for quick connection into your system.
Specifications
Maximum Power (Pmax): 200 W
Approximate daily energy (typical): ~1,000 Wh/day (based on ~5 hours of direct sunlight)
Module Efficiency: 16.7%
Optimum Operating Voltage (Vmp): 20.1 V
Optimum Operating Current (Imp): 10.02 A
Open-Circuit Voltage (Voc): 23.9 V
Short-Circuit Current (Isc): 10.74 A
Cell Type: Monocrystalline (cell size ~6.5 x 3.3 cm)
