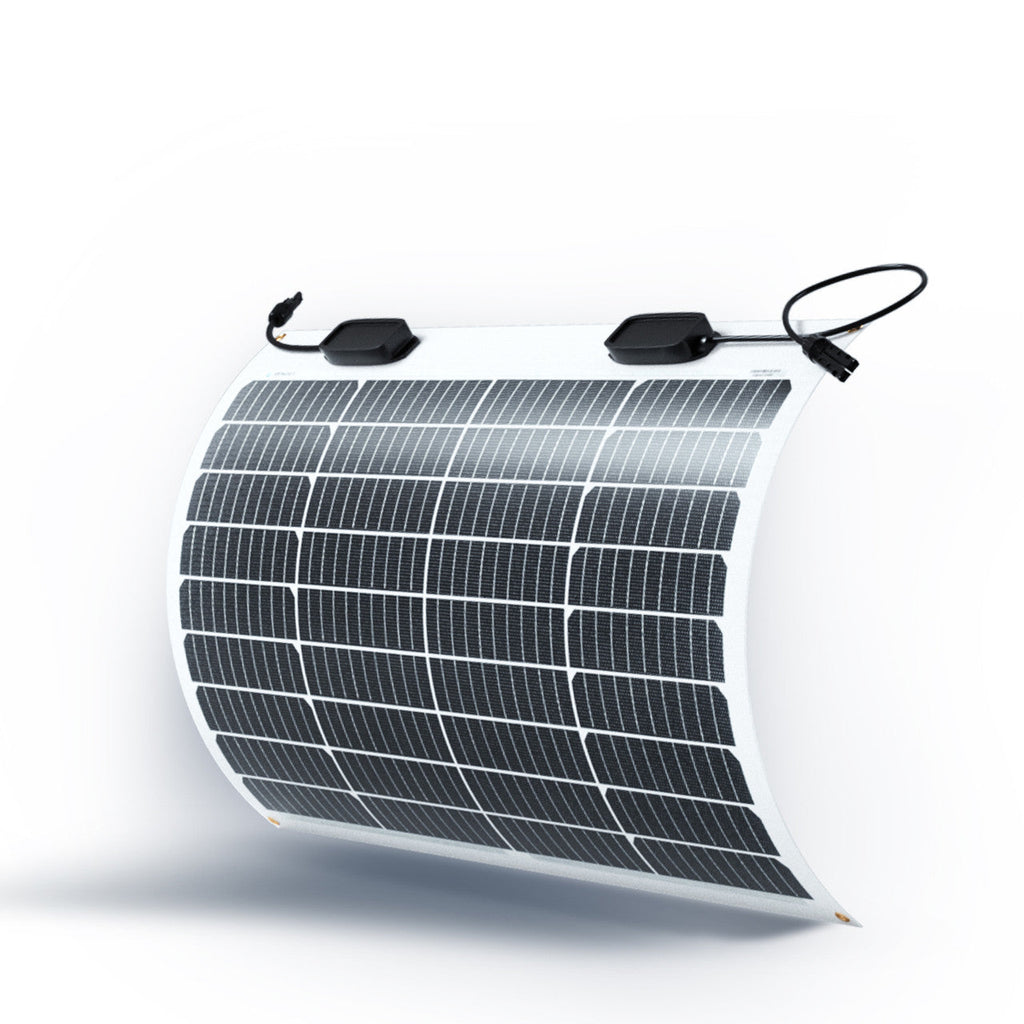

A lightweight, thin solar panel designed to flex for installation on curved surfaces like vans, boats, or trailers. At just 2.87 lbs and able to bend up to 248°, this 50W monocrystalline panel provides low-profile, durable solar power where rigid glass modules are impractical.
Benefits
Make installation easier on curved or irregular roofs — sticks to surfaces that rigid panels can’t.
Reduce lifting and mounting hassle thanks to a very light 2.87 lb weight.
Keep a low profile for a cleaner look and fewer wind drag issues when mounted flat.
Maintain power on the go — ideal for vans, boats, teardrop trailers and other mobile setups.
Spend less time on maintenance — durable construction resists wind and snow loads and cleans easily with water and a soft sponge.
Rely on long-term output with a 25-year power warranty that protects expected performance over time.
Features

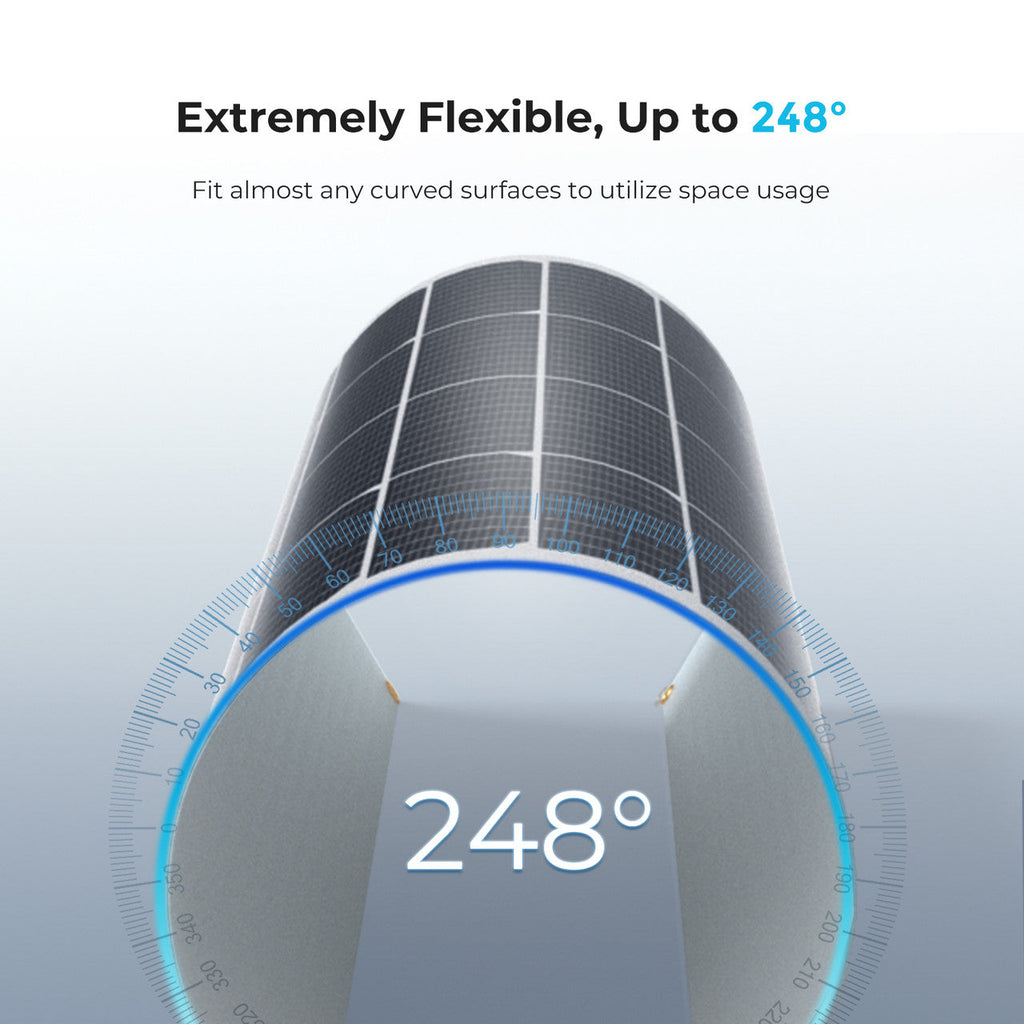

Flexible design: bends up to 248° for mounting on curved surfaces.

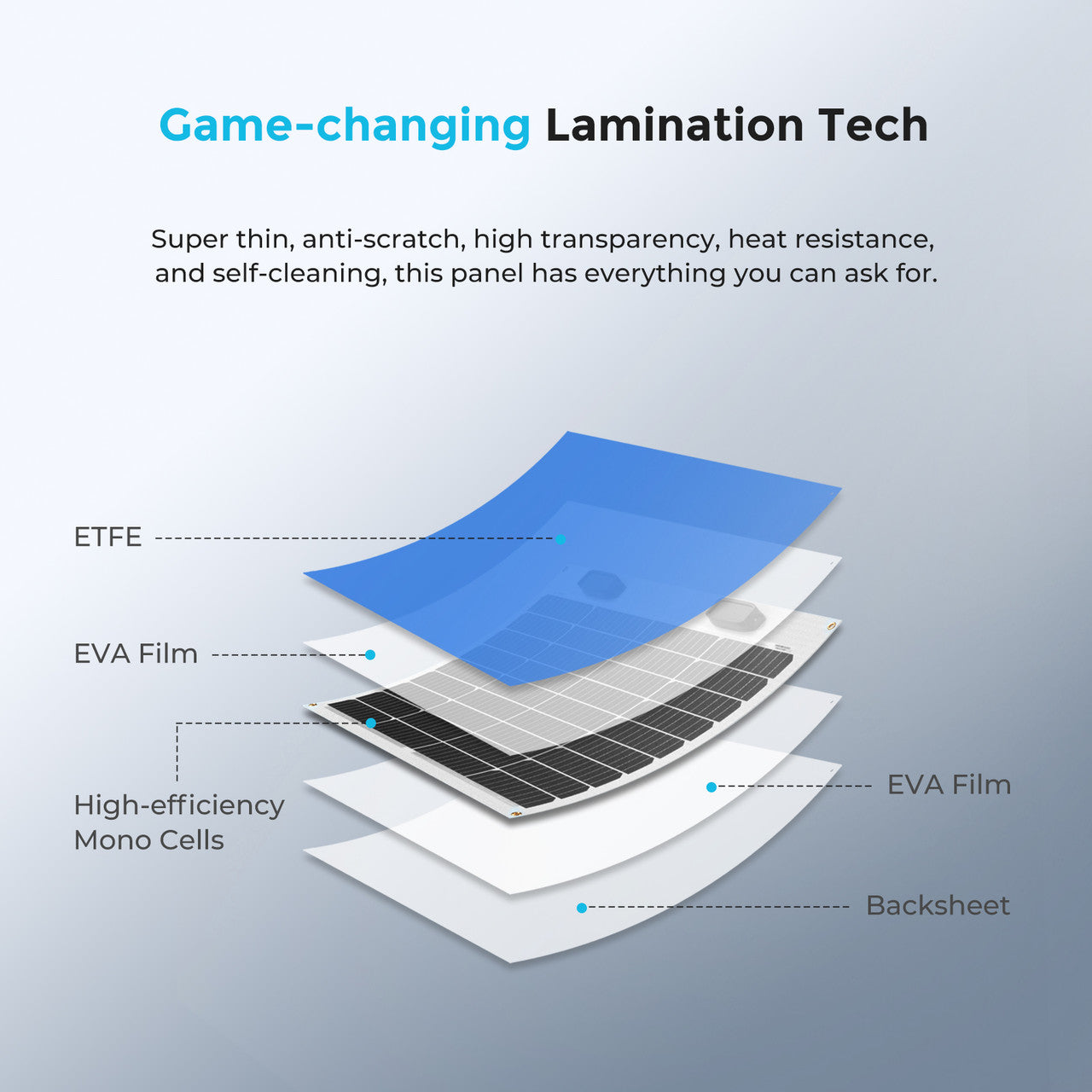

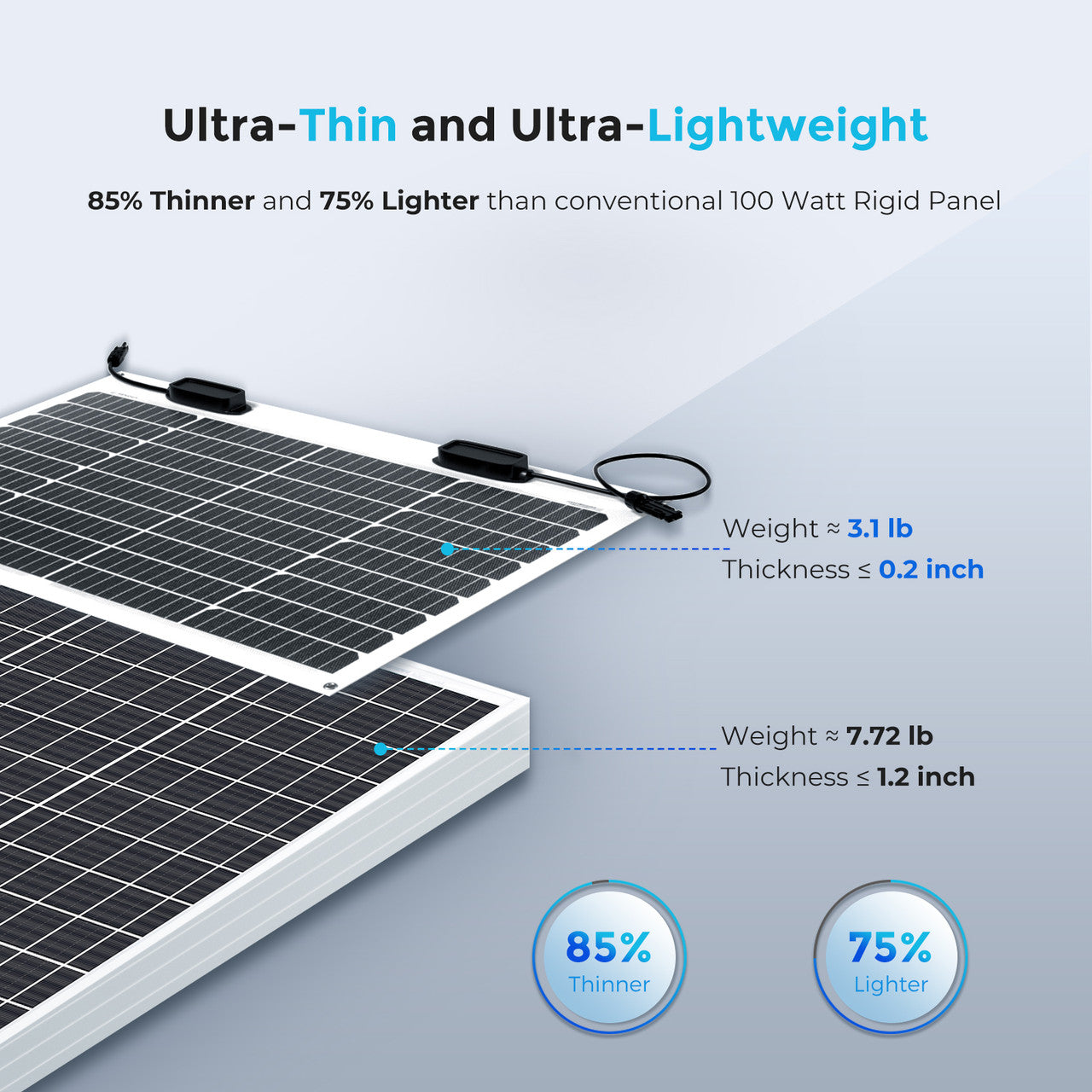

Super-thin lamination: approximately 0.16 in (4 mm) total thickness for discreet mounting.

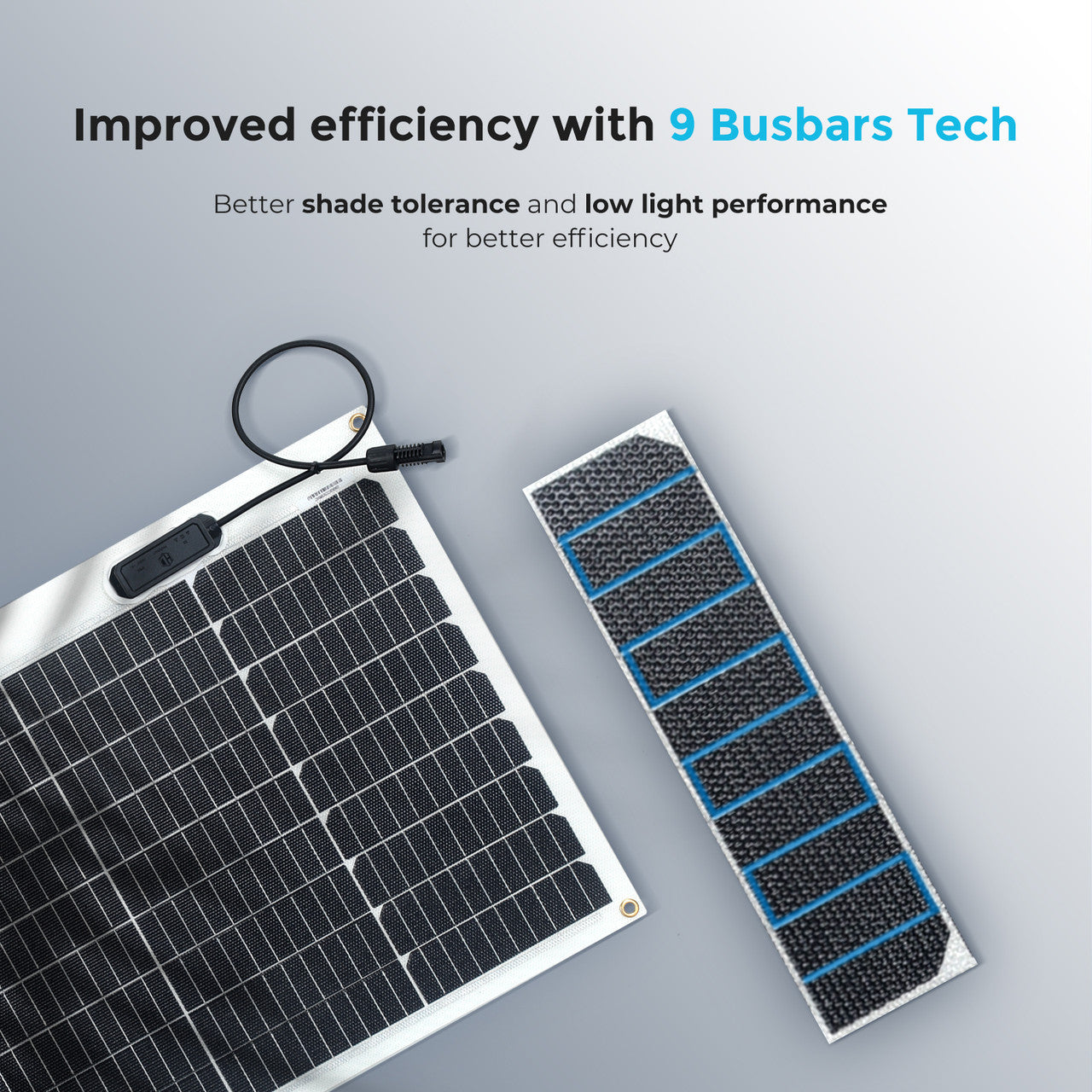

Monocrystalline cells for consistent performance.

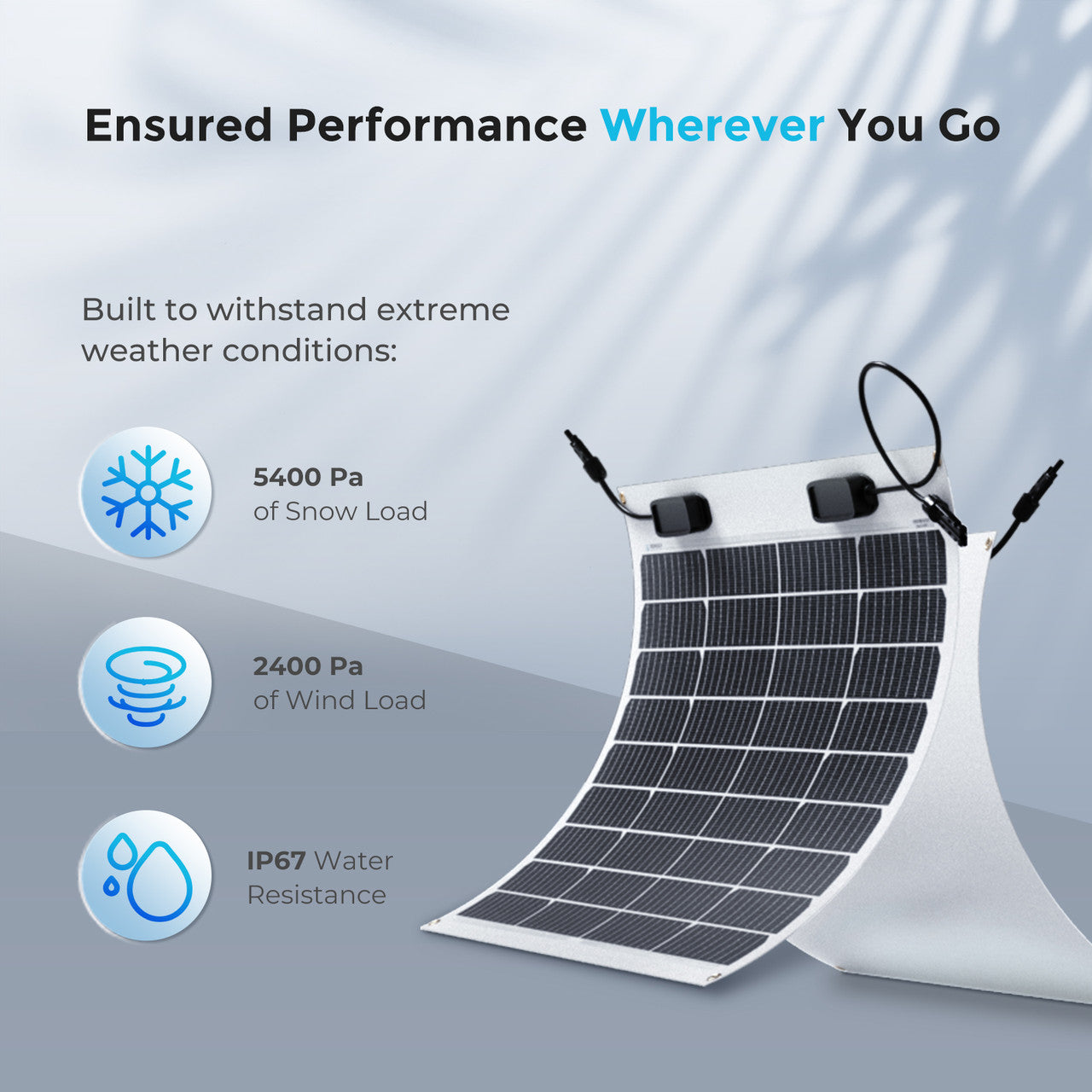

Weather-tested durability: rated to withstand high wind (up to 2400 Pa) and heavy snow loads (up to 5400 Pa).
Pre-installed solar connectors compatible with standard PV wiring.
IP67-rated junction and connector protection for outdoor use.
Mounting recommendation: bond with silicone structural adhesive on the panel back; grommets are intended only for non-mobile applications.
Specifications
Maximum Power (Pmax): 50 W
Nominal System Voltage: 12 V
Open Circuit Voltage (Voc): 24.3 V
Short Circuit Current (Isc): 2.75 A
Optimum Operating Voltage (Vmp): 20.3 V
Optimum Operating Current (Imp): 2.47 A
Module Efficiency: 14.4%
Cell Type: Monocrystalline (cell size 6.25 x 1.85 in)
Number of Cells: 36 (4 x 9)
Dimensions: 26.9 x 20.0 x 0.16 in (683 x 508 x 4 mm)
Weight: 2.87 lbs (1.3 kg)
Front material (listed): Tempered Glass 0.13 in (3.2 mm)
Frame (listed): Black anodized aluminum alloy
Maximum System Voltage: 600 VDC (UL)
Maximum Series Fuse Rating: 15 A
Operating Temperature Range: -40°F to 185°F (-40°C to +85°C)
Nominal Operating Cell Temperature (NOCT): 45 ± 2°C
Temperature Coefficient of Pmax: -0.37% / °C
Temperature Coefficient of Voc: -0.28% / °C
Temperature Coefficient of Isc: 0.048% / °C
Solar Connector Rated Current: 30 A
Maximum Connector Voltage Rating: 1000 VDC
Maximum AWG Size: 10 AWG
Ingress Protection: IP67
Fire Rating: Class C
Package Includes: 1 x Renogy 50W Flexible Solar Panel
Recommended installation method: use silicone structural adhesive on the panel back for mobile applications; consult a local contractor for detailed installation guidance.

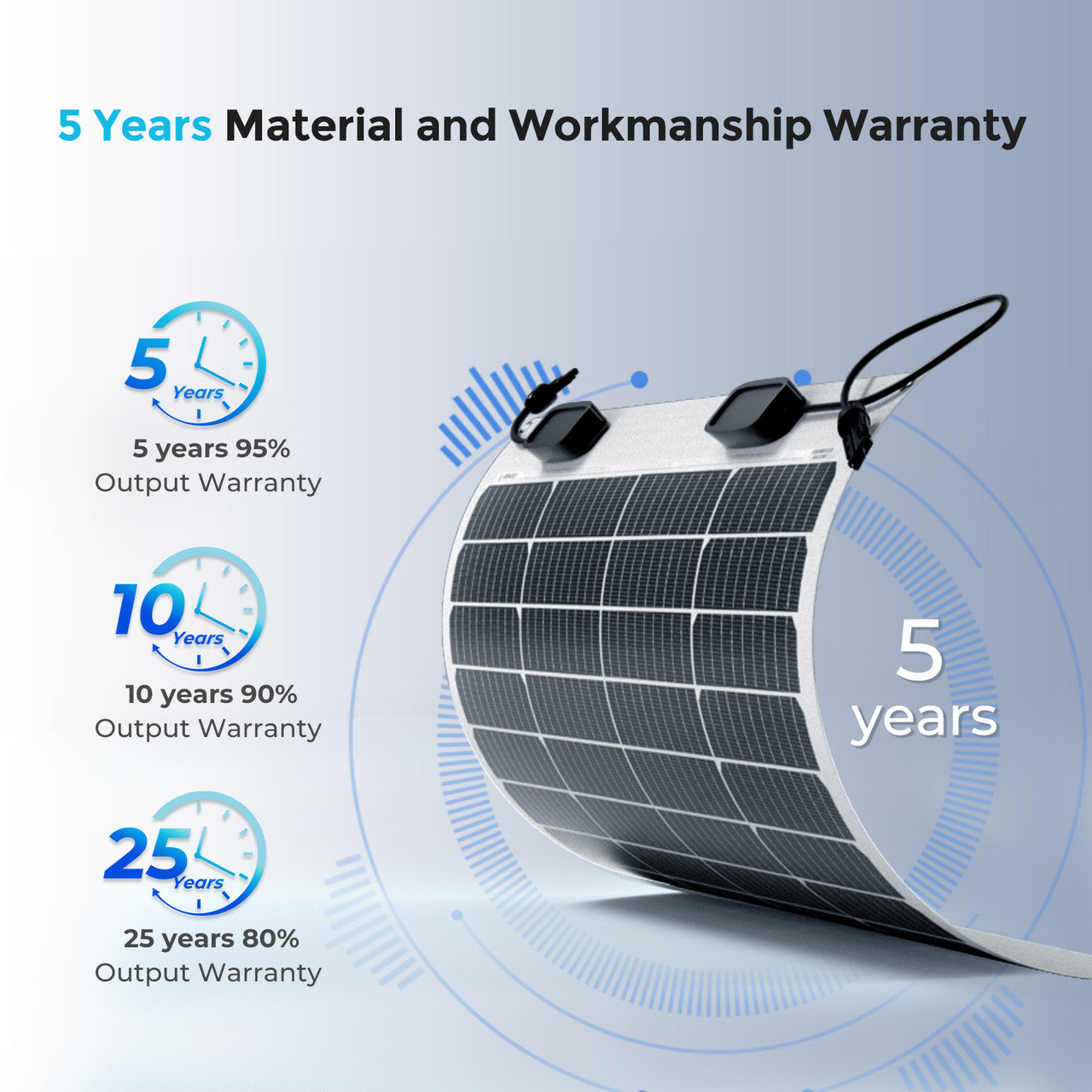

Warranty: 25-year power output warranty (5 years / 95% performance, 10 years / 90% performance, 25 years / 80% performance) and 5-year material & workmanship warranty.
