RMS-DCDC Monitoring Screen for DC-DC MPPT Battery Chargers

Overview

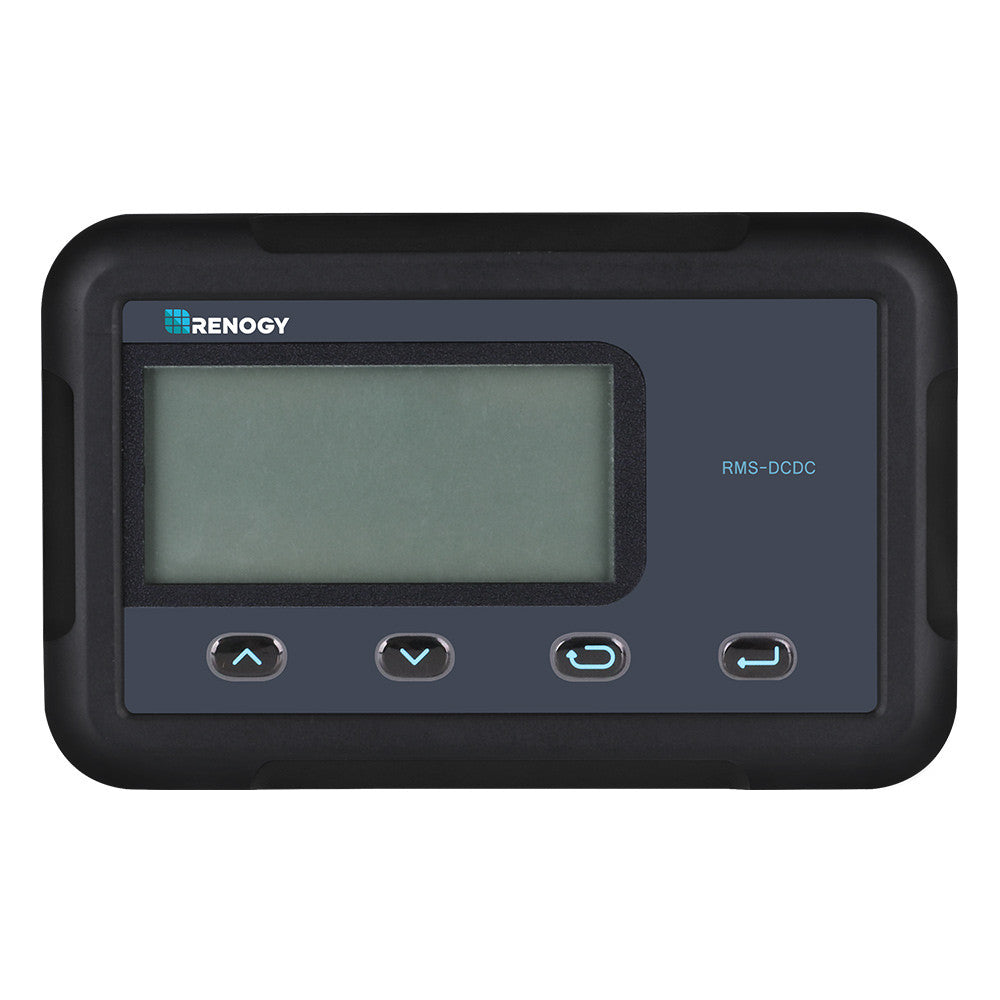

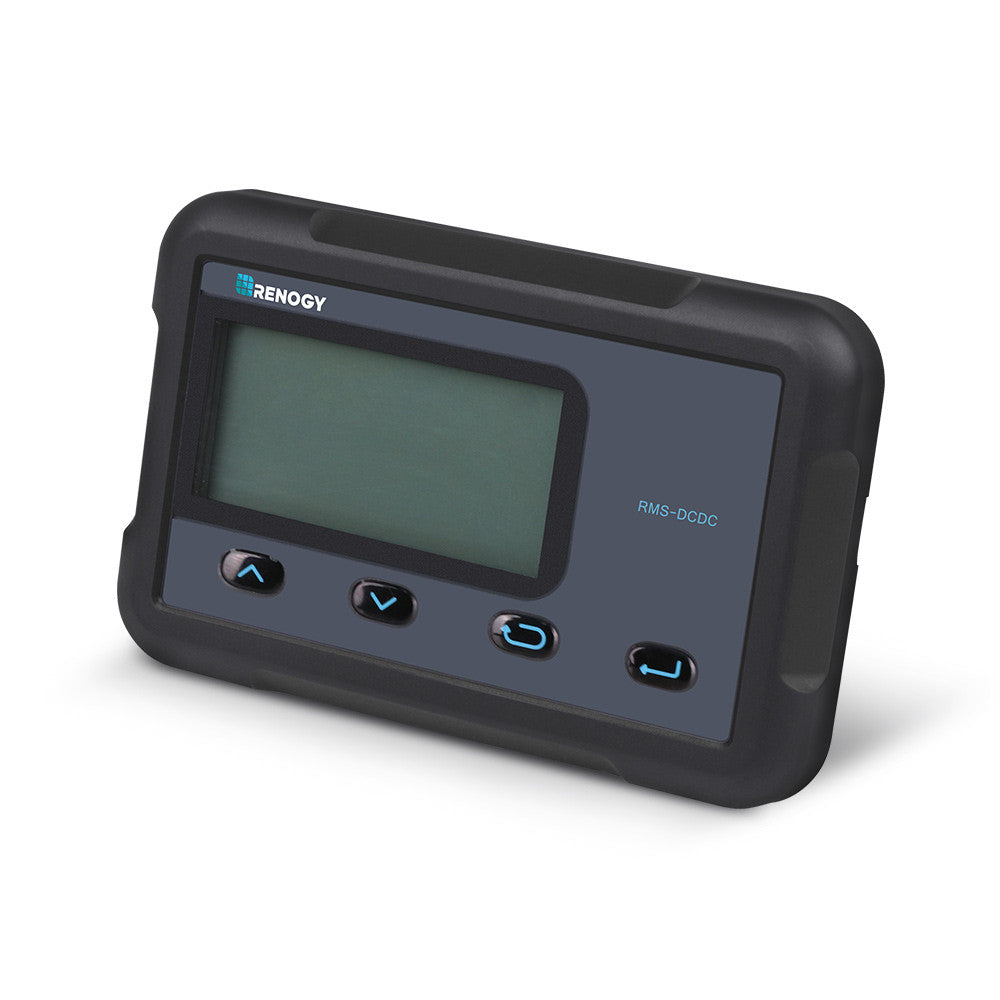

The RMS-DCDC is a compact, flush-mount monitoring screen designed for DC-DC MPPT onboard battery chargers. It provides a backlit LCD display and a 4-button interface to view system status, configure charger settings, and read error codes — all through a simple RJ45 plug-and-play connection.

Benefits

• See both house and auxiliary battery status at a glance so you can plan use and charging more confidently.

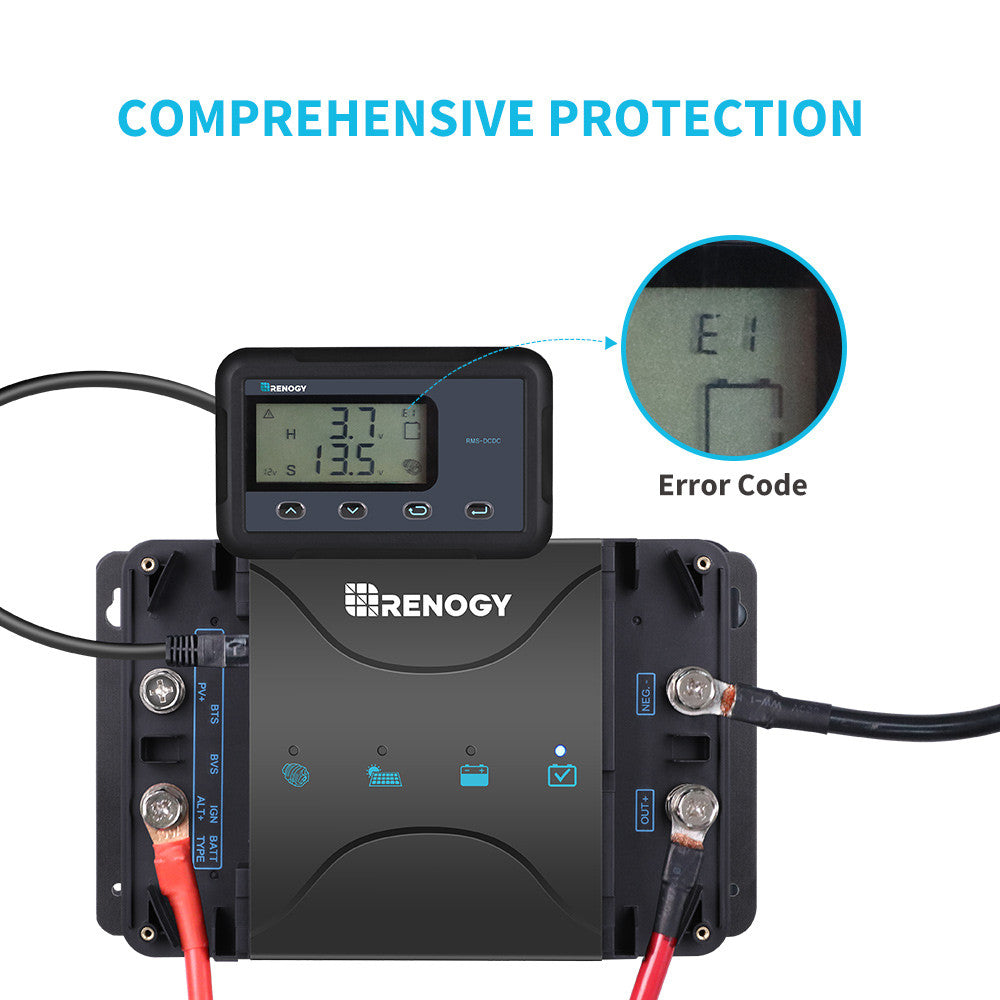

• Reduce troubleshooting time by viewing error codes and real-time charging data immediately.
• Make adjustments on the fly without extra tools or complicated menus, saving time during setup and operation.
• Cleaner installation with a flush-mounted display that keeps your control area tidy and professional-looking.

Features

• Dual battery monitoring: tracks house and auxiliary battery charging status.

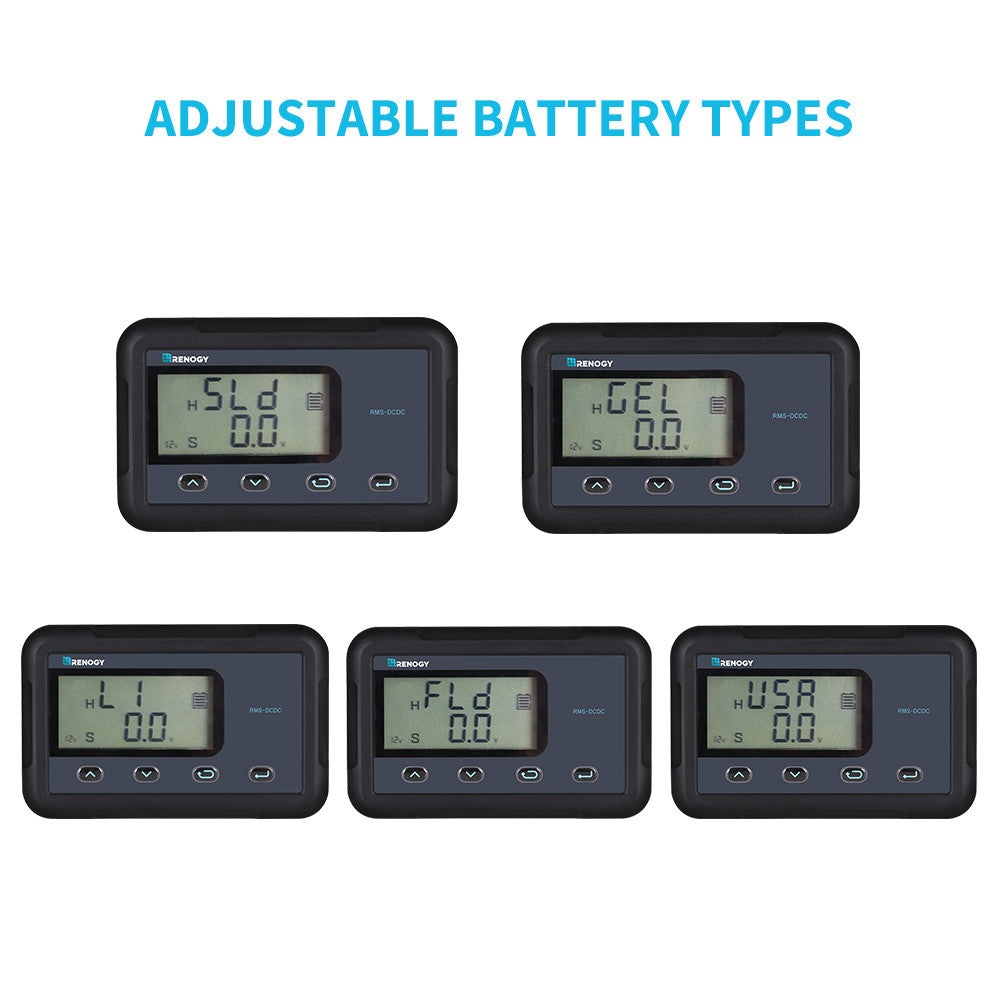

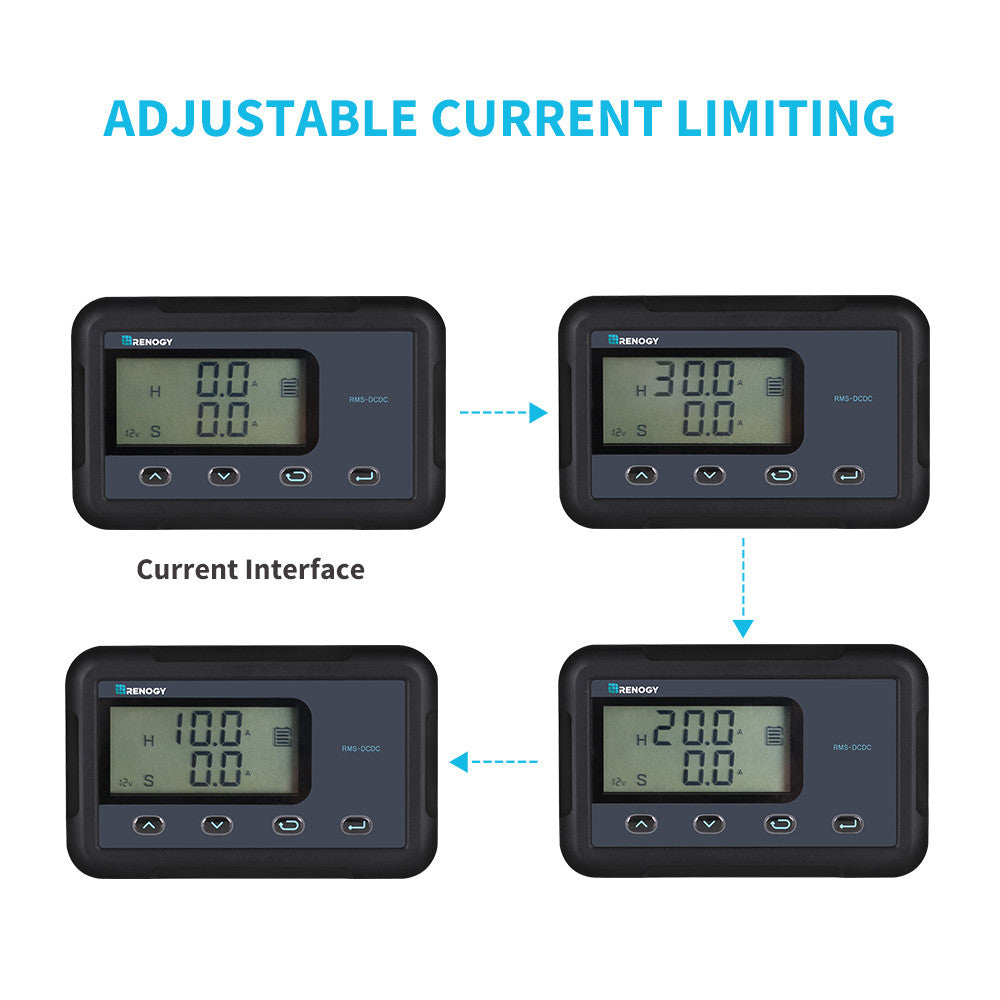

• Adjustable charging parameters: program charger settings, voltage, and current through the screen.
• Backlit LCD: clear readout for day and night use.
• 4-button user interface: navigate menus and confirm settings from the front panel.

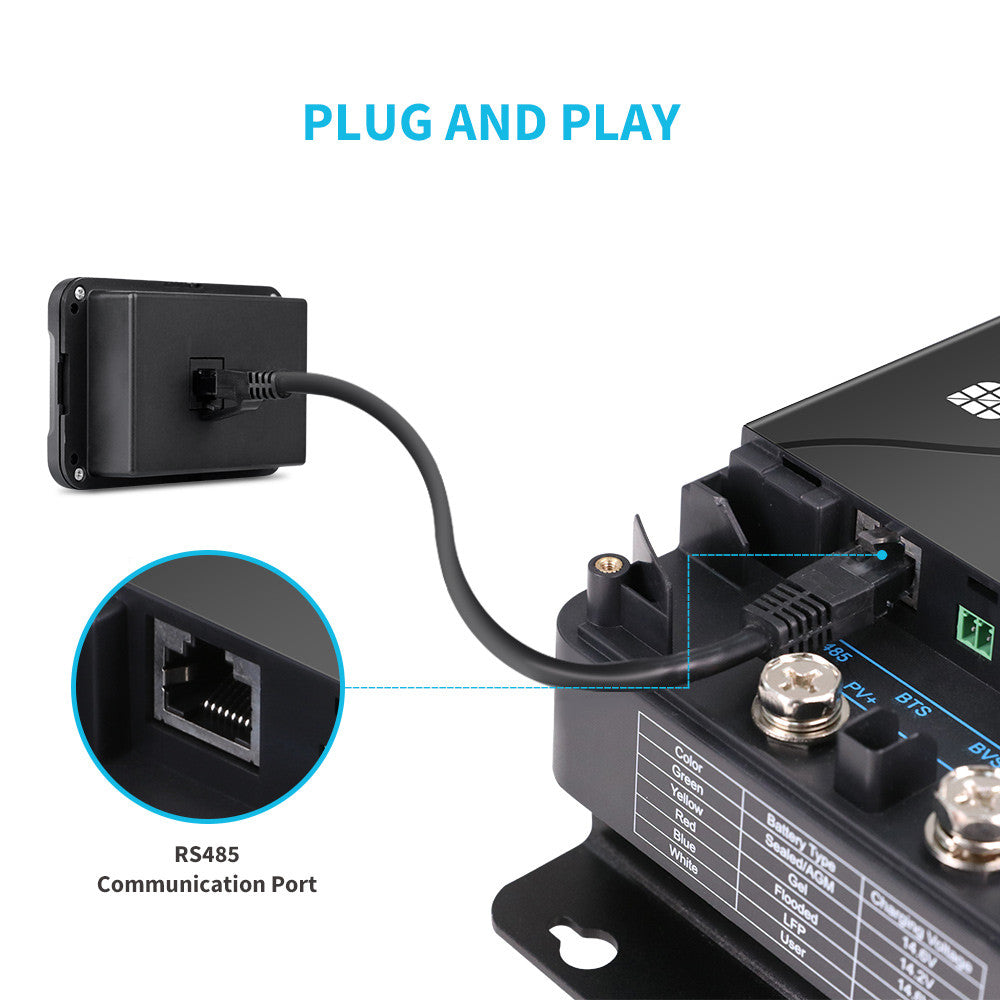

• Plug-and-play connection: RJ45 connection using RS485 protocol to the DC-DC MPPT unit.

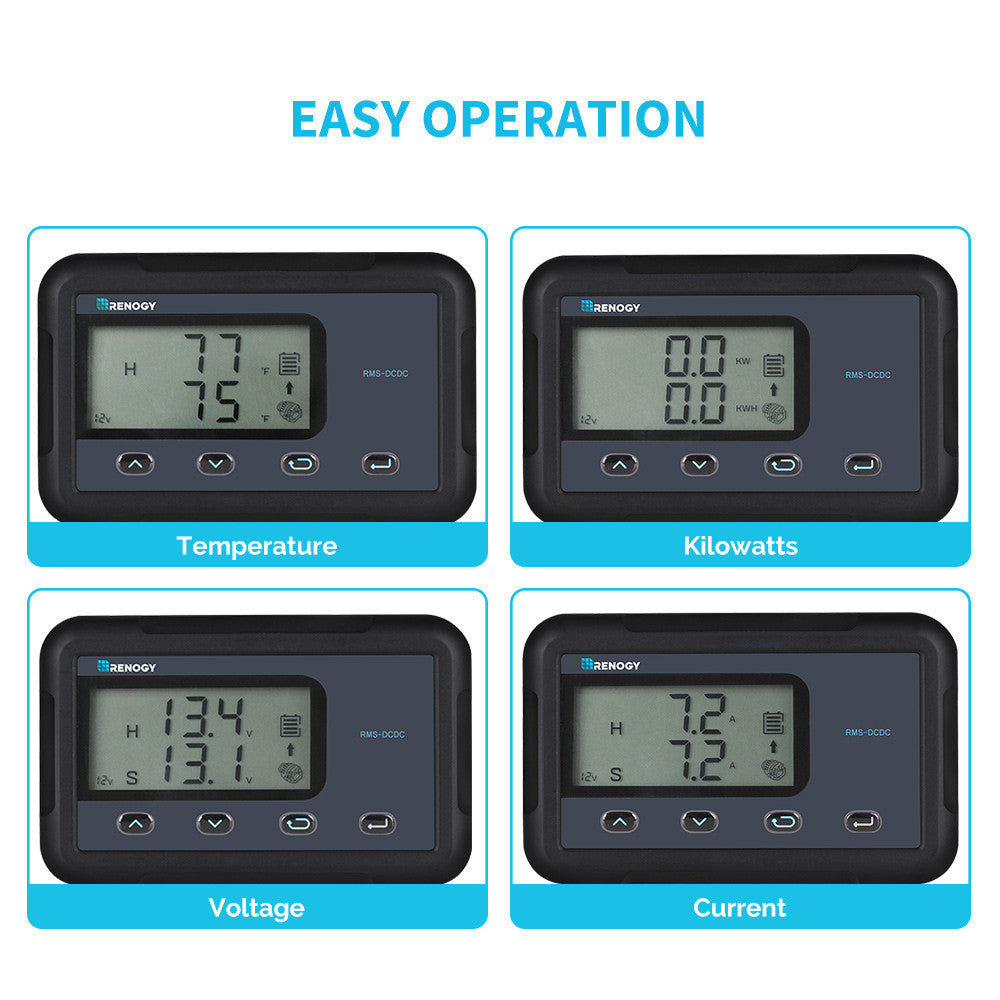

• Real-time, accurate monitoring of solar and alternator charging information.
• Compatible with RBC50D1S-G1 and RBC30D1S models.
• Includes a 5 m (16.4 ft) cable for connection to the charger.

Specifications

• Supply voltage: 5 V DC
• Supply current: 30 mA
• Power consumption: < 1 W
• Operating temperature: -4°F to 113°F (-20°C to 45°C)
• Voltage accuracy: ±0.1 V
• Current accuracy: ±0.1 A
• Communication port: RJ45 (RS485 protocol)
• Display: Backlit LCD
• User interface: 4 front menu buttons

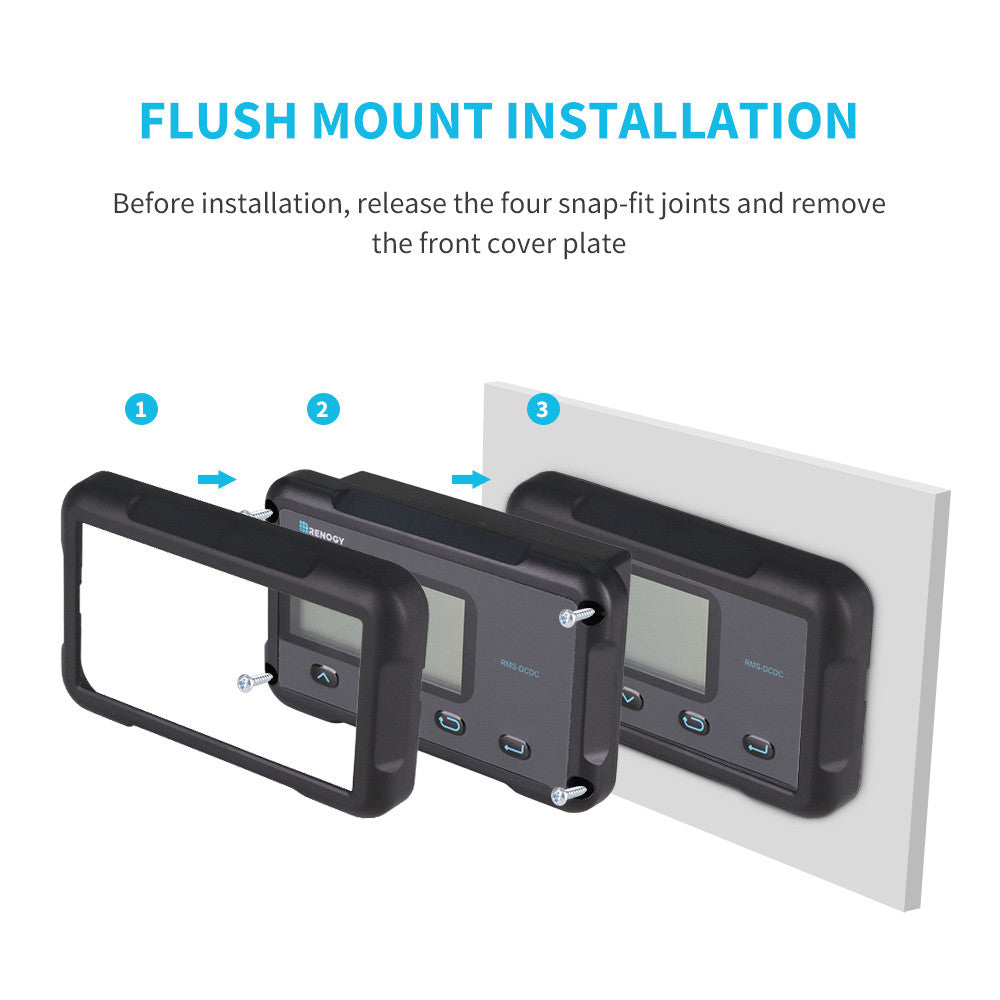

• Mounting: Wall/flush mount
• Dimensions: 70 x 110 x 31.8 mm (2.76 x 4.33 x 1.25 in)
• Weight: 62 g (0.14 lbs)
• Wire length: 5 m (16.4 ft)
• Certifications: FCC
• Compatible models: RBC50D1S-G1, RBC30D1S
• Package includes: 1 x RMS-DCDC monitoring screen for DC-DC MPPT battery charger series
• Warranty: 1-year material and workmanship warranty for accessories
