Flush-mount, backlit display for simple, real-time solar system monitoring

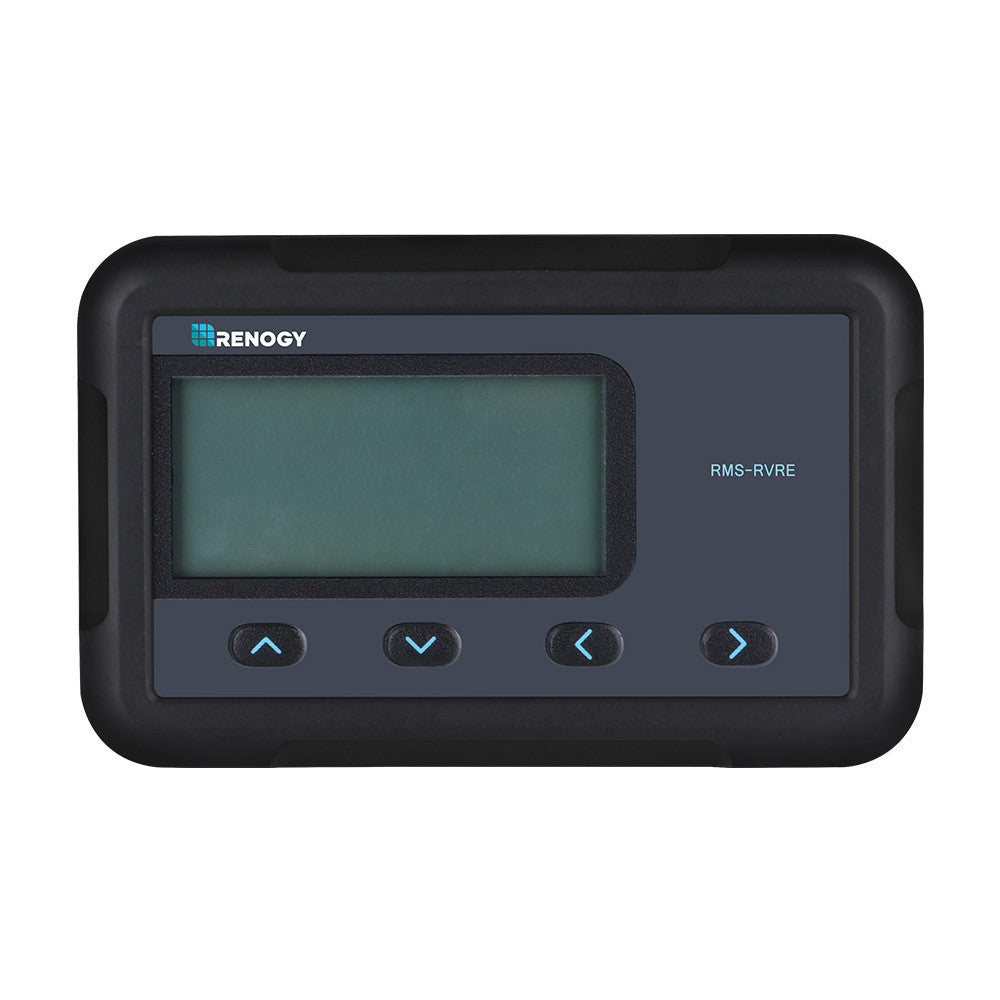

The RMS-RVRE is a compact, wall-recessed monitor built for Rover Elite charge controllers. It provides a backlit LCD and a four-button interface for real-time system readouts, quick parameter checks, and clear error codes — all without extra configuration.
Benefits
See system status at a glance so you can catch issues before they become problems.
Cleaner RV or camper interiors with a recessed install that hides wiring.
Faster troubleshooting using on-screen warning codes and detailed readings.
Spend less time configuring — the display shows information without setup.

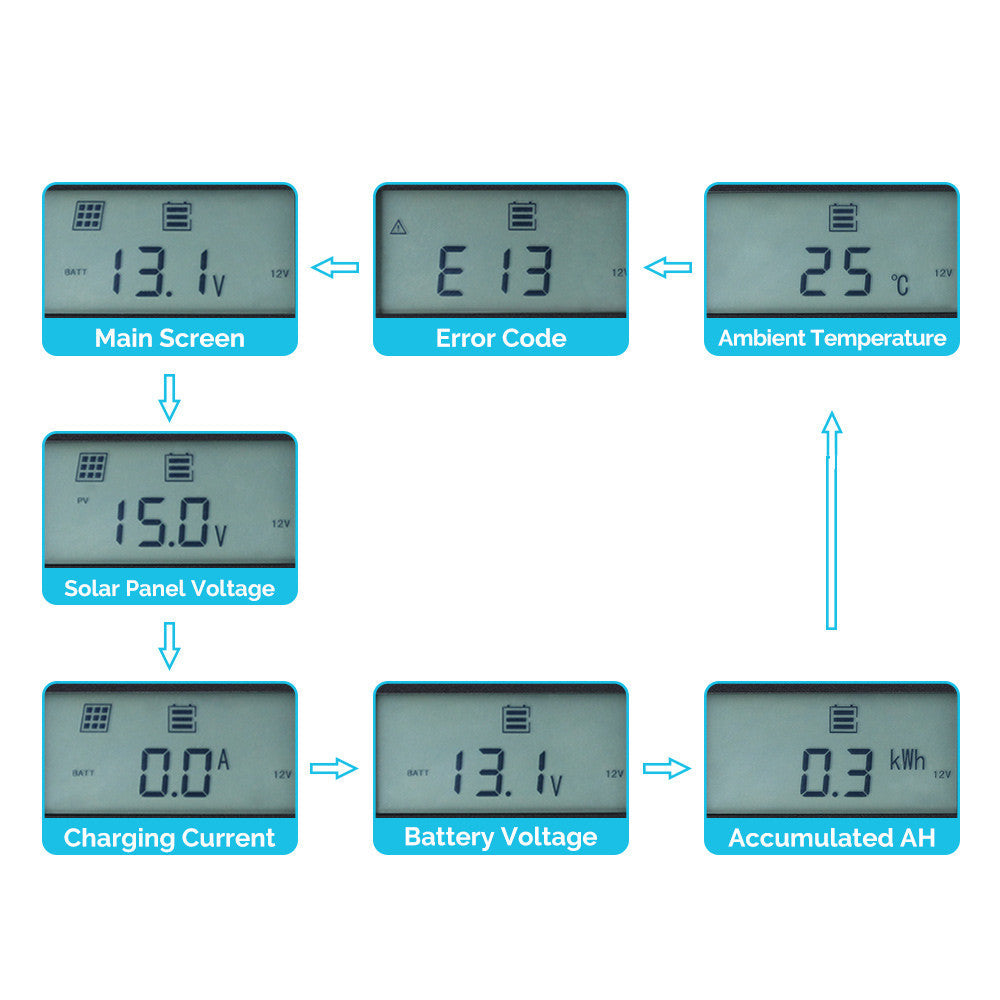

Optimize your solar setup by monitoring voltage, current and controller states in real time.
Features

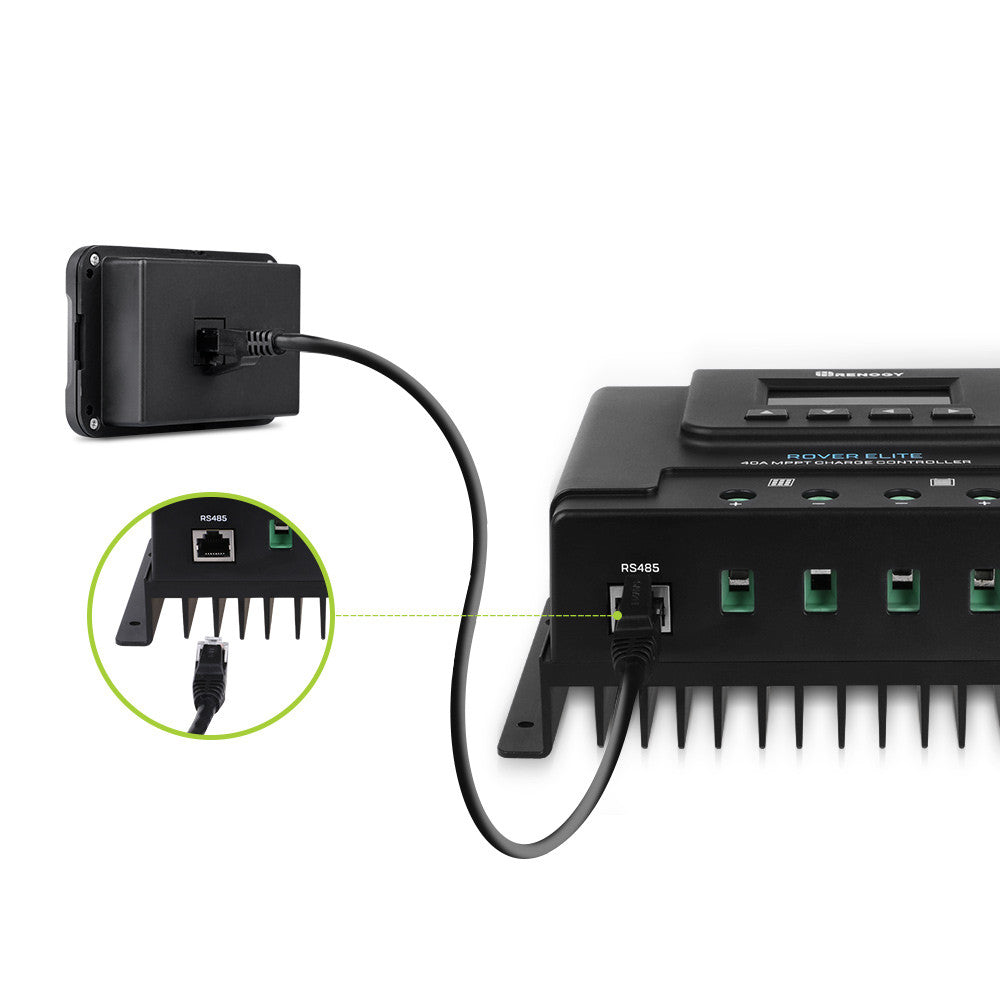

Plug-and-play connection to Rover Elite controllers via RJ45 (RS485) cable.
Backlit LCD for easy viewing in low light.

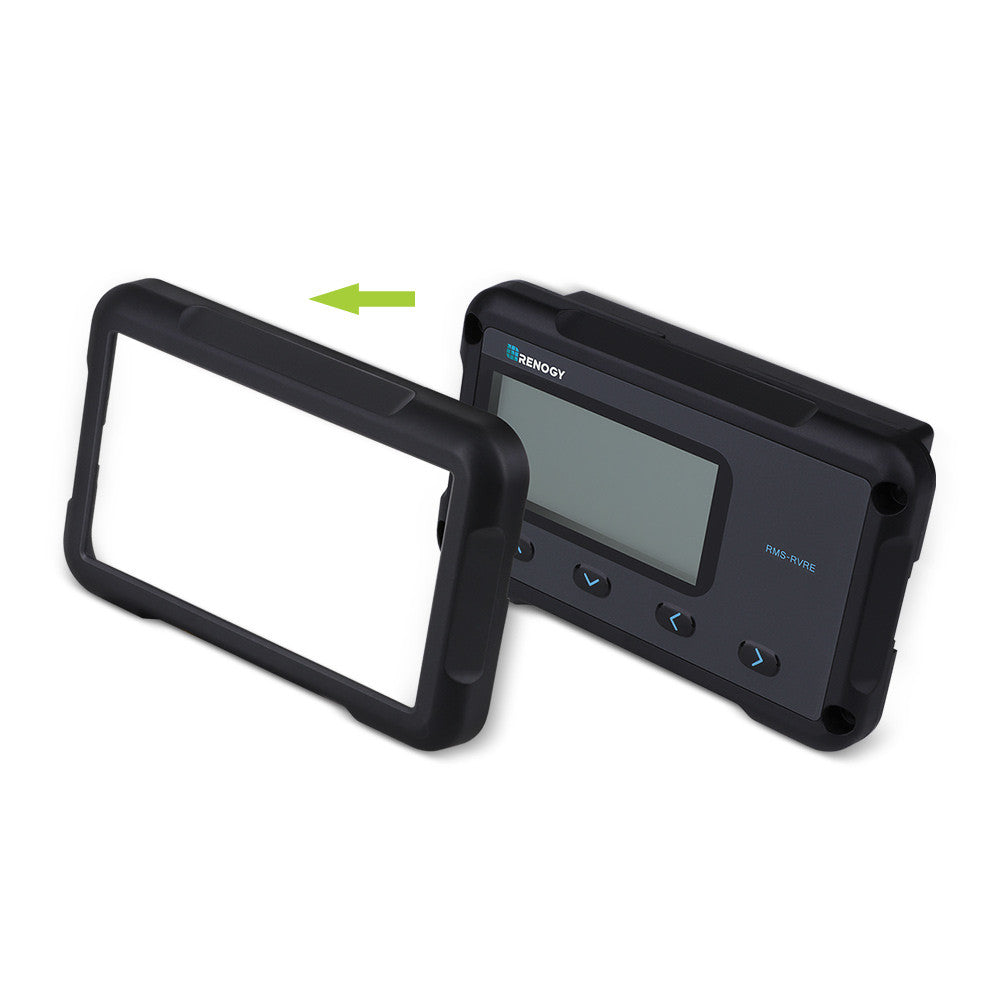

Flush-mount design to recess the unit into a wall for a professional look.
Four front-panel buttons for simple navigation and quick parameter access.
Displays warning and error codes for rapid identification of abnormal conditions.

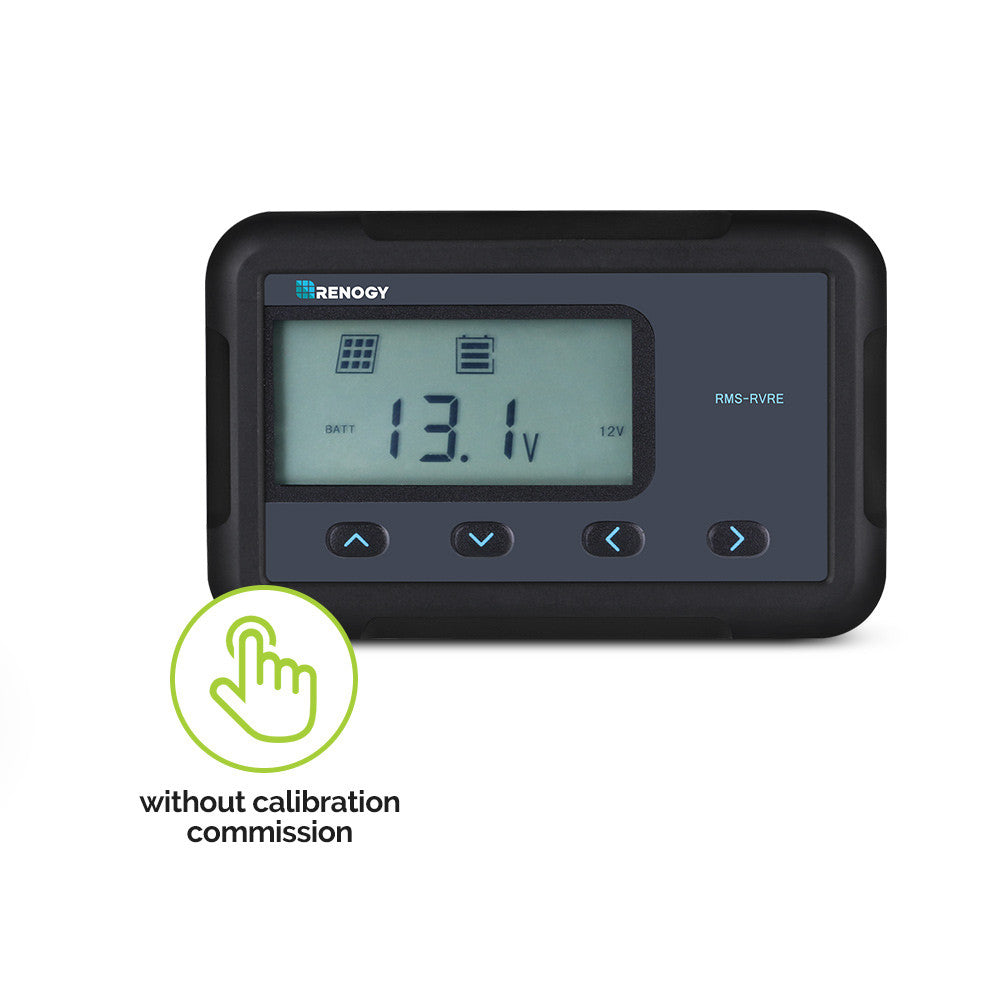

No system calibration required — shows detailed readings immediately after connection.
Includes a 5 m (16.4 ft) communication cable for flexible placement.
Specifications
Compatibility: Designed for Rover Elite series charge controllers
Supply Voltage: 5 V DC
Supply Current: 30 mA
Power Consumption: <1 W
Operating Temperature: -4 °F to 113 °F / -20 °C to 45 °C
Voltage Accuracy: ±0.1 V
Current Accuracy: ±0.1 A
Communication Port: RJ45 (RS485 protocol)
Display: Backlit LCD
User Interface: 4 front-panel menu buttons
Mounting: Recessed wall mount

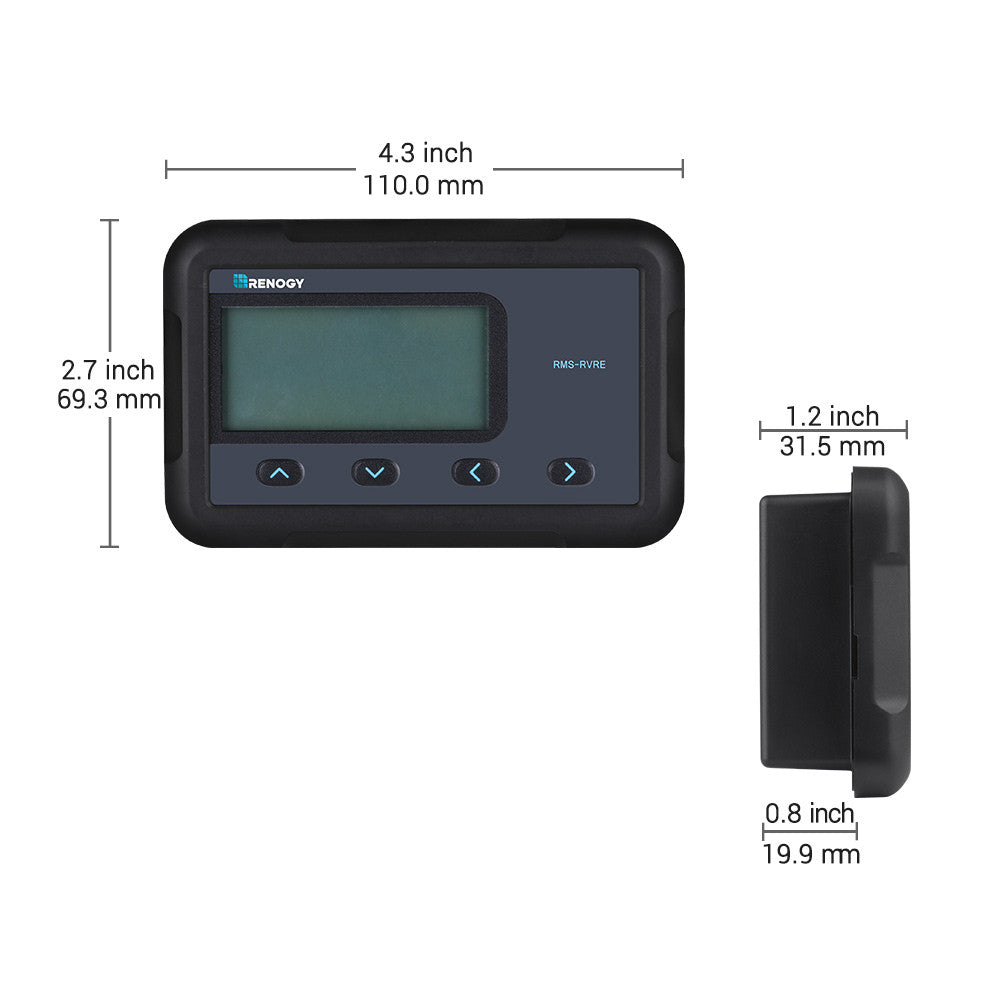

Dimensions: 70 × 110 × 31.8 mm / 2.76 × 4.33 × 1.25 in
Weight: 62 g / 0.14 lb
Mounting Screw: M2.9 × 13 mm
Included Cable Length: 5 m / 16.4 ft
Certifications: RoHS, FCC, EMC
Package Contents: 1 × Monitoring Screen for Rover Elite Series
Warranty: 1-year material and workmanship warranty (accessories)
