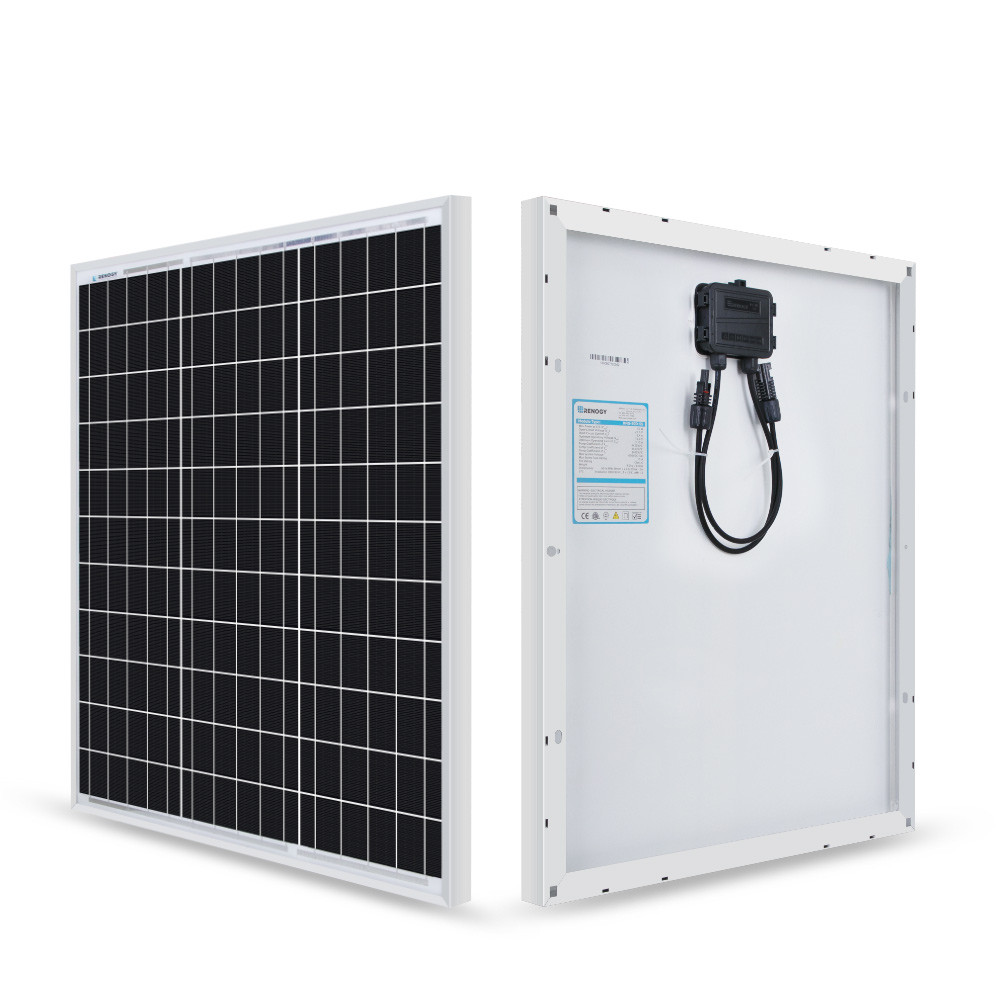

Renogy 50W 12V Monocrystalline Solar Panel — Compact Power

Overview

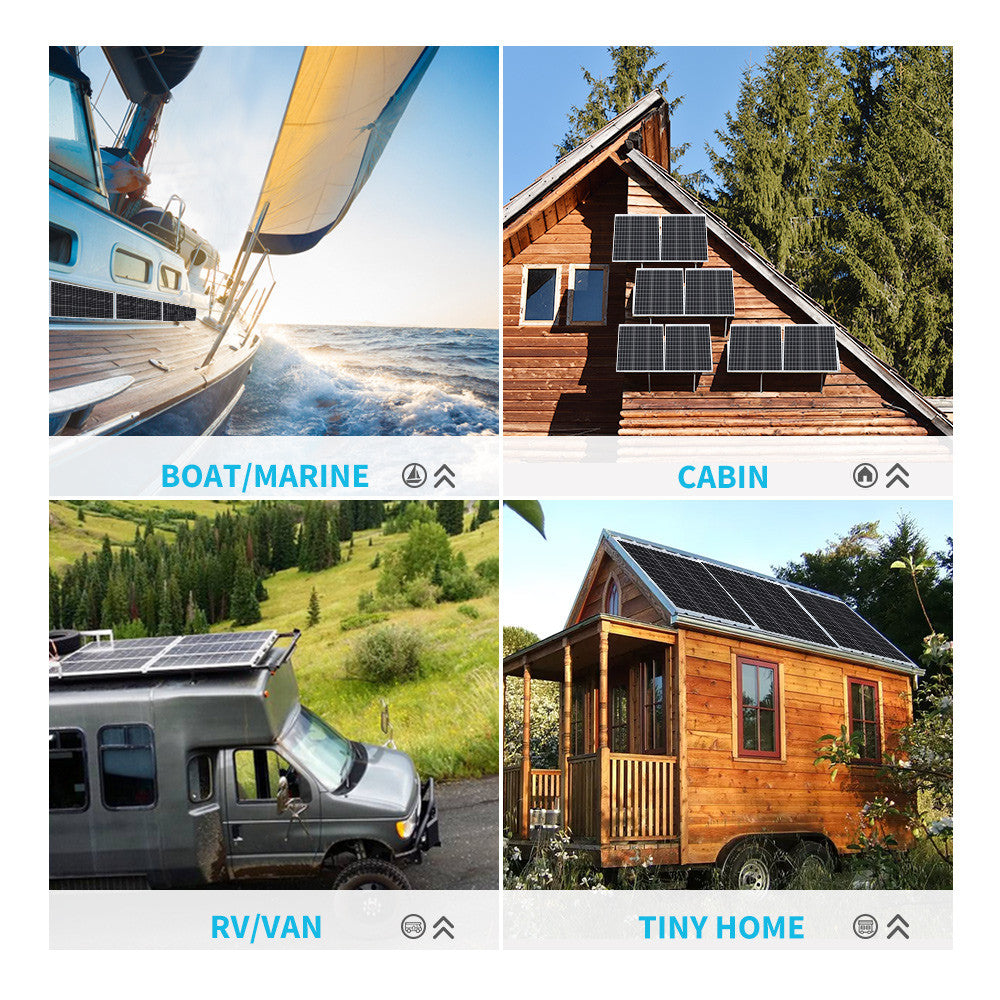

A compact, ready-to-install 50-watt monocrystalline solar panel designed for small off-grid needs and easy system expansion. It comes with MC4-compatible leads and pre-drilled mounting and grounding holes, making it straightforward to add reliable solar charging to a backyard system, boat, camper, or other small applications.

Benefits

• Power small devices and accessories off-grid so you rely less on shore power or generators.
• Save time on installation with plug-and-play MC4 leads and pre-drilled mounting holes.
• Spend less effort maintaining your setup thanks to a durable frame, tempered glass, and weather-rated components.
• Add panels to an existing system easily—compact size makes transport, placement, and expansion simpler.
• Protect batteries and keep lights, pumps, and other equipment running while you’re away from shore or a campsite.

Features

• 50W maximum power output suitable for small off-grid loads.
• Monocrystalline cells for efficient energy conversion in limited space.
• Includes MC4-compatible connectors for straightforward system integration.
• Pre-drilled holes for fast mounting and separate grounding holes included.
• Bypass diodes to reduce power loss from partial shading and improve low-light performance.
• Corrosion-resistant aluminum frame for extended outdoor use.
• Anti-reflective, high-transparency tempered glass for improved light capture and impact resistance.

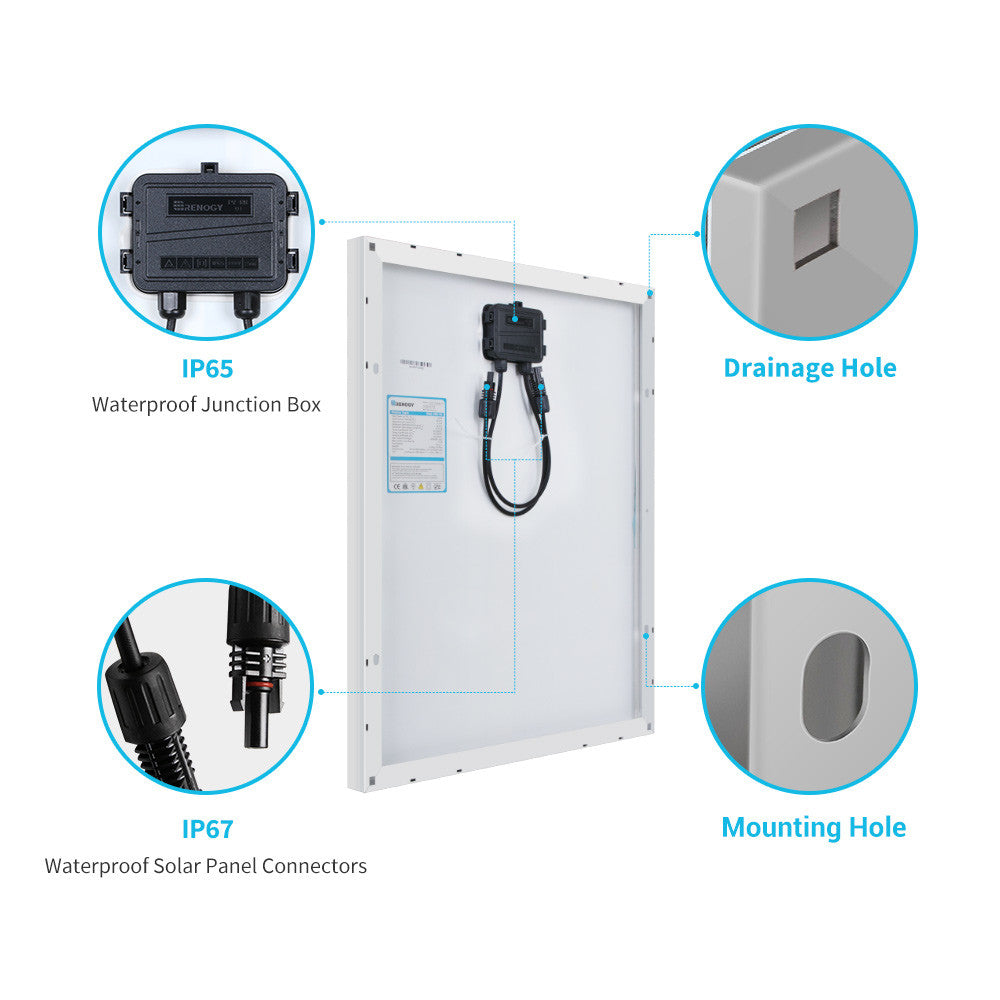

• IP65-rated junction box and IP67-rated connectors for protection against dust and water ingress.
• Compatible with on-grid and off-grid inverters, and with Renogy mounting hardware (Z-Brackets, Pole Mounts, Tilt Mounts).

Specifications

• Maximum Power: 50 W
• Optimum Operating Voltage (Vmp): 18.6 V
• Open-Circuit Voltage (Voc): 22.3 V
• Optimum Operating Current (Imp): 2.69 A
• Short-Circuit Current (Isc): 2.94 A
• Maximum System Voltage: 600 V DC (UL)
• Output Cables: 1.31 ft (approx. 0.4 m)
• Panel Leads (pair): 14 AWG
• Connectors: MC4-compatible solar connectors (IP67)
• Junction Box: IP65
• Weight: 7.72 lb (3.5 kg)

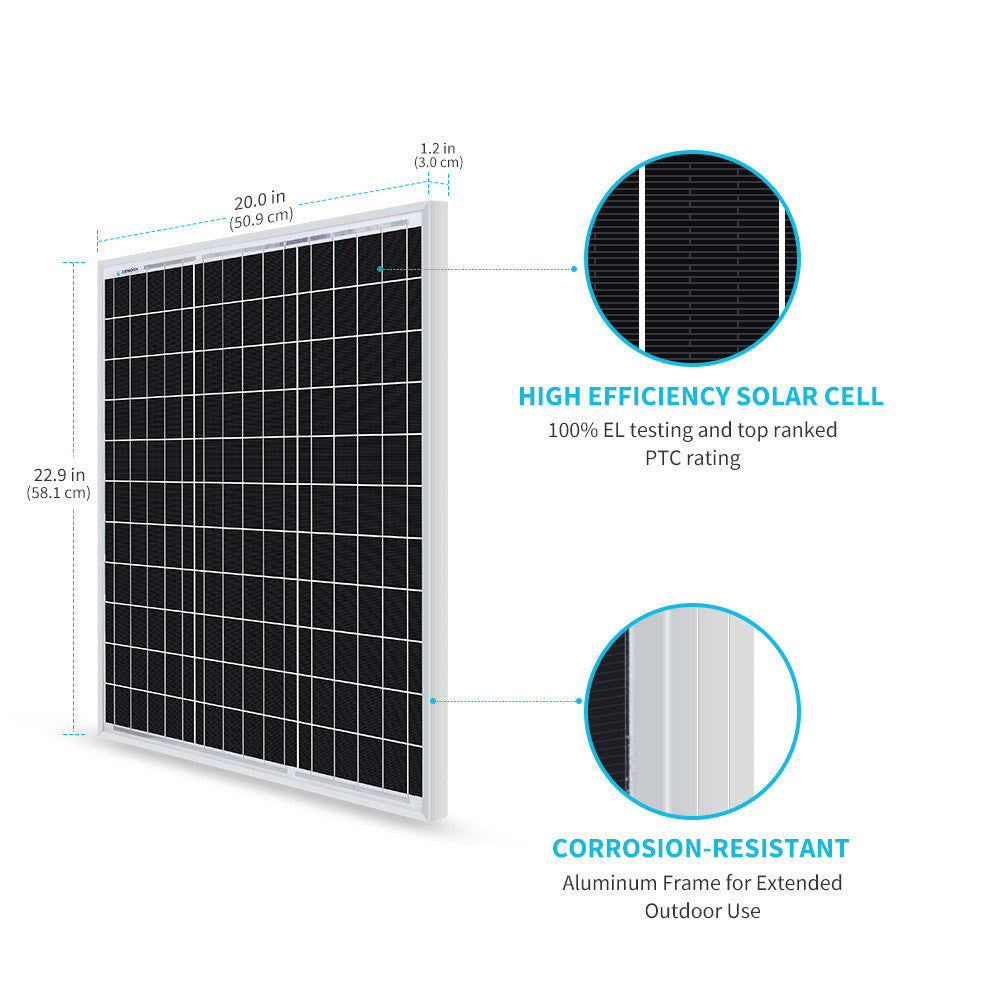

• Dimensions: 22.9 x 20.0 x 1.2 in
• Operating Temperature: -40°F to 194°F (-40°C to +90°C)
• Mechanical Load Ratings: withstands high winds (2400 Pa) and snow loads (5400 Pa)

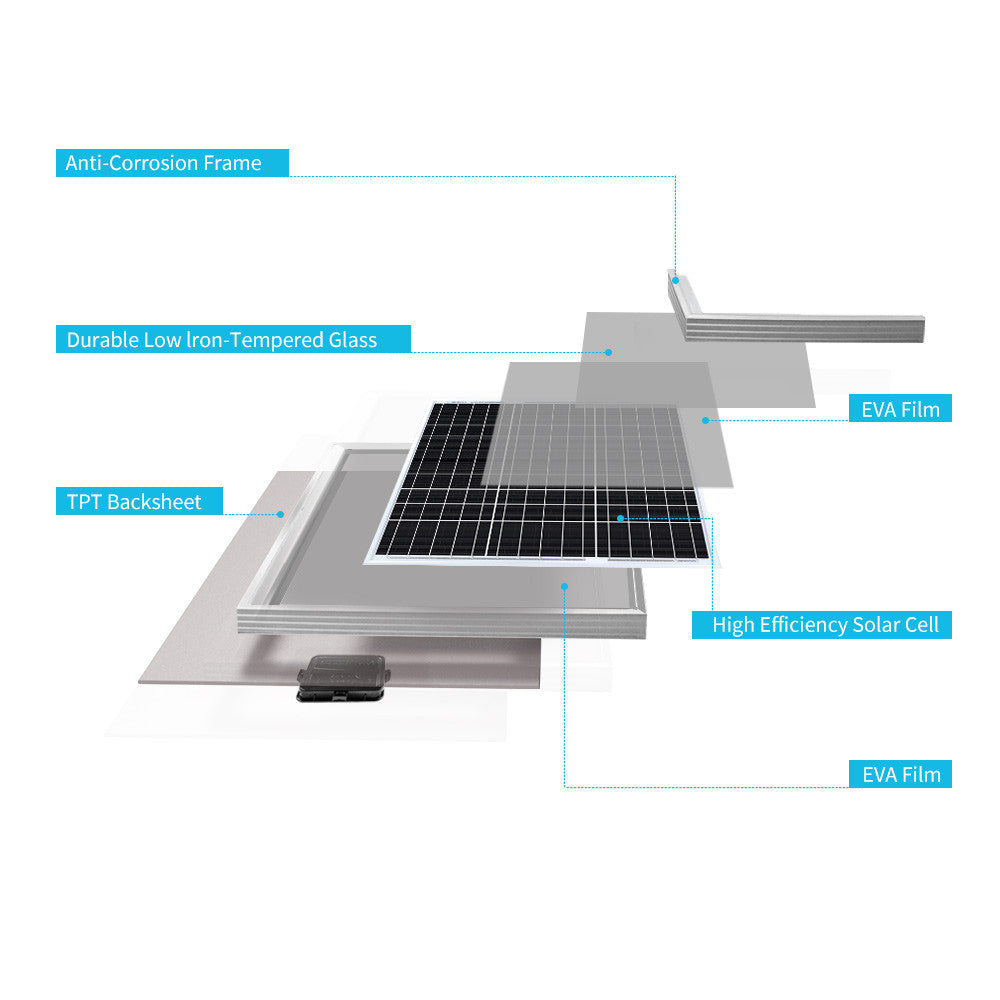

• Materials: monocrystalline cells, anti-reflective low-iron tempered glass, TPT back sheet, corrosion-resistant aluminum frame
• Performance Warranty: 5 years at 95% output, 10 years at 90% output, 25 years at 80% output
• Product Warranty: 5-year output and material/workmanship coverage
• Built-in protections: EL-tested modules with multi-layer encapsulation to reduce hot-spot risk
