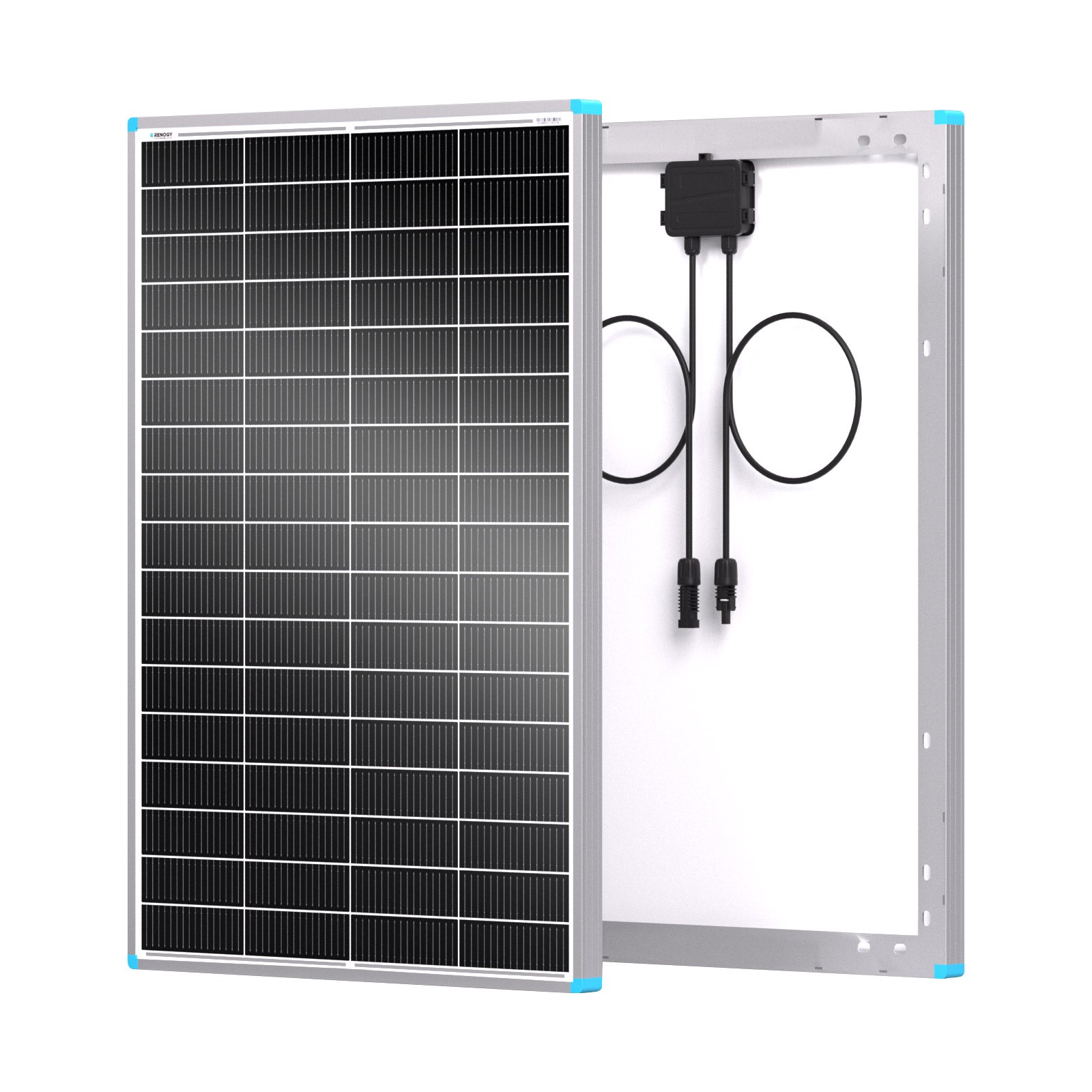

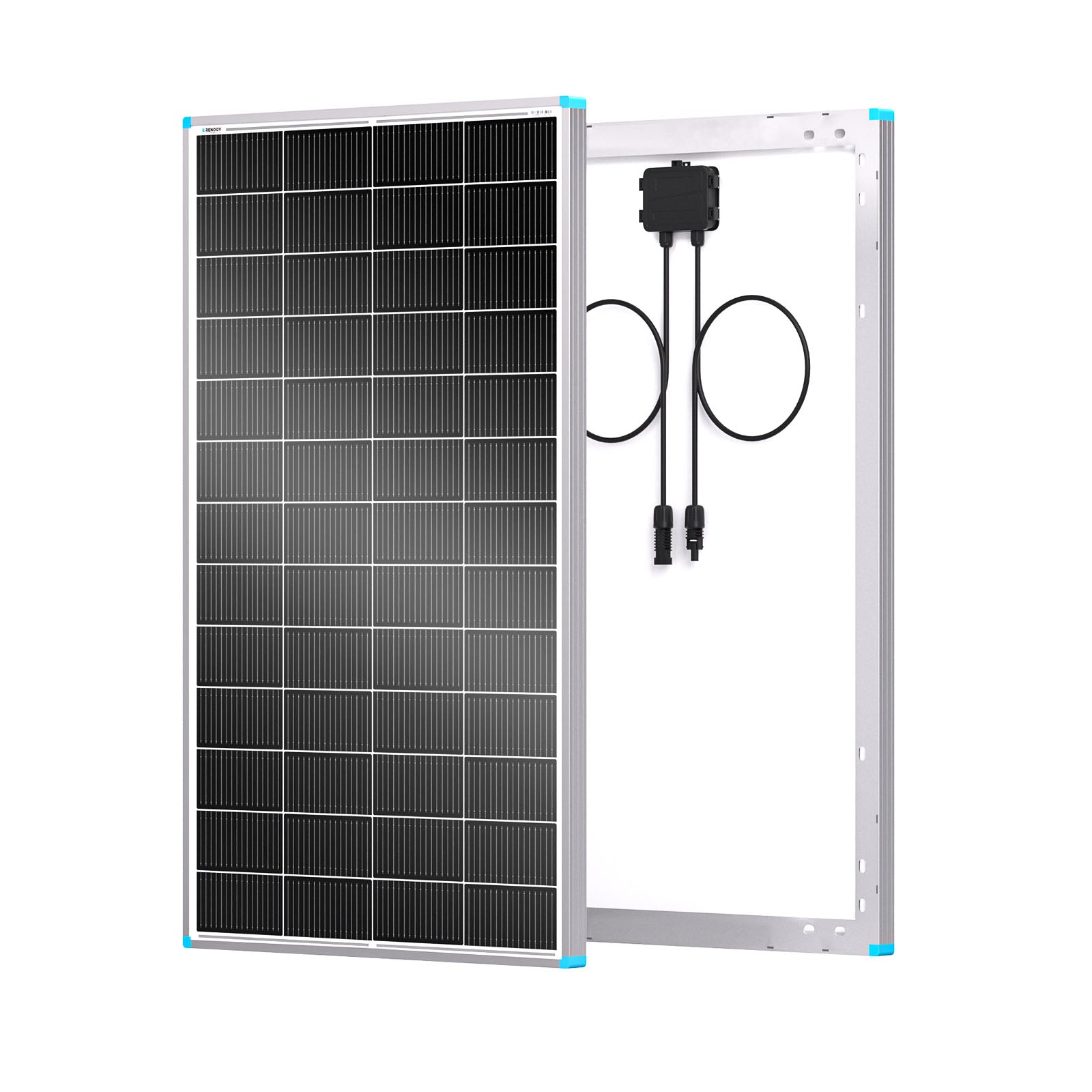

Renogy 200W Monocrystalline Solar Panel — Reliable 12V Power
Overview
A durable 200W monocrystalline solar panel designed for steady off-grid and backup power. It delivers dependable daily energy with modern cell technologies, built-in shading protection, and pre-drilled mounting points for quick installation.
Benefits
Get consistent daily energy — up to about 1000 Wh per day with 5–6 hours of direct sun, so devices and batteries stay charged.
Spend less time on maintenance — a tough construction and hotspot protection mean fewer interruptions and longer service life.

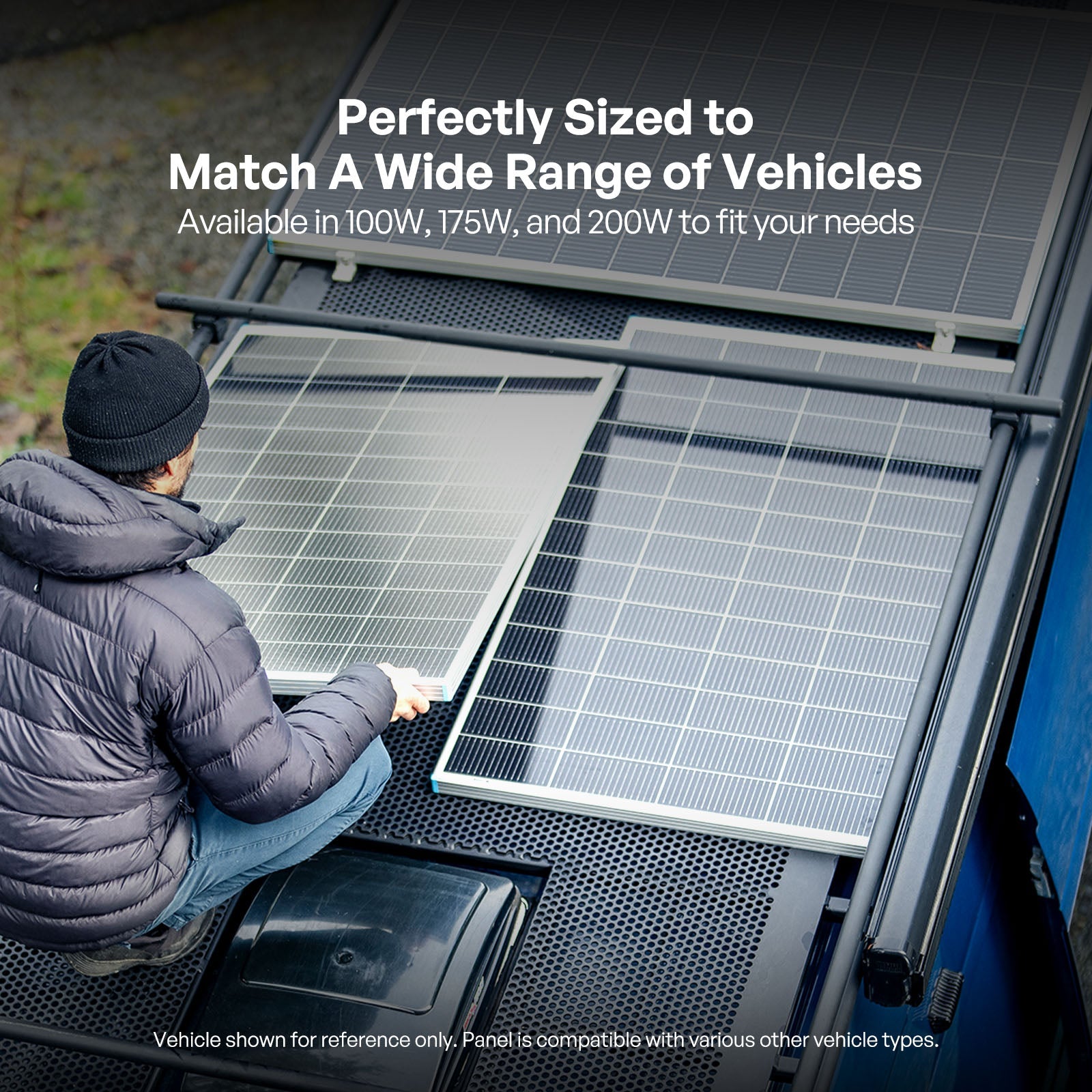

Install faster — pre-drilled holes save time and make the panel compatible with common Renogy mounts (Z-brackets, pole and tilt mounts).
Reduce power loss from partial shade — half-cut cell layout and bypass diodes keep the system producing when parts of the panel are shaded.
Feel confident long-term — the power output warranty and material/workmanship coverage help protect your investment.
Features
200W maximum power output (STC).
Monocrystalline Grade A+ solar cells with 9 busbars for improved conductivity.

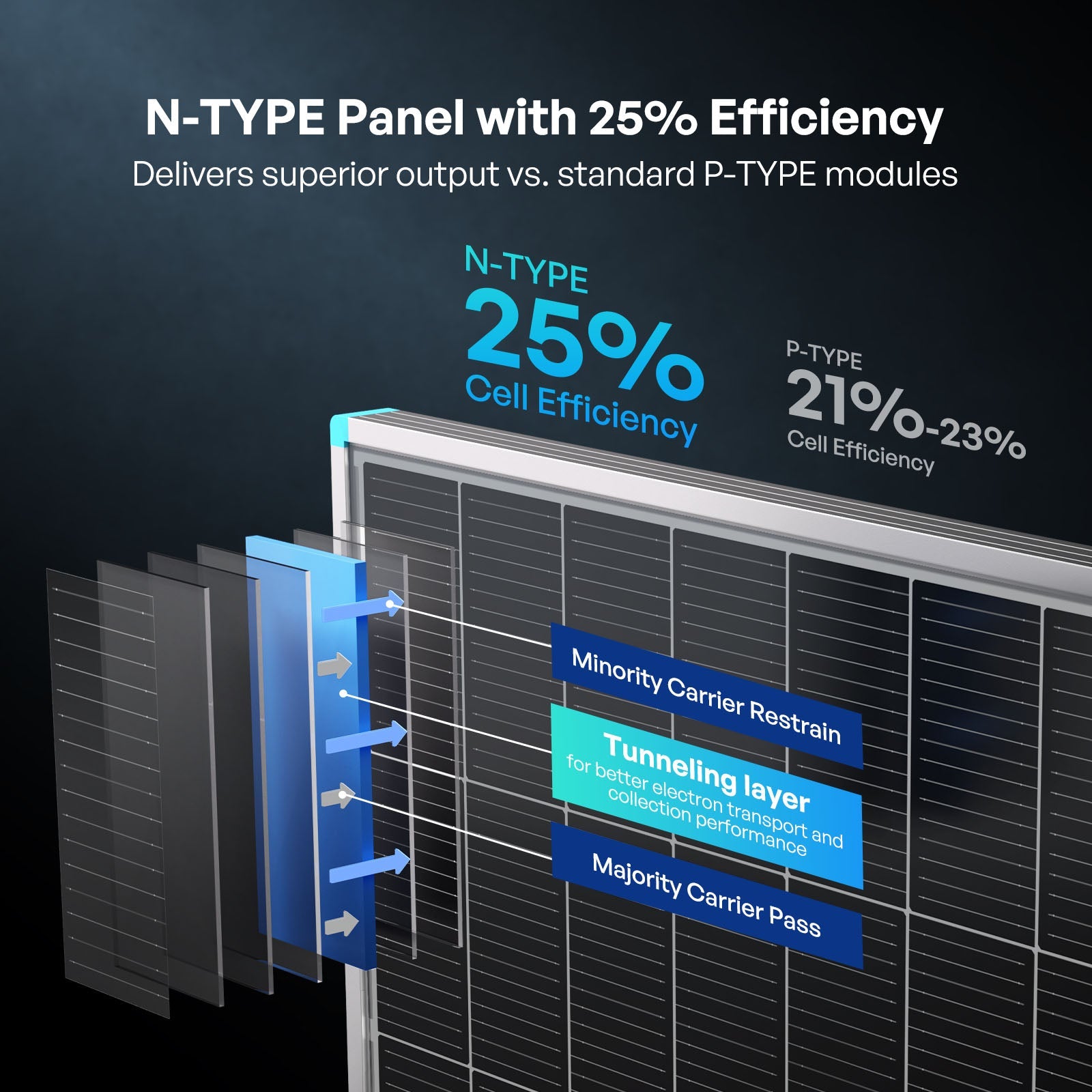

PERC technology to boost light capture and conversion efficiency.
Half-cut cell design with bypass diodes to limit the impact of shading and reduce hotspot risk.
Positive output tolerance of 0%–3% to ensure at-or-above-rated performance.

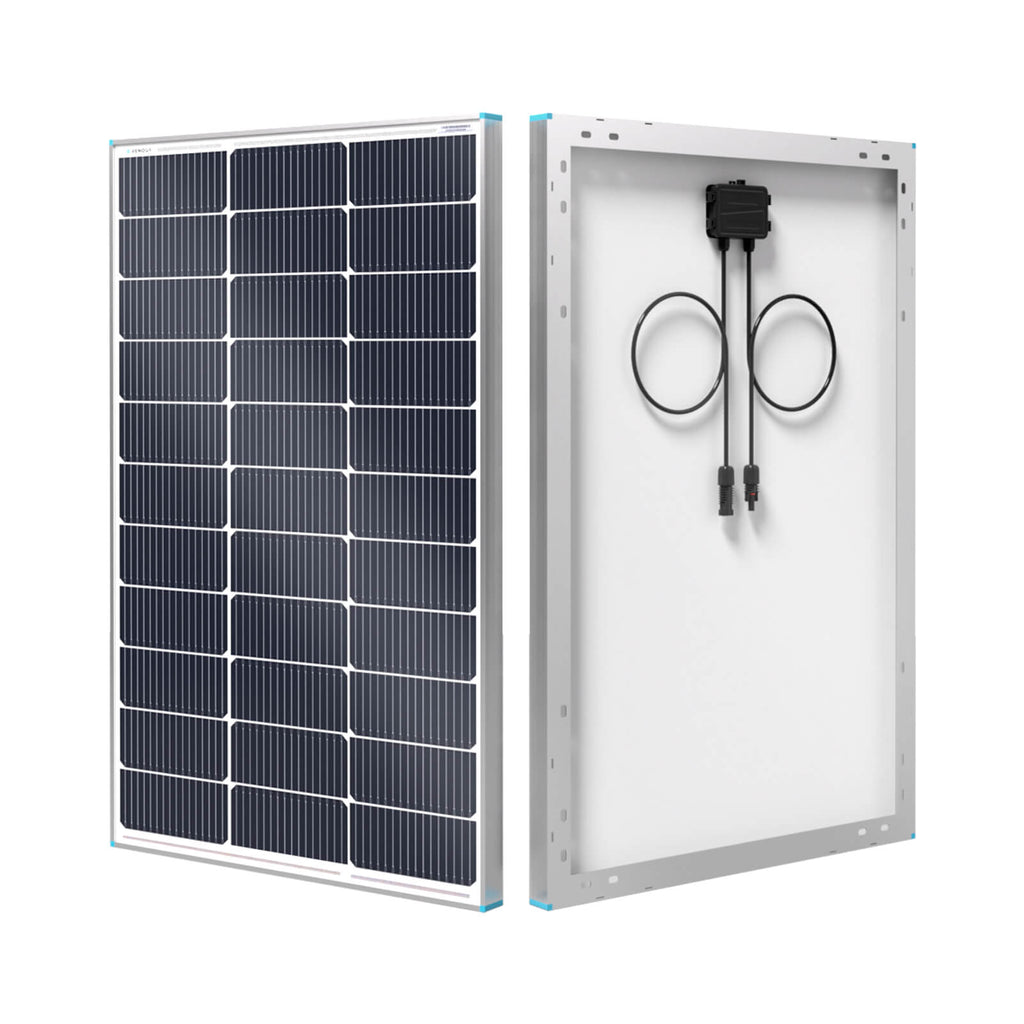

Pre-drilled holes on the back for easy mounting and compatibility with multiple mounting systems.
IP65-rated junction box and standard solar connectors for weather-resistant connections.
Packaged with reinforced corner protection to minimize shipping damage.
Access to Renogy sales and technical support (responses typically within 24 hours).
Specifications
Max Power (Pmax): 200 W (STC)
Open Circuit Voltage (Voc): 23 V
Optimum Operating Voltage (Vmp): 19.2 V
Short Circuit Current (Isc): 11.05 A
Optimum Operating Current (Imp): 10.42 A
Module Efficiency: 19.2%
Solar Cells: 68 cells (4 × 17), Grade A+
Cell Technology: 9 busbars, PERC, half-cut cells
Bypass Diodes: Integrated for shading protection and hotspot mitigation
Output Cable: 13 AWG, 2.6 ft (0.9 m)
Connectors: Solar connectors (pre-attached)
Junction Box Rating: IP65
Frame: Anodized aluminium alloy
Maximum System Voltage: 600 VDC (UL)
Maximum Series Fuse Rating: 20 A (some documentation also cites 15 A—see datasheet for system-specific requirements)
Operating Temperature Range: -40 °F to 194 °F / -40 °C to 90 °C
Estimated Daily Energy: Up to ~1000 Wh/day with 5–6 hours of direct sunlight (depends on site conditions)

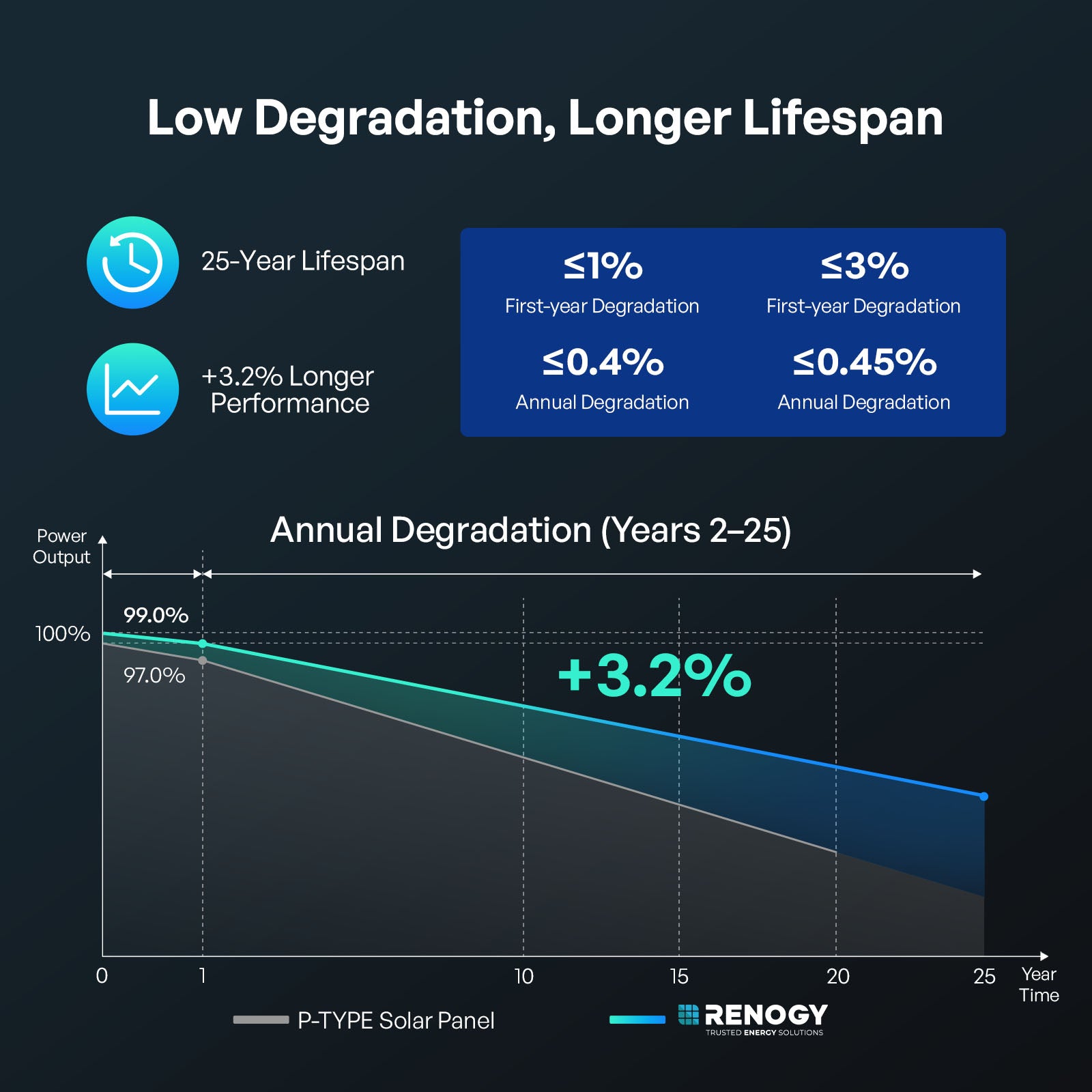

Warranty — Panels: 25-year power output warranty (5 years/95% nominal output, 10 years/90%, 25 years/80%); 5-year material and workmanship warranty
Warranty — Accessories: 1-year material warranty
Certifications & Testing: Factory-tested and certified; includes industry-standard safety and performance verifications (see datasheet for full certification list)
