Renogy 200W Monocrystalline Solar Panel
Reliable, efficient 12V panel for off-grid and backup power
This 200W monocrystalline solar panel delivers dependable daily energy for RVs, cabins, boats, and small off-grid systems. Built with high-efficiency cells, half-cut layout and protective features, it produces consistent output in real-world conditions and is designed for long service life with straightforward installation.
Benefits
- Consistent daily power so you can run lights, charge devices, and keep small appliances working without surprises.

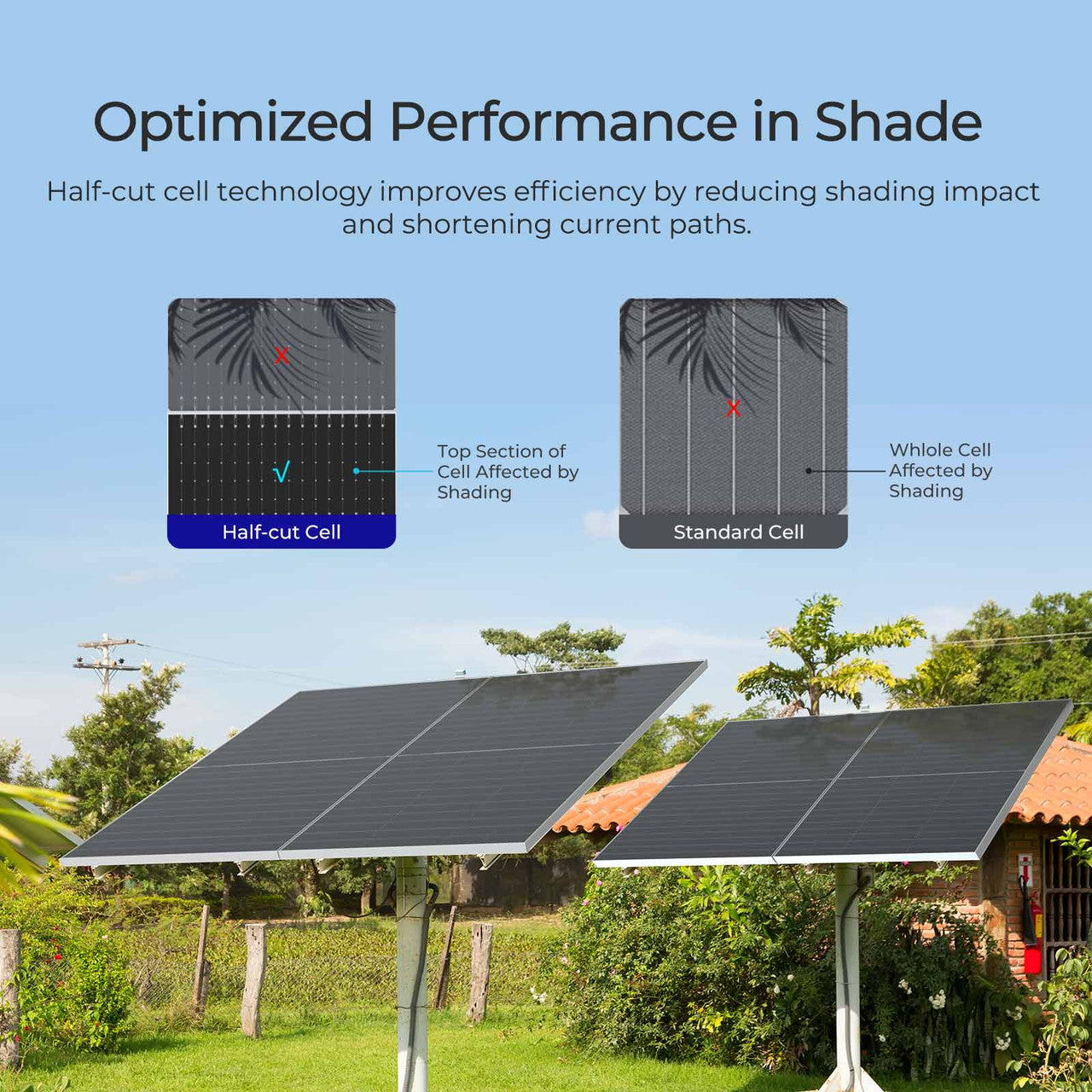

- Better performance in partial shade reduces interruptions and keeps systems running when conditions aren’t ideal.
- Durable construction and a long power warranty mean fewer replacements and lower long?term costs.
- Pre-drilled mounting holes and common connectors speed up installation and lower labor time.
- IP65 junction box and robust packaging reduce the risk of damage in transport and outdoor use.
Features
- 200W nominal power output at standard test conditions (STC).
- Positive output tolerance of 0%–3% for more predictable power delivery.
- Grade A+ monocrystalline cells with PERC technology for improved light capture.
- Nine busbars and a half-cut cell layout for higher conductivity and reduced resistive losses.
- Bypass diodes to maintain energy conversion and reduce hotspot risk under accidental shading.

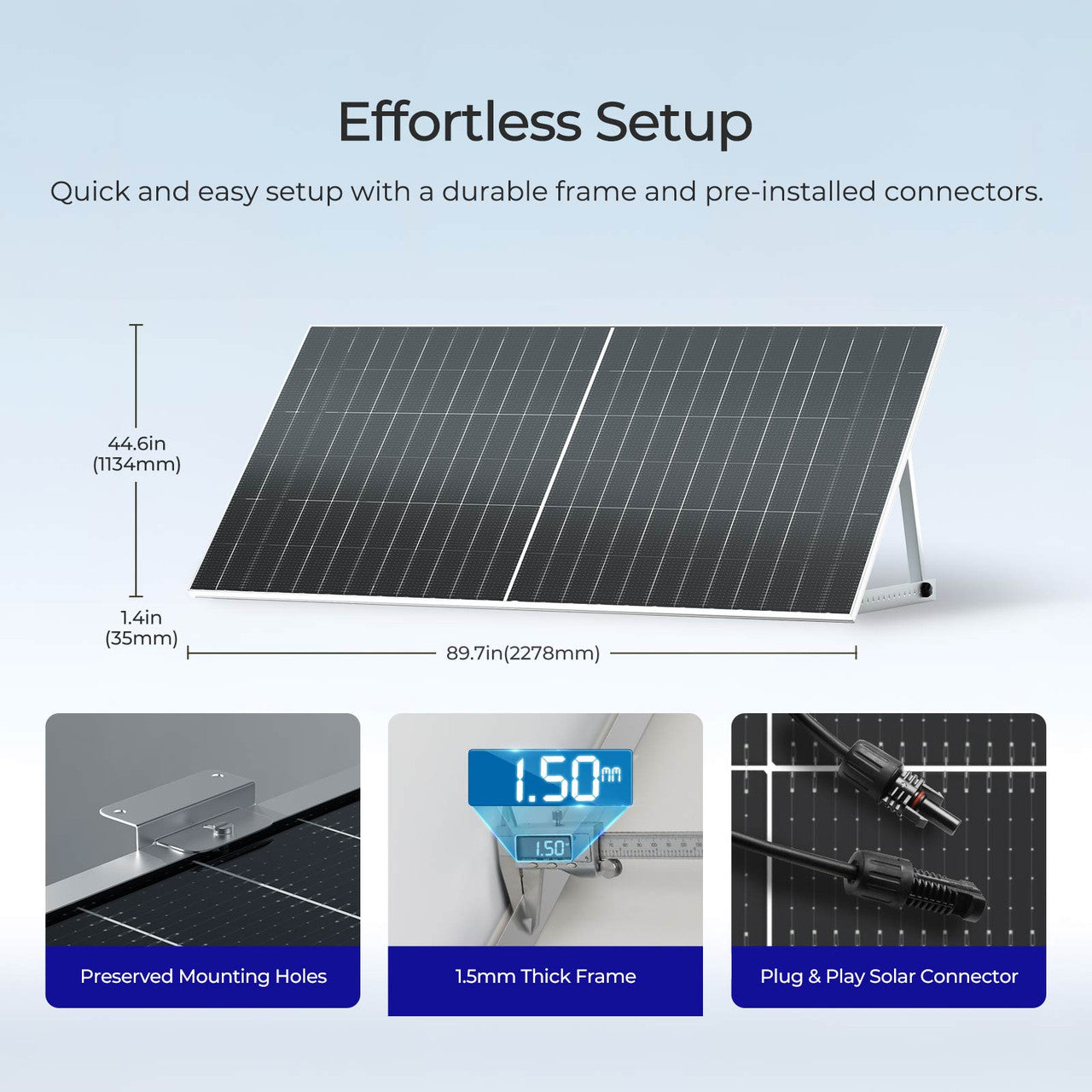

- Pre-drilled holes compatible with Z?Brackets, pole mounts and tilt mounts for quick installation.
- IP65-rated junction box and standard solar connectors for weather-resistant electrical connections.
- Secure packaging with thick corrugated cardboard and foam L?brackets for transport protection.
- Manufacturer support with sales and technical assistance (response within 24 hours).
Specifications
- Max Power (Pmax): 200 W
- Module Efficiency: 19.2%
- Open Circuit Voltage (Voc): 23 V
- Optimum Operating Voltage (Vmp): 19.2 V
- Short Circuit Current (Isc): 11.05 A
- Optimum Operating Current (Imp): 10.42 A
- Expected daily energy (typical): up to 1,000 Wh/day with 5–6 hours of direct sun
- Operating Temperature: -40°F to 194°F (-40°C to 90°C)
- Maximum System Voltage: 600 VDC (UL)
- Maximum Series Fuse Rating: 15 A (note: another listing shows 20 A)
- Output Cable: 13 AWG, 2.6 ft (0.9 m)
- Dimensions: 58.7 × 27.5 × 1.38 in (1491 × 699 × 35 mm)
- Weight: 26.46 lb (12 kg)
- Solar Cells: 68 cells (4 × 17)
- Junction Box: IP65
- Connectors: Standard solar connectors
- Frame: Anodized aluminum alloy
- Warranty: 25-year power output guarantee (95% at 5 years, 90% at 10 years, 80% at 25 years); 5?year material and workmanship warranty; accessories 1?year material warranty
