An all-in-one energy monitor, RV leveling assistant, and smart automation hub
Renogy ONE Core is a compact, flush-mount device that combines 24/7 energy monitoring, worldwide remote access, an RV leveling sensor, and Zigbee smart-home control into a single unit. It connects via Wi?Fi, Bluetooth (LE & Mesh), RS?485/CAN and supports both 2.4GHz and 5GHz networks so you can watch and manage your off-grid system from anywhere.
Benefits
Save money and extend battery life by seeing exactly how much energy you produce and use.
Spend less time setting up camp — the built-in RV leveling assistant helps you get level quickly and easily.

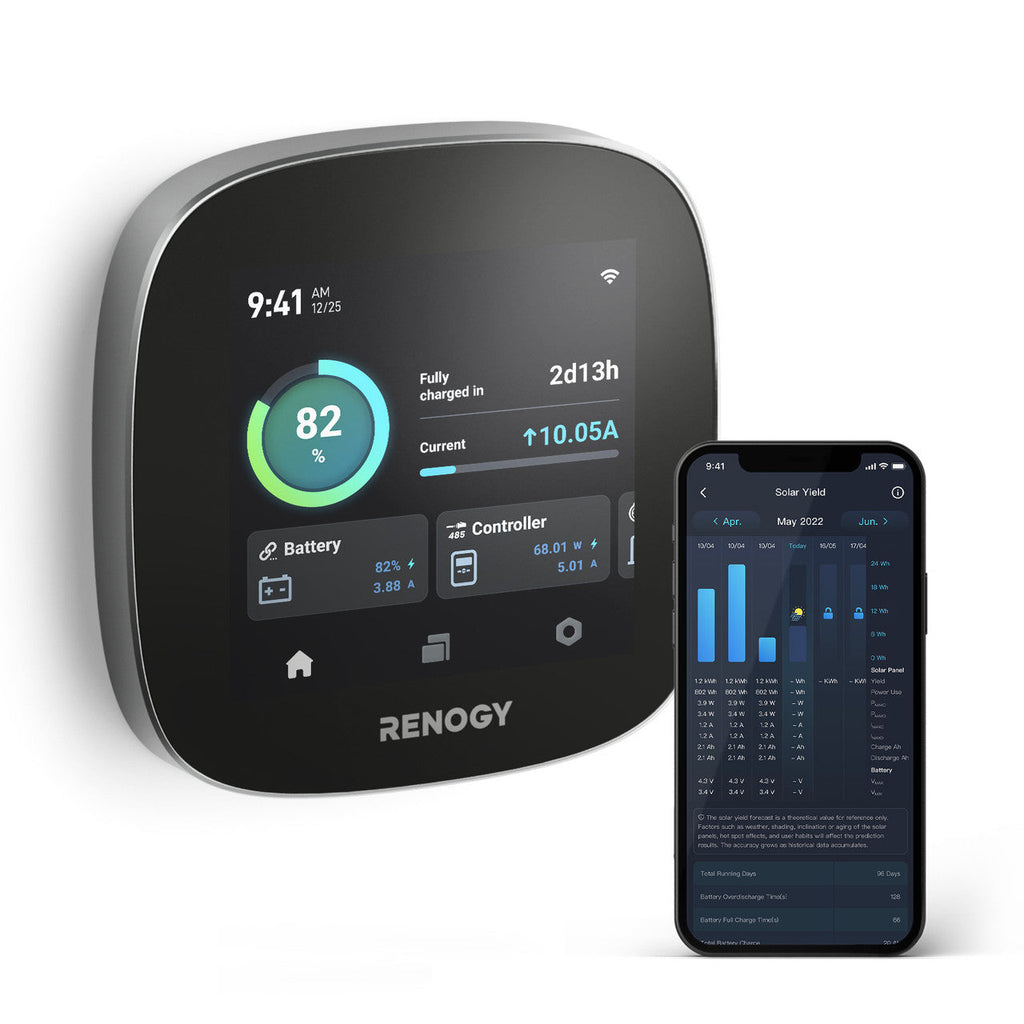

Monitor and control your system remotely from anywhere using the DC Home App or Renogy ONE Portal.
Reduce worry about security and system problems by getting alerts and running automation rules locally, even without internet.
Simplify your setup — one device replaces multiple monitors, controllers and separate smart hubs.
Keep the device current with over?the?air (OTA) updates that add features and fixes without extra hardware changes.
Features

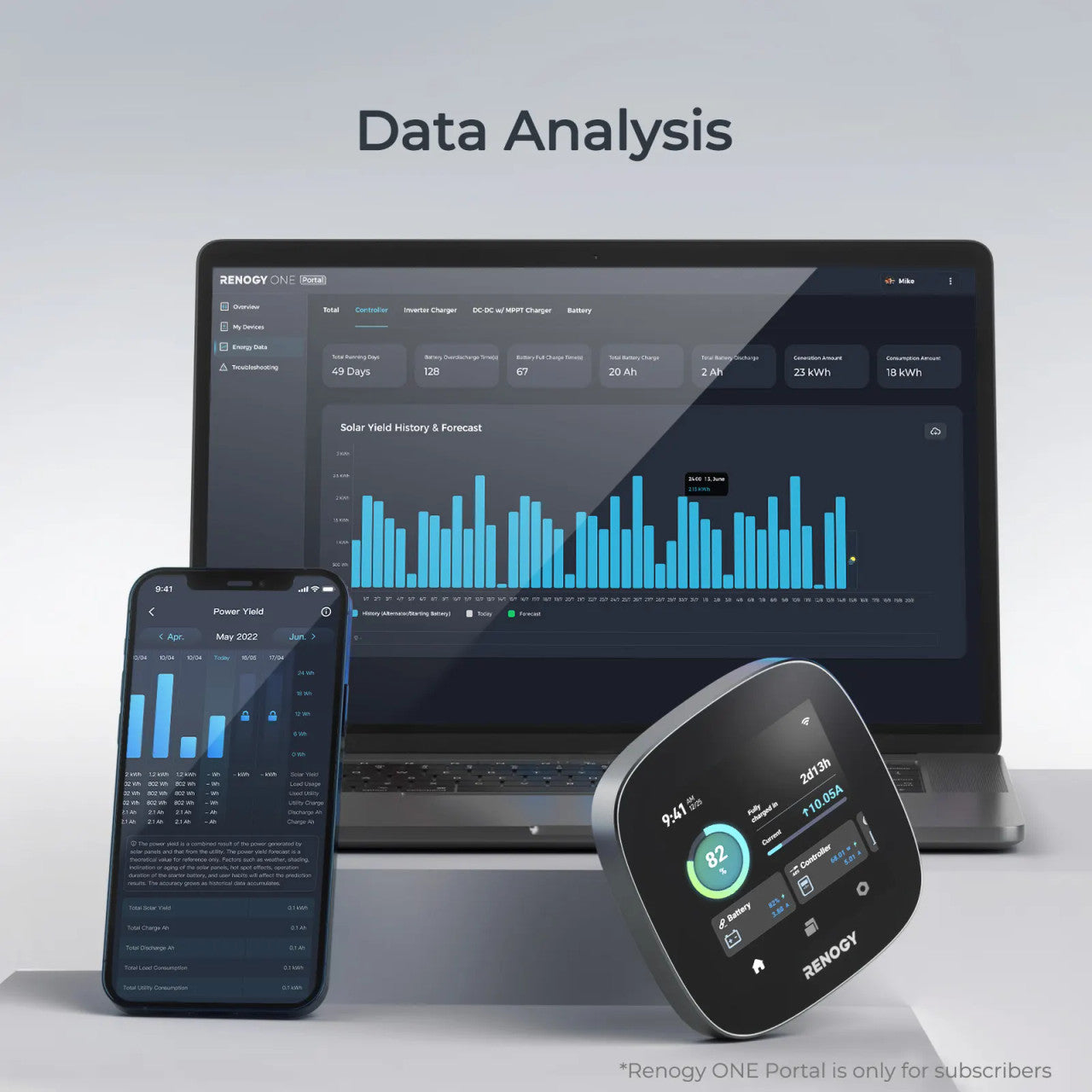

Cloud-based and local energy monitoring with 30 days of local data storage.
24/7 energy analysis and remote access via Wi?Fi (2.4 & 5 GHz), Bluetooth LE & Mesh, and RS?485/CAN.
Zigbee 3.0 radio for connecting Renogy authorized smart accessories (smart plugs, motion and door/window sensors, relays).
Built-in RV leveling sensor to assist with leveling and setup.

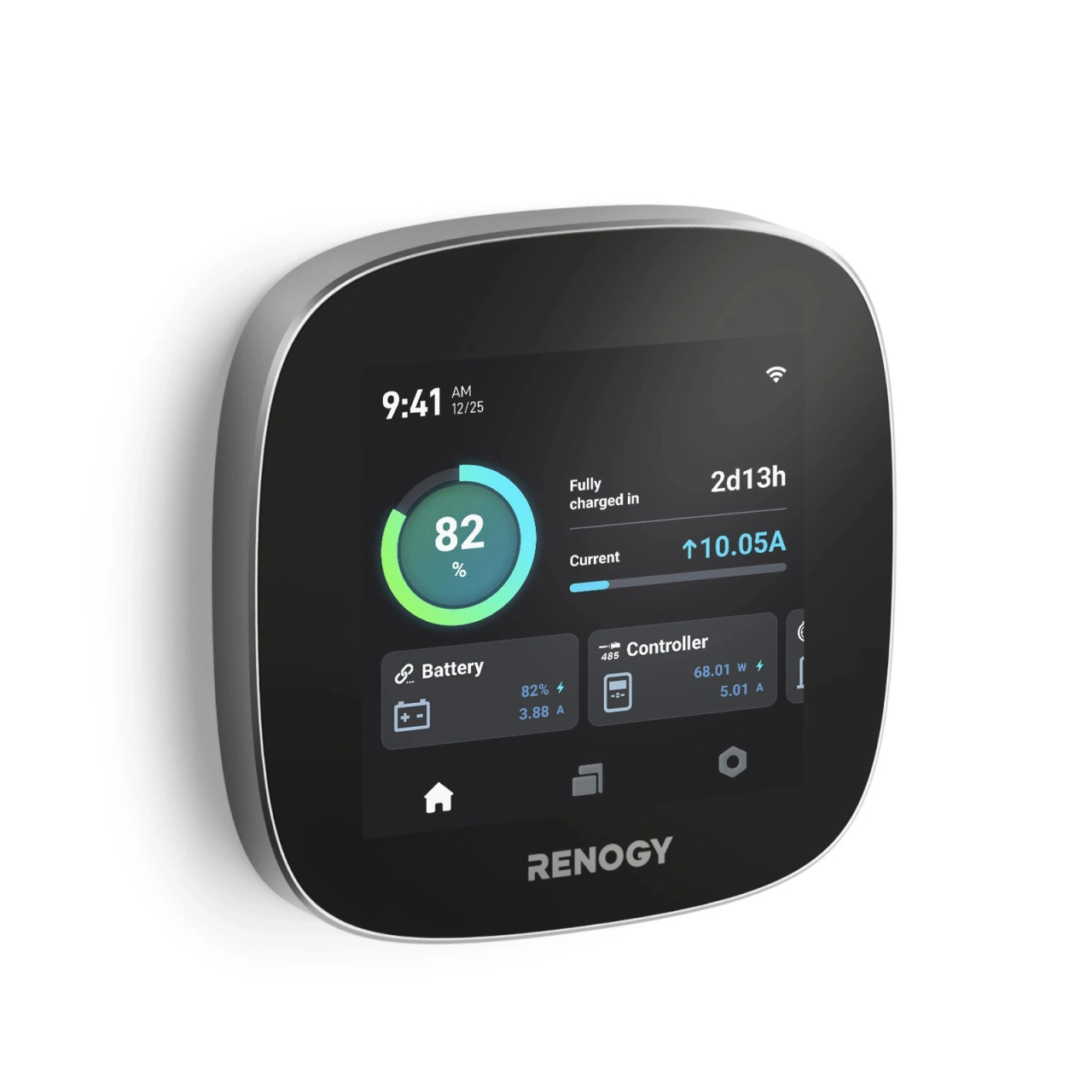

4?inch touchscreen (480 × 480) for local status and configuration.
Works as a smart automation hub—configured scenes run locally over Zigbee even when offline.
Supports RV?C communications and integrates with many Renogy devices (see compatible devices list).
Flexible power input: USB-C 5 VDC or main power cable 8–35 VDC.
OTA firmware updates to add features and improvements.
Compatible with Renogy Shunt 300 (shunt not included).
Specifications
Model: RSHGWSN-W02W-G3
Operating voltage: 8–35 VDC (USB?C input: 5 VDC)
Power consumption at 12 V:
Operating, Wi?Fi on, 100% illumination: 3.2 W
Operating, Wi?Fi on, 50% illumination: 2.4 W
Operating, Wi?Fi on, 0% illumination: 1.9 W
Off (logger active): 1.5 W

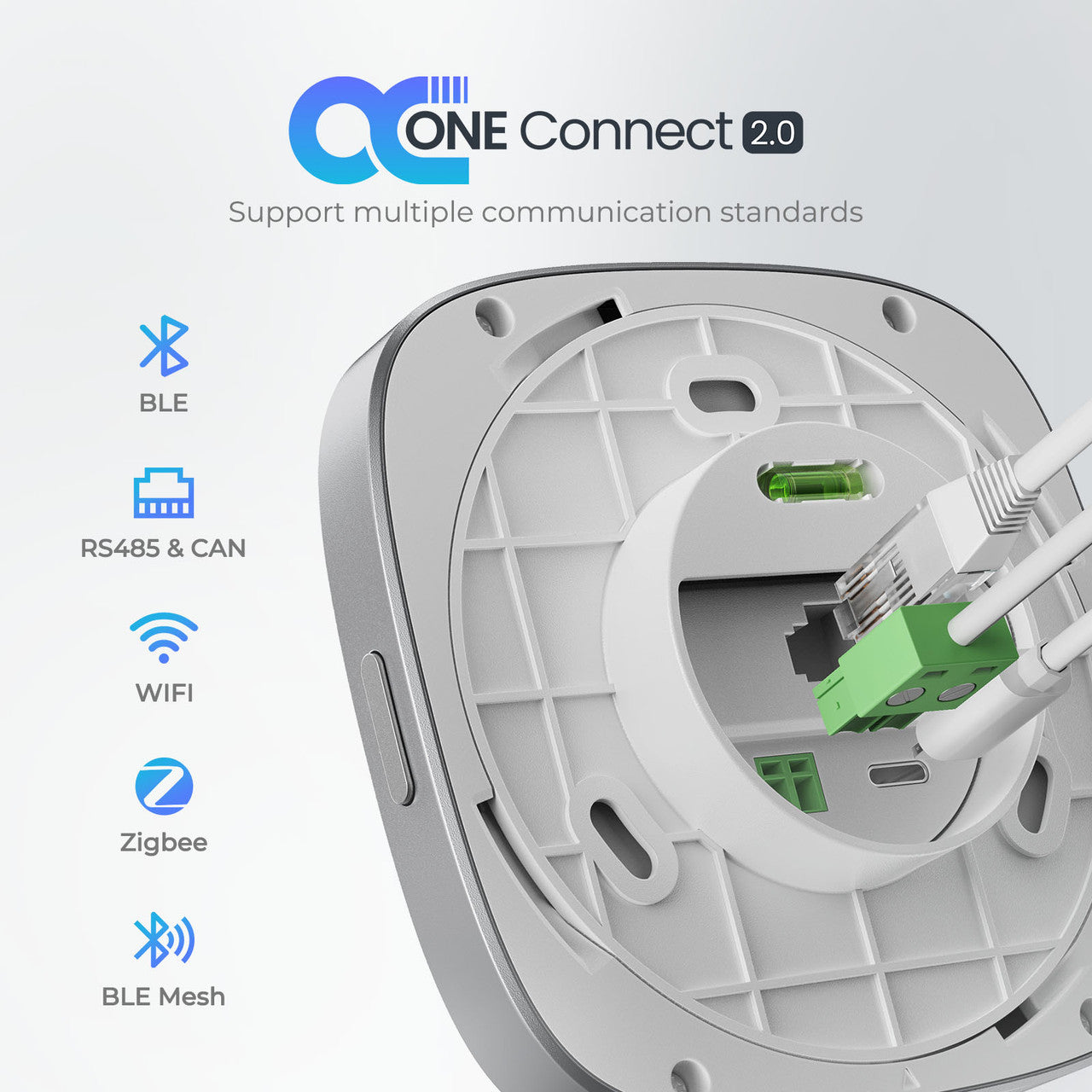

Communication: IEEE 802.11 a/b/g/n (2.4 & 5 GHz), Bluetooth LE & Mesh, Zigbee 3.0 (IEEE 802.15.4), RS?485 & CAN

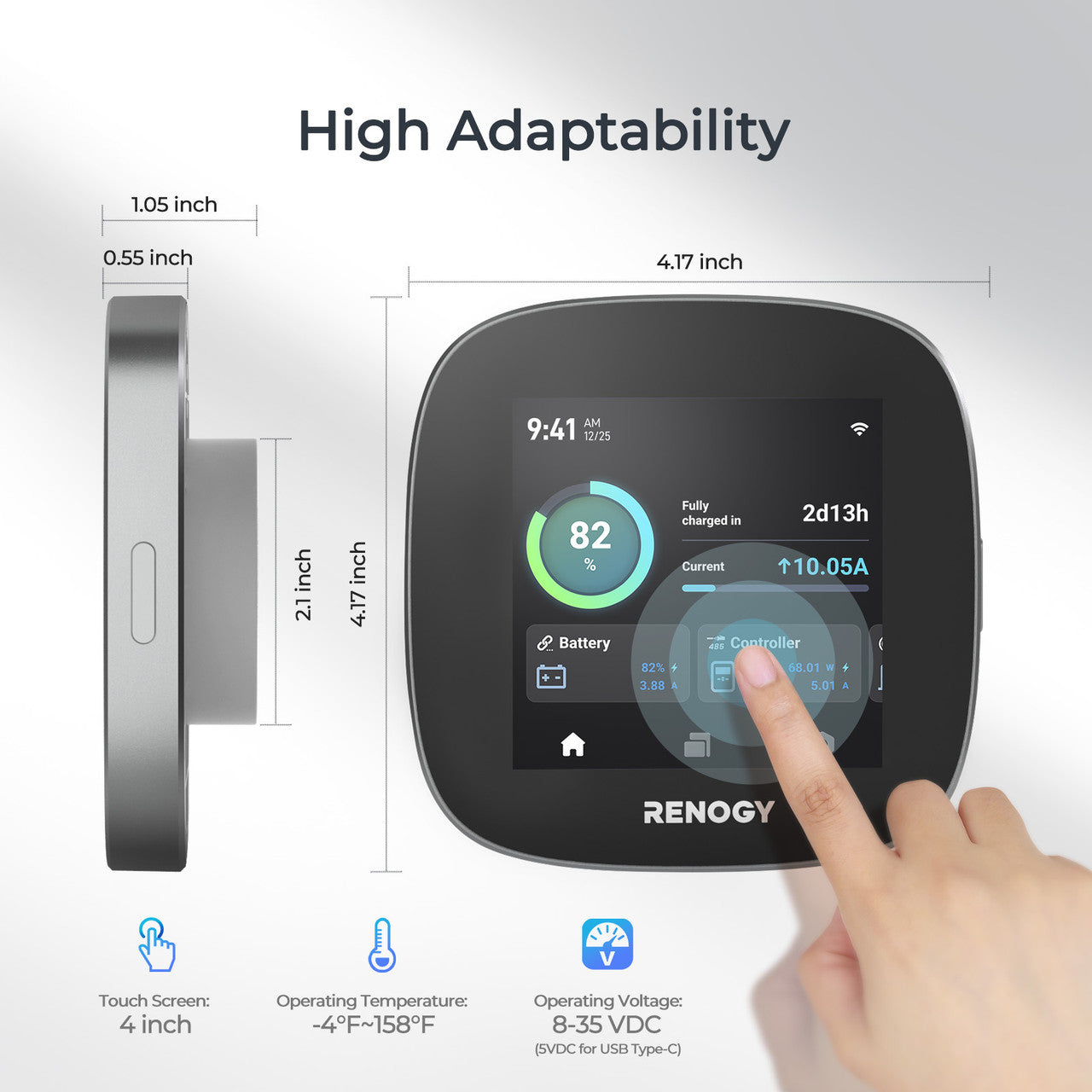

Touchscreen: 4 in (480 × 480)
Operating temperature: -20 °C to 70 °C (-4 °F to 158 °F)
