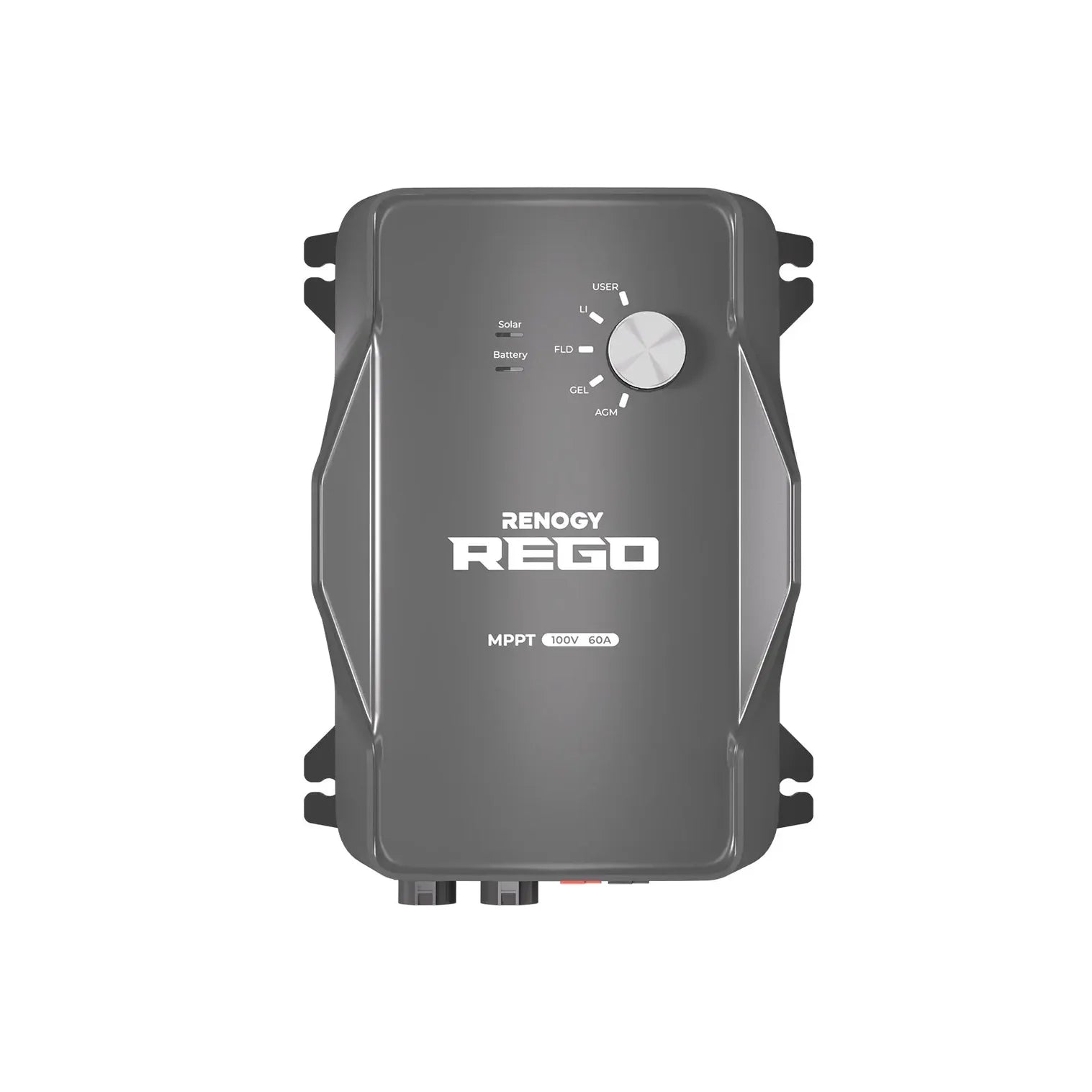

REGO 12V 60A MPPT Solar Charge Controller

Reliable, compact MPPT charging with fast plug-and-play installation

The REGO 12V 60A MPPT charge controller combines high-efficiency MPPT tracking, built-in Bluetooth monitoring, and protective battery management in a compact package. Designed for RVs, boats, cabins and off-grid systems, it speeds installation with Anderson plug connections while protecting batteries and prolonging their life.

Benefits

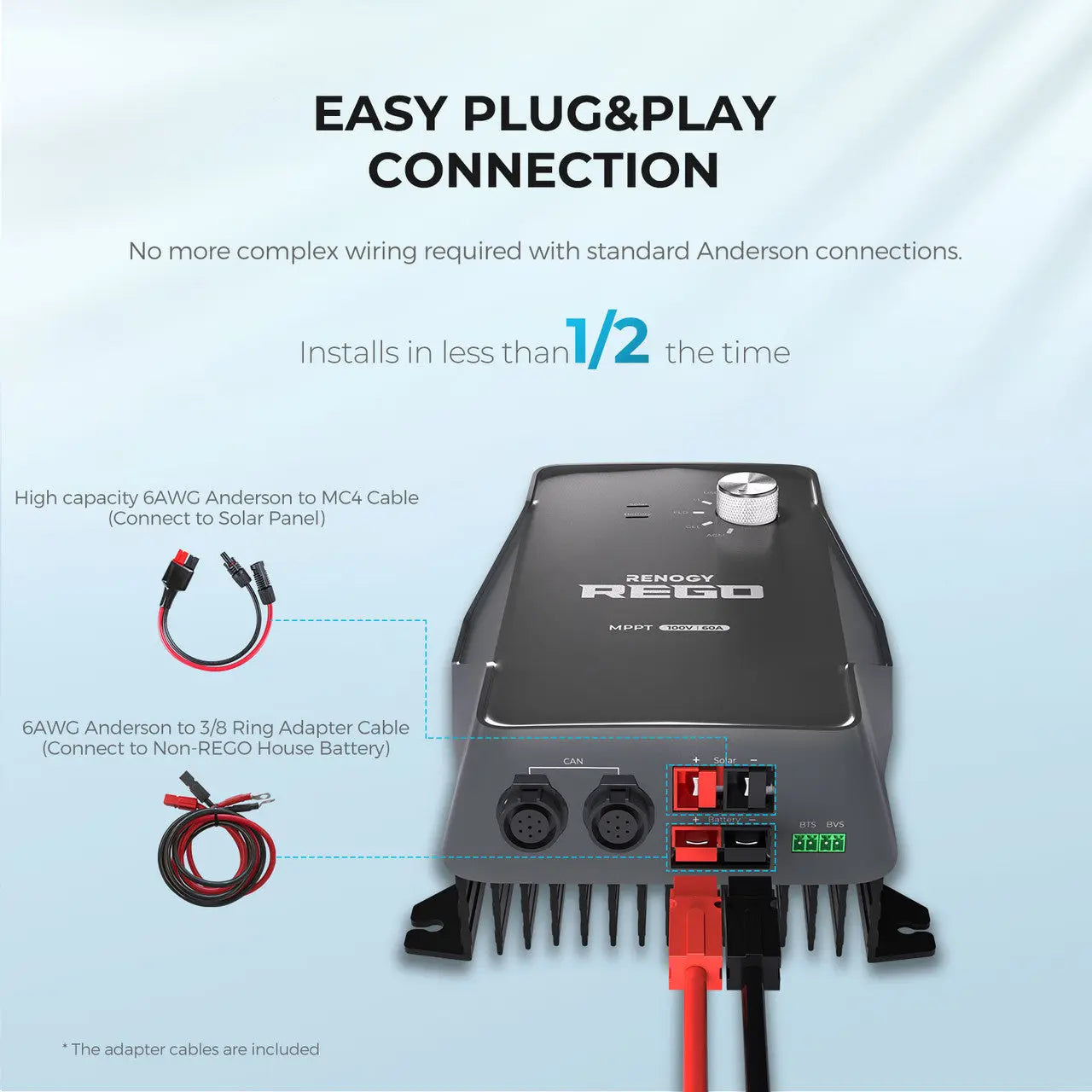

• Save installation time — Anderson-to-MC4 adapter cuts wiring time by up to 60% compared with traditional connections.
• Protect your battery bank — built-in Battery Protect Unit (BPU) and multiple terminal protections reduce risk of cell damage and unexpected failures.
• Get more usable solar energy — near-maximum MPPT tracking efficiency increases daily energy harvest from the same panels.

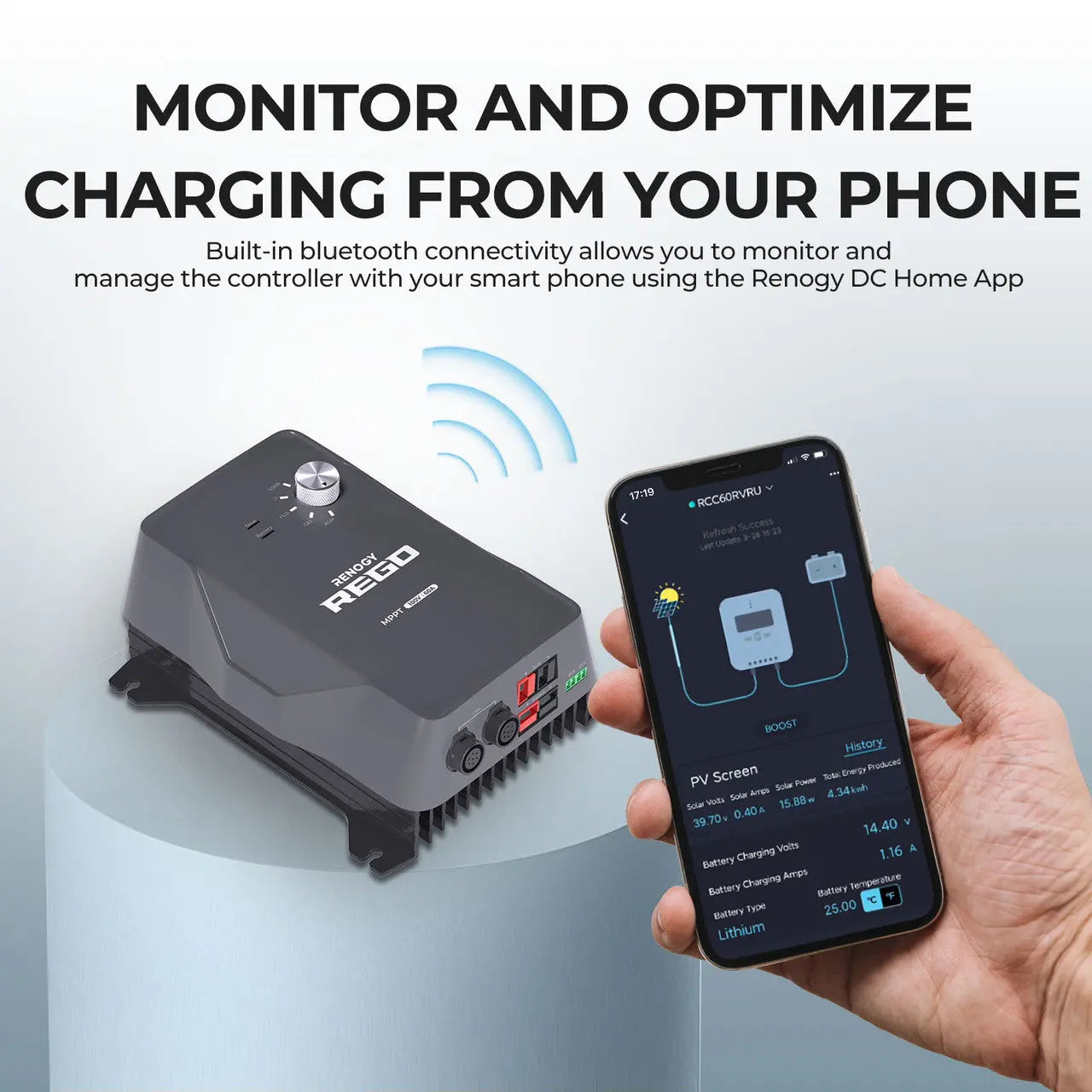

• Monitor and adjust from your phone — embedded Bluetooth and the Renogy DC Home app let you view performance and tune charging settings remotely.
• Install in tight spaces — compact, die-cast aluminum design saves space while providing effective thermal management for continuous charging.

Features

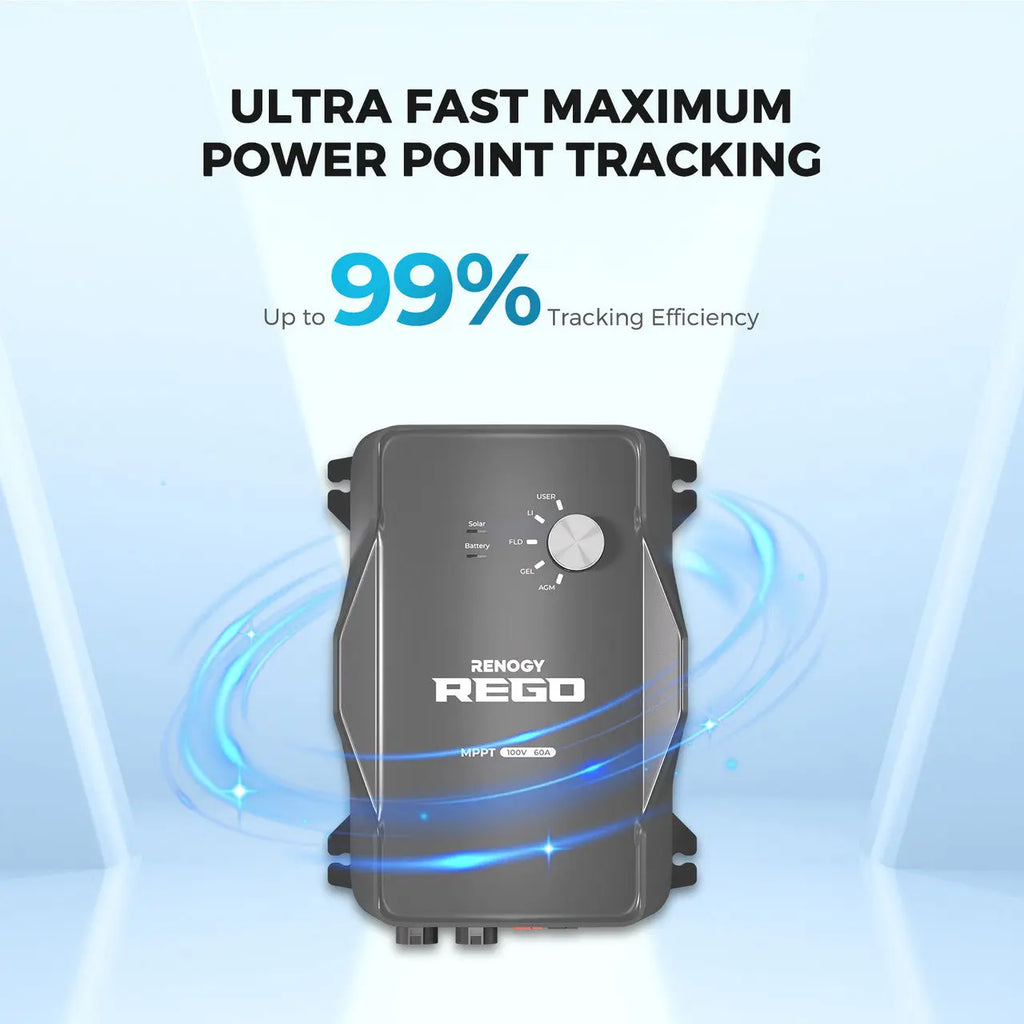

• Maximum 99% MPPT tracking efficiency to maximize power harvest.
• Rated charge current: 60 A for 12 V battery systems.
• Power limiting support up to 800 W (12 V) for higher panel arrays without overloading the controller.
• Multi-stage charging: 3–4 stage (Bulk, Boost, Float, EQ) for lead-acid and 2-stage for lithium to optimize battery health.
• Integrated Battery Protect Unit (BPU) that disconnects non-essential loads to prevent deep discharge and protect starting batteries.
• Built-in Bluetooth for real-time monitoring and parameter adjustments via the Renogy DC Home App.
• Die-cast aluminum heat sink for effective passive thermal management and stable operation.
• Anderson PP75 terminals with included Anderson-to-MC4 adapter cable for fast, tool-free panel connections.
• USER mode for custom battery charge parameters programmable through the app (for advanced DIY setups).

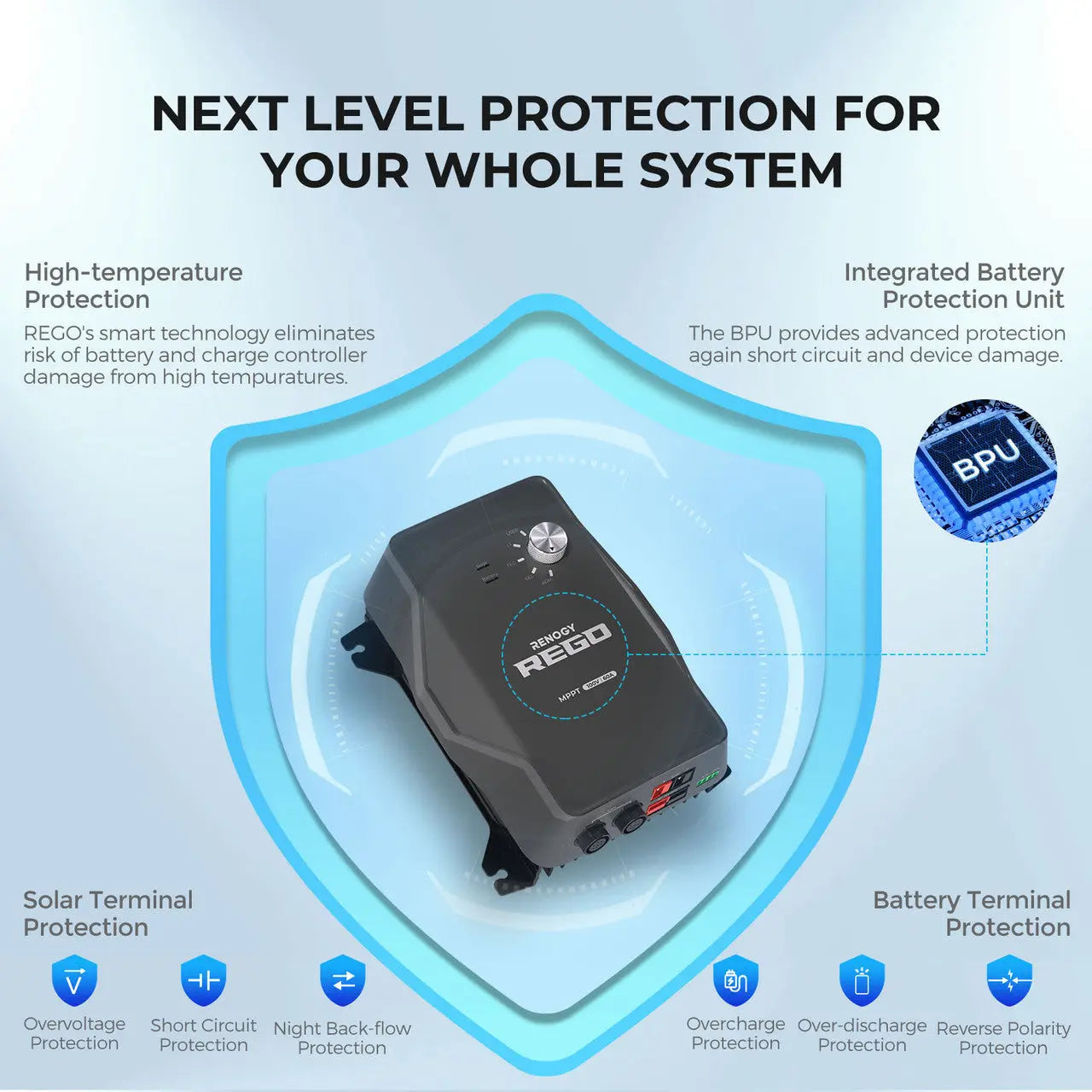

• Comprehensive electronic protections: reverse polarity, reverse flow, short-circuit, over-temperature, overcharge, over-discharge and charging over-current protection.

Specifications

• Nominal system voltage: 12 V
• Rated charge current: 60 A
• Max PV input power: 800 W (12 V)
• MPPT voltage range: 15 – 100 VDC (for 12 V systems)
• Solar input VOC limit: 100 V
• Max input short-circuit current (Isc): 50 A
• Battery operating voltage range: 10 – 16 V
• Power consumption: ? 0.5 W

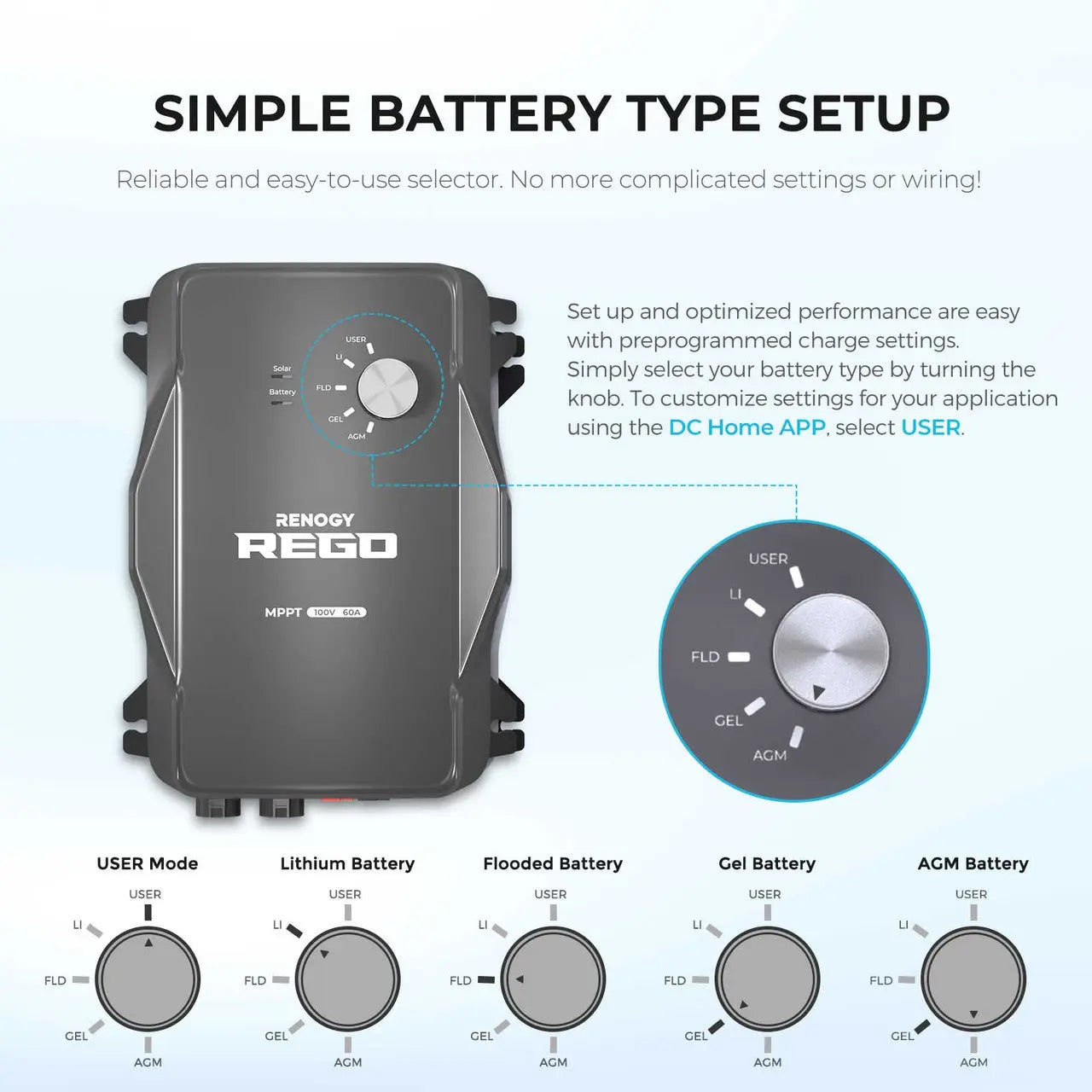

• Battery types supported: AGM/Sealed, GEL, Flooded, LFP (Lithium), USER (custom)
• Temperature compensation: -3 mV / °C / 2 V (non-lithium); 0 mV / °C / 2 V (lithium — no compensation)
• Operating temperature range: -20 °C to 60 °C
• Storage temperature range: -25 °C to 65 °C
• Operating / storage humidity: 0% – 90% RH

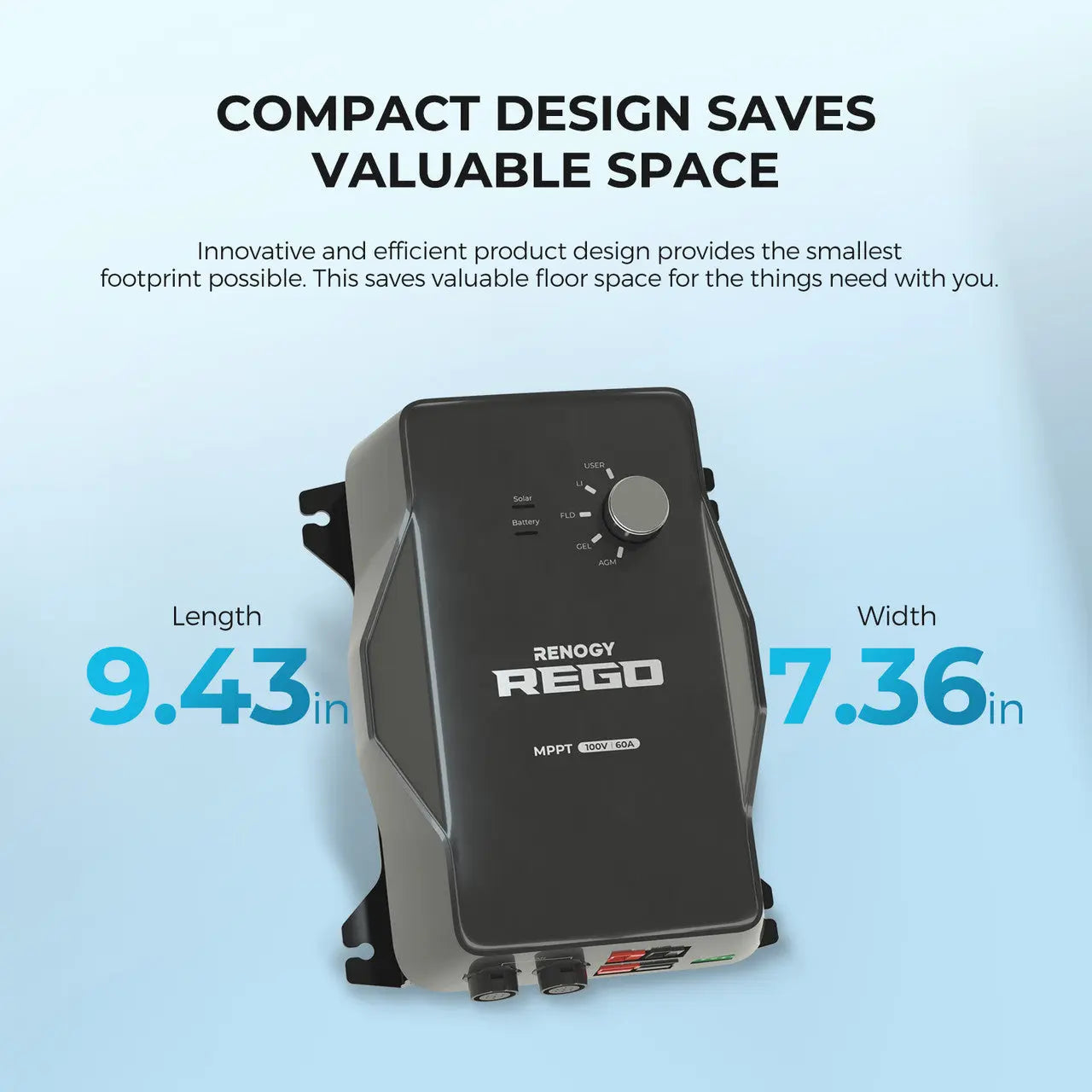

• Dimensions: 9.43 × 7.36 × 4.28 in (239.4 × 187 × 108.8 mm)
• Weight: 5.07 lb (2.30 kg)
• Terminals: Anderson PP75
• Ground type: Common negative lug

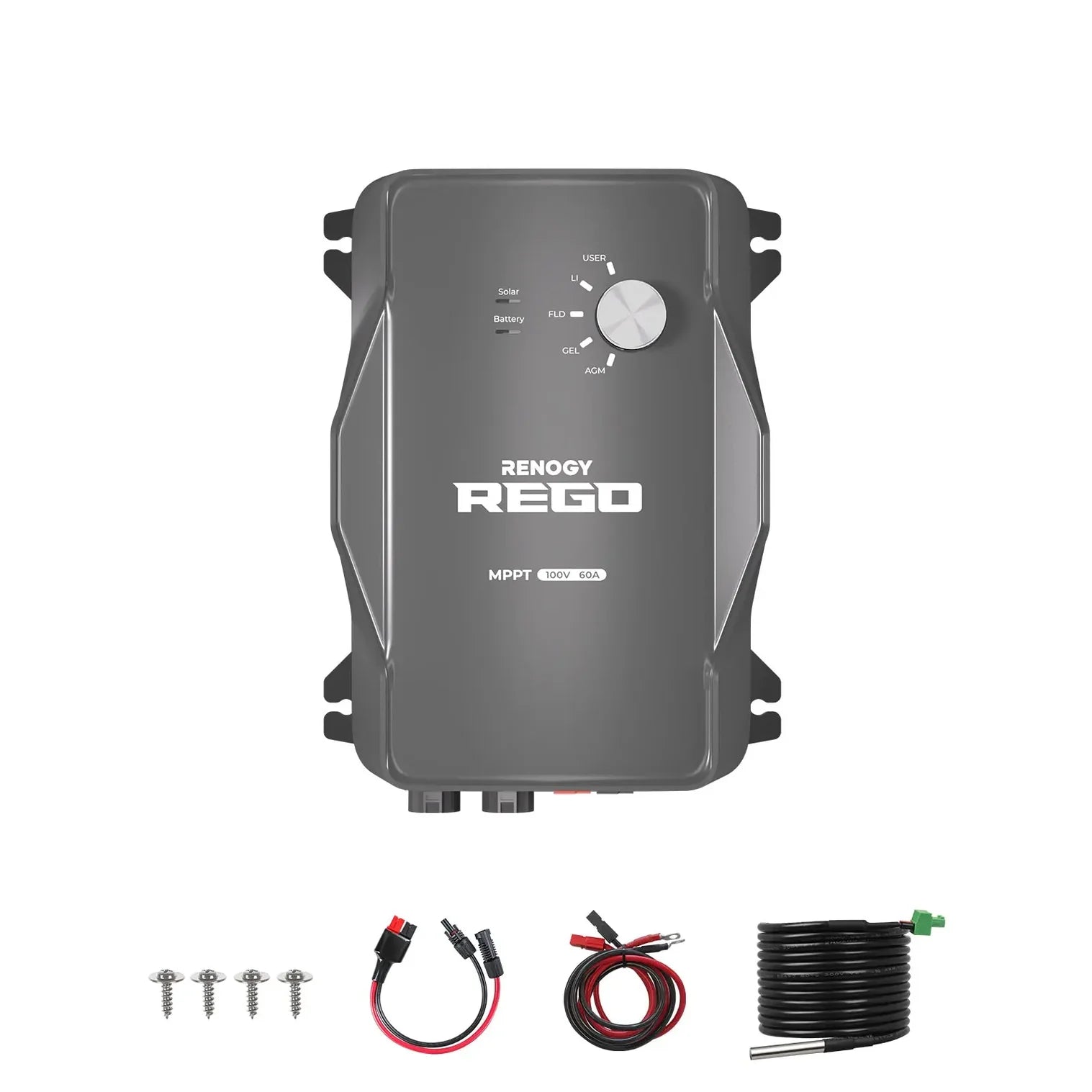

• Included items: REGO 12V 60A MPPT charge controller, Renogy temperature sensor, solar adapter cable, mounting screws
• Optional accessories: 5 ft or 10 ft 6 AWG Anderson adapter cables (options), Bluetooth Module BT-2 (RS485 / CAN bus signal) for extended monitoring
• Certifications: UL1741, FCC compliance, CE and RoHS

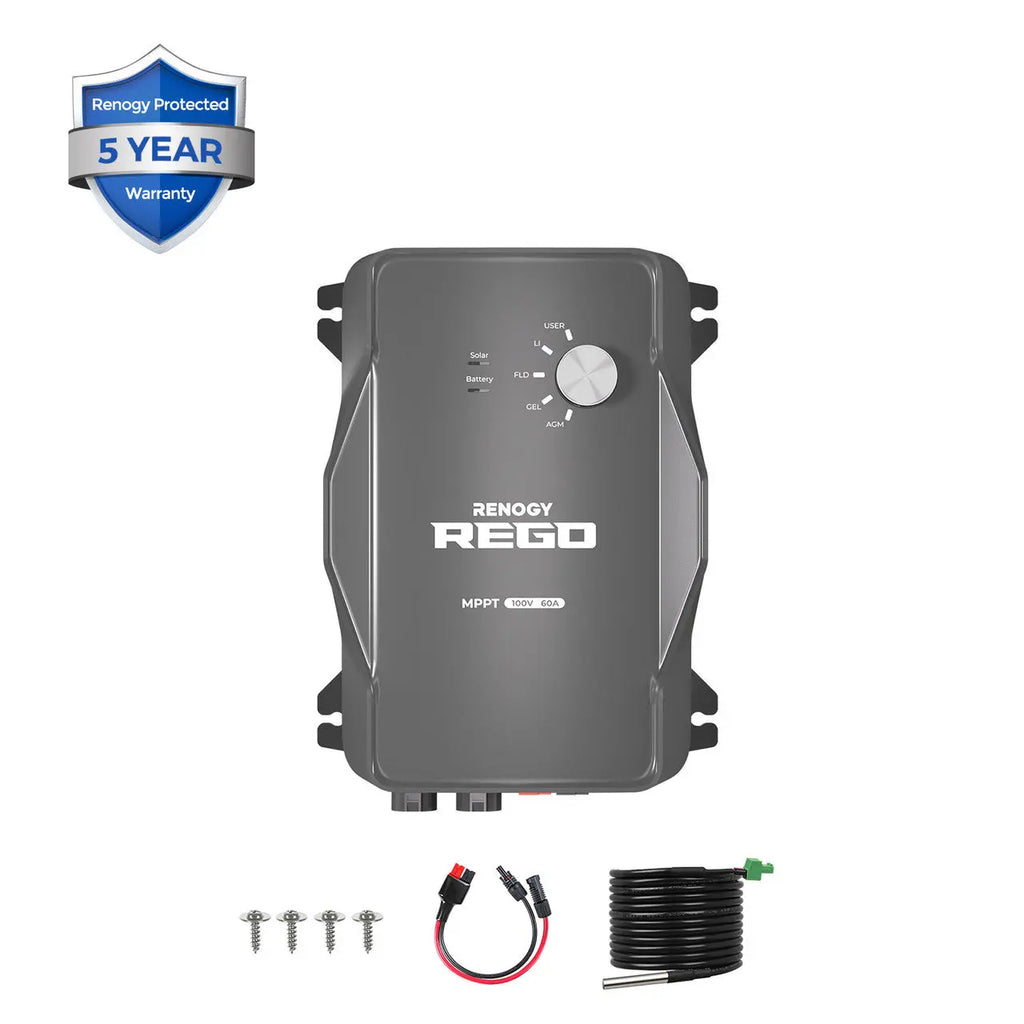

• Warranty: 5-year material and workmanship warranty
