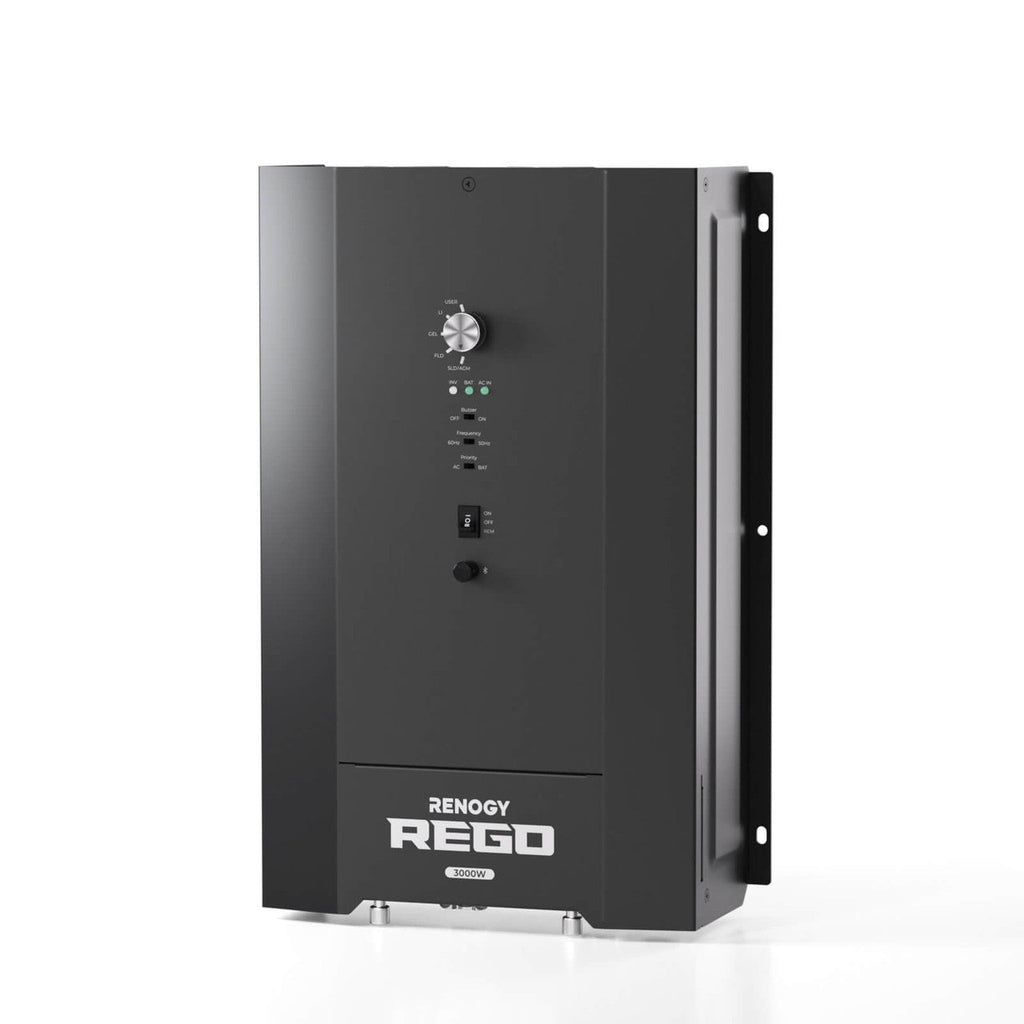

3000W 12V Pure Sine Wave High-Frequency Inverter Charger

Overview

A compact, low-noise inverter charger that provides clean 120/240VAC power where needed. It produces a pure sine wave output, supports split-phase input for 240VAC when supplied from a 120/240VAC source, and can deliver up to 6000W in bypass/shore-power mode. Built-in Bluetooth makes monitoring easy with Renogy ONE M1 / Core and compatible apps.

Benefits

• Sleep-friendly operation so you get quiet nights without noisy inverter hum.
• Less installation clutter and more usable space thanks to the all-in-one, compact design.
• Reliable power for larger loads when connected to shore power, so appliances run without surprises.
• Better battery performance in cold or extreme conditions via activation and heating features.
• Simpler system monitoring and control with built-in Bluetooth and app compatibility.
• Improved safety for RV setups by addressing neutral-grounding issues and reducing shock risk.

Features

• 3000W continuous pure sine wave inverter output (12V DC input).

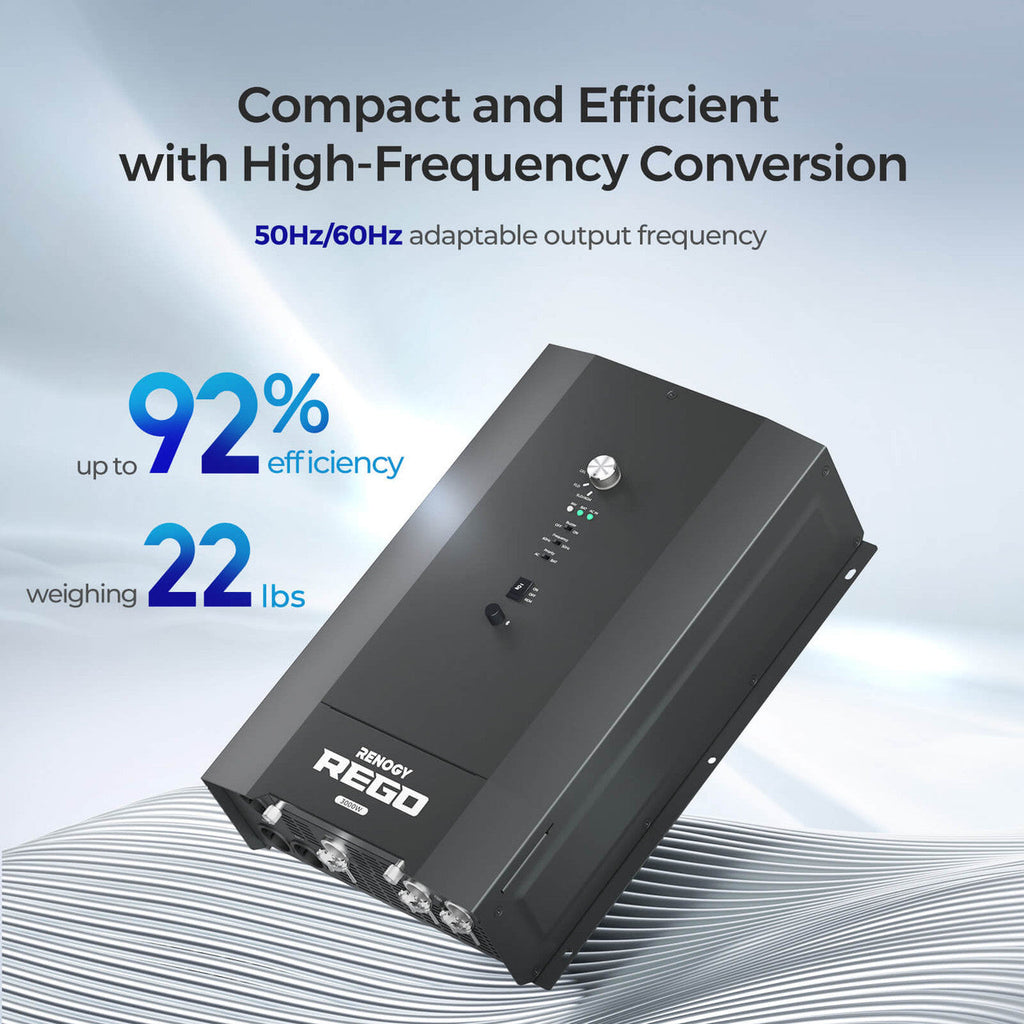

• High-frequency design for smaller size and reduced electromagnetic interference.
• Split-phase AC input support (120/240VAC) — 240VAC output available when fed by split-phase source.
• Bypass/shore-power mode that can provide up to 6000W (50A at 120VAC input).
• Built-in Bluetooth for monitoring with Renogy ONE M1 / Core and DC Home app; supports RV-C communication.
• Lithium battery activation and onboard heating capability to maintain battery performance in cold temperatures.
• Included battery temperature sensor for smart temperature-compensated charging and battery protection.
• Fast adaptation to load changes to keep sensitive electronics stable.
• Wired remote control included for convenient local control.

Specifications

• Model: RIV1230RCH-SPS (3000W 12V Pure Sine Wave High-Frequency Inverter Charger)
• Continuous Power (inverter): 3000W
• Bypass / Shore-power Max Output: up to 6000W (when supplied with 120VAC input), rated current 50A
• Input Voltage Range: 8–60 VDC (note: 5 VDC for USB Type-C)

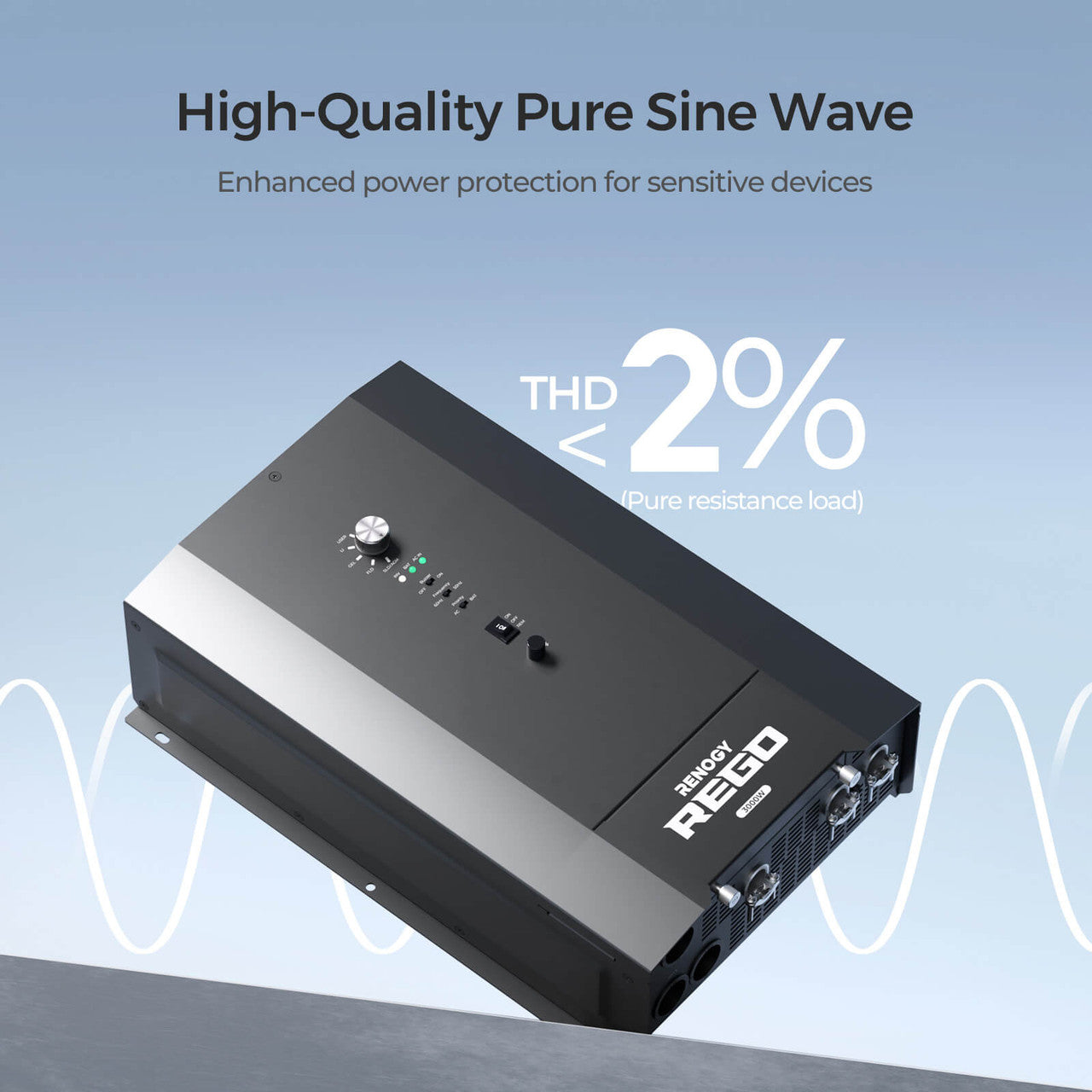

• Waveform: Pure sine wave output
• Noise: High-frequency design for notably low audible noise (bedroom-quiet operation)
• Battery Support: Advanced lithium battery activation and heating; battery temperature sensor included
• Communications: Bluetooth (built-in) for app monitoring; supports RV-C protocol (additional communications depend on optional monitor)
• Power Consumption at 12V (examples): Operating with Wi?Fi on and 100% illumination: 3.2 W; 50% illumination: 2.4 W; 0% illumination: 1.9 W; off (logger active): 1.5 W
• Environmental Performance: Maintains full-load performance up to 113°F (45°C) before derating, improving reliability in hot conditions
• Safety: Designed to manage simultaneous neutral grounding (addresses common RV grounding issues)
• EMI: Higher operating frequency reduces electromagnetic disturbance for clearer signals and improved electronics/wireless performance
• Operating Temperature Range: -4°F to 158°F (-20°C to 70°C)
• Operating Humidity: 0% to 95% RH
• Operating Altitude: Less than 5000 m above sea level
• Installation: All-in-one design for wall or flush mount, or place on a table

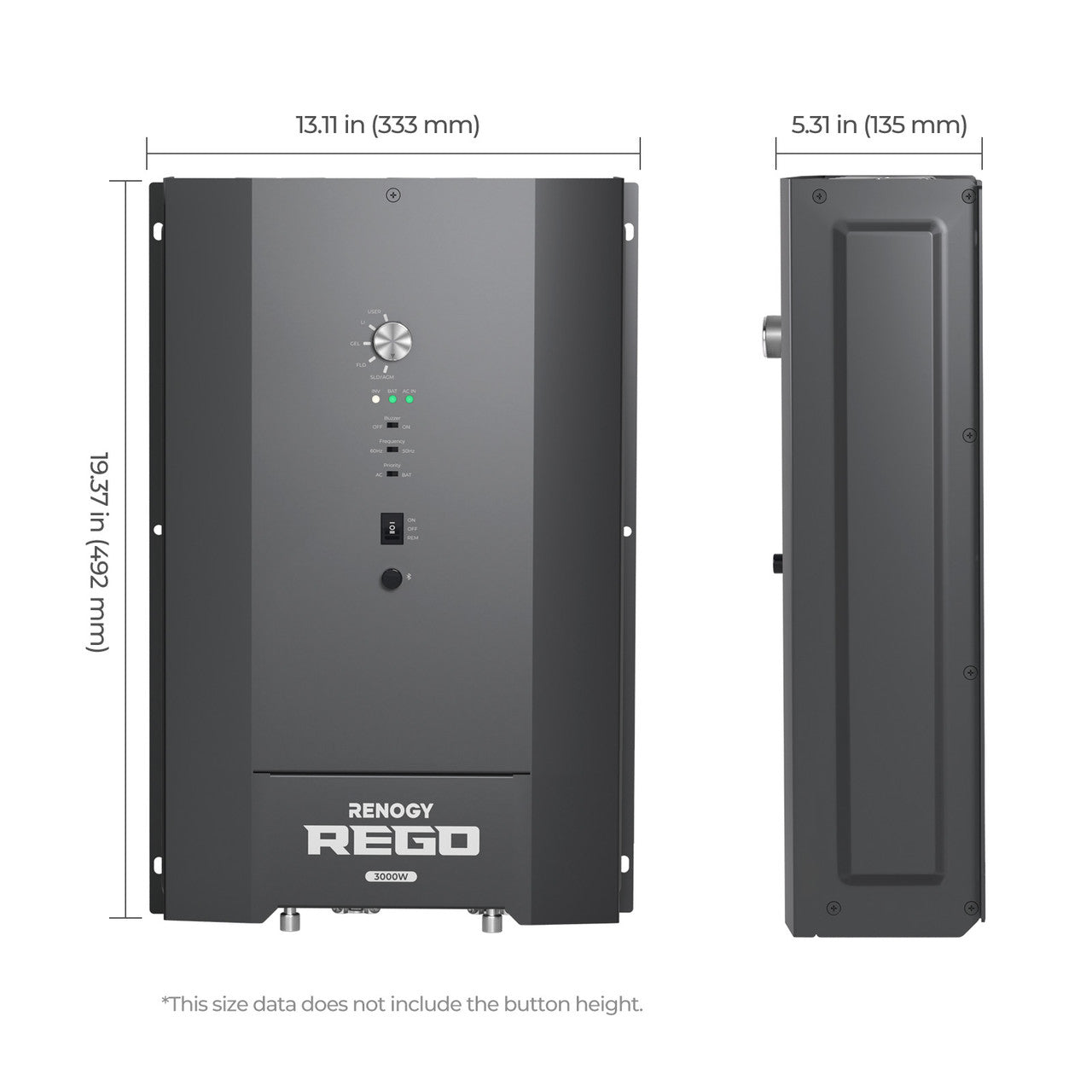

• Dimensions & Weight (monitor/module details from included monitoring device): 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm); Weight 0.28 lb (128 g)
• Certifications: CE, FCC, RoHS, TSCA, BQB, IC?ID
• Warranty: 2 years
• Optional Monitor Specs (if purchased with Renogy ONE Core): 4" touchscreen (480 x 480 px), Wi?Fi 2.4 GHz, Bluetooth LE/Mesh, Zigbee 3.0, RS?485

Package Includes

• Inverter only option:
  • 1 x 3000W Pure Sine Wave HF Inverter Charger
  • 1 x Battery temperature sensor
  • 1 x Voltage detection line
  • 1 x Inverter wired remote control
• Inverter with Renogy ONE Core option:
  • 1 x 3000W Pure Sine Wave HF Inverter Charger
  • 1 x Battery temperature sensor
  • 1 x Voltage detection line
  • 1 x Inverter wired remote control
  • 1 x Renogy ONE Core monitor
