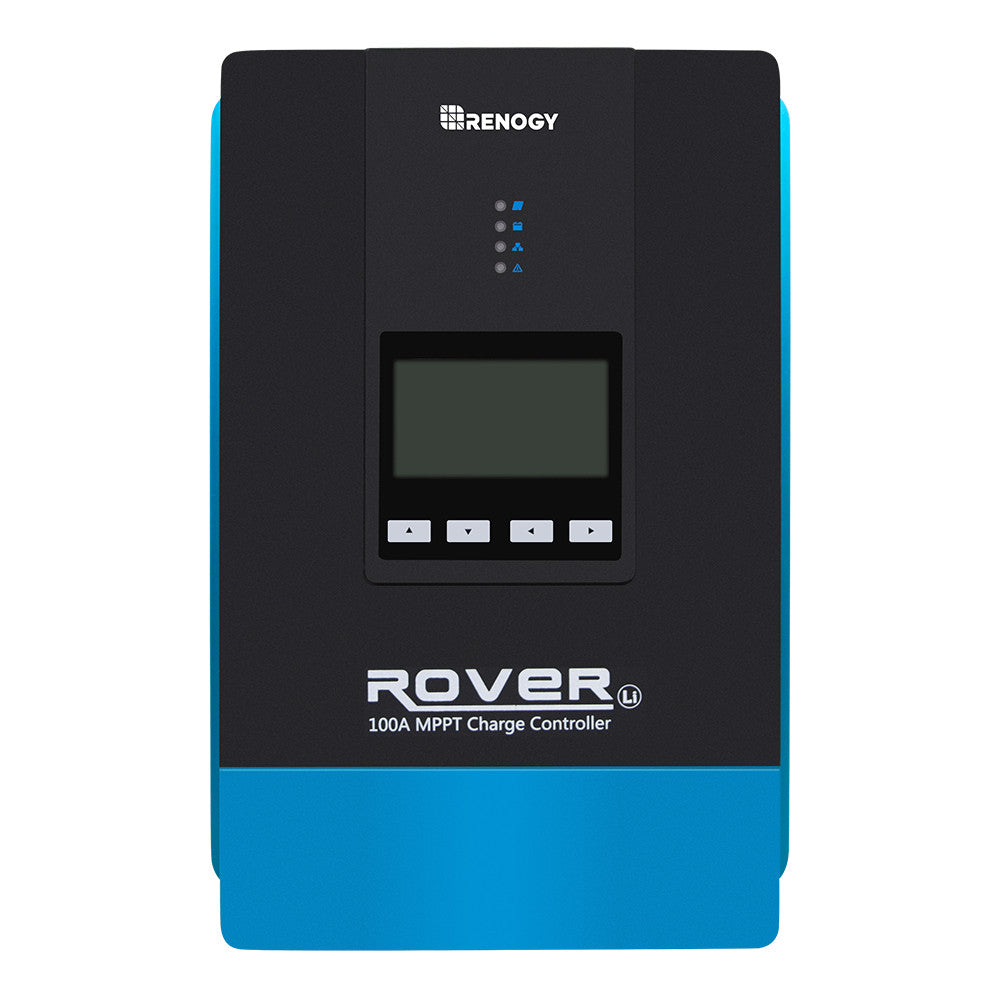

Renogy Rover 100A MPPT Solar Charge Controller
High-capacity MPPT controller for large off-grid and mobile systems
The Rover 100A MPPT is Renogy’s largest Rover controller, built to manage high PV input and simplify system monitoring. It supports multiple battery chemistries, offers advanced protections and MPPT efficiency, and can be monitored and adjusted remotely using Renogy Bluetooth modules and the DC Home app. For larger installations, two units can be paralleled to double the charge current.
Benefits
- Keep your system running reliably with automatic protections that reduce the need for constant manual checks.
- Monitor and adjust your system from your phone so you spend less time on-site and more time using the power.
- Scale capacity quickly by paralleling a second Rover 100A to double charging current without redesigning the system.
- Choose the right battery chemistry and let the controller auto-recognize nominal voltage, saving setup time and configuration errors.
- Gain clearer system insight with on-device LCD/LED indicators plus real-time app data for faster troubleshooting and planning.
Features
- 100 A rated charge current for high-capacity battery banks.
- Automatic nominal voltage detection for 12V / 24V / 36V / 48V (non-lithium by auto-recognition).
- MPPT tracking efficiency up to 99% and peak conversion efficiency up to 98% to maximize solar harvest.
- Electronic protections against reverse polarity, overcharge, over-discharge, overload, short circuit and reverse current.

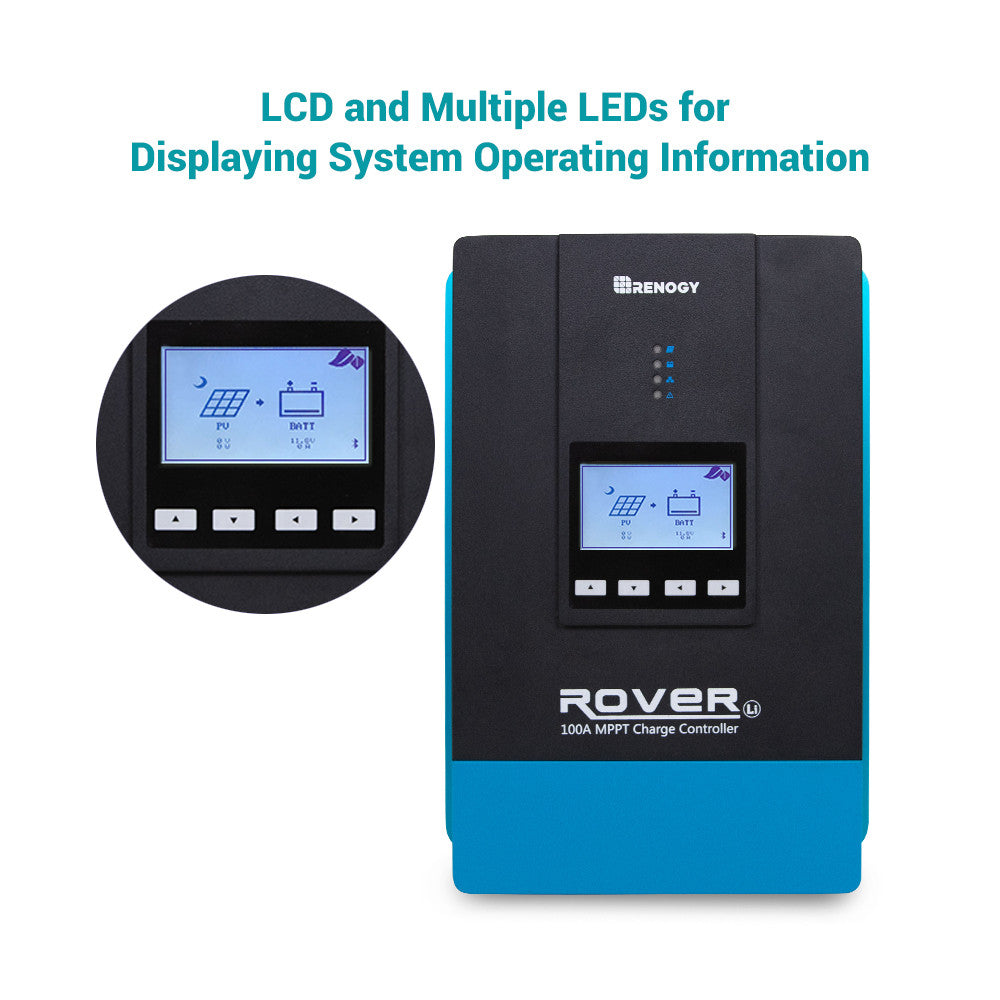

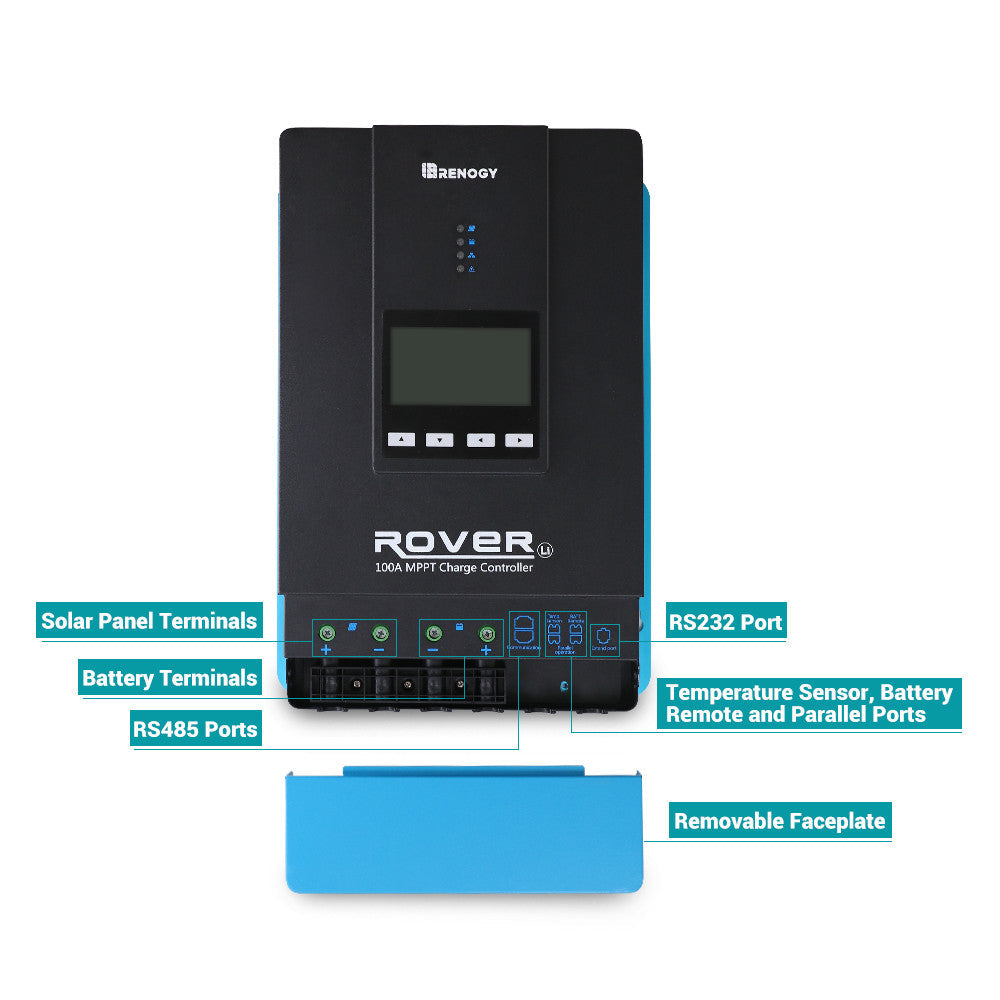

- Onboard LCD and multi-color LEDs to show operation status, configurable parameters and error codes.
- Self-diagnostic capability to identify common faults and provide error codes for faster fixes.

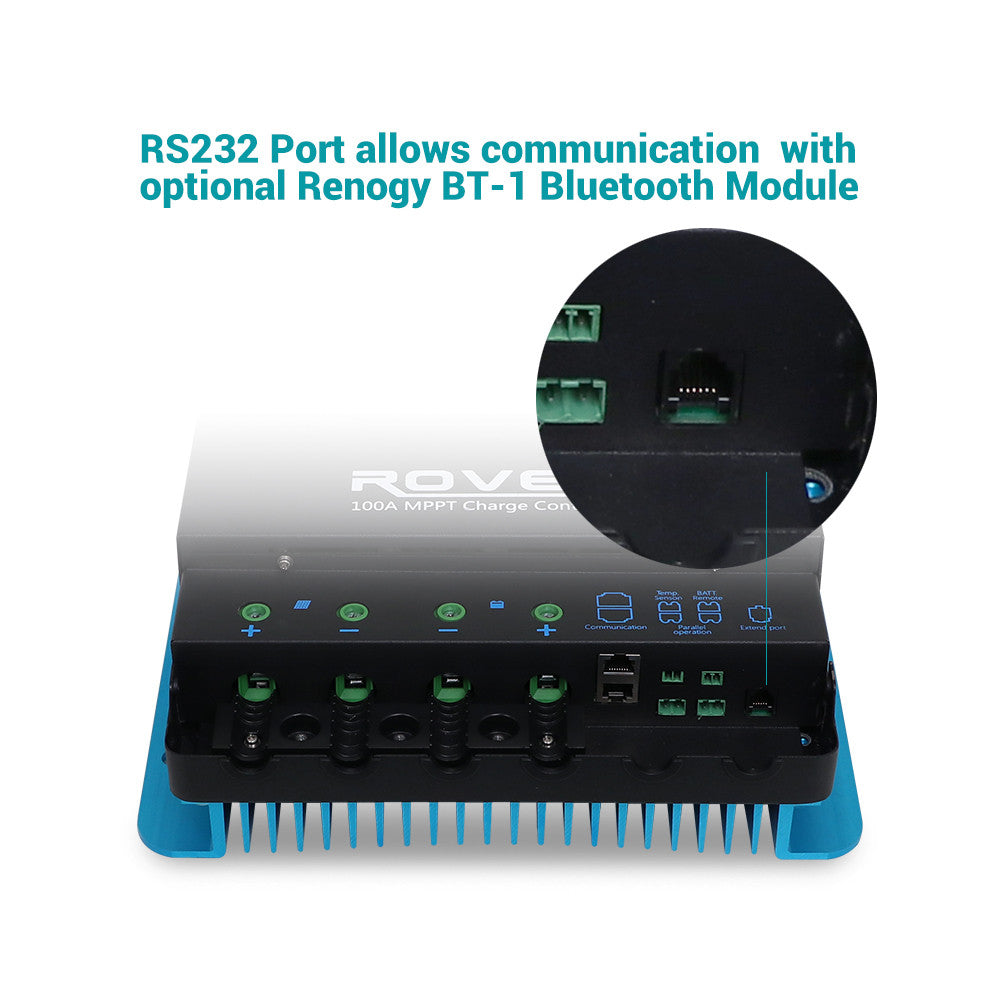

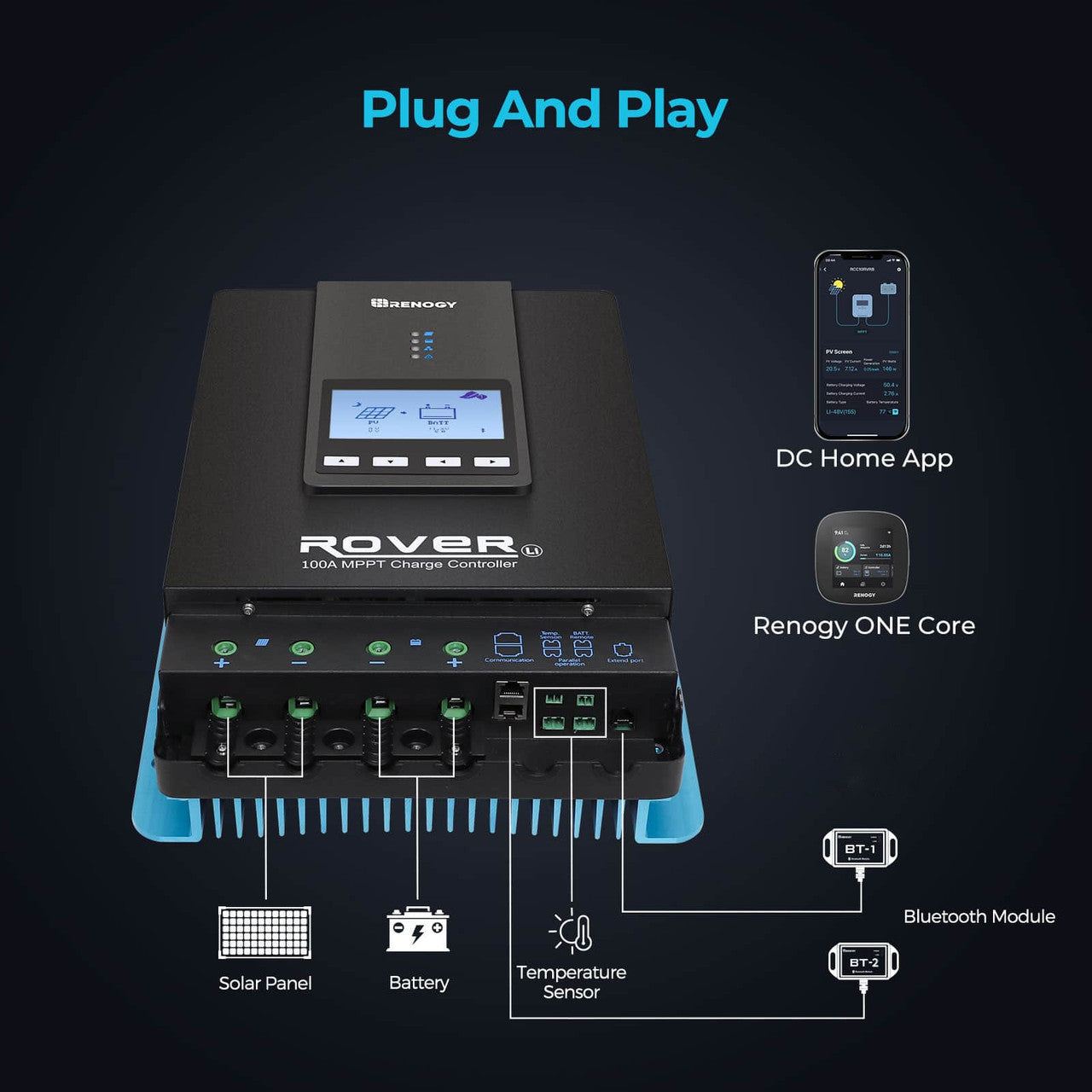

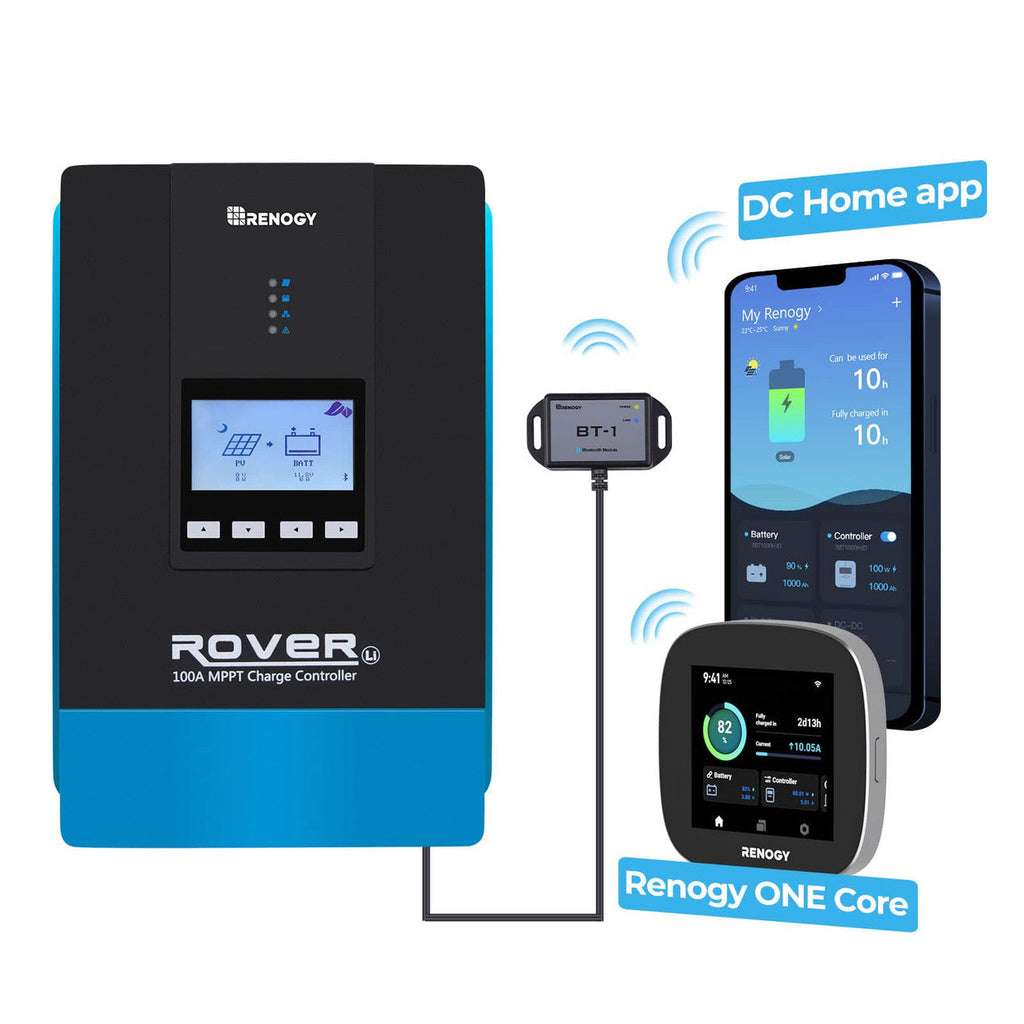

- Bluetooth-compatible via RS232 (BT-1) or RS485 (BT-2) for real-time monitoring with the DC Home app and Renogy ONE products.
- Controller paralleling cable included for connecting two Rover 100A units in parallel for 200 A total charging capacity.
Specifications
- Rated charge current: 100 A
- Nominal voltage: 12V / 24V / 36V / 48V auto recognition (for non-lithium batteries)
- Max PV input power: 1300 W @ 12V; 2600 W @ 24V; 3900 W @ 36V; 5200 W @ 48V
- Max PV input voltage: 150 VDC (at 25°C); 140 VDC (at -25°C)
- MPPT tracking efficiency: up to 99%
- Peak conversion efficiency: 98%
- Self-consumption: 2.7 W – 2.9 W
- Temperature compensation: -3 mV/°C per 2 V (default)
- Operating temperature range: -35°C to +45°C

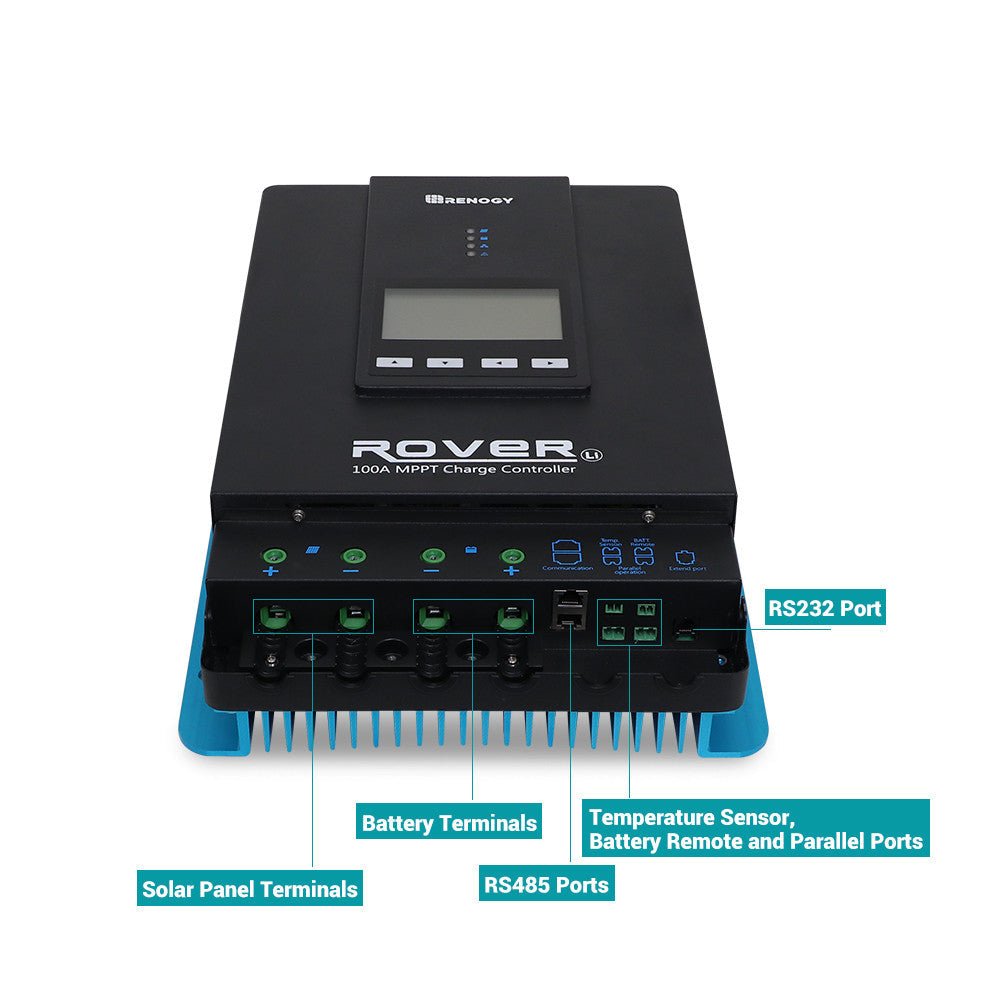

- Terminals: 25 mm² (4 AWG)
- Dimensions: 12.00 x 17.44 x 4.35 in
- Weight: 22 lb
- Enclosure rating: IP32
- Certifications: CE
- Compatible Bluetooth modules: Renogy BT-1 (RS232) and BT-2 (RS485)

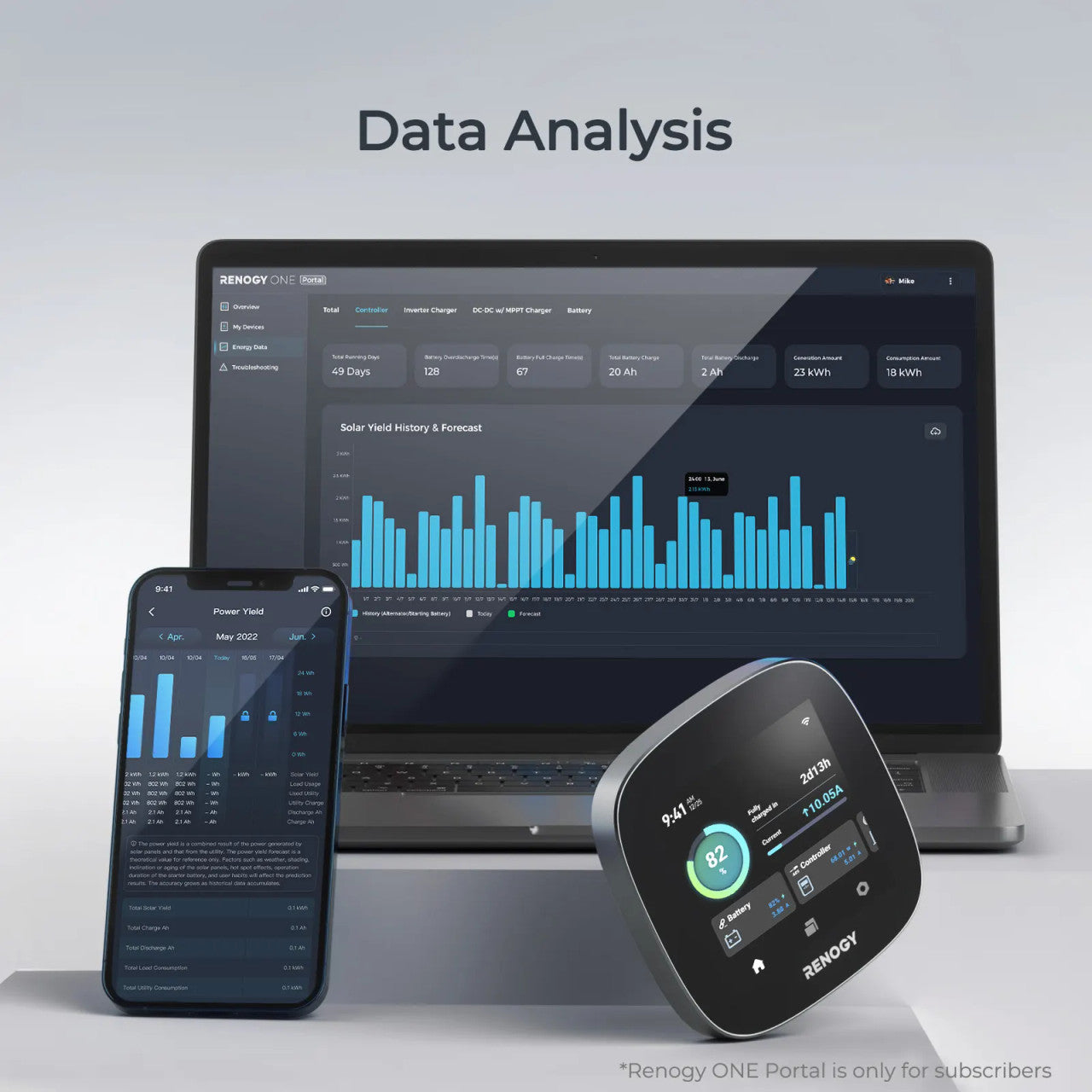

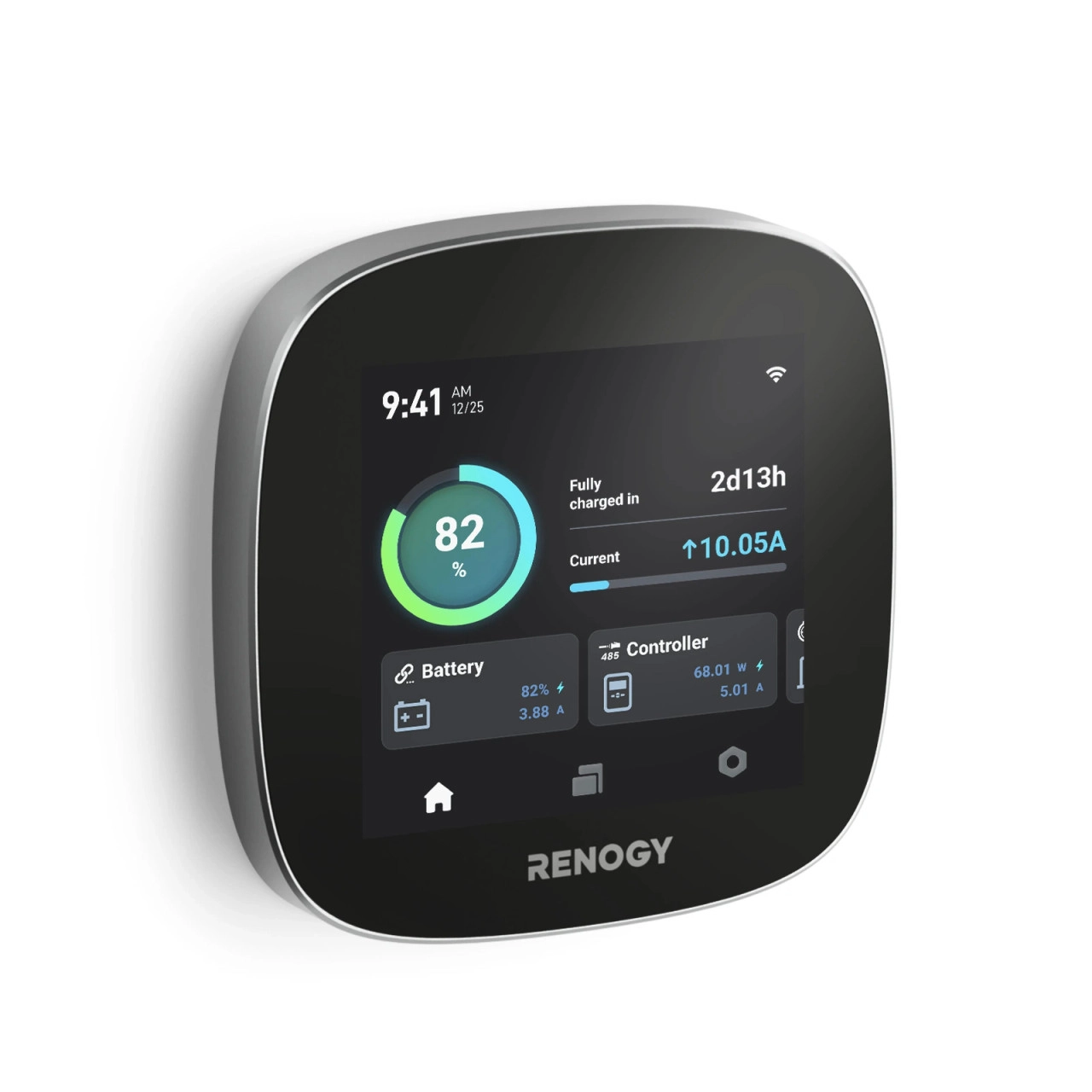

- App compatibility: Monitor and control via the Renogy DC Home app and Renogy ONE ecosystem
- Included in the package: Rover 100 Amp MPPT Solar Charge Controller (1), Remote Temperature Sensor (1), Controller Paralleling Cable (1)
- Warranty: Accessories covered by a 3-year material and workmanship warranty
