Power for large off-grid systems with smart remote monitoring
Overview

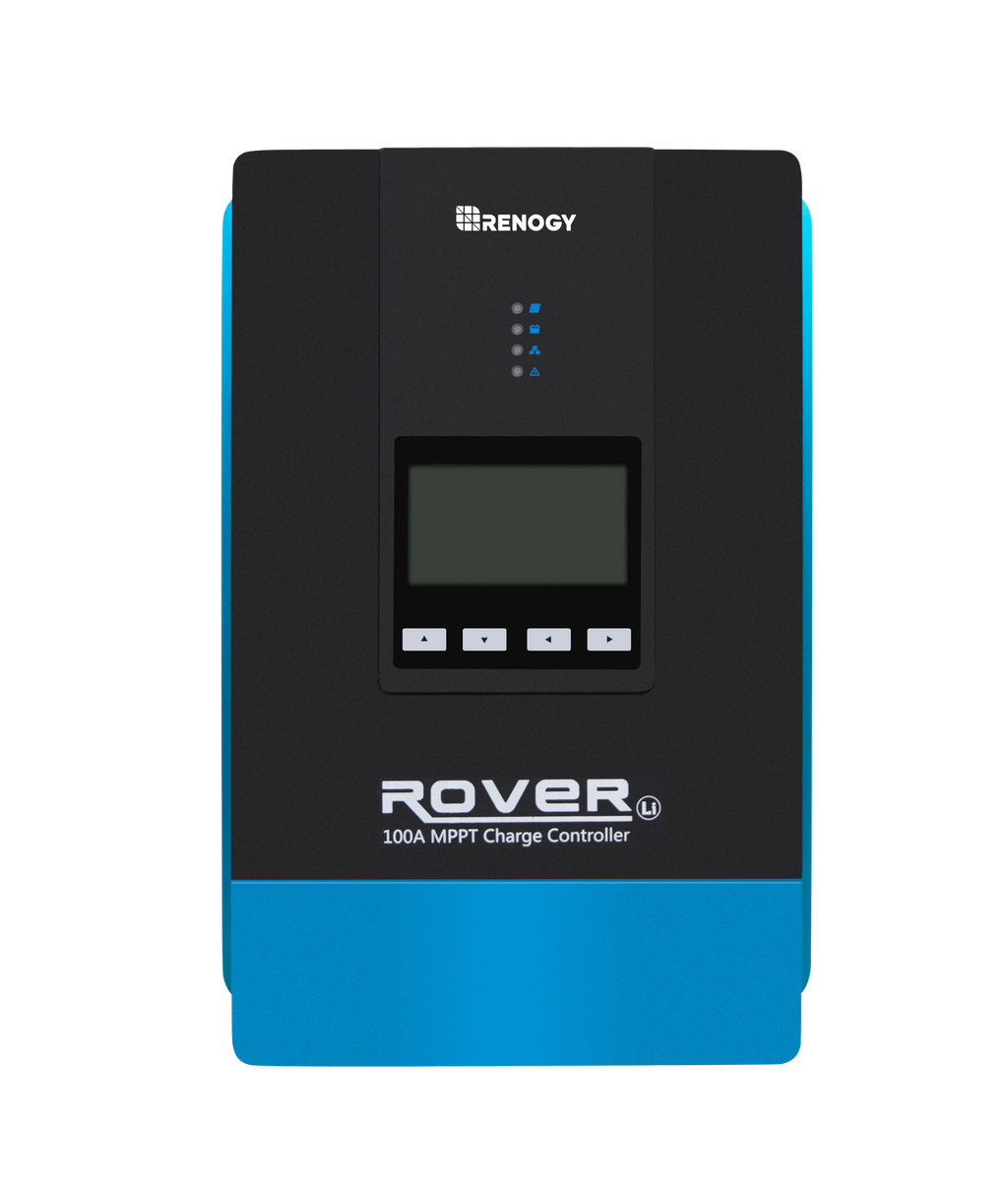

The Rover 100A MPPT is Renogy’s largest Rover controller, built for high-capacity off-grid and mobile solar systems. It supports up to 1300 W (12 V) / 2600 W (24 V) / 3900 W (36 V) / 5200 W (48 V), offers advanced MPPT efficiency, robust electrical protections, and remote monitoring via Bluetooth and the DC Home app (compatible with Renogy ONE). Two units can be paralleled for 200 A total, making this controller scalable for bigger installs.
Benefits
Spend less time troubleshooting: built-in self-diagnostics and clear status indicators surface issues quickly so you can fix them fast.
Monitor and adjust from anywhere: Bluetooth + DC Home app access lets you check system status and change settings from your phone.
Handle larger systems without swapping hardware: high input power and the ability to parallel controllers let you expand capacity as needs grow.
Protect your battery investment: multiple electronic protections reduce risk of damage from faults and improper wiring.
Simplify setup and operation: auto voltage recognition and support for common battery types remove guesswork during installation.
Features
MPPT tracking with up to 99% tracking efficiency and peak conversion efficiency of 98%.
Auto-detects system nominal voltage: 12 V / 24 V / 36 V / 48 V (auto recognition for non-lithium batteries).
Supports multiple battery chemistries: AGM, Sealed, Gel, Flooded, and Lithium.

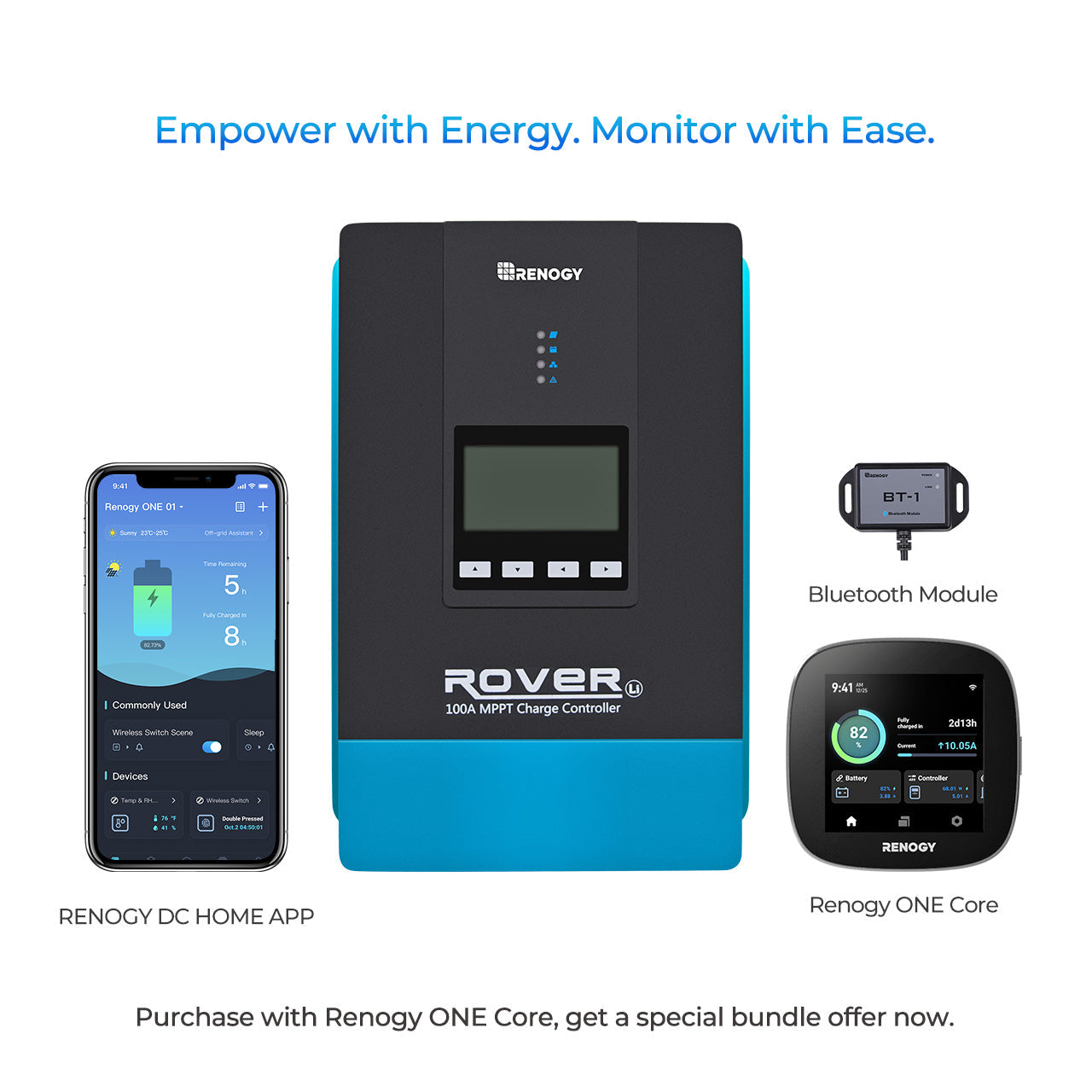

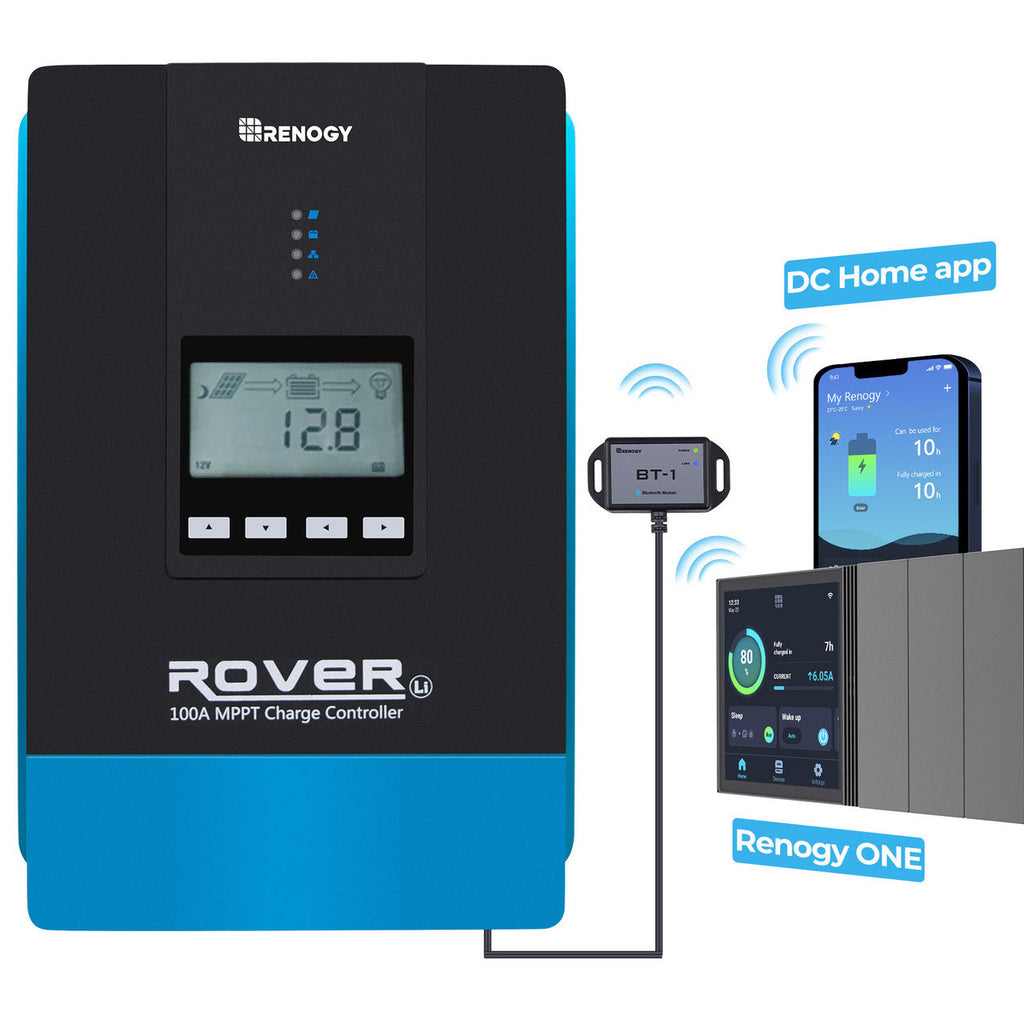

Remote control and monitoring via Renogy BT-1 or BT-2 Bluetooth modules and the DC Home app; compatible with Renogy ONE display.

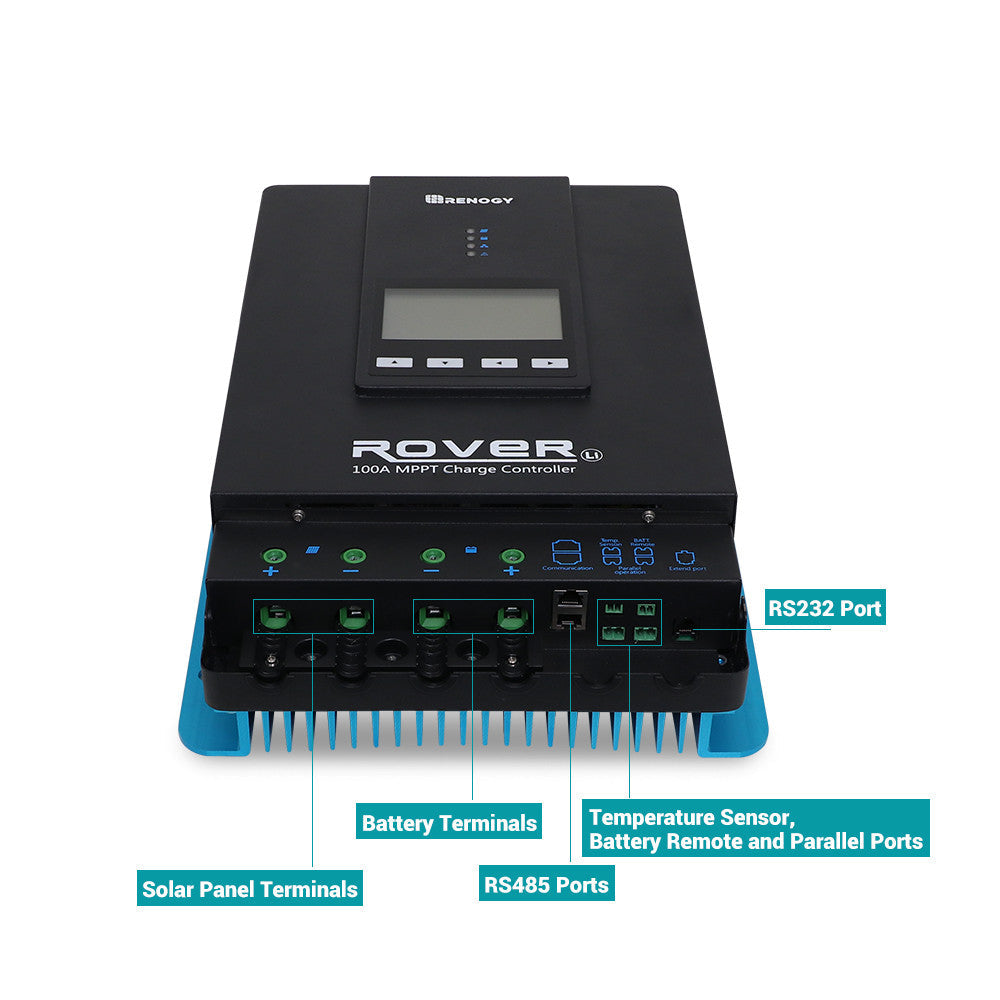

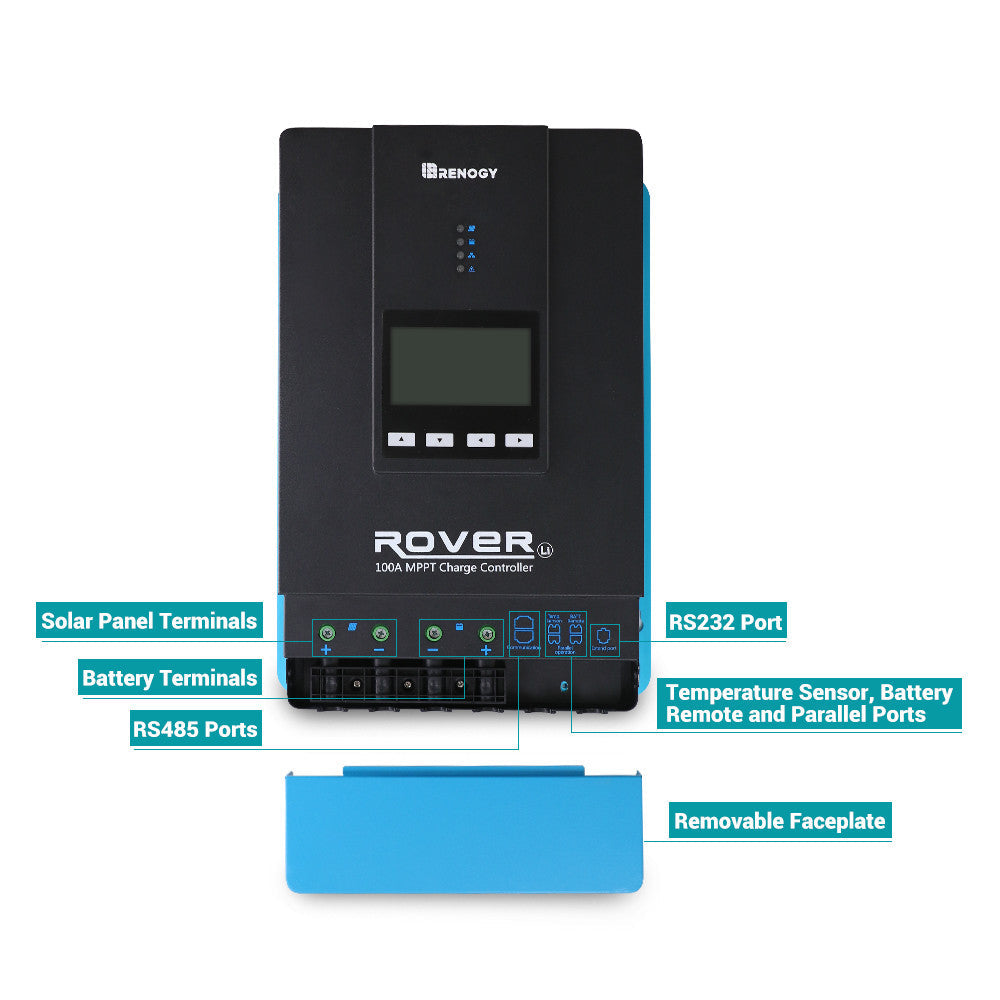

RS232 and RS485 communication ports for data and integration with monitoring modules.
Parallel capability: connect two Rover 100A units for a combined 200 A charge capacity using the included paralleling cable.
Comprehensive electronic protections: reverse polarity, overcharge, over-discharge, overload, short-circuit, and reverse current protection.

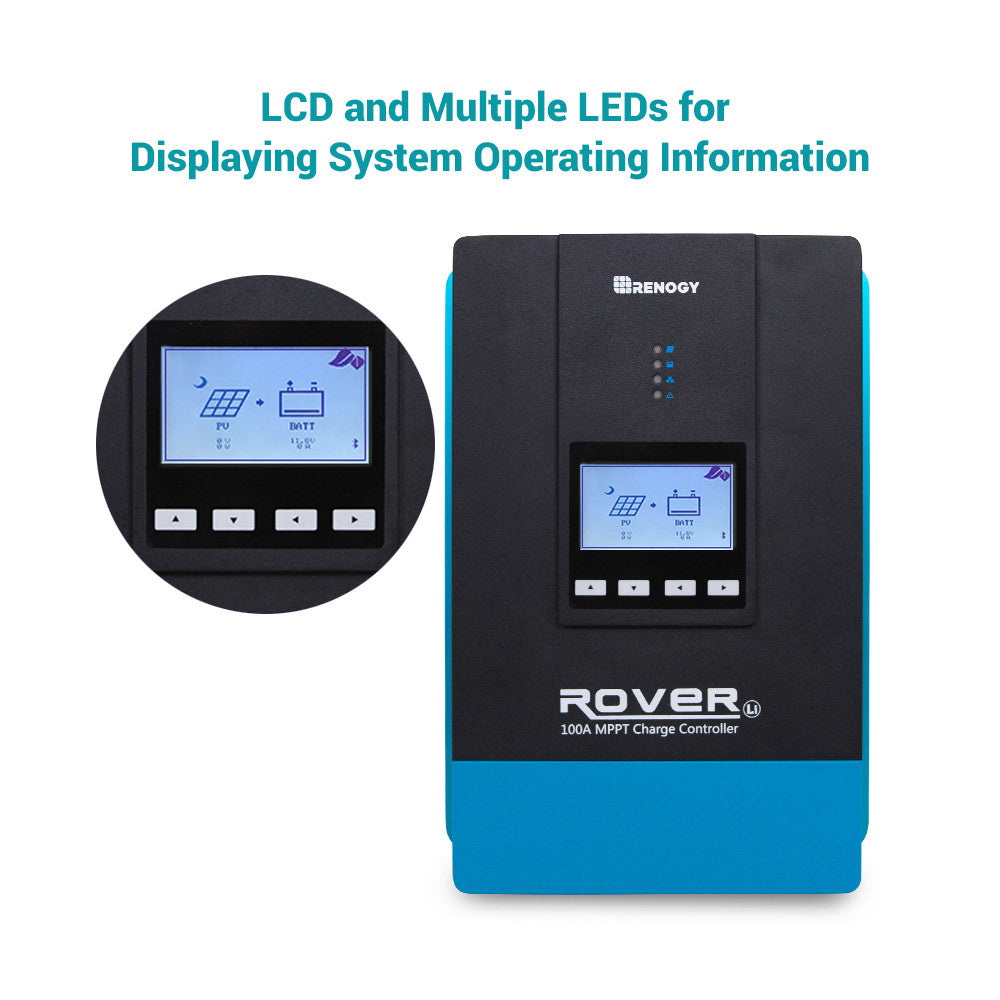

LCD screen and LED indicators for system operation, customizable parameters, and error codes.
Built-in temperature sensor input and included remote temperature sensor for accurate temperature compensation.
Specifications
Rated charge current: 100 A
Max PV input power:
1300 W @ 12 V
2600 W @ 24 V
3900 W @ 36 V
5200 W @ 48 V
Max PV input voltage: 150 V DC (at 25°C); 140 V DC (at -25°C)
Nominal voltages: 12 V / 24 V / 36 V / 48 V (auto recognition for non-lithium)
Self-consumption: 2.7 W – 2.9 W
Operating temperature: -35°C to +45°C
Temperature compensation: -3 mV/°C per 2 V (default)
Dimensions: 12.00 × 17.44 × 4.35 in
Weight: 22 lb (9.9 kg)
Enclosure rating: IP32
Terminals: 25 mm² (4 AWG)
Certification: CE
Compatible Bluetooth modules: Renogy BT-1 or BT-2

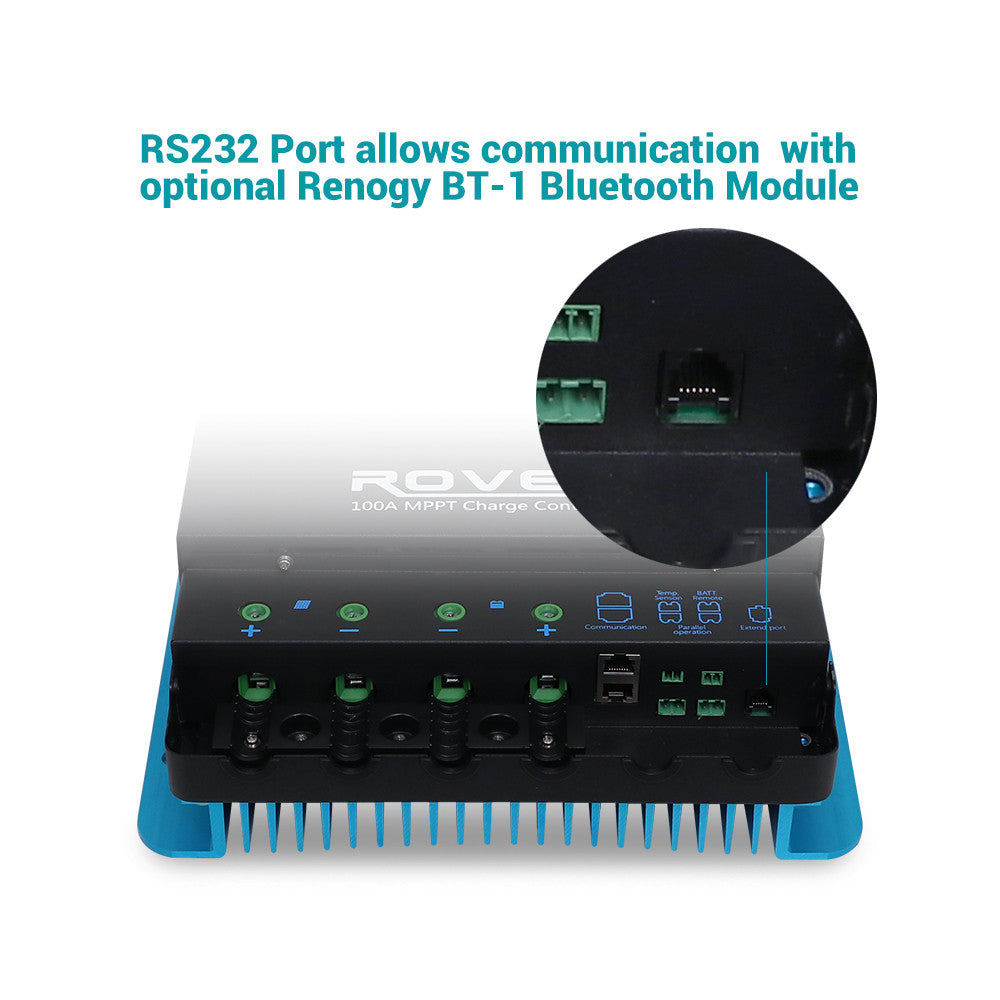

Communication ports: RS232 (works with BT-1) and RS485 (works with BT-2)
Package contents:
Rover 100 Amp MPPT Solar Charge Controller — 1×

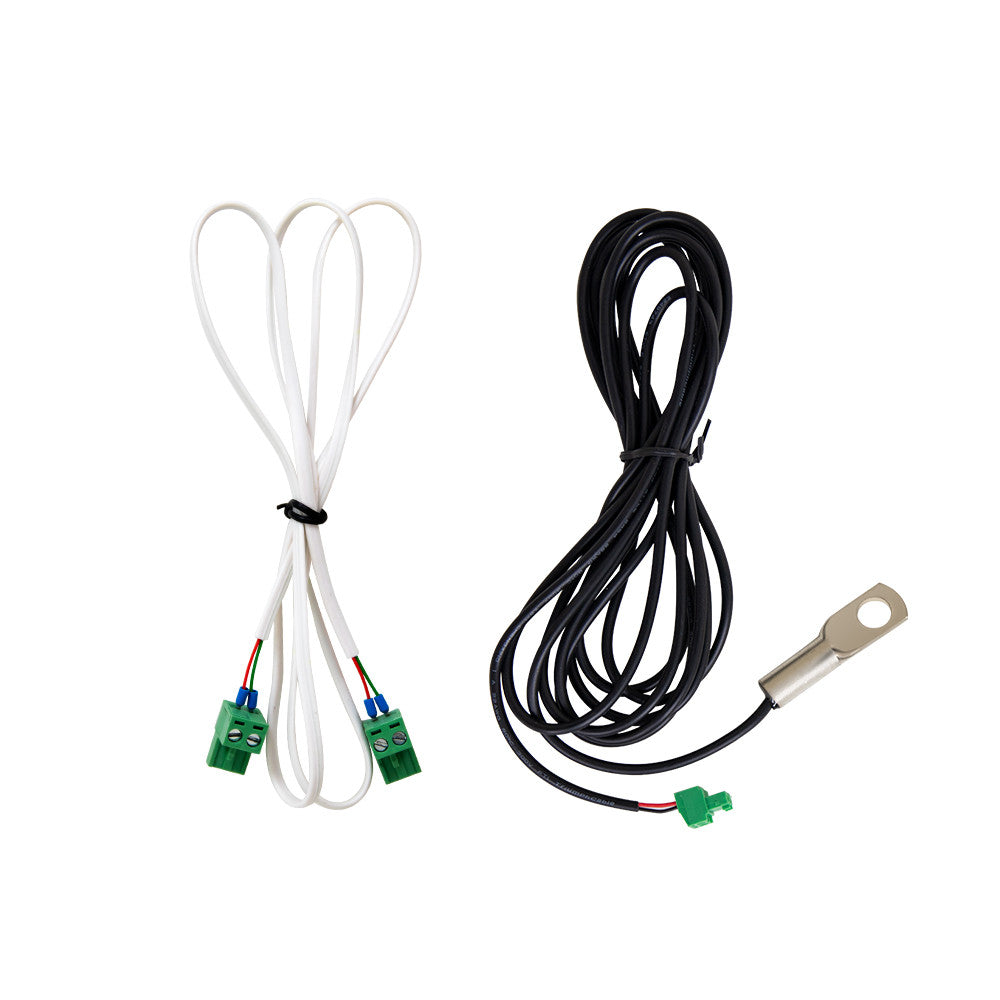

Remote temperature sensor — 1×
Controller paralleling cable — 1×
Warranty: Accessories covered by a 3-year material and workmanship warranty
