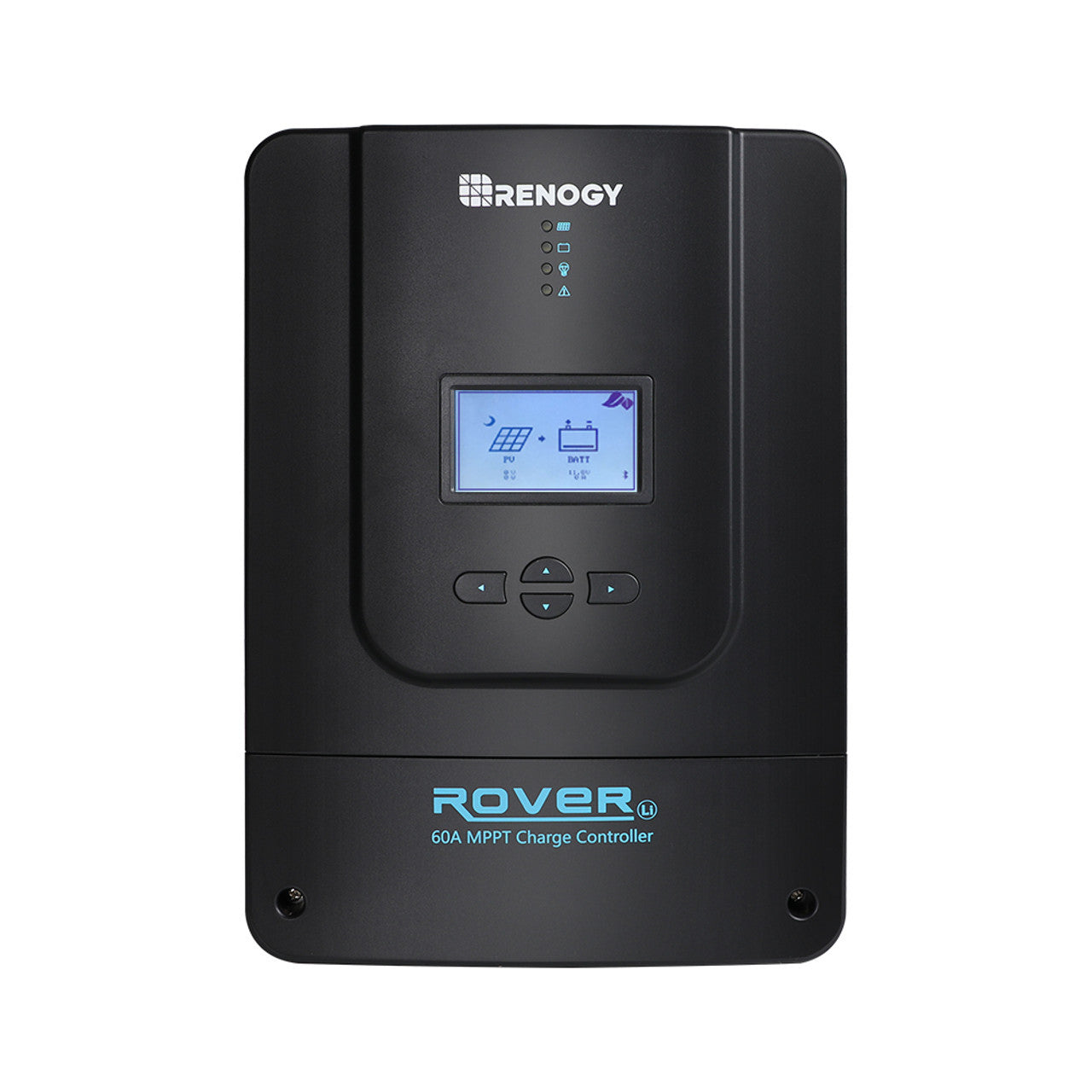

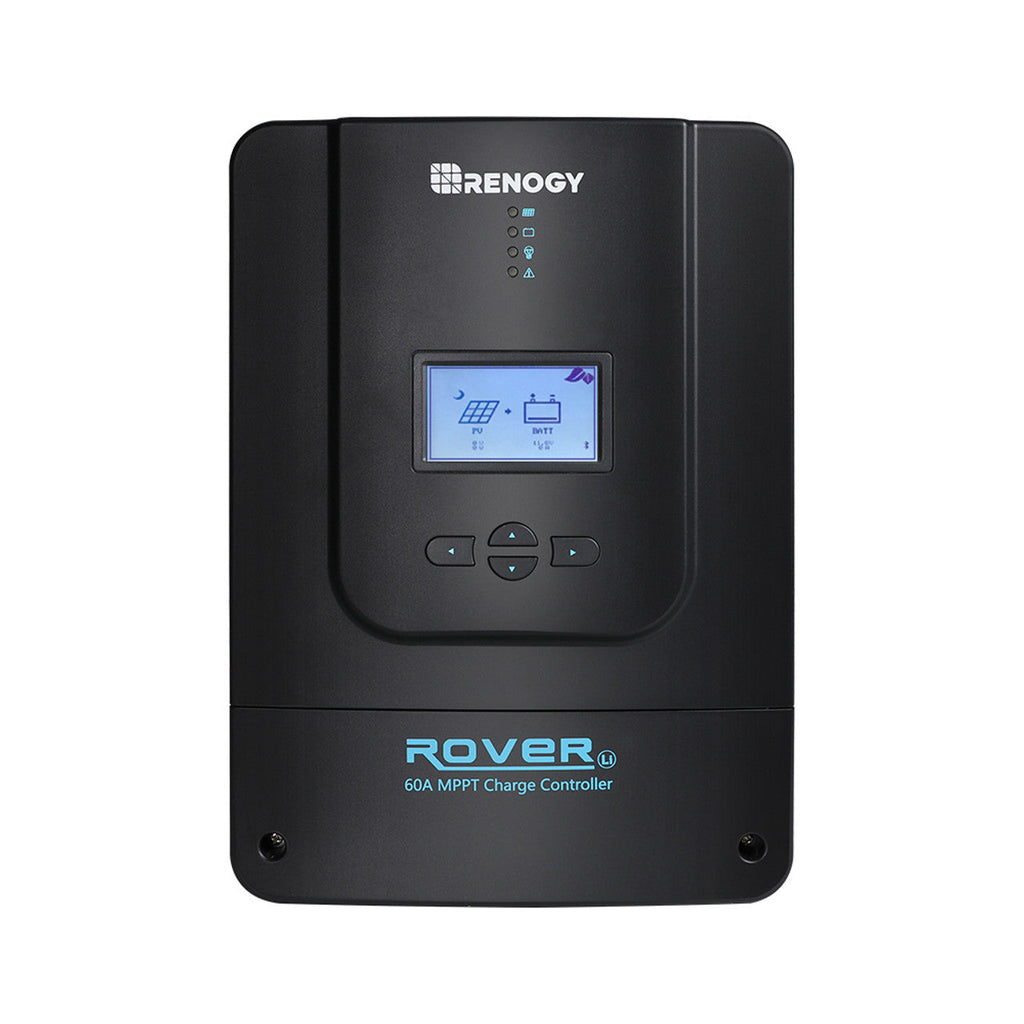

Rover 60A MPPT Solar Charge Controller

Overview

The Renogy Rover 60A MPPT Solar Charge Controller delivers reliable, efficient, and intelligent power regulation for your off-grid, RV, or cabin solar system. With auto voltage detection, advanced protections, and a rugged aluminum design, it ensures optimal charging and system safety — no matter where your setup takes you.

Benefits

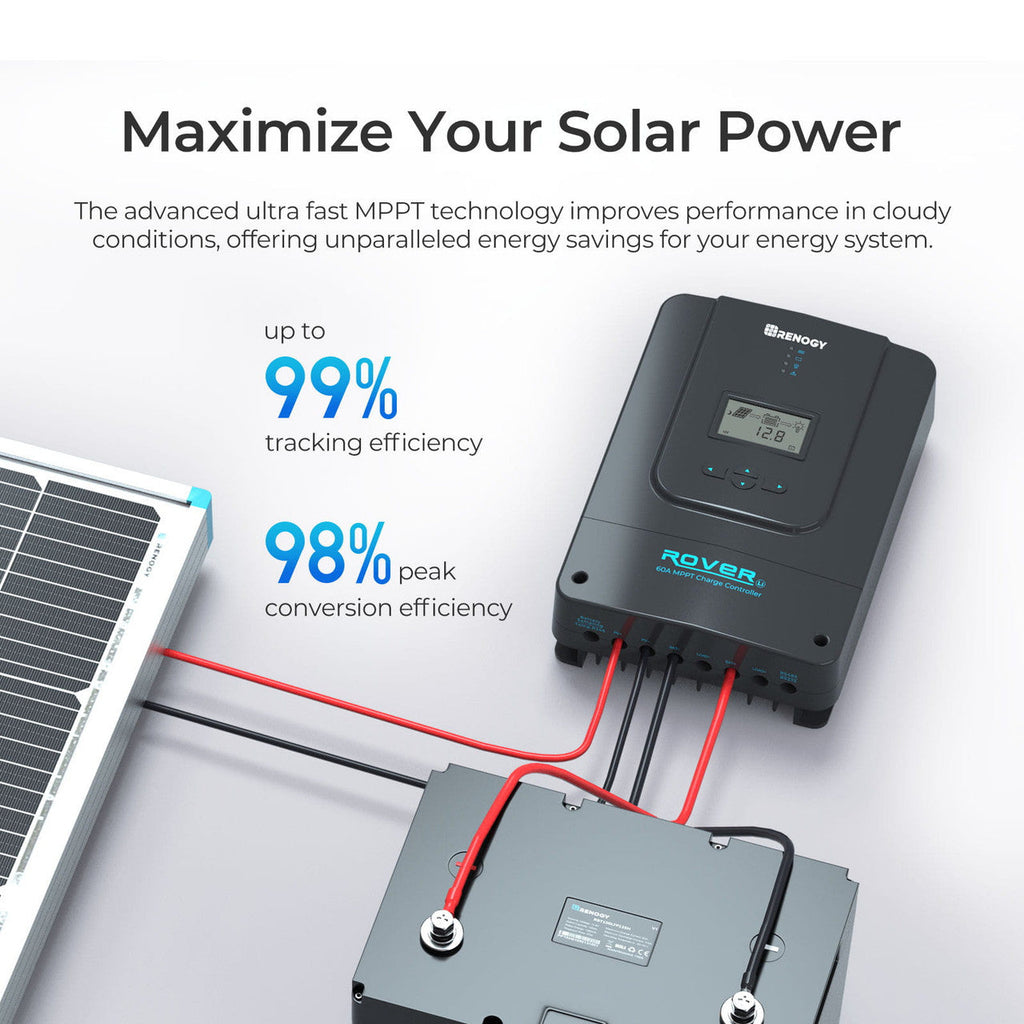

• Maximize your solar harvest with 99% tracking and 98% conversion efficiency.
• Save time with auto-detection for 12V, 24V, 36V, and 48V systems.
• Protect your investment with built-in safeguards against overheating, overcharging, and reverse polarity.

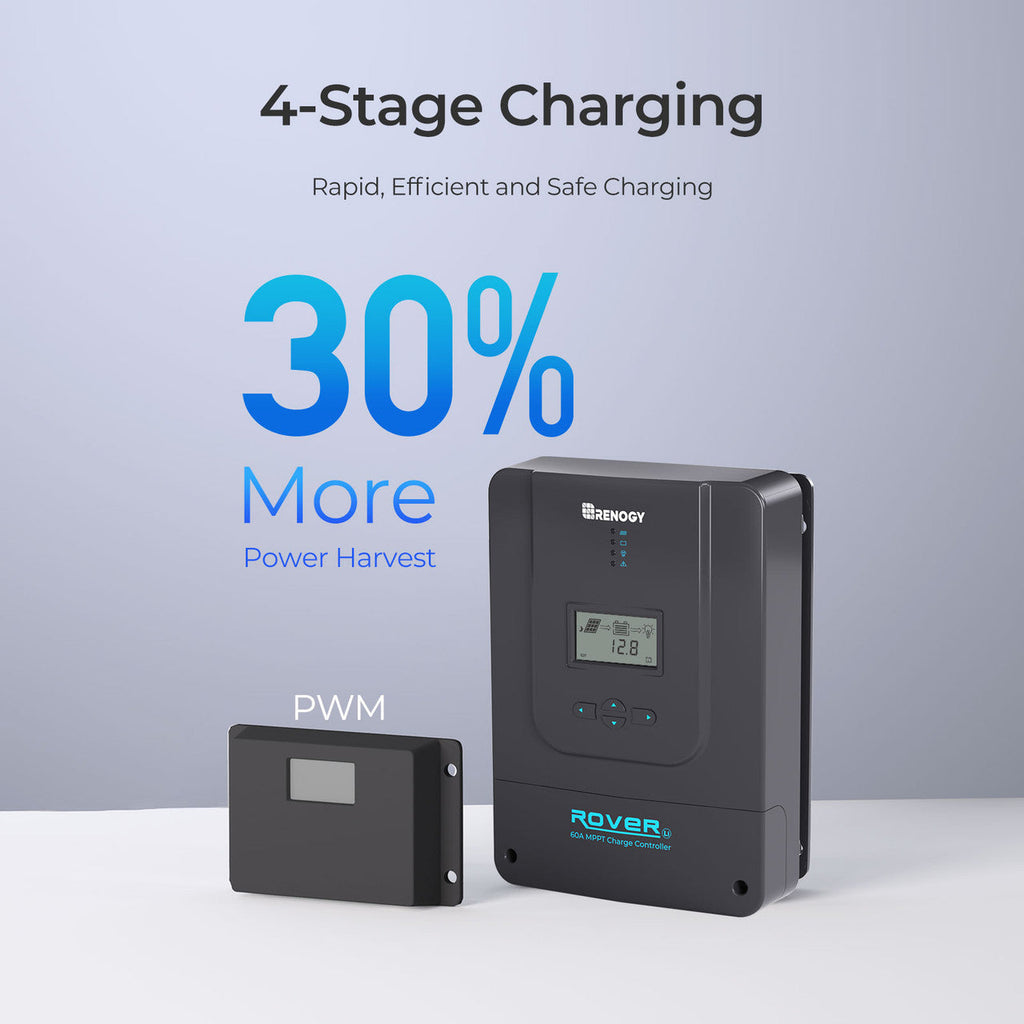

• Extend battery life using intelligent 4-stage charging technology.
• Enjoy peace of mind with durable insulation and a robust die-cast aluminum body.

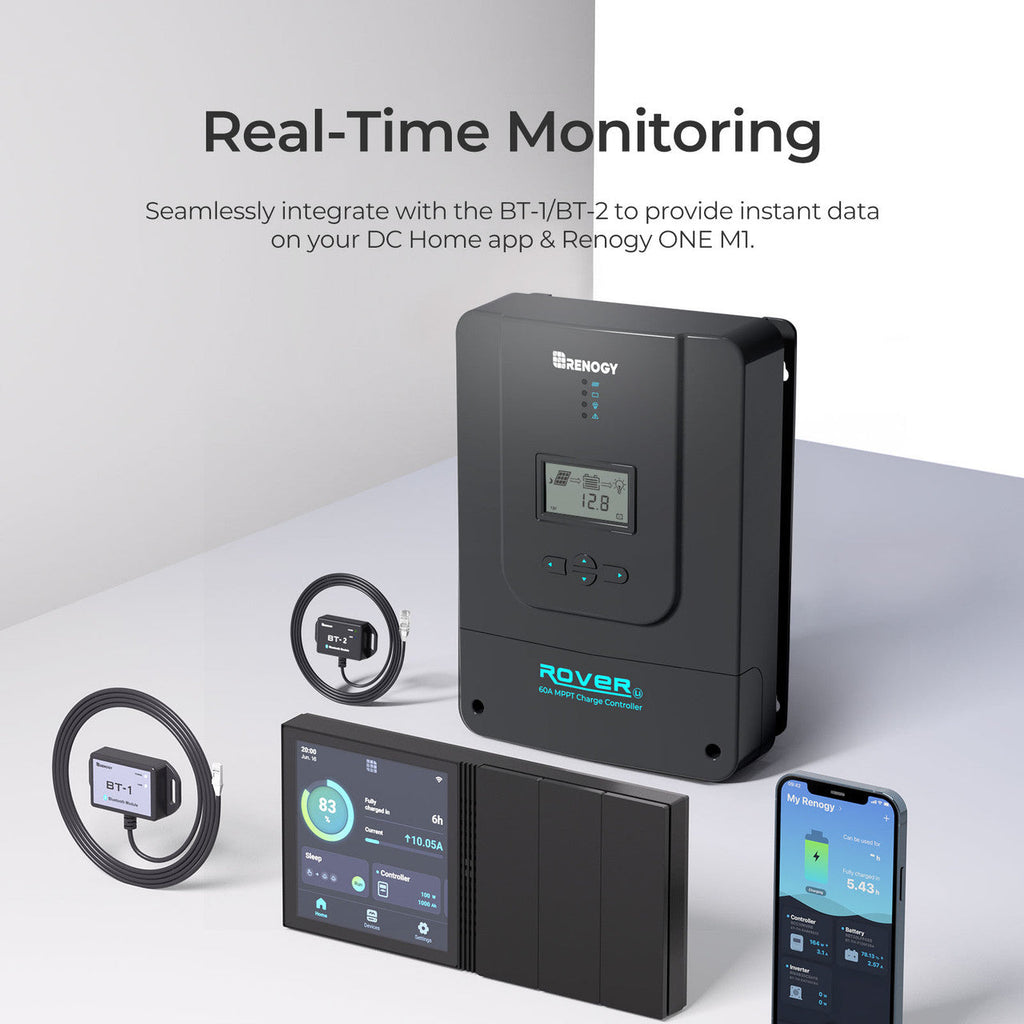

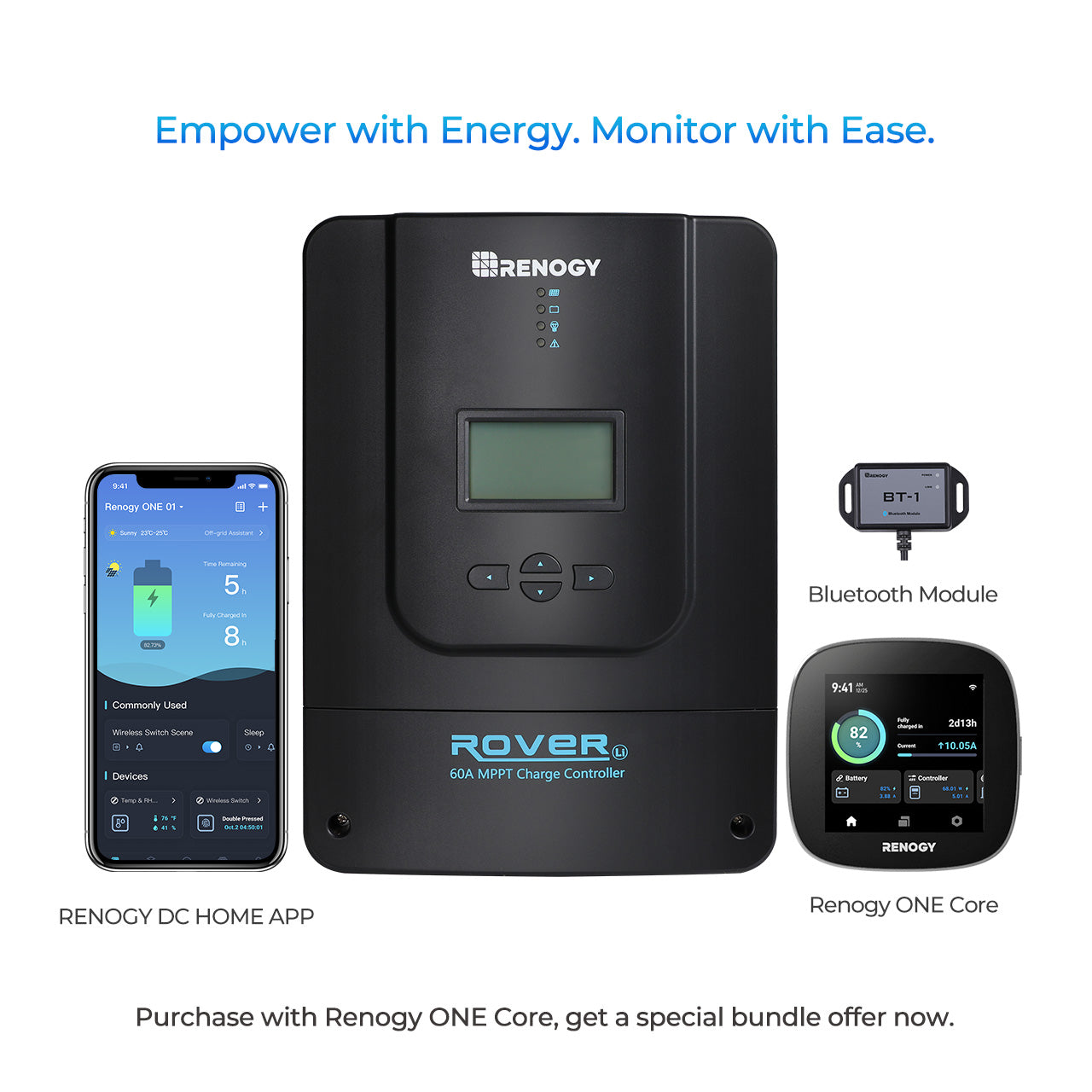

• Monitor and manage your energy use anywhere via Bluetooth and the Renogy DC Home app (optional module required).

Features

• Advanced MPPT algorithm provides up to 99% tracking efficiency and 98% conversion rate.

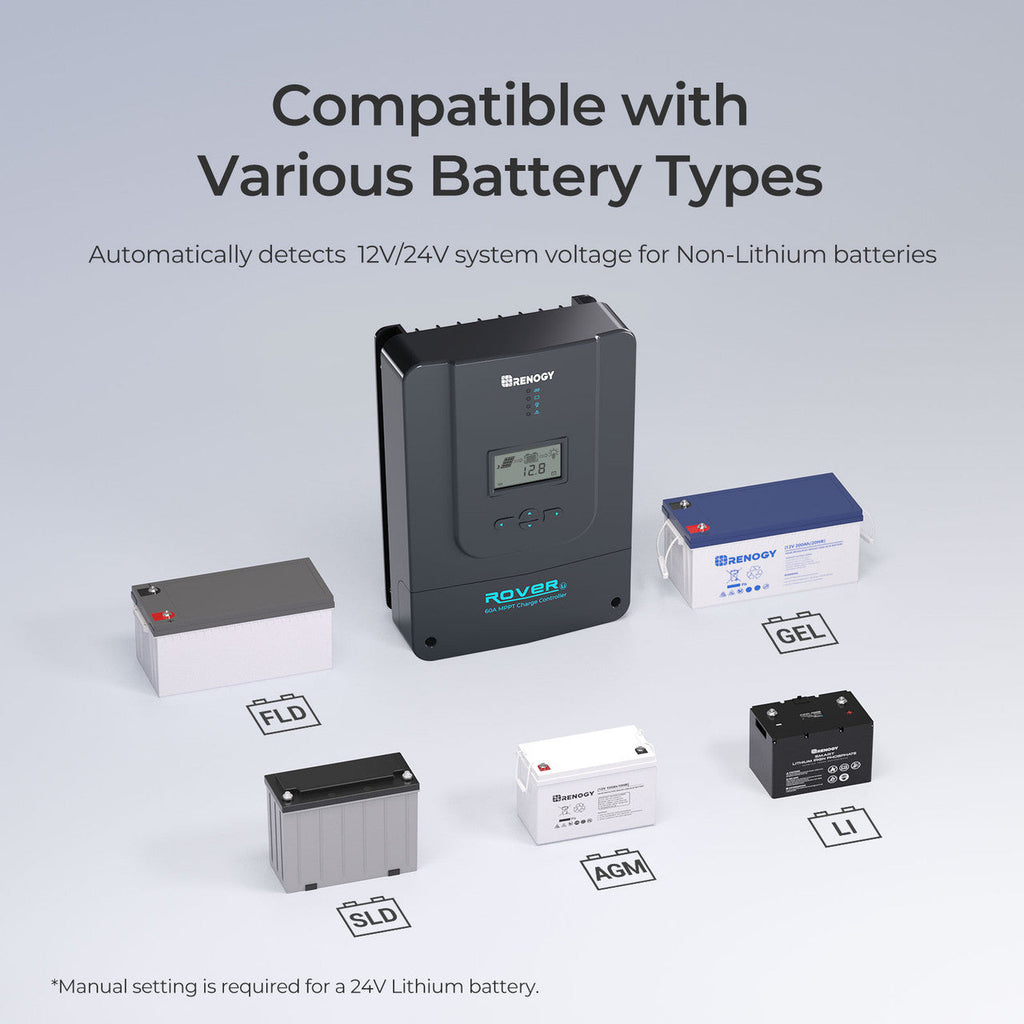

• Auto-recognition for 12V, 24V, 36V, and 48V battery systems (non-lithium batteries).
• Multiple load control modes: Auto, Timer, Manual, Test, and Always-On.
• Reactivates lithium batteries in protection mode.
• Insulated casing for maximum safety and electrical protection.

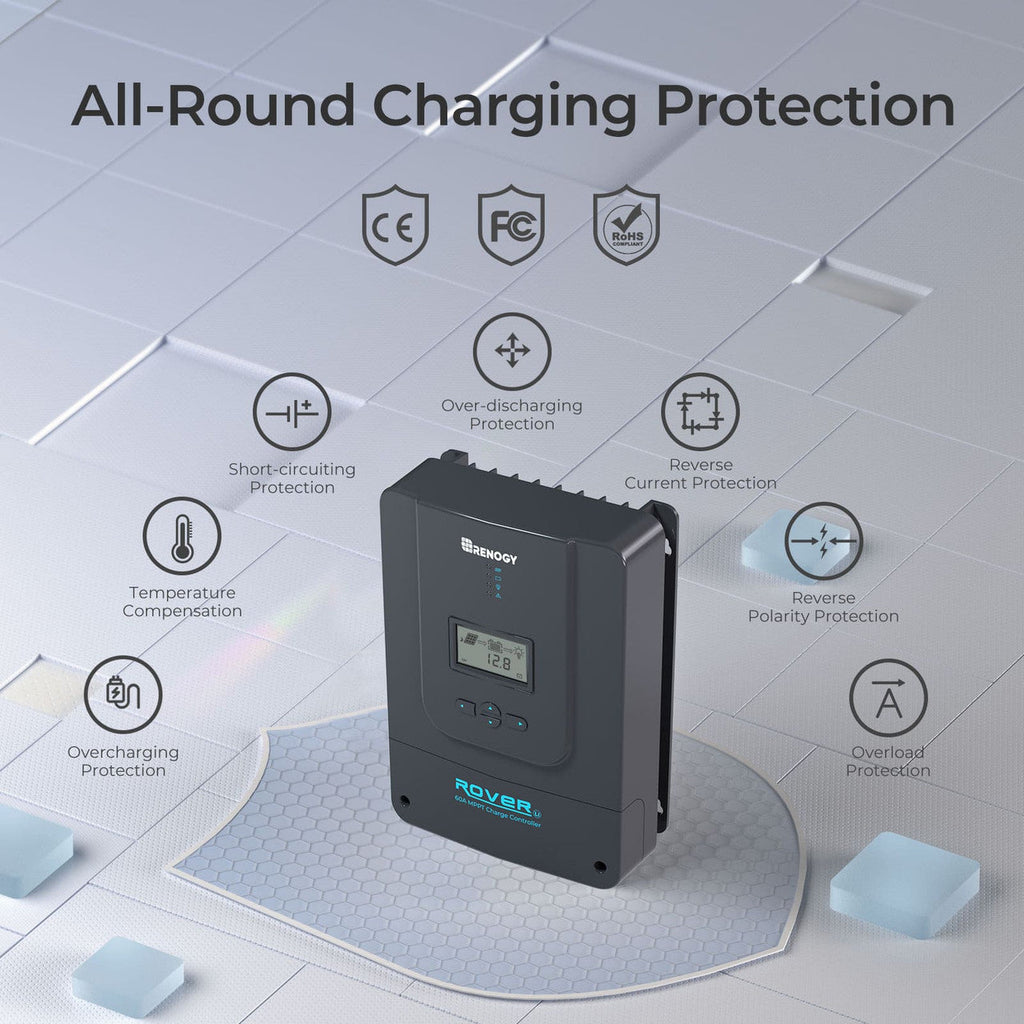

• 8 comprehensive electronic protections for voltage, current, and load monitoring.
• Efficient heat dissipation with die-cast aluminum construction.
• External temperature sensor prevents over- or undercharging in extreme climates.
• Compatible with Renogy BT-1 or BT-2 Bluetooth modules for remote monitoring.

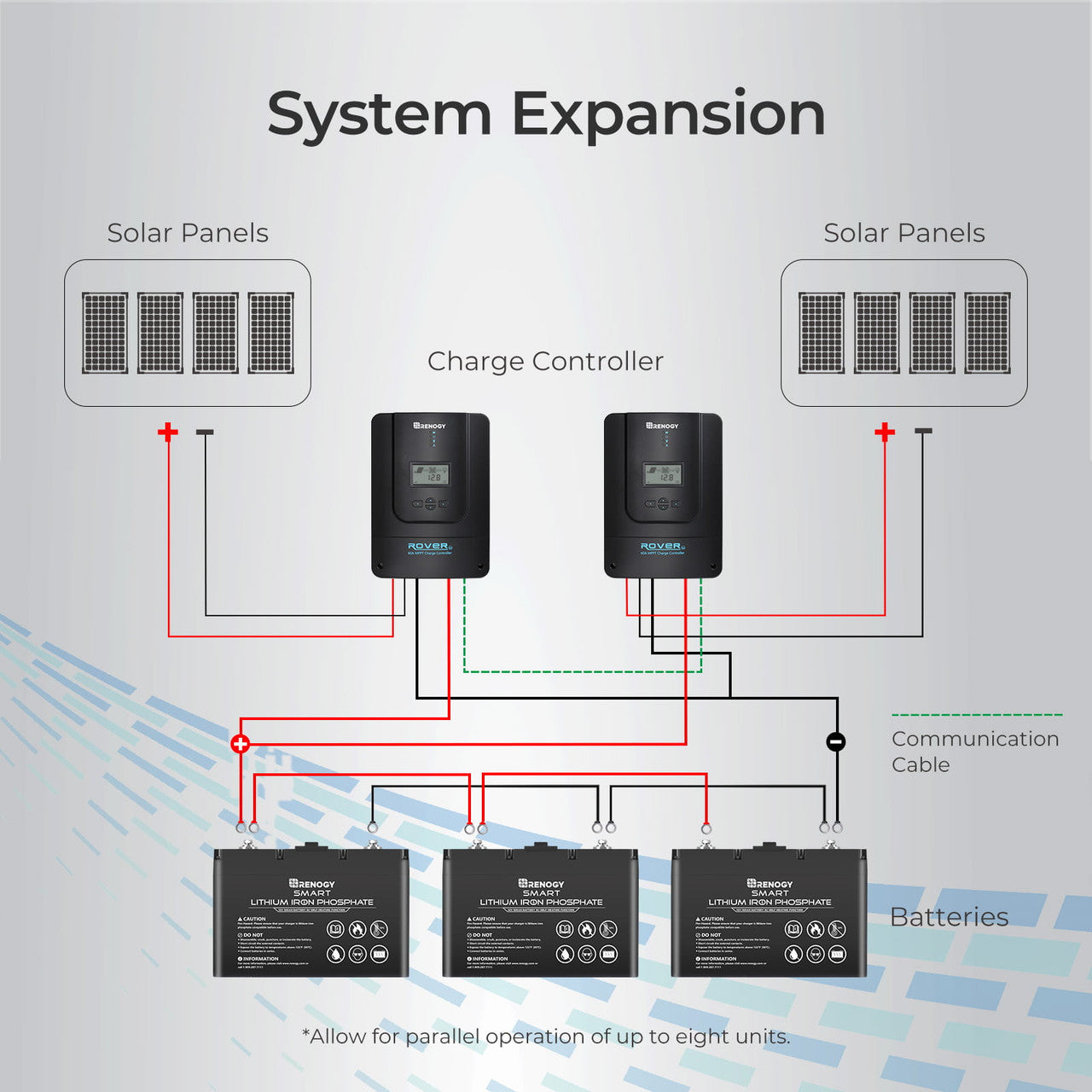

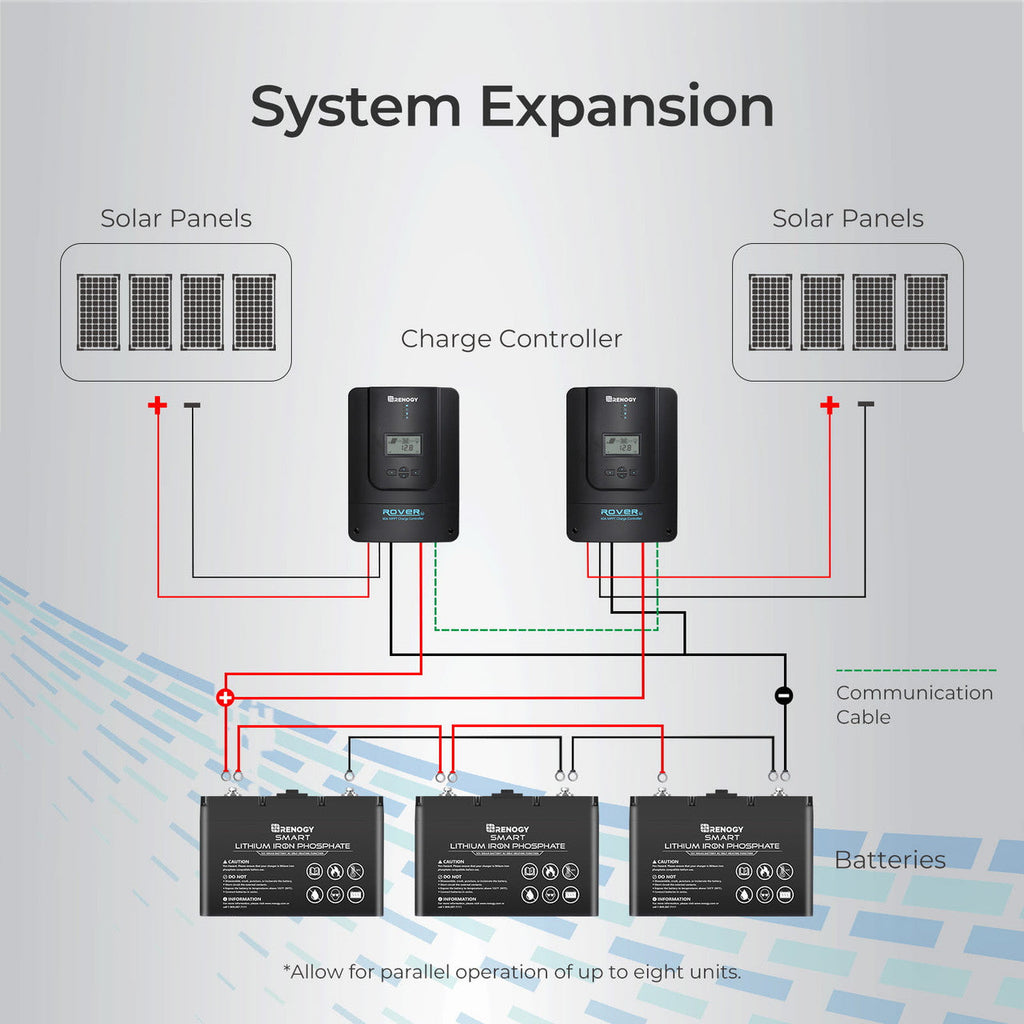

• Expandable up to 6400W on a 48V system.

Specifications

• Nominal Voltage: 12V/24V/36V/48V (Auto Recognition for non-lithium batteries)
• Rated Charge Current: 60A
• Rated Load Current: 20A
• Max PV Input Power: 800W (12V) / 1600W (24V) / 2400W (36V) / 3200W (48V)
• Max PV Input Voltage: 140VDC
• Tracking Efficiency: 99%
• Peak Conversion Efficiency: 98%
• Self-Consumption: 0.7W–1.2W
• Operating Temperature: -31°F to 113°F (-35°C to 45°C)
• Temperature Compensation: -3mV/°C/2V (default)
• Dimensions: 11.22 × 8.07 × 4.00 in (285 × 205 × 102 mm)
• Weight: 7.9 lbs (3.6 kg)
• Enclosure: IP32

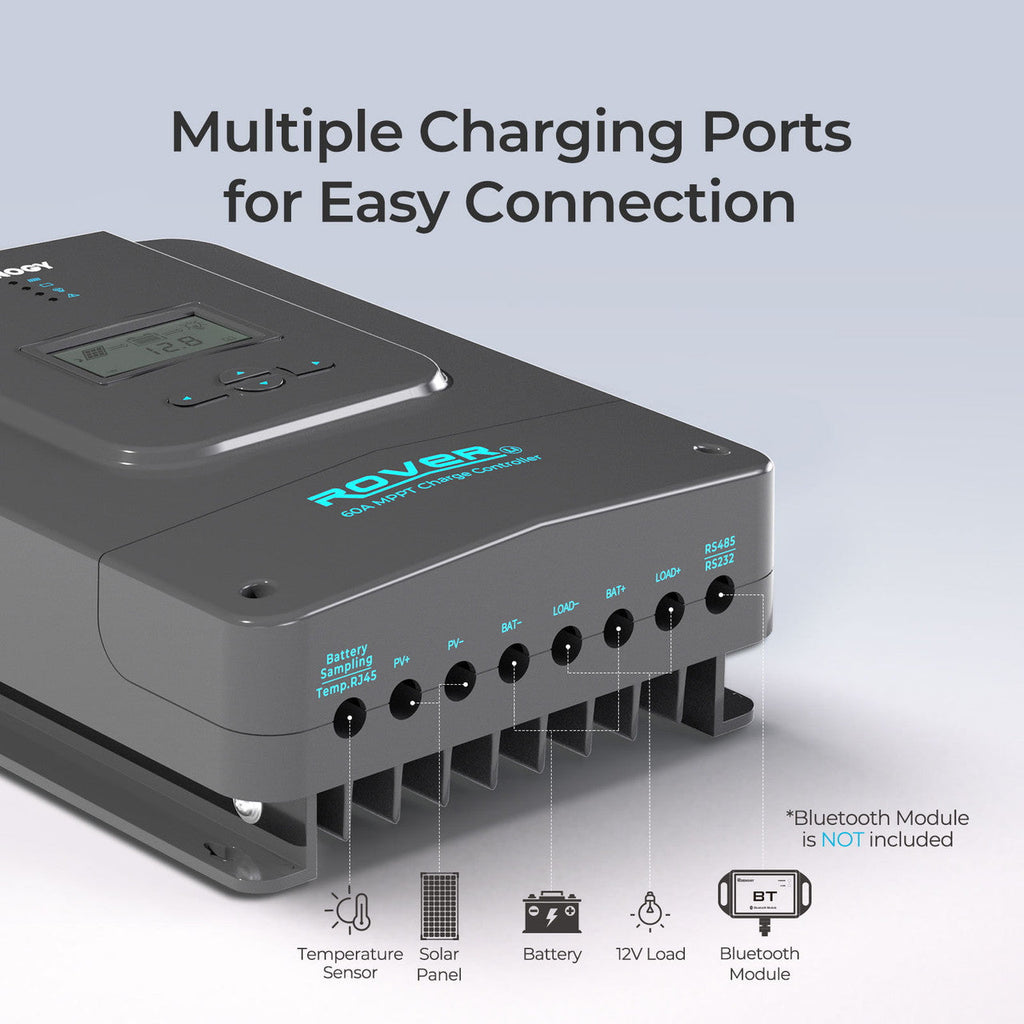

• Terminals: 4 AWG (25mm²)
• Certifications: CE, RoHS
• Bluetooth Compatibility: Renogy BT-1 / BT-2 Module
• Warranty: 3-Year Material and Workmanship

Package Includes

• 1 × Rover 60A MPPT Solar Charge Controller
• 1 × Remote Temperature Sensor
• 4 × Mounting Brackets
• 1 × User Manual
• Optional: 1 × Renogy BT-1 Bluetooth Module

Optional Accessories

• Renogy BT-1 or BT-2 Bluetooth Module for real-time monitoring
• Renogy DC Home App (via Bluetooth module)
• Additional solar panels up to 6400W for 48V systems
