Renogy Rover 20A MPPT Solar Charge Controller
Overview
The Rover 20A is an MPPT solar charge controller designed for small off-grid systems. It automatically detects 12V or 24V systems, improves energy harvest with high-efficiency tracking, and offers multiple protections and flexible load control. An optional Bluetooth module and a remote temperature sensor make monitoring and fine-tuning simple.
Benefits
- Get more usable power from the same panels — MPPT tracking increases energy capture so your batteries charge faster and last longer.
- Less worry about weather or temperature — the external temperature sensor and temperature compensation help prevent over- or under-charging across seasons.
- Protect your system automatically — built-in electrical protections reduce the risk of damage and downtime.
- Monitor and control remotely — Bluetooth compatibility and multiple load modes let you check status and adjust settings without being at the controller.
- Simpler installs and maintenance — included mounting brackets and clear wiring instructions make setup straightforward.
Features

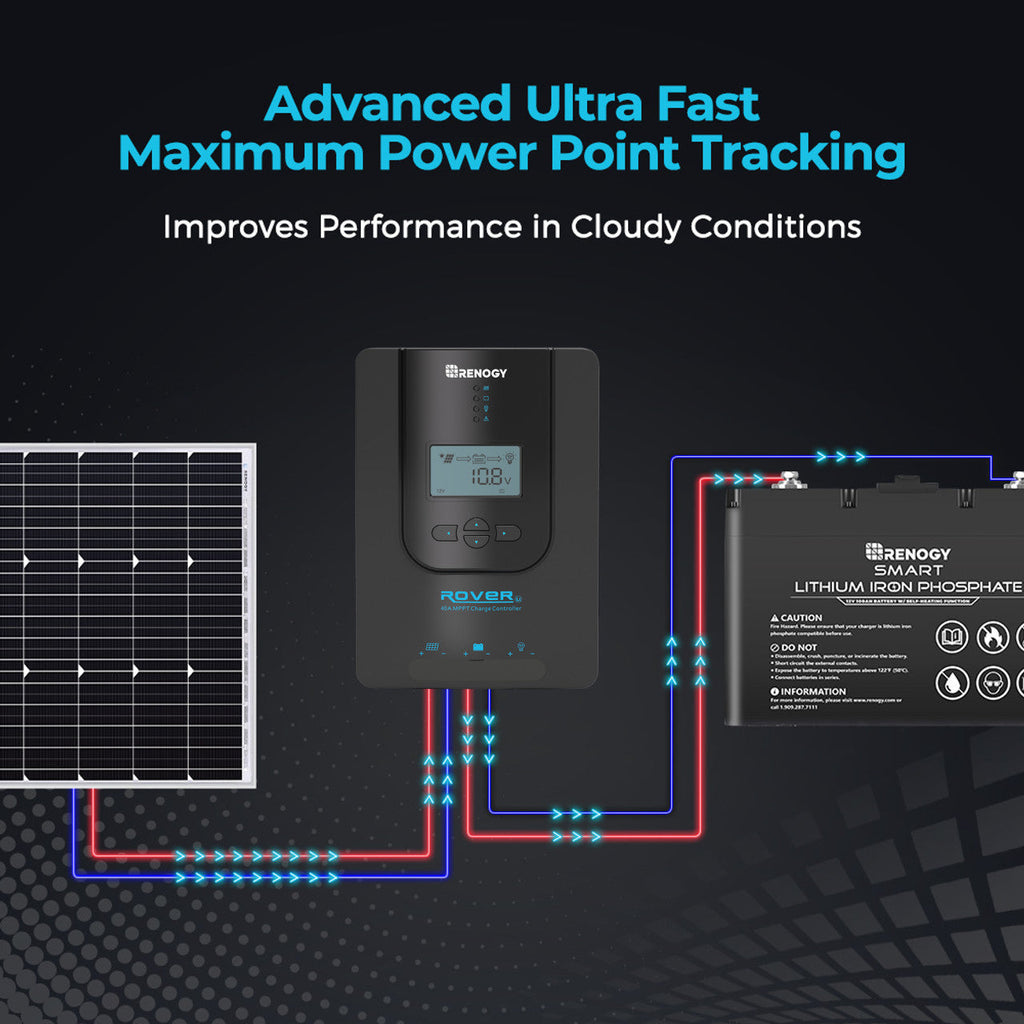

- Maximum Power Point Tracking (MPPT) with up to 99% tracking efficiency.

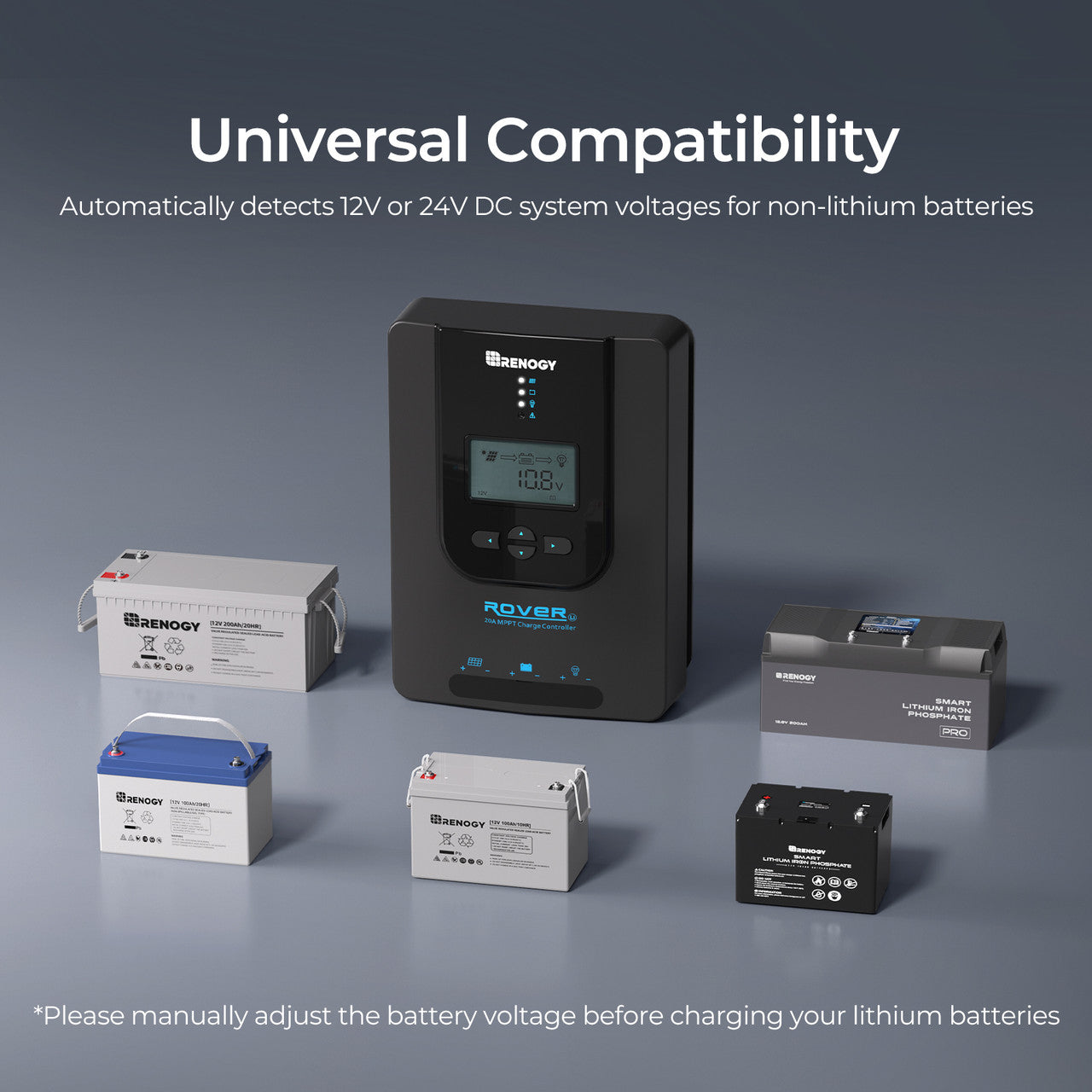

- Automatic system voltage detection: 12V / 24V.
- Rated charge current: 20A.
- Works with PV input voltages up to 100 VDC.
- Supports max PV input power: 260W (12V system) or 520W (24V system).

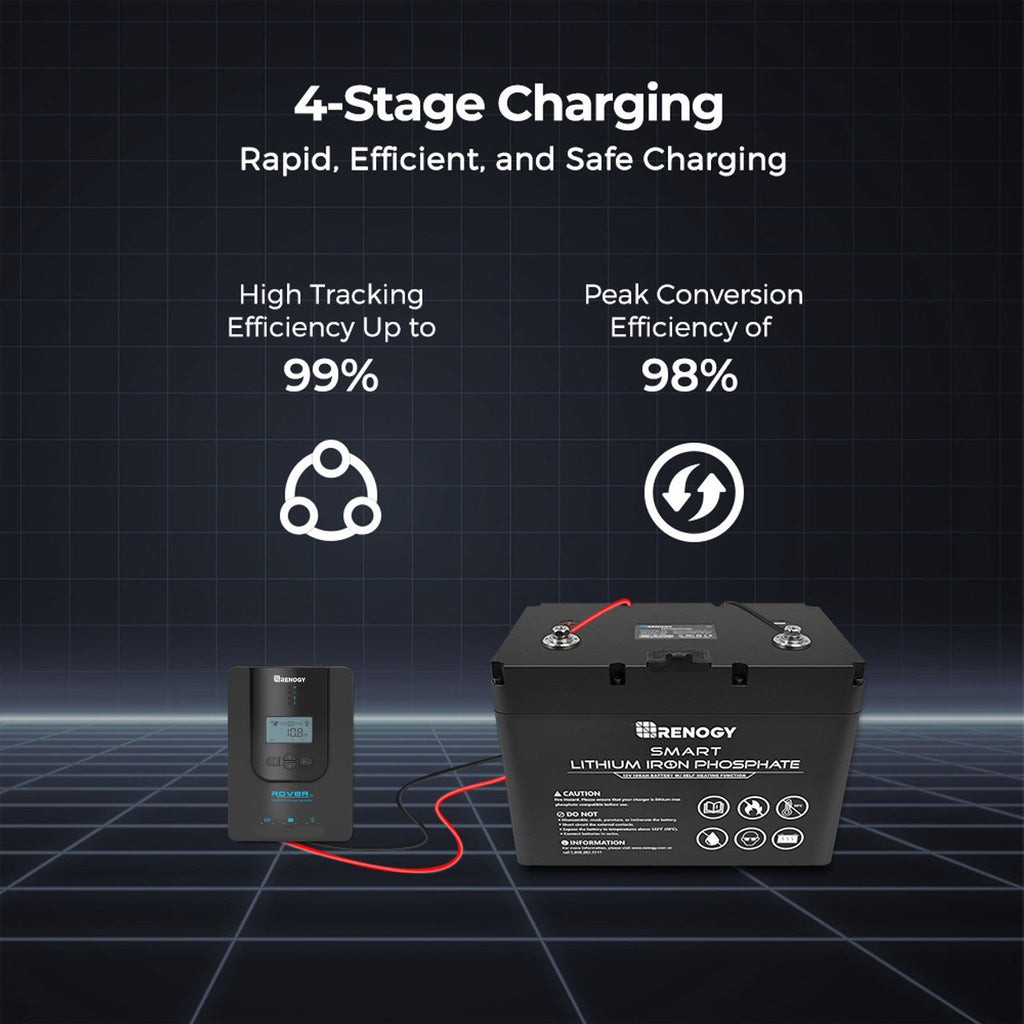

- Four-stage battery charging for safe and efficient battery conditioning.
- Multiple load control modes: Auto On/Off, Timer, Manual, Test, and Always-On.

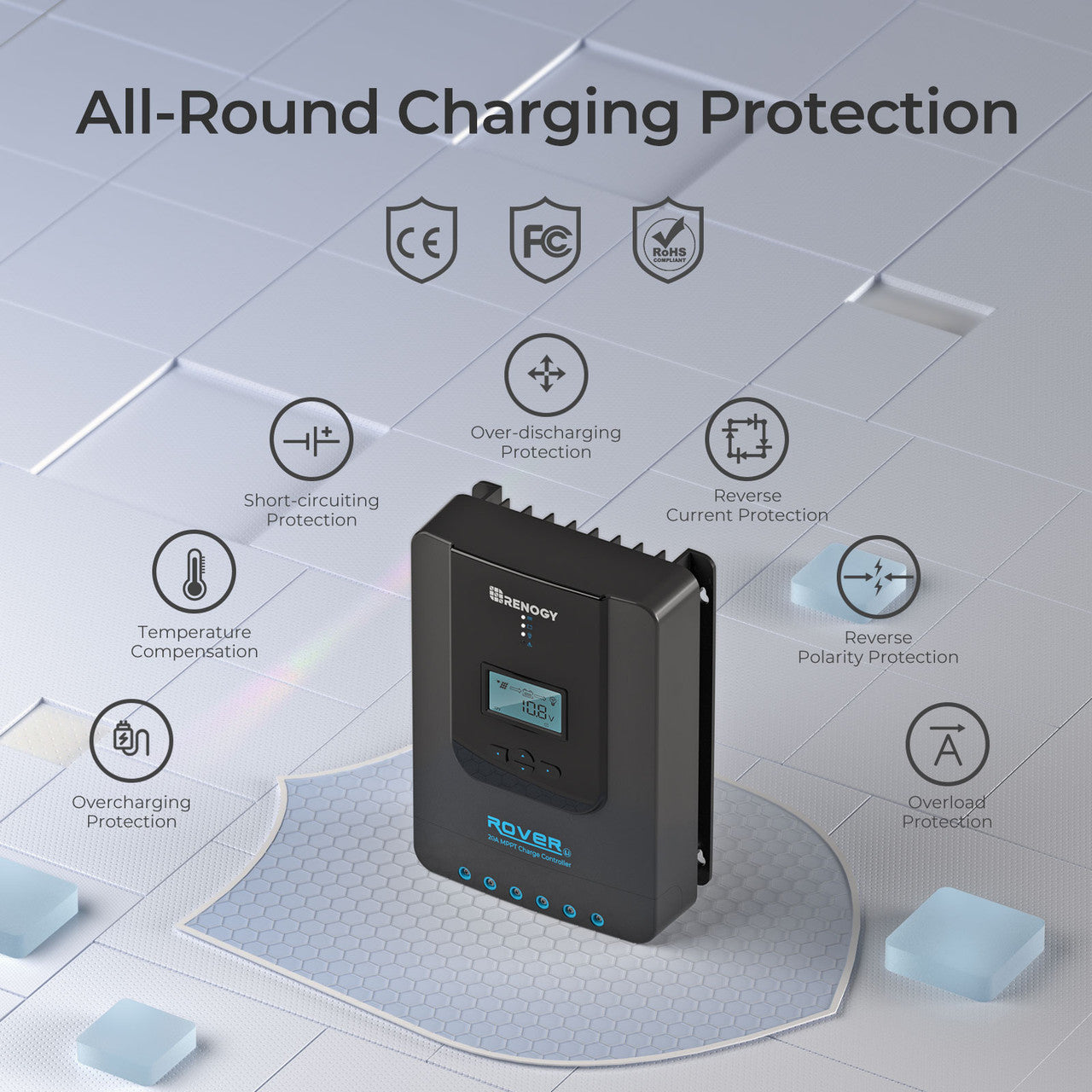

- Eight electronic protections including overcharge, over-discharge, overload, short circuit, PV reverse polarity, and thermal protection.

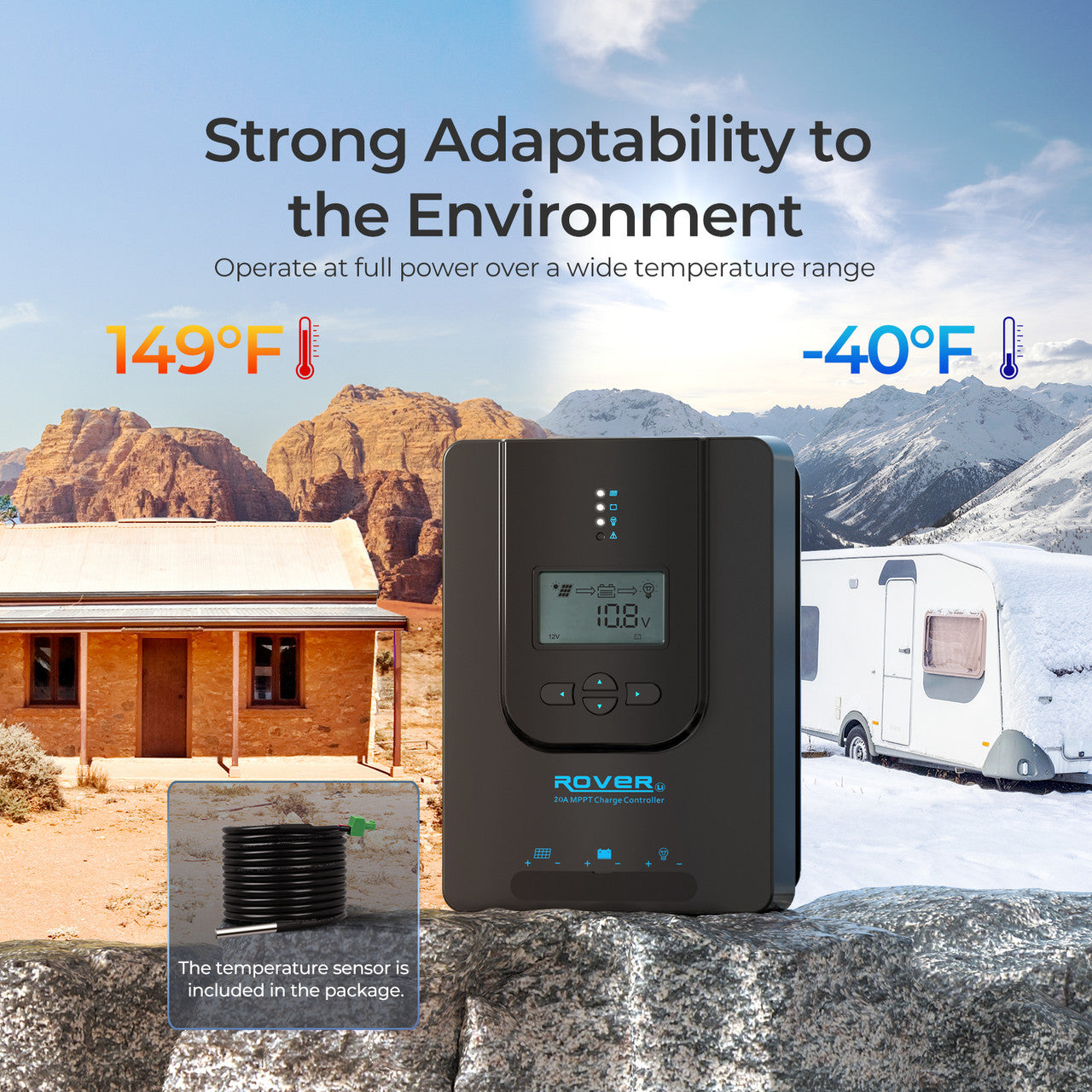

- External temperature sensor included for temperature-compensated charging.
- Heat sink built from die-cast aluminum to improve thermal performance and component longevity.
- Can help revive deeply discharged batteries by applying a small activation current.
- Optional BT-1 Bluetooth module for wireless monitoring via the Renogy DC Home app.
Specifications
- Nominal System Voltage: 12V / 24V (auto-detect, non-lithium)
- Rated Charge Current: 20 A
- Maximum PV Input Voltage: 100 VDC
- Maximum PV Input Power: 12V ? 260 W; 24V ? 520 W
- Maximum Battery Voltage: 32 V
- Power Consumption: <100 mA (12V); <58 mA (24V)
- Ground Type: Negative
- Electrical Protections: Overcharge, over-discharge, overload, short circuit, PV over-current, PV short circuit, PV reverse polarity, battery overheat
- Temperature Compensation: -3 mV/°C/2V
- Operating Temperature Range: -35°C to 45°C (-31°F to 113°F)
- Storage Temperature Range: -35°C to 75°C (-31°F to 167°F)
- Operating / Storage Humidity: ? 90% (no condensation)
- Protection Level: IP32
- Material / Heatsink: Die-cast aluminum
- Dimensions: 210 × 151 × 59.5 mm (8.27 × 5.94 × 2.34 in)
- Weight: 1.4 kg (3.08 lb)
- Max Terminal Size: 8 AWG / 10 mm²

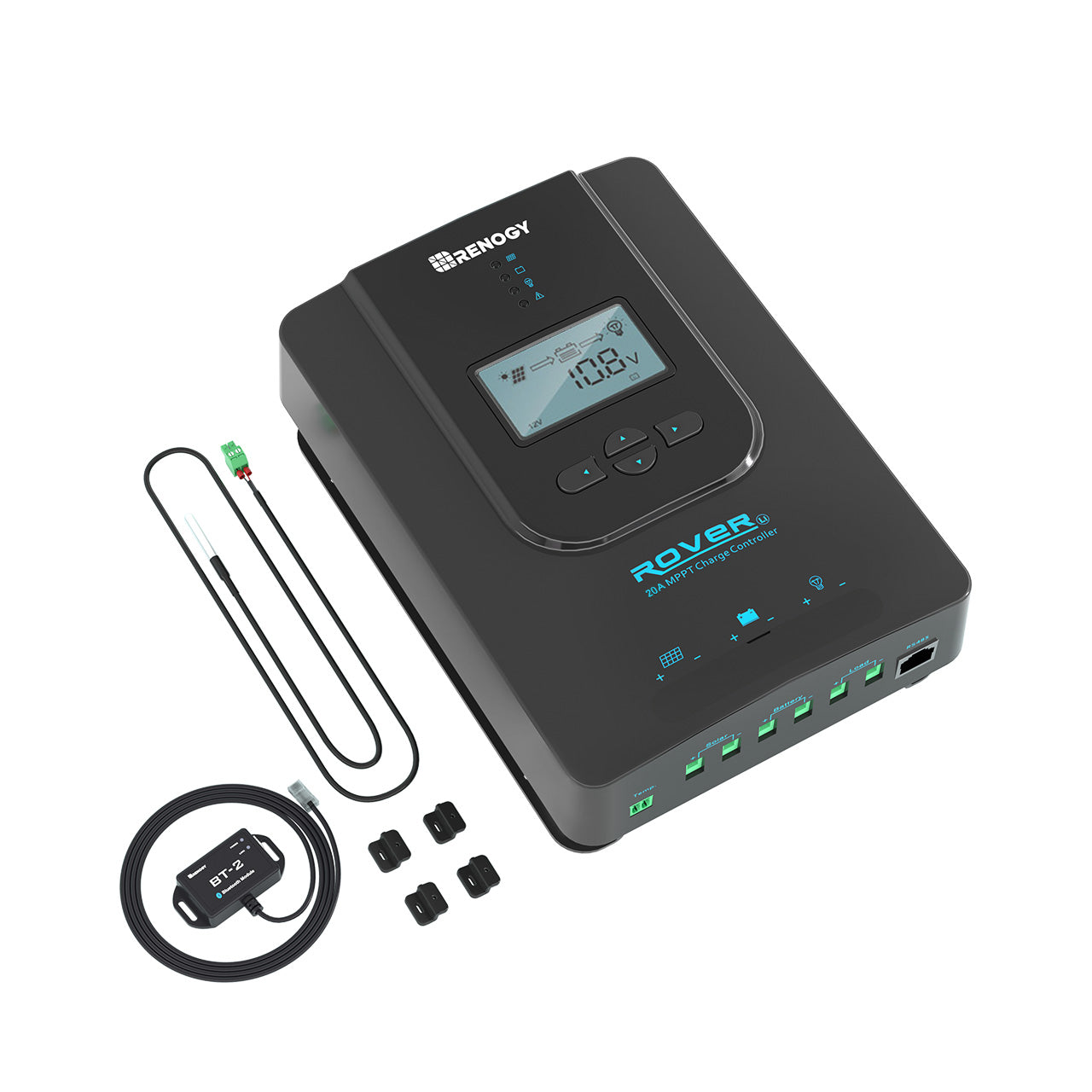

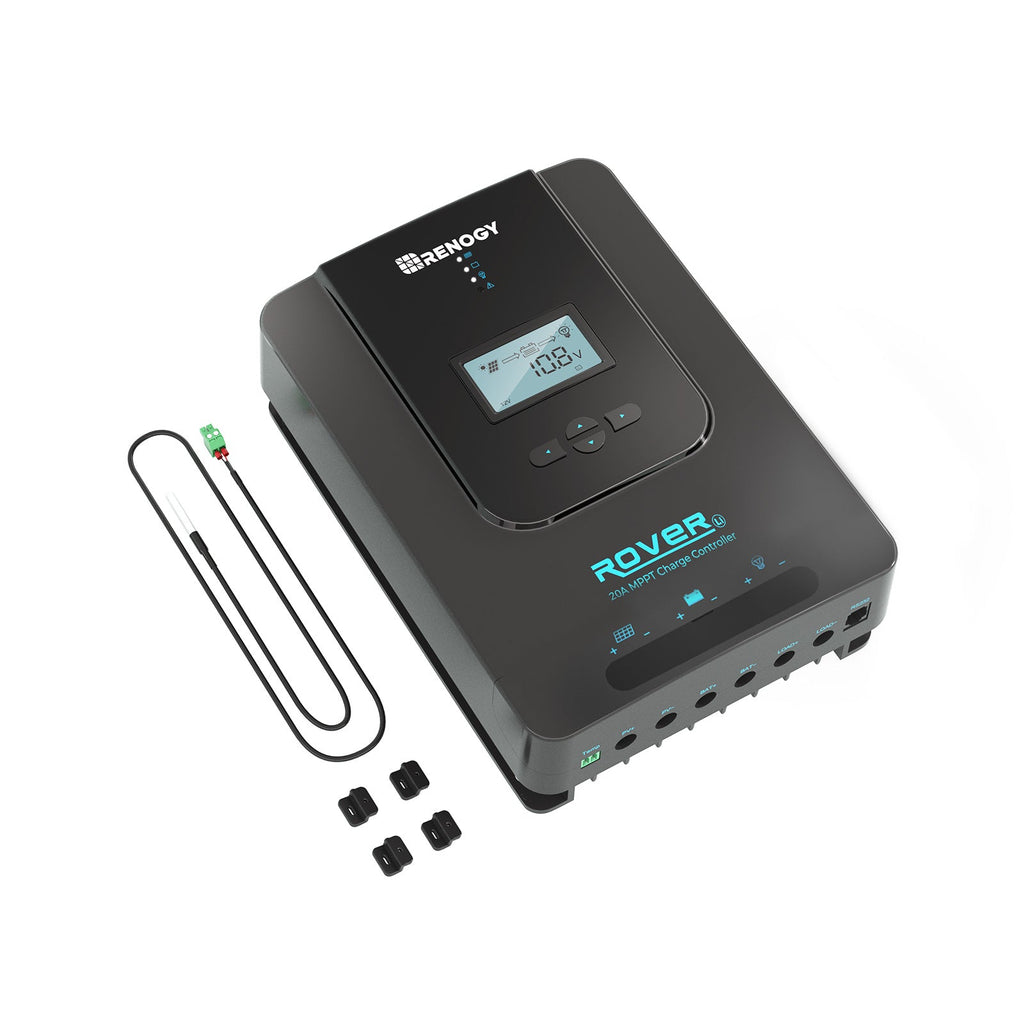

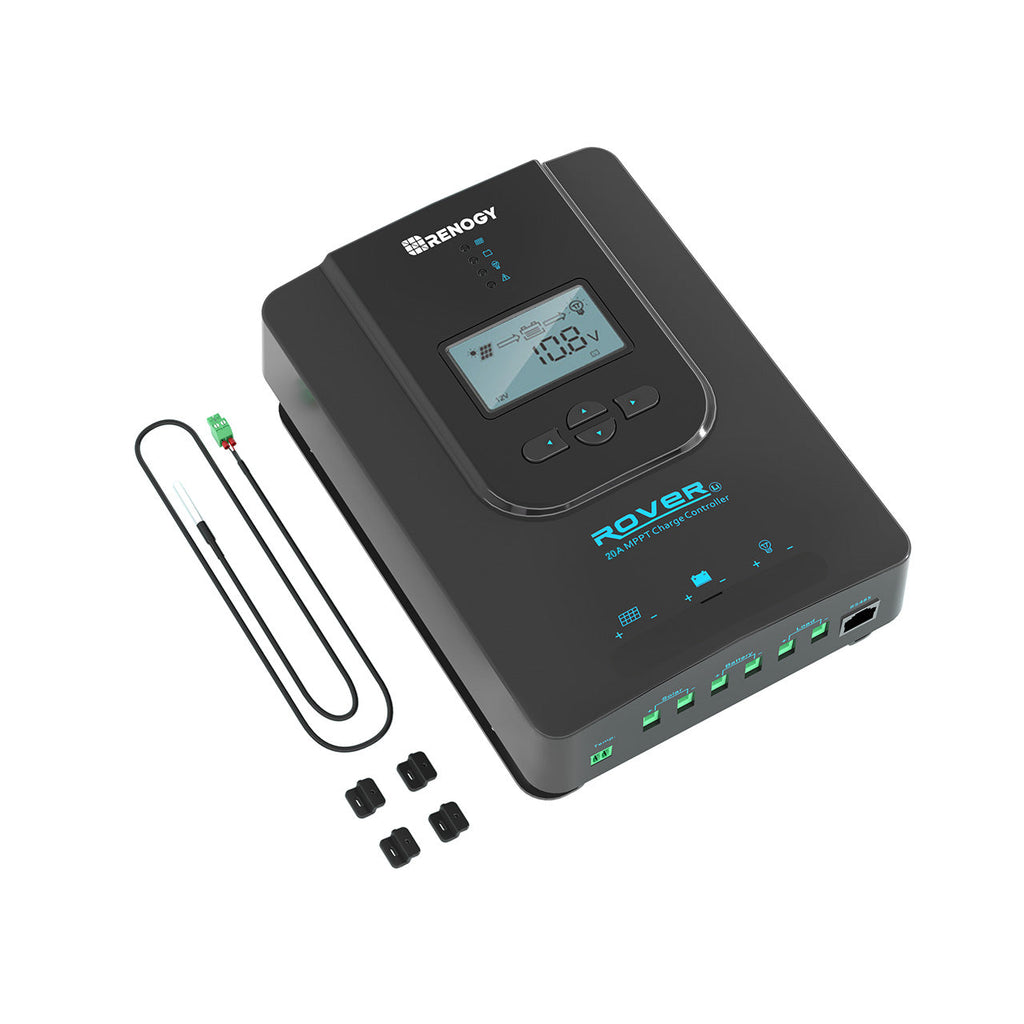

- Accessories included: Remote temperature sensor (9.8 ft / 3.0 m cable), mounting brackets (4×), user manual
- Optional accessory: BT-1 Bluetooth Module (RJ12, RS232 protocol, 5V input, communication range ? 25 m)
- Certifications: CE, FCC Class B Part 15 compliant
- Warranty: 1 year material and workmanship
