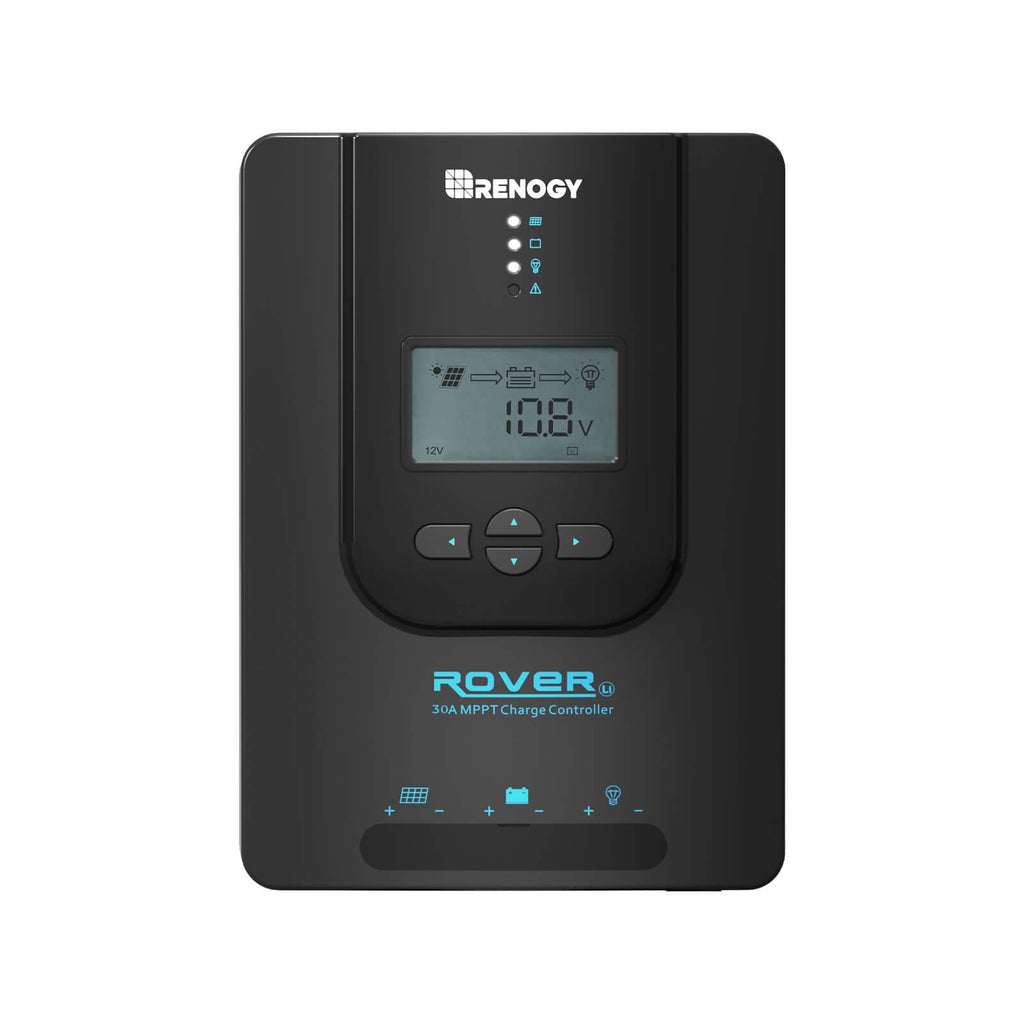

Rover 30A MPPT Solar Charge Controller
Overview
Power your off-grid system with confidence using the Rover 30A MPPT Solar Charge Controller.
Designed for high-efficiency solar charging, this controller intelligently tracks solar power output to maximize energy harvest and battery life. It’s perfect for 12V or 24V systems in RVs, boats, cabins, and remote solar setups.
Benefits
- Charge your batteries faster and more efficiently, even in low-light conditions.
- Protect your system from overcharging, short circuits, and reverse polarity.

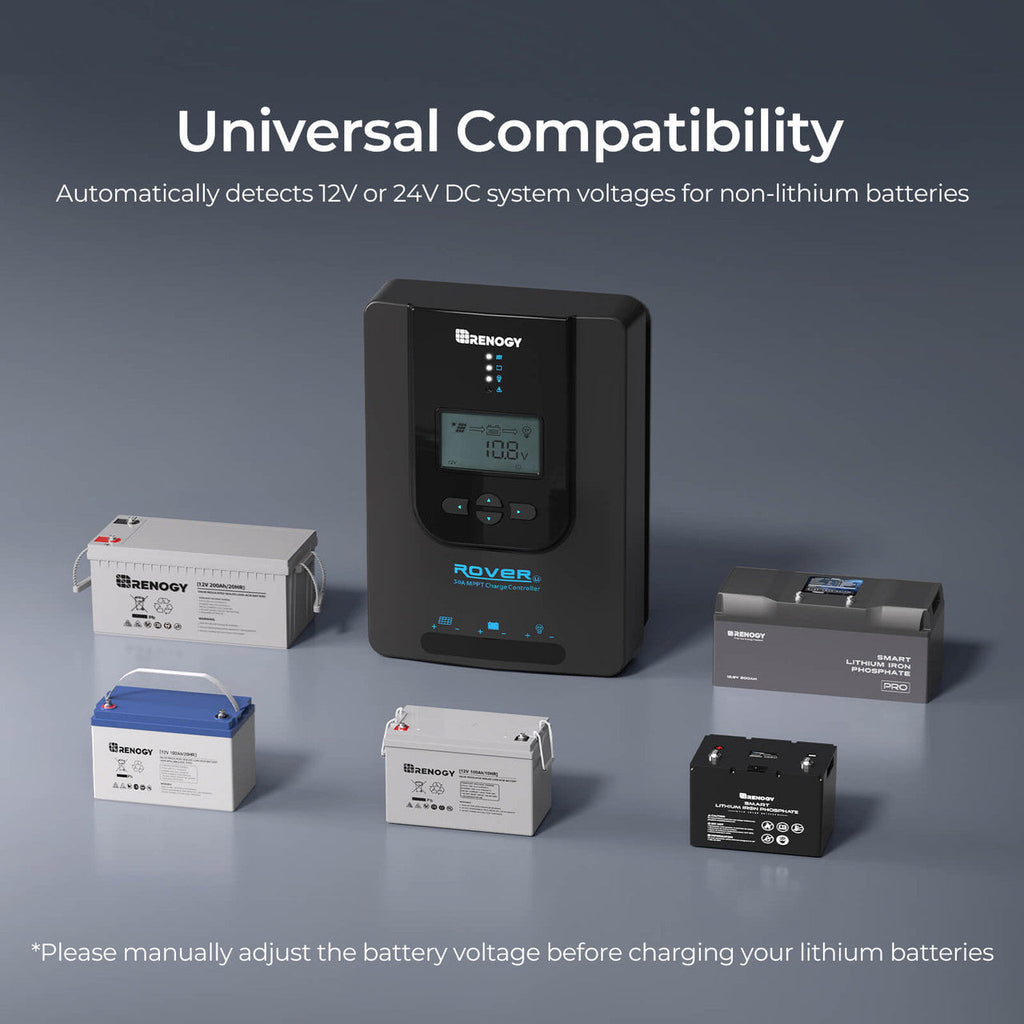

- Automatically detects 12V or 24V systems for easy setup and flexibility.
- Enjoy safe, maintenance-free charging with smart temperature and voltage regulation.
- Monitor performance remotely with Bluetooth connectivity (optional BT-2 module).
Features
- MPPT technology with up to 99% tracking efficiency and 98% peak conversion efficiency.
- Automatic 12V/24V system recognition (for non-lithium batteries).
- Four-stage charging system (bulk, boost, float, equalization) for battery health.
- Comprehensive protection against overcharge, overcurrent, short circuit, and overheating.
- Durable housing with enhanced corrosion and contamination resistance.
- Efficient heat dissipation design for stable operation in all environments.
- Lithium activation mode to safely revive lithium batteries when needed.

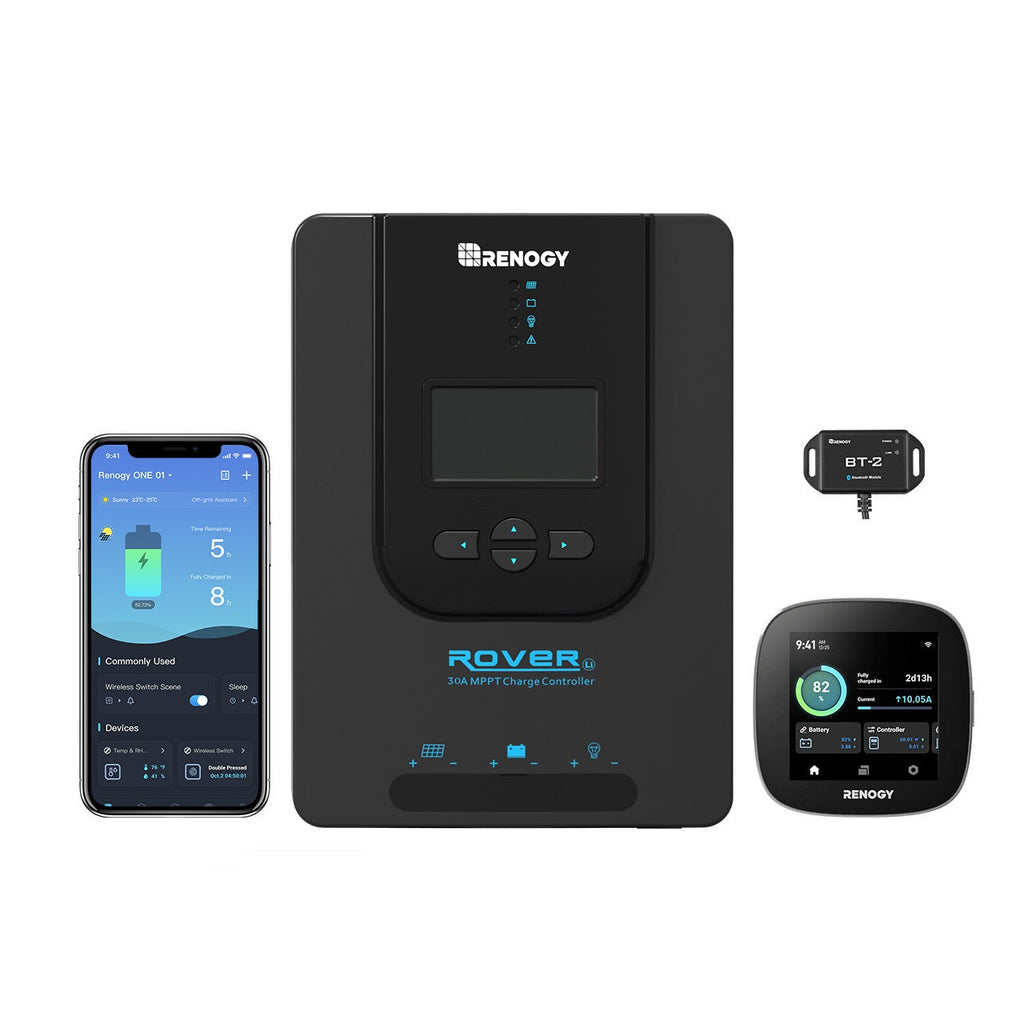

- Compatible with Renogy BT-2 Bluetooth module for mobile monitoring.
Specifications
- Rated Charging Current: 30A
- System Voltage: 12V / 24V Auto Recognition
- Maximum PV Input Voltage: 100V
- Maximum PV Input Power: 400W (12V) / 800W (24V)
- Tracking Efficiency: 99%
- Peak Conversion Efficiency: 98%
- Temperature Compensation: -3mV/°C/2V
- Communication Port: RS485 / Optional Bluetooth Module (BT-2)
- Operating Temperature: -4°F to 158°F (-20°C to 70°C)
- Humidity: 0%–95% RH (non-condensing)
- Altitude: ?5000m above sea level
- Protection: Overvoltage, reverse polarity, short-circuit, over-temperature
- Mounting: Wall or flush mount
- Dimensions: 9.37 × 7.17 × 2.83 in (238 × 182 × 72 mm)
- Weight: 4.4 lbs (2 kg)
- Certifications: CE, FCC, RoHS
- Warranty: 2 years

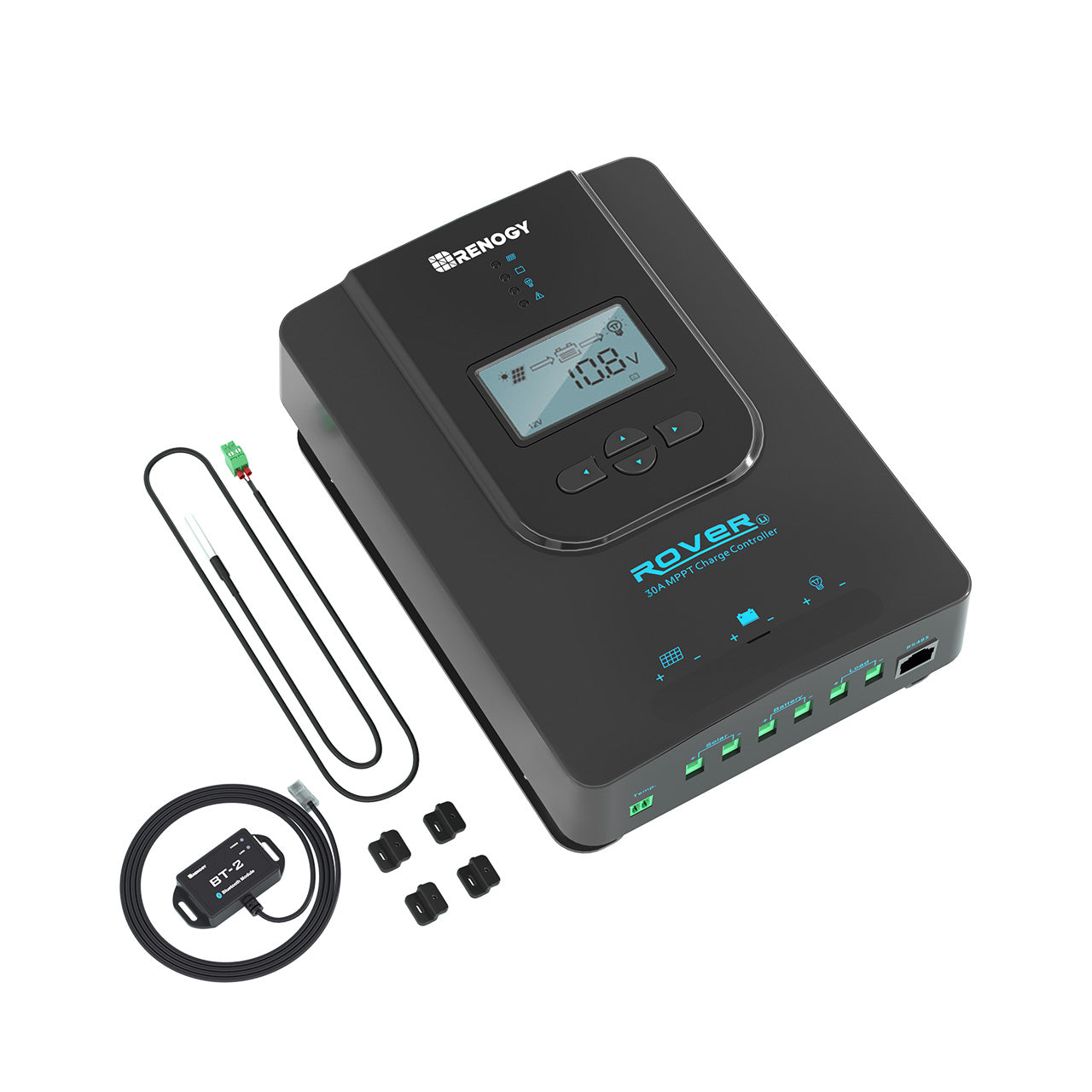

What's Included
- 1 × Rover 30A MPPT Solar Charge Controller
- 1 × Remote Temperature Sensor
- 4 × Mounting Brackets
- 1 × User Manual
- Optional: BT-2 Bluetooth Module (sold separately)
