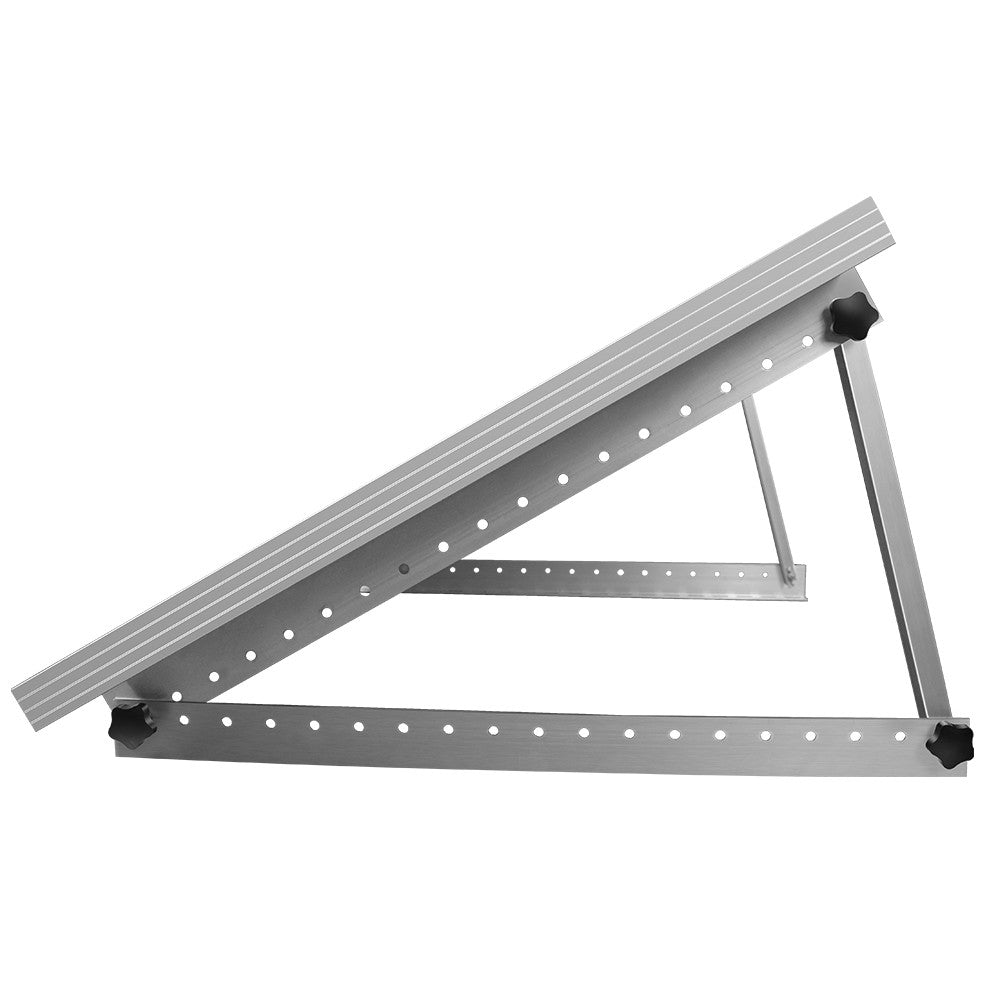

Renogy RV Tilt Mount Brackets

Adjustable Aluminum Tilt Mounts for RVs, Boats and Flat Surfaces

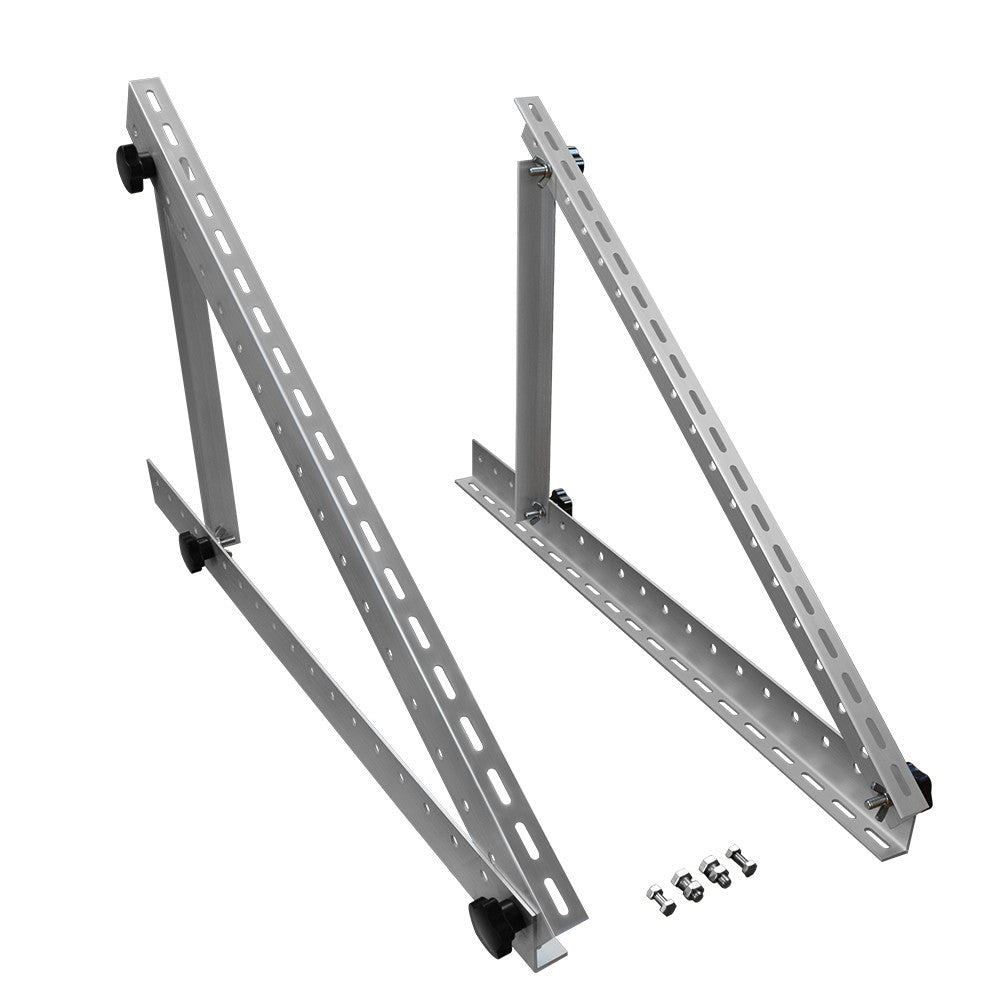

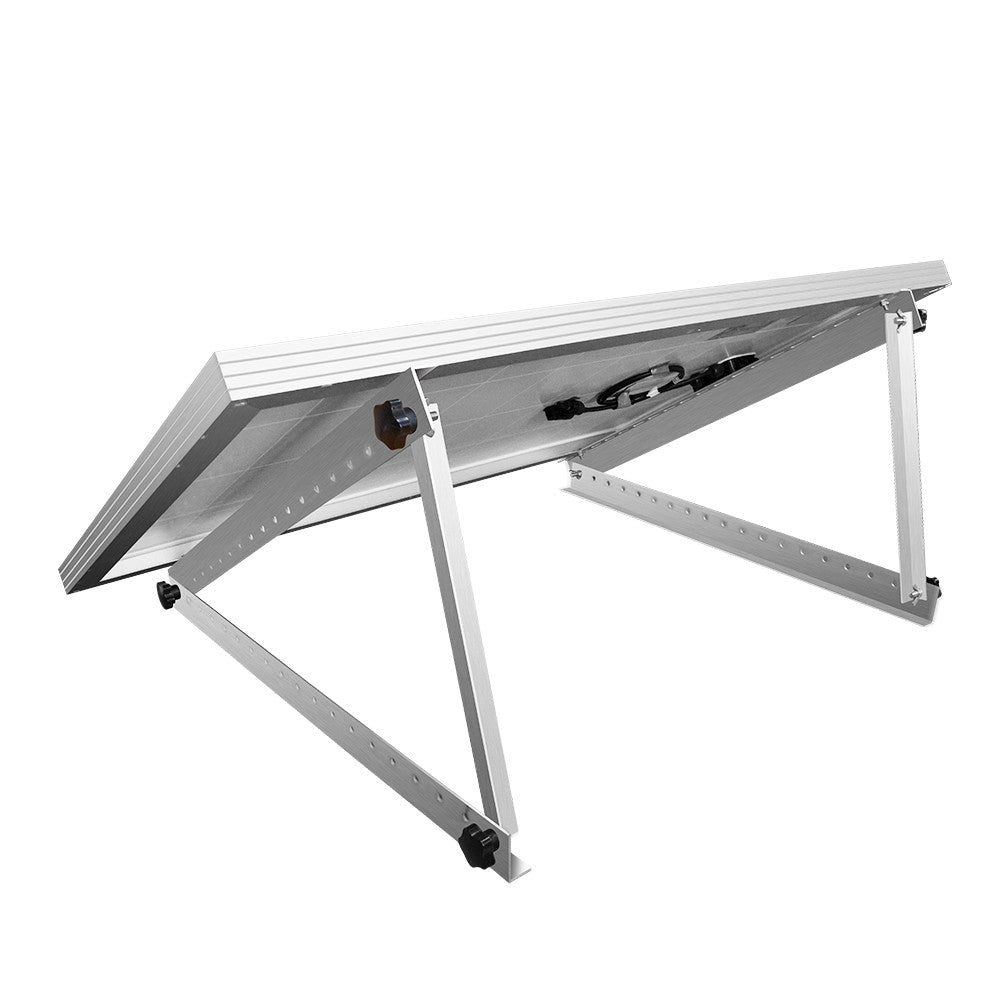

A set of durable, adjustable tilt brackets designed to mount solar panels on RV roofs and other flat surfaces. Choose from 28" or 50" kits; both offer a wide tilt range, corrosion-resistant aluminum construction, and the hardware needed for installation.

Benefits

• Increase daily solar yield by tilting panels to the optimal angle for the season.

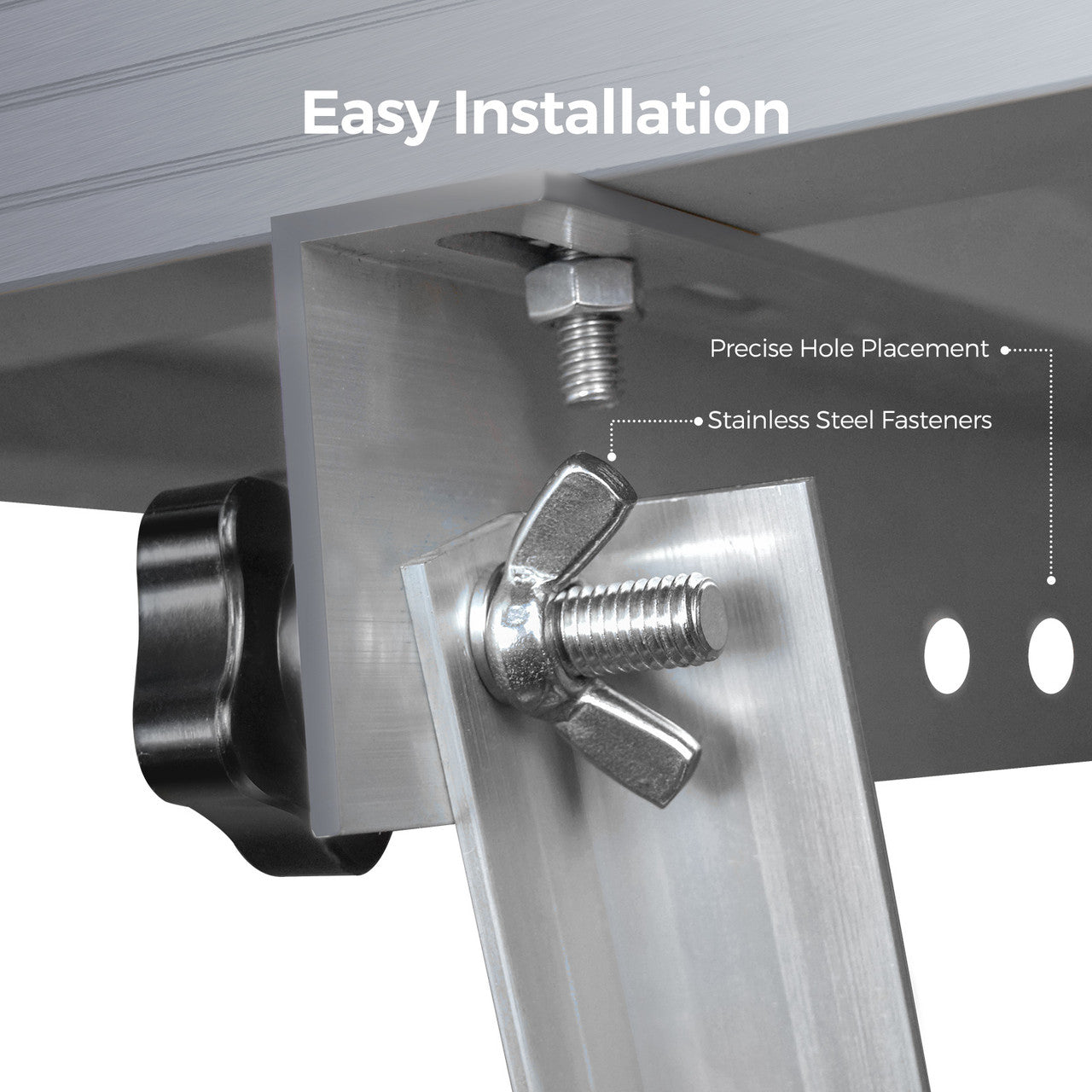

• Make quick angle changes without tools using the plastic knob screws and wing nuts.
• Reduce maintenance and corrosion concerns with aluminum brackets and stainless-steel fasteners.
• Store or transport panels more easily — brackets can be disassembled/folded for compact packing.
• Use the same brackets on many vehicles and flat surfaces (RVs, boats, sheds), avoiding multiple mounting systems.

Features

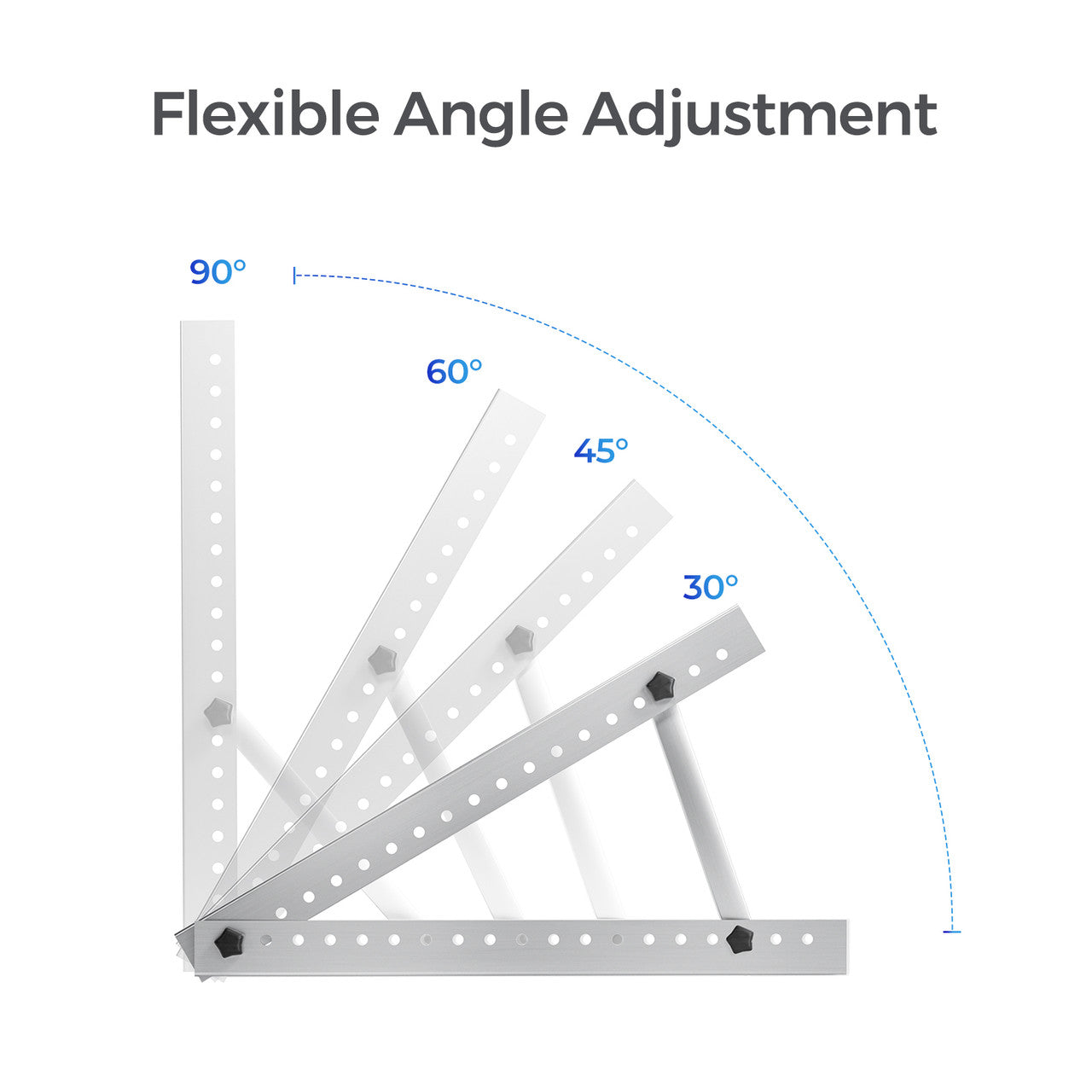

• Adjustable tilt from 0° to 90° in roughly 5° increments.
• Corrosion-resistant aluminum-alloy bracket construction.
• Stainless-steel fasteners where applicable for durability.
• Available in two sizes: 28-inch and 50-inch kits to fit different panel sizes and power ratings.
• Includes both fixed L-brackets and tilt L-brackets plus a complete hardware kit.

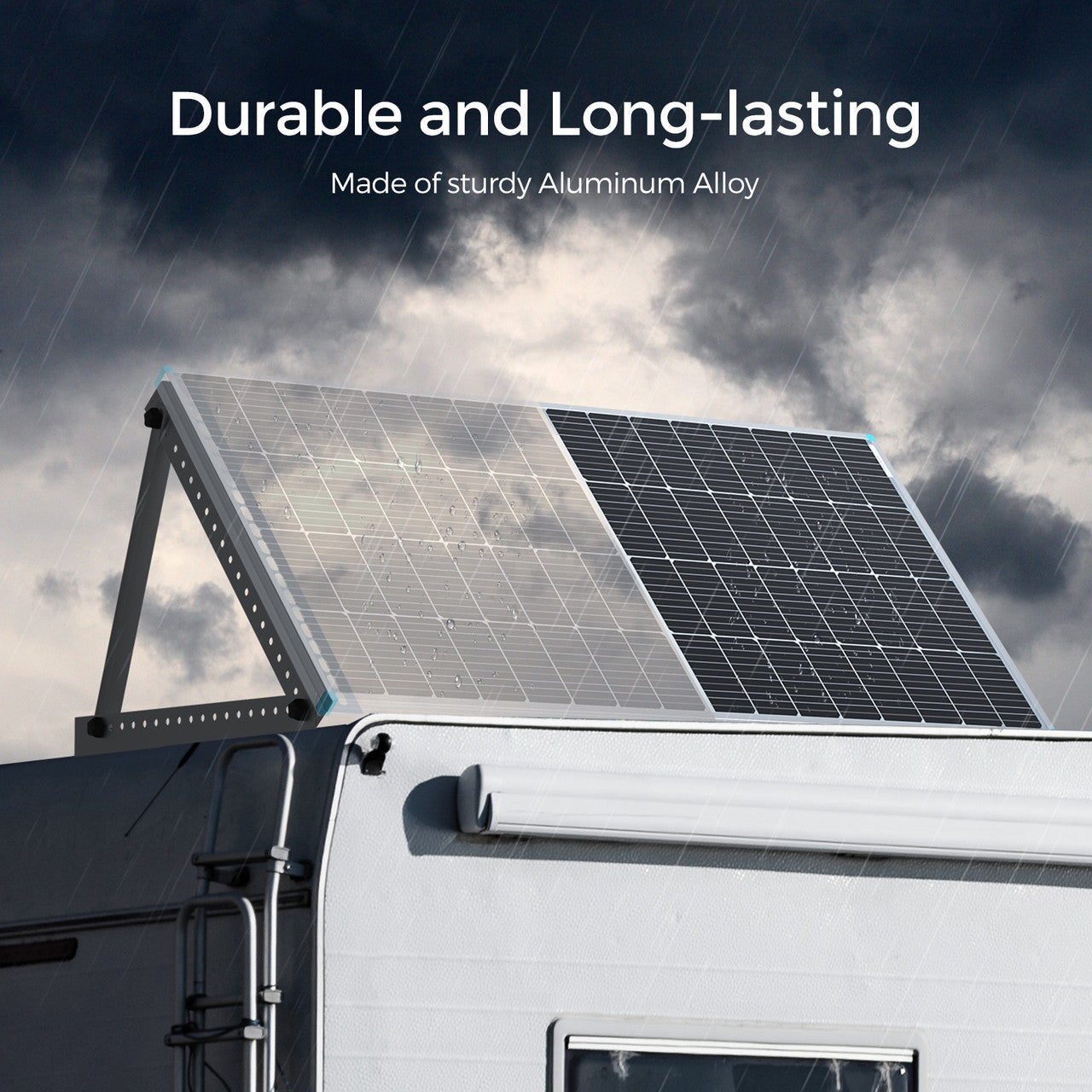

• Designed for rooftop installation on RVs and for use on other flat mounting surfaces.
• Can be folded or partially disassembled for transport or storage.

Specifications

• Material: Corrosion-resistant aluminum alloy (brackets); stainless-steel fasteners.
• Adjustment range: 0°–90°, ~5° increments.
• Warranty: 1-year material and workmanship warranty.

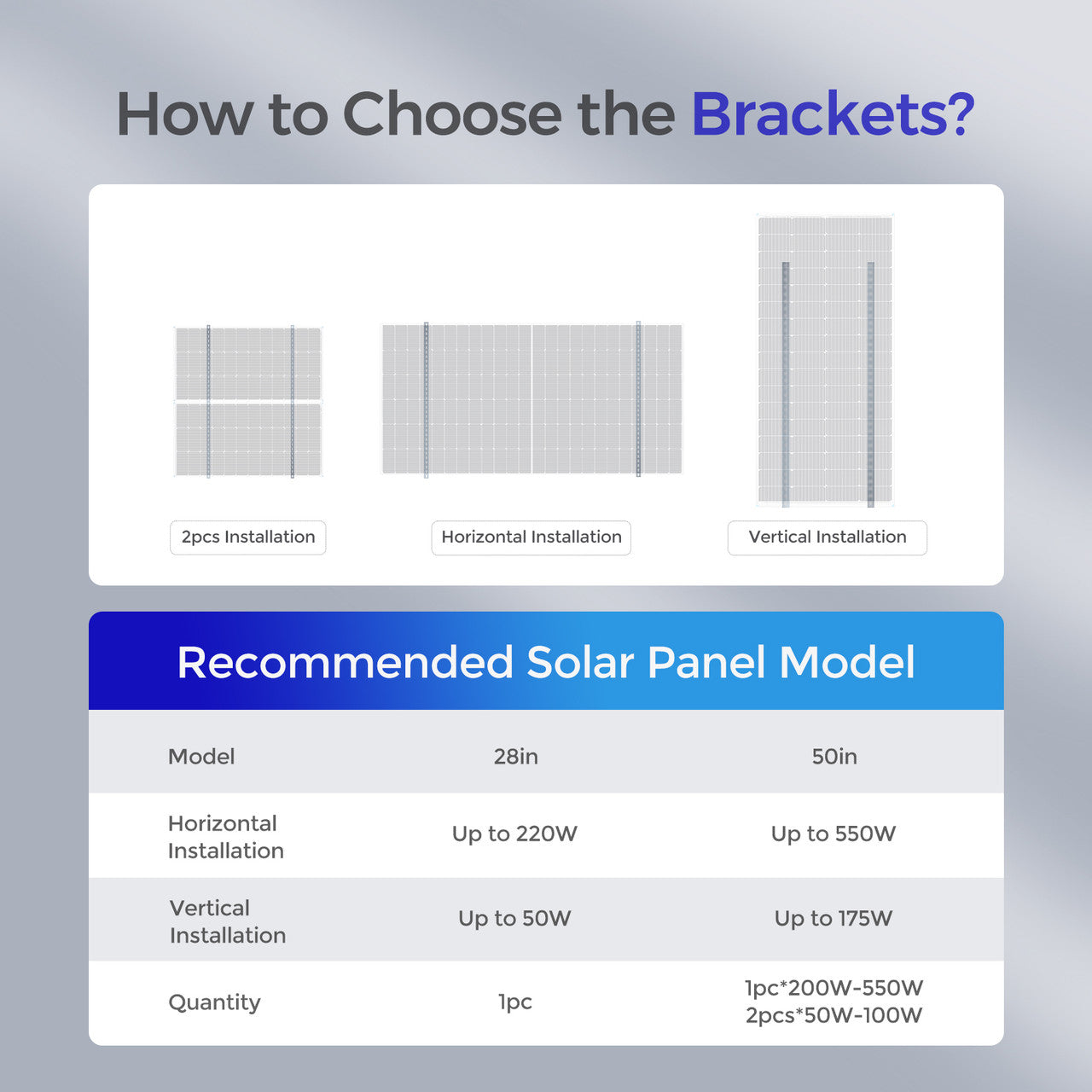

• Compatible panel power:
  • 28-inch bracket: compatible with Renogy panels up to 220 W (see user manual for exact panel compatibility).
  • 50-inch bracket: compatible with Renogy panels up to 550 W (see user manual for exact panel compatibility).

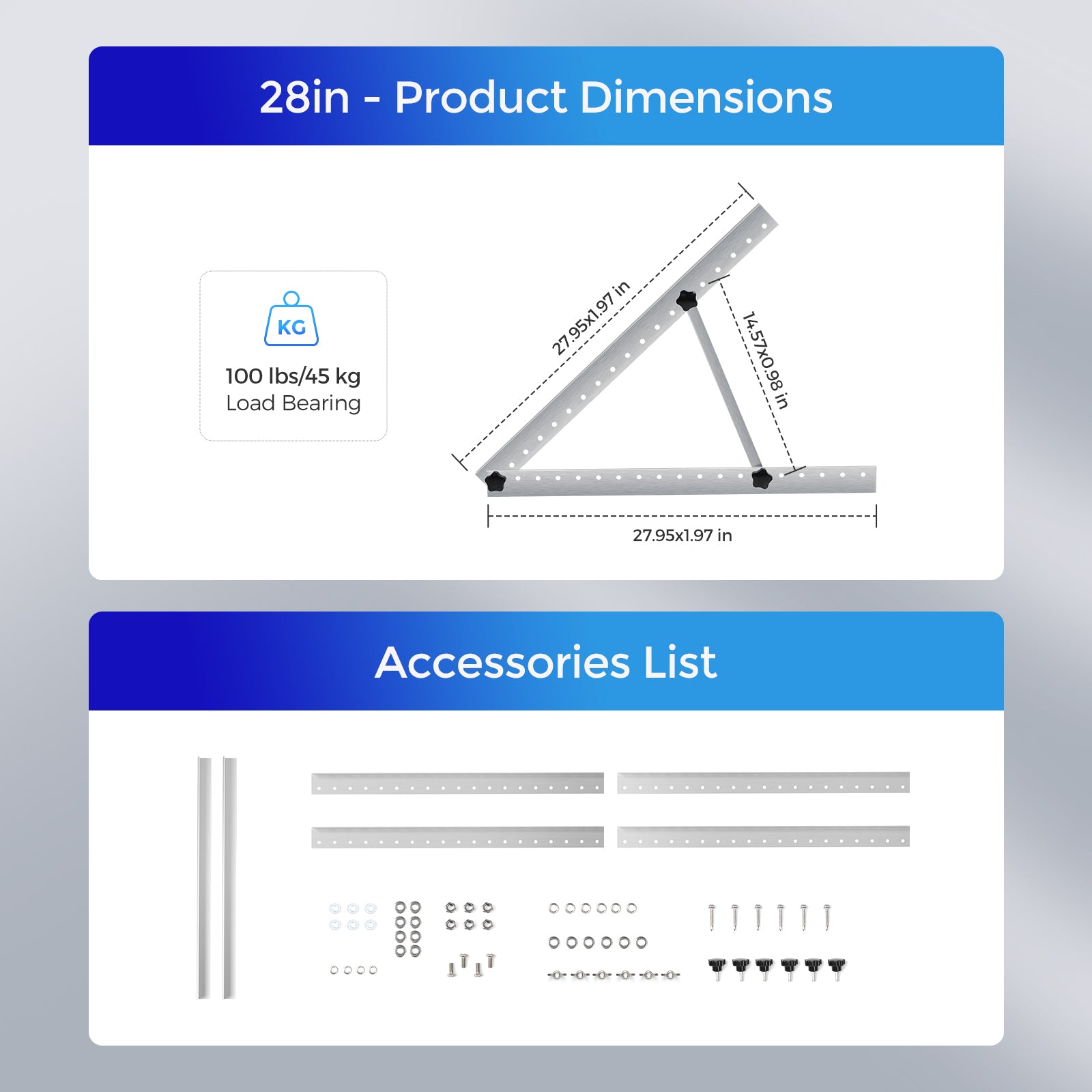

• 28-inch kit dimensions and weight:
  • Tilt bracket: 14.57 x 1.18 x 0.79 inch
  • Fixed bracket: 27.95 x 1.97 x 0.98 inch
  • Weight: 3.5 lbs

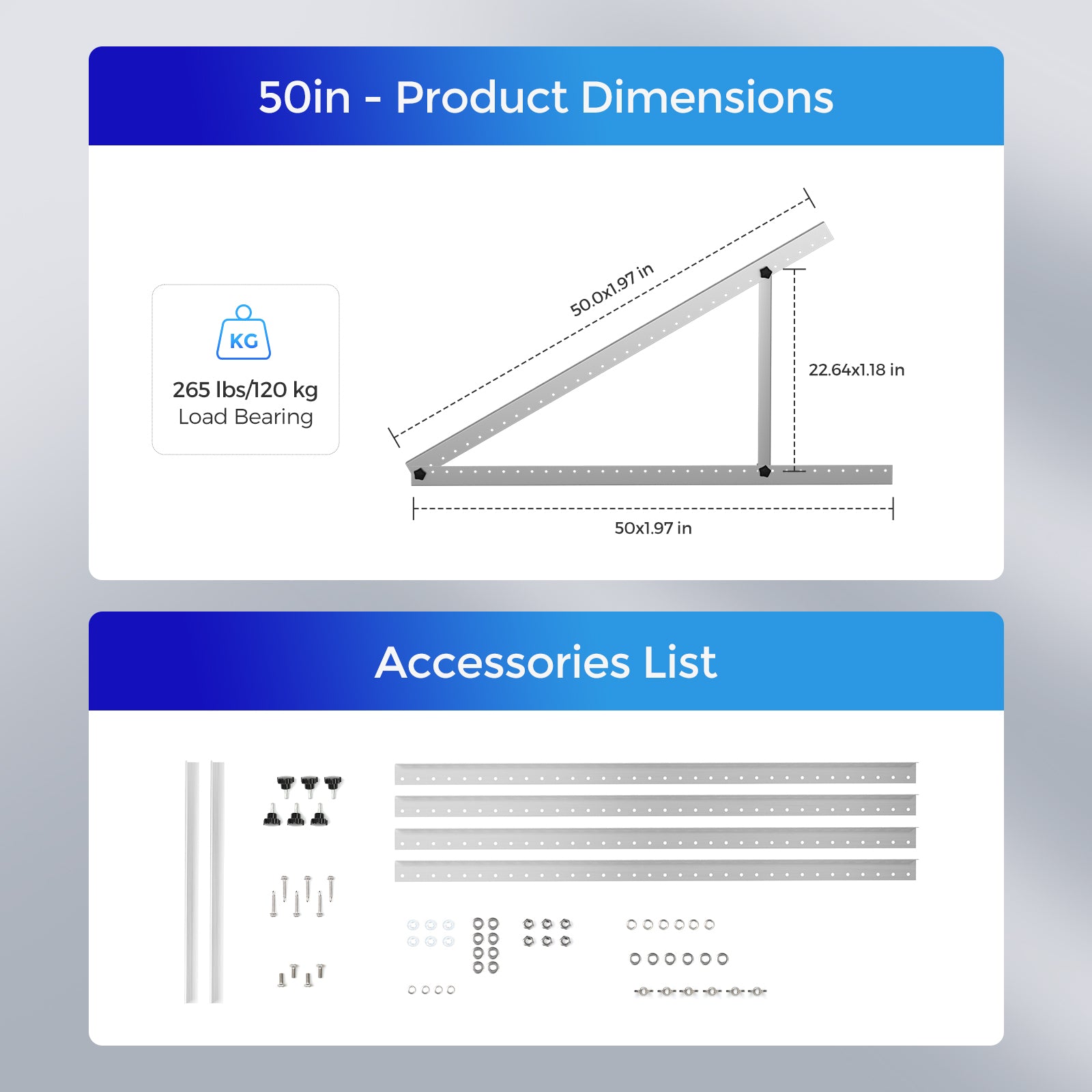

• 50-inch kit dimensions and weight:
  • Tilt bracket: 22.64 x 1.18 x 0.79 inch
  • Fixed bracket: 50 x 1.97 x 0.98 inch
  • Weight: 7.2 lbs
• Package includes:
  • 4 × Fixed L-Brackets
  • 2 × Tilt L-Brackets
  • 6 × M8 Plastic Knob Screws
  • 6 × M8 Wing Nuts
  • 4 × M6 × 16 mm Hex Cap Bolts
  • 4 × M6 Split Lock Washers
  • 8 × M6 Flat Washers
  • 4 × M6 Hexagonal Nuts
  • 6 × M8 Washers
  • 6 × M8 Spring Washers
  • 10 × 1¼ in Self-Drilling Cap Screws
  • 6 × Plastic Retaining Rings
• Notes:
  • The brackets are aluminum; the supplied mounting fasteners are stainless steel.
  • Brackets can be disassembled (unscrew short end connections) to fold for storage or to adjust panel angle.
