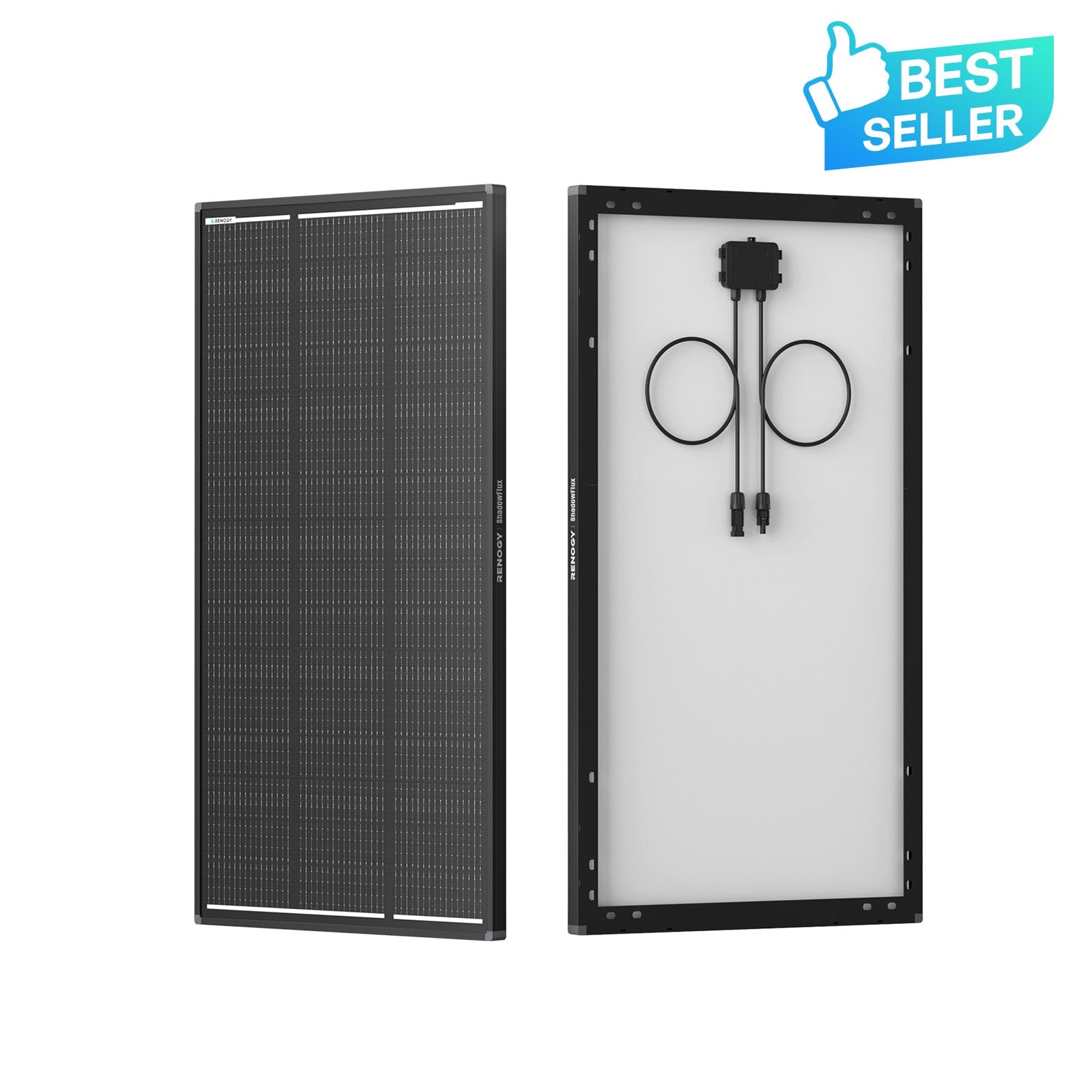

A compact, rugged 200W monocrystalline solar panel designed for reliable off-grid and mobile use. It delivers consistent daily energy in typical sun conditions, resists shading effects, and is built for long-term outdoor durability with easy mounting options.
Benefits
Reduce reliance on grid power by generating roughly 1,000 Wh per day with 5–6 hours of direct sun.
Spend less time troubleshooting: pre-drilled mounting holes and standard connectors make installation quicker and simpler.

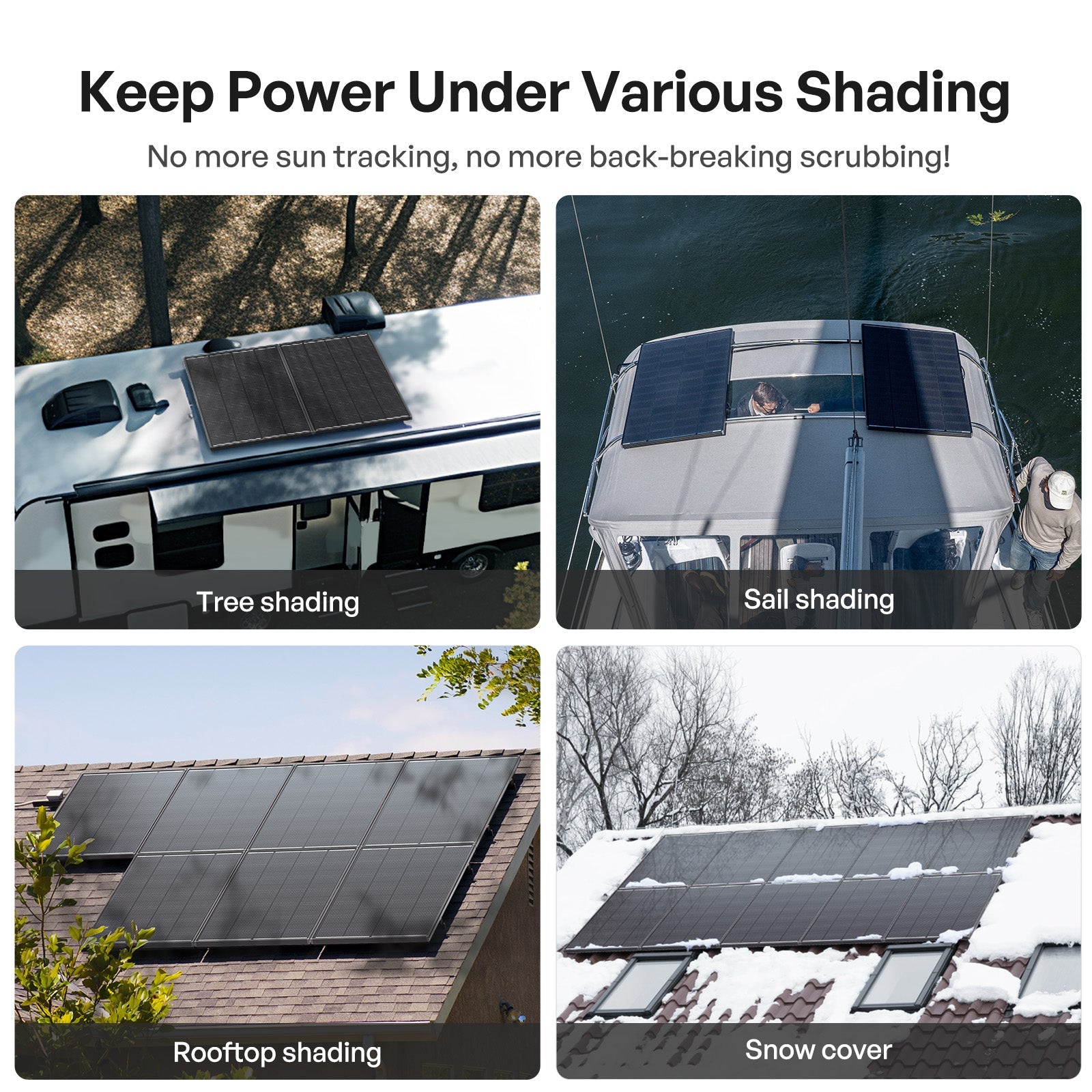

Keep devices running during partial shading thanks to half-cut cells and bypass diodes that limit hot spots and maintain output.
Count on consistent performance across seasons because of durable construction and weather-tolerant components.
Get support and answers fast — typical response within 24 hours for sales and technical questions.
Features
Monocrystalline cells with PERC technology for improved light capture and reflection.
Nine busbars to improve conductivity and overall panel efficiency.

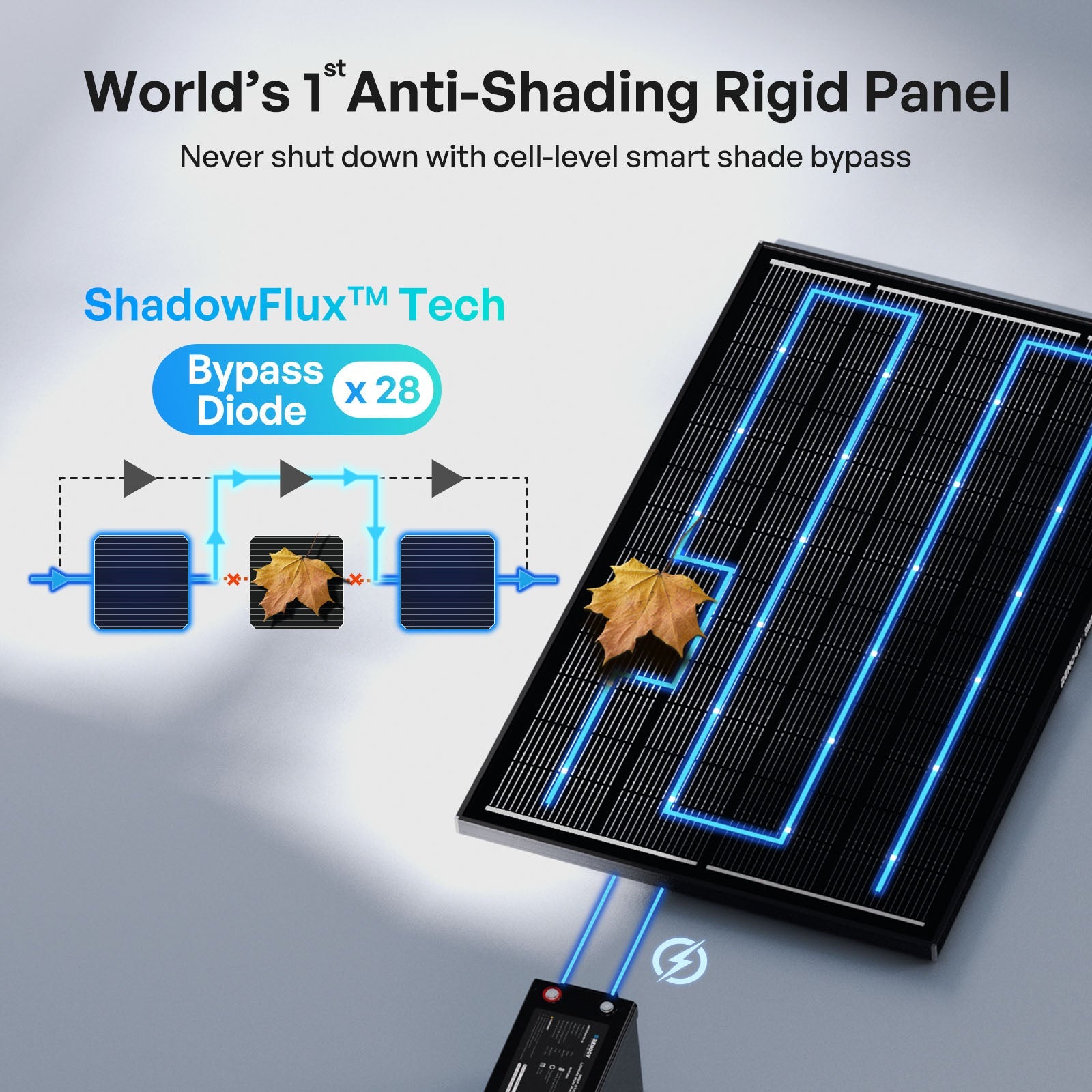

Half-cut cell layout and integrated bypass diodes to reduce shading losses and hotspot risk.

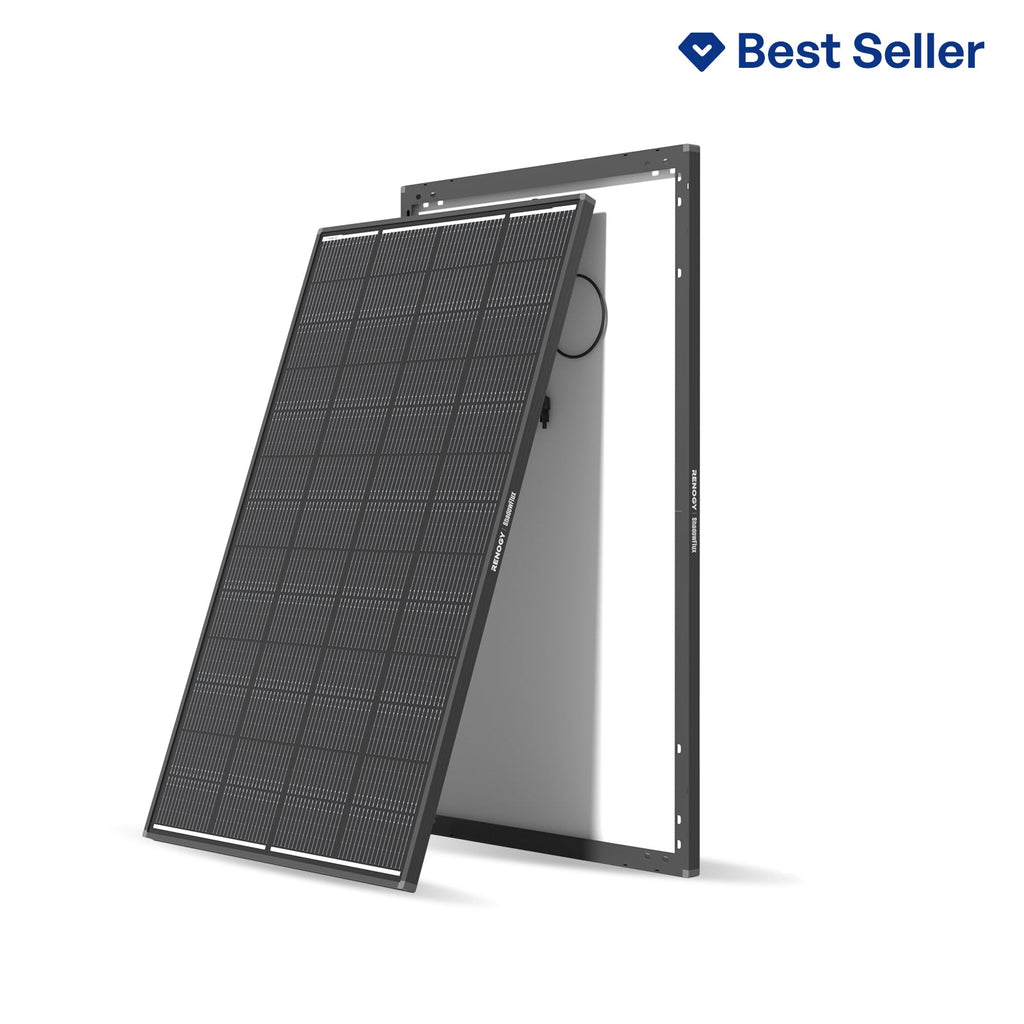

Pre-drilled holes on the back for quick mounting and compatibility with Z-brackets, pole mounts, and tilt mounts.
IP65 junction box and standard solar connectors for reliable electrical protection and easy wiring.
Anodized aluminum alloy frame built to withstand outdoor and challenging environmental conditions.
Sturdy packaging with thick corrugated cardboard and foam L-brackets to protect the panel in transit.
Specifications
Max Power at STC: 200 W
Open Circuit Voltage (Voc): 23 V
Optimum Operating Voltage (Vmp): 19.2 V
Short Circuit Current (Isc): 11.05 A
Optimum Operating Current (Imp): 10.42 A
Estimated daily output: ~1,000 Wh with 5–6 hours of direct sunlight (actual output varies by conditions)
Positive power tolerance: 0% to +3%
Module efficiency: 19.2%
Solar cells: 68 cells (4 x 17), half-cut design
Frame: Anodized aluminum alloy
Junction box rating: IP65
Connectors: Standard solar connectors
Output cable: 13 AWG, 2.6 ft (0.9 m)
Dimensions: 58.7 x 27.5 x 1.38 in (1491 x 699 x 35 mm)
Weight: 26.46 lb (12 kg)
Operating temperature range: -40 °F to 194 °F (-40 °C to 90 °C)
Maximum system voltage: 600 VDC (UL)
Maximum series fuse rating: 15 A (some documentation also lists 20 A)
Warranty — panels: 25-year power output warranty (95% at 5 years, 90% at 10 years, 80% at 25 years); 5-year material & workmanship warranty
Warranty — accessories: 1-year material warranty
