ShadowFlux RV Power Solutions

Compact, modular battery packs for reliable RV living — available in 1.28 kWh, 2.56 kWh, and 3.84 kWh configurations

ShadowFlux provides a simple, modular energy system designed for RV owners who want dependable off-grid power without bulky equipment. Choose a single module (1.28 kWh) or combine modules for larger needs (2.56 kWh or 3.84 kWh). The system focuses on safe chemistry, built-in battery management, and easy installation so you get usable power where and when you need it.

Benefits

• More time off-grid — run lights, small appliances, and electronics longer between charges.
• Less hassle — modular design makes upgrades or replacements straightforward.
• Peace of mind — built-in battery management protects the pack and reduces maintenance worry.
• Space-efficient — compact modules free up storage and living space in your RV.
• Flexible sizing — pick the capacity that matches your typical load and trip length.

Features

• Three capacity options: 1.28 kWh, 2.56 kWh (2× modules), and 3.84 kWh (3× modules).
• Modular stack-and-connect design for easy expansion and replacement.
• Integrated Battery Management System (BMS) for cell balance, over/under voltage, and temperature protection.
• Supports common RV charging sources: shore power charger, solar charge controllers, and DC-to-DC chargers.
• Parallelable modules for higher capacity without special tools.
• Standard mounting points and connectors for straightforward installation in RV compartments.

Specifications

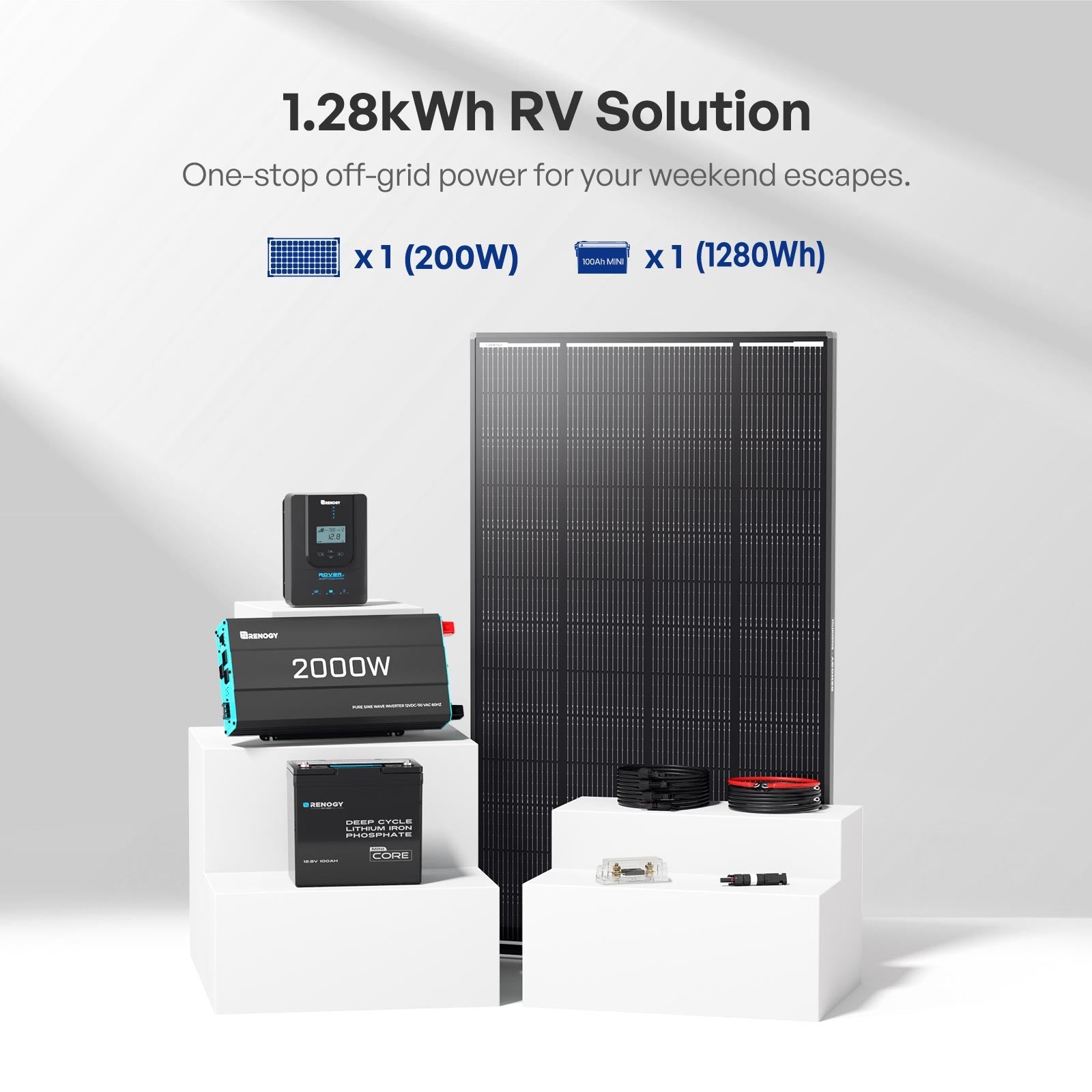

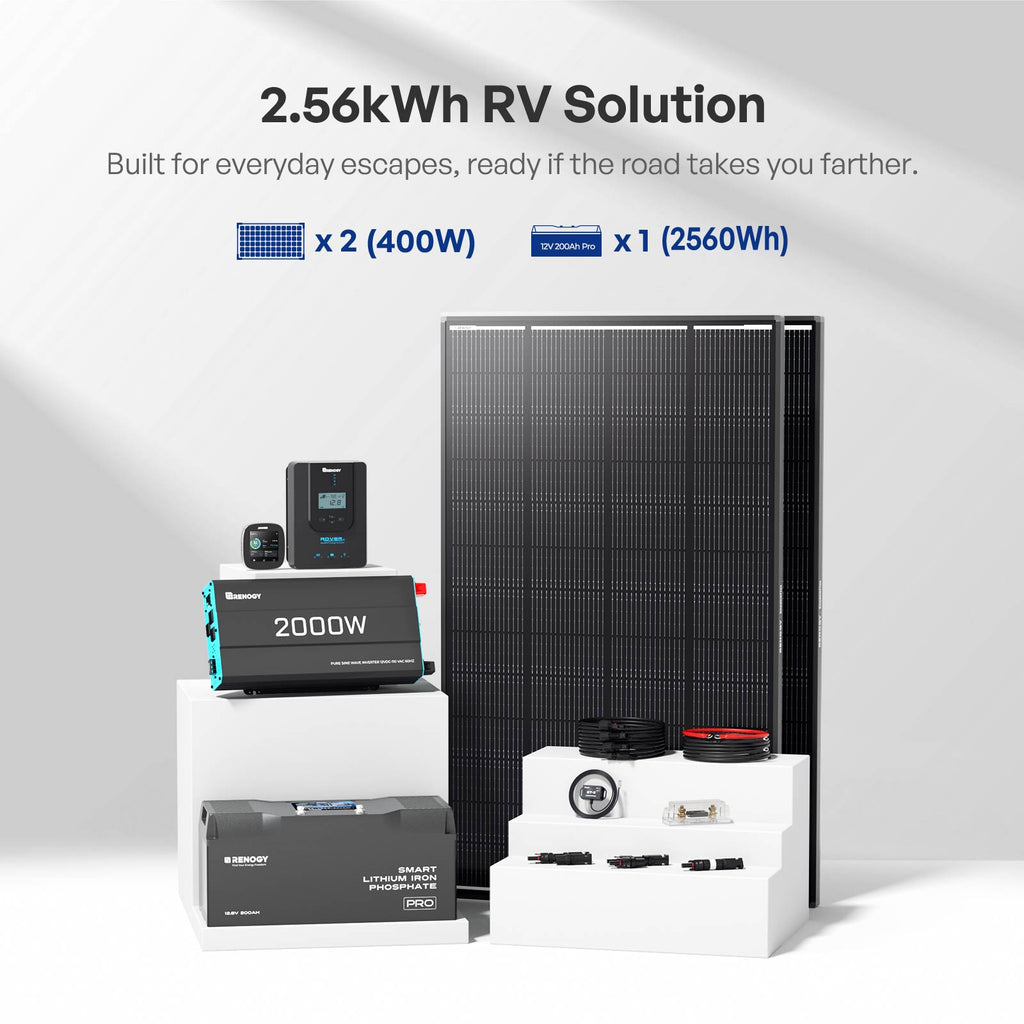

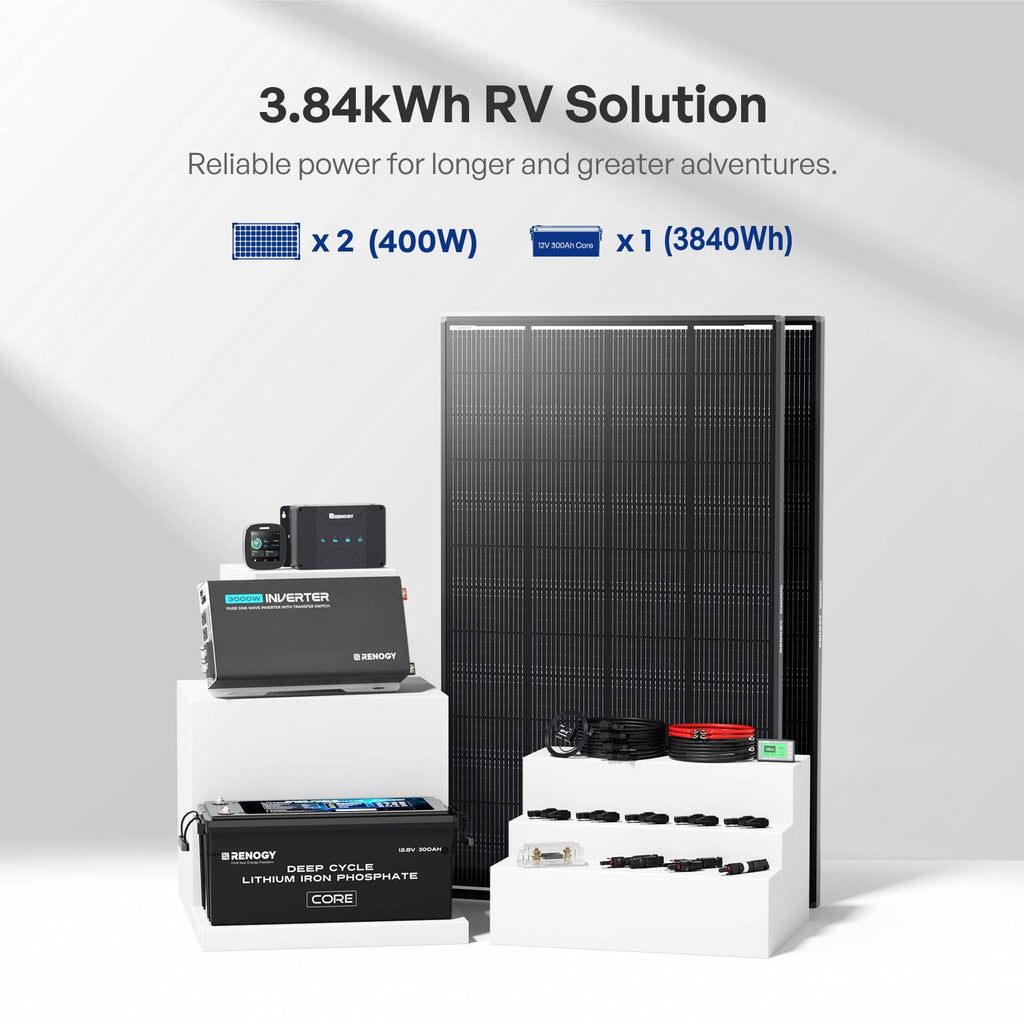

• Available capacities: 1.28 kWh (single module), 2.56 kWh (2 modules), 3.84 kWh (3 modules).
• Nominal voltage: 12.8 V per module.
• Module capacity: 100 Ah (12.8 V × 100 Ah ? 1,280 Wh) per module.
• Battery chemistry: Lithium Iron Phosphate (LiFePO4).
• Usable capacity: typically ? 90% per module (depending on system settings).
• Continuous discharge: up to 100 A per module (consult installer for system-wide limits).
• Peak (short-term) discharge: up to 150 A per module.
• Cycle life: designed for thousands of cycles at moderate depth of discharge (typical 2,000–5,000 cycles depending on use).
• Operating temperature: -20 °C to 60 °C (charging recommended within 0 °C to 45 °C).
• Weight per module: approximately 12 kg (estimate; varies by model and enclosure).
• Dimensions per module (approx): 340 mm × 170 mm × 200 mm (length × width × height).
• Enclosure material: ruggedized ABS with corrosion-resistant terminals.
• Connections: standard M8 terminal posts and plug-and-play communication port for compatible inverters/chargers.
• Certifications: built to meet relevant safety and transport standards for lithium battery systems (check model-specific documentation).
• Warranty: manufacturer limited warranty (refer to product paperwork for exact terms and duration).
