Solar Connectors Y Branch Parallel Adapter Cable — MMF+FFM Pair

Compact Y-Branch Adapter for Easy Parallel Panel Expansion

This Y-branch solar connector pair lets you join two panels in parallel quickly and reliably. Designed for outdoor solar use, it provides a weatherproof, low-resistance connection that simplifies adding panels or reorganizing strings without rewiring the whole system.

Benefits

• Make system expansion faster — add an extra panel or combine panels in parallel without complex wiring changes.
• Reduce installation time with a push-to-lock male connector that secures the connection in one motion.
• Protect your system from weather damage with IP67-rated mating connections, reducing maintenance and downtime.
• Lower electrical losses thanks to low contact resistance, helping panels deliver more usable power to your controller or inverter.
• Get straightforward support and peace of mind with a 1-year Renogy material and workmanship warranty.

Features

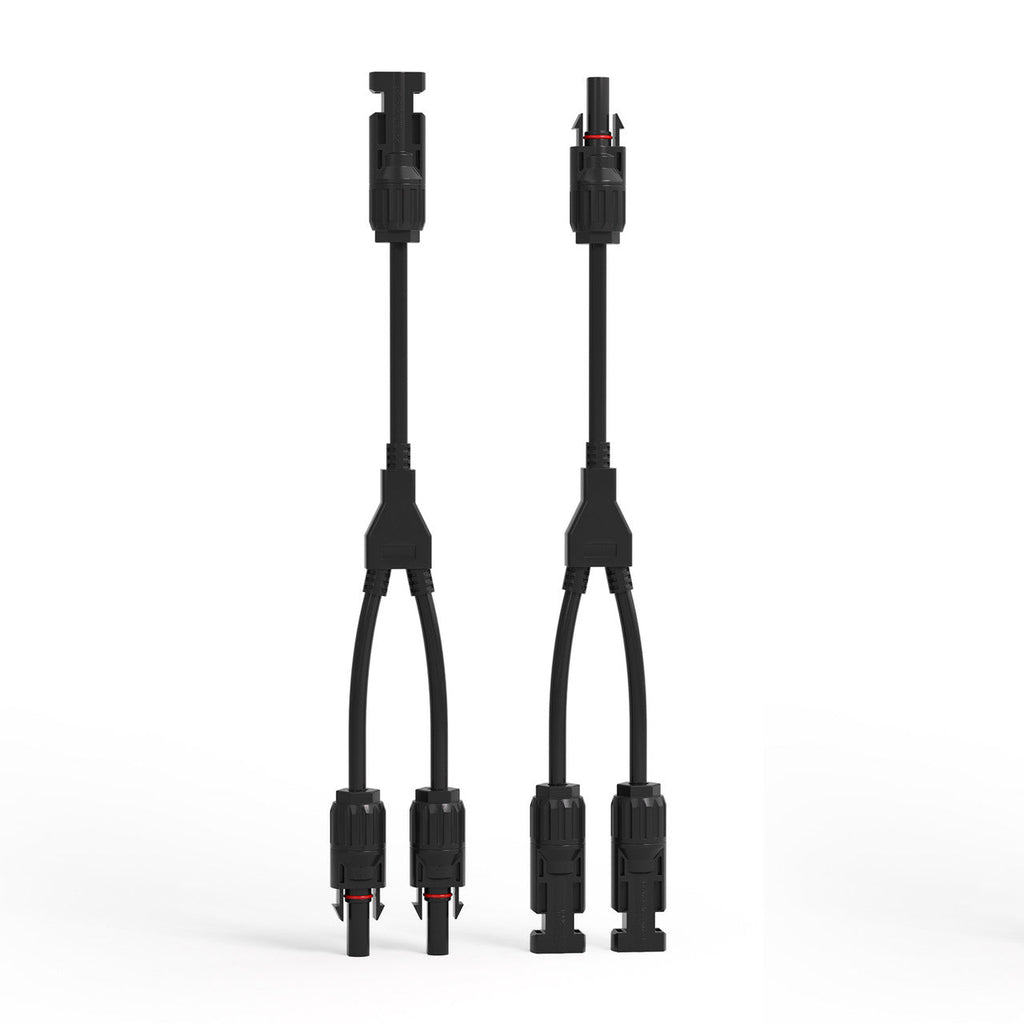

• Y-branch parallel adapter cable pair (MMF + FFM configuration) for combining solar panels.

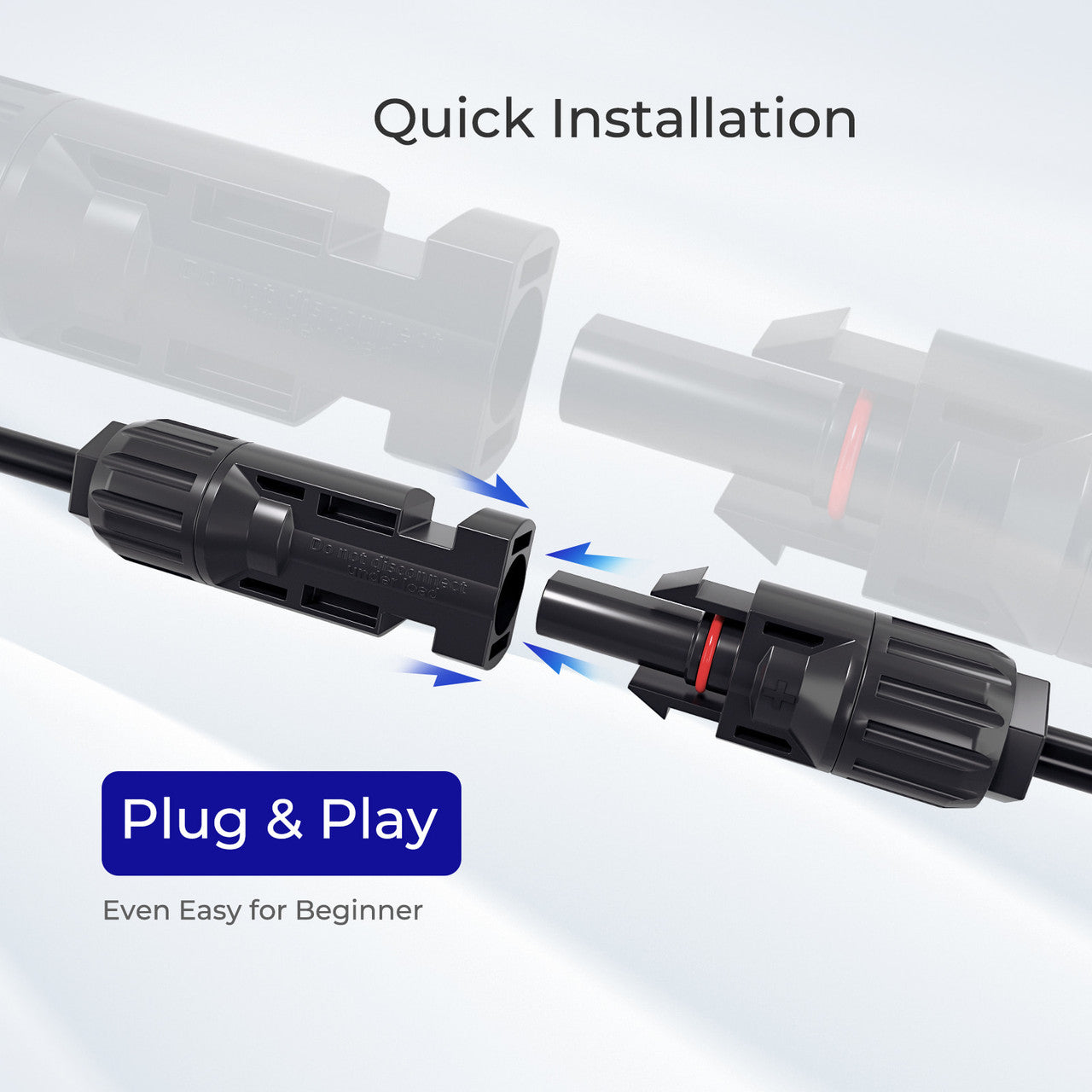

• Push-to-lock male connector for effortless, tool-free mating.

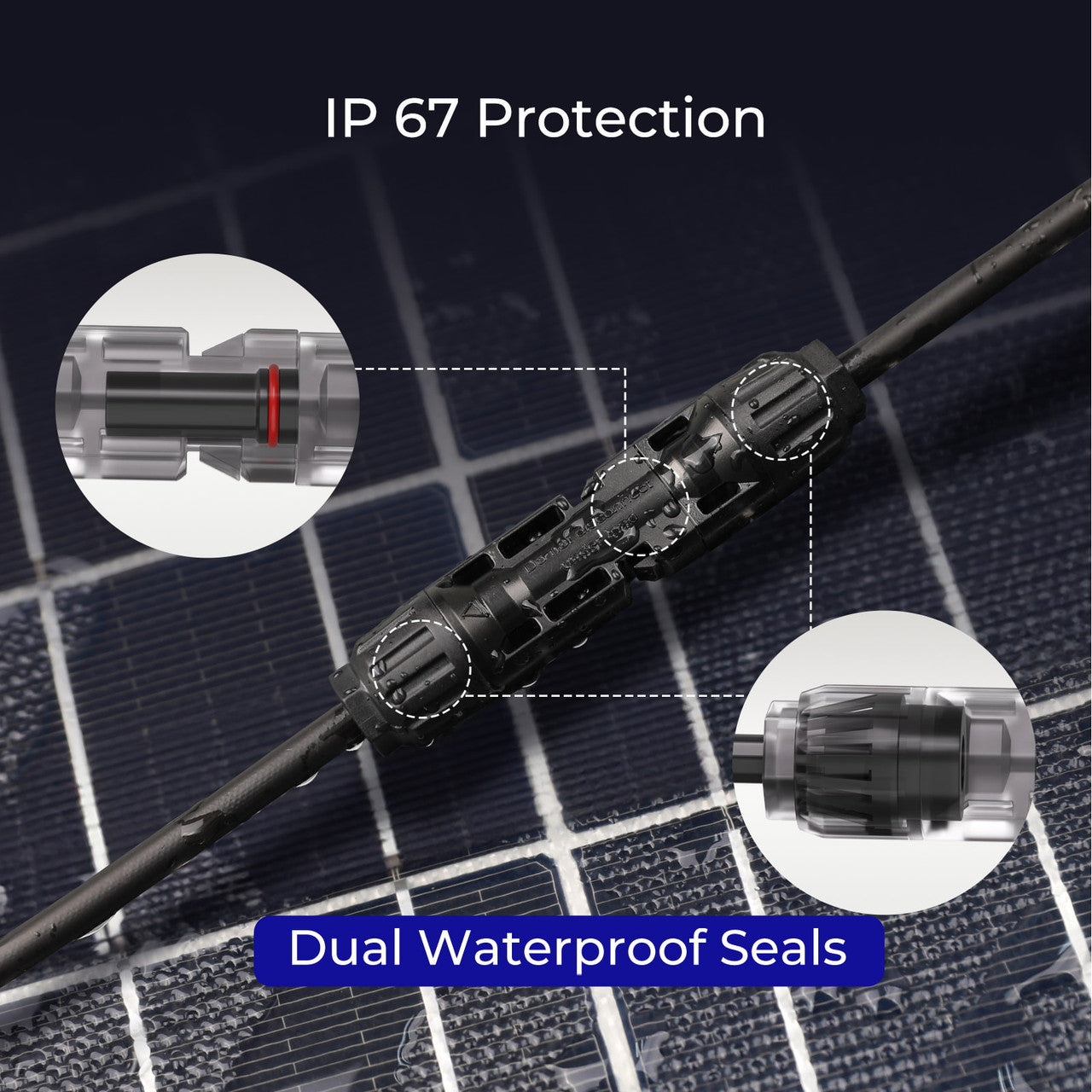

• IP67 protection when mated (IP2X when unmated) for reliable outdoor performance.

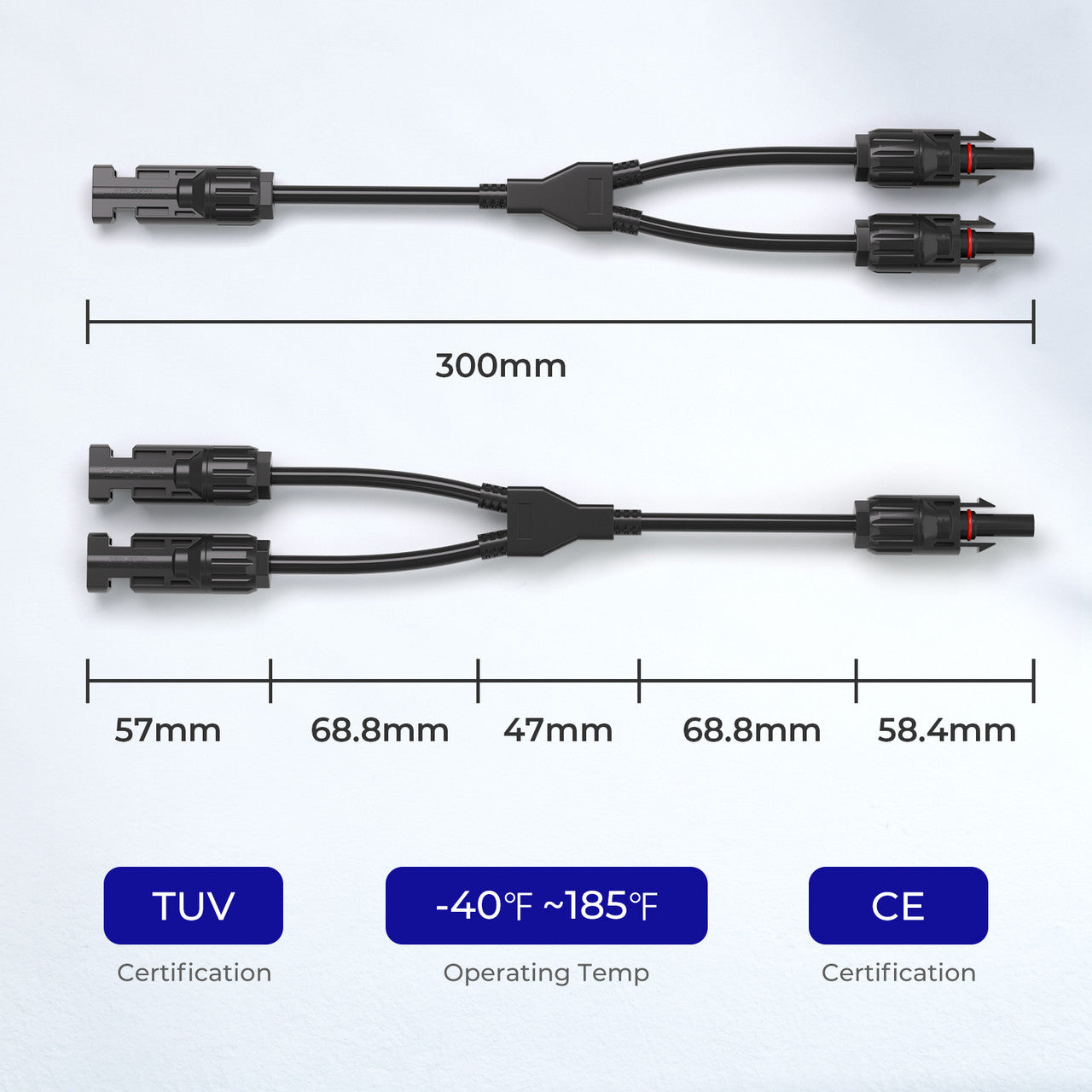

• TÜV and CE certified for safety and compliance.

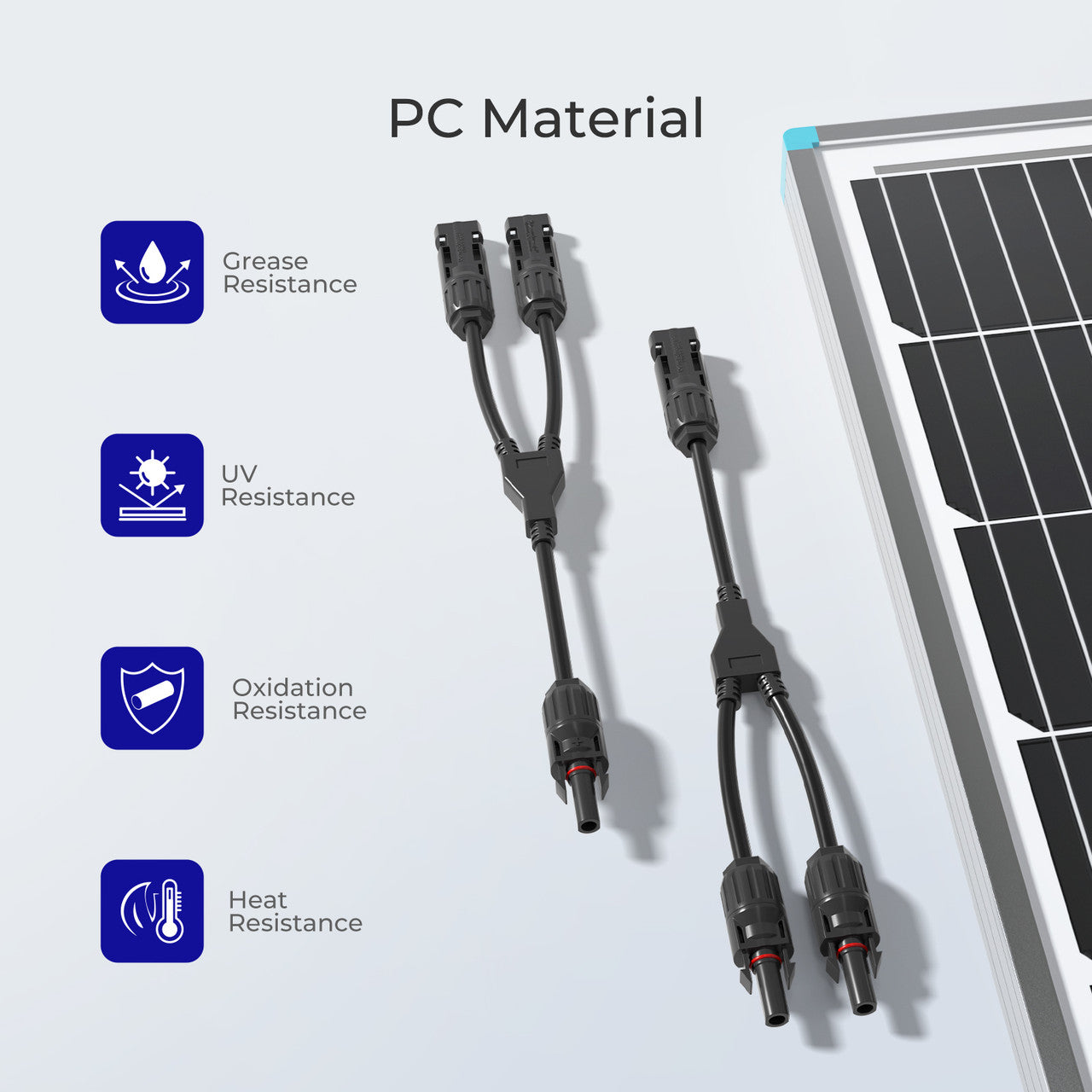

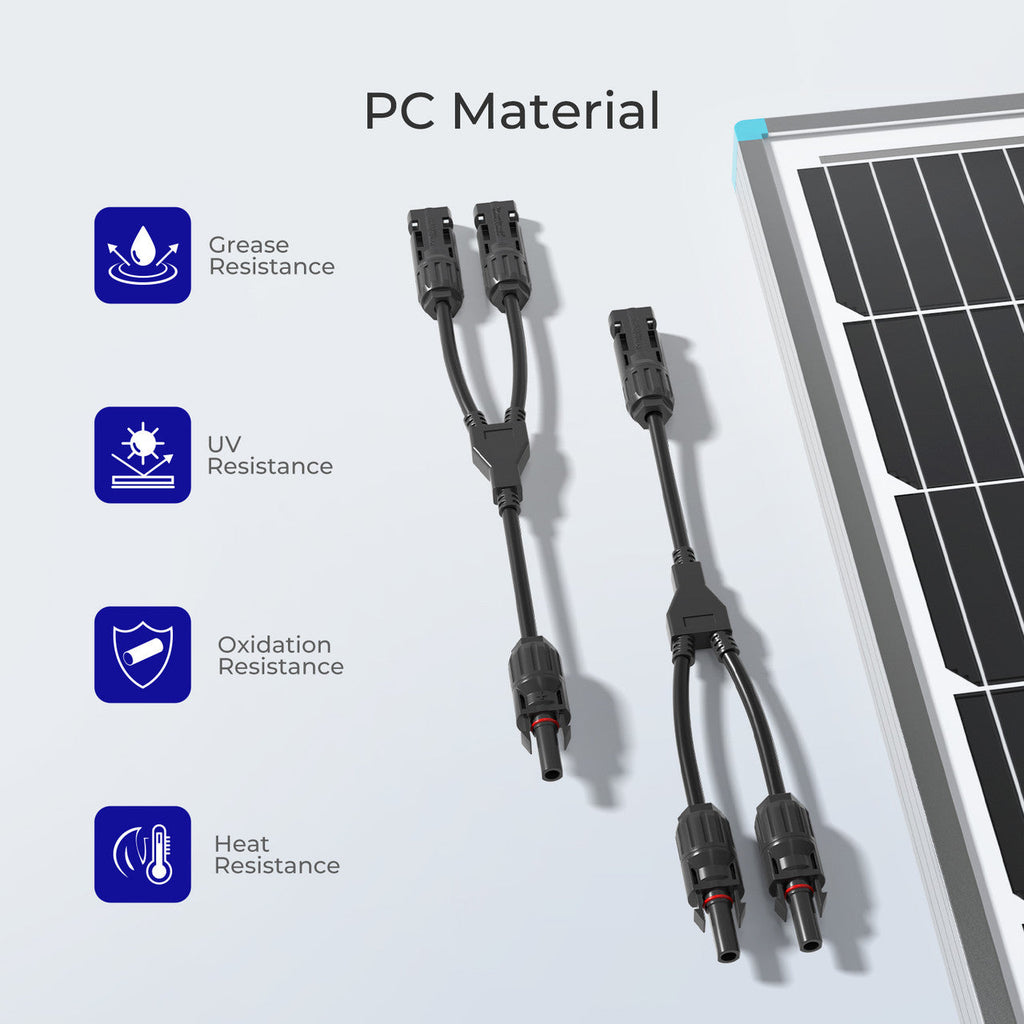

• Durable polycarbonate (PC) housing that resists oils and high temperatures.
• Copper contacts with tin plating for corrosion resistance and consistent conductivity.
• Tight-fitting design to minimize water ingress; use Renogy solar spanners if removal is required.
• Includes 1 × Y Branch Parallel Adapter Cable pair.
• Renogy 1-year material and workmanship warranty.

Specifications

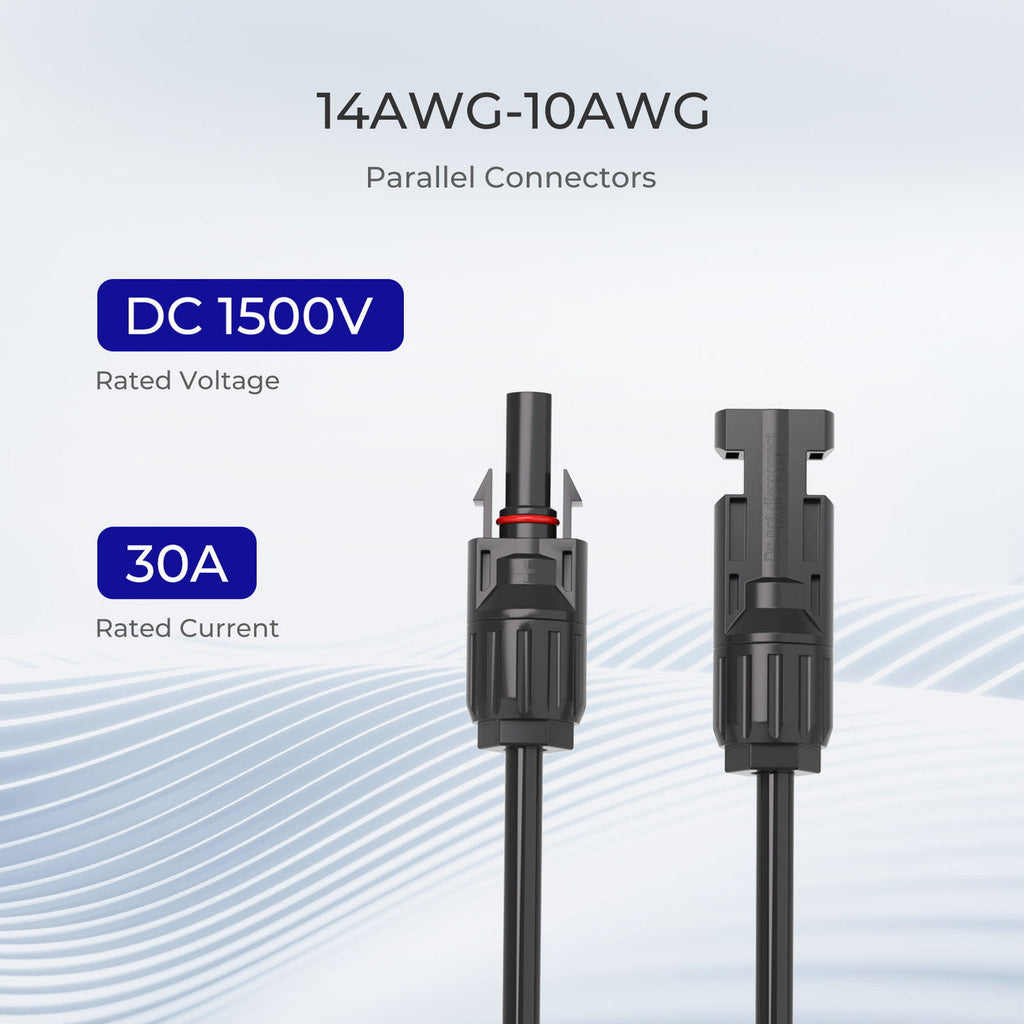

• Rated Current: 30 A
• Rated Voltage: 1500 V DC (IEC)
• Contact Resistance: 0.5 m?
• Insulation Material: PC (polycarbonate), oil- and high-temperature-resistant
• Contact Material: Copper, tin-plated
• Temperature Range: -40°C to 90°C (?40°F to 194°F)
• Protection Degree: IP67 (mated) / IP2X (unmated)
• Safety Degree: Class II
• Flame Class: UL94-HB / UL94-V0
• Suitable Single Core Cable Section: 2.5 mm², 4 mm², 6 mm² (compatible with 14 AWG – 10 AWG solar cable)
• Package Contents: 1 × Solar Connectors Y Branch Parallel Adapter Cable MMF+FFM Pair
