Renogy Solar Adaptor Kit — Panel-to-Charge-Controller Wiring (Pair)
Overview

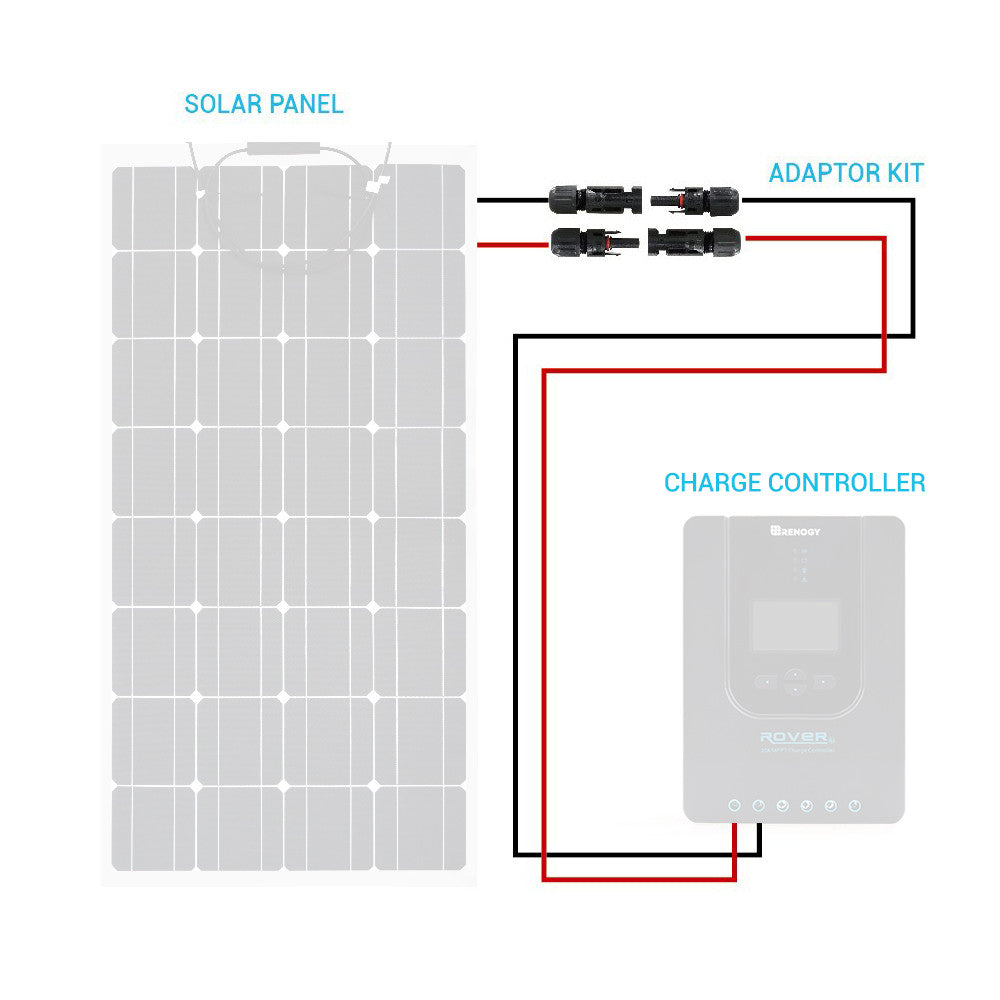

A ready-to-use pair of weatherproof solar cables that connect Renogy solar panels to a charge controller. Each kit has secure plastic male and female connectors on the panel end and exposed tinned-copper conductors on the controller end, available in multiple lengths and two gauges to match your installation needs.
Benefits
Makes installation faster — plug into the panel and land the bare wires at the charge controller without custom crimping.
Keeps your system reliable in all seasons — weatherproof construction resists sun, heat and cold.
Gives placement flexibility — multiple lengths let you mount panels on roofs or on the ground without extra splices.
Reduces troubleshooting time — standardized connectors and clearly exposed ends simplify checks and maintenance.
Features

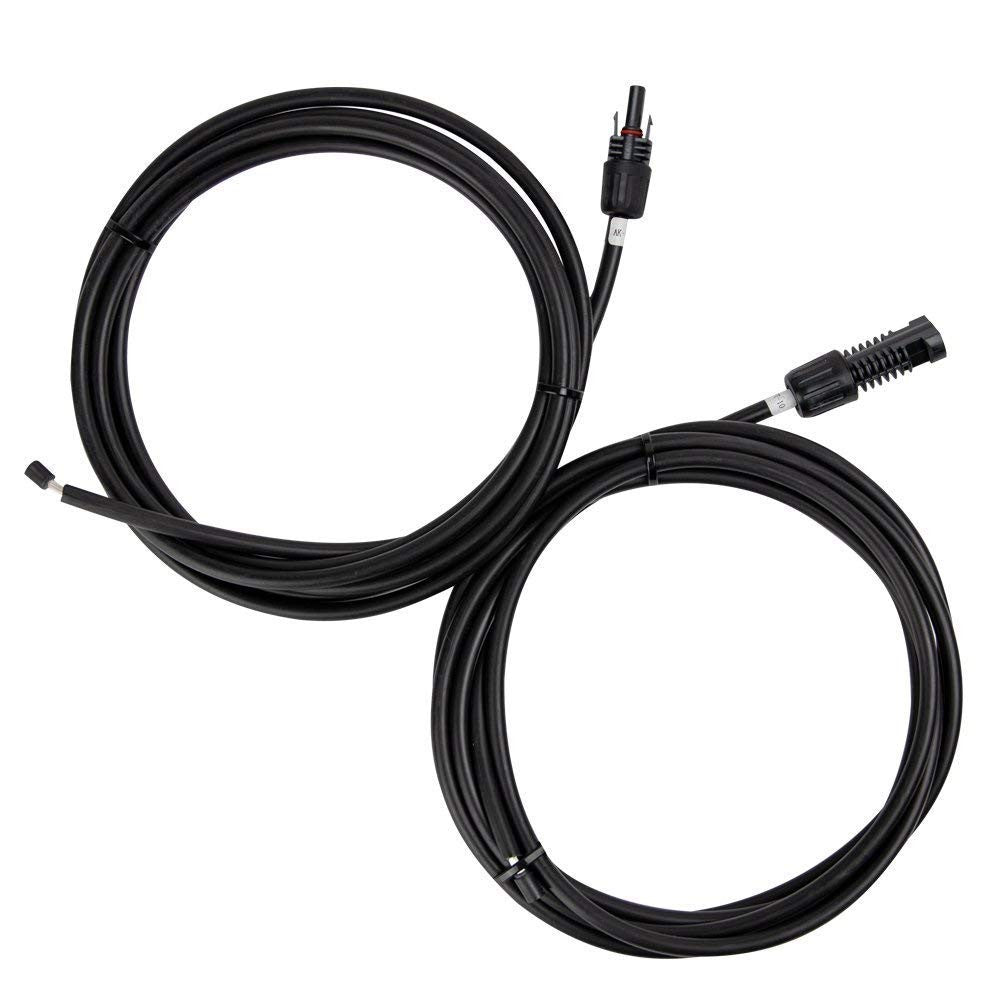

Pair of pre-assembled cables: one male and one female connector for secure, keyed connections.

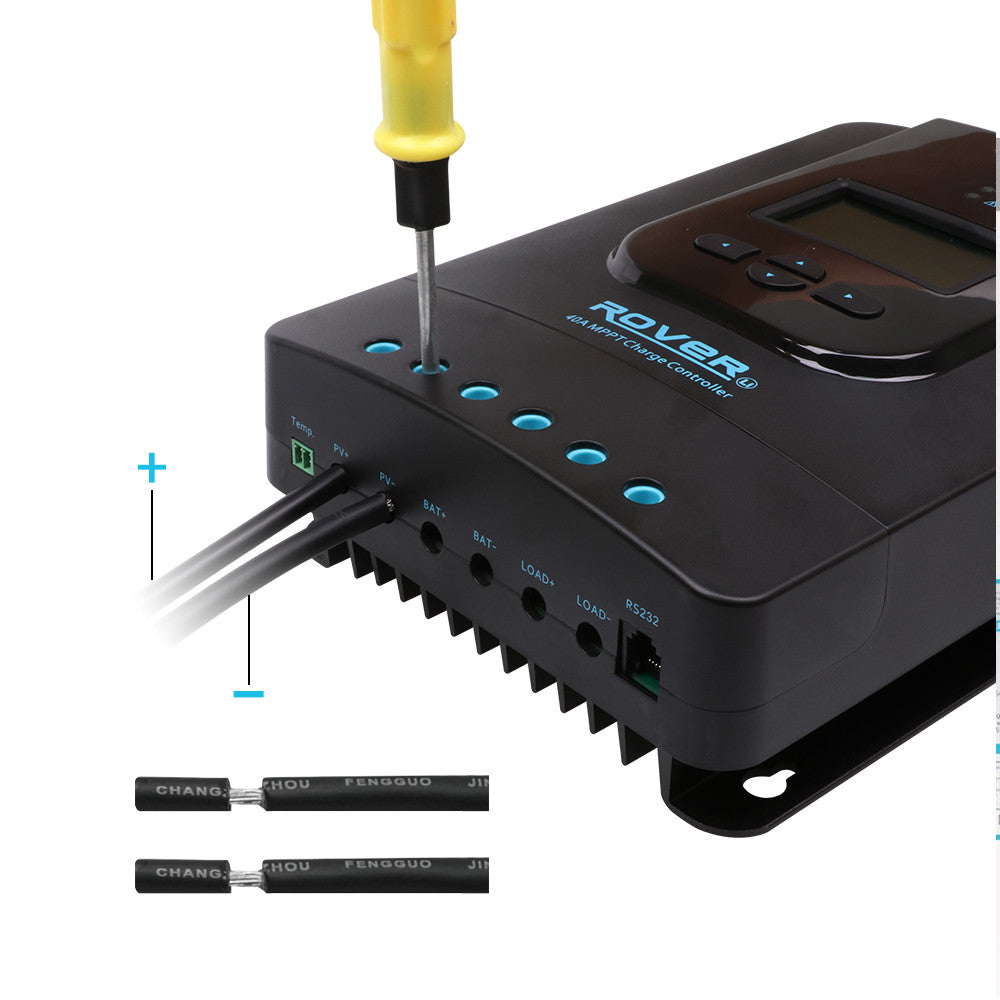

Exposed, tinned-copper wire ends for direct connection to most charge controllers.
Durable black, sunlight-resistant jacket and insulated wiring for outdoor use.

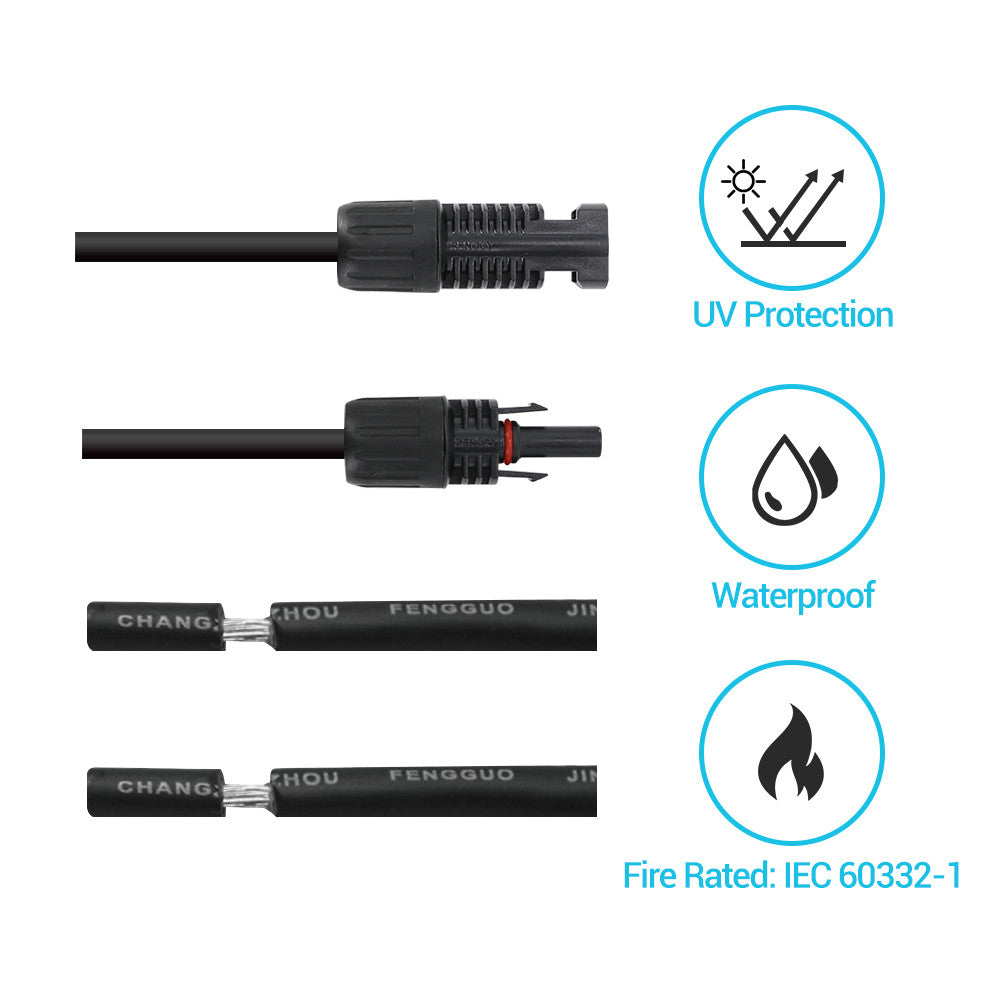

Weatherproof connectors and IP65-rated protection on the cable assembly.
Available in a range of lengths and two wire gauges (10 AWG and 12 AWG) to reduce voltage drop based on system size.

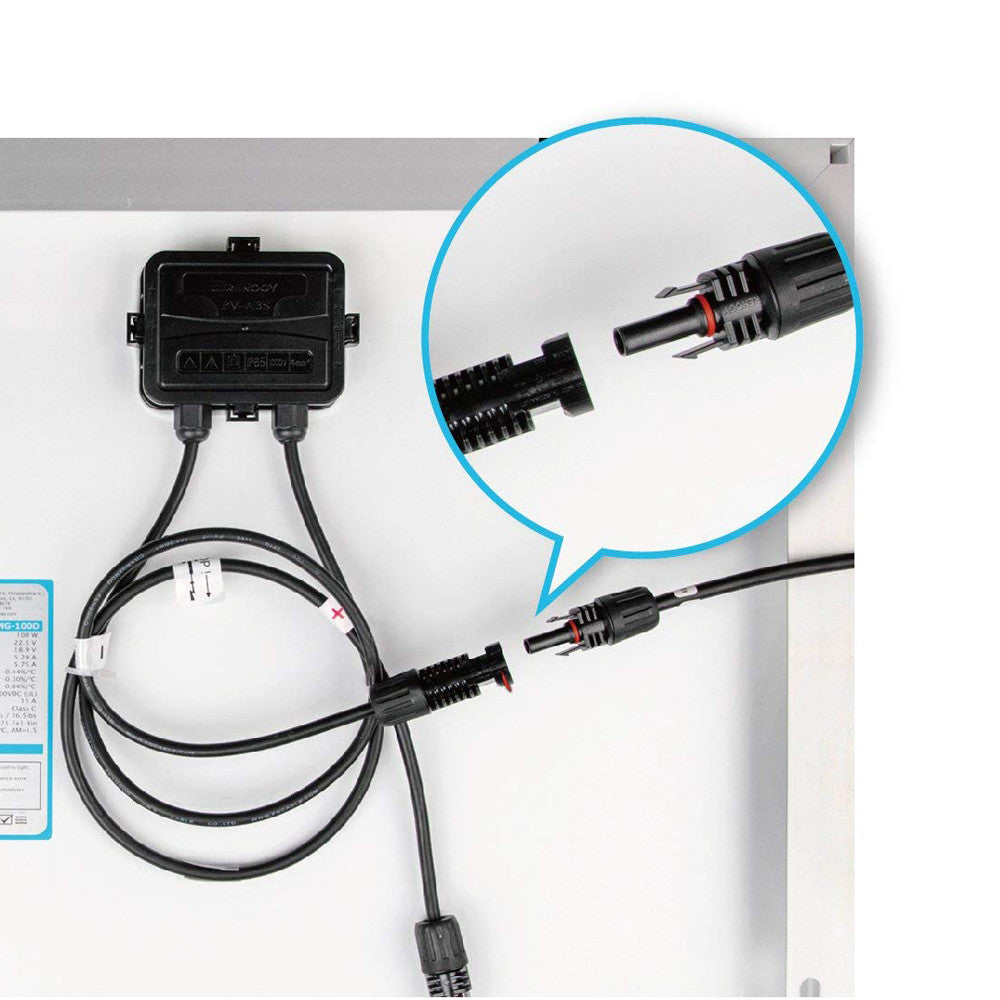

Extends and locks into built-in panel cables for a stable connection.
Specifications
Included: 1 pair (male + female) Renogy Solar Adaptor Kit

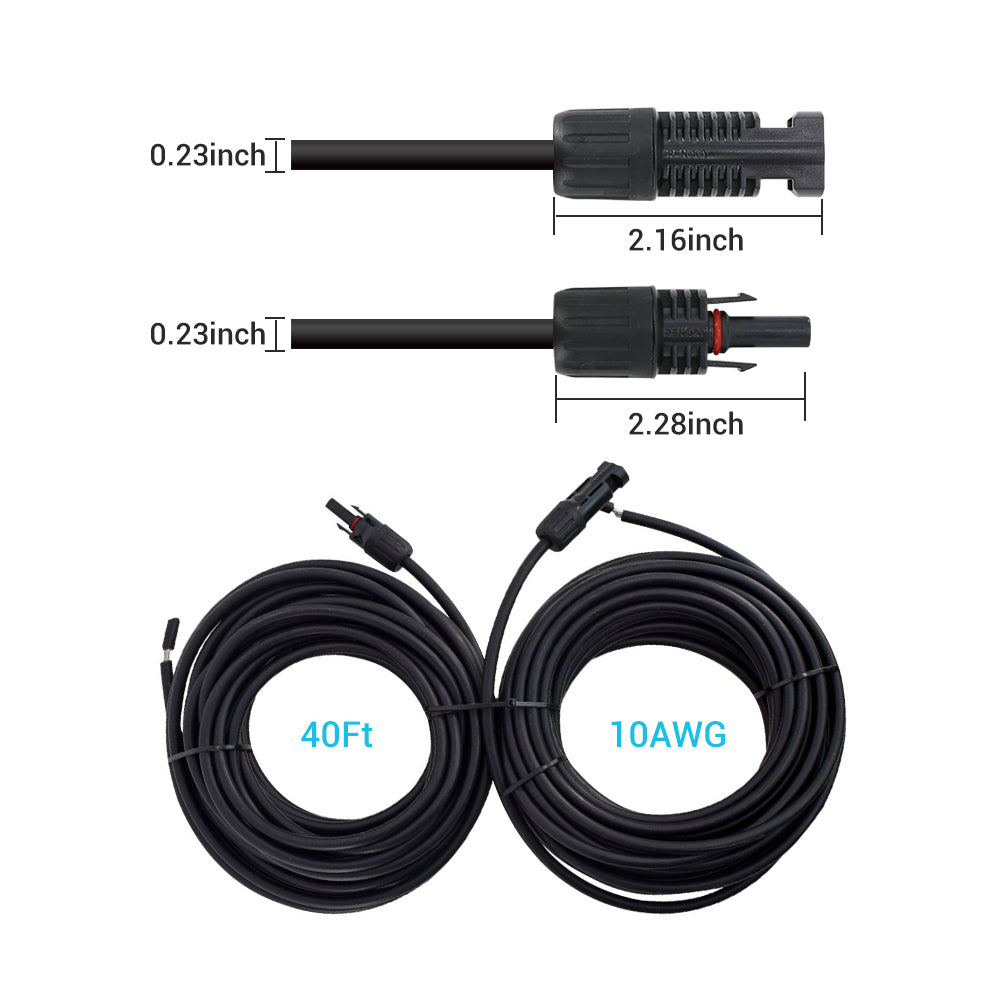

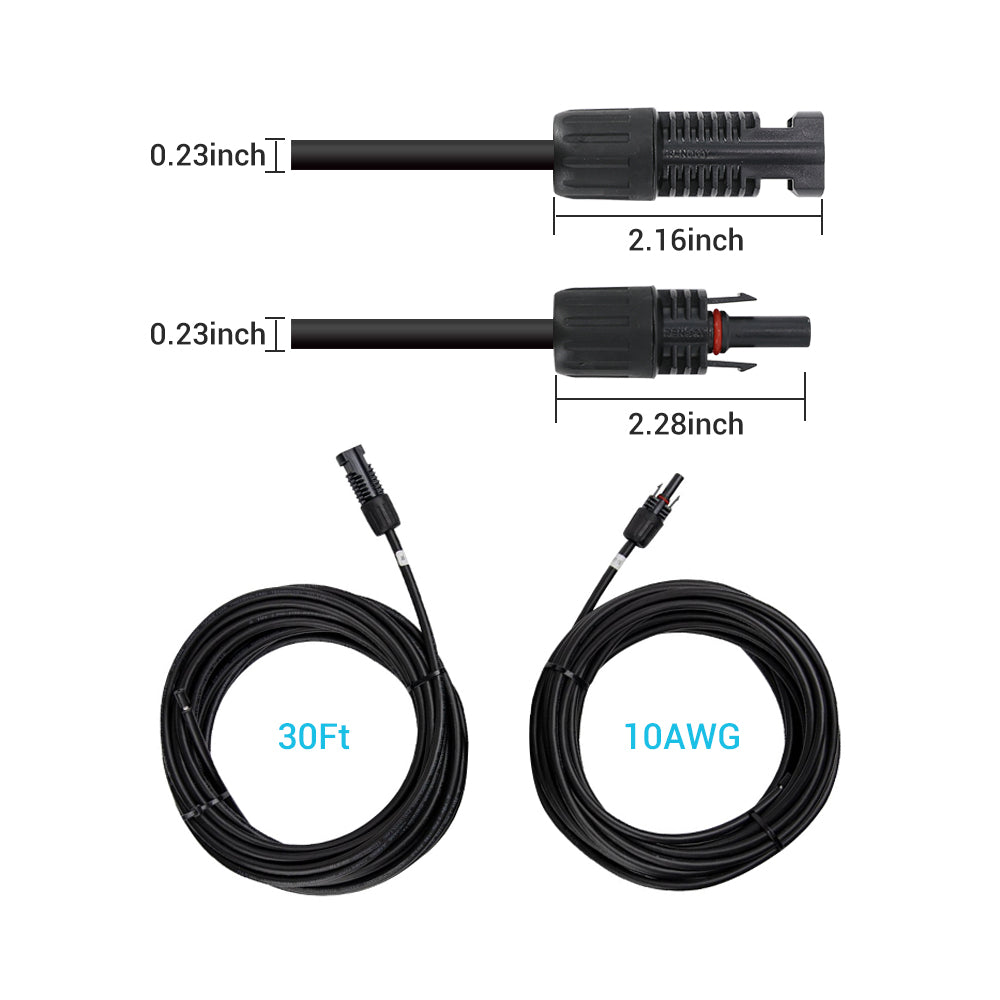

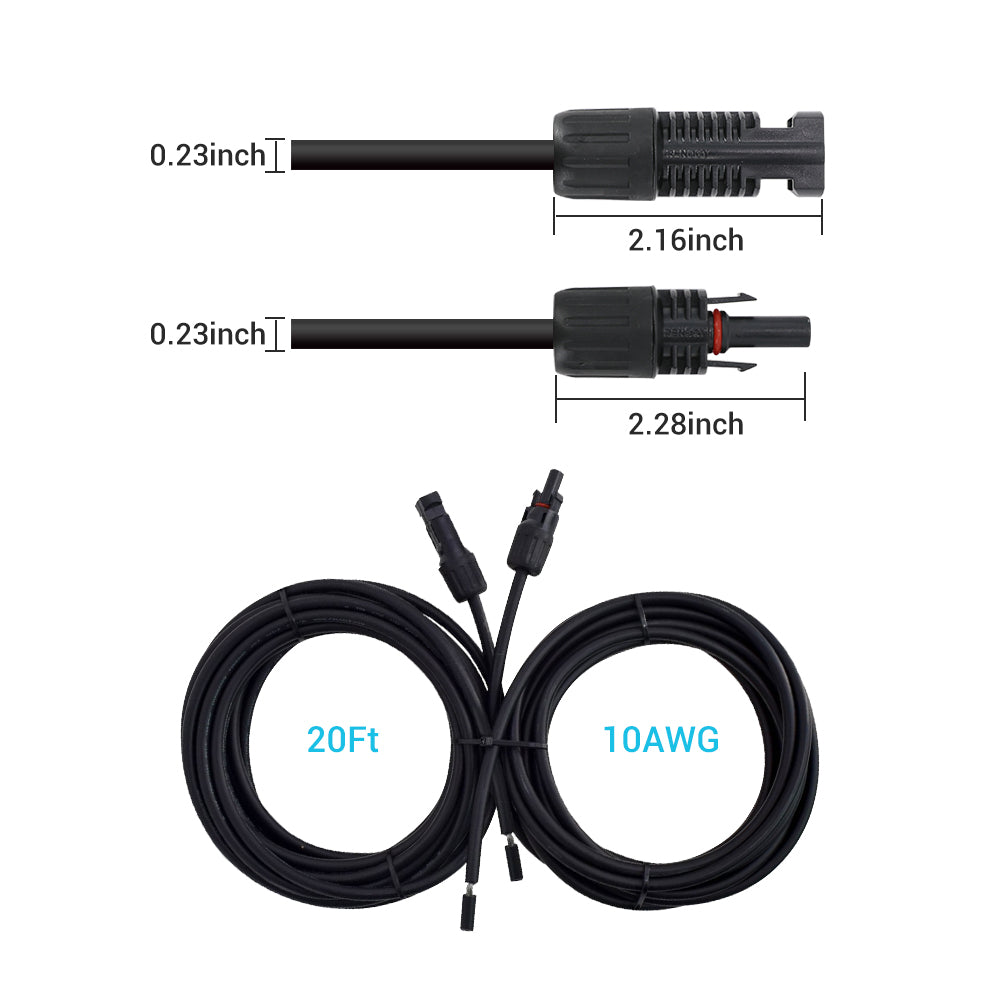

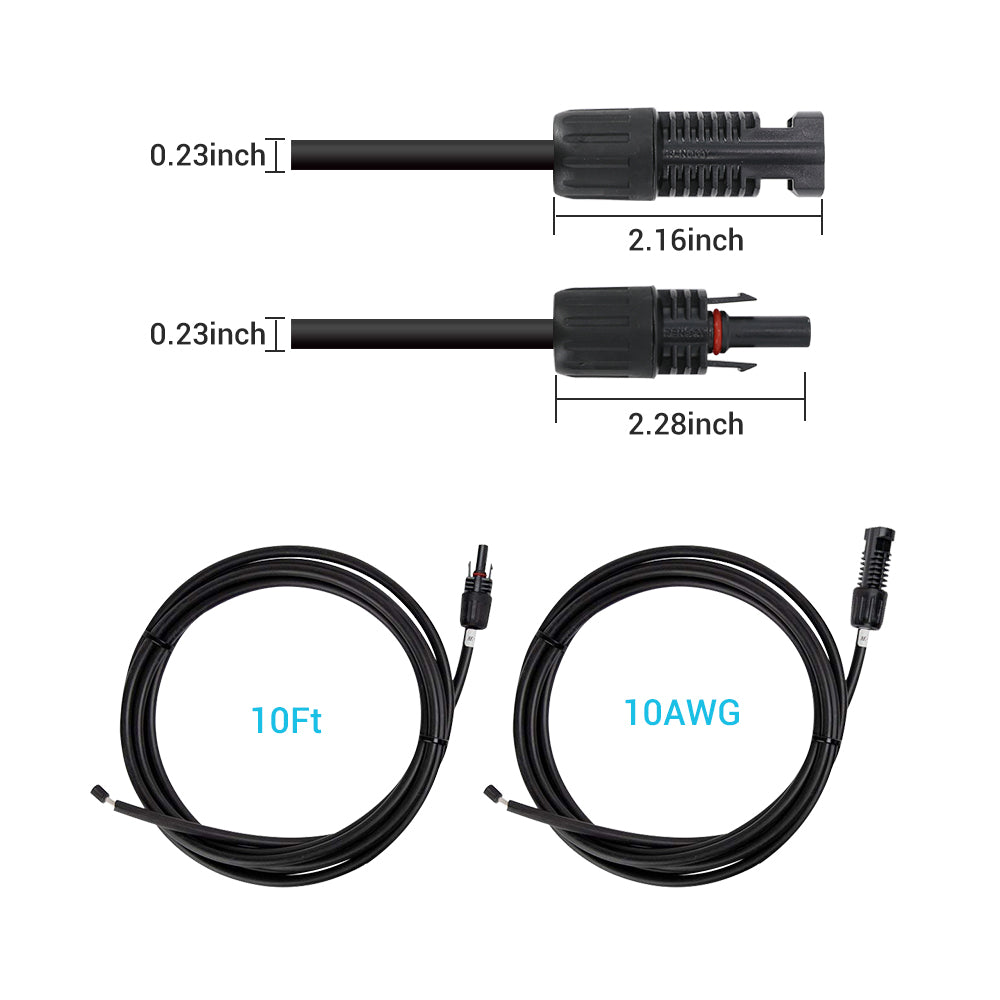

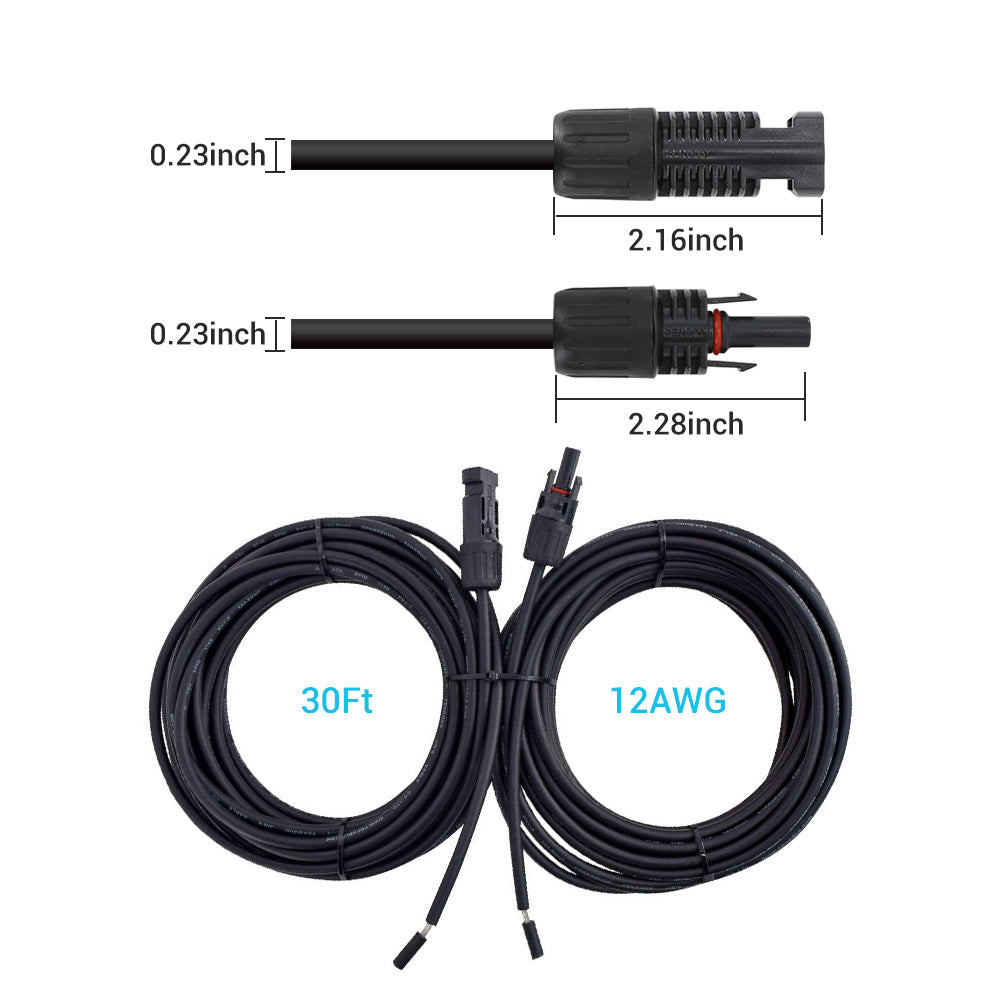

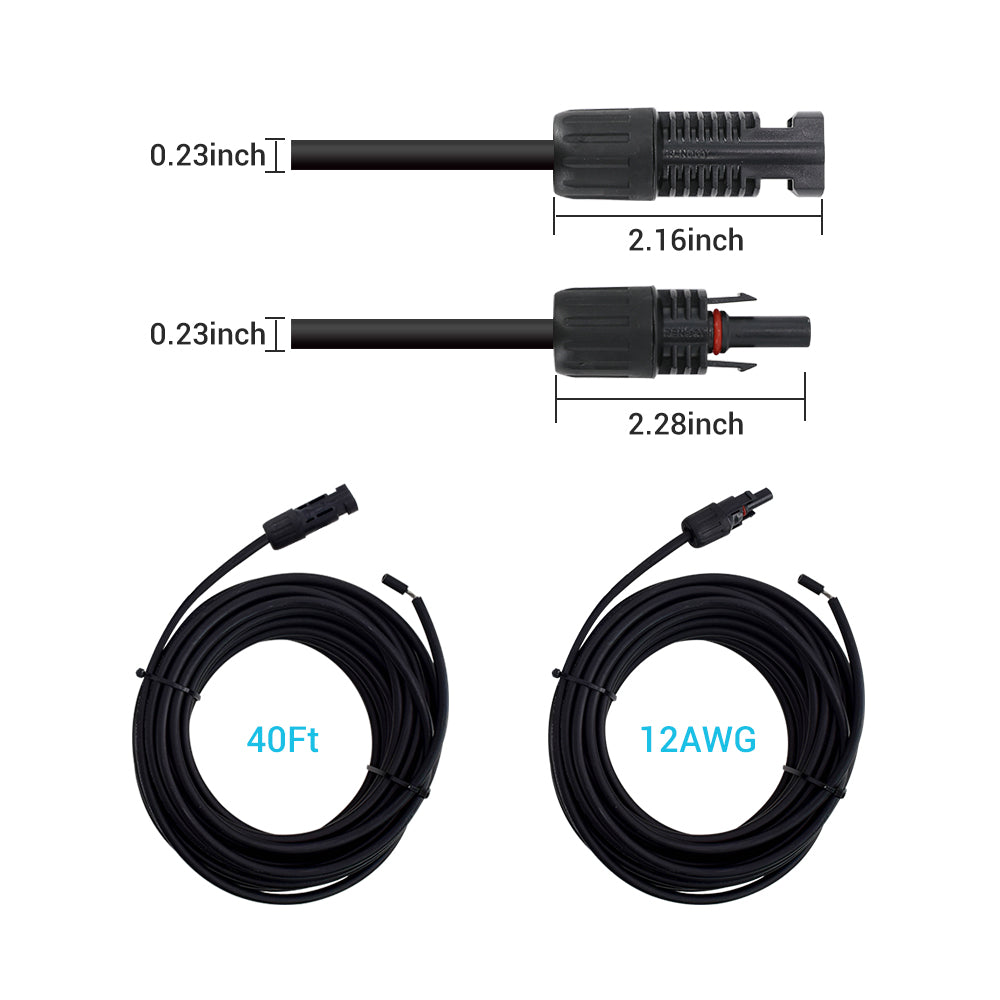

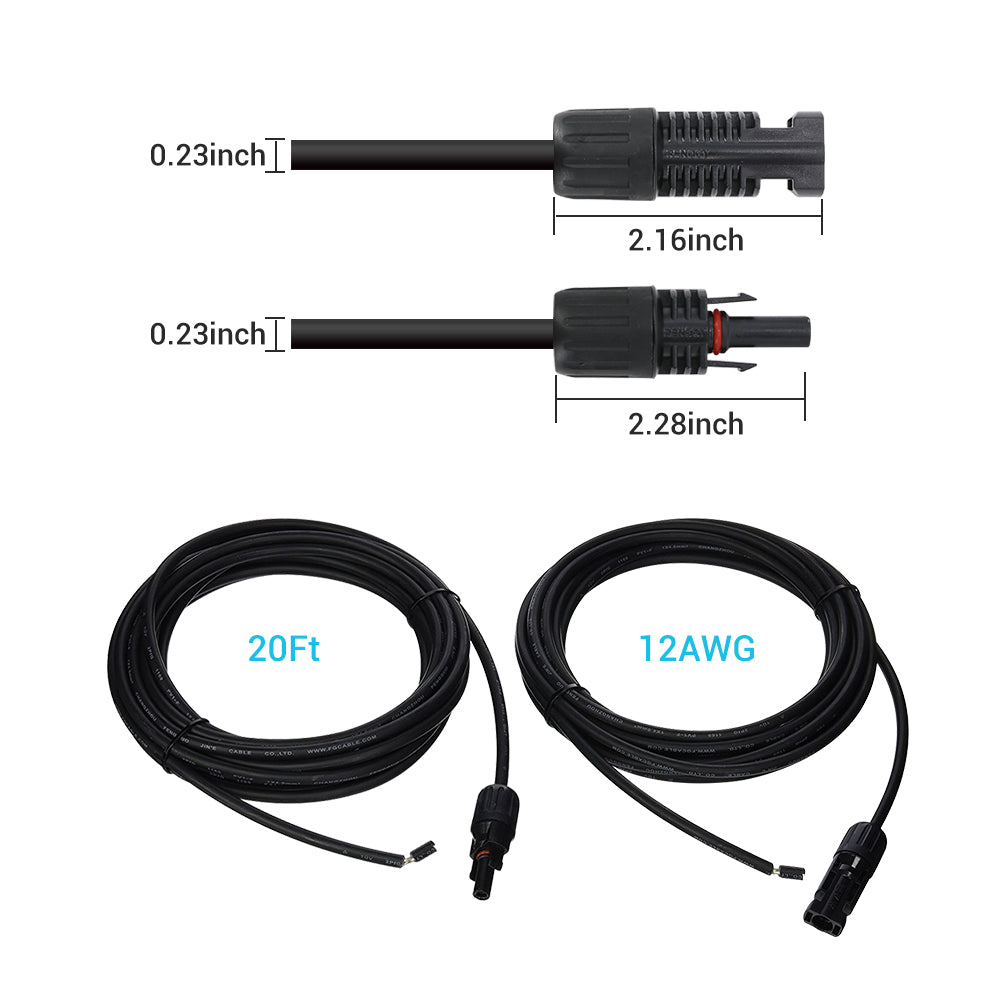

Available lengths: 9 in, 10 ft, 20 ft, 30 ft, 40 ft
Available gauges: 10 AWG and 12 AWG
Voltage rating: 600 / 1000 V
Operating temperature: -40°F to +185°F
Conductor material: tinned copper wire
10 AWG typical specs:
Normal conductor cross-sectional area: 6.0 mm²
Number of wires in conductor: 84
Min. insulation wall thickness: 0.85 mm
Min. sheath wall thickness: 1.08 mm
12 AWG typical specs:
Normal conductor cross-sectional area: 4.0 mm²
Number of wires in conductor: 56
Min. insulation wall thickness: 0.78 mm
Min. sheath wall thickness: 0.97 mm
Diameter of wires in conductor (reported): 3.02 ± 0.08 mm
Protection rating: IP65
Cable color and finish: black, sunlight-resistant jacket
Packaged quantity: 1 × adaptor kit (pair)
Warranty: 1-year material and workmanship warranty (accessories)
