Renogy 200W Foldable Solar Suitcase Kit (with 20A Voyager Controller)
Overview
A portable, plug-and-play solar kit designed for camping, RVs, cabins, or emergency backup power. The kit includes two 100W monocrystalline panels in a foldable suitcase, a waterproof 20A Voyager PWM charge controller, alligator clips and a protective canvas case — giving you a simple way to harvest roughly 1 kWh of energy on a sunny day without relying on the grid.
Benefits
- Power where you need it: run lights, charge devices, or top up a battery without wiring a permanent array.
- Quick setup and tear-down: foldable design and included alligator clips let you get panels facing sun in minutes.
- Less worry about battery health: the Voyager controller’s protections reduce risk of overcharge, reverse polarity, and other common issues.
- Easy to move and store: compact suitcase form and adjustable kickstands make it simple to reposition for better sun exposure.
- Reliable in partial shade: built-in bypass diodes reduce power loss from shading and hot spots, keeping the system safer and more consistent.
Features

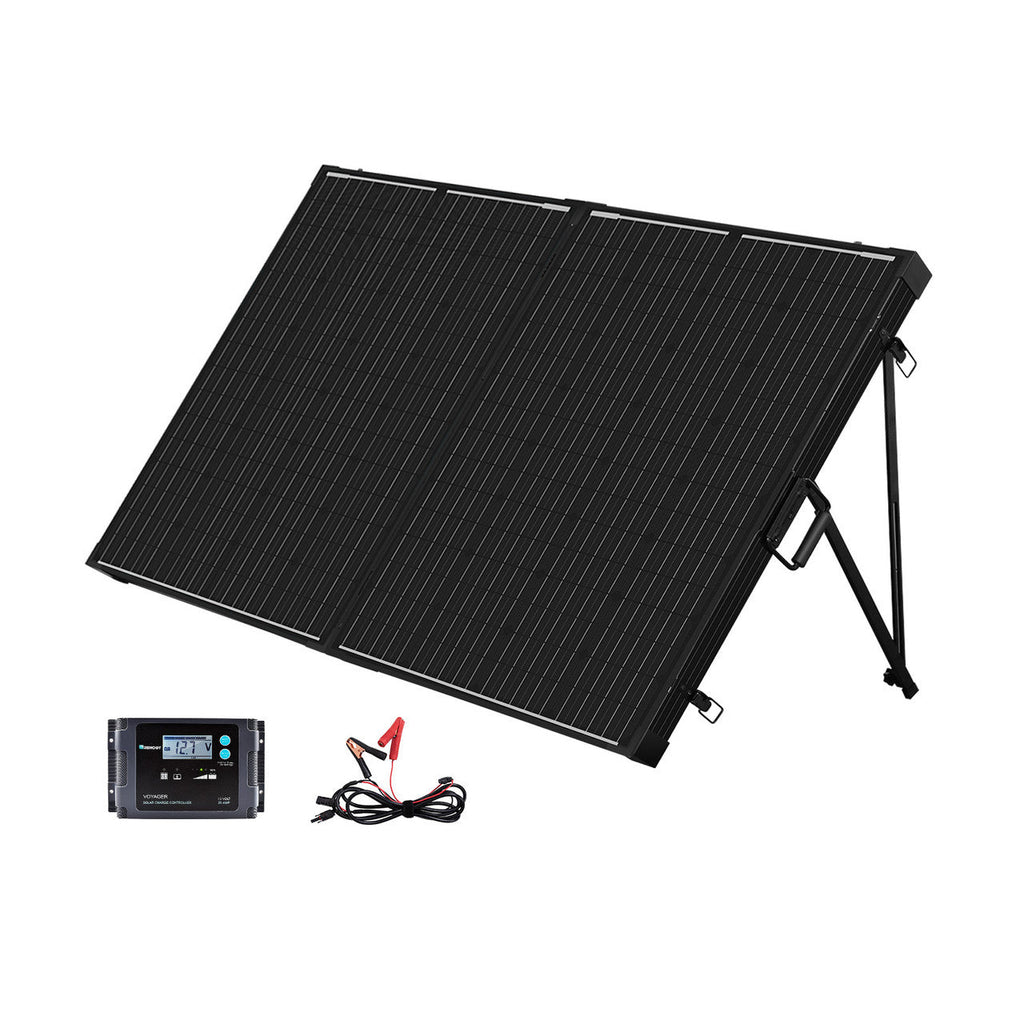

- Complete kit: 200W foldable solar suitcase (two 100W panels), 20A waterproof Voyager PWM charge controller, alligator clips, tray cable, and a protective canvas case.
- High-efficiency monocrystalline cells (Grade A+) for strong power output per area.

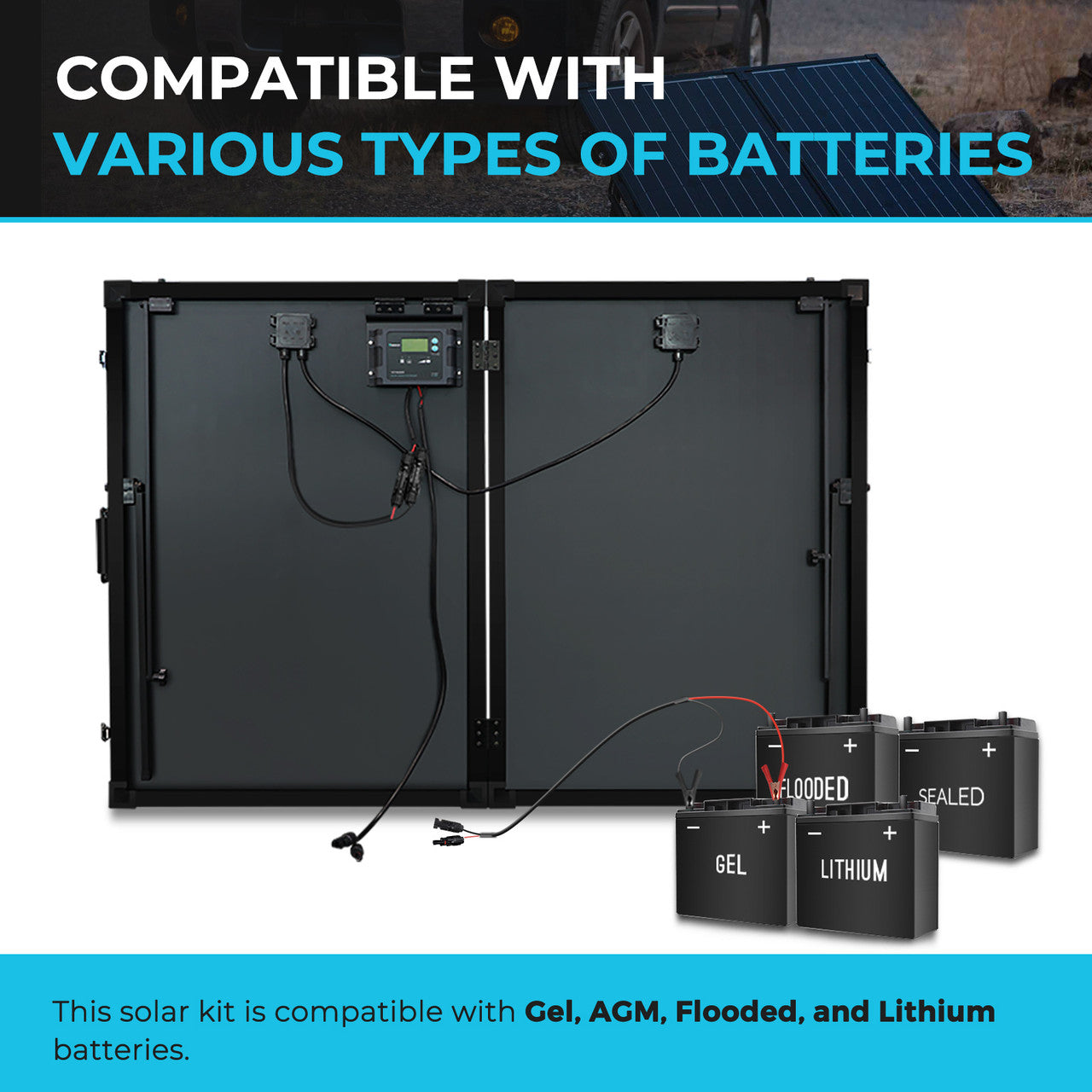

- PWM charge control with multiple protection modes for safe charging and battery compatibility selection (Gel, AGM, Flooded, Lithium).

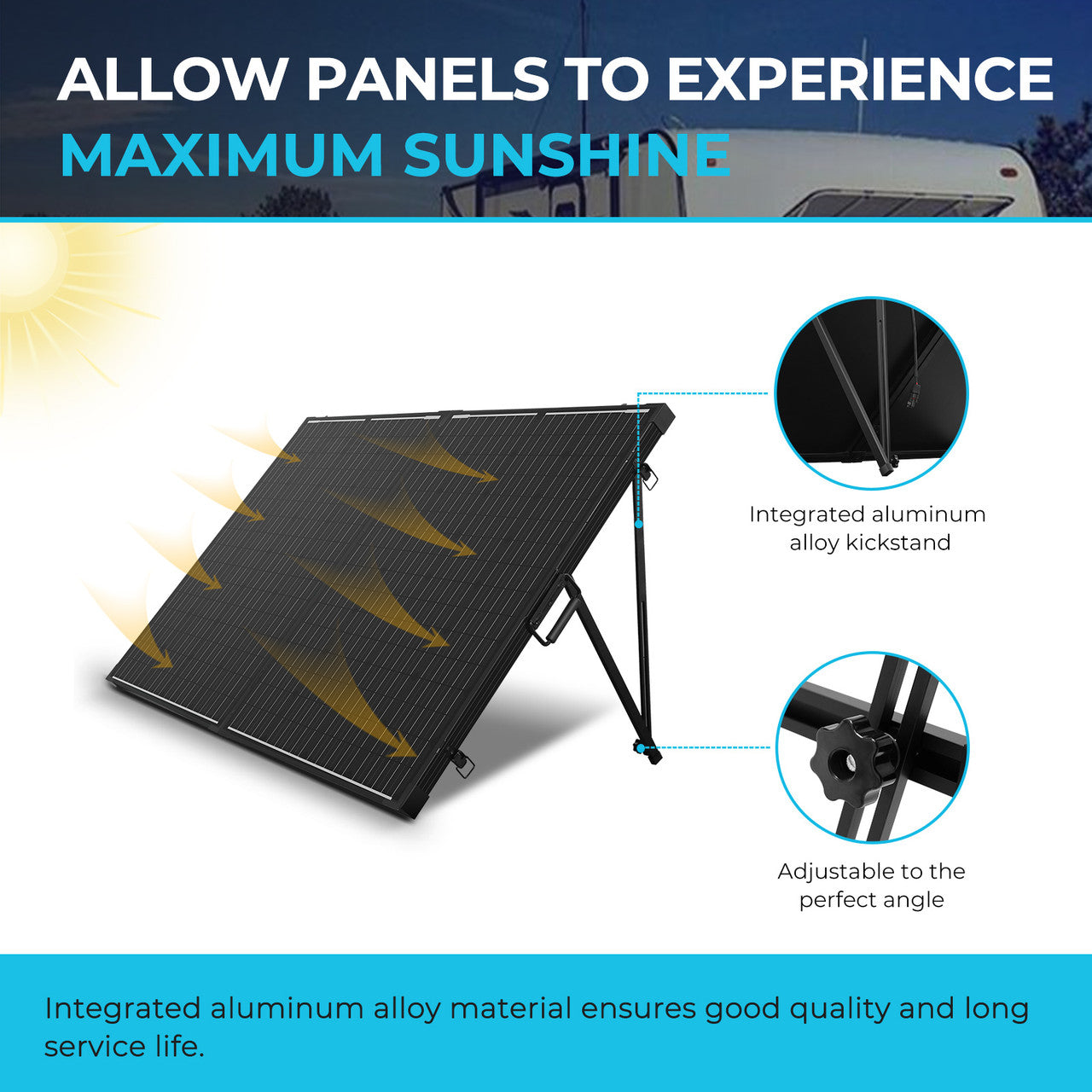

- Foldable suitcase design with adjustable kickstands for easy aiming and compact storage.

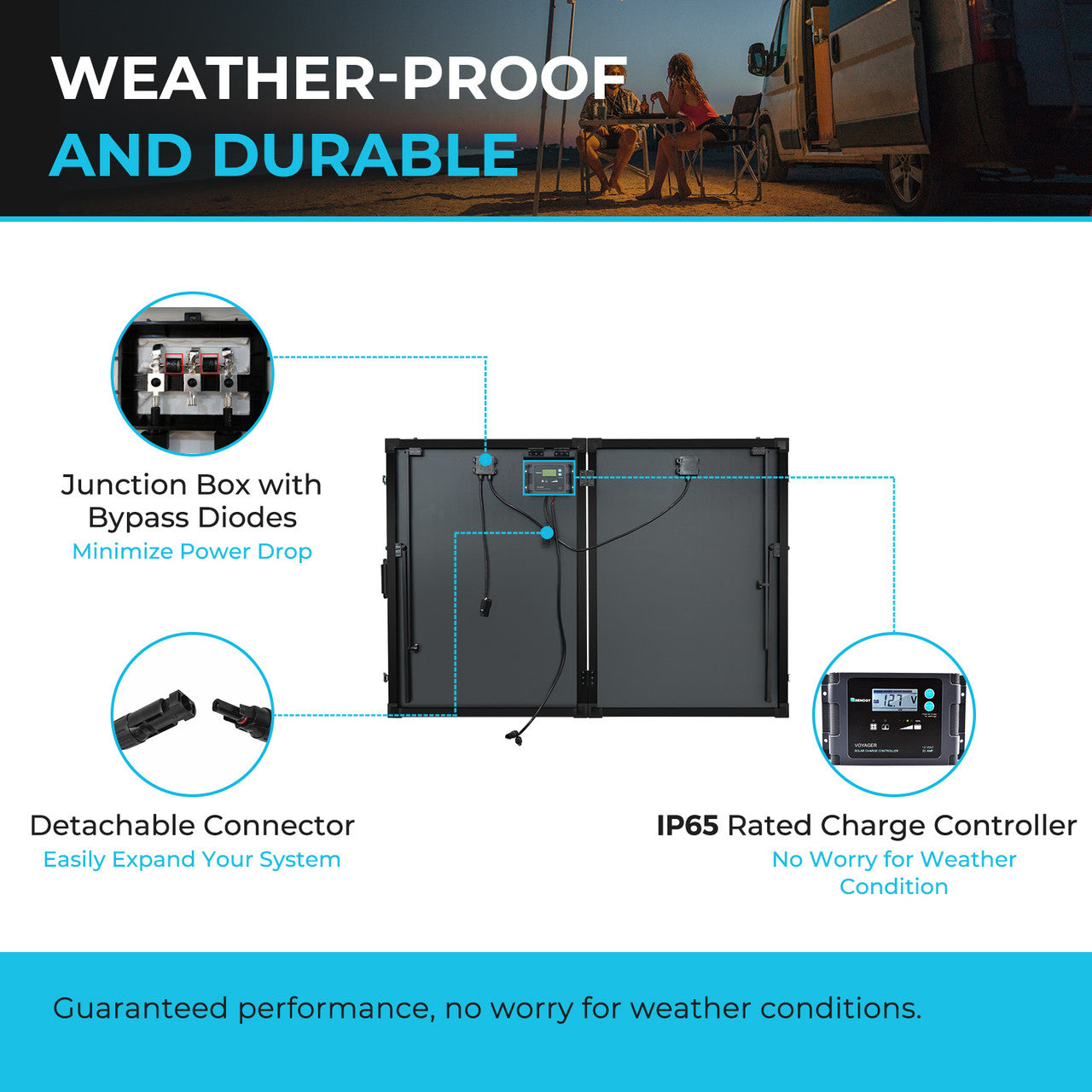

- Bypass diodes installed in junction boxes to minimize power loss from shading and prevent hot-spot damage.
- Lithium activation and manual battery-voltage selection for proper lithium battery charging behavior.
- Portable tray cable with alligator clips for simple, tool-free connection to 12V batteries.
Specifications
- Maximum power (STC): 200 W (2 × 100 W panels)

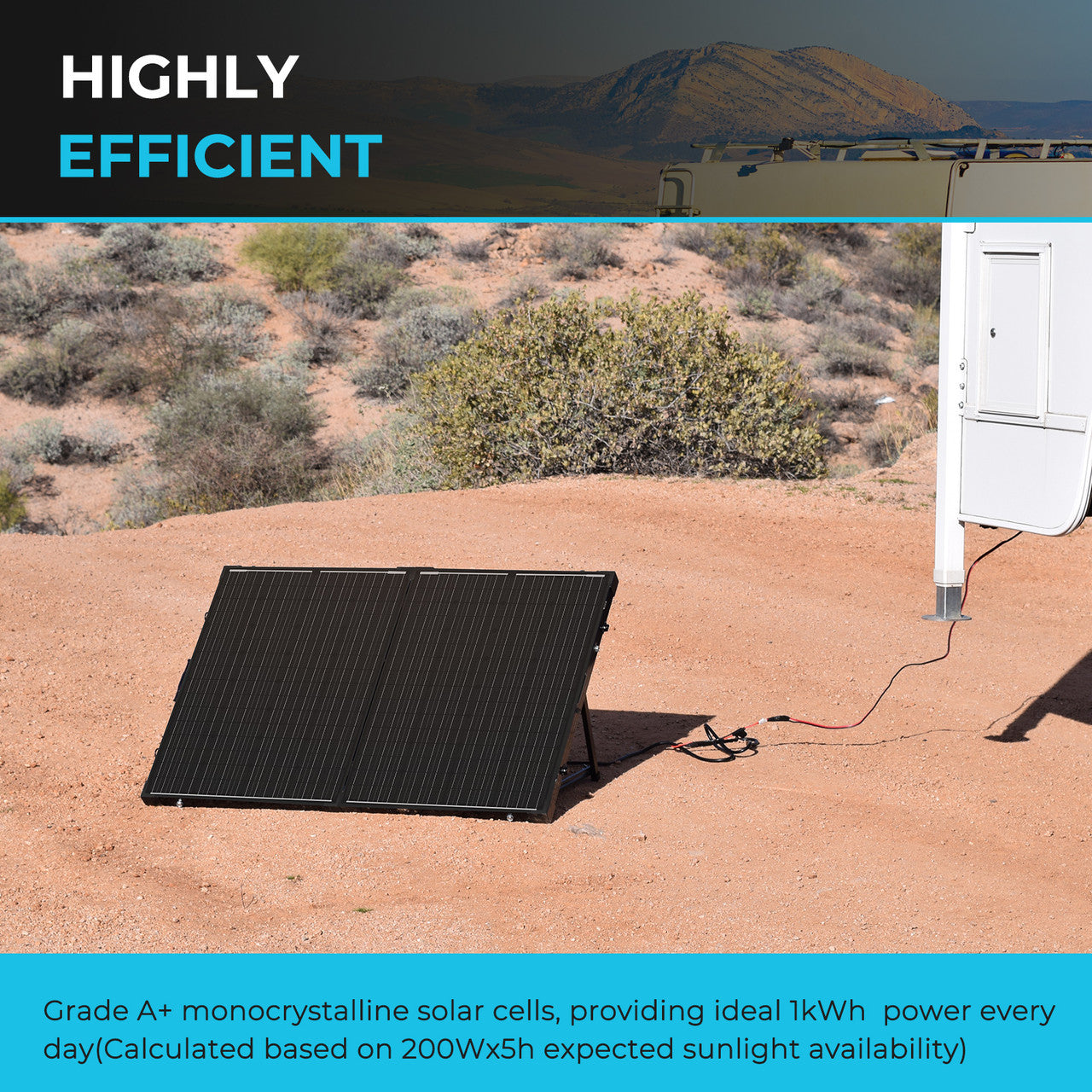

- Estimated daily energy (example): ~1 kWh/day (200 W × 5 hours of peak sun — actual output varies by conditions)
- Cell type / efficiency: Grade A+ monocrystalline, Cell efficiency: 22%
- Optimum operating voltage (Vmp): 18.5 V
- Open-circuit voltage (Voc): 21.8 V
- Optimum operating current (Imp): 10.5 A
- Short-circuit current (Isc): 11.7 A
- Operating temperature (panel): -40°F to +185°F
- Maximum series fuse rating: 20 A
- Maximum system voltage: 600 VDC (UL)
- Maximum AWG size range (MC4): 32 A
- Weight (panel suitcase): 35.9 lb
- Dimensions (folded): 35.6 × 25.9 × 3.1 in
- Material / durability: multi-layer lamination for long life; rugged canvas protective case included
- Warranties: 3-year material and workmanship; performance warranty: 5 years at 95%, 10 years at 90%, 25 years at 80%

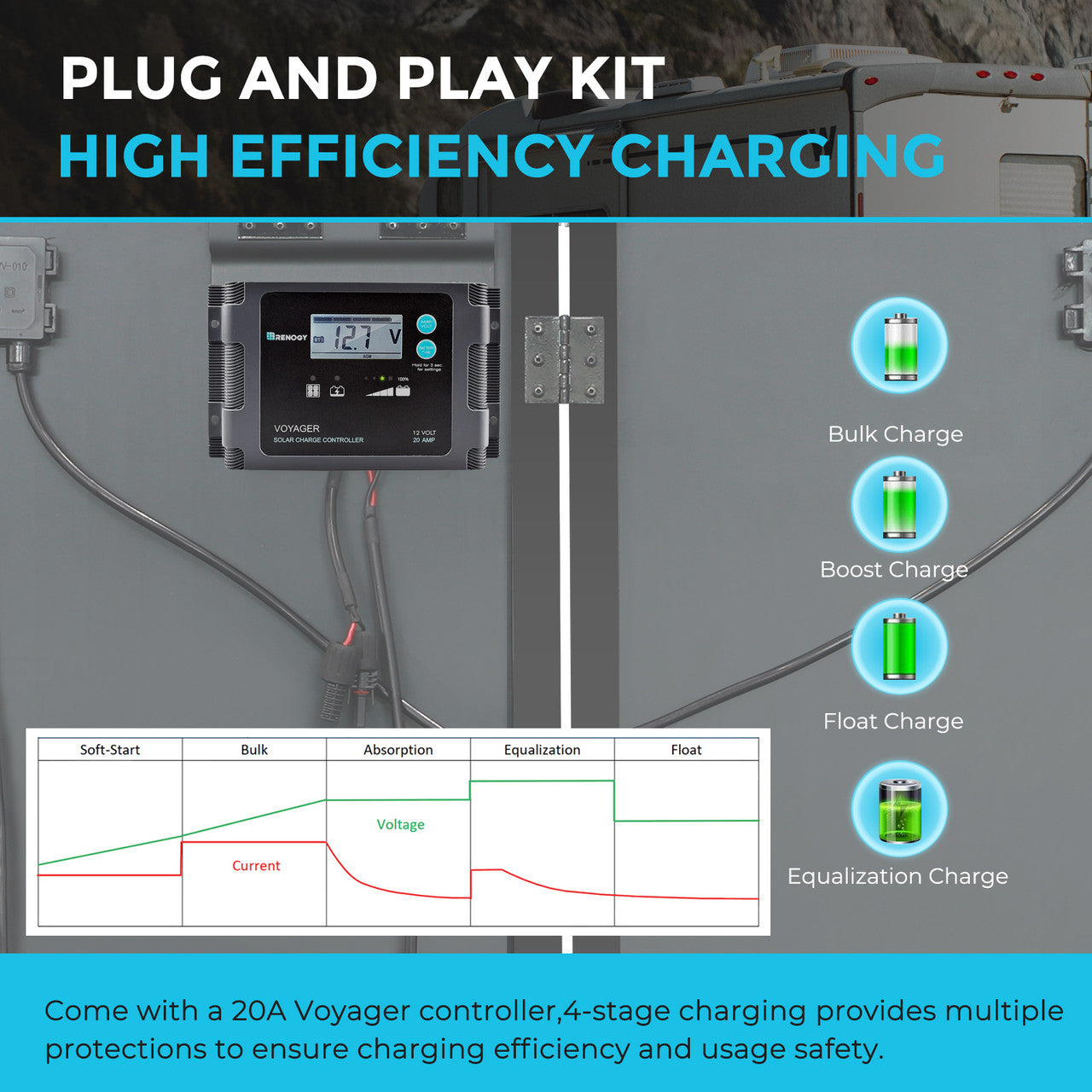

- Included charge controller: Renogy 20A Voyager PWM
- Voyager nominal voltage: 12 VDC
- Voyager rated charge current: 20 A
- Voyager max PV input voltage: 26 VDC
- Voyager self-consumption: ? 8 mA
- Voyager operating temperature: -40°F to 140°F
- Voyager dimensions: 6.38 × 3.82 × 1.34 in; weight: 0.88 lb
- Package contents: 200W foldable solar suitcase (1), 20A Voyager charge controller (1), alligator clips and tray cable (1), protective case (1)
