220W Lightweight Portable Solar Suitcase — Foldable, Durable, IP68-Protected
Overview
A compact, foldable solar suitcase designed for on-the-go power: quick to set up, built from reinforced materials, and weather resistant. Ideal for camping, RVs, trucks, and as a portable boost to existing solar systems.
Benefits
- Take reliable power wherever you go — lightweight and easy to carry so you can set up solar at campsites, in an RV, or by your vehicle.

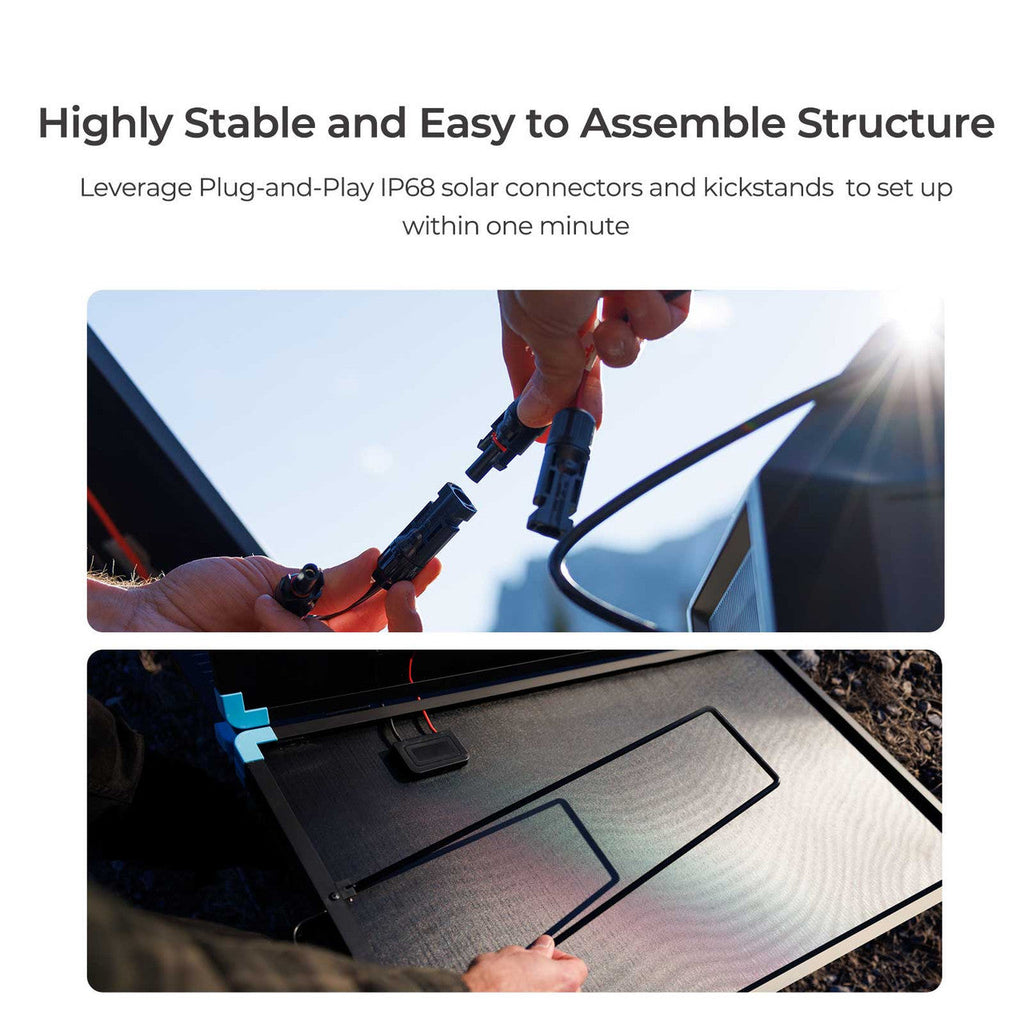

- Spend less time fiddling with gear — aluminum kickstands and IP68 connectors let you go from pack to sun in about a minute.
- Worry less about weather and wear — ETFE coating, fiberglass reinforcement, and corner protection extend service life and reduce maintenance.
- Maintain power even with partial shade — parallel panel wiring keeps the system productive when one area is shaded.

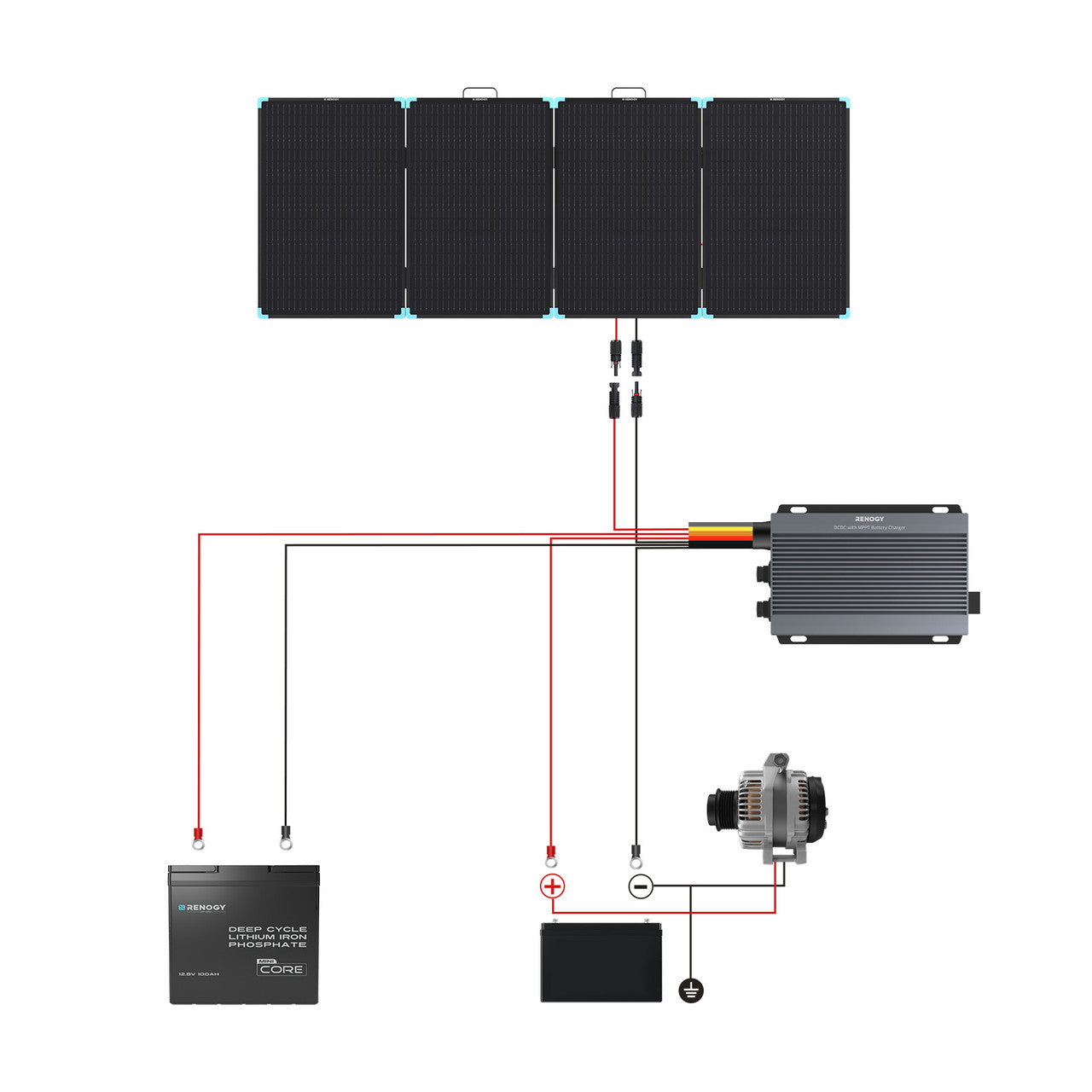

- Boost an existing array safely — use as a supplemental source for vehicles or rooftop systems (observe controller voltage limits).
Features

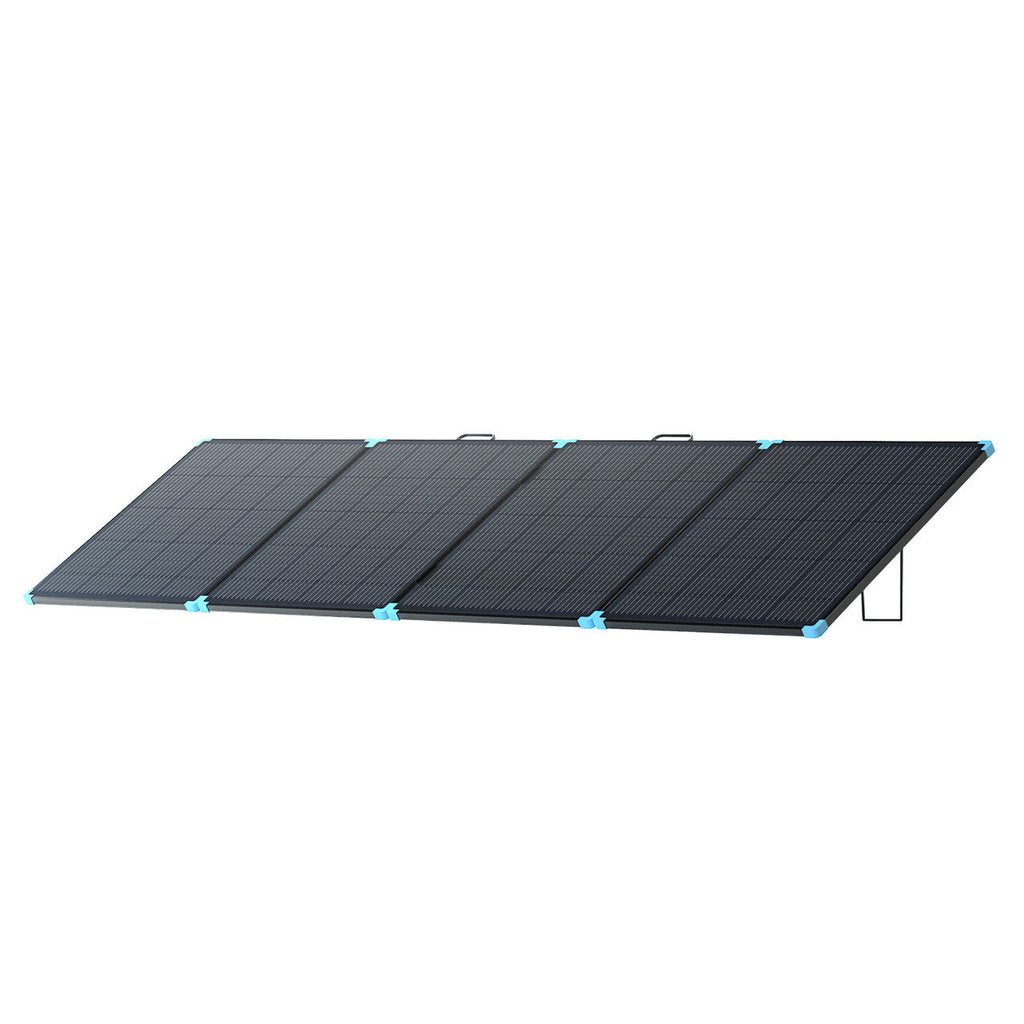

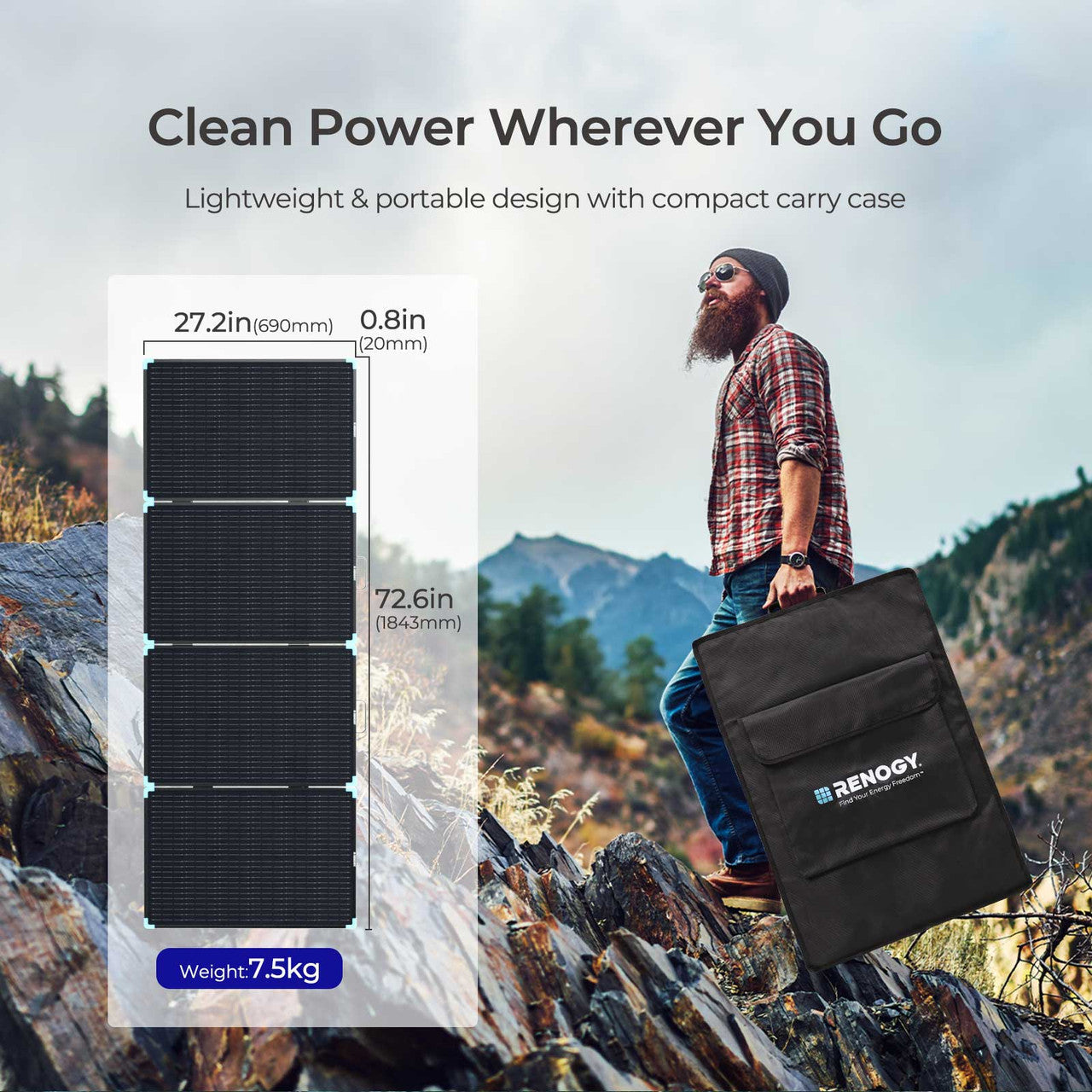

- Foldable portable panel design with protective carrying case for transport and impact protection.
- IP68-rated connectors and panel protection for water and dust resistance.
- Reinforced fiberglass backsheet and ETFE top coating for improved durability and weather resistance.
- Rust-resistant aluminum kickstands for stable, optimal tilt and maximum energy output.
- Parallel-wired sections to reduce the impact of partial shading on overall output.
- Fast setup — deploy and connect to a compatible power station or charge controller in about one minute.

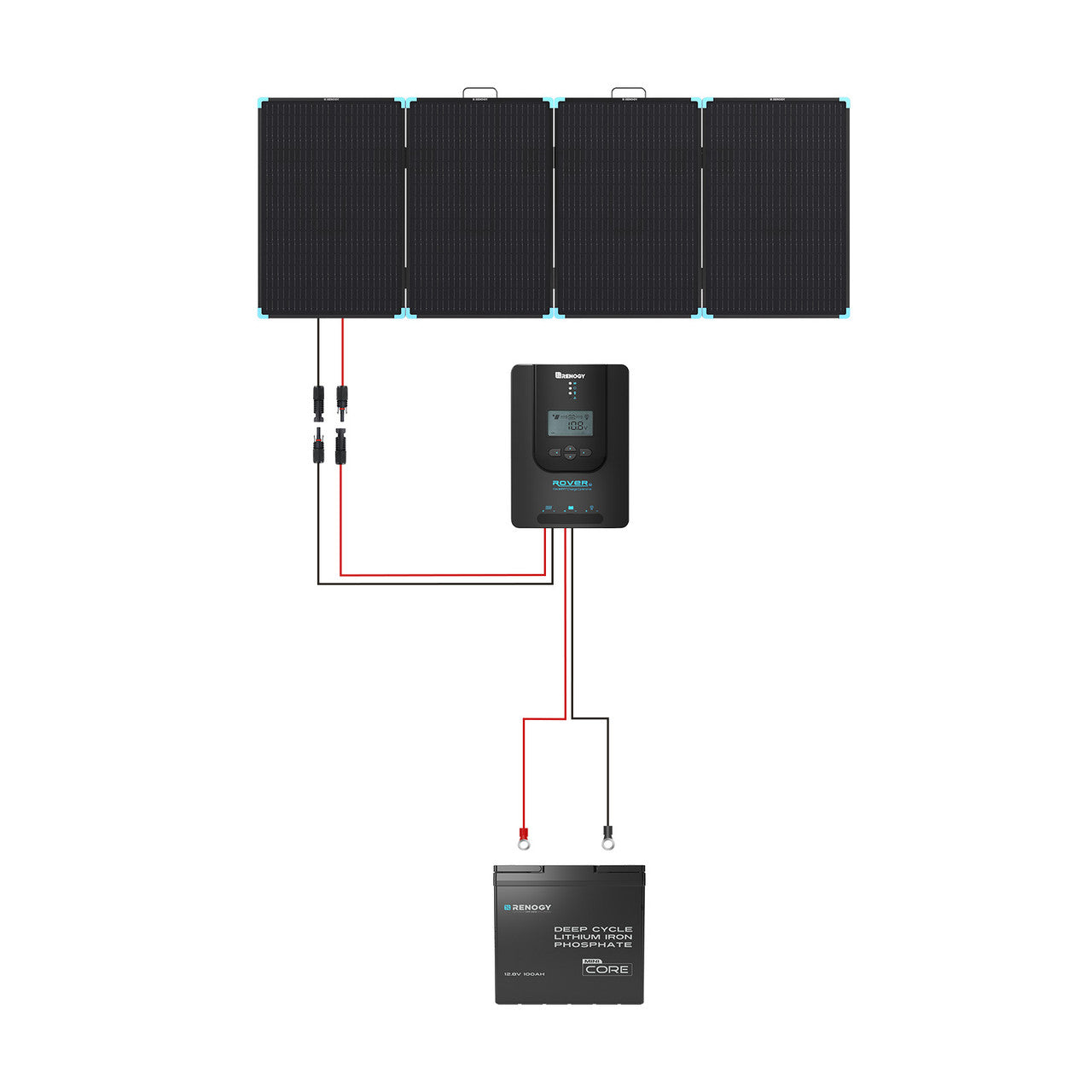

- Compatible with portable power stations (ensure DC input > 25 V) and usable to supplement existing solar systems (ensure PV input is lower than controller solar input).
Specifications
- Model / Power: 220 W (marketing SKU) — spec sheet lists 200 W; confirm SKU when ordering.
- Max Power at STC: 200 W (spec sheet)
- Open Circuit Voltage (Voc): 23.40 V
- Optimum Operating Voltage (Vmp): 20.16 V
- Short Circuit Current (Isc): 10.50 A
- Optimum Operating Current (Imp): 9.92 A
- Cell Efficiency: >22.6% (listed as 22.7% in some materials)
- Materials: Fiberglass reinforcement, ETFE coating, aluminum kickstands, protective case, corner protection
- Ingress & Connectors: IP68-rated protection and solar connectors
- Dimensions (folded): 25.0 x 21.1 x 2.2 in / 635 x 536 x 55 mm
- Dimensions (unfolded): 94.1 x 21.1 x 0.2 in / 2390 x 536 x 4 mm
- Operating Temperature: -14°F to 149°F (-10°C to +65°C)
- Weight: approximately 15.9–17.6 lbs (7.2–8.0 kg) depending on configuration
- Warranty: 5-year materials and workmanship (verify exact terms for your SKU)
- Certifications: CE, RoHS, FCC; Manufactured in an ISO 9001 certified facility; California Prop 65 compliant
- Package includes:
- 1 x 220 W portable solar panel
- 1 x User Manual
- 1 x E-warranty card
