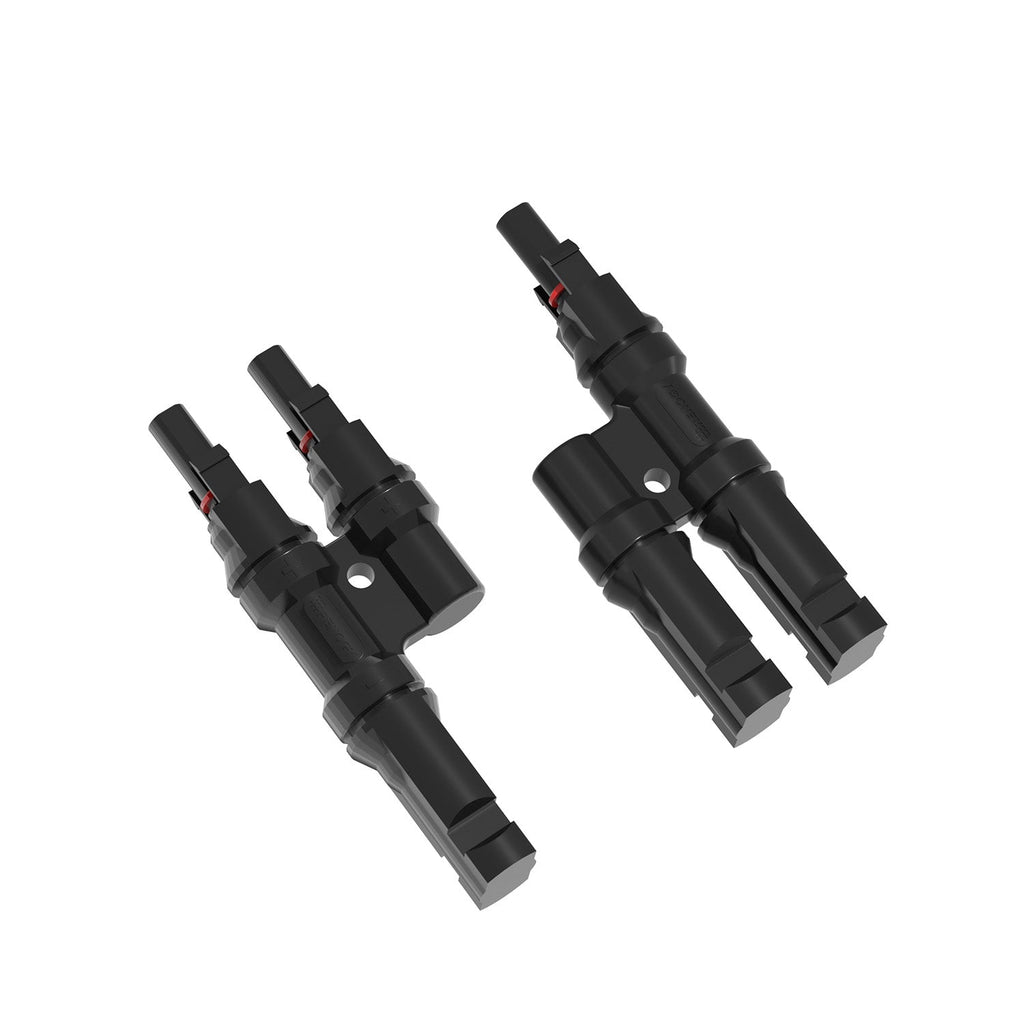

Solar Y Branch Connectors MMF + FFM Pair
Easy, waterproof parallel wiring for your solar panels
These Solar Y Branch Connectors (sold as a pair) let you parallel multiple PV modules while keeping the array voltage matched to your battery bank. Each set includes one male (MMF) and one female (FFM) connector, is designed for use with standard solar connectors, and provides a tight, weather-resistant connection for reliable off-grid power setups.
Benefits
- Make adding or expanding panels faster by simplifying parallel wiring.
- Keep panel voltage matched to your battery system without rewiring individual modules.
- Reduce maintenance and corrosion problems with tight, waterproof connections.
- Avoid compatibility guesswork by using connectors designed specifically for solar PV connectors.
- Durable construction means fewer replacements and less downtime for your system.
Features
- Sold as a pair: one MMF and one FFM connector.
- Designed for parallel wiring of solar panels (PV modules).
- Hard plastic housing for durable protection.
- Provides tight, waterproof connections (IP67 when mated).
- Compatible with standard solar connectors only.
- Supports up to 50 A rated current.
Specifications
- Package contents: 1 x Solar Y Branch Connectors MMF + FFM pair
- Withstanding voltage: 1000 V DC (TUV), 600 V (UL)
- Rated current: 50 A
- Contact resistance: 1 m (as specified)
- Protection class: Class II
- Protection degree: IP67 (mated)
- Operating temperature: -40°F to +194°F
- Unmating force: 147.51 Ft·lb
- Insulation material: PC / PA
- Contact material: Copper, silver plated
- Flame class: UL94-V0 or UL94-5VA
- Material: Hard plastic housing
- Warranty: Accessories — 1-year material warranty
