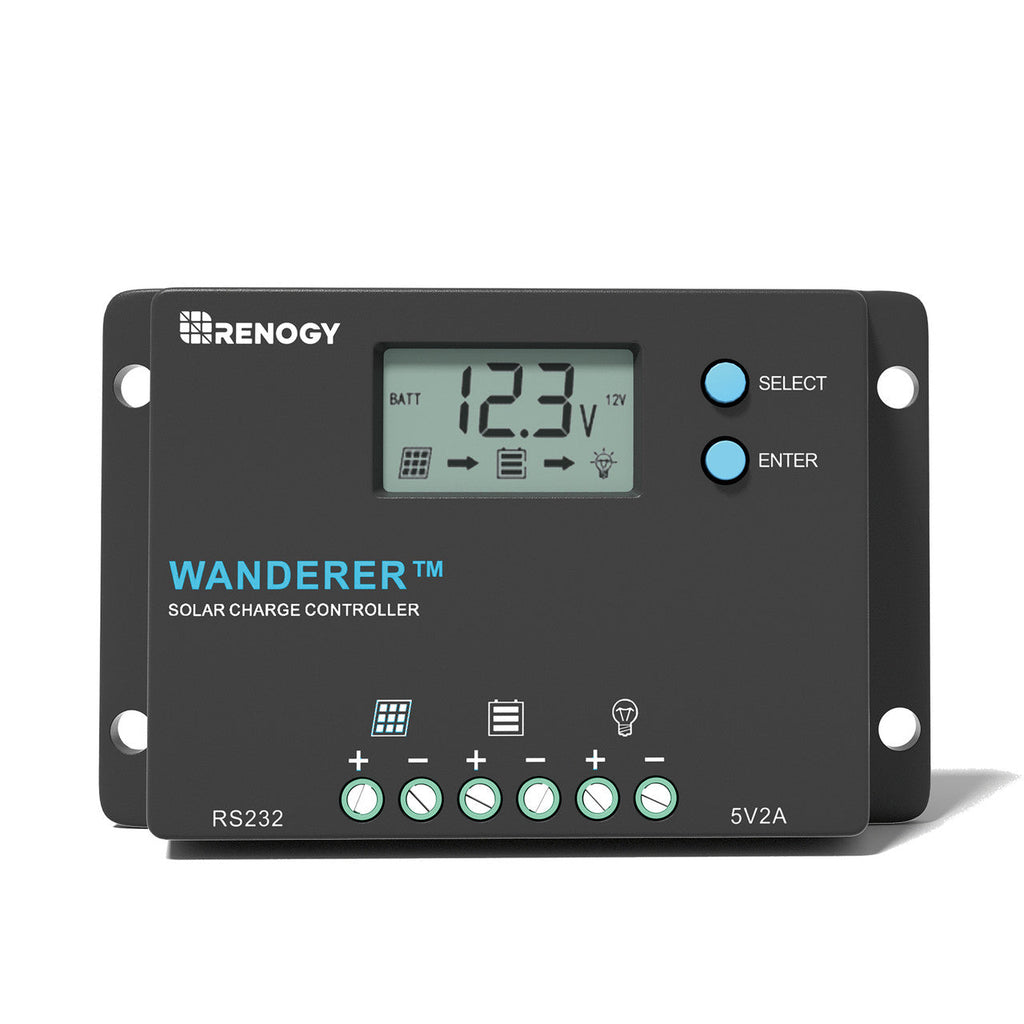

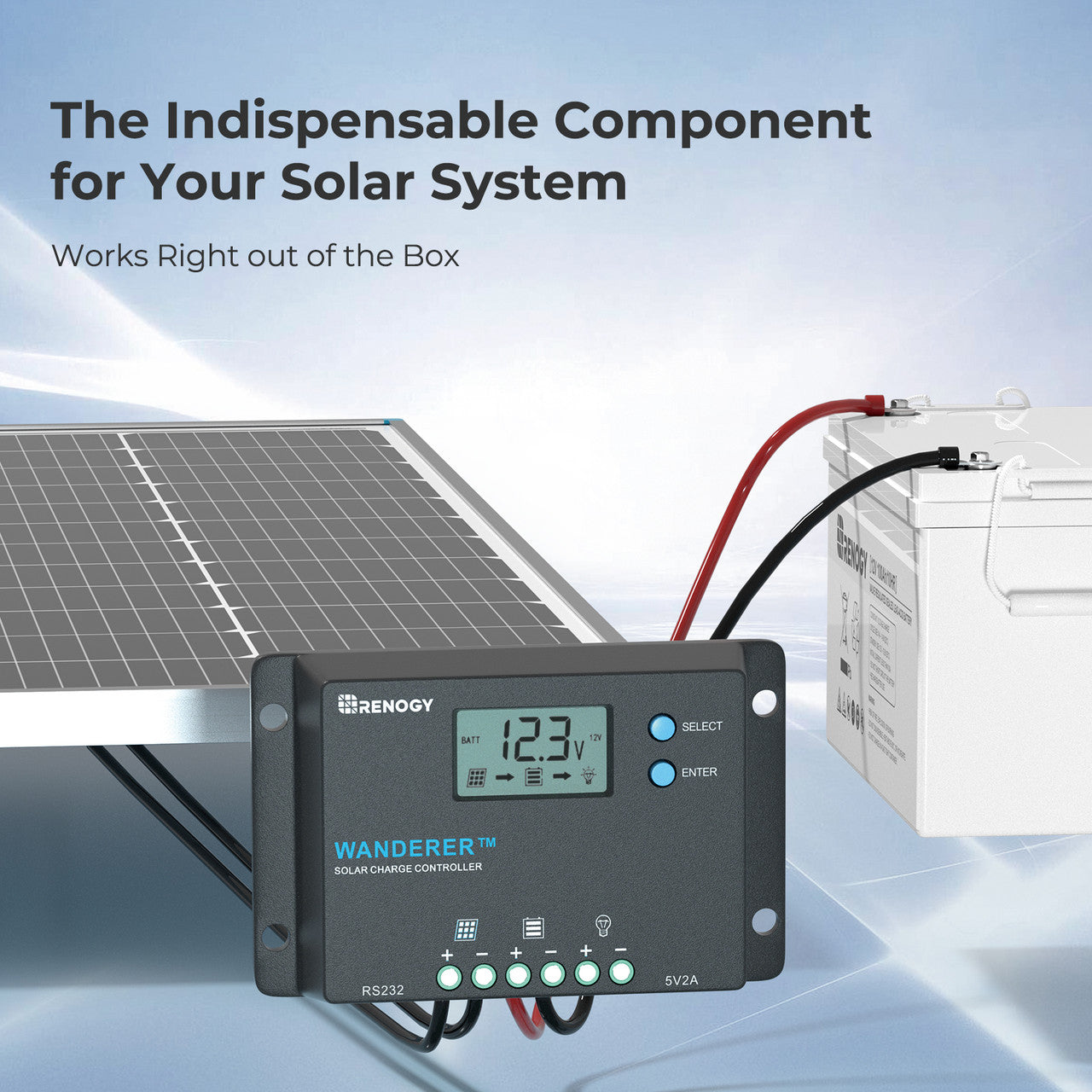

The Wanderer 10A is a compact PWM solar charge controller that automatically recognizes 12V or 24V systems and protects your battery and DC loads. It includes a backlit LCD for local status, an RS232 port for monitoring, and multiple load-control modes—designed for RVs, boats, cabins and other small off-grid systems.
Benefits
Protects your batteries and equipment so you spend less time troubleshooting and replacing components.
Lets you monitor system status remotely (via compatible monitoring devices), so you can spot issues without being onsite.
Extends the life of sensitive electronics by delivering a stable, controlled charge.
Reduces parasitic energy loss with very low self-consumption, preserving battery capacity over time.
Works with a variety of small off-grid setups, so you can reuse the same controller across trailers, RVs, boats, cabins, fences, or garden systems.
Features
Automatic 12V / 24V system recognition for non-lithium batteries.
Rated charge current: 10A PWM control.
Five selectable load control modes to match different usage patterns.
Full electronic protections: overcharge, over-discharge, short-circuit, overload, reverse polarity, reverse current and temperature compensation.

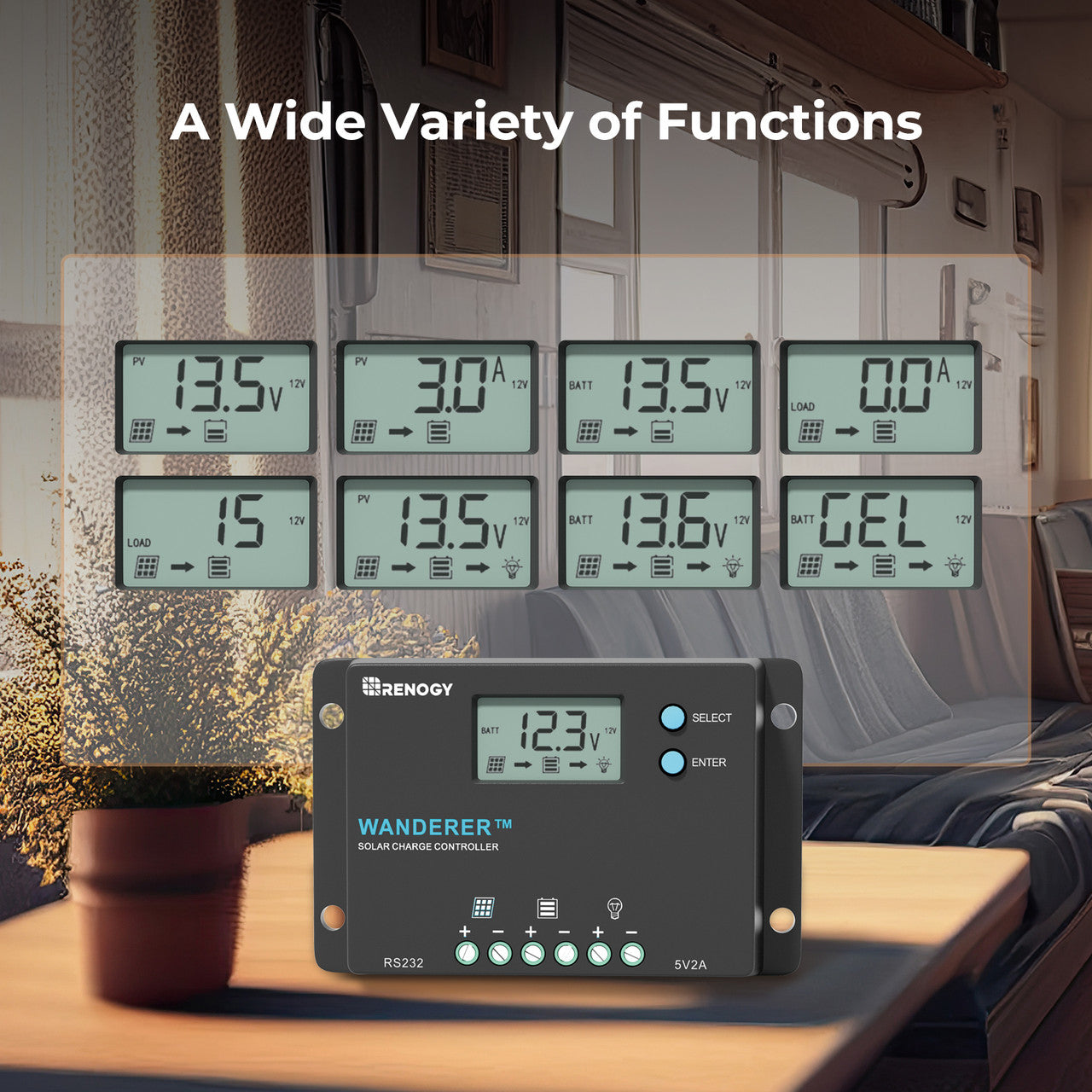

Backlit LCD shows system operation, load control settings and error codes.

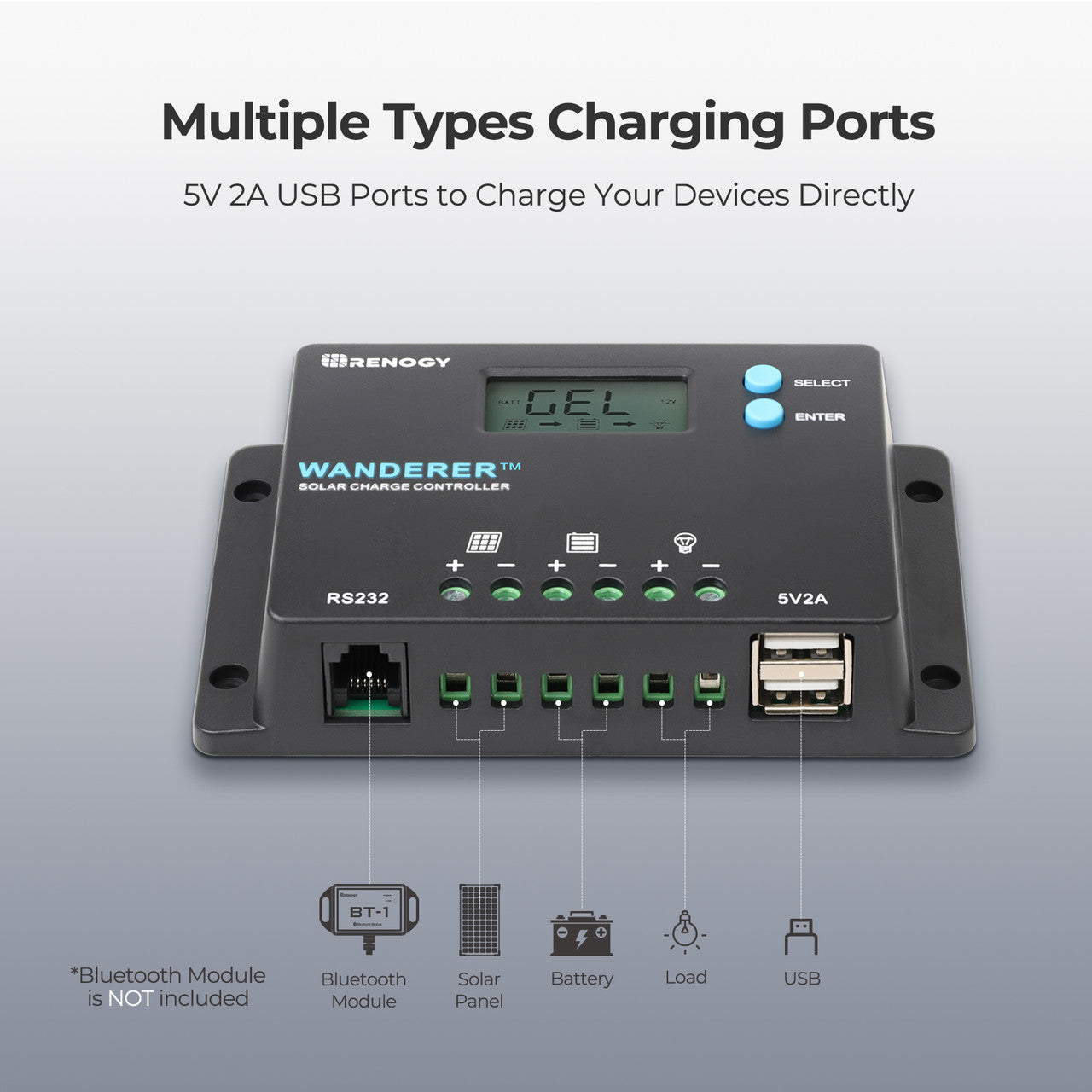

RS232 port for real-time monitoring and integration with BT-1 adapter and Renogy ONE M1 / DC Home app.

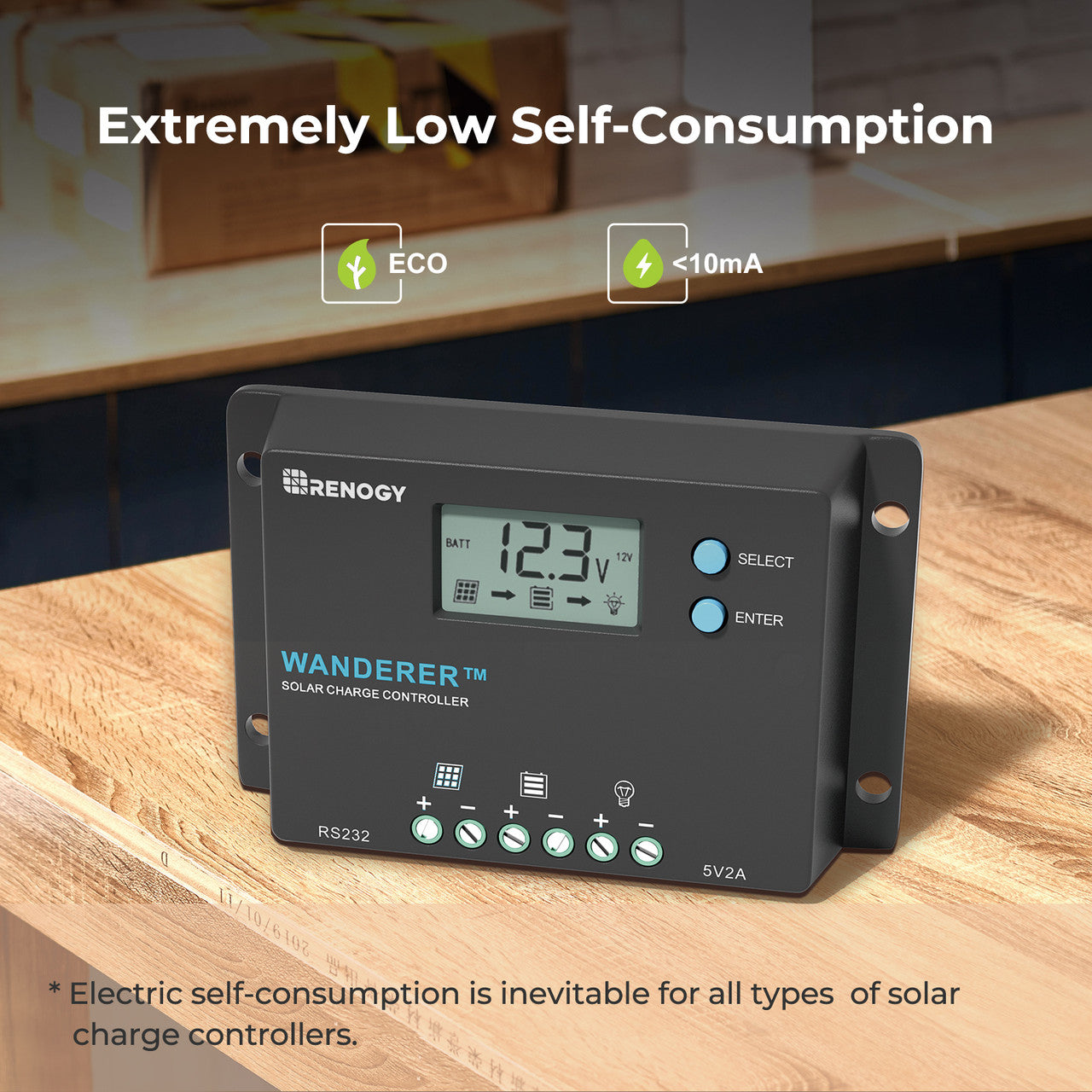

Extremely low self-consumption (<10 mA) to minimize energy draw when idle.
Lightweight and compact design for easy installation.
Specifications
Nominal Voltage: 12V / 24V auto recognition (for non-lithium batteries)
Rated Charge Current: 10 A
Max Gauge Size: Up to 12 AWG
Max PV Input Voltage: 50 VDC
Max PV Input (power): 130 W (12V); 260 W (24V)
Self-Consumption: < 10 mA
Working Temperature: -31°F to 113°F (-25°C to 45°C)
Storage Temperature: -31°F to 176°F (-35°C to 80°C)
Temperature Compensation: -3 mV/°C/2V
Dimensions: 4.7 x 3.0 x 1.1 in (119 x 75 x 27.5 mm)
Weight: 0.27 lb (?122.5 g)
Certifications: CE, RoHS
Warranty: 2-year material and workmanship warranty
