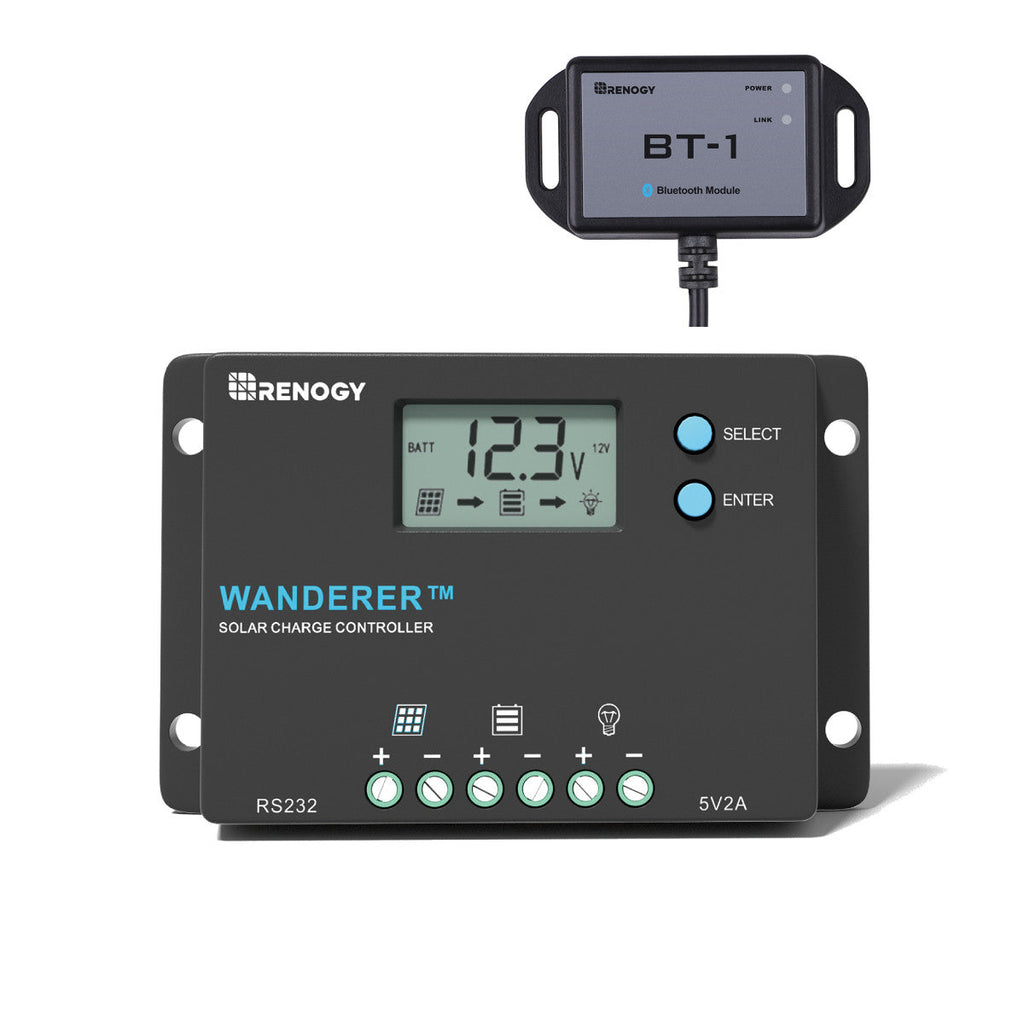

Wanderer 10A PWM Charge Controller with BT-1
Overview
A compact, easy-to-use PWM solar charge controller that automatically recognizes 12V or 24V battery systems, provides comprehensive battery protections, and lets you monitor system data via RS232/BT-1 on the DC Home app or Renogy ONE M1.
Benefits
- Protects your battery and equipment so you spend less time troubleshooting and more time using your system.
- Keeps devices running reliably in different conditions, reducing unexpected downtime.
- Saves energy with very low self-consumption, helping your batteries last longer between charges.
- Remote and real-time monitoring means you can check system status and settings without visiting the site.
- Multiple load control modes automate lighting, pumps, or other loads so you don’t have to manage them manually.
Features

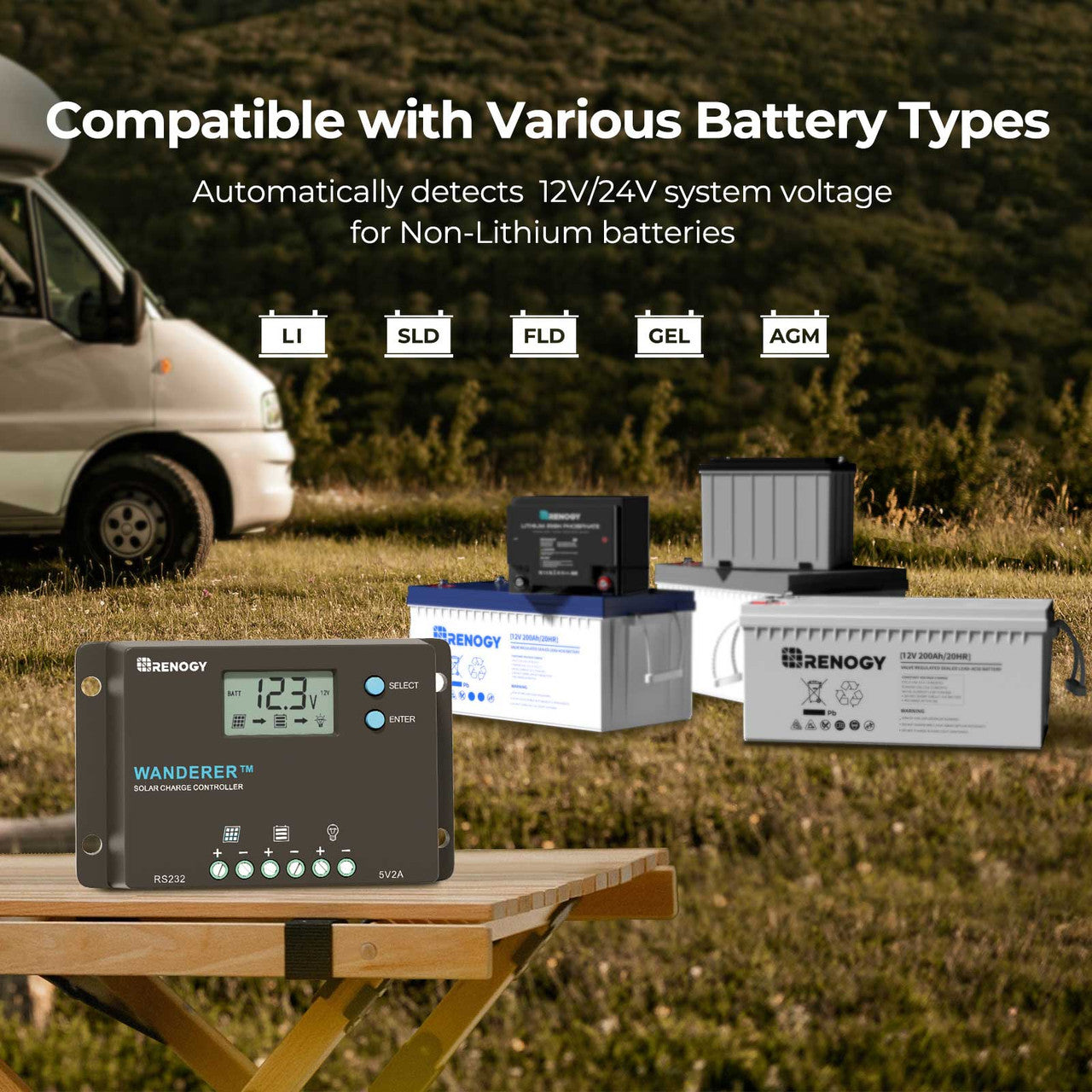

- Automatic 12V/24V system detection for non-lithium batteries.
- Five selectable load control modes to match different applications.
- Comprehensive electronic protections: overcharge, over-discharge, short circuit, overload, reverse polarity, reverse current, and temperature compensation.

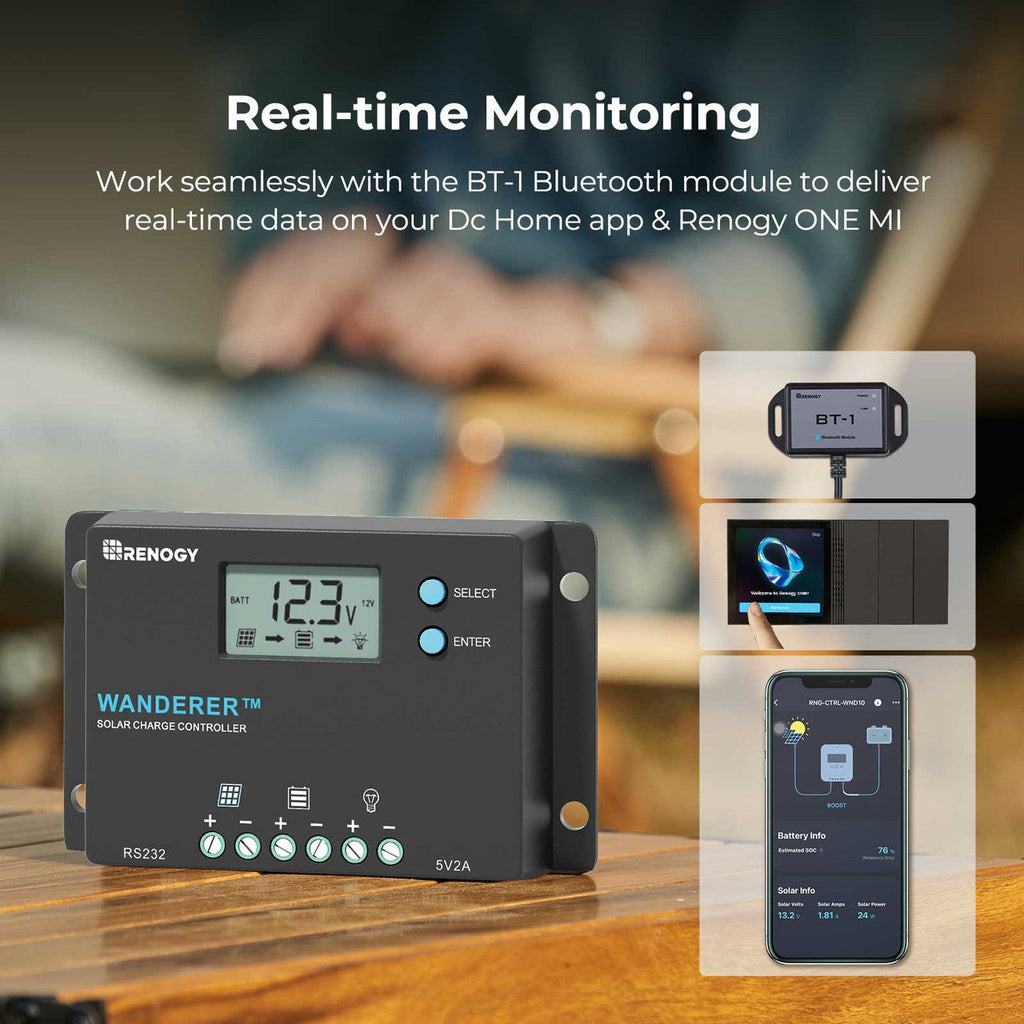

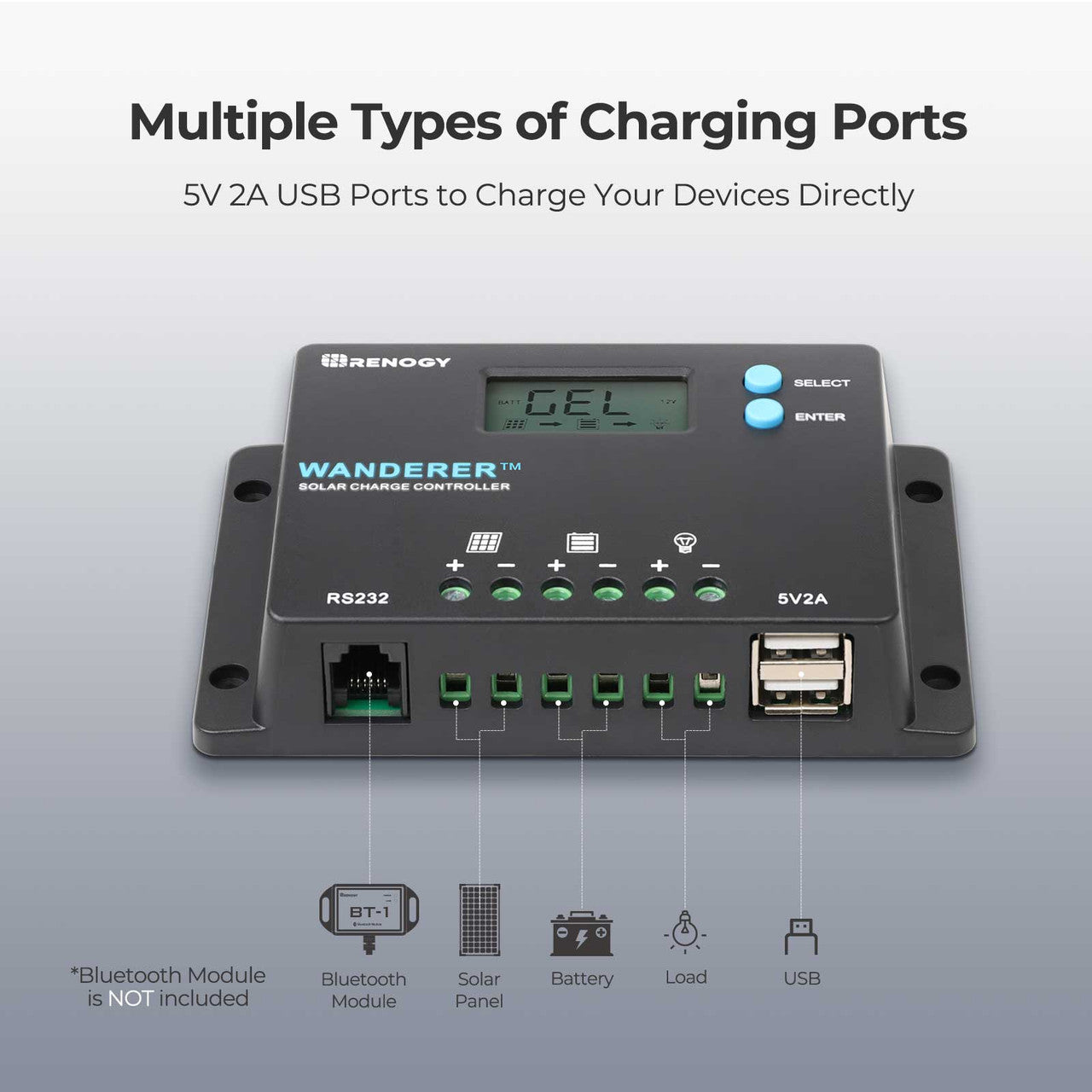

- Real-time monitoring via integrated RS232 port and BT-1 module (compatible with DC Home app and Renogy ONE M1).

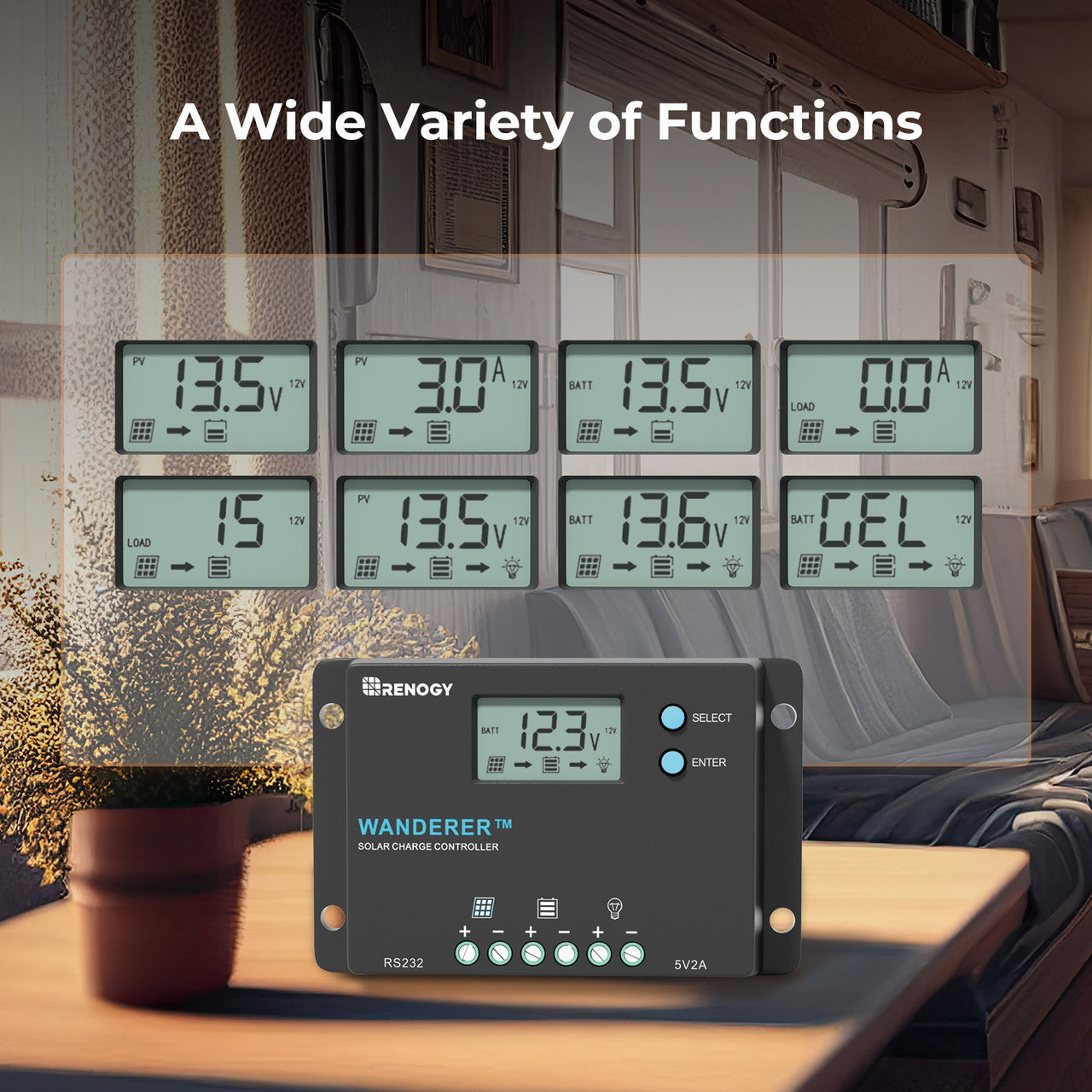

- Backlit LCD that shows system operation, load settings, and error codes for easy onsite configuration.
- Operates across a wide temperature range for reliable off-grid use.
- Lightweight, compact housing for simple installation in RVs, boats, cabins, trailers, fences, and gardens.
Specifications
- Nominal Voltage: 12V / 24V auto recognition (for non-lithium batteries)
- Rated Charge Current: 10 A
- Max PV Input (power): 130 W @ 12V; 260 W @ 24V
- Max. PV Input Voltage: 50 VDC
- Max Gauge Size: Up to 12 AWG

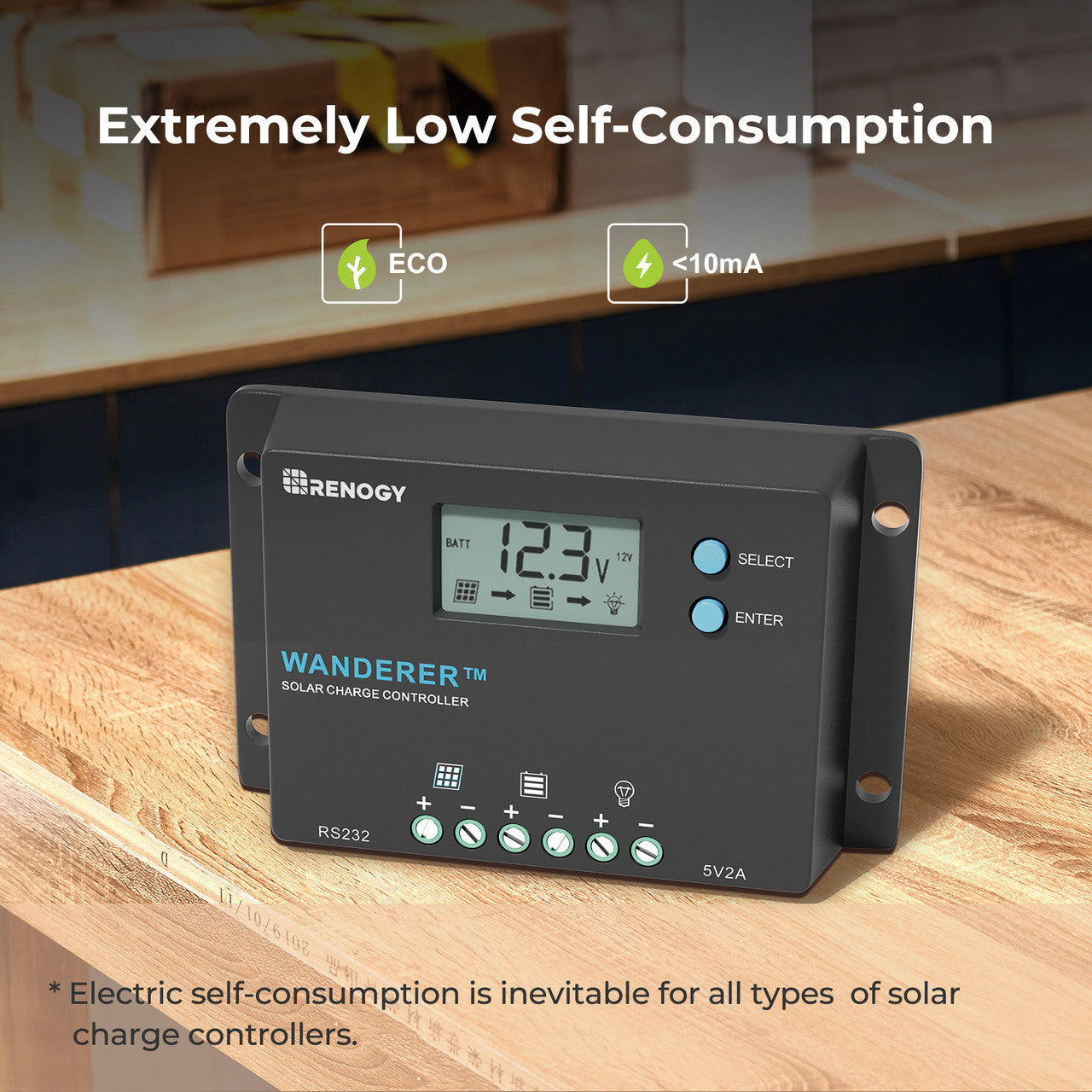

- Self-Consumption: < 10 mA
- Working Temperature: -31°F to 113°F (-25°C to 45°C)
- Storage Temperature: -31°F to 176°F (-35°C to 80°C)
- Temperature Compensation: -3 mV/°C/2V
- Dimensions: 4.7 x 3.0 x 1.1 in (119 x 75 x 27.5 mm)
- Weight: 0.54 lbs (?245 g)
- Certifications: CE, RoHS

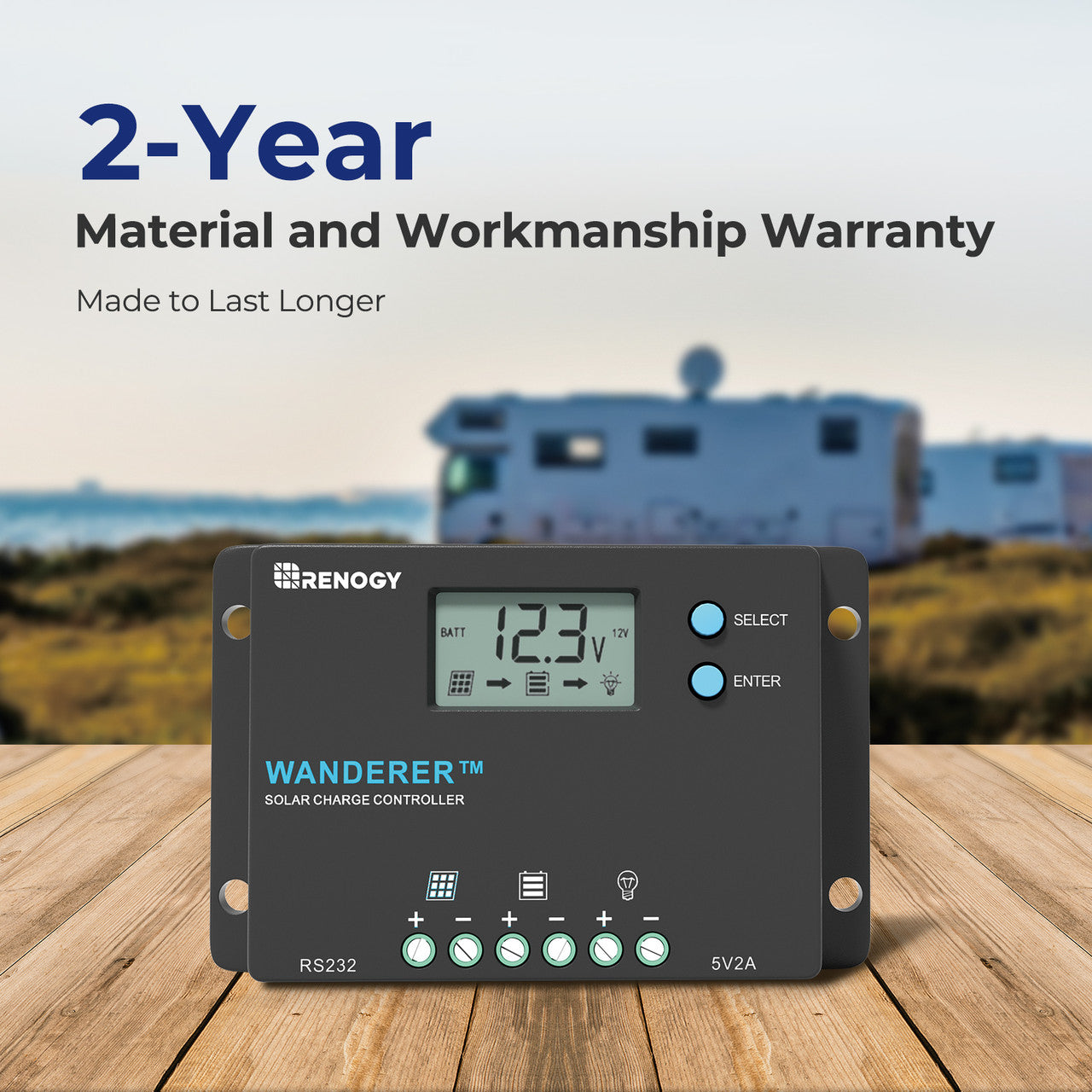

- Accessories / Warranty: 2-year material warranty
