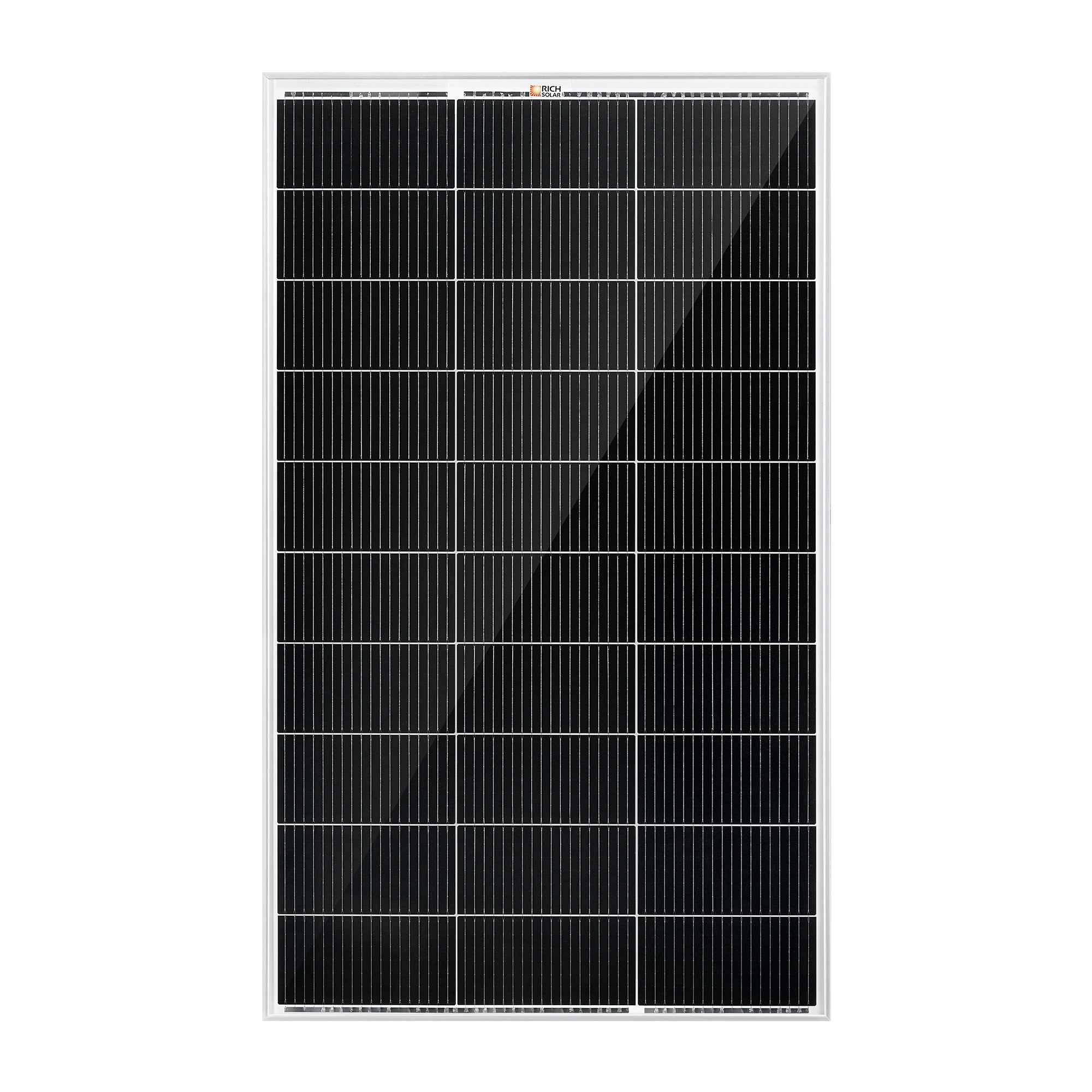

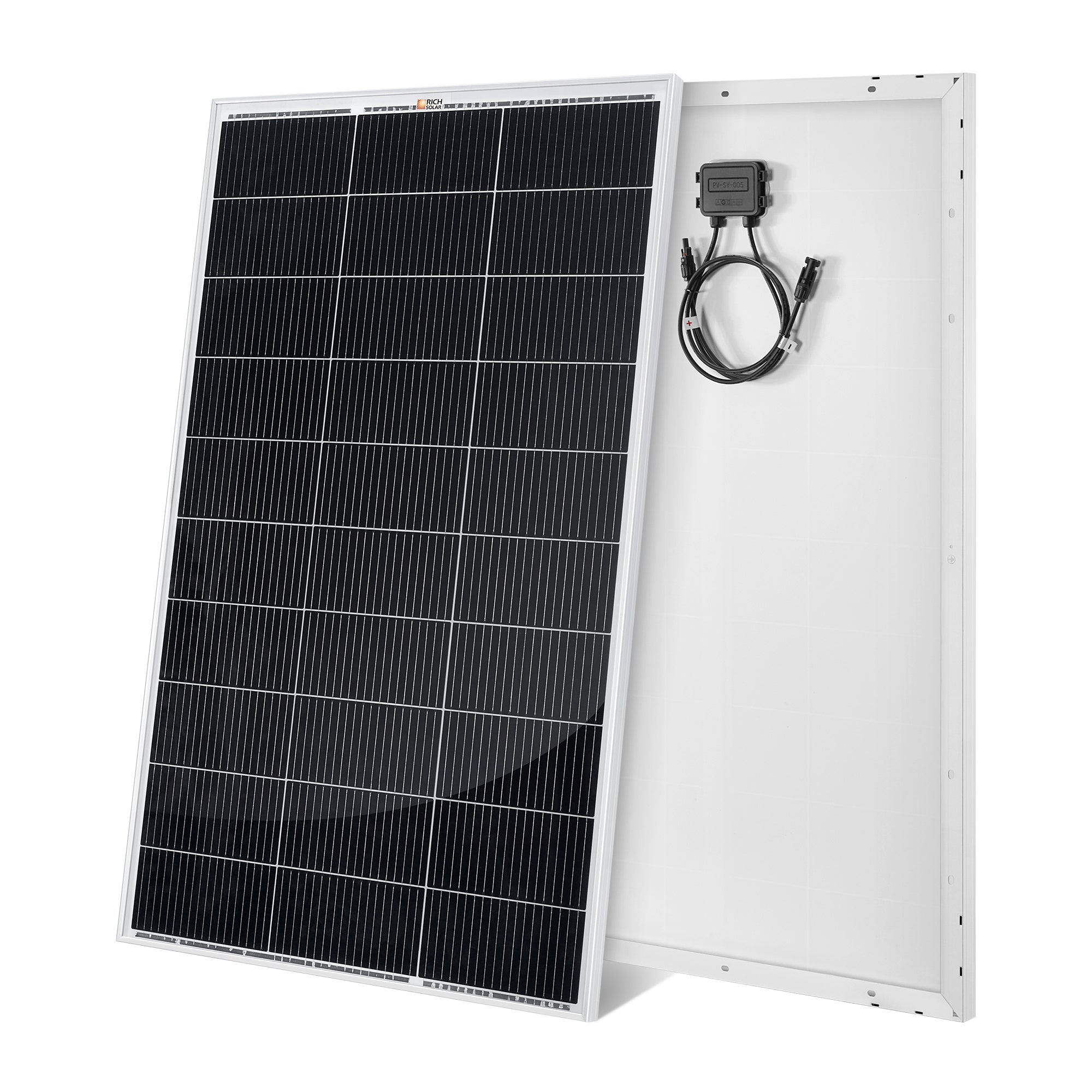

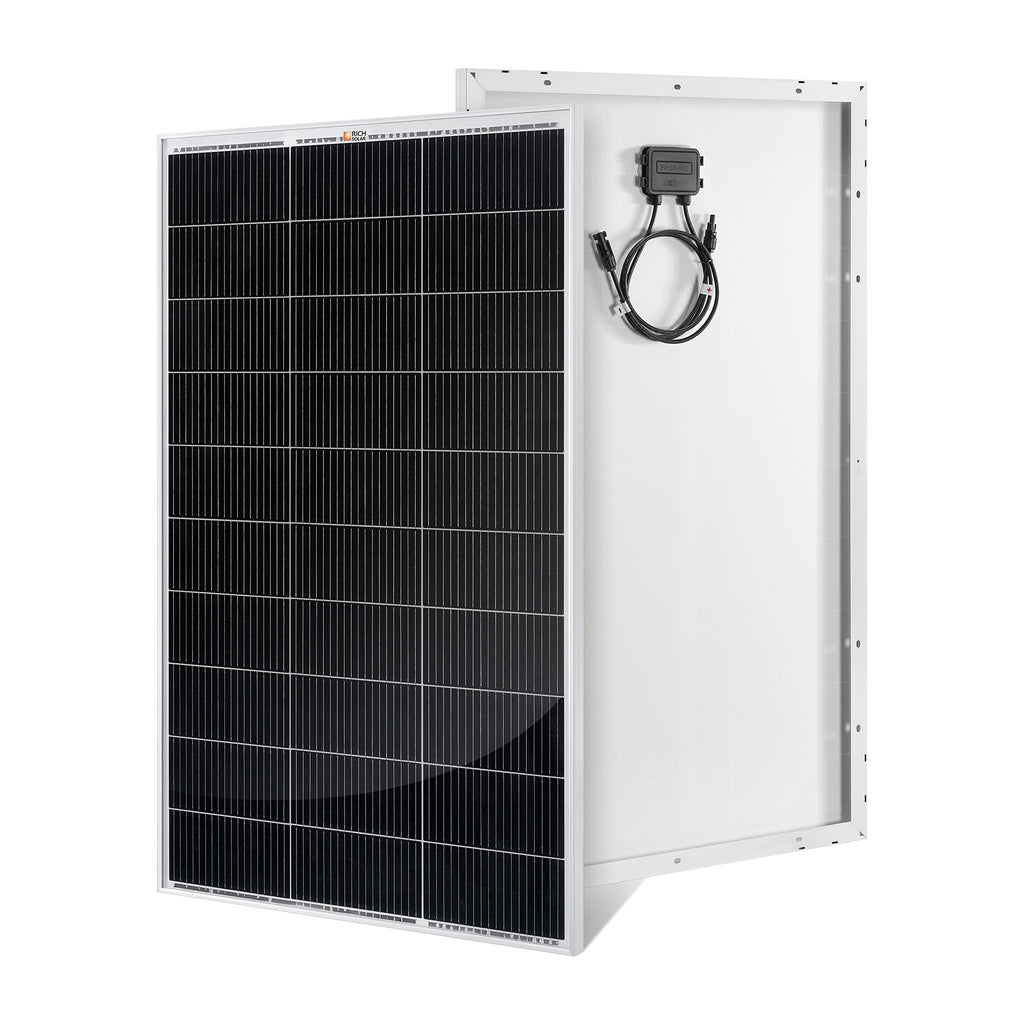

MEGA 150 — Compact 150W High-Efficiency Solar Panel
The MEGA 150 delivers 24.8% efficiency in a compact, lightweight package designed for off-grid and mobile use. With an 18-busbar cell layout, anodized aluminum frame, and weatherproof connections, it’s built to produce reliable power day after day while staying easy to handle and install.
Benefits
- Get dependable power for off-grid systems and mobile setups, even on cloudy mornings and evenings.
- Spend less time on installation and maintenance thanks to a lightweight frame and plug-and-play connections.
- Reduce worry about weather and rough conditions with an IP67-rated junction box and durable construction.
- Integrate quickly into existing systems—works in series or parallel with standard quick-connect cables and common inverters.
- Save space without sacrificing output thanks to the panel’s compact dimensions and high efficiency.
Features

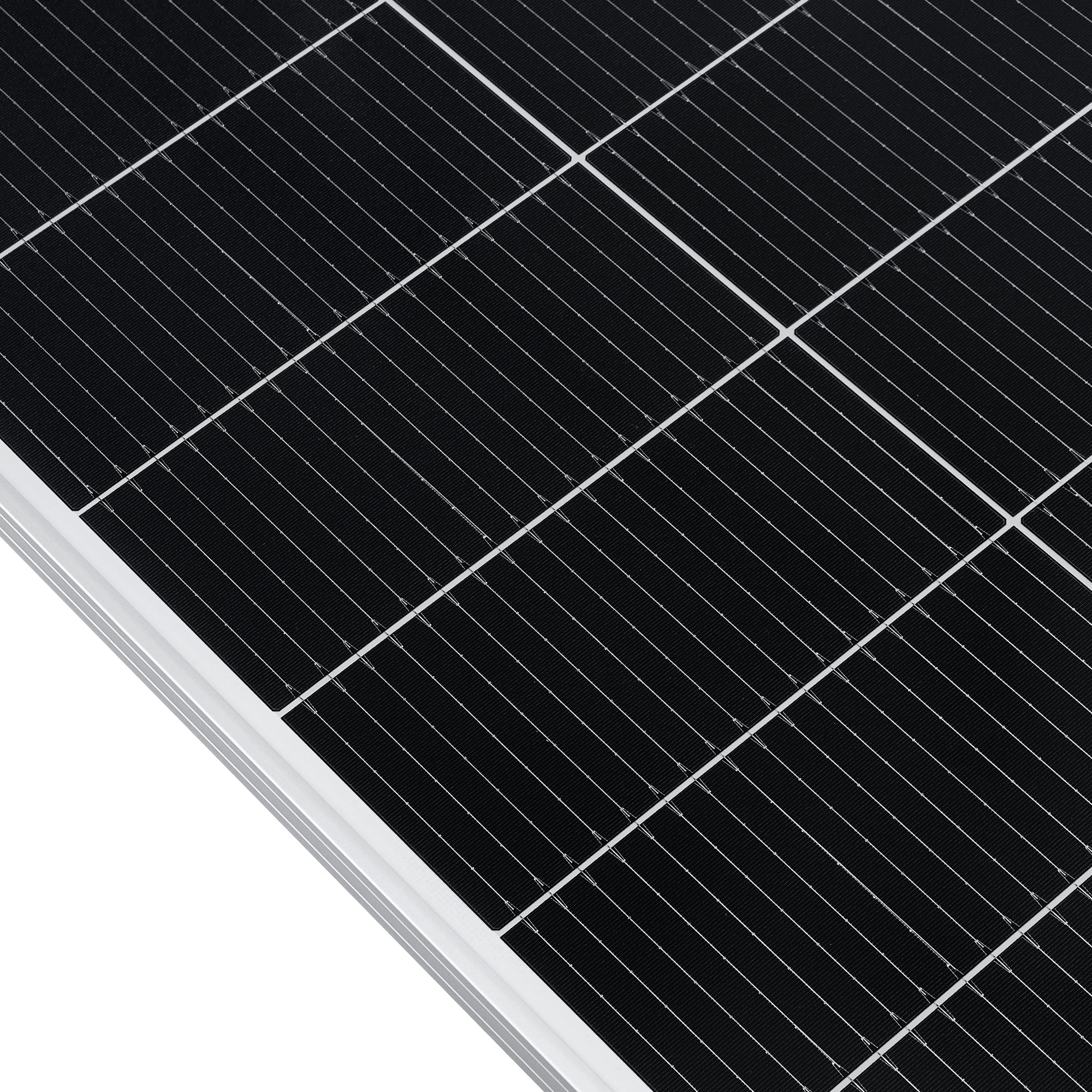

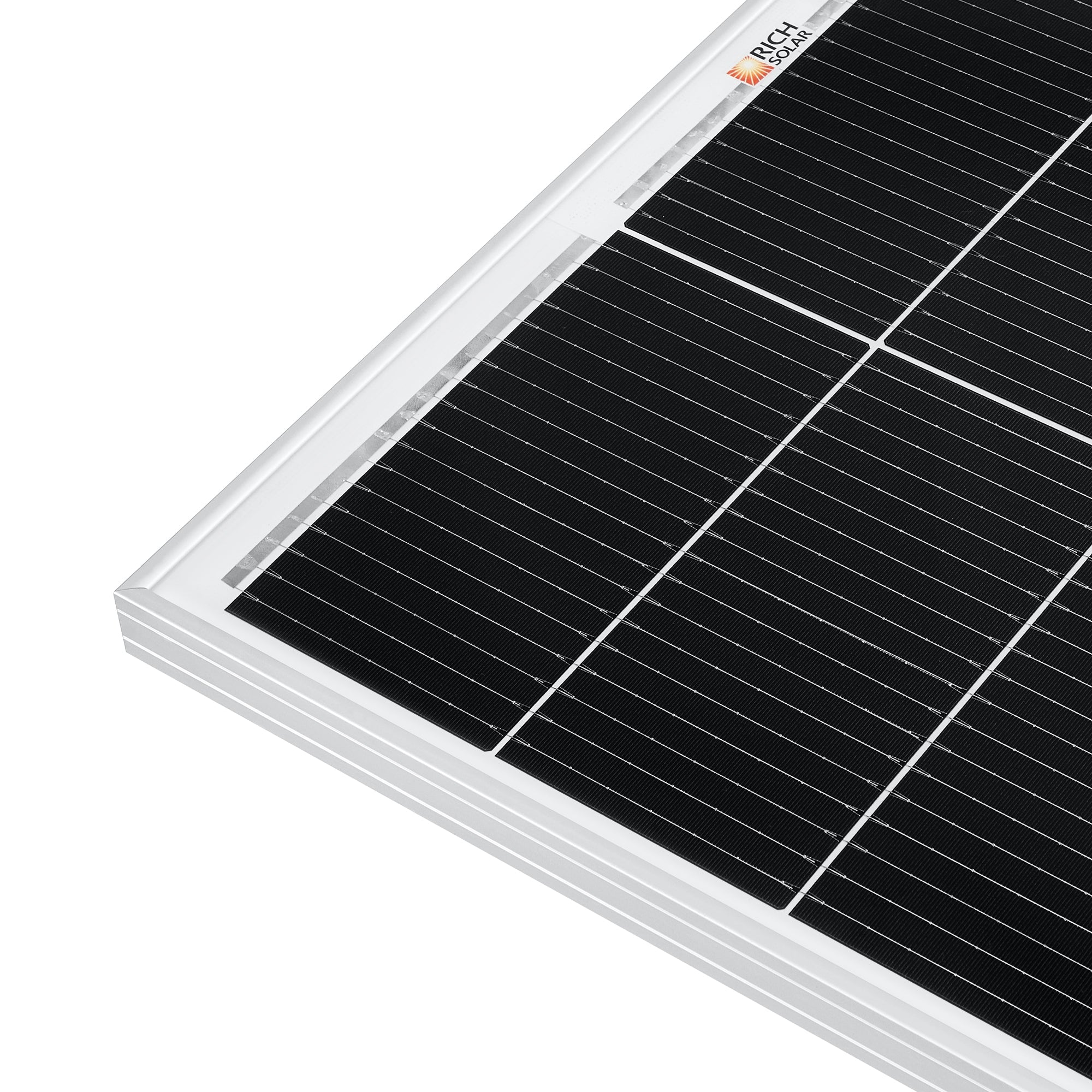

- 18-busbar solar cell configuration for improved efficiency and durability

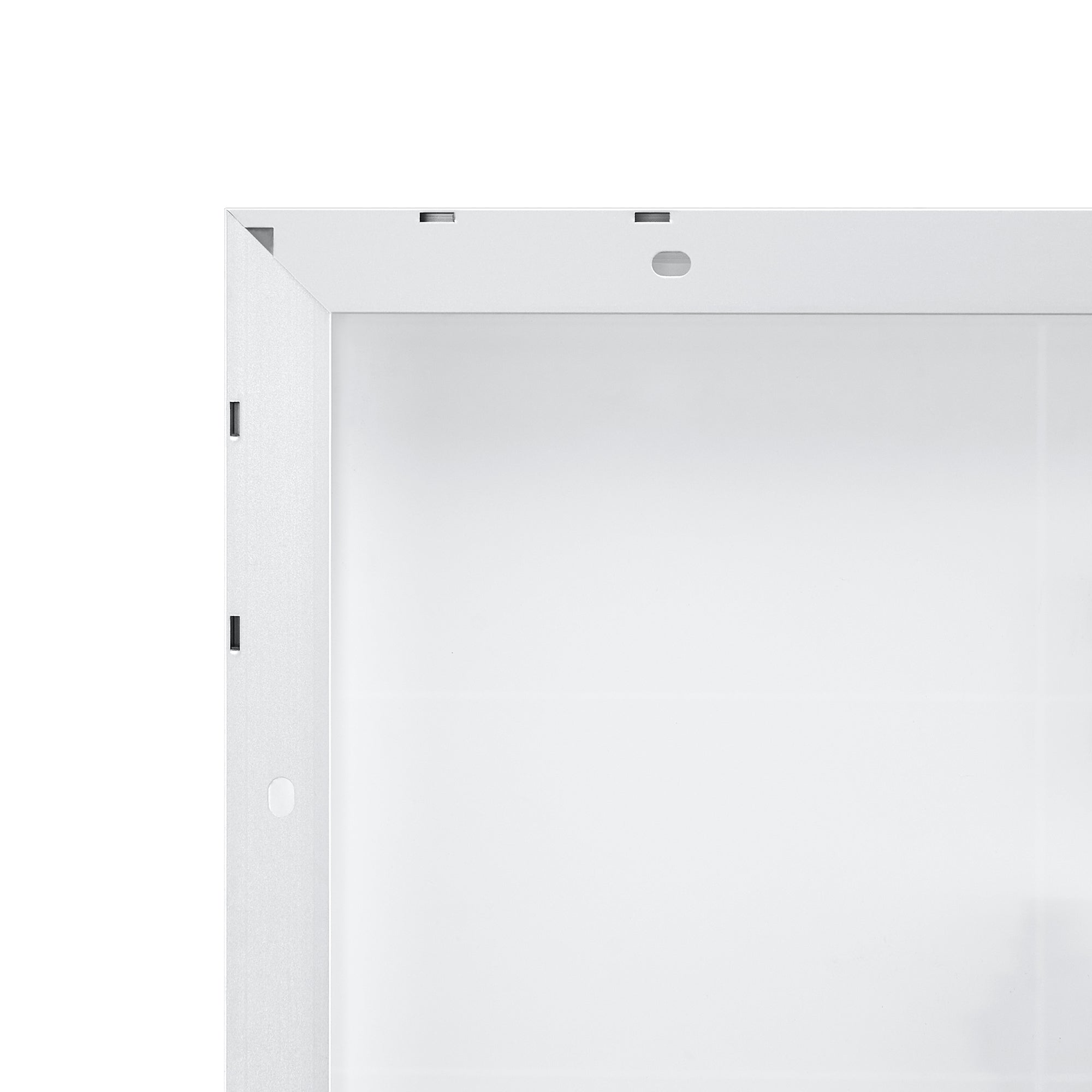

- Lightweight anodized aluminum frame for easier handling and corrosion resistance
- High-transmission, anti-reflective (AR) coated tempered glass for better light capture

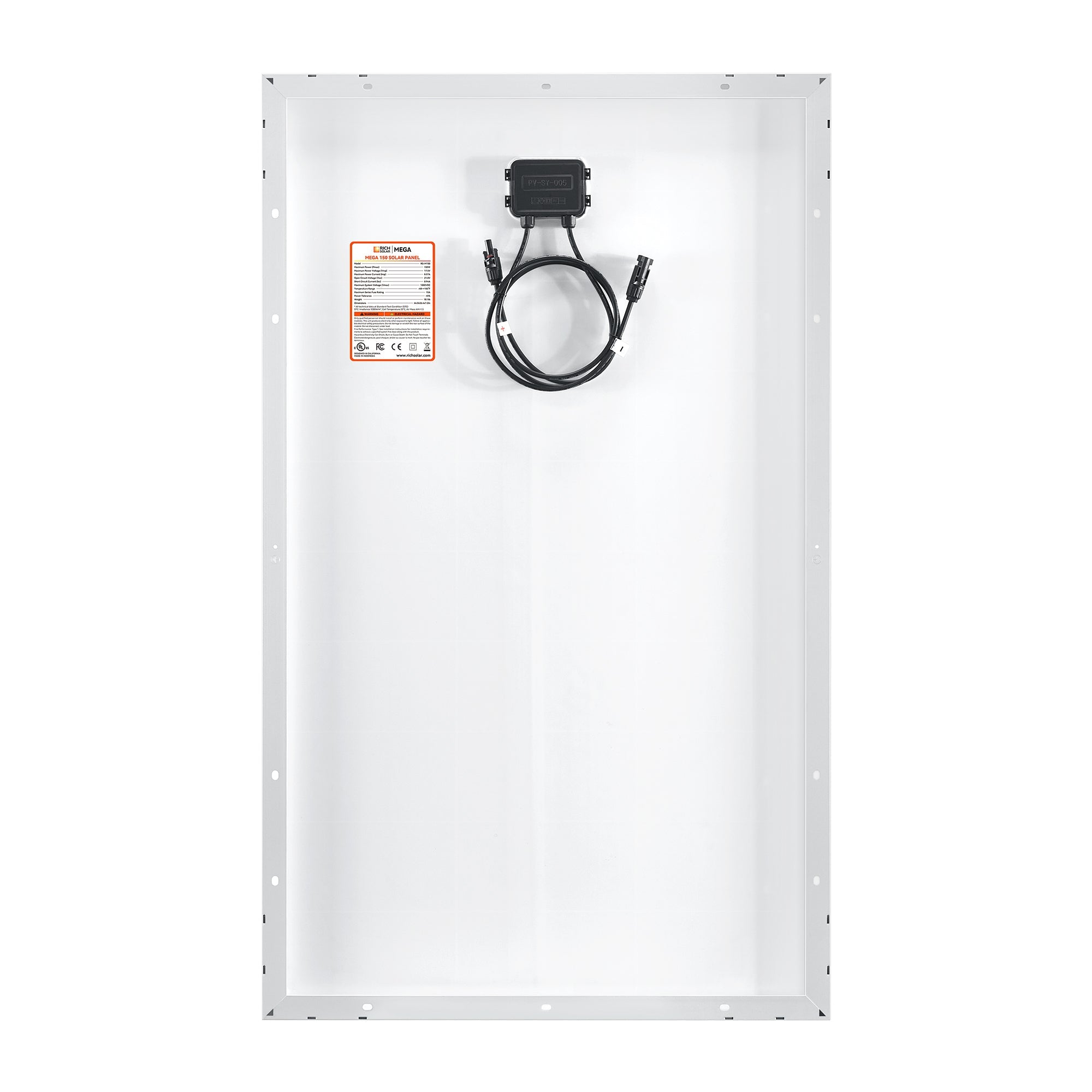

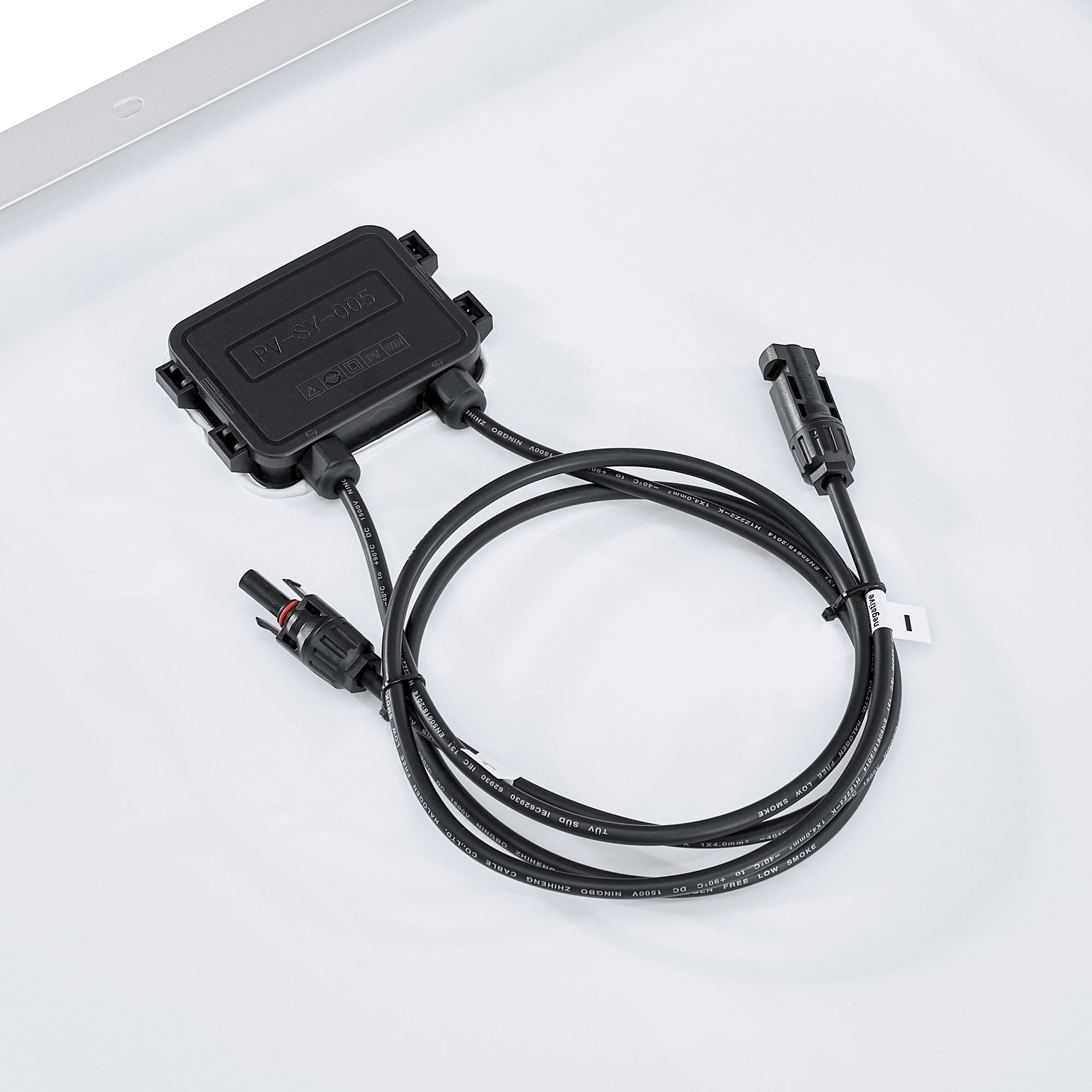

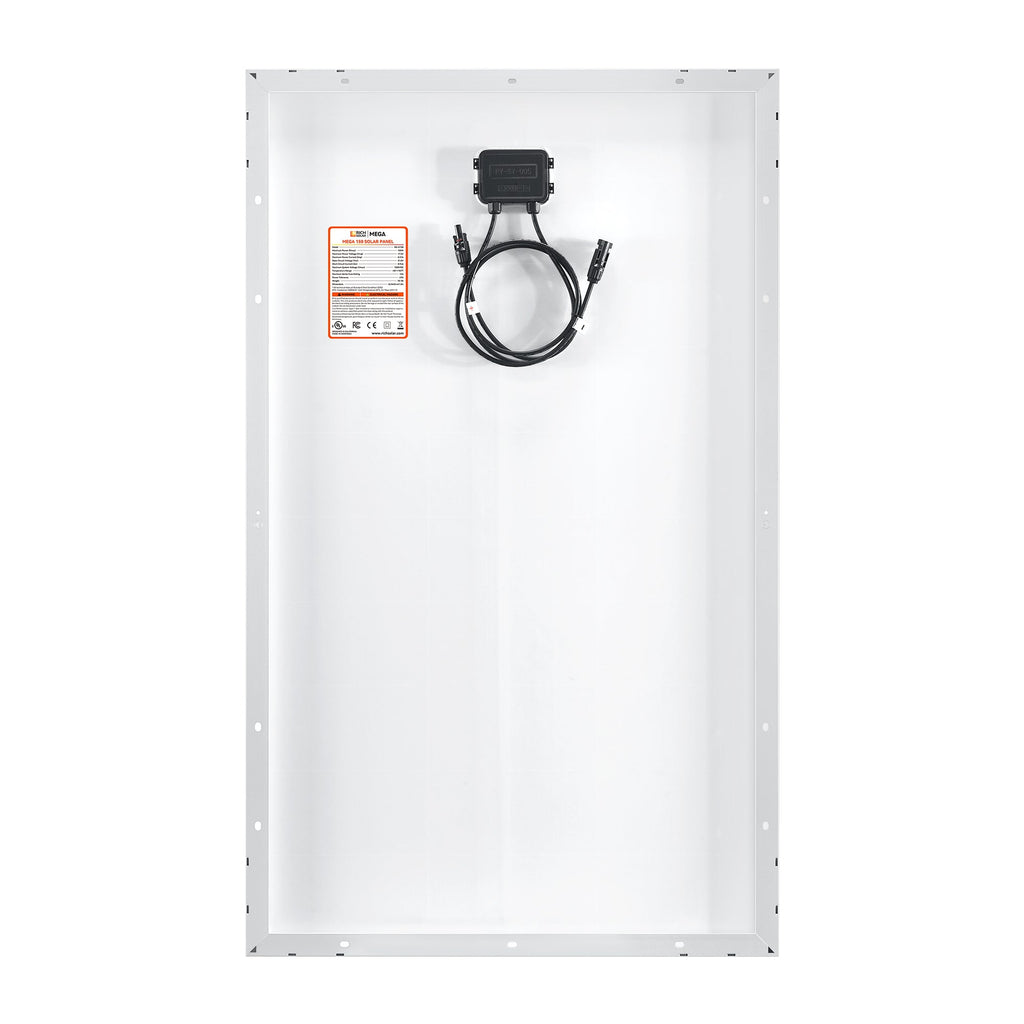

- Plug-and-play IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors with quick-connect cables that work in series or parallel
- Built-in bypass diodes to reduce shading losses
- Certified to withstand challenging environmental conditions

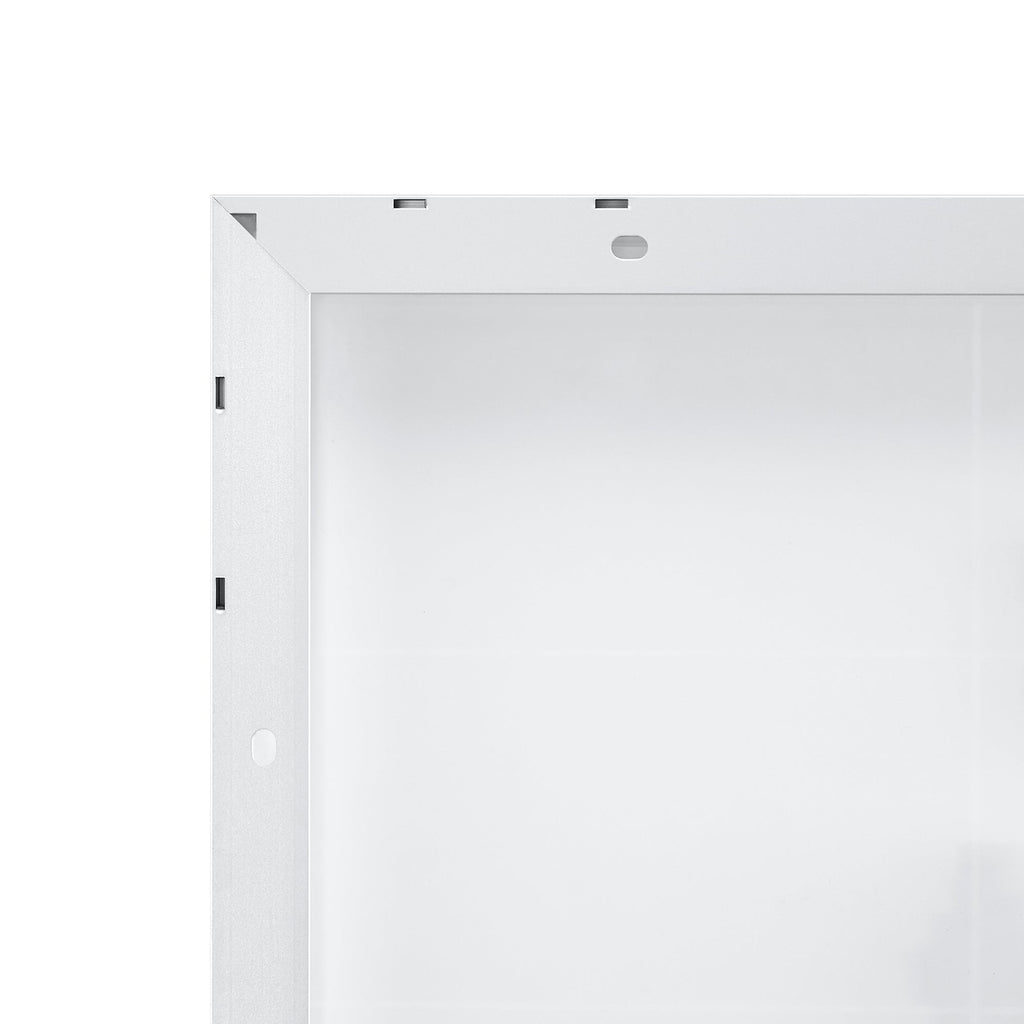

- Designed for easy mounting: pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with both on-grid and off-grid inverters

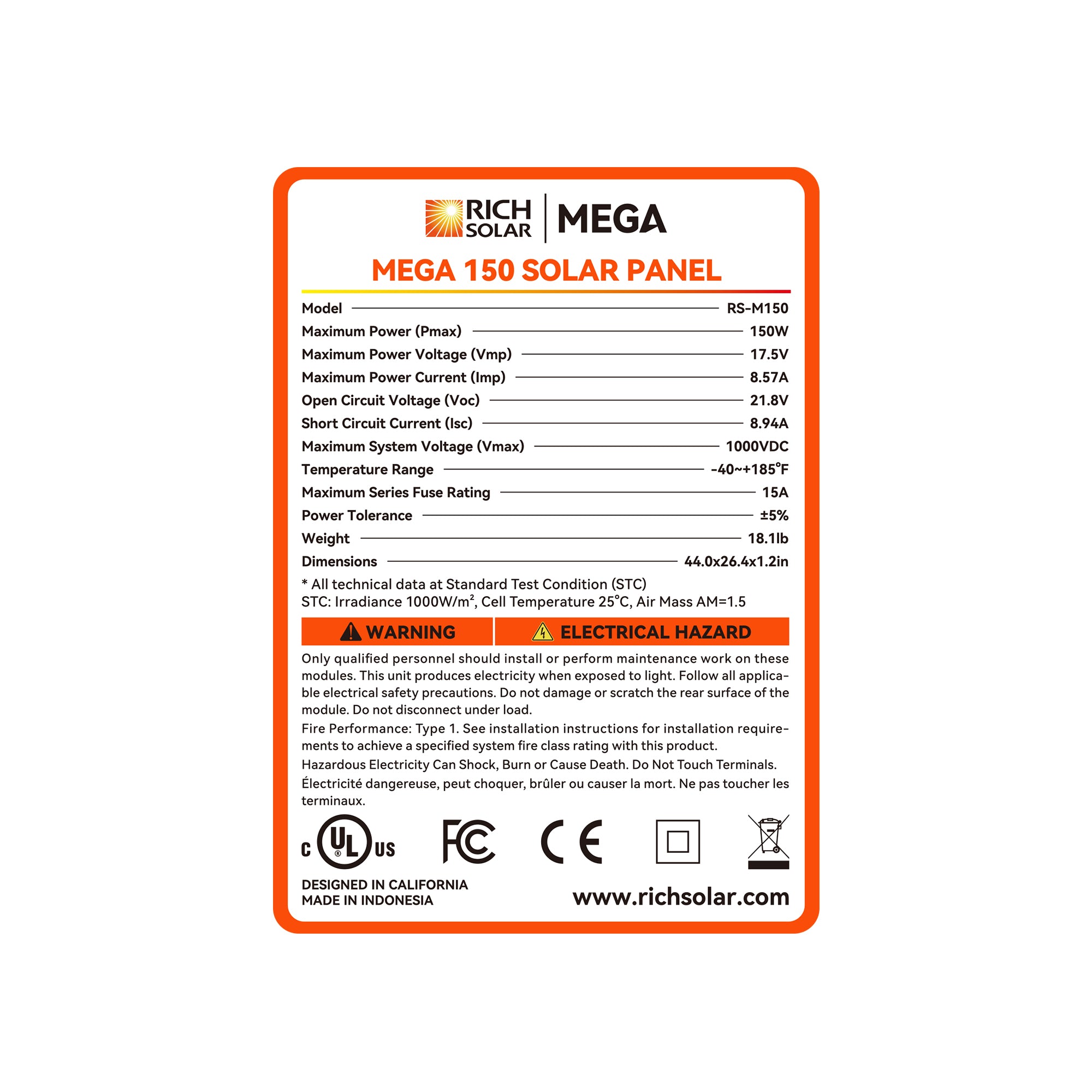

Specifications
- Model: RS-M150
- Maximum Power (Pmax): 150 W
- Maximum Power Voltage (Vmp): 17.5 V
- Maximum Power Current (Imp): 8.57 A
- Open Circuit Voltage (Voc): 21.8 V
- Short Circuit Current (Isc): 8.94 A
- Maximum System Voltage (Vmax): 1000 VDC
- Maximum Series Fuse Rating: 15 A
- Cell configuration: 18 busbar solar cells
- Efficiency: 24.8%
- Frame material: Anodized aluminum
- Glass: AR coated tempered glass
- Panel leads (pair): 3 ft each
- Junction box: IP67-rated, waterproof, with built-in bypass diodes
- Connectors: IP67-rated waterproof quick-connect cables
- Temperature range: -40 to +185 °F
- Weight: 18.1 lb

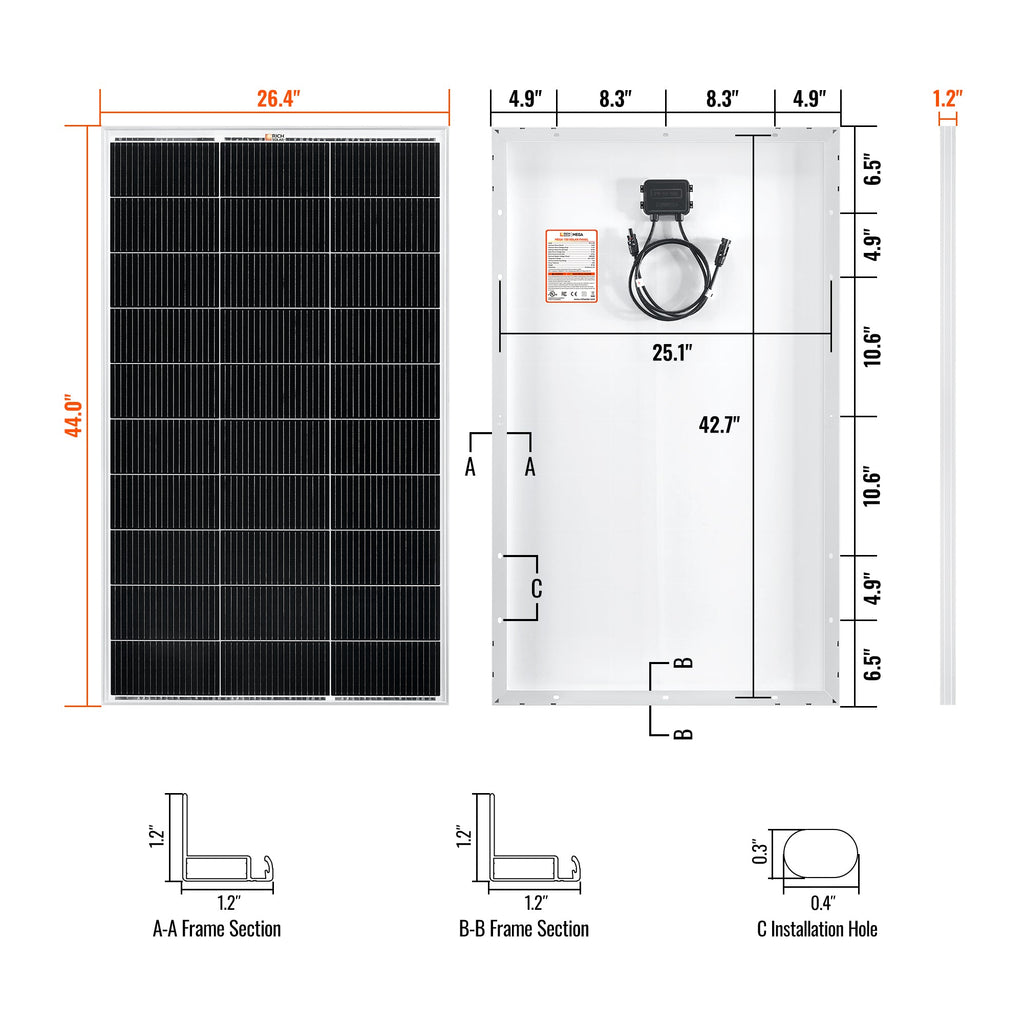

- Dimensions: 44.0 x 26.4 x 1.2 in
