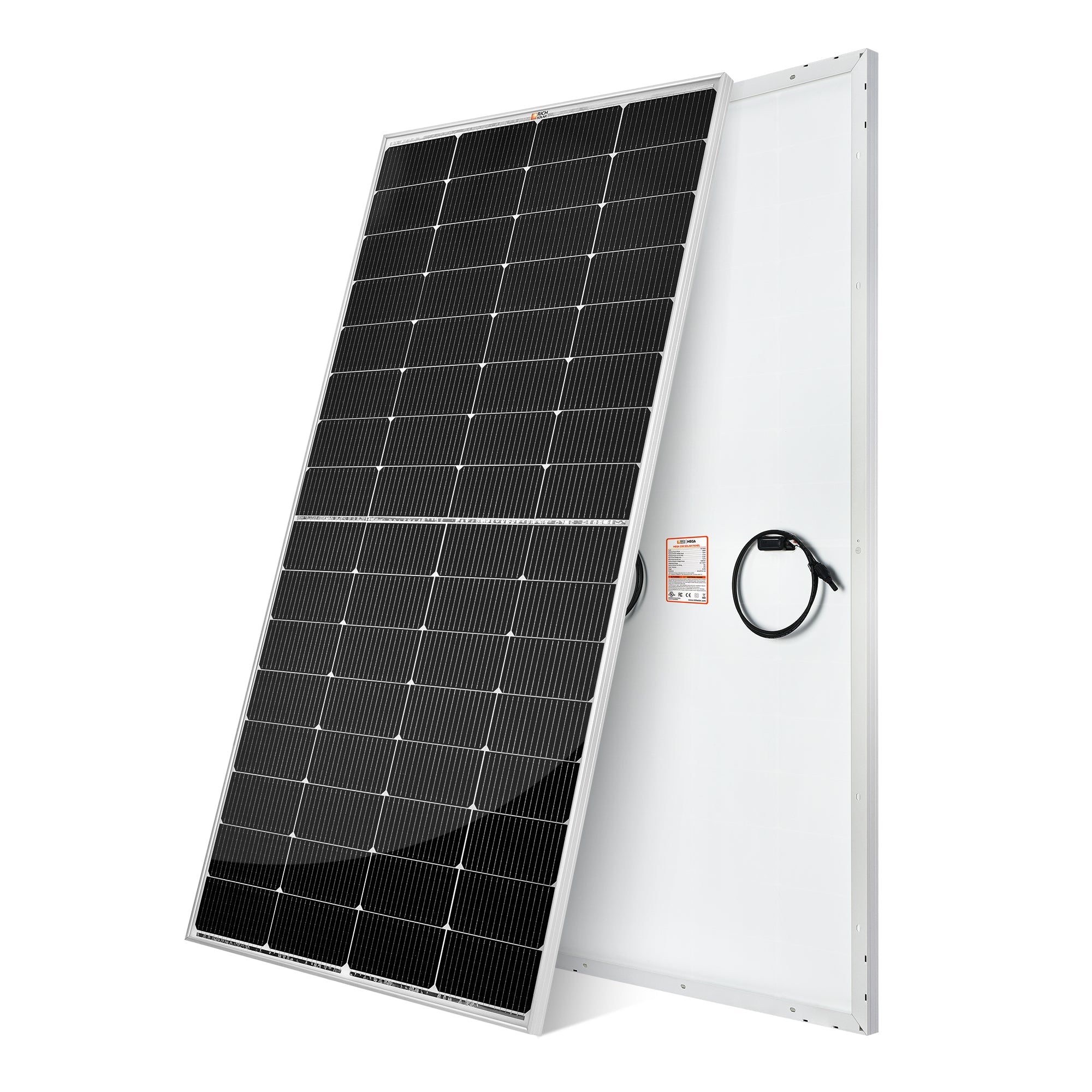

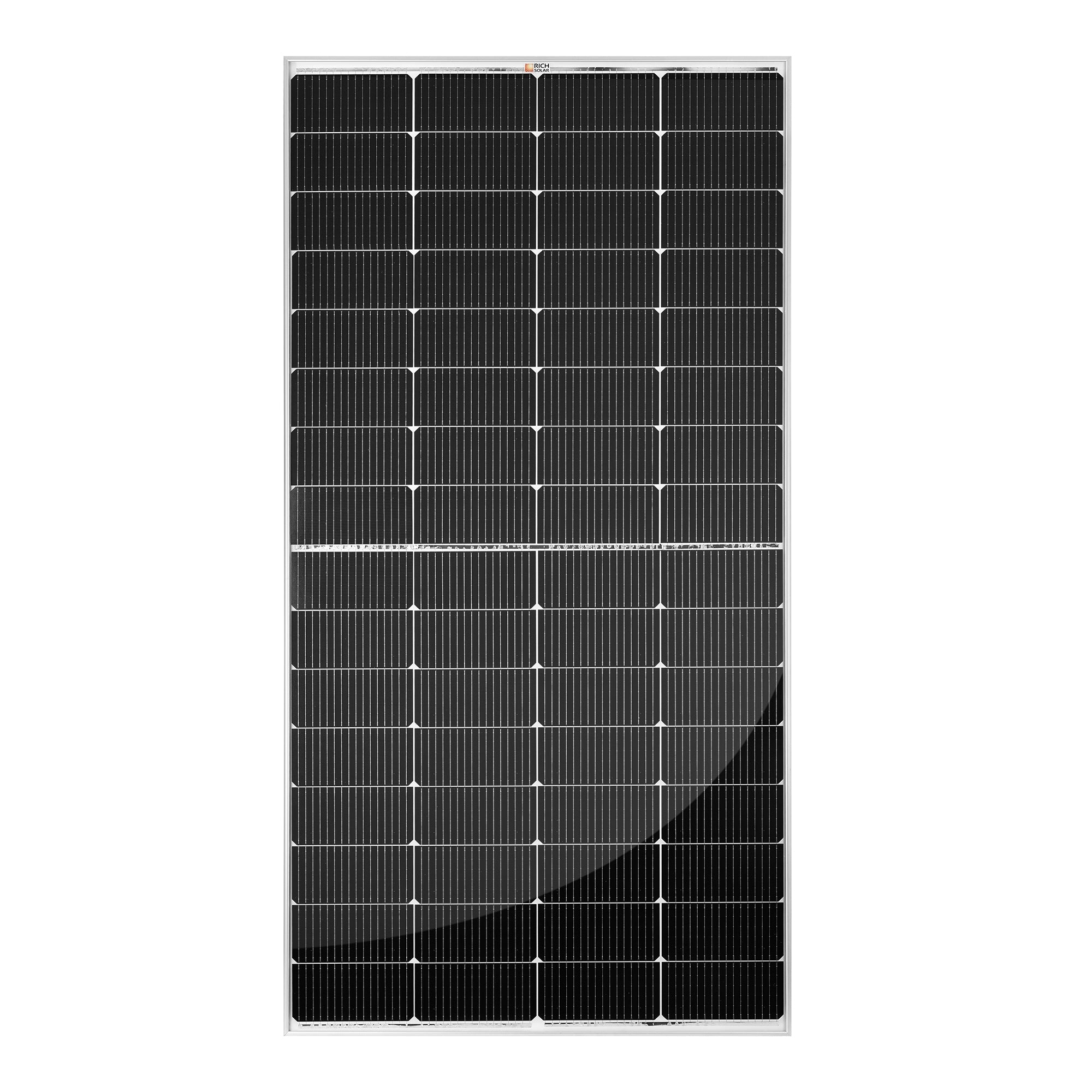

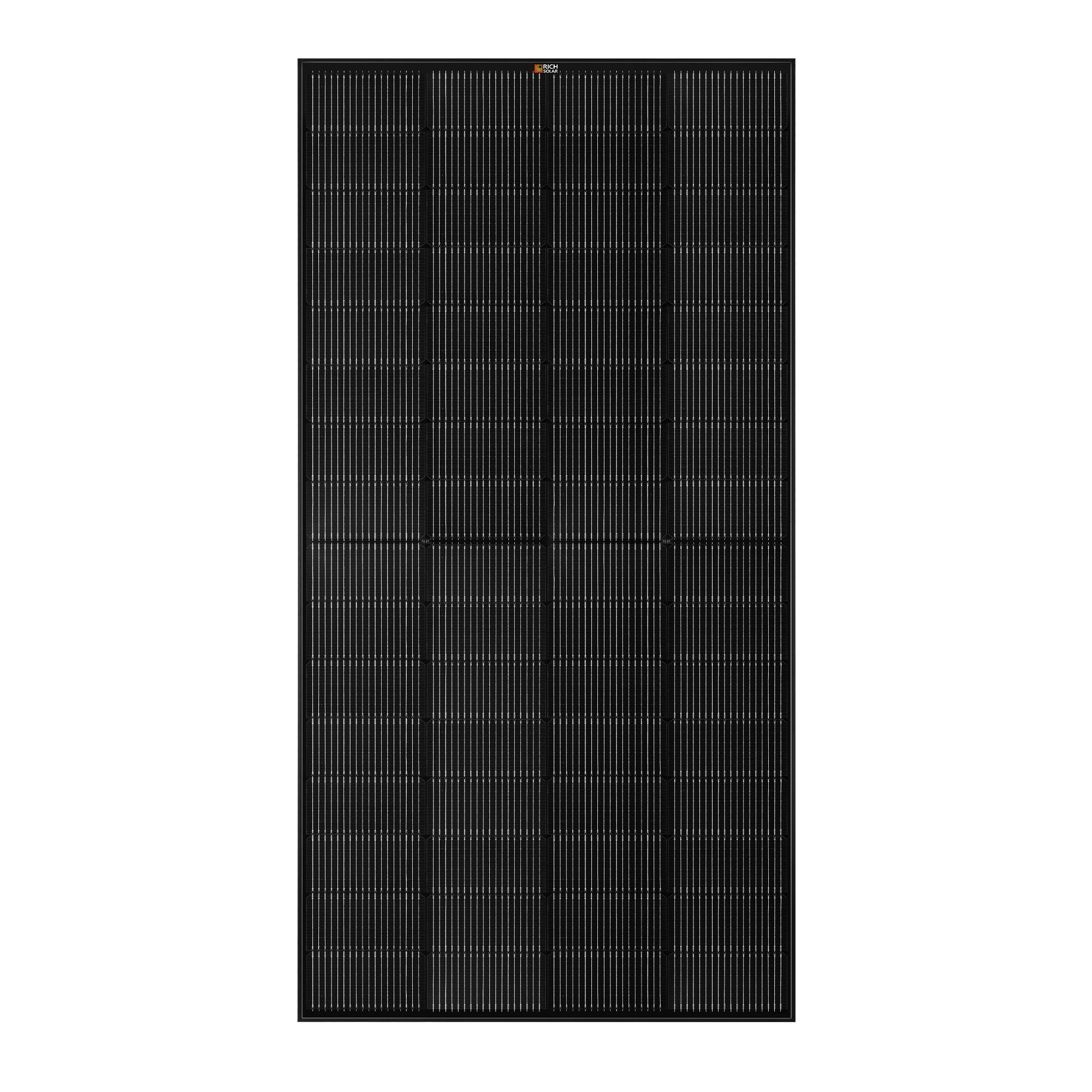

Reliable 250W Solar Panel with Easy Installation
This compact, durable 250W solar panel delivers steady power for on-grid or off-grid systems. It’s built for simple installation, low-light performance, and long-term reliability so you get usable energy with minimal fuss.
Benefits
- Get usable power earlier and later in the day thanks to strong low-light performance.
- Spend less time on installation with pre-drilled holes and plug-and-play connectors.
- Reduce maintenance and worry with a rugged frame, tempered glass, and weatherproof components.
- Choose the wiring and mounting that fit your project—supports series or parallel connections and multiple mount types.
- Gain long-term assurance with extended output and workmanship warranties.
Features

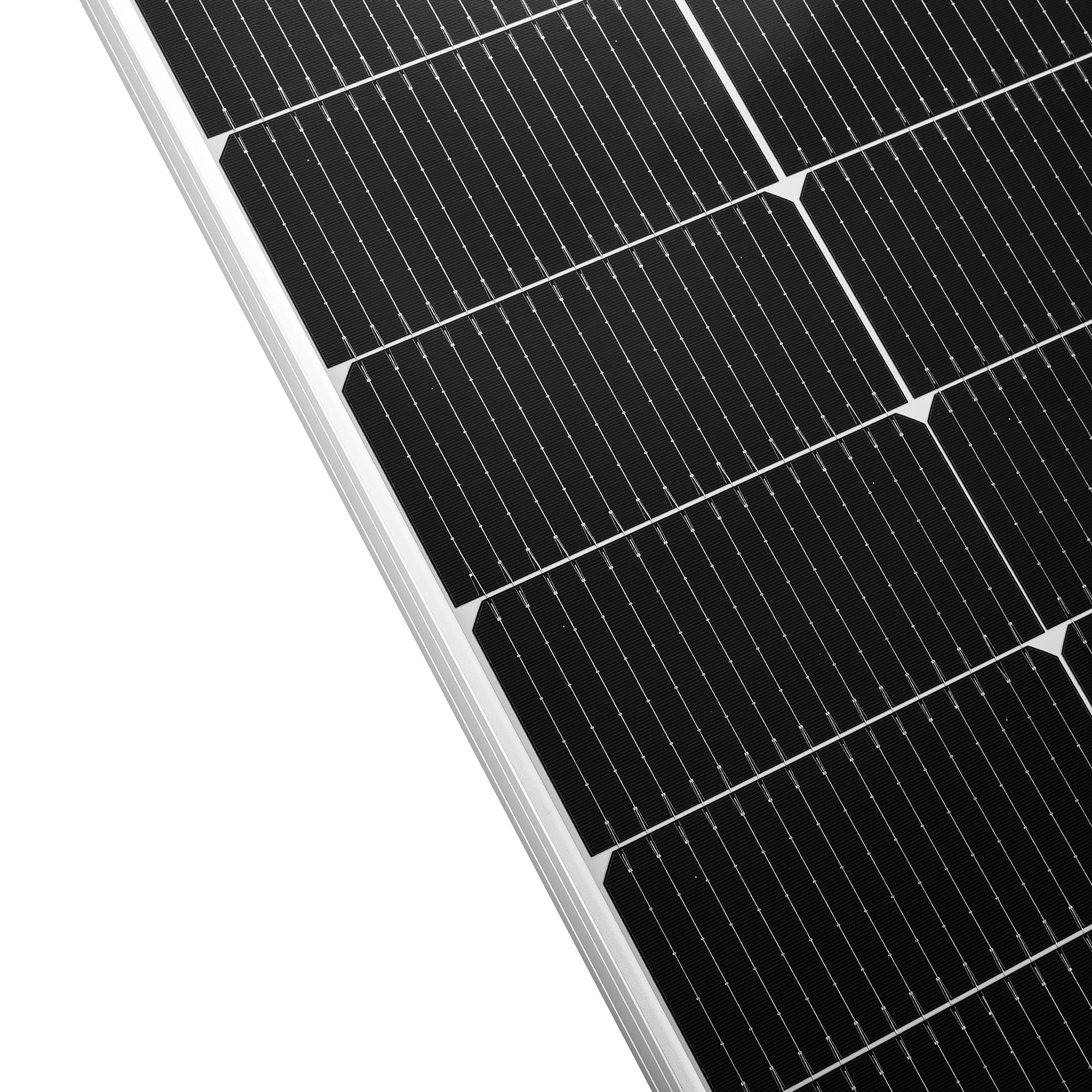

- 16-busbar solar cell configuration for efficient power collection.

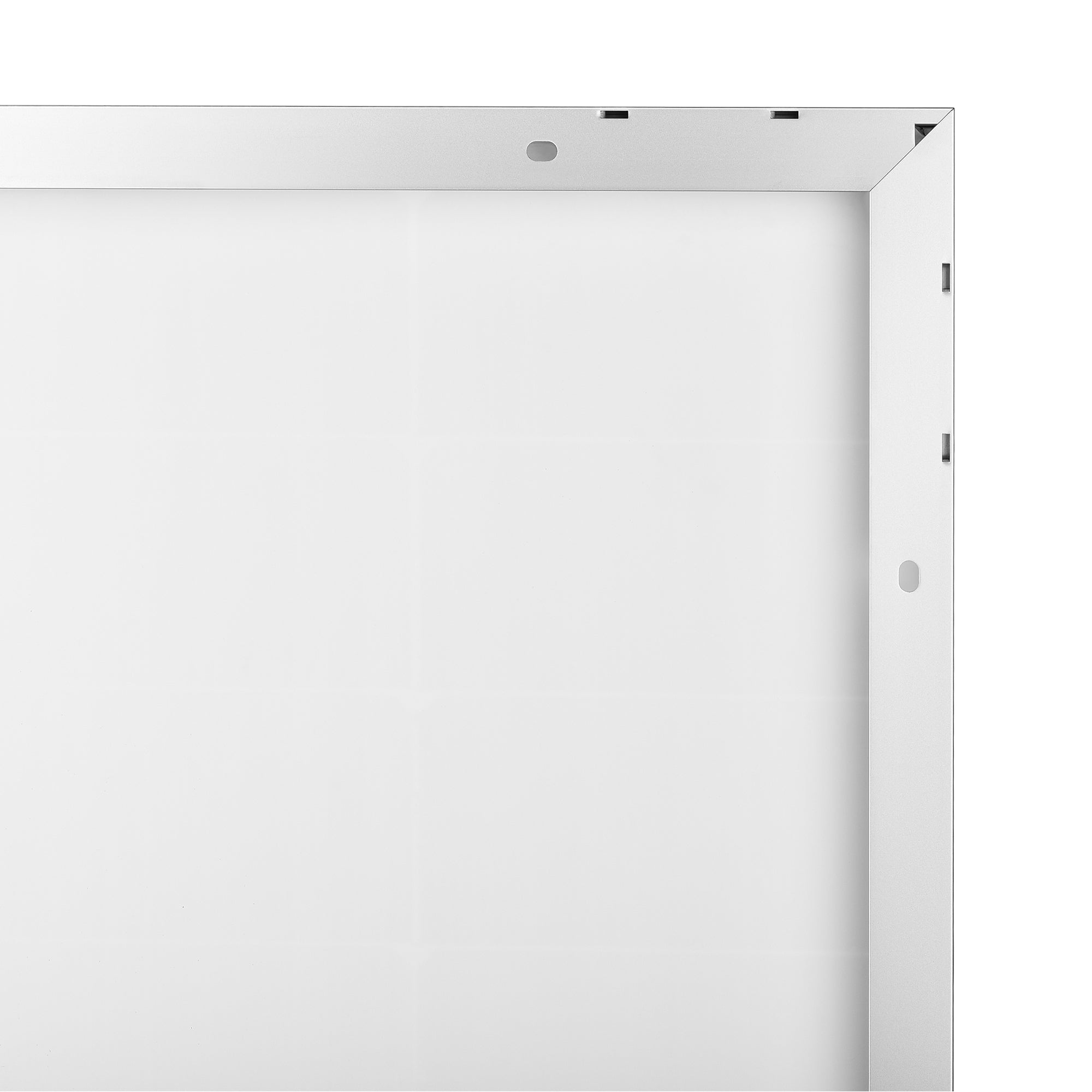

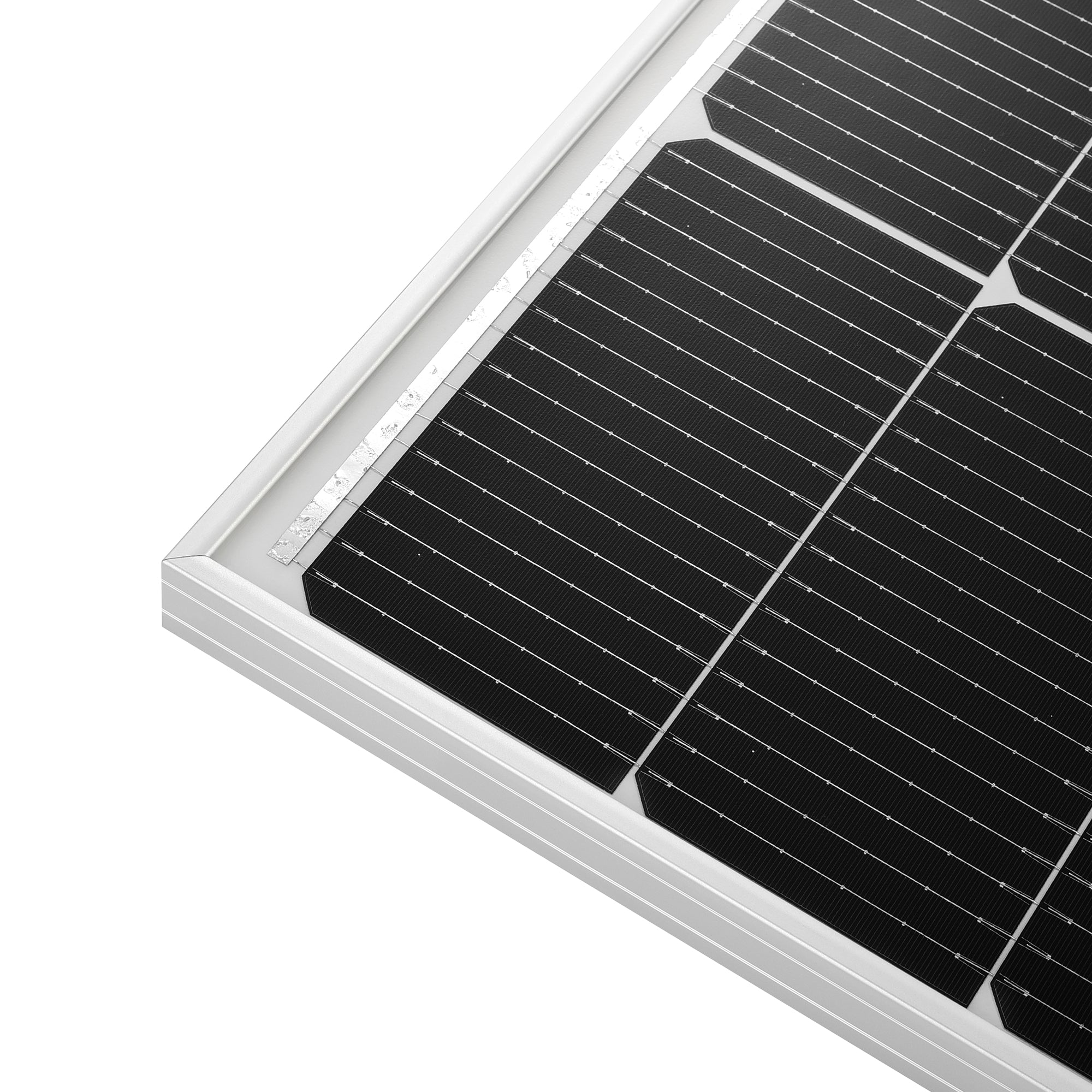

- Lightweight anodized aluminum frame for corrosion resistance and easier handling.
- High-transmission, anti-reflective (AR) tempered glass to improve light capture.

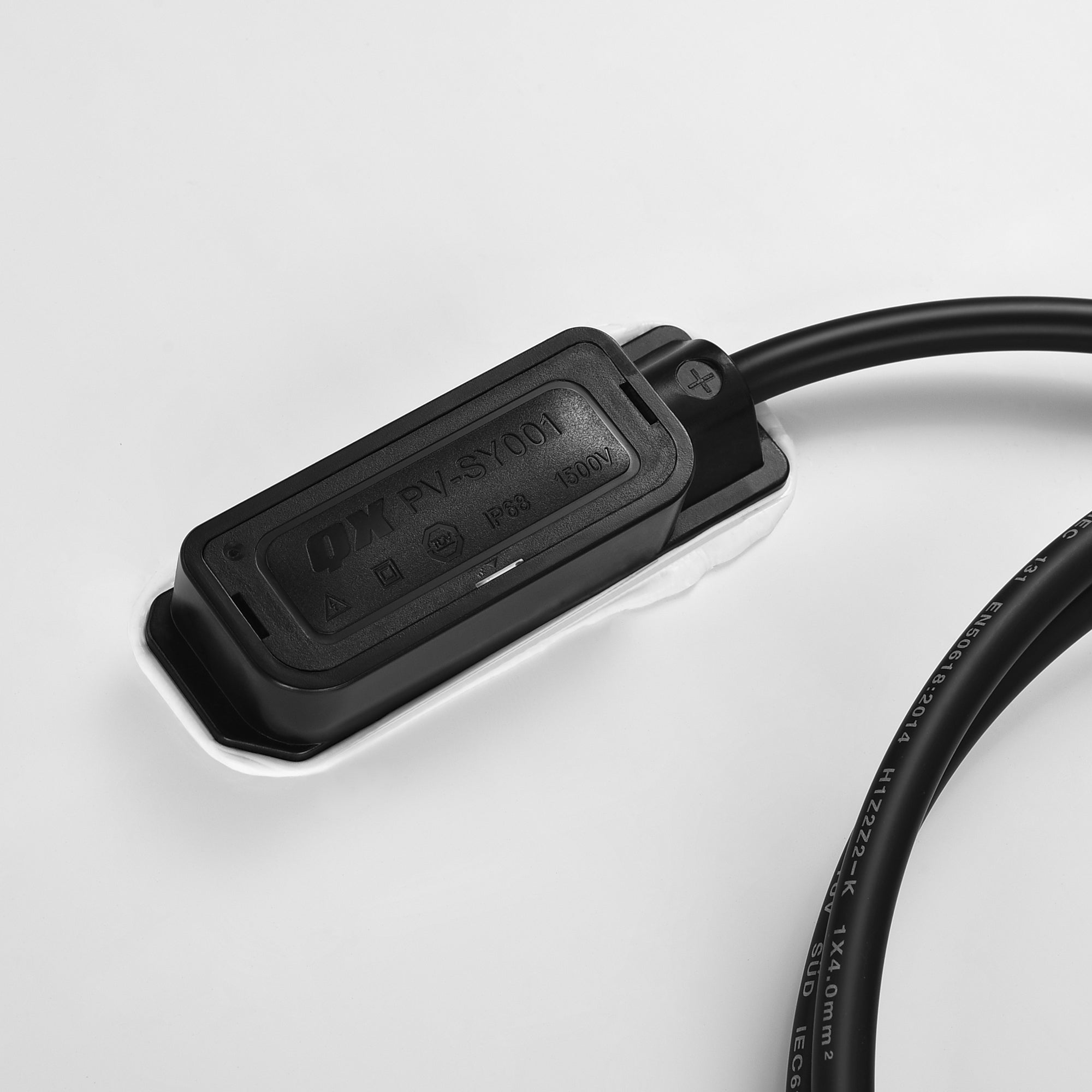

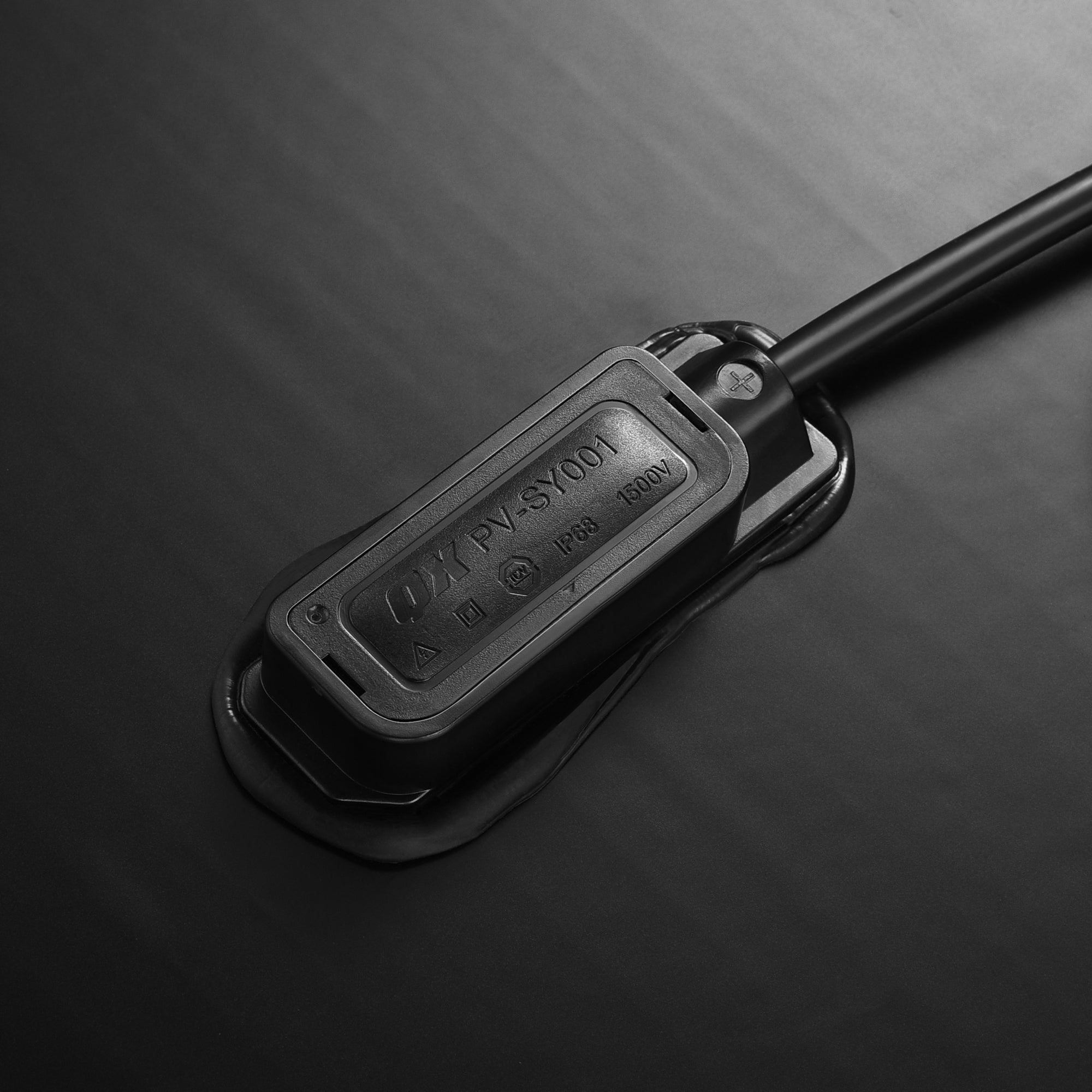

- Plug-and-play IP67-rated junction box and waterproof connectors for simple, durable connections.
- Industry-standard quick-connect cables compatible with series or parallel wiring.
- Built-in bypass diodes in the junction box to reduce shading losses.

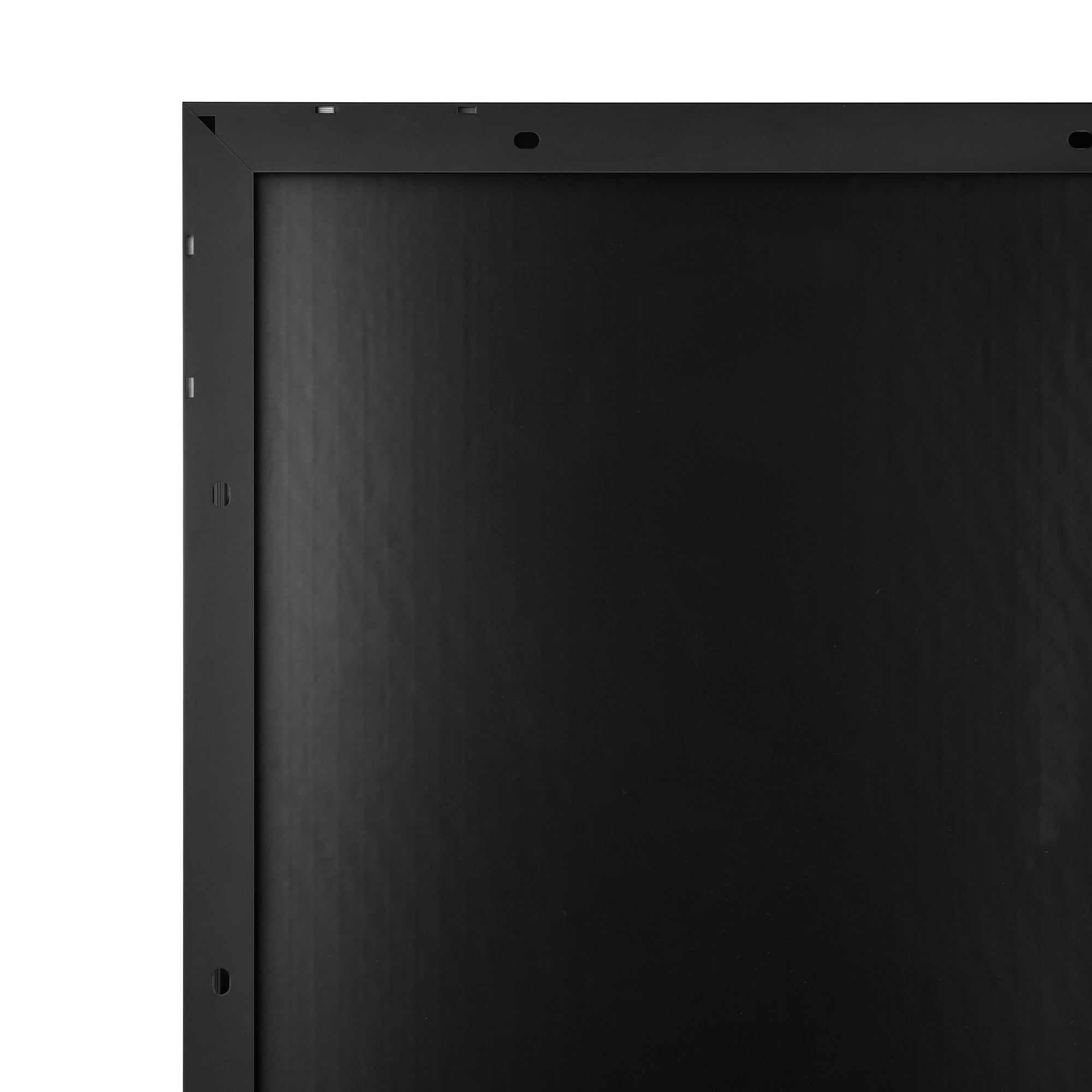

- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts.
- Designed and certified to withstand challenging environmental conditions.
- Compatible with both on-grid and off-grid inverters for flexible system design.

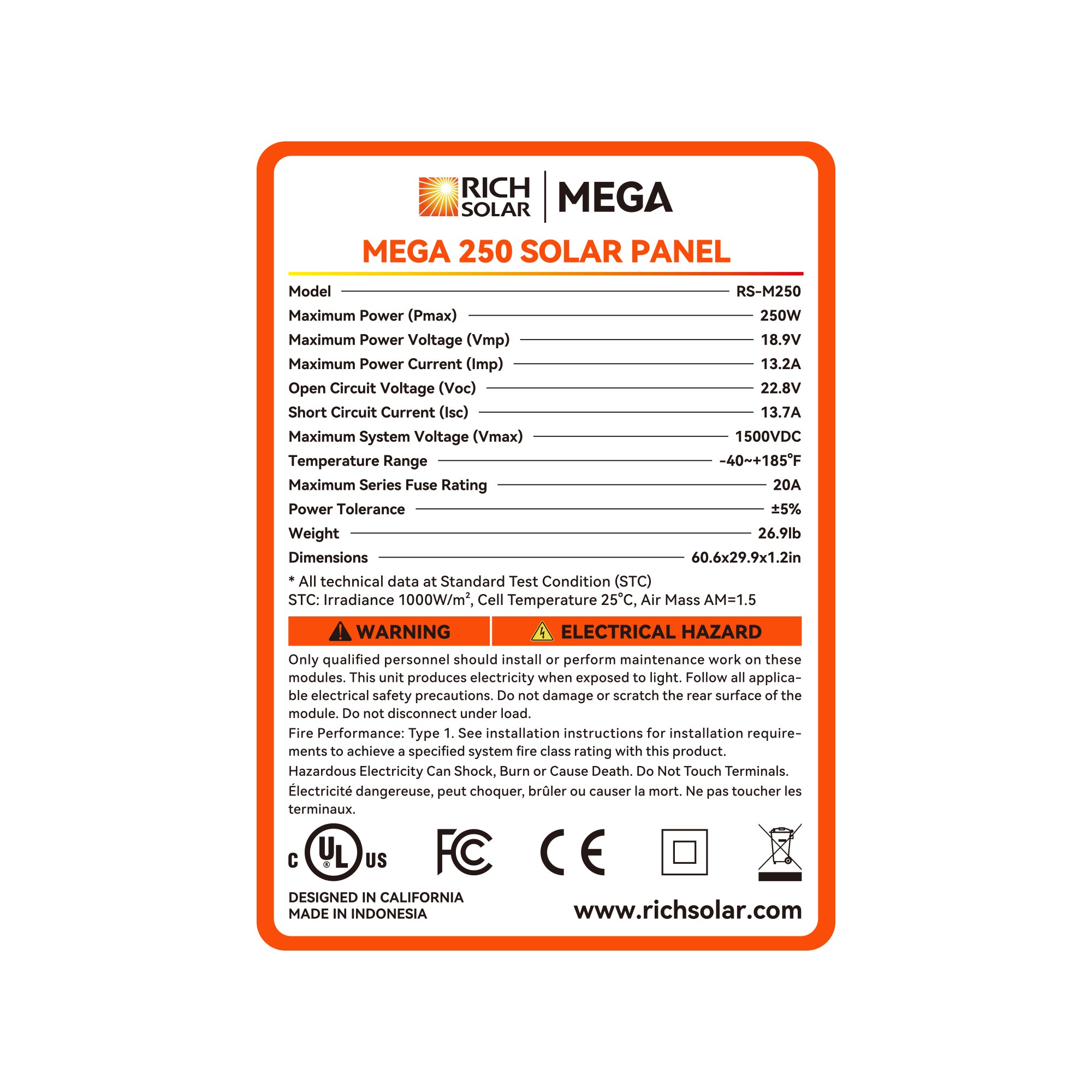

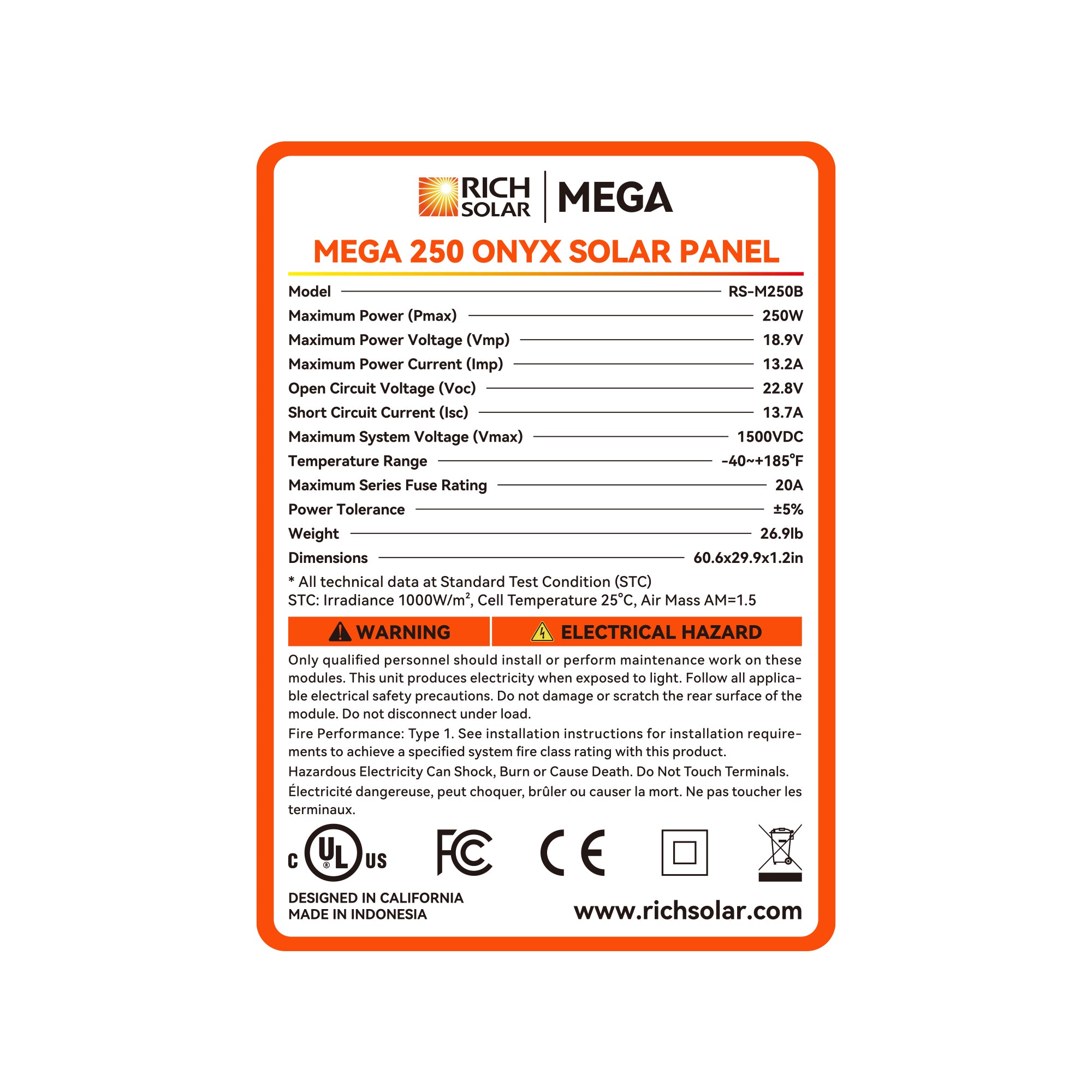

Specifications
- Model: RS-M250
- Maximum Power (Pmax): 250 W
- Maximum Power Voltage (Vmp): 18.9 V
- Maximum Power Current (Imp): 13.2 A
- Open Circuit Voltage (Voc): 22.8 V
- Short Circuit Current (Isc): 13.7 A
- Maximum System Voltage (Vmax): 1500 V DC
- Temperature Range: -40 ~ +185 °F
- Weight: 26.9 lb

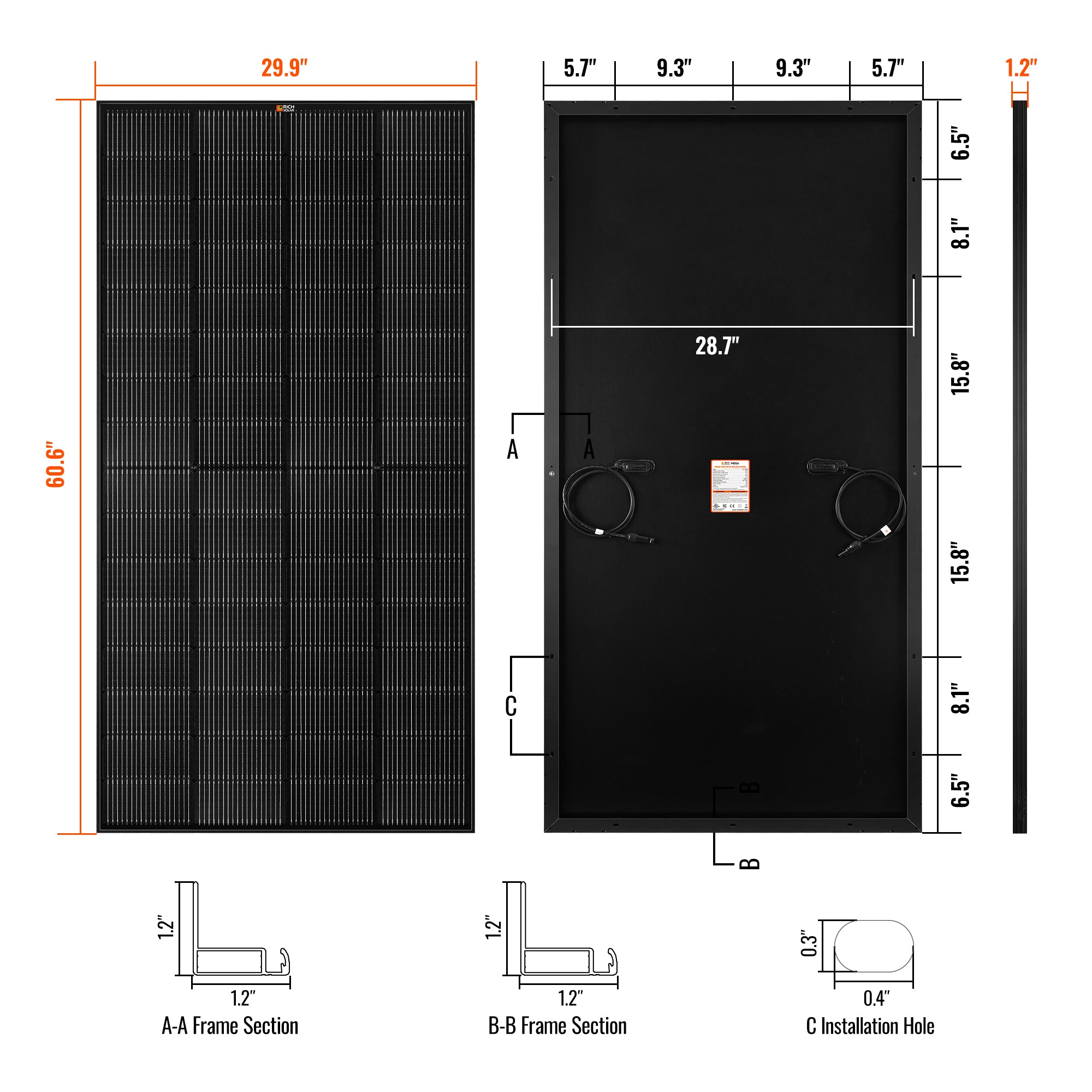

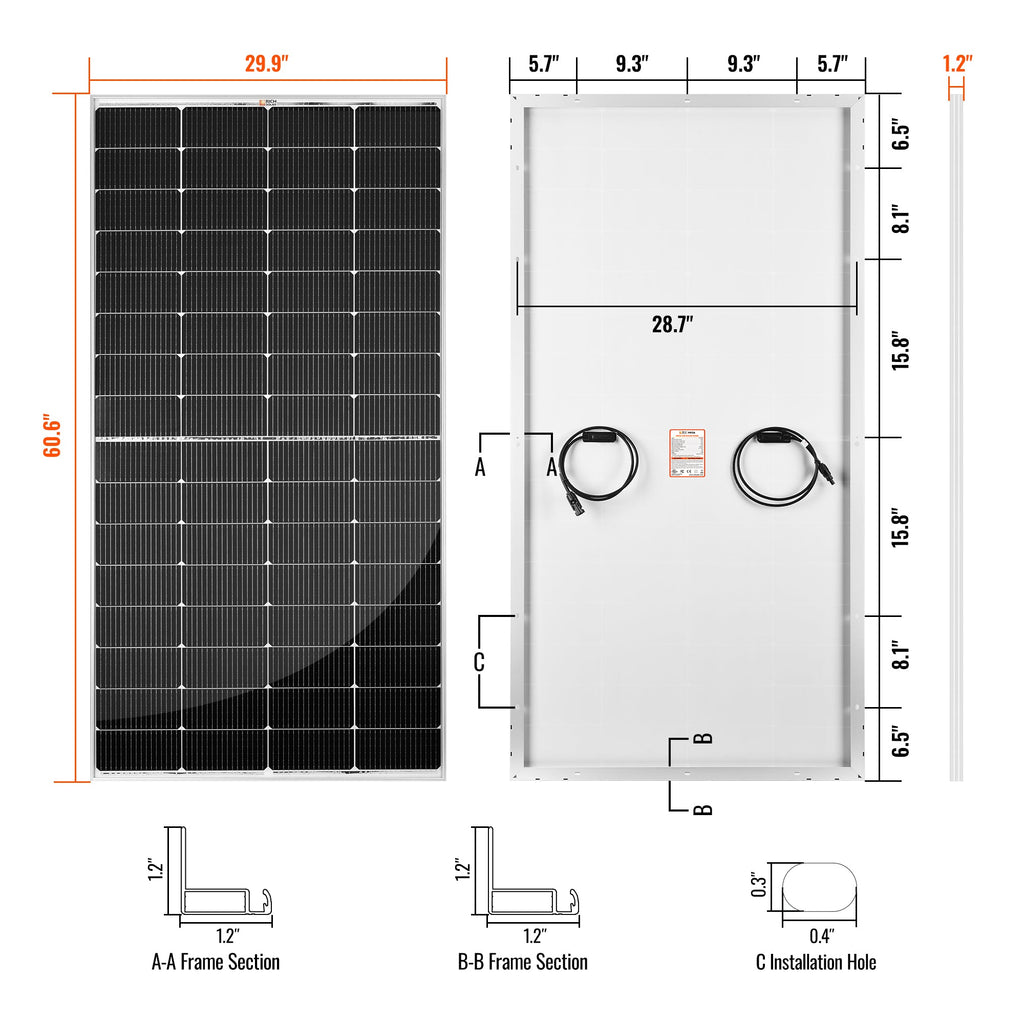

- Dimensions: 60.6 x 29.9 x 1.2 in
- Frame Material: Anodized aluminum
- Glass: High-transmission AR coated tempered glass

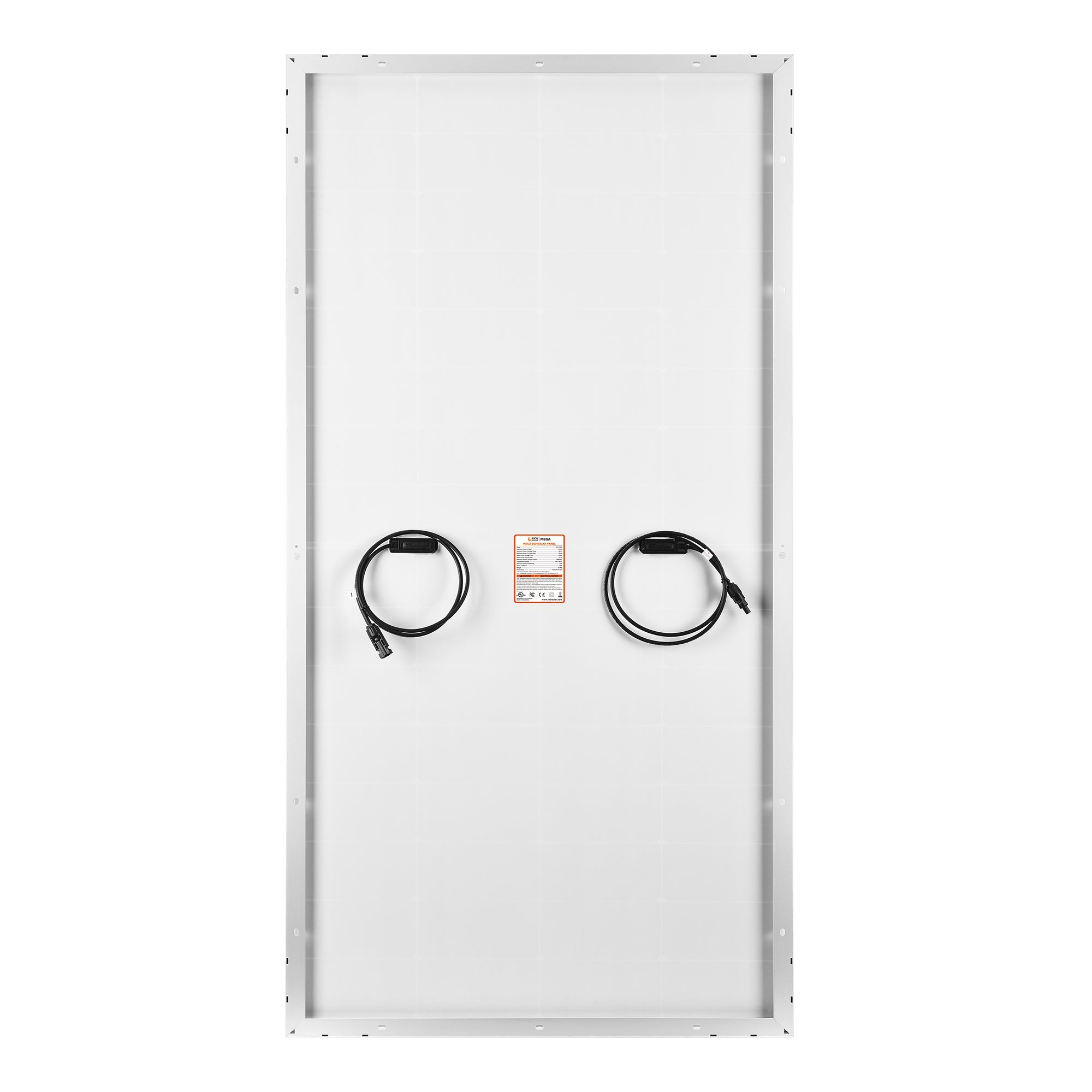

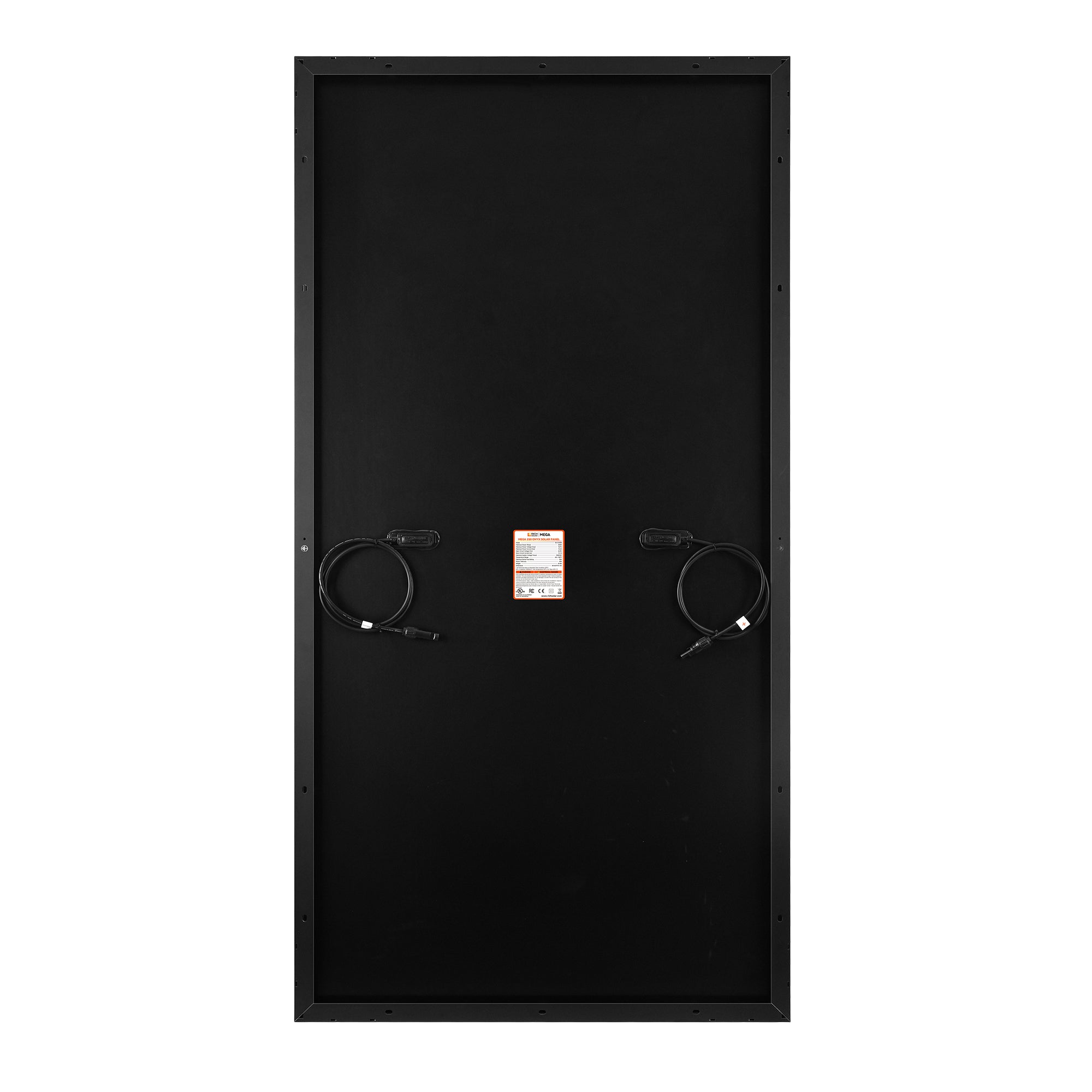

- Panel leads (pair): 3 ft each
- Junction box: IP67-rated waterproof
- Connectors: IP67-rated waterproof quick-connect
- Bypass diodes: Integrated in junction box
- Warranty: 25-year output warranty; 10-year workmanship warranty
- Mounting: Pre-drilled for ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatibility: Works with on-grid and off-grid inverters; supports series or parallel connections
