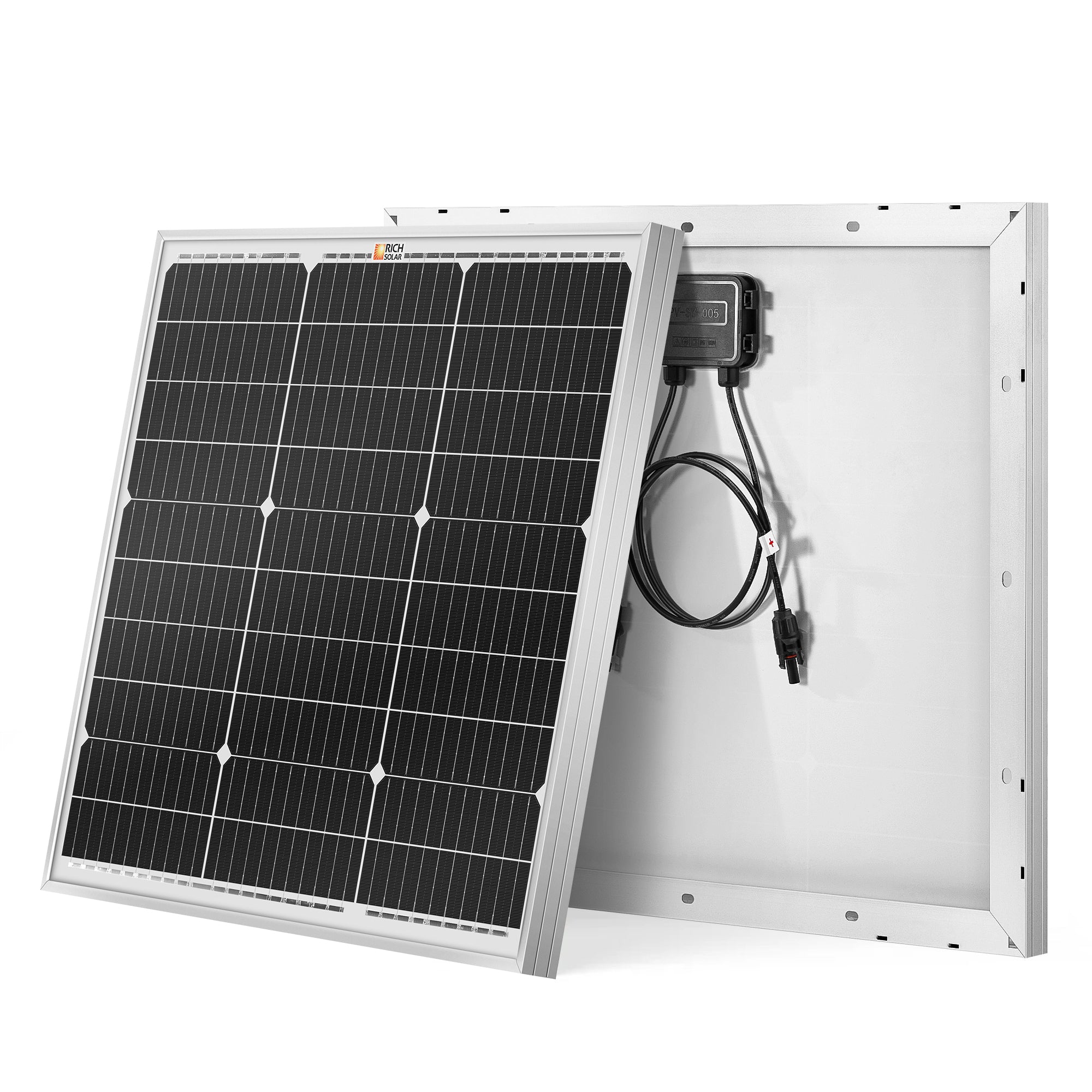

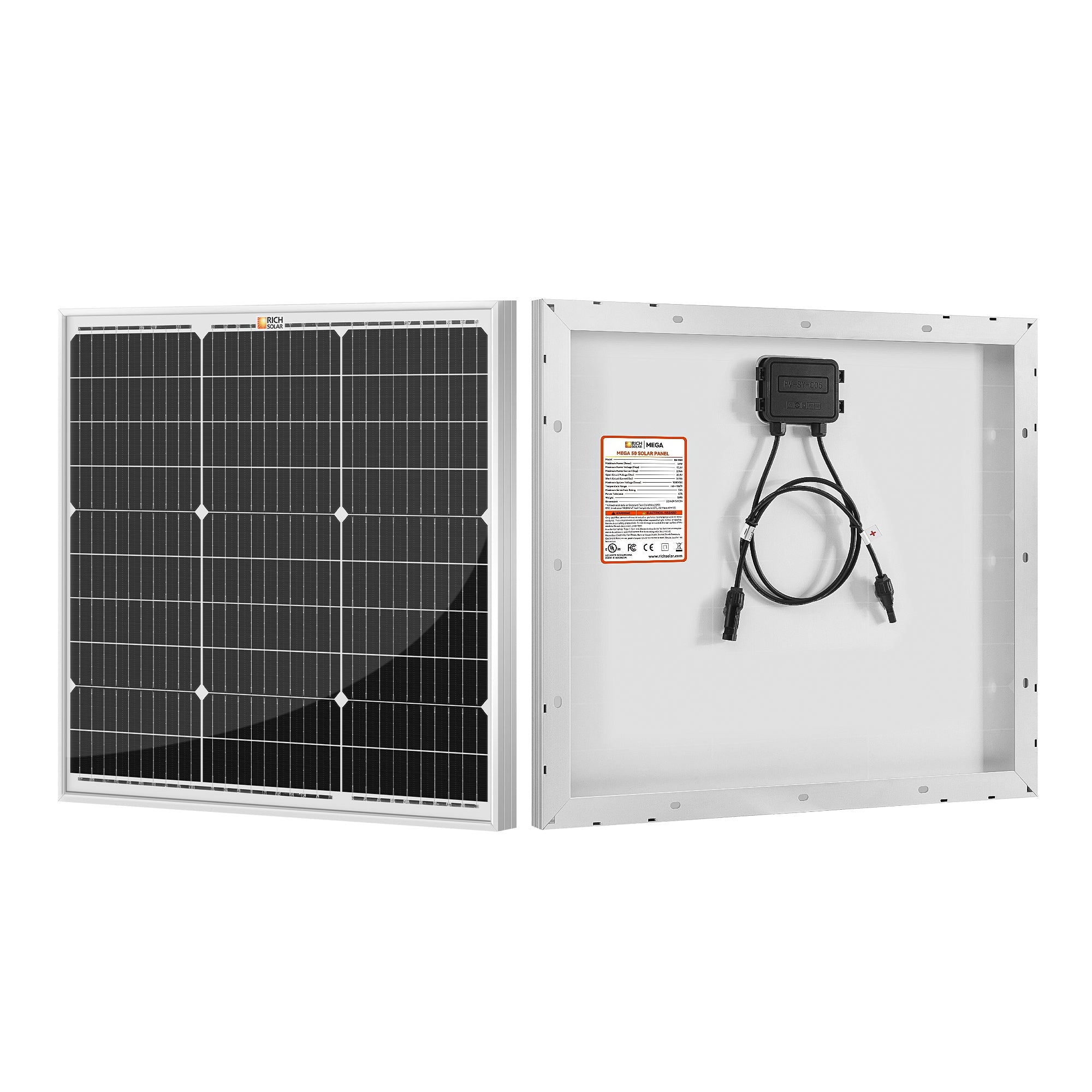

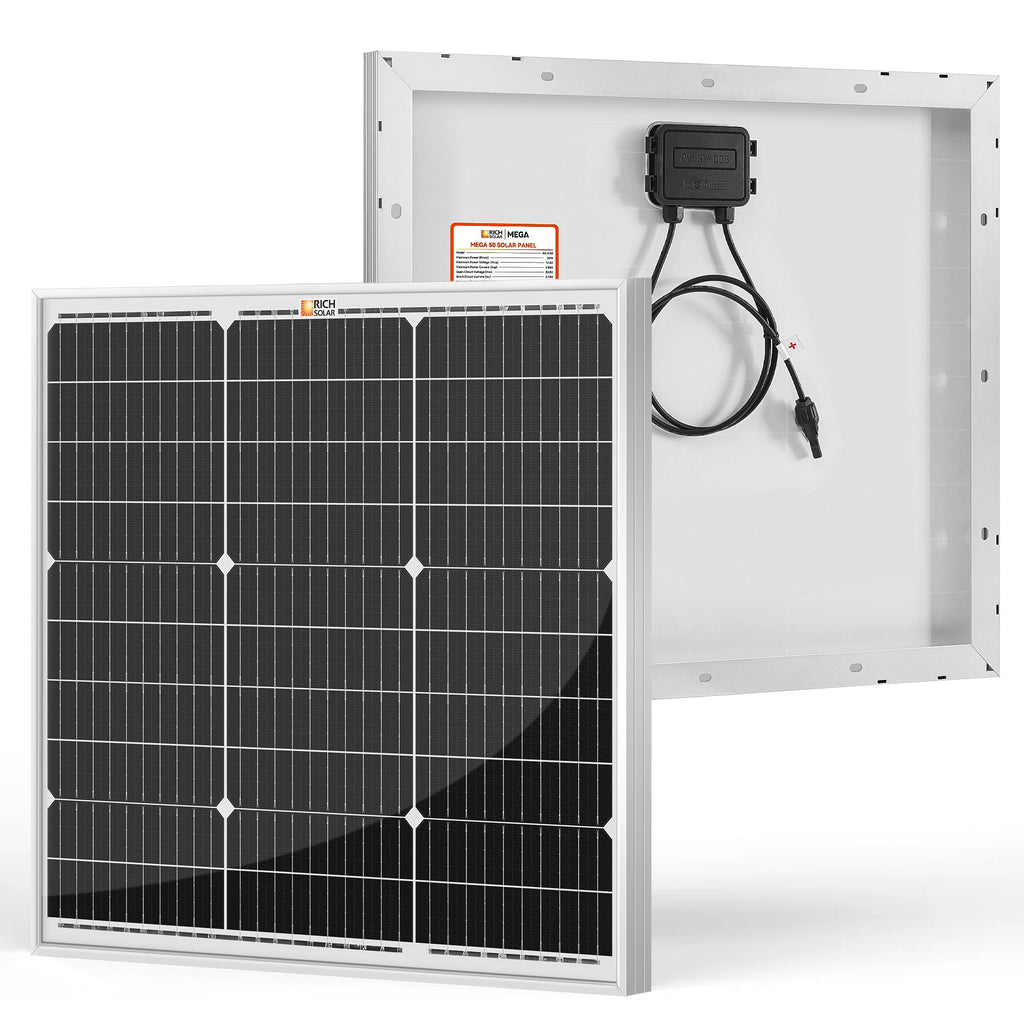

50W 12V Off-Grid Solar Panel — Durable, Weatherproof Power
Overview
A compact 12V solar panel designed for reliable off-grid power. Built with tempered glass and an aluminum frame, IP67 protection, and included waterproof components, it’s made to be easy to install and to keep producing energy through changing conditions.
Benefits
- Consistent off-grid electricity so you can run small systems and devices without interruption.
- Less maintenance and worry thanks to rugged construction and IP67 waterproofing.
- Faster installation — pre-drilled holes and included leads/connectors mean fewer parts to source.
- Long-term confidence with a 25-year power output warranty and a 10-year workmanship warranty.
- Flexible use: works with on-grid and off-grid inverters and multiple mounting options.
Features
- 12V off-grid solar panel delivering up to 50W of power.
- Guaranteed positive power tolerance of 0 to +5W for reliable output.
- IP67 rated for dust-tight and waterproof performance.

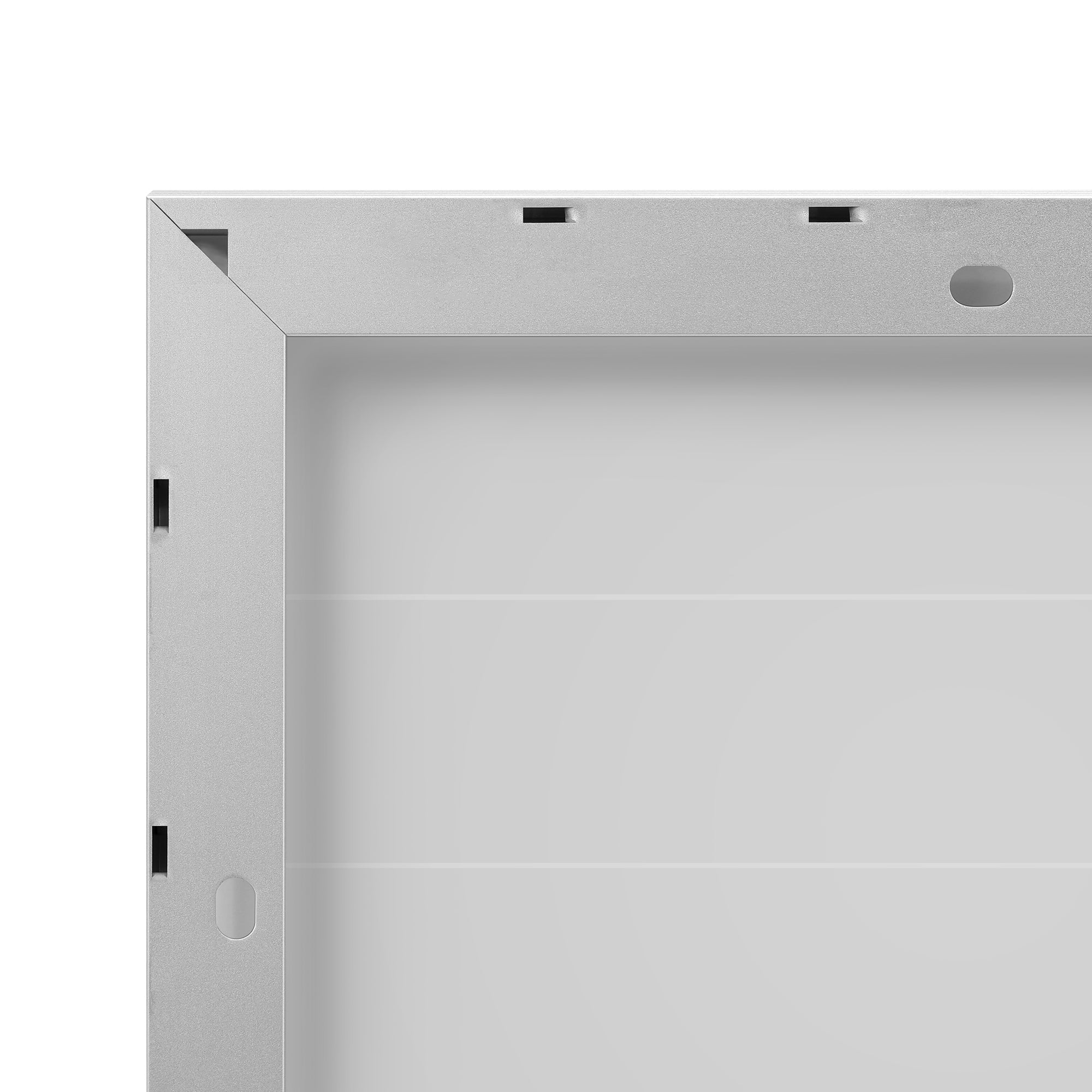

- Tempered glass front and durable aluminum frame for impact and weather resistance.
- Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts, and tilt mounts.
- Compatible with both on-grid and off-grid inverter systems.
- Includes panel leads (pair), waterproof junction box, and waterproof solar connectors.
- Certified to withstand challenging environmental conditions.

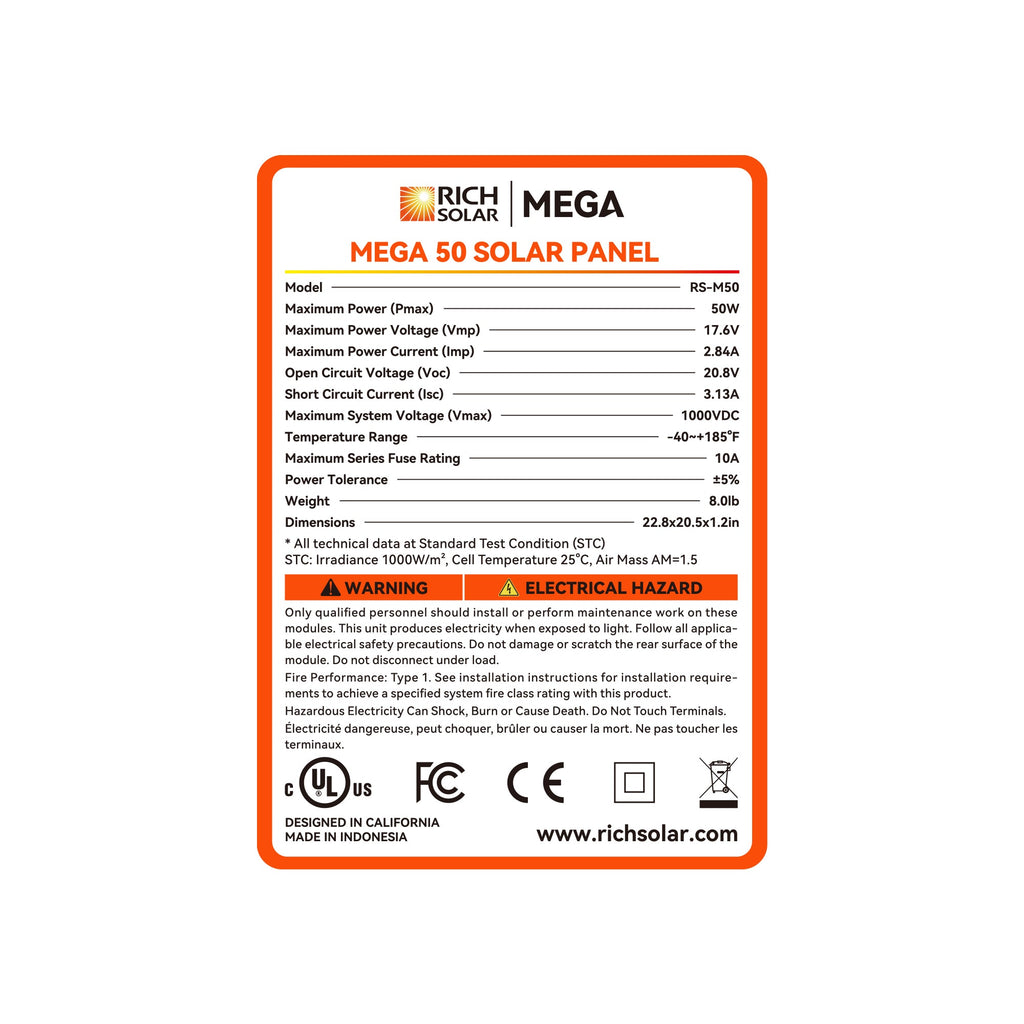

Specifications
- Maximum Power (Pmax): 50W
- Maximum Power Voltage (Vmp): 17.6V
- Maximum Power Current (Imp): 2.84A
- Open Circuit Voltage (Voc): 20.8V
- Short Circuit Current (Isc): 3.13A
- Maximum System Voltage (Vmax): 1000 VDC
- Maximum Series Fuse Rating: 10A
- Weight: 8.0 lb
- Dimensions: 22.8 x 20.5 x 1.2 in
- Panel Leads (pair): 12 AWG, 2 ft

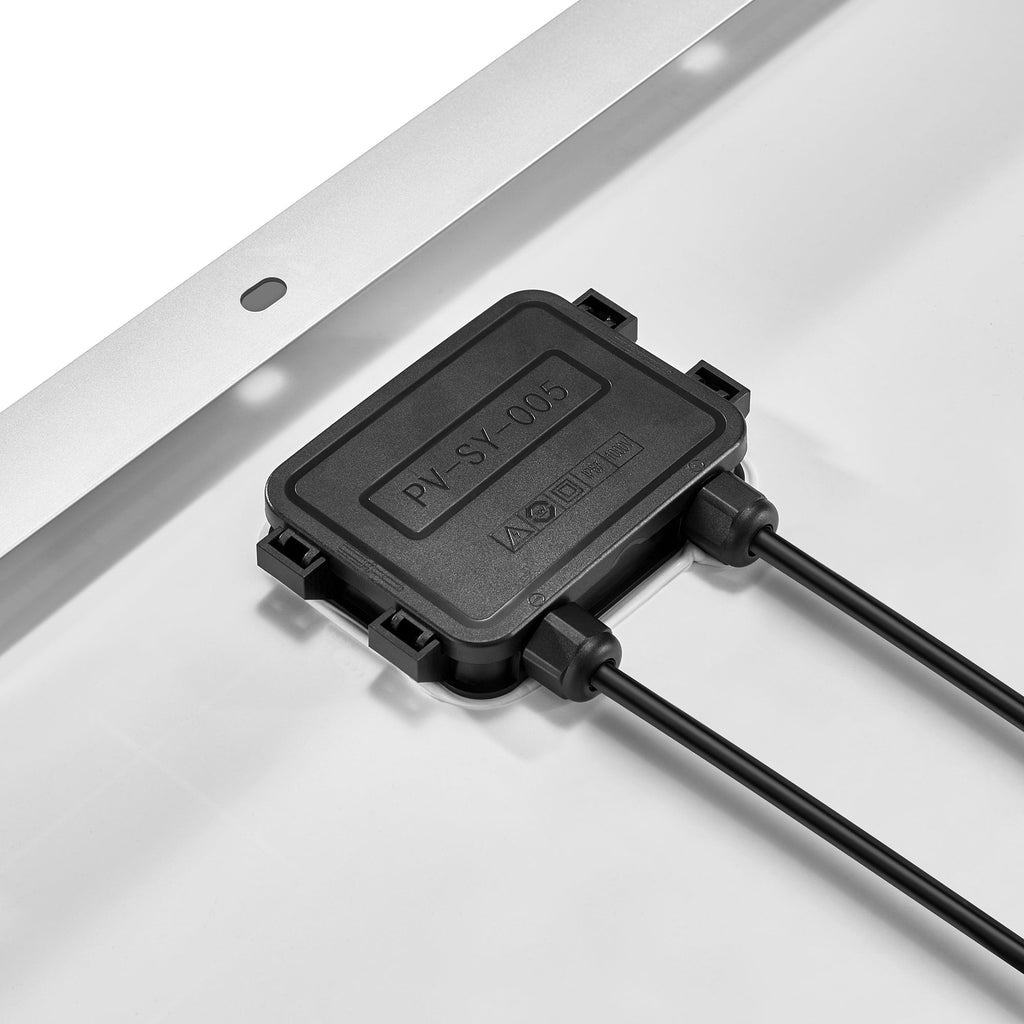

- Junction Box: IP67-rated waterproof

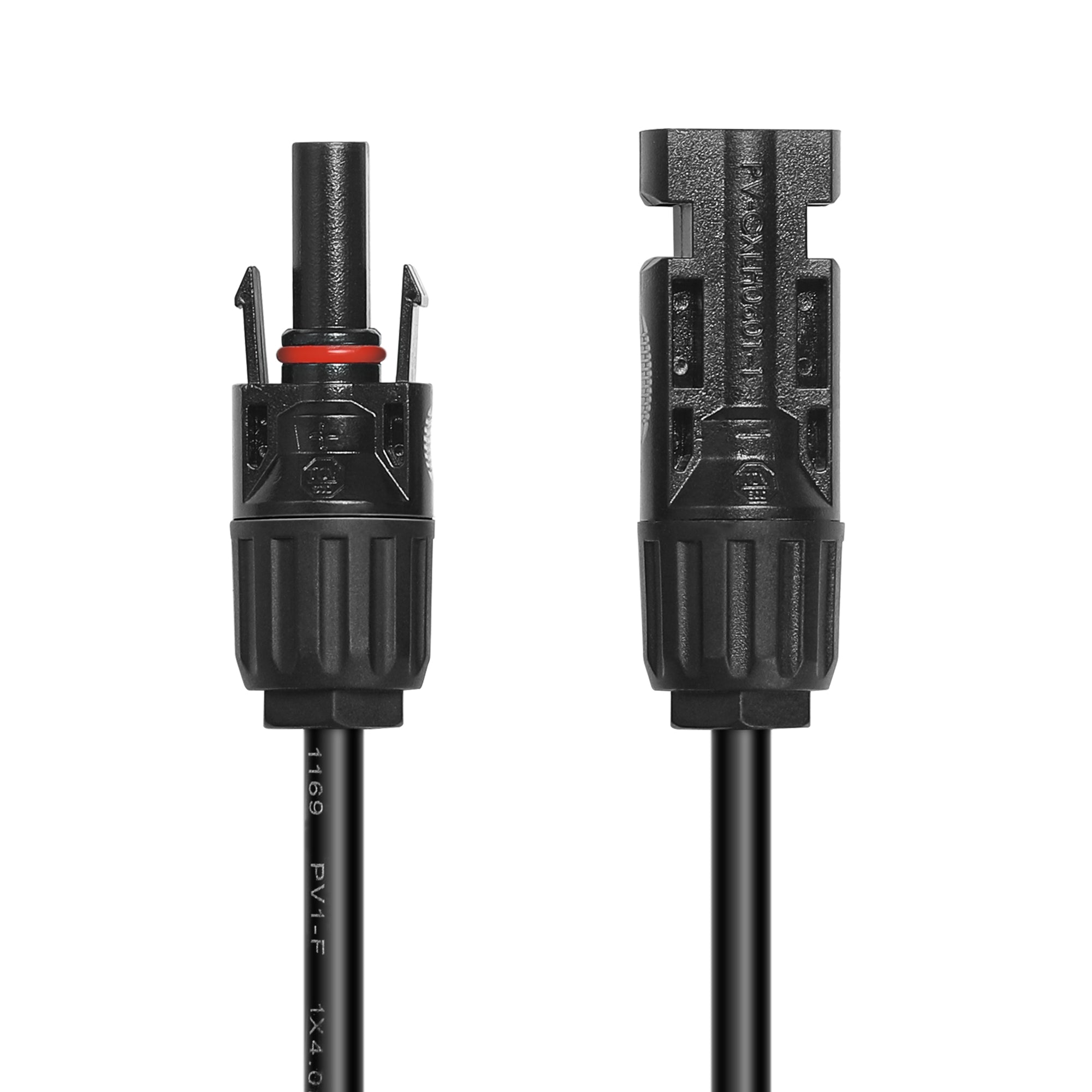

- Solar Connectors: IP67-rated waterproof
- Materials: Tempered glass front, aluminum frame
- Warranty (power output): 25 years
- Warranty (workmanship): 10 years
- Power tolerance: 0 to +5W guaranteed
