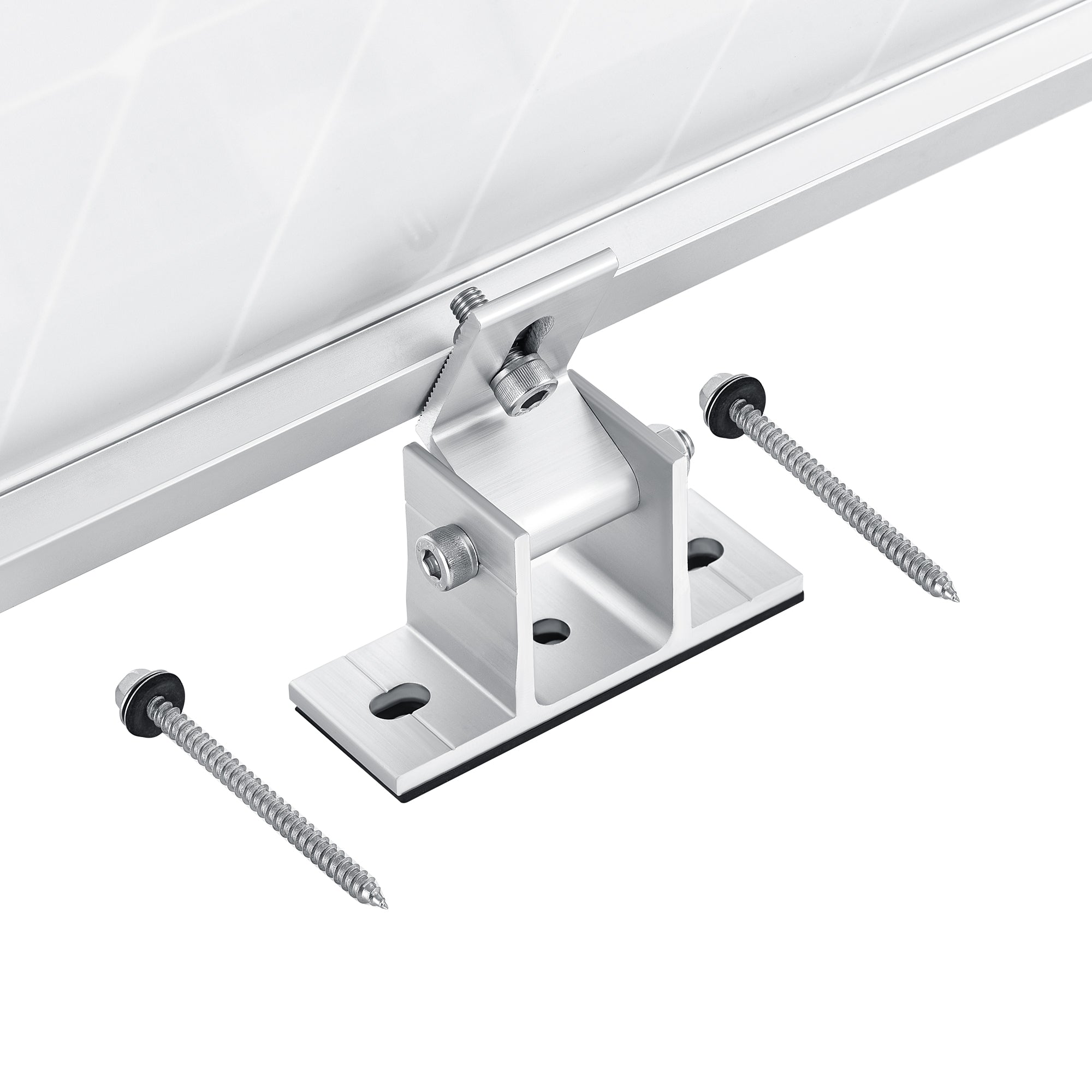

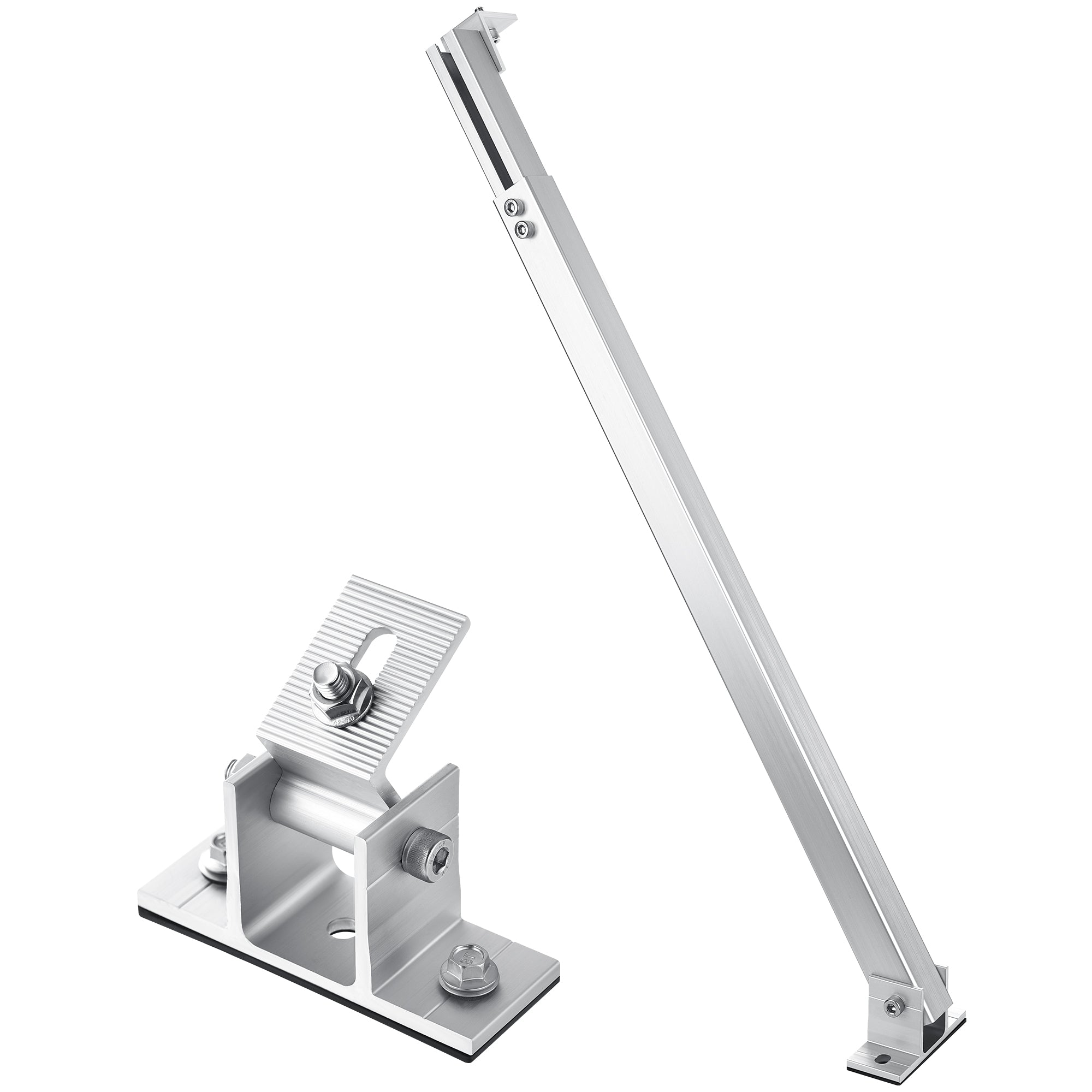

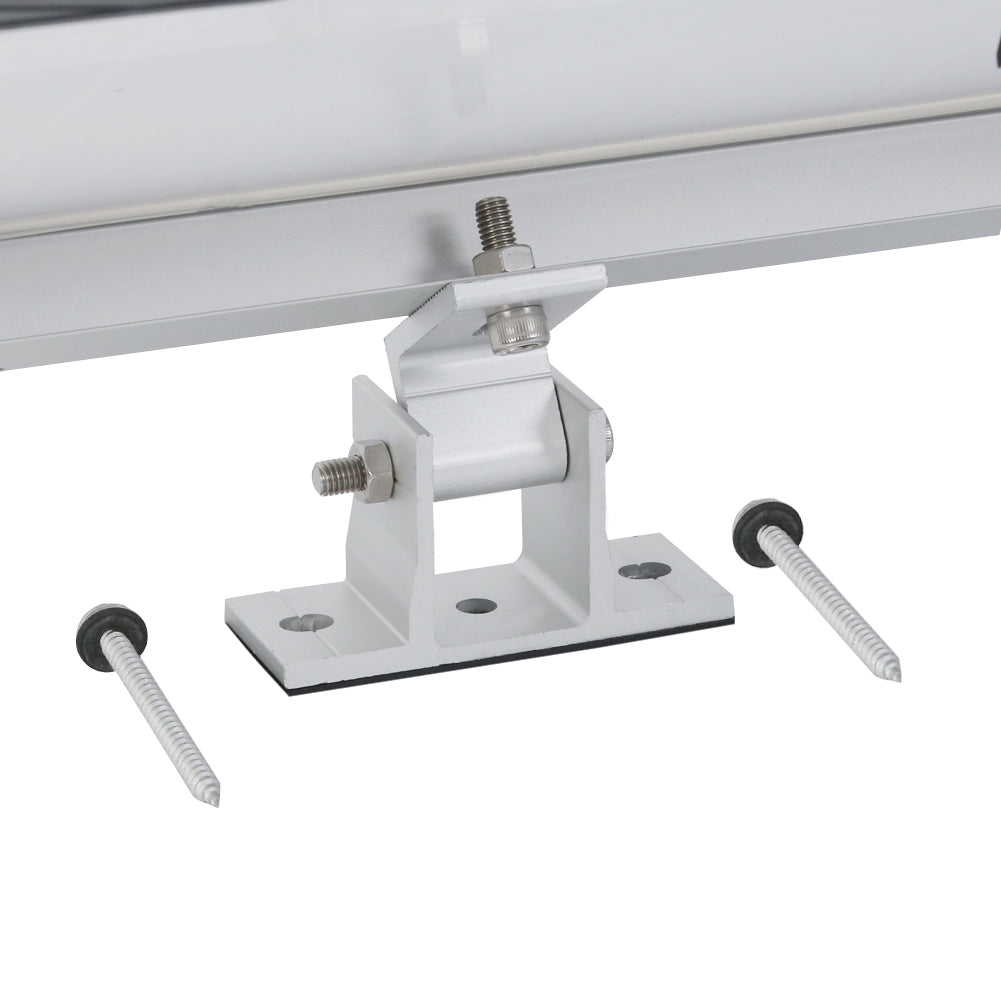

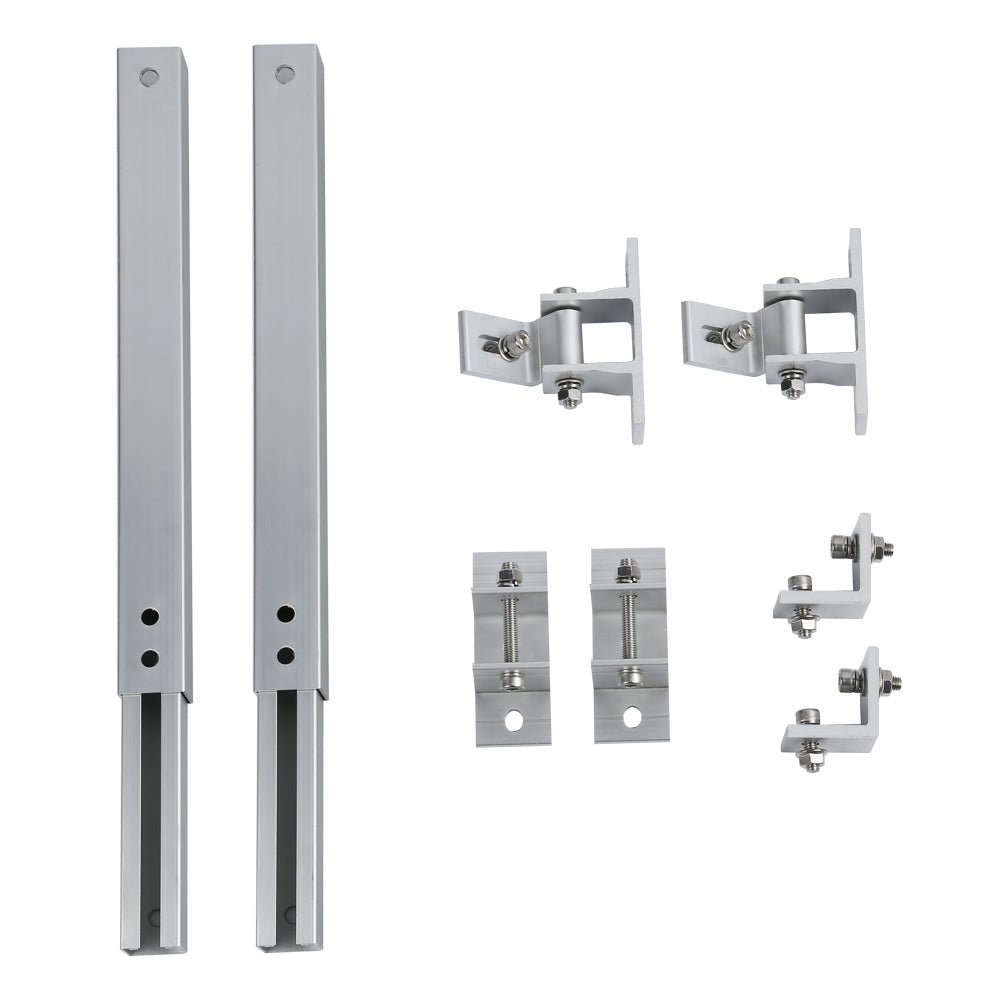

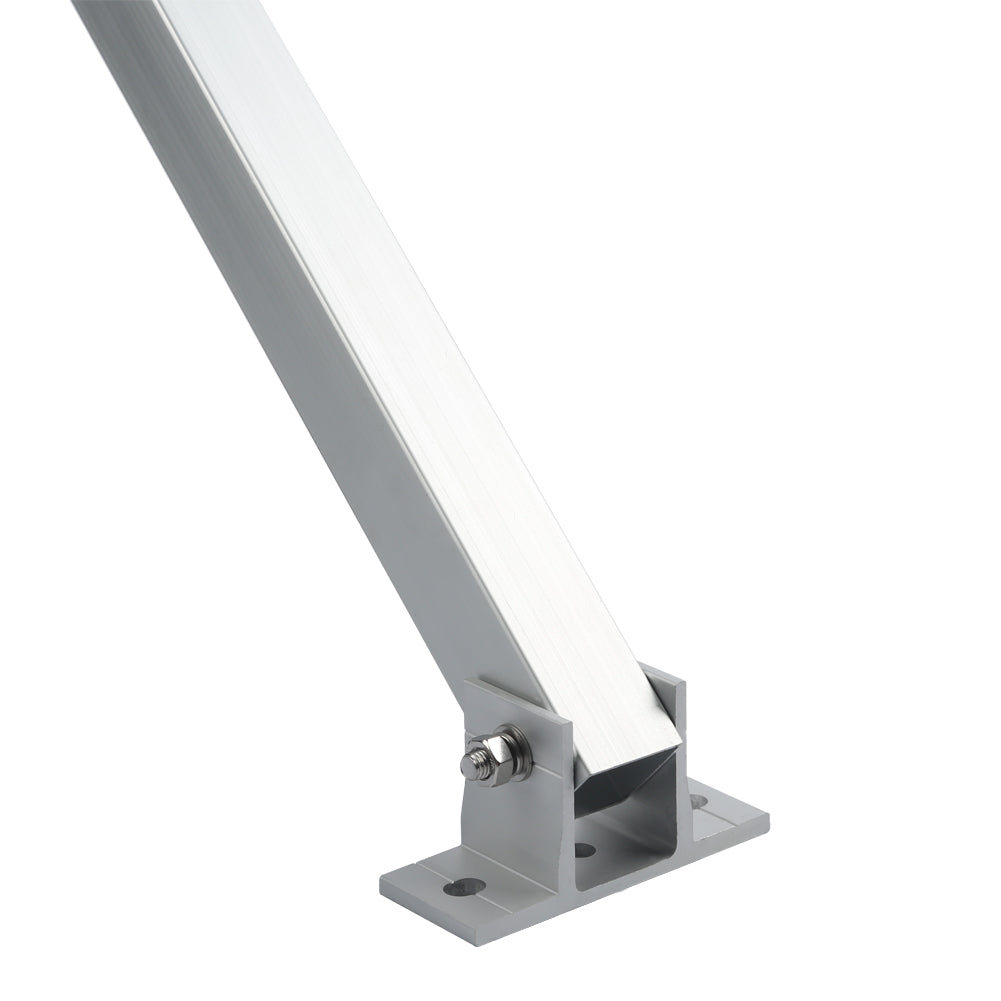

Rooftop Solar Tilt Mount (Aluminum Alloy)
A lightweight aluminum tilt bracket engineered to hold solar panels at an optimized angle on flat roofs and surfaces. Simple to position and install, it helps increase energy yield without heavy framing or complex tools.
Benefits
- Increases daily energy production by allowing panels to be tilted toward the sun.
- Saves installation time with a straightforward, modular design.
- Makes handling and placement easier thanks to a lightweight construction.
- Reduces long-term maintenance with corrosion-resistant aluminum finish.
- Fits common rooftop surfaces so you can upgrade panels without major roof work.
Features

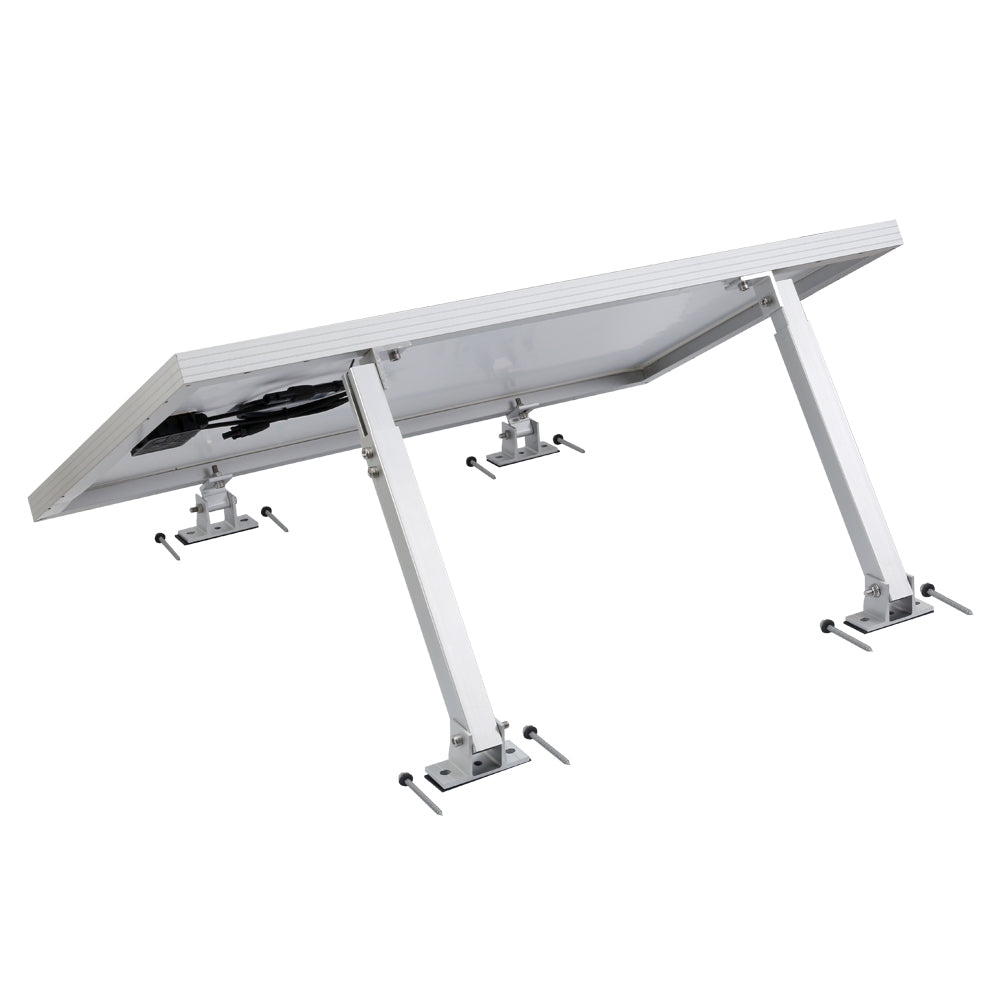

- Positions solar panels at an angled tilt for improved solar exposure.
- Designed specifically for flat surfaces and flat roofs.
- Adjustable tilt range to accommodate different panel sizes and orientations.
- Quick, low-complexity installation with standard fasteners.
- Constructed from aluminum alloy for strength and low weight.

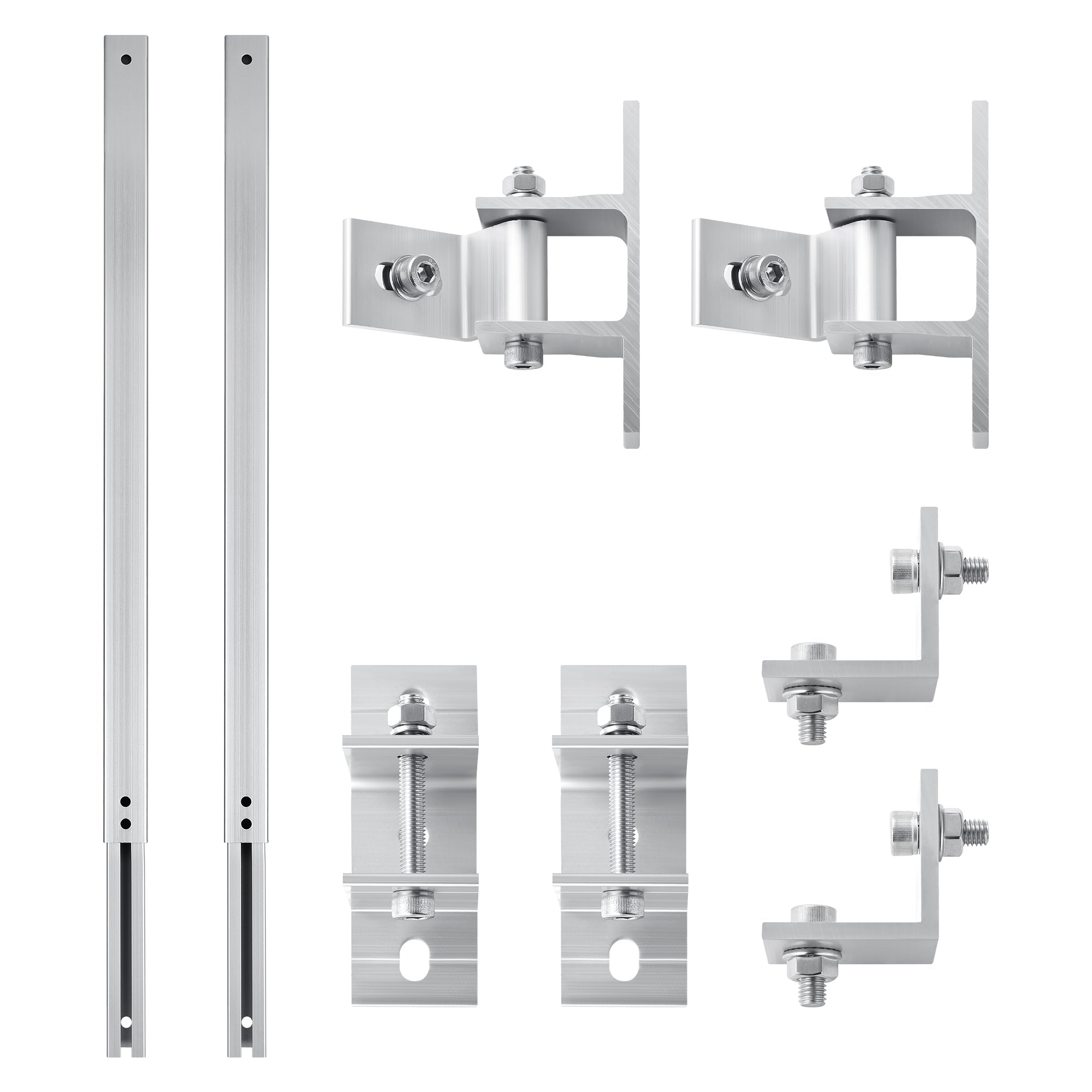

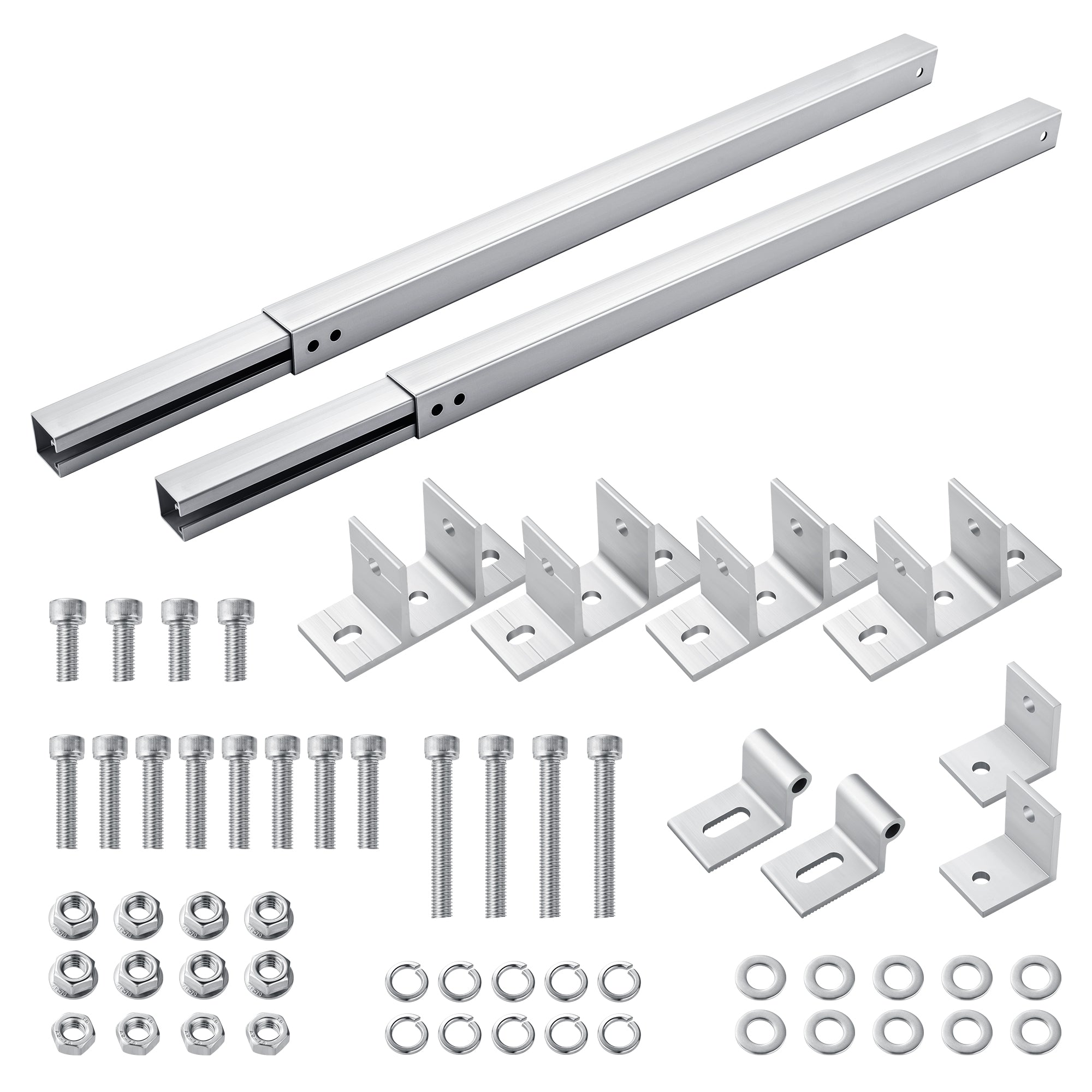

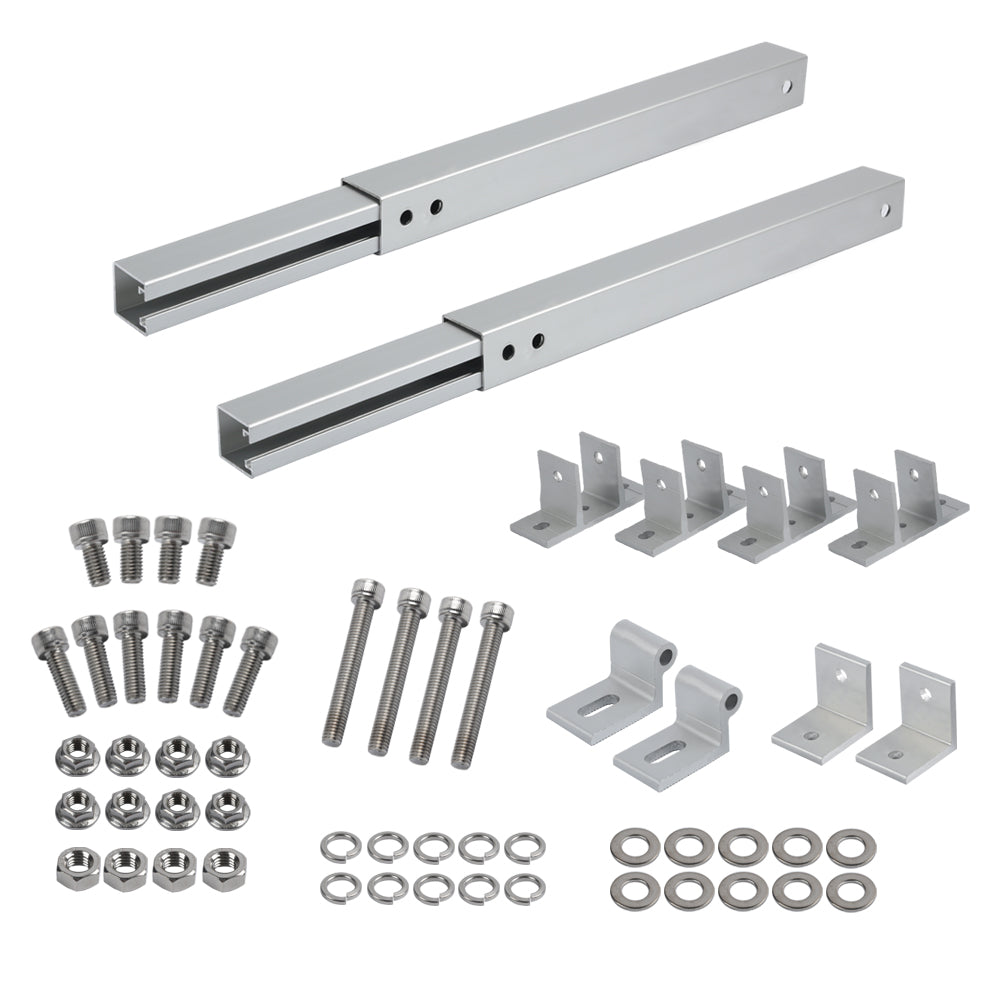

- Modular design allows use as individual brackets or in multi-panel arrays.
Specifications
- Material: Aluminum alloy (anodized/treated for outdoor use, e.g., 6061-T6)
- Typical weight: approximately 1.2–1.5 kg per bracket
- Tilt angle range: adjustable - 10°–35° (actual maximum depends on panel size and mounting configuration)
- Compatible panel size: suitable for most standard PV modules up to ~2.0 m length and ~1.1 m width
- Base footprint: approx. 300 × 180 mm (varies by model)

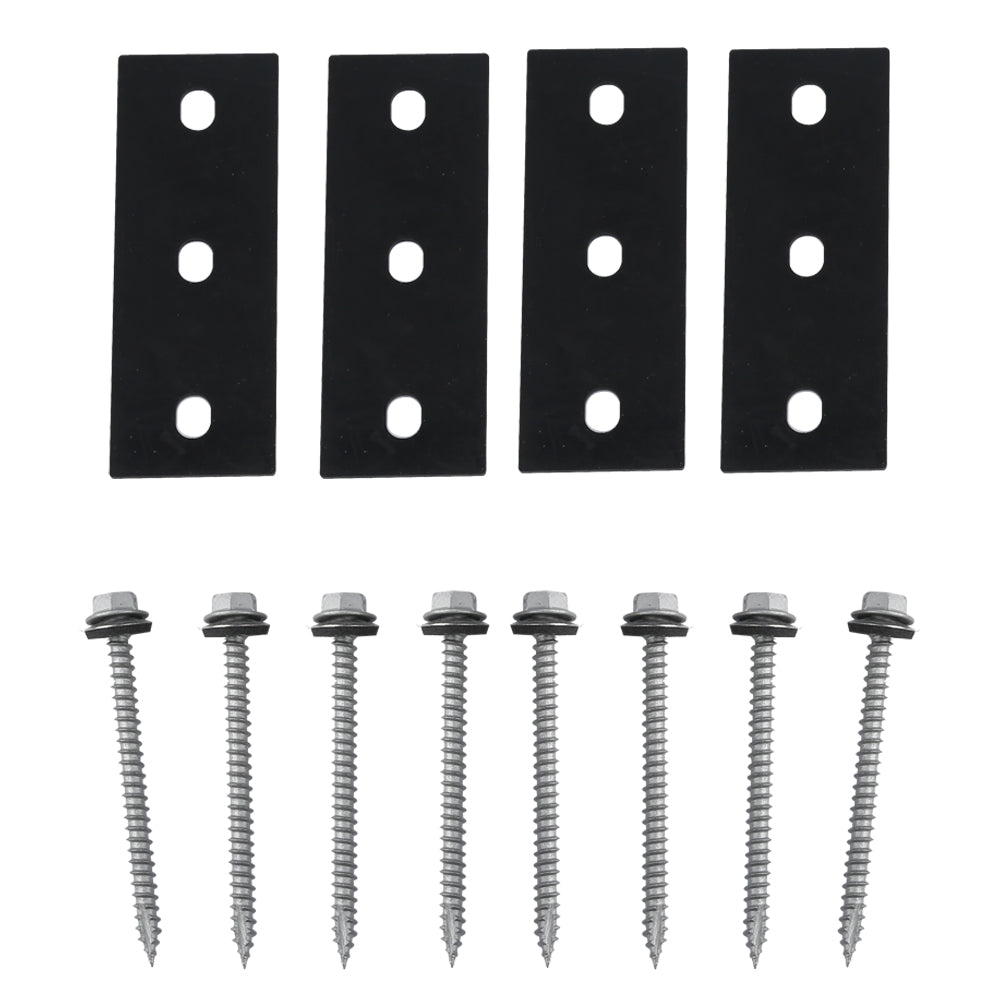

- Fasteners: compatible with M8 stainless steel bolts (hardware not always included)
- Mounting surface: flat roofs, concrete pads, flat metal surfaces or other flat installations
- Operating environment: outdoor rooftop use; corrosion-resistant finish for long service life
