2-Gauge Pure Copper Battery Cables — Pre-Assembled Lugs
Overview

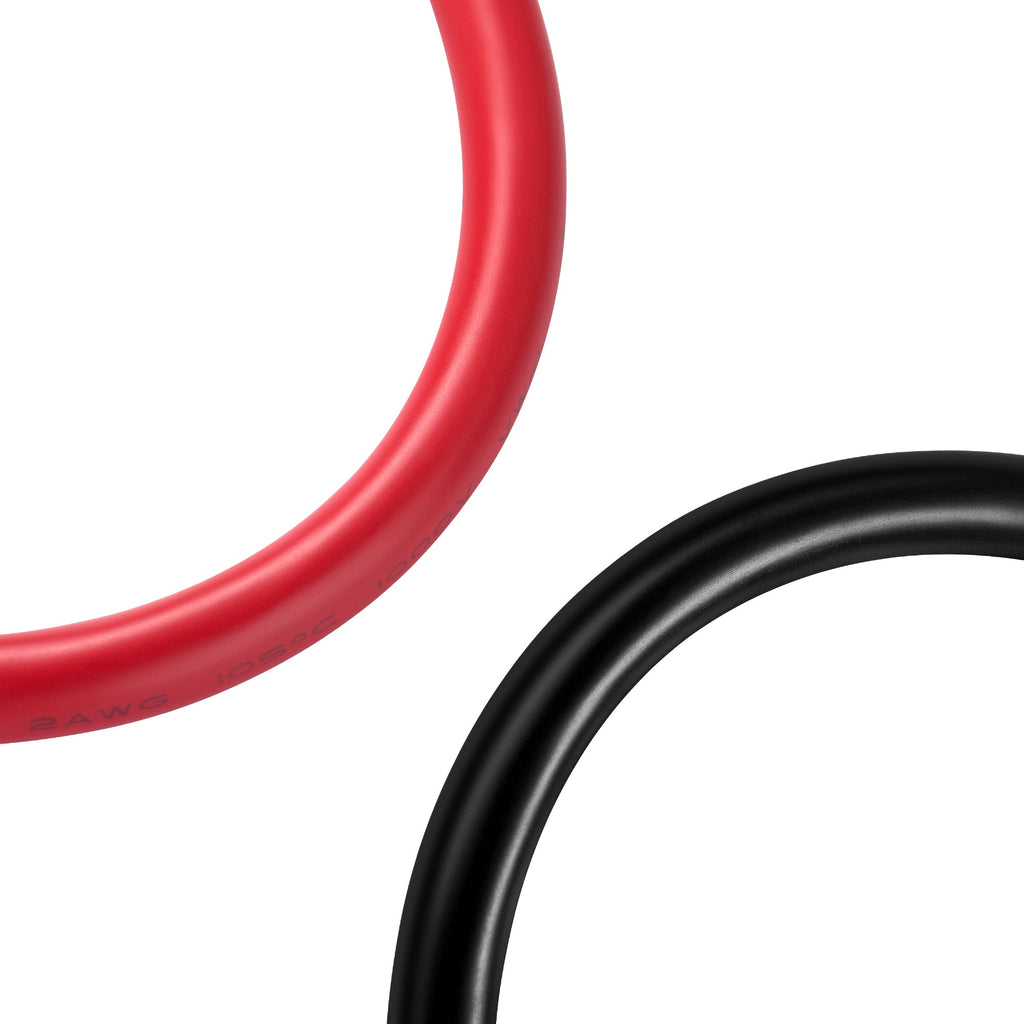

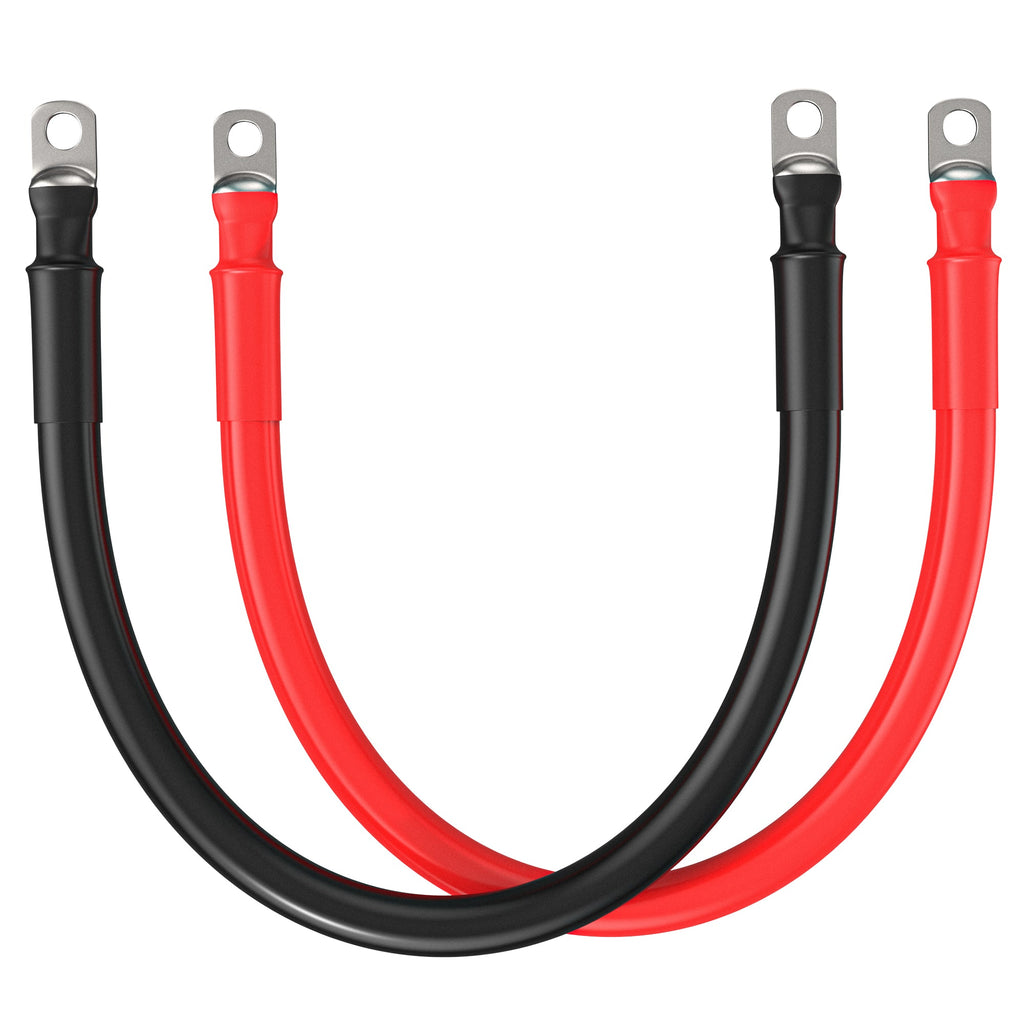

Heavy-duty, flexible 2 AWG battery cables with pre-attached lugs on both ends. Built from 665 strands of 100% pure copper and PVC insulated, these cables are made for vehicle and DC-system wiring where durability, reliable conductivity, and easy installation matter.
Benefits
- Install faster: pre-assembled lugs save time and eliminate crimping on site.
- Reliable power delivery: high-purity copper minimizes voltage drop for better performance of starters, inverters, and audio systems.
- Flexible routing: many fine strands make the cable easy to bend and fit into tight spaces.
- Long-term dependability: PVC insulation and moisture resistance reduce corrosion and maintenance needs.
- Versatile use: works across cars, motorcycles, RVs, campers, golf carts, solar systems and other DC applications.
Features
- 2 AWG battery cable construction
- 665 strands of 100% pure copper conductor
- Lugs pre-assembled on both ends for immediate use
- Polyvinyl chloride (PVC) insulation
- Rated up to 1000 volts
- 194°F MTW rating; UL & CSA rating 221°F
- VW-1 flame test passing and moisture resistant
- RoHS compliant and UL approved
- Suitable for grounding, car audio, power inverters, solar and other DC applications
Specifications
- Conductor: 665-strand, 100% pure copper
- Gauge: 2 AWG
- Insulation: PVC (polyvinyl chloride)
- Voltage rating: up to 1000 V
- Temperature ratings: 194°F (MTW); UL & CSA 221°F
- Operational temperature range: -67°F to +275°F (approx. -55°C to +135°C)
- Shrink ratio: approximately 3:1 at 194°F
- Dielectric strength: 500 V/mil (?197 kV/cm)
- Volume resistivity: 1014 ohm·cm
- Tensile strength: 1500 psi (141 kg/cm²)
