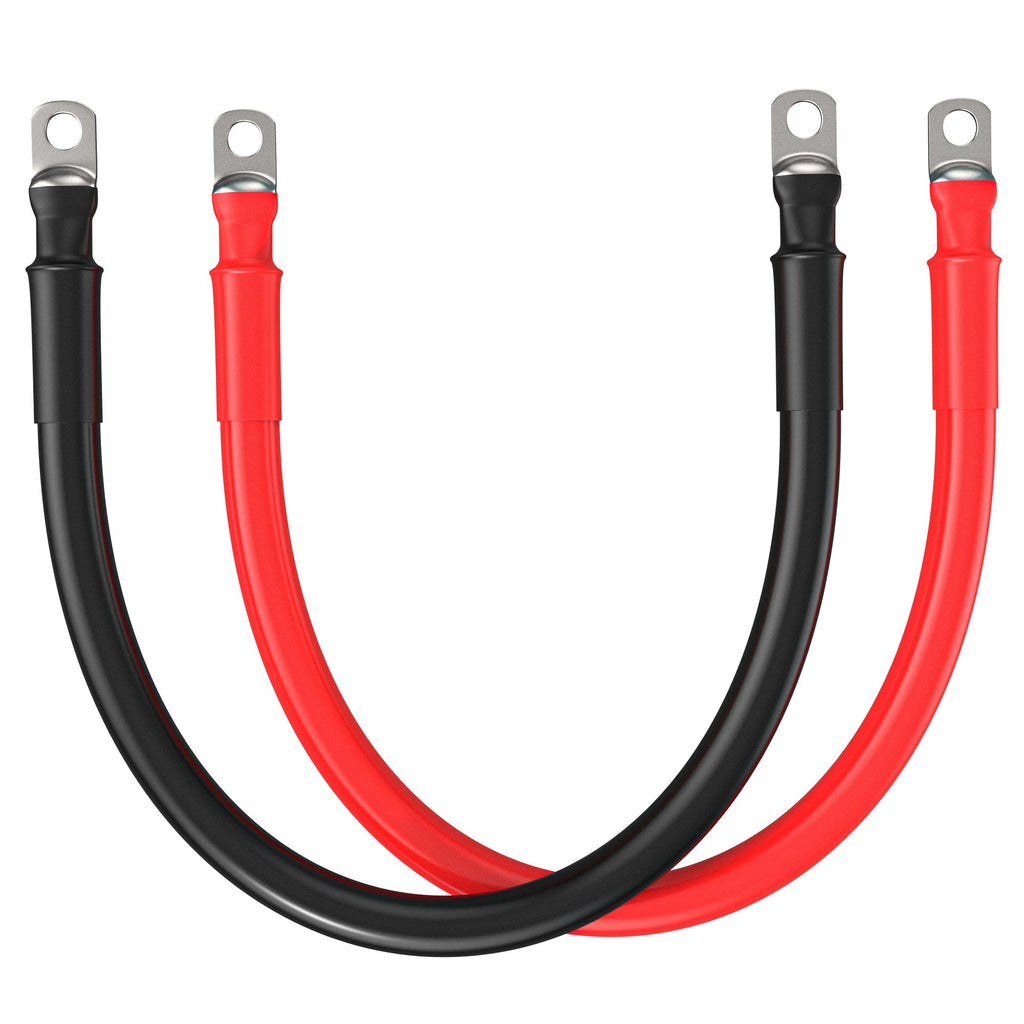

6-Gauge Pure Copper Battery Cable — Pre-Lugged and Flexible
Heavy-duty 6 AWG battery cables built with 665 strands of 100% pure copper and pre-installed lugs on both ends. Designed for automotive, marine, RV, solar and other 12–48V DC systems where a durable, flexible high-current connection is needed.
Benefits
- Save installation time with lugs pre-assembled on both ends — no crimping or soldering required.
- Run clean, reliable power to starters, inverters, batteries and audio systems with minimal voltage drop.
- Flexible strand construction makes routing through tight spaces and around bends easier.
- Reduced maintenance and longer service life thanks to materials that resist heat and moisture.
- Works across many vehicles and systems — from cars and golf carts to campers and solar arrays.
Features
- 6 AWG battery cable with 665 strands of 100% pure copper conductor for high conductivity and flexibility.
- Pre-assembled lugs on both ends for quick, secure connections.
- PVC insulation for abrasion and chemical resistance.
- Rated MTW 194°F; UL & CSA rating 221°F for elevated-temperature use.
- Voltage rating up to 600 volts for a wide range of DC applications.
- VW-1 flame test passed and moisture resistant construction.
- ROHS compliant and UL approved.
Specifications
- Conductor: 100% pure copper, 665 strands
- Gauge: 6 AWG
- Pre-assembled lugs: Yes — both ends
- Insulation: Polyvinyl chloride (PVC)
- Temperature rating: MTW 194°F (UL/CSA 221°F)
- Operational temperature range: -67°F to +275°F
- Voltage rating: Up to 600 V
- Shrink ratio: Approximately 3:1 at +194°F
- Dielectric strength: 500 V/mil (197 kV/cm)
- Volume resistivity: 1×10^14 ohm-cm
- Tensile strength: 1500 psi (141 kg/cm²)
- Approvals: UL approved, ROHS compliant
